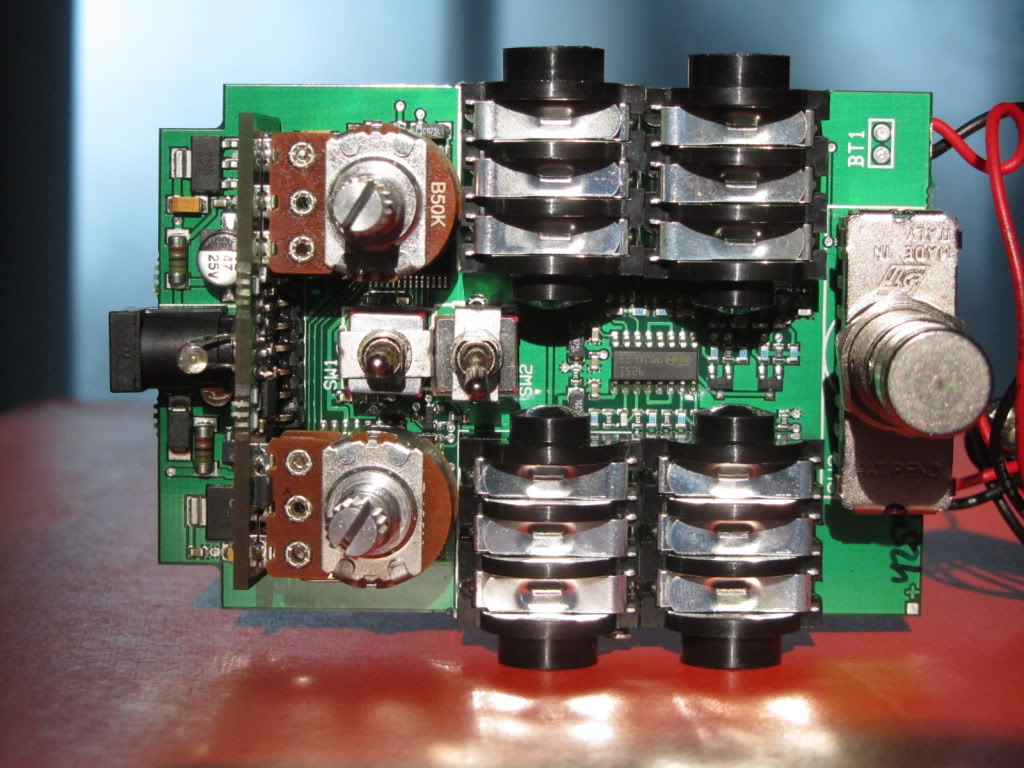

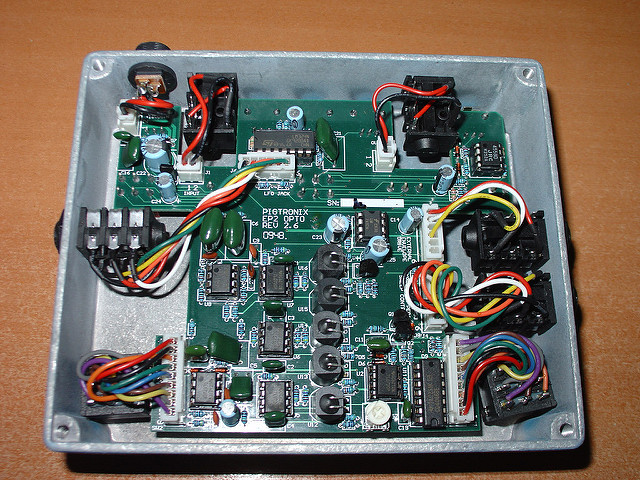

Show your pedal guts.
- Thread starter iamdenialNJ
- Start date

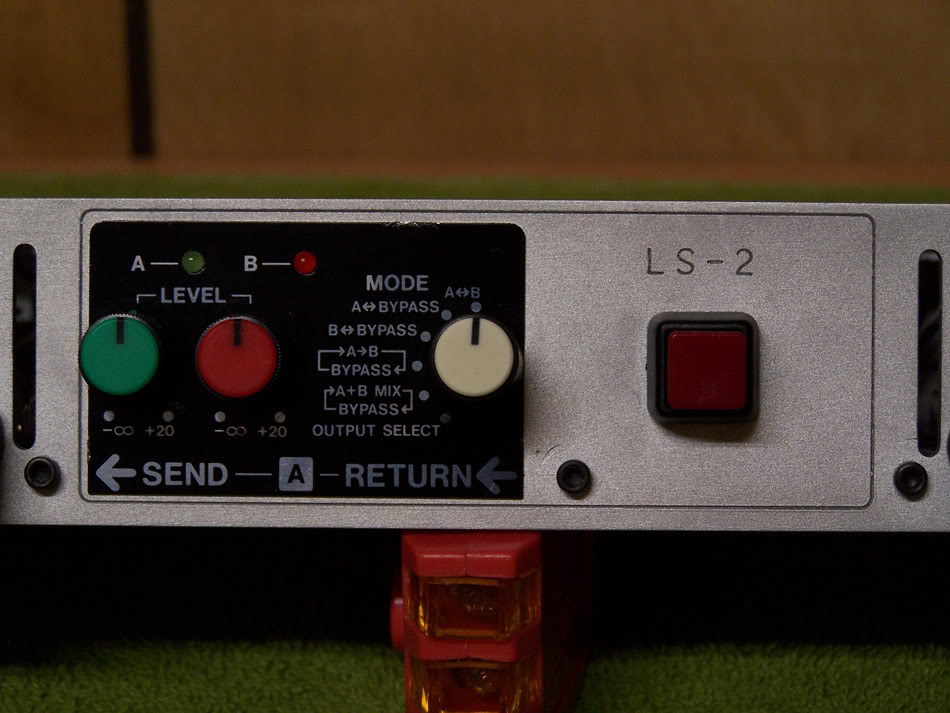

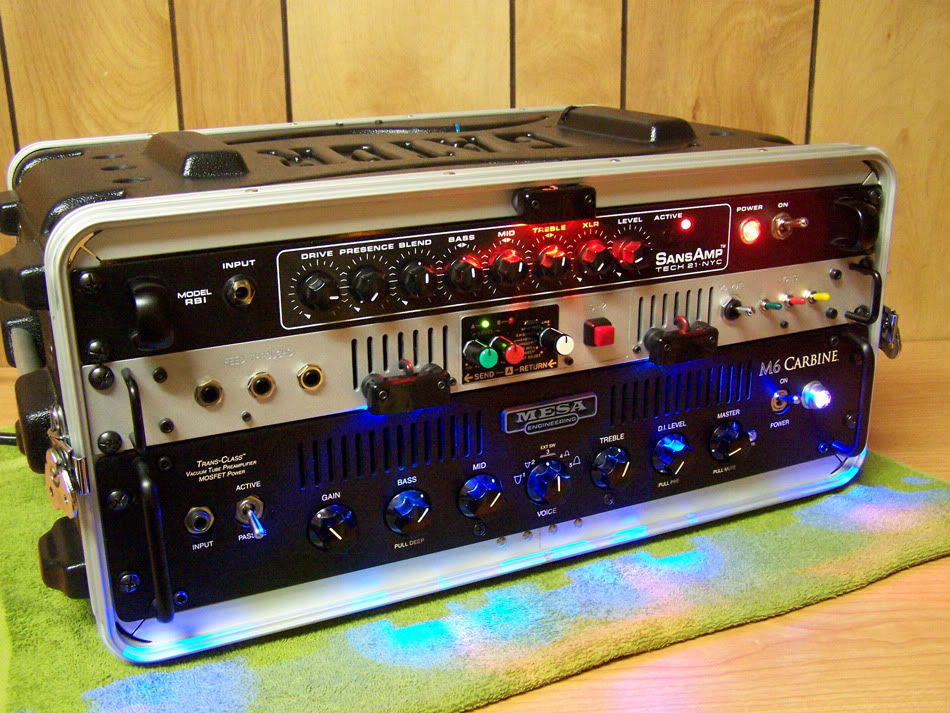

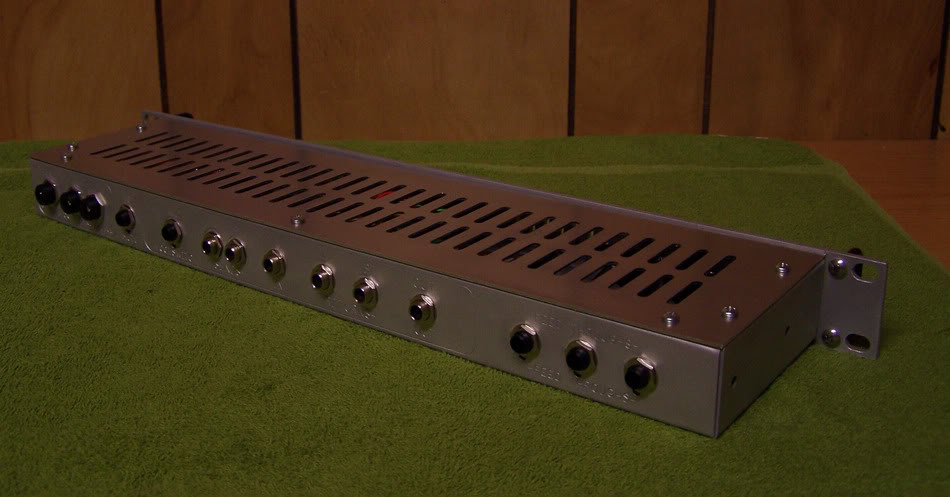

Got the Boss LS-2 rehouse done.
badass!
What do the toggle switches do? I assume one of them turn the lights on?

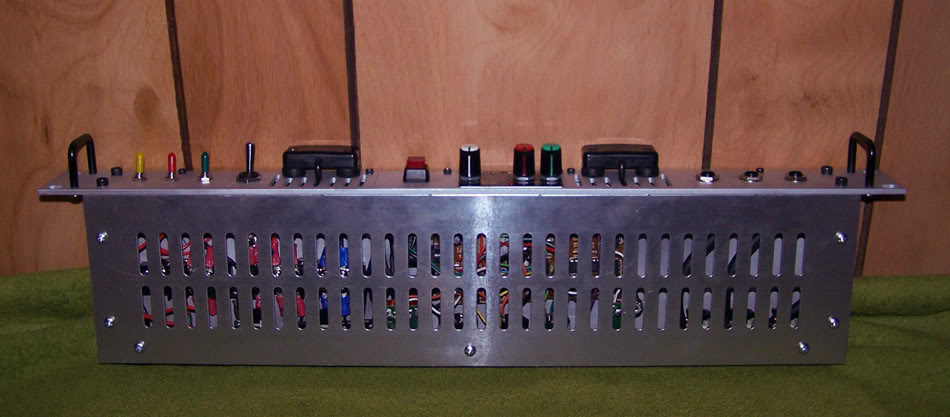

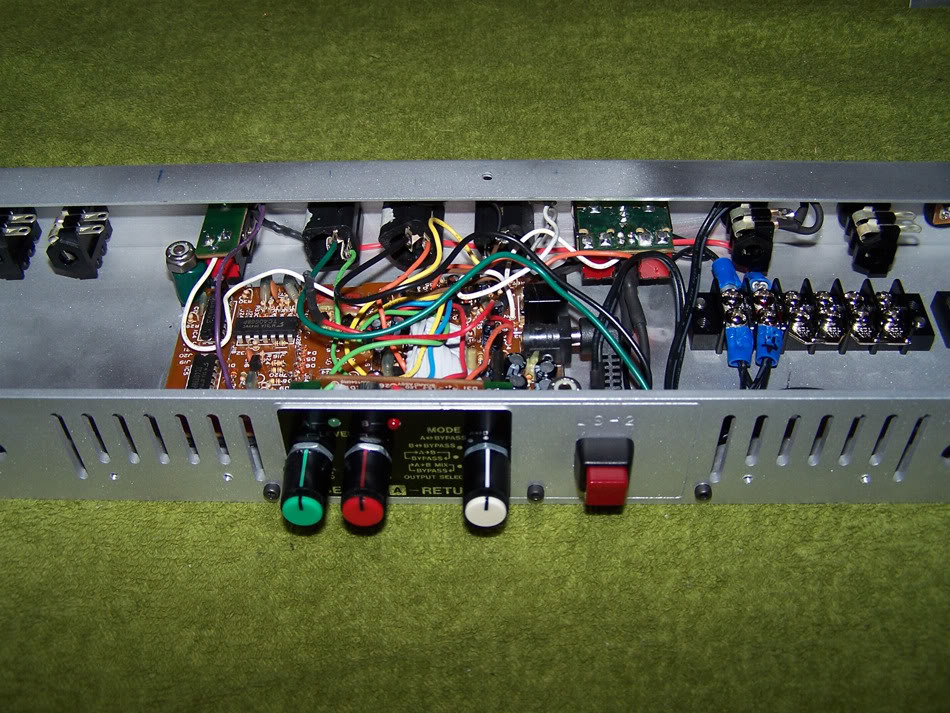

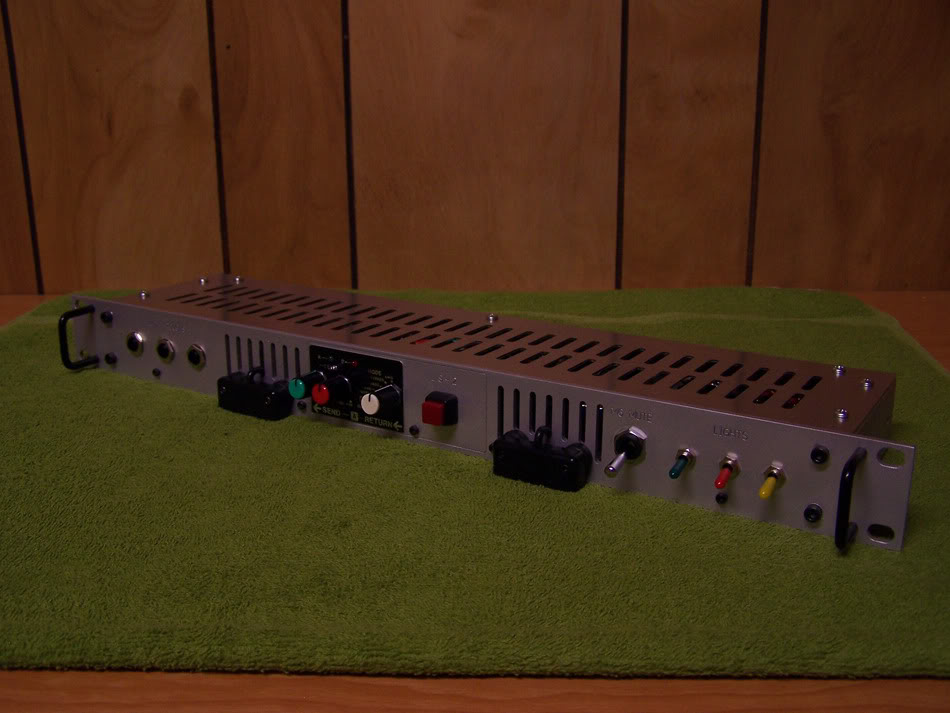

Thanks, the big chrome toggle is for the Meas M6's mute.
The little green toggle is for the units internal blue LED lights.
The red one is for the external red light (I'm going to add another red LED later).
And the yellow toggle is for the external orange LED in the back of the rack (I'm going to add another orange LED later also).

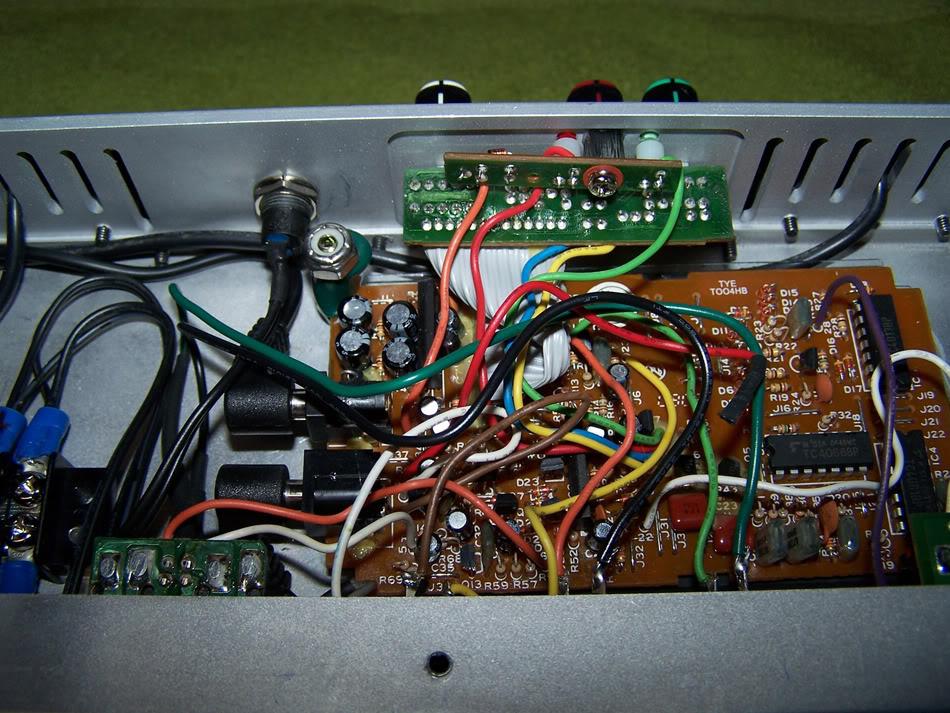

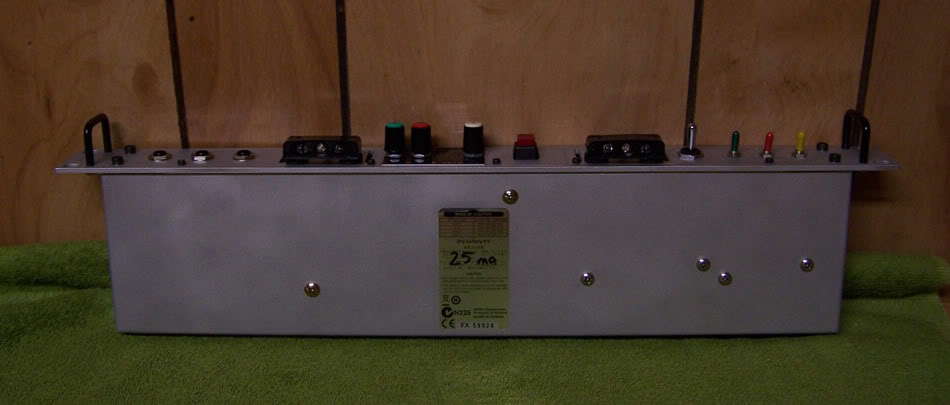

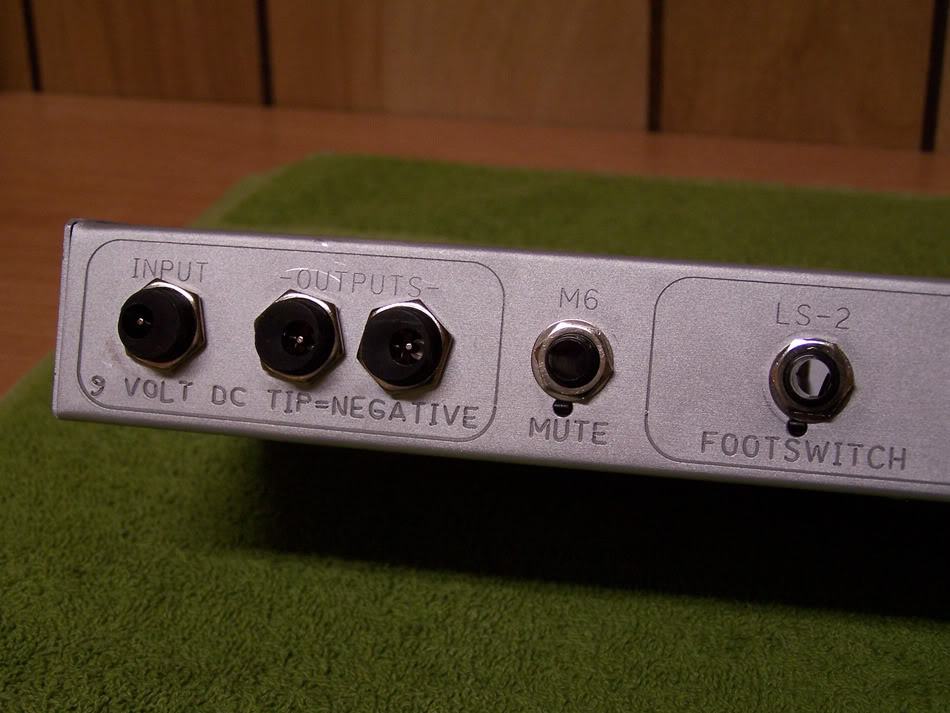

The red and orange external LED's are plugged into the 2.1mm X 5.5mm 9 volt DC out jacks on the back of the
selector unit, which can also be used to power other 9volt stuff such as pedals ect.
Silent Fly
Commercial User
I'm falling in love with the EarthQuaker Devices Rainbow Machine. Sounds good, looks good inside and out!
I'd love to try it with my bow...
I'd love to try it with my bow...
nice work ccouch7

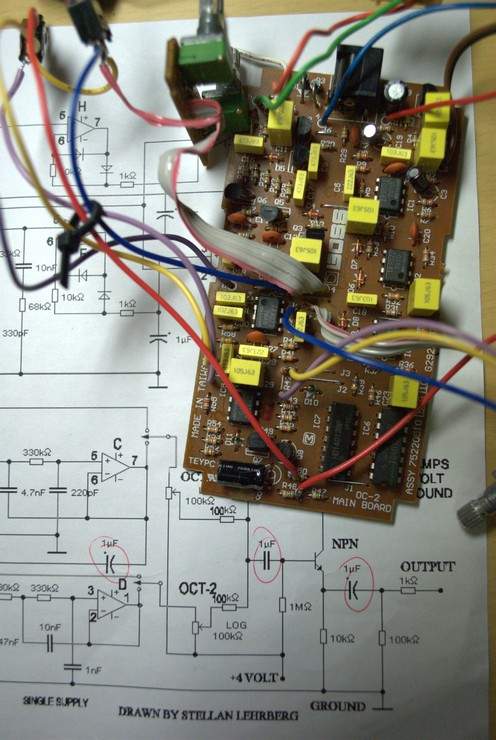

I just wish Boss made their Pedals like this. Love my OC-2, hated those cheap caps. This also has a variation on the synth mod, hence the extra wires.
What kind of sonic difference do feel the cap change made?
Guyatone FL3 Flanger
Points of interest:
1. same MN3207 & MN3102 bucket brigade chips as the coveted Boss BF2.
2. PCB is still marked FL2

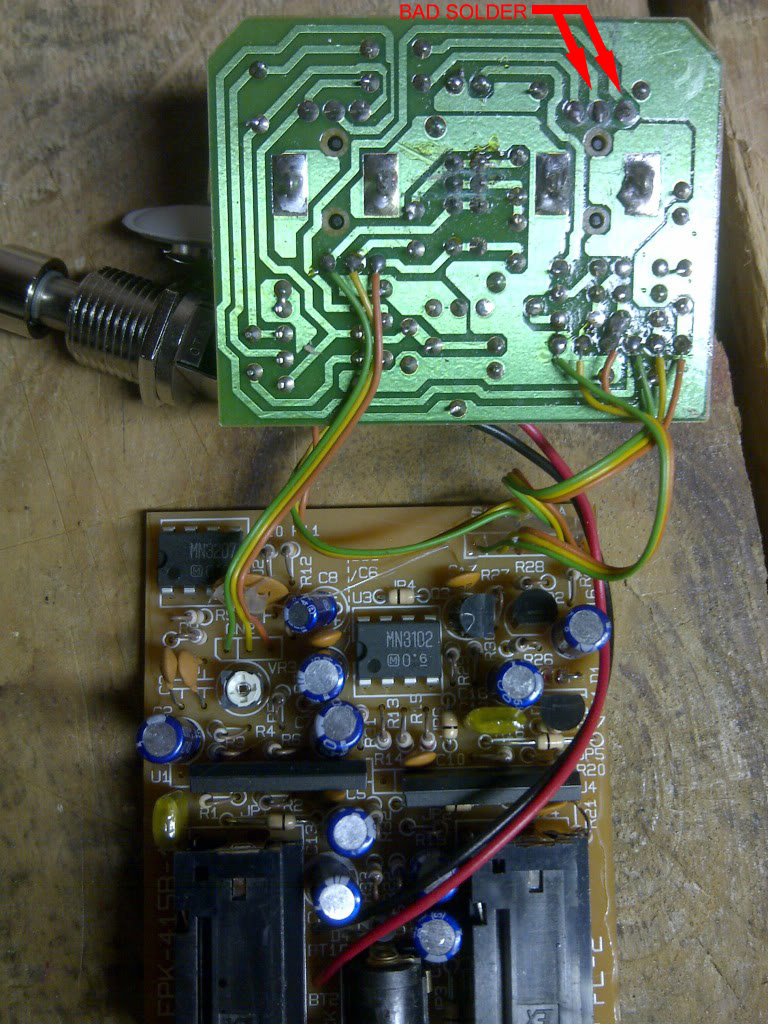

3. While reassembling this pedal, tightening down the outside retaining nut to the 'rate' potentiometer, I cracked the solder joints at the base of the pot. Tested the pedal after reassembly and could hear some filtering but no sweep. Took the pedal apart again, resoldered all three contact points plus both support lugs since all those joints looked cold set. Tested it, worked fine again, then reassembled. In the photo the two bad joints that cracked are clearly visible.
Points of interest:
1. same MN3207 & MN3102 bucket brigade chips as the coveted Boss BF2.
2. PCB is still marked FL2
3. While reassembling this pedal, tightening down the outside retaining nut to the 'rate' potentiometer, I cracked the solder joints at the base of the pot. Tested the pedal after reassembly and could hear some filtering but no sweep. Took the pedal apart again, resoldered all three contact points plus both support lugs since all those joints looked cold set. Tested it, worked fine again, then reassembled. In the photo the two bad joints that cracked are clearly visible.
Mingus Addict said:
Also really interested in this query. I love me some OC2 but if it can be beefed up easily and with something as simple as a cap swap I'm SSOOO down to try.
- Jun 25, 2006
- 3,226
- 341
- Disclosures
- Owner, Pike Amplification & 3Leaf Audio
The component side of the board is facing up, so you'd need to disassemble the entire pedal to see anything.
To give an honest answer I would need to A/B it with another unmodded OC-2. If I ever get the chance I will post it.
My experience with other Boss pedals says that the Opamp adds more noise than the Caps. However, with the OC-2 there are a lot of 1microF electrolytic caps in the signal path which at some point would need replacing anyway. I just jumped the gun and gave it an overhall whilst I had it in peices for the synth mod.

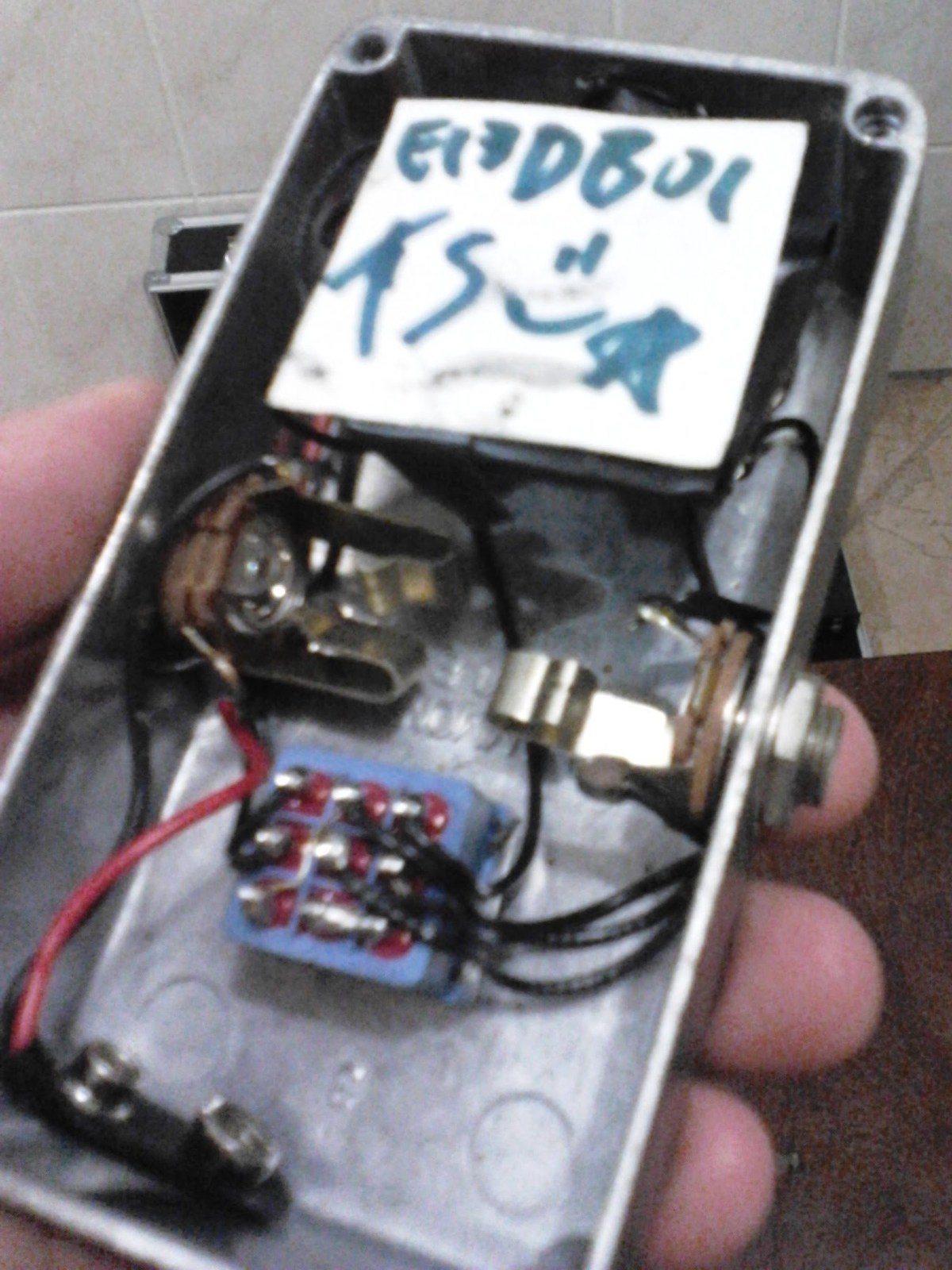

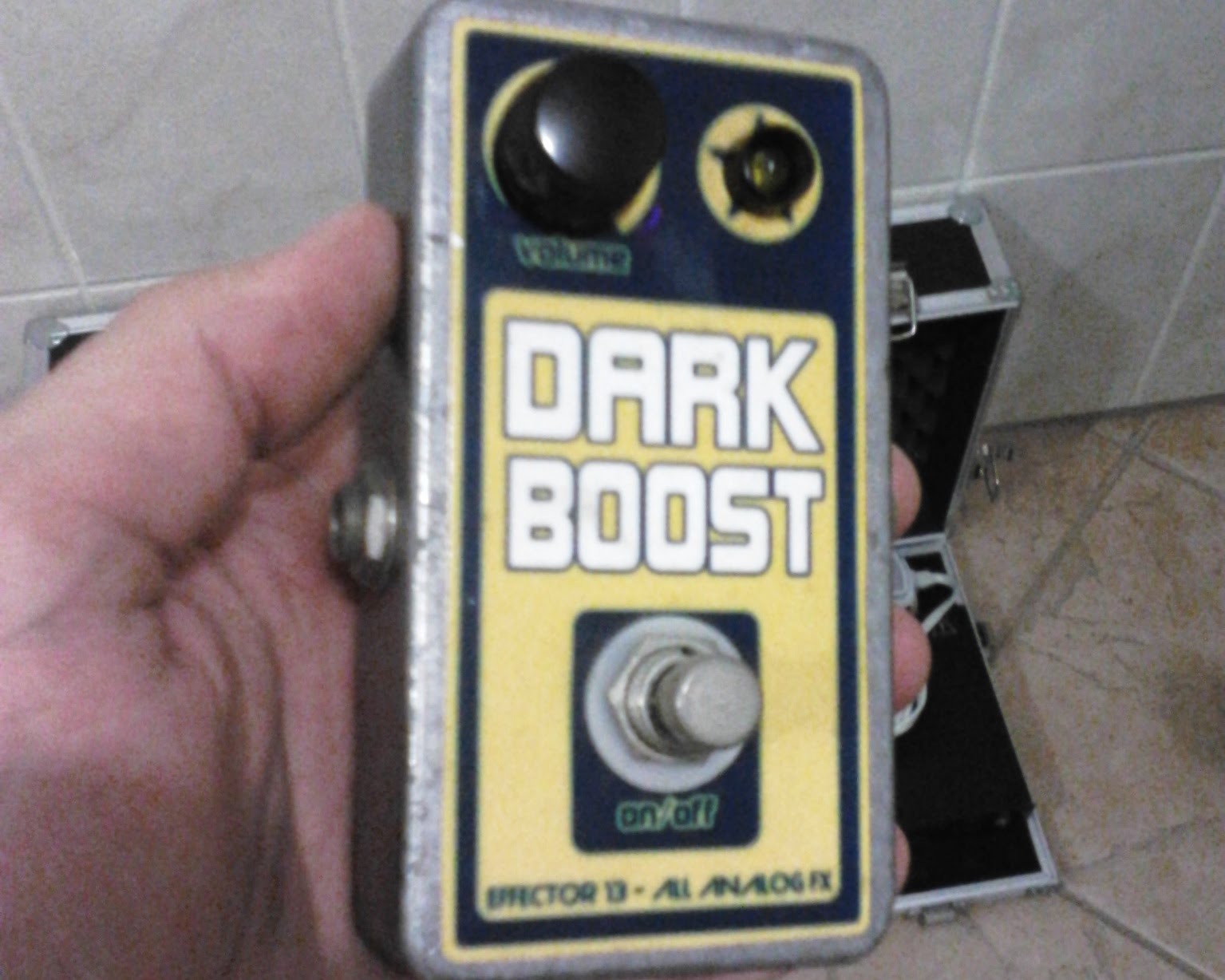

Old Dark Boost:

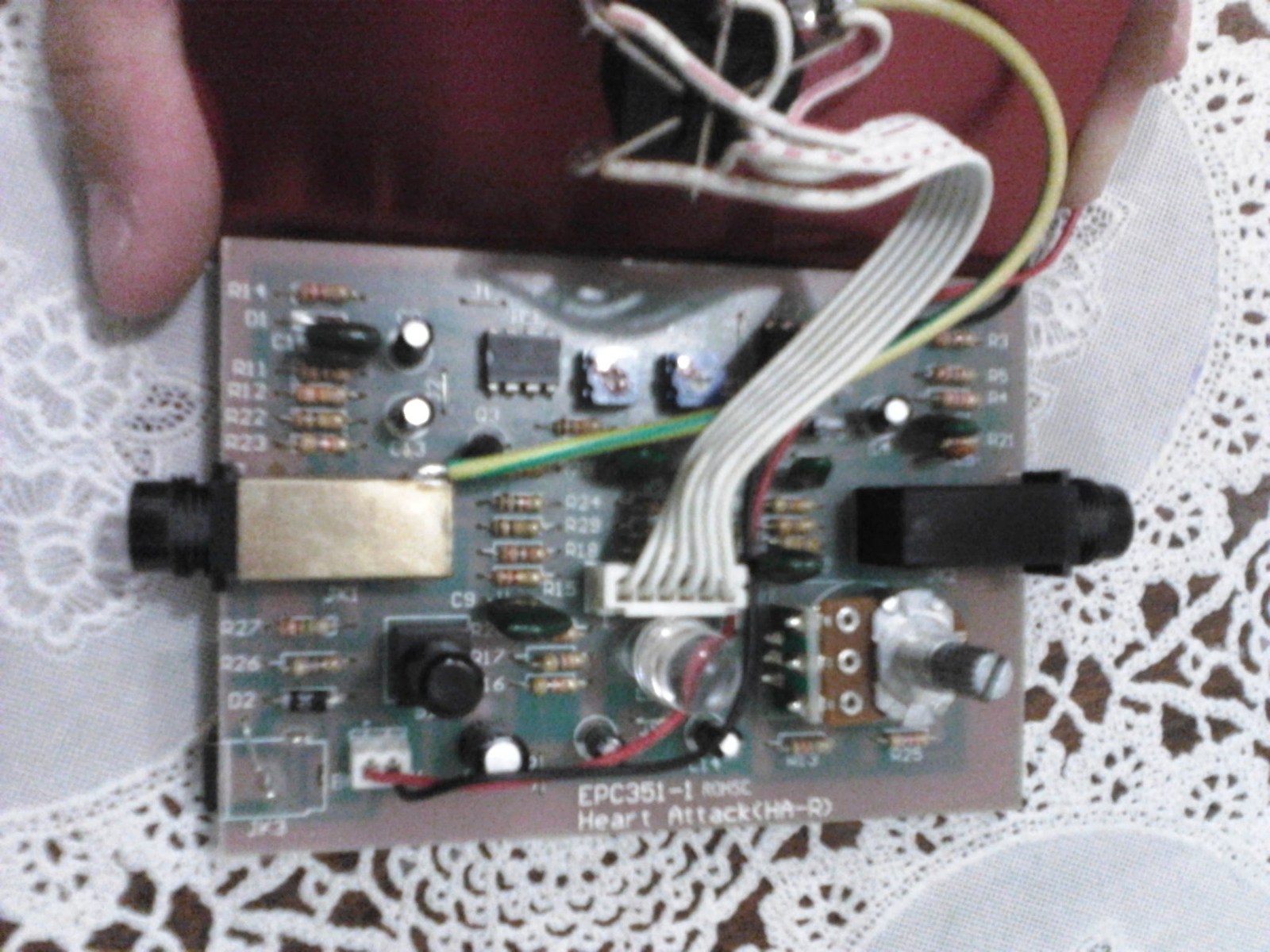

Rocktron Heart Attack:

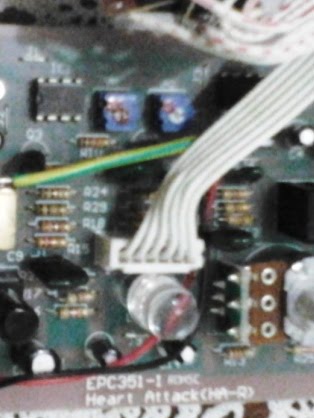

So you can see here that the Heart Attack have the internal trimpots, just like the bassballs. Mine is out for the trimpot mod.
Sorry bout the phone pics, but when I got to get open the pedals my camera had no battery...
Rocktron Heart Attack:
So you can see here that the Heart Attack have the internal trimpots, just like the bassballs. Mine is out for the trimpot mod.
Sorry bout the phone pics, but when I got to get open the pedals my camera had no battery...
