Show your pedal guts.

[sillyfabe]

MSLP Noise Supressor



[Jordan S.]

Nice! Love the pretty pink wiring...



[gastric]

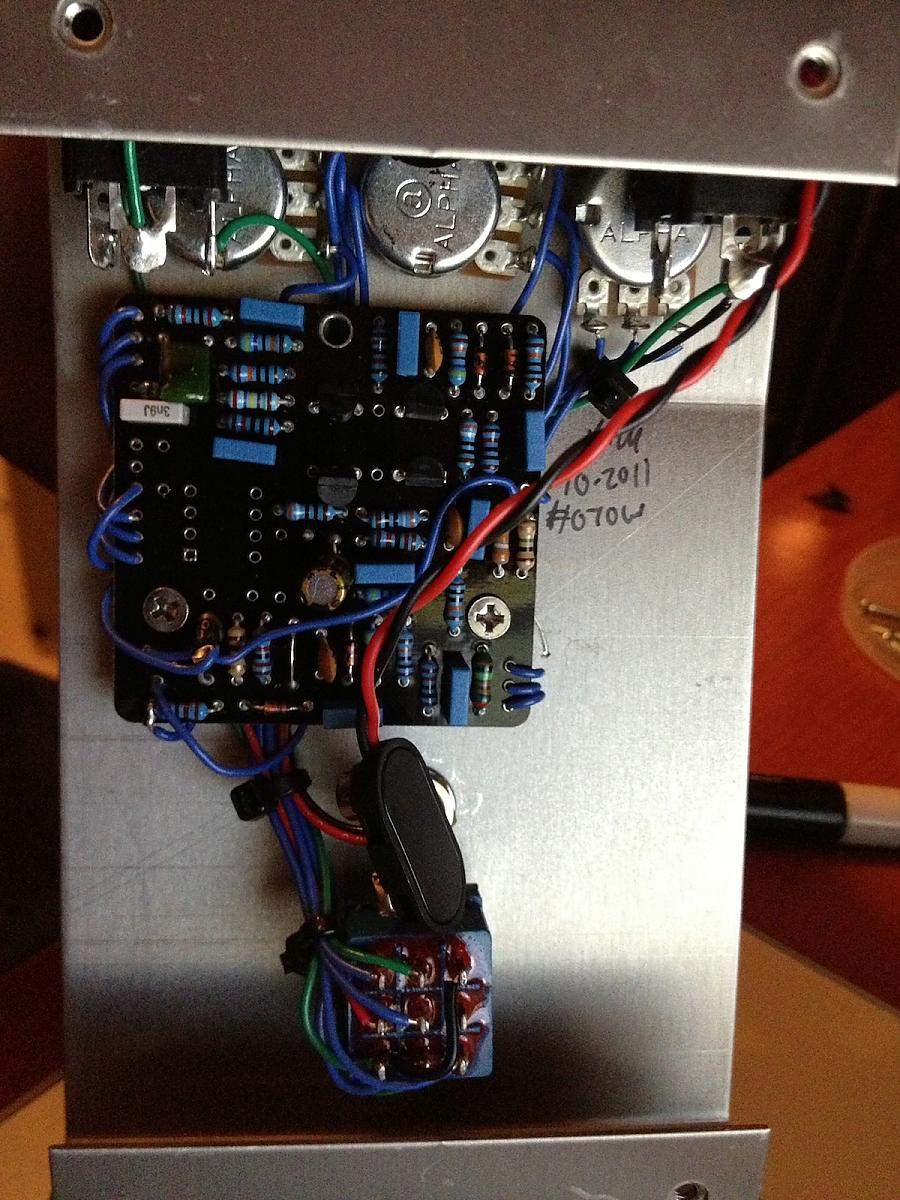

Devi Supermassive Black Hole

One of the cleanest builds I've seen. Pots hold the PCB, precise bends in the bare wire, great wiring placement, excellent soldering.



[gastric]

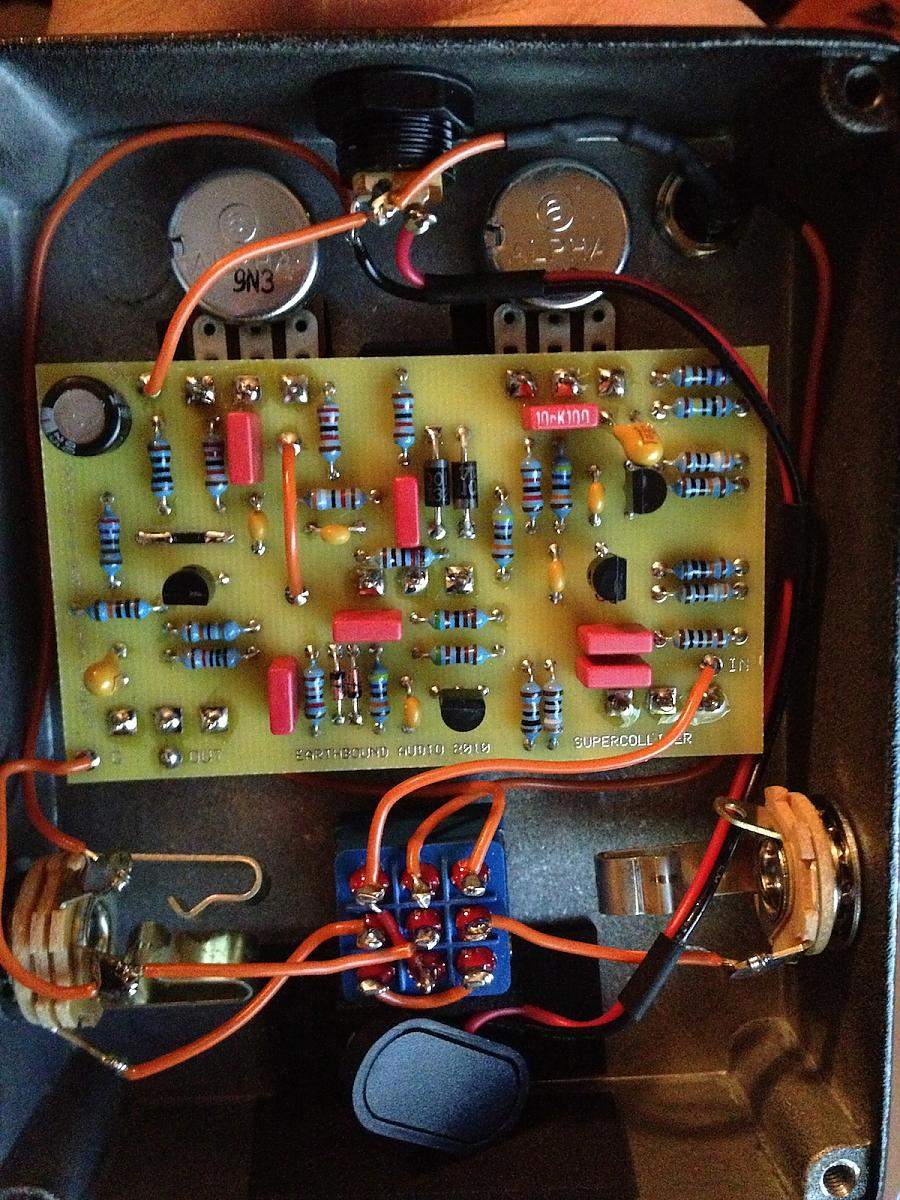

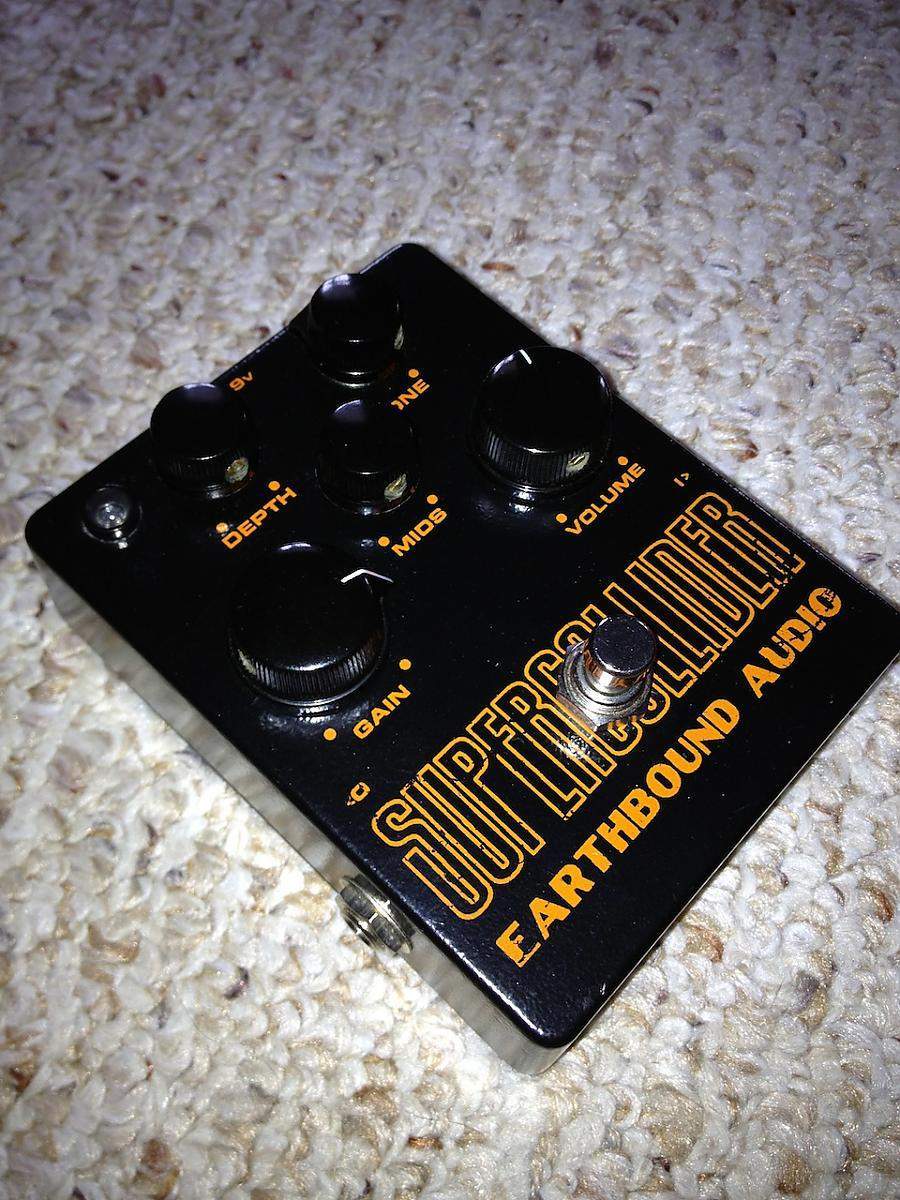

Earthbound Audio Supercollider V2

I didn't even know there was a battery connector in there.

Ahhhh!!!! I went and reviewed all of the other photos. Small world! My Supercollider is #177 which is the same one posted nearly 2 years ago on the first page. Too funny! http://www.talkbass.com/forum/f36/show-your-pedal-guts-653387/#post10066896



[gastric]

Wren and Cuff Box of War

A giant, 1lb 6oz box (the base of the chassis is 11.2oz of that) for the tiny components.



[icecycle66]

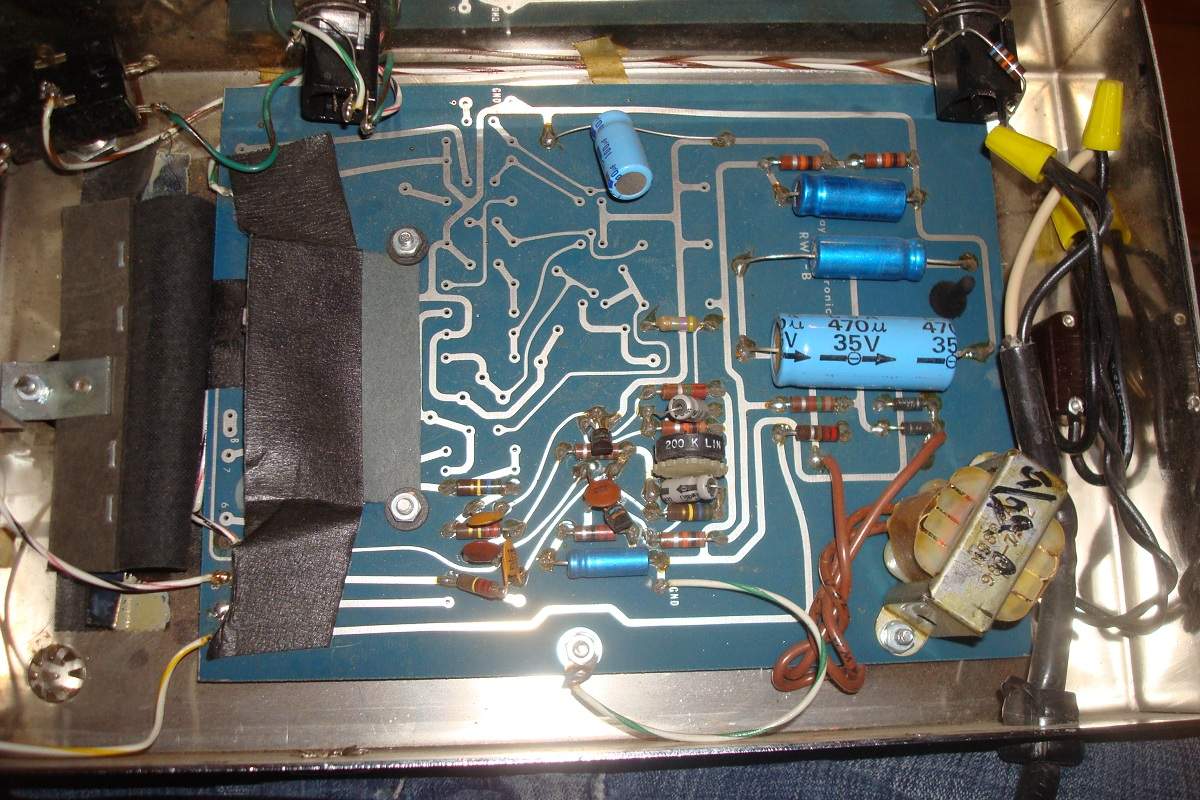

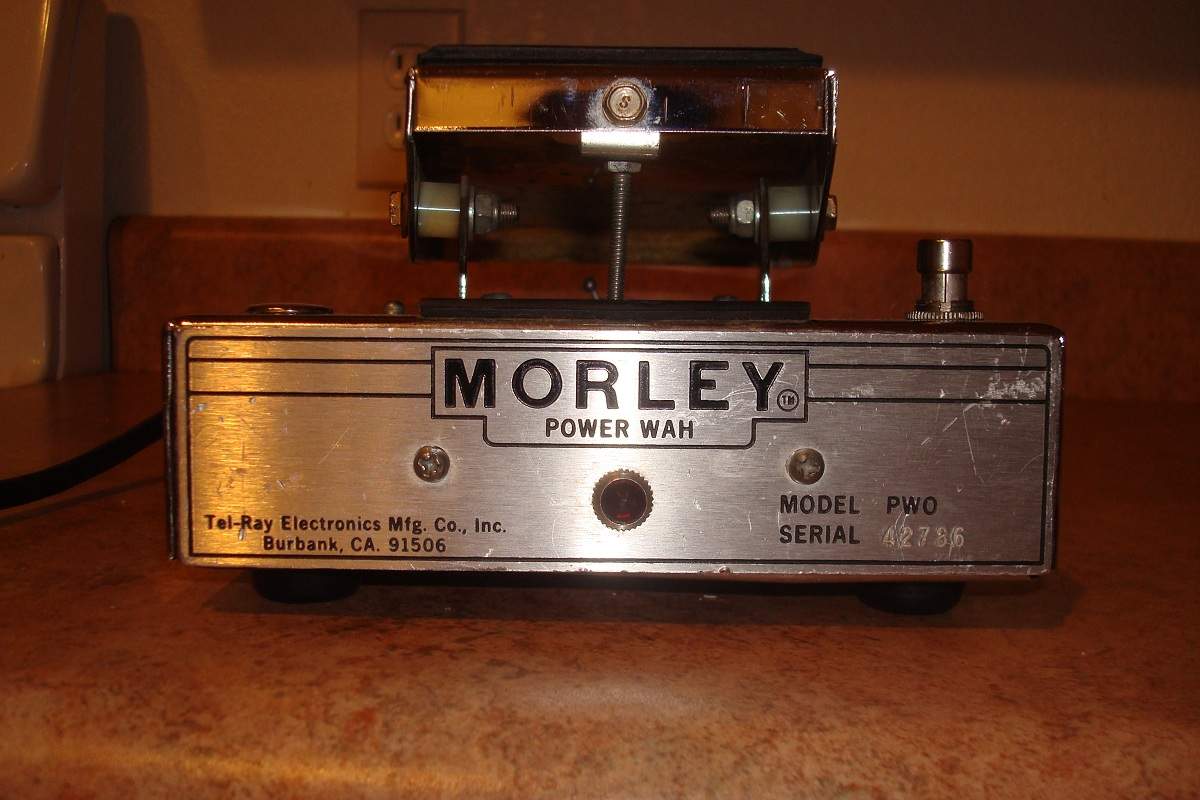

Morley Power Wah



[Gadgetjunky]

source audio pro

[Invalid or Expired Link Removed]



[Josh Pelican]

Devi Supermassive Black Hole

One of the cleanest builds I've seen. Pots hold the PCB, precise bends in the bare wire, great wiring placement, excellent soldering.

Damn impressive. Looks like a relatively simple build compared to some of the pedals in here!



[G.Bisson]

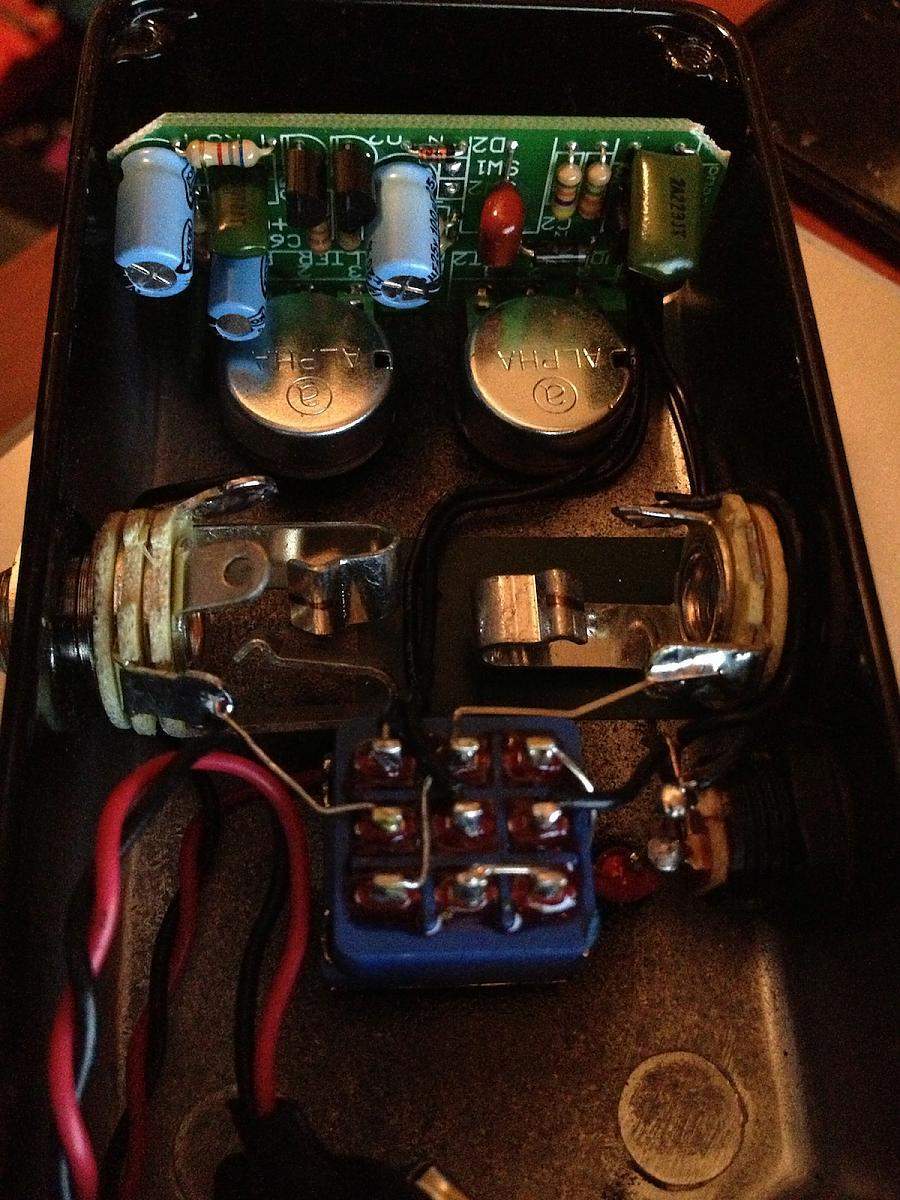

JHS Four Wheeler (Woolly Mammoth clone)



[G.Bisson]

not a pedal but about the same size. This is the inside of my Ohm meter.



[smllsnd/bigsnd]

i haven't done a gutshot of any of my stuff for a while now so here's one of the newer TAFMs.



[EskimoBassist]

Brian that is neat as f**k.



[icecycle66]

not a pedal but about the same size. This is the inside of my Ohm meter.

Dude, did you explode a fuse?



[Steveaux]

i haven't done a gutshot of any of my stuff for a while now so here's one of the newer TAFMs.

Very tidy.

Well done.



[G.Bisson]

Dude, did you explode a fuse?

Looks like it. Bought the meter used at a garage sale for dirt cheap. Still works fine.



[jmorbita]

just today I took a pic of my electronix messdrive guts because there was an issue with it, so here it is!

A wire snapped and the pedal was actually working as a mute pedal instead of fuzz... soldered it today and fixed it. this pic is prior to fixing it.



[sillyfabe]

WMD Geiger Counter with bass mod

WMD Super Fatman



[cheapbasslovin]

Dude, did you explode a fuse?

Resistor 7 there looks smoked. I don't know exactly what it does, but I expect there's at least one setting that isn't working quite right. Not trying to be the bearer of bad news, but you may want to try to find a way to test the meters functions under known conditions before assuming it works fine.

If you've done that on all the settings then you may be good, but it makes me uncomfortable looking at it.



[dunwichamps]

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed



[LOCOPELAND]

Winning!!! ^^^
