Show your pedal guts.

[gastric]

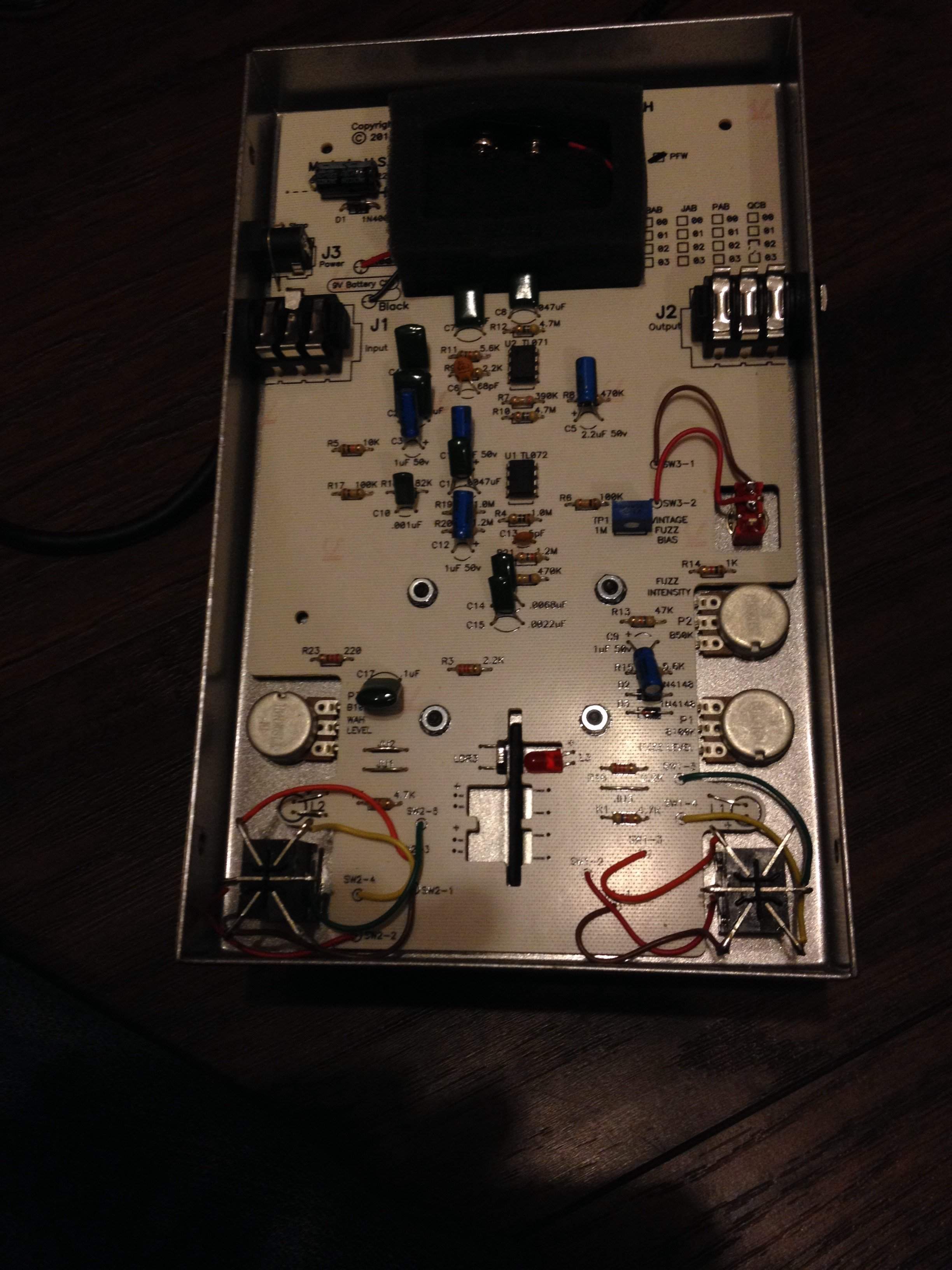

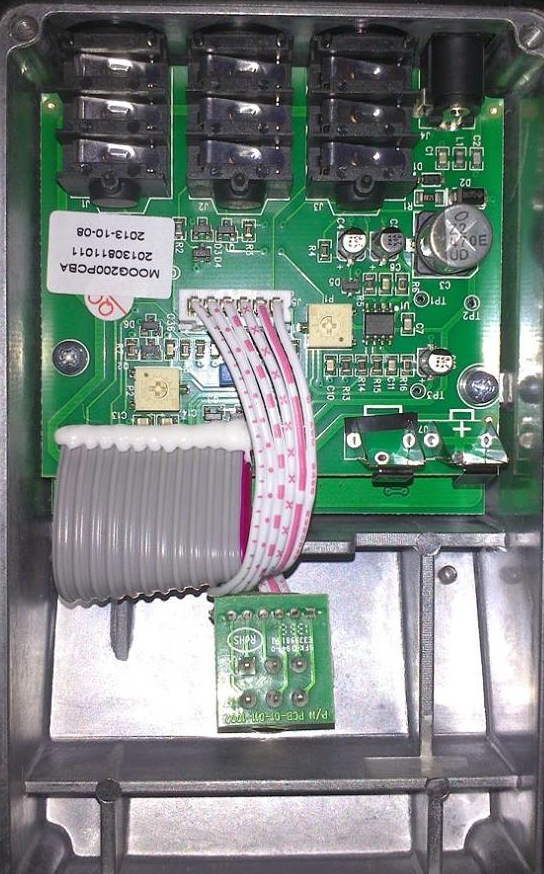

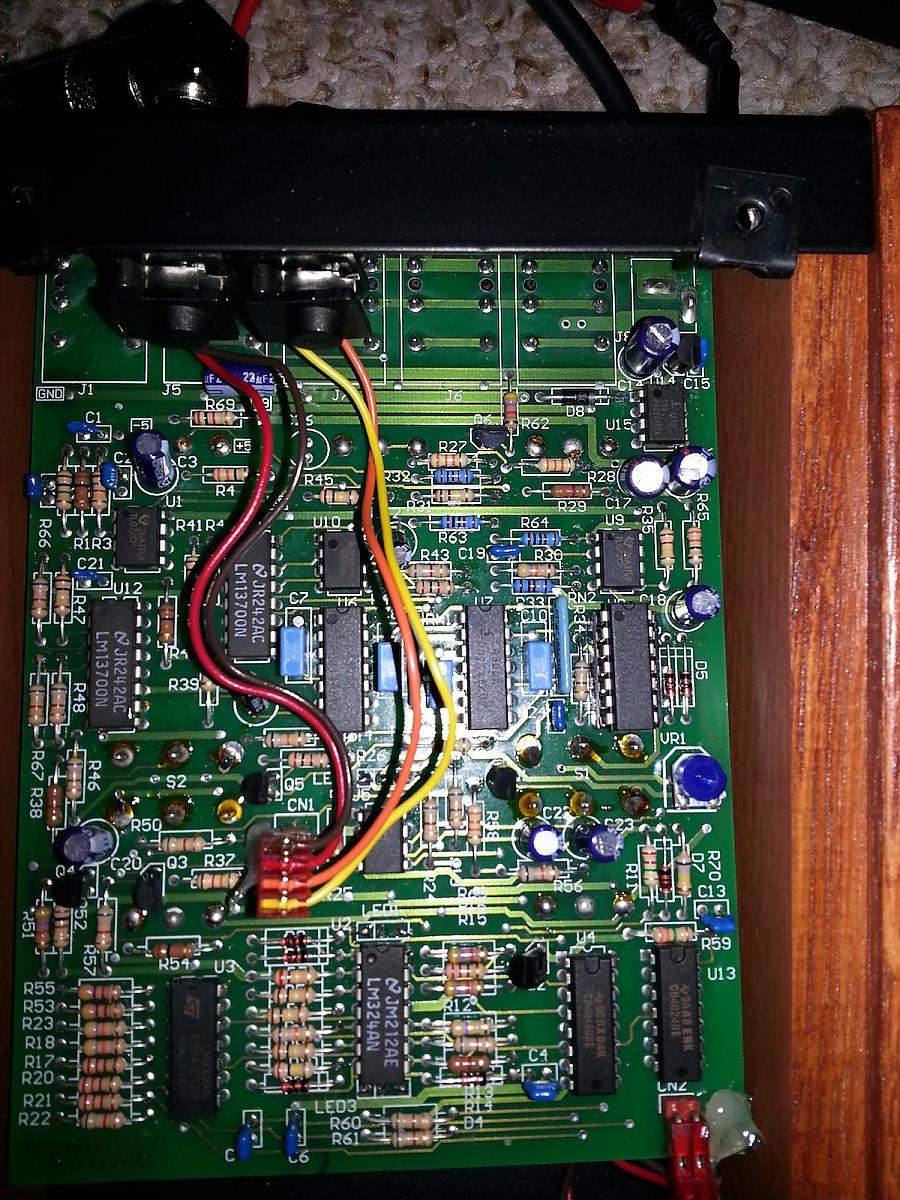

Moog MF-101 Low Pass Filter



[insomniac2295]

Does anyone have some pics of a Fulltone Bassdrive's guts (either version)? I've seen some pics but they're either poor quality or too small. I'm working on a clone and need some good pics.



[johnk_10]

if it helps, here's a pic of the internals of my bassdrive clone



[johnk_10]

fetto clone:

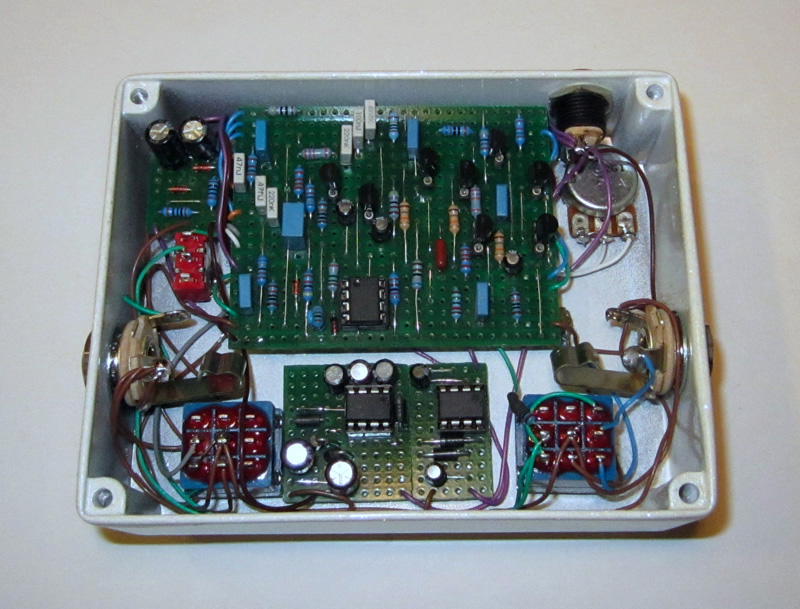

rustybox clone:

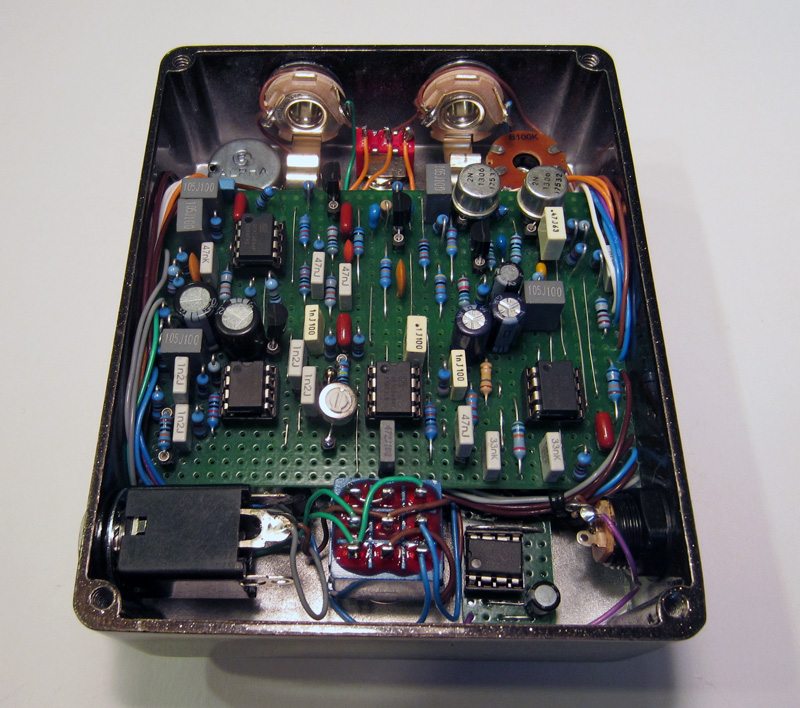

openhaus (modded for bass) clone:



[insomniac2295]

if it helps, here's a pic of the internals of my bassdrive clone

Thanks John! Did you bass yours off the fulldrive schematic over at Madbean? I'm trying to get some gut shots because all the schematics I see only list 14 caps but this picture of a fulldrive shows, from what I can count, 16 caps. Also I see some tantalums used ( C7, 8, and 9 on the fulldrive and C8, 9 and another one I can't figure out for the Bassdrive, although it might just be a funny looking film cap).



[johnk_10]

I used this schematic:



[insomniac2295]

Thanks! I just happened to notice that you have a cap socketed as well as the clipping diodes. If you don't mind me asking, what are you running in there and which cap is that?



[johnk_10]

Thanks! I just happened to notice that you have a cap socketed as well as the clipping diodes. If you don't mind me asking, what are you running in there and which cap is that?

a couple of the caps are socketed and IIRC, everything is the stock values.



[object47]

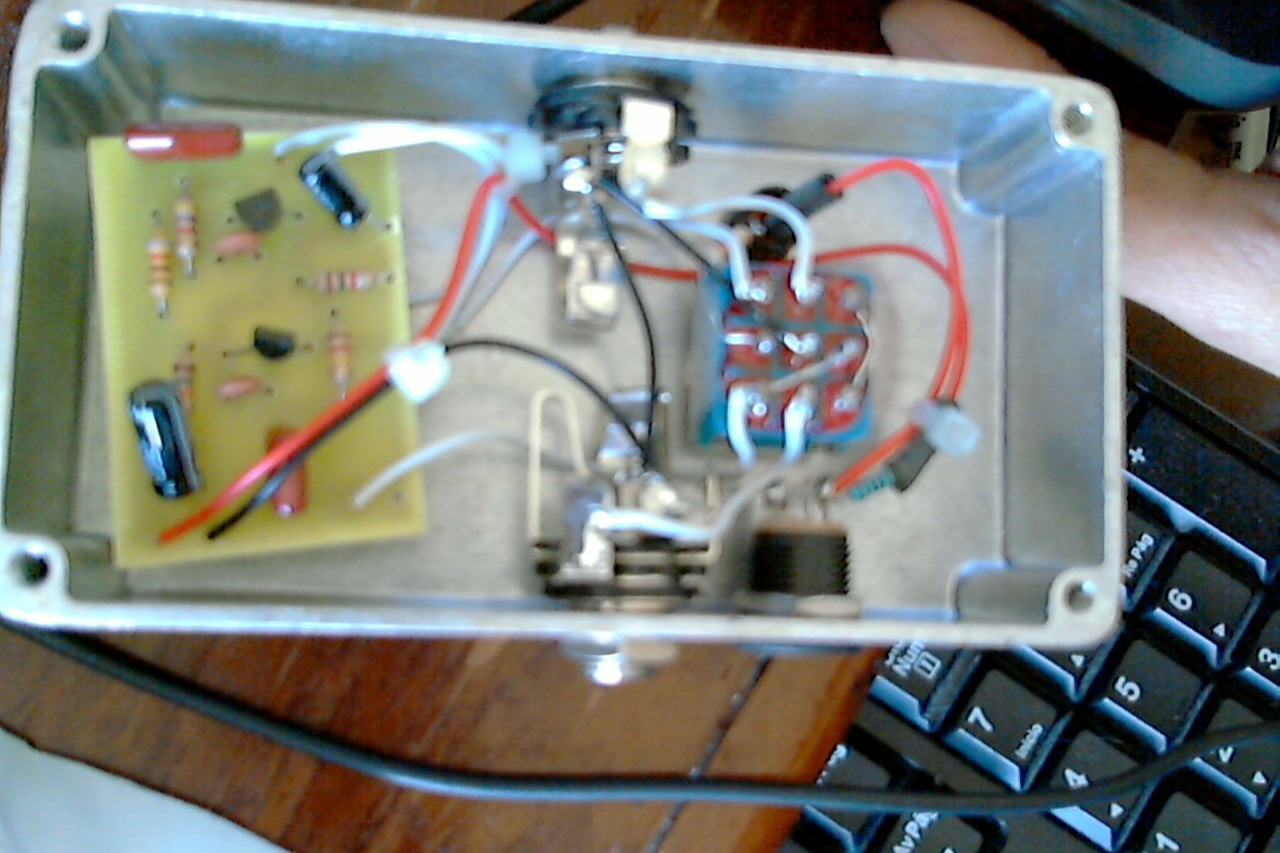

object47 sloppy build deluxe.



[Silver Blues]

Wow. What is it? How's it sound?



[object47]

Wow. What is it? How's it sound?

One knob controls a huge amount of volume and the other starves the circuit. Basically, you can get it to sound super sputtery/dying and then bump the volume so it's still loud. It sounds pretty good, imo.



[G.Bisson]

Zoom MS-70CDR
There are five seperate boards visible within this very compact pedal. The big Zoom processor chip is visible inbetween the two input/output jacks boards.



[Diaz]

Moog Minifooger RingMod

What could those screw-points do if they're messed with? Or are they just as support?

And a really bad quality picture of Nine of Swords' The Tyrant



[G.Bisson]

Electro Harmonix headphone amp
Not quite an effect, but it comes in a compact pedal enclosure. Complete with battery of Mike giving his best Randy Savage pose.



[sillyfabe]

Fuzzrocious Rat King



[sillyfabe]

Rehoused Black Cat Bass Octave Fuzz



[MCBass89]

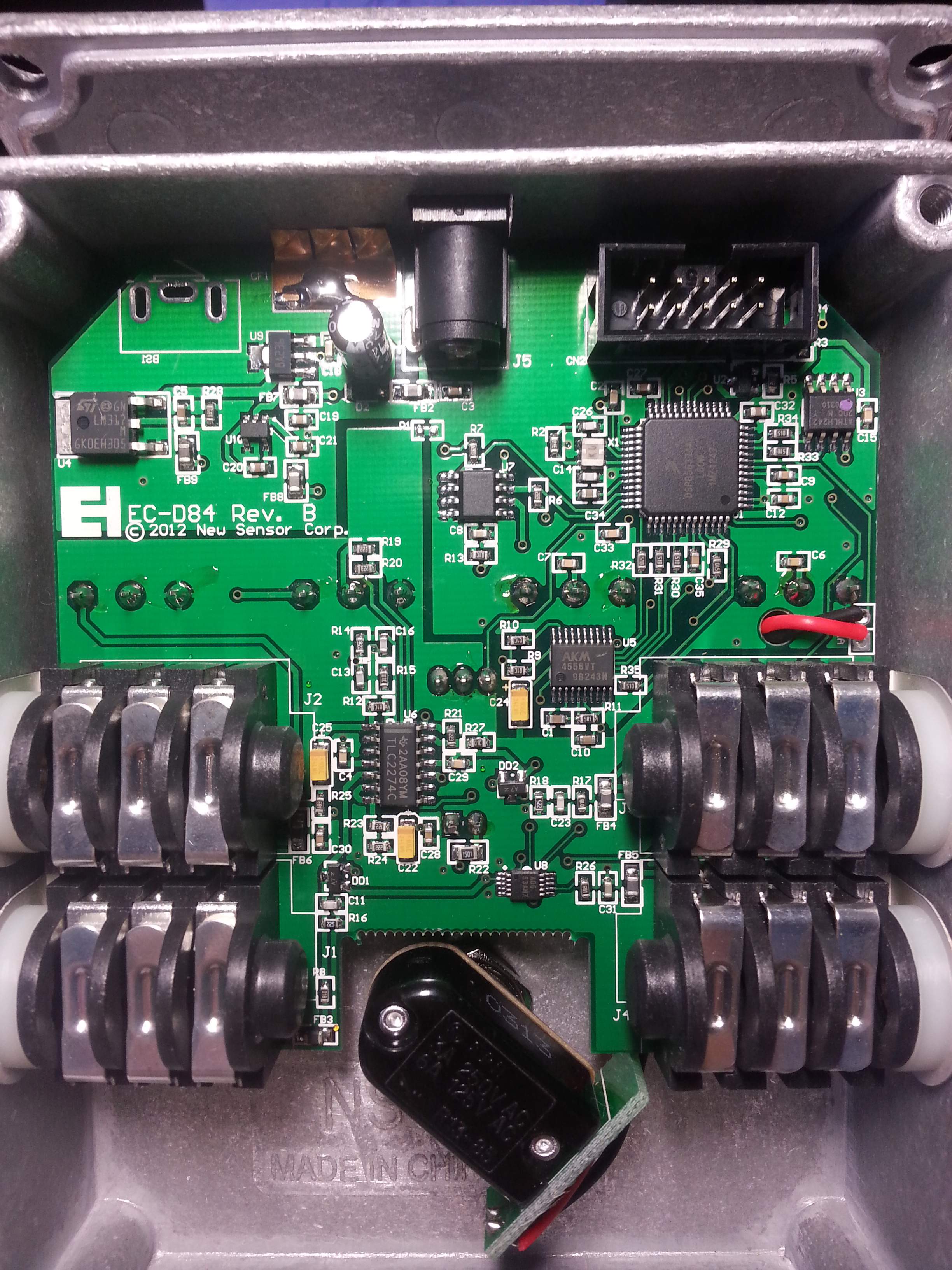

EHX Superego

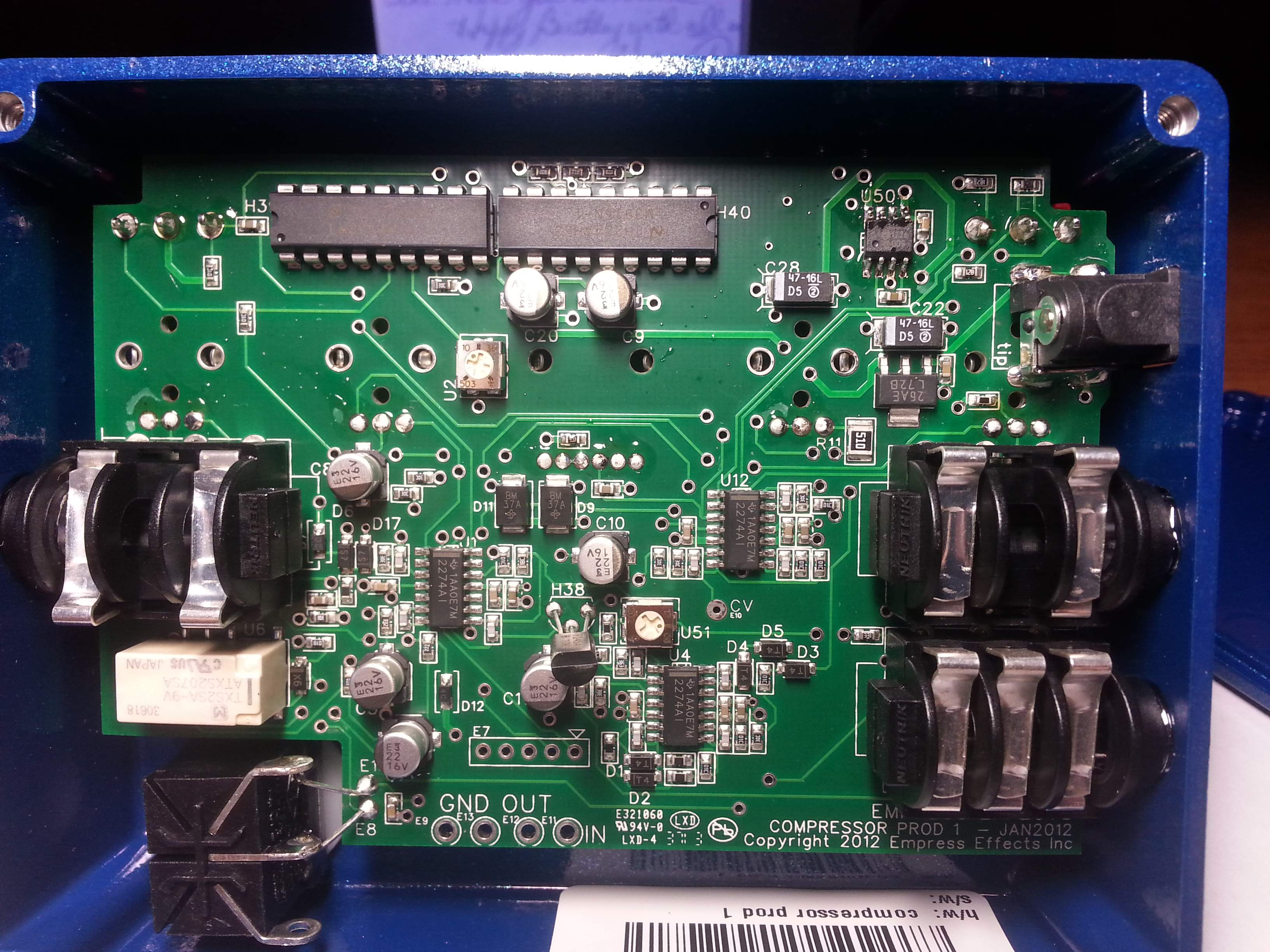

Empress Compressor

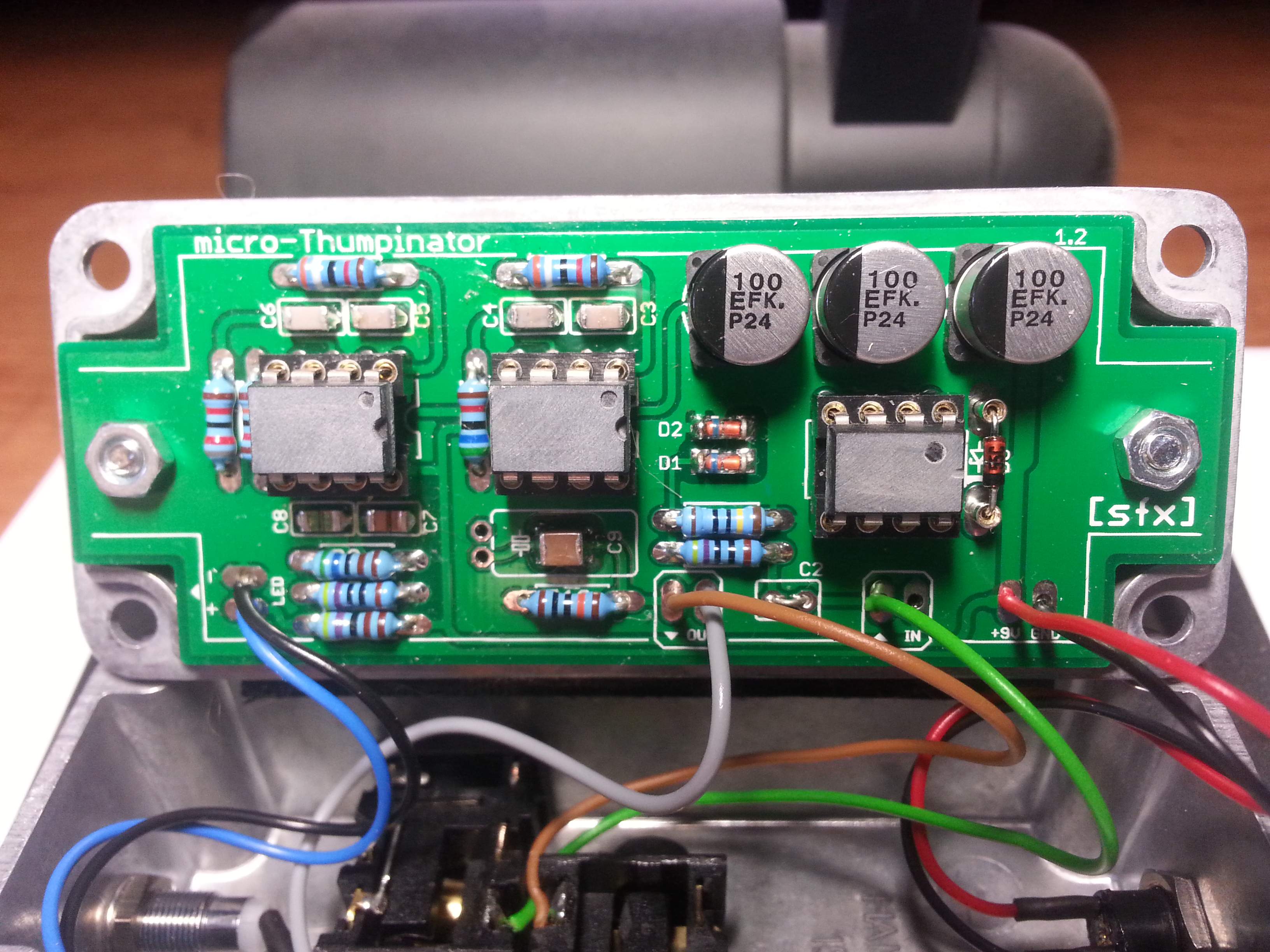

SFX Micro Thumpinator

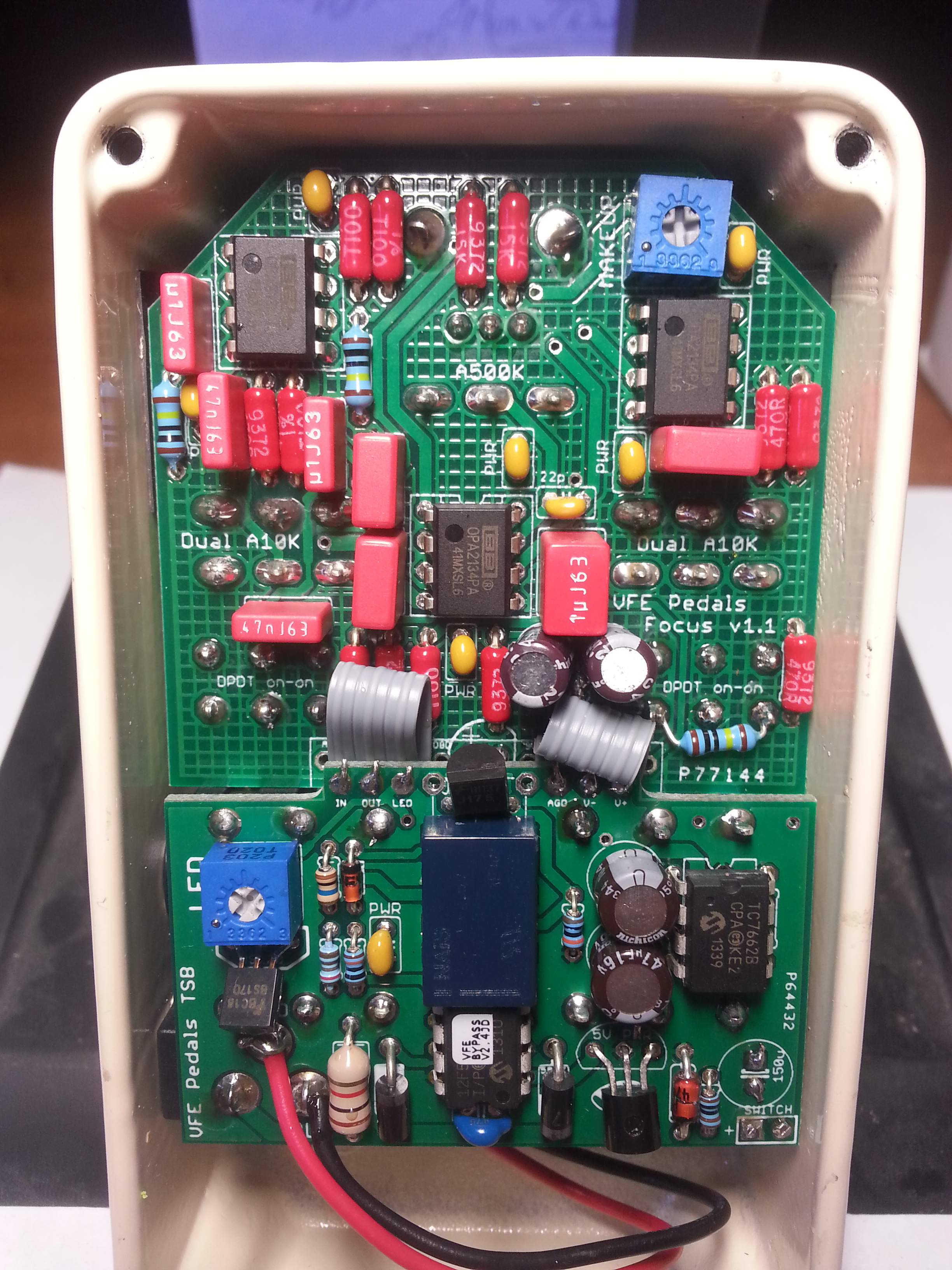

VFE Focus



[Ricky Caboverde]

Shucks! I'll play...Greedtone overdrive (with a few mods)



[254 stringer]

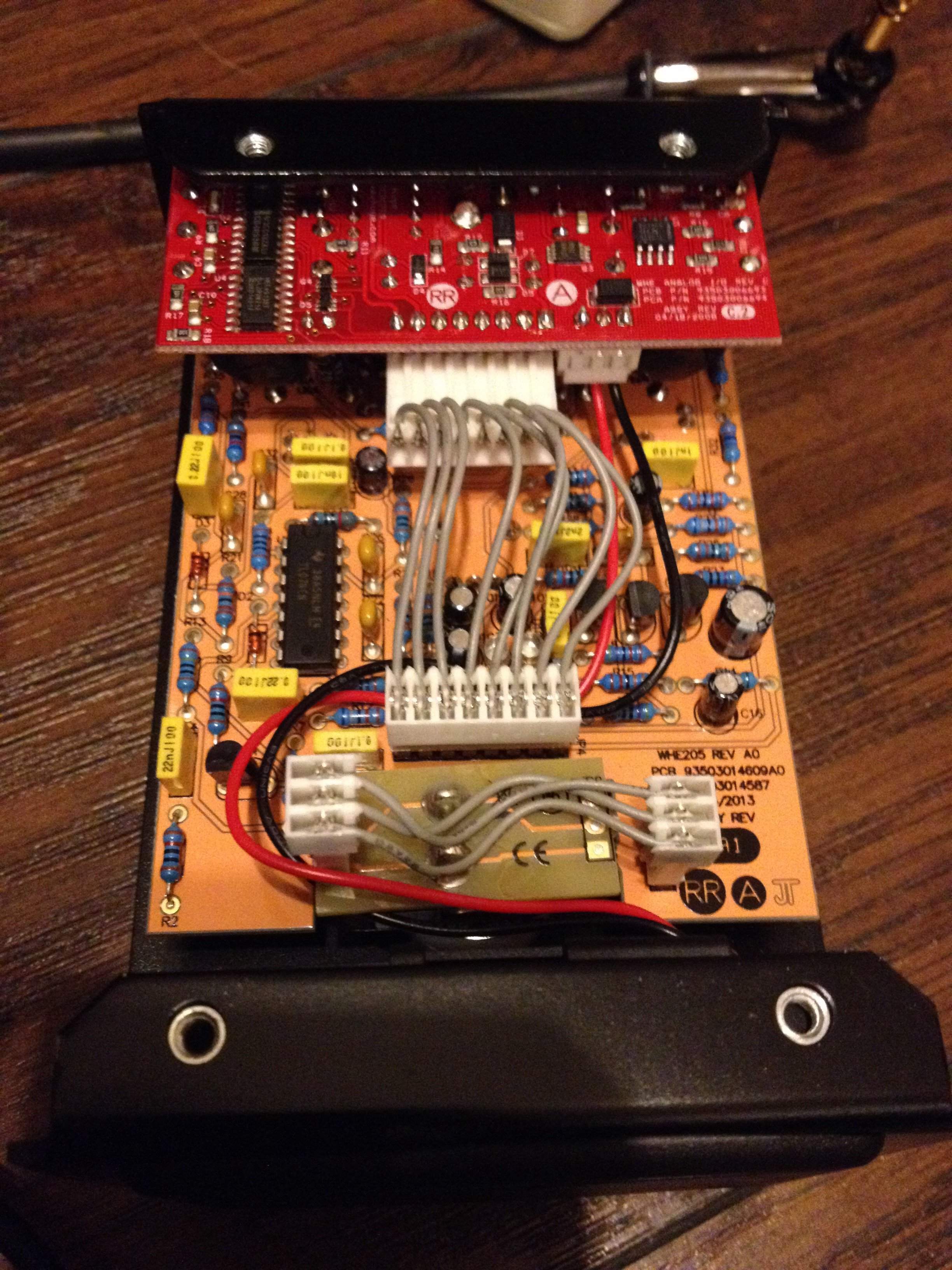

Way huge saucy box

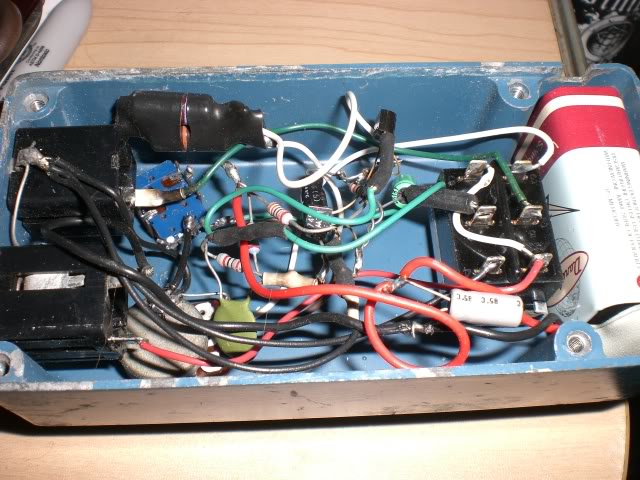

Morley Cliff Burton power fuzz wah



[XXL]

I have some gut shots to contribute to this thread.

Darkglass B3K Made in Finland 2009

BYOC Leeds Fuzz I built.

BYOC Envelope Filter Fixed Wah I also built

Black Arts Toneworks Pharaoh Supreme Fuzz Pedal

Dr. Scientist BitQuest

Earthquaker Devices The Terminal Fuzz




Dr. Scientist Frazz Dazzler Gated Fuzz




Electro Harmonix Pitch Fork

DOD FX10 BiFet Preamp 1989

VFE Distortion 3

VFE White Stallion Compressor
