Resistor 7 there looks smoked. I don't know exactly what it does, but I expect there's at least one setting that isn't working quite right. Not trying to be the bearer of bad news, but you may want to try to find a way to test the meters functions under known conditions before assuming it works fine.

If you've done that on all the settings then you may be good, but it makes me uncomfortable looking at it.

Me?



[JoeVictim]

Hail Dunwich! Master of wiring and tidy boxes!



[G.Bisson]

Me?

no, he his refering to my burned out olm meter.
I will have to check if one mode isn't reading properly. Checked a few resistors with known values and the meter read correctly. The burnt resistor must belong to a mode that I don't use. Not sure if there is anything actually wrong with the resistor, might just be some surface scorching from a blown fuse. Not severe enough to damage the fuctionality.



[sillyfabe]

Oh ok I was just looking at my pedals and didn't see any fuses...oh well!



[cheapbasslovin]

Yeah, sorry. Reply fail. If you've confirmed it works for what you use it for, it is probably fine.



[JonnyAngle]

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Link Removed

Looks great. You have a cool website but not any info on your website!



[dunwichamps]

Looks great. You have a cool website but not any info on your website!

Thanks!

I do more posting at this moment on facebook. The current site is getting revamped so I can more easily update it.



[sillyfabe]

Custom MSLP lo-fi delay/cave reverb/ lo fi looper.



[G.Bisson]

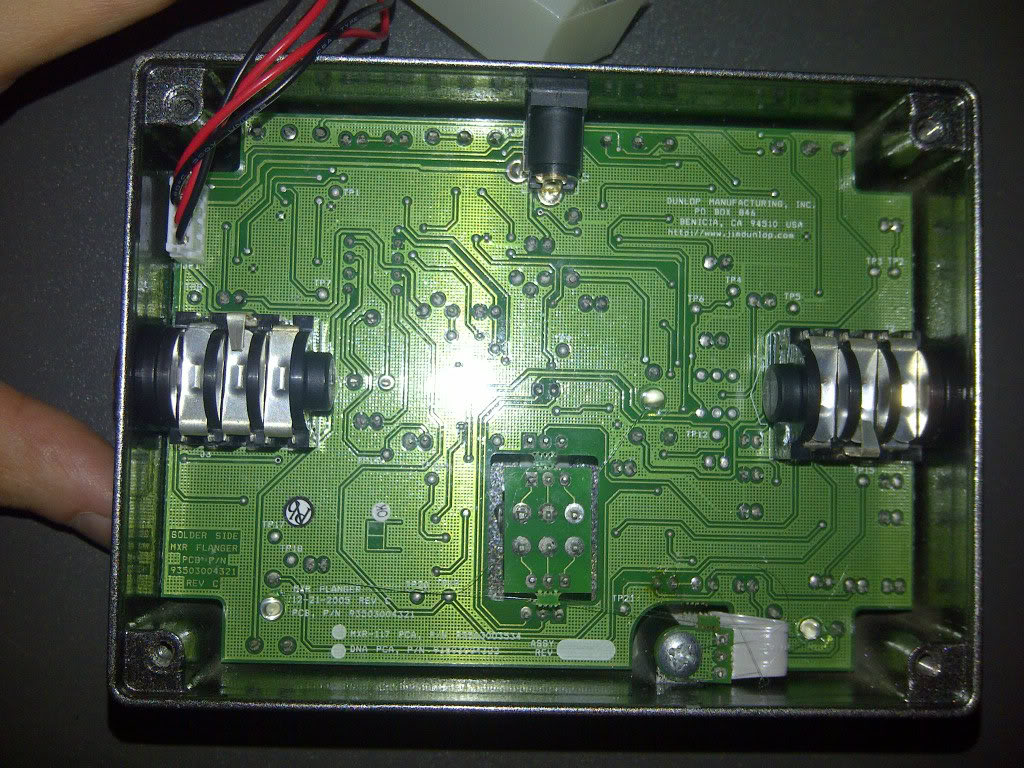

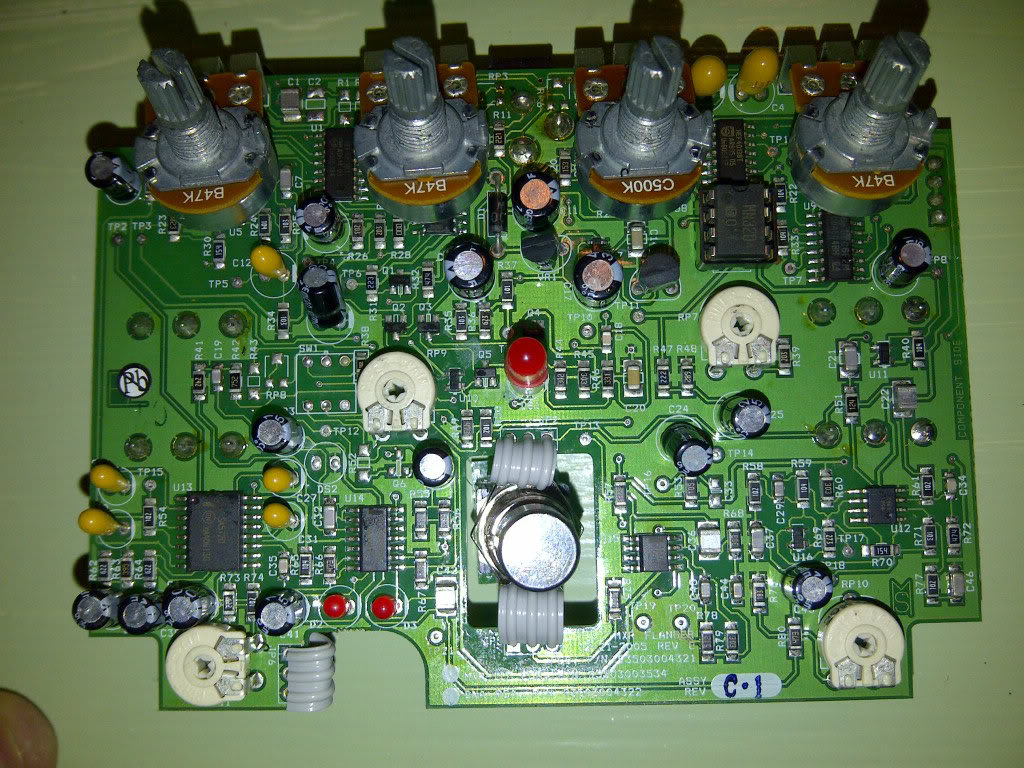

MXR M117R Flanger



[G.Bisson]

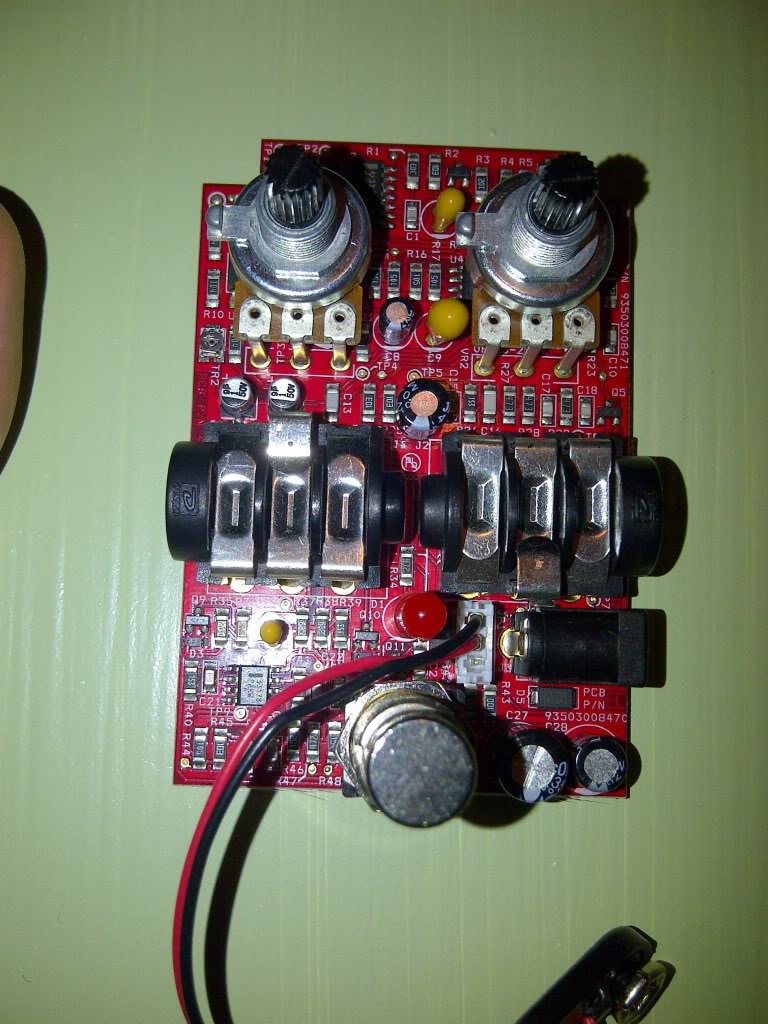

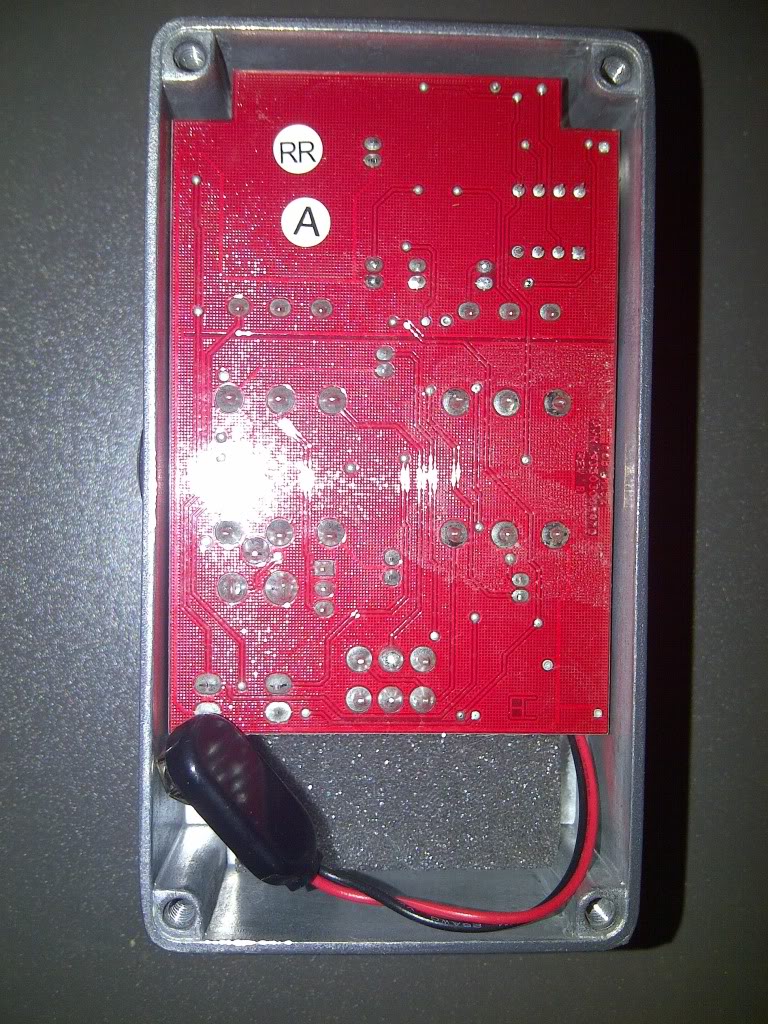

MXR M152 Micro Flanger



[G.Bisson]

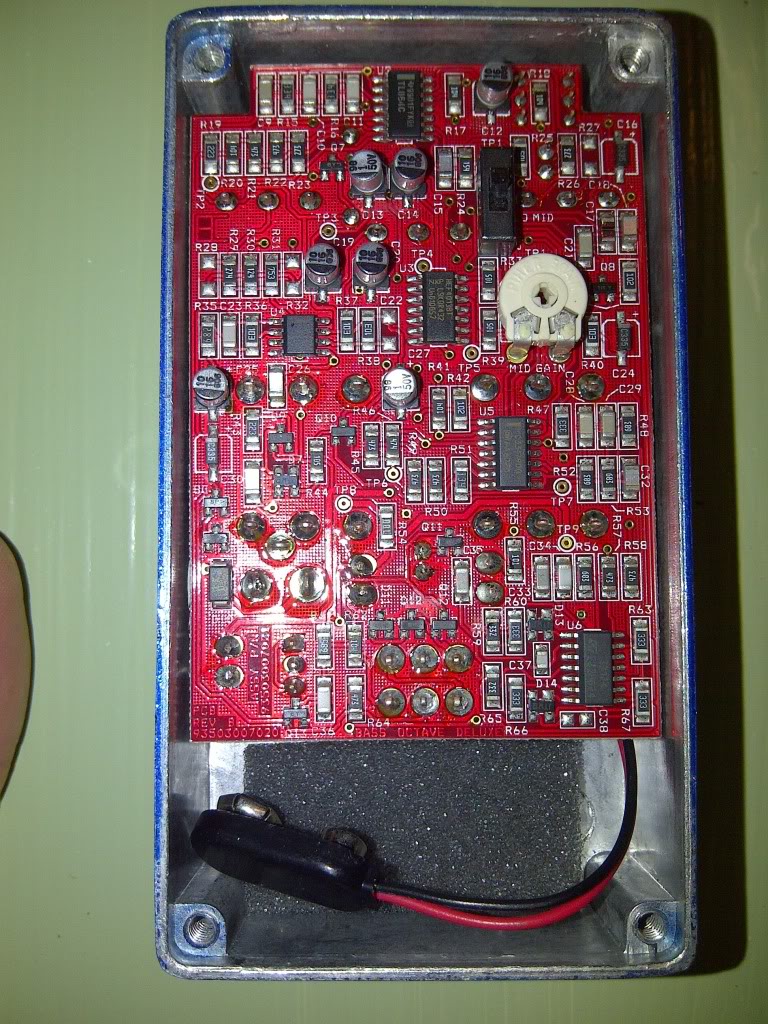

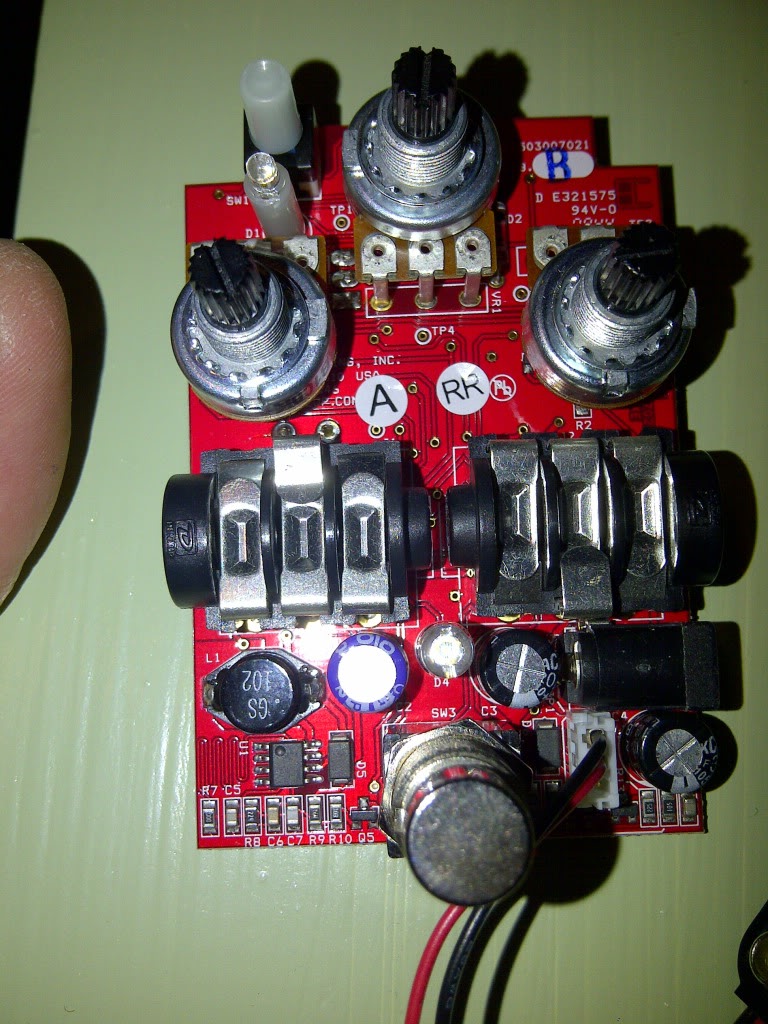

MXR M288 Bass Octave Deluxe



[taurus1]

my recent BOSS PSA-120S rehouse, lol



[Silver Blues]

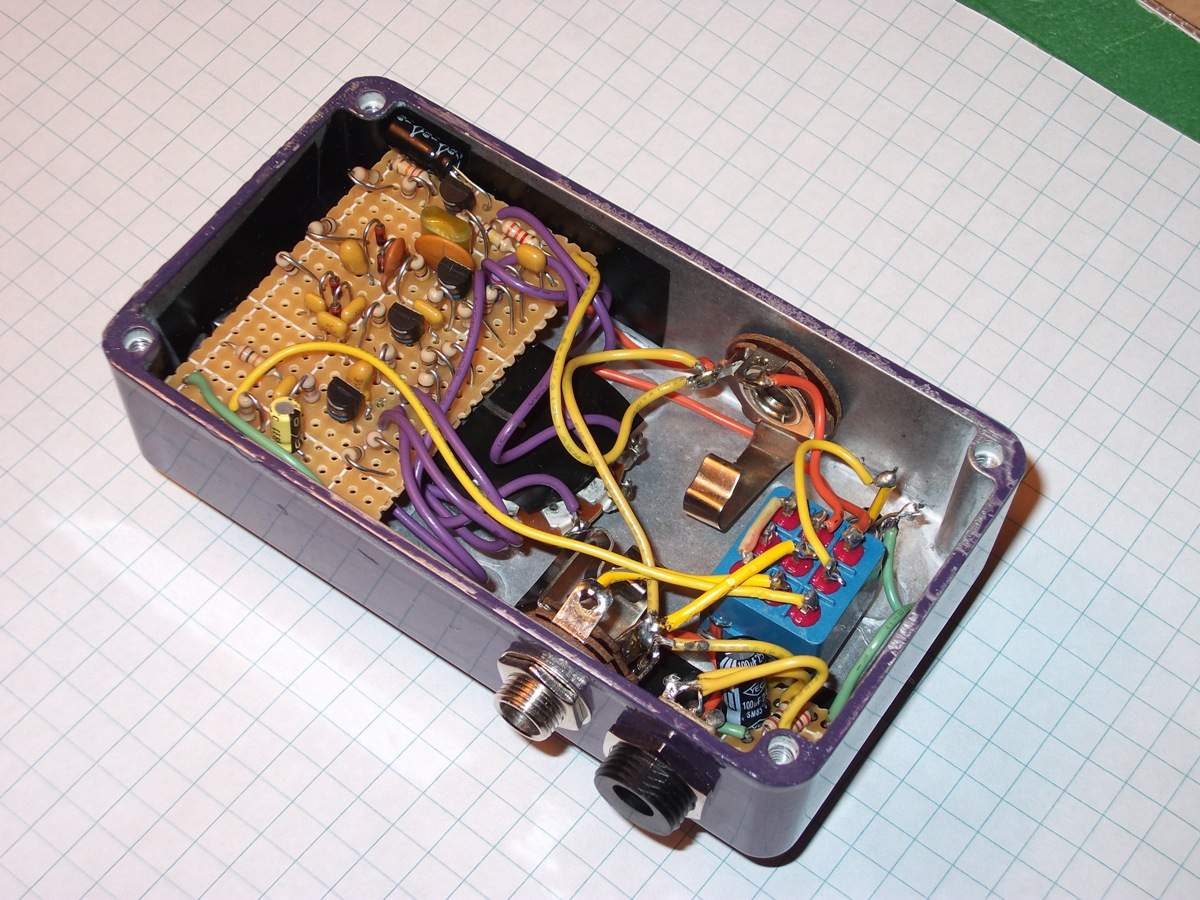

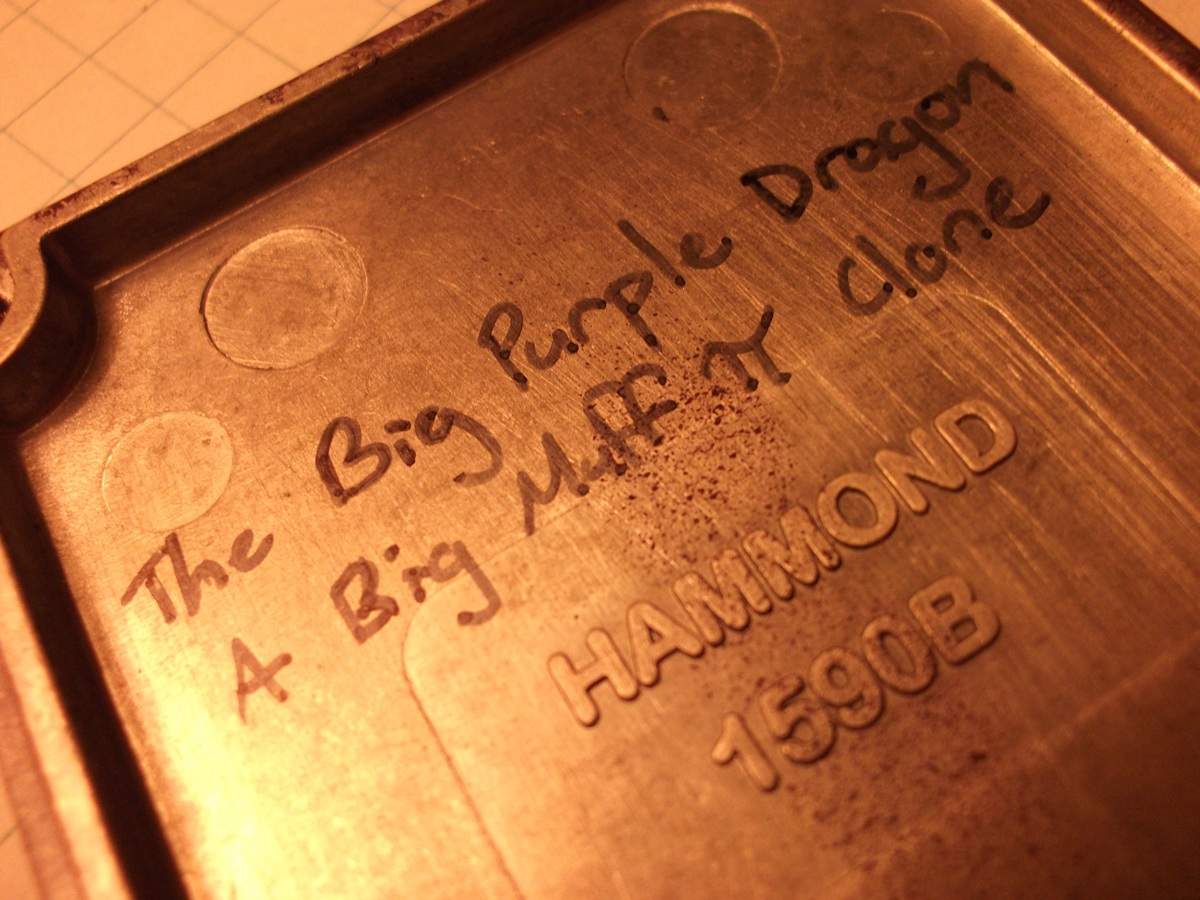

One of my own builds. I suck at photography, but I love this pedal. It's pretty much the bass content of a Green Russian with the gain of a Ram's Head. It's nasty, aggressive and awesome. I'm running it at 6v right now because it's the only adapter I have that doesn't make noise, but it sounds great anywhere between 6 and 12.

--Silvie



[sillyfabe]

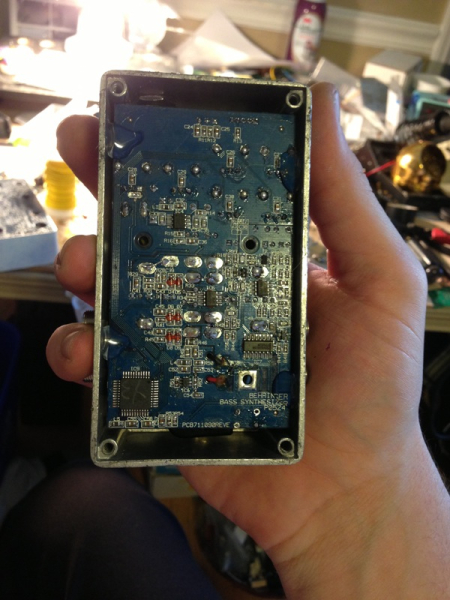

Re-housed Behringer BSY-600 Bass Synth thanks to Dan the man!



[yaksonator]

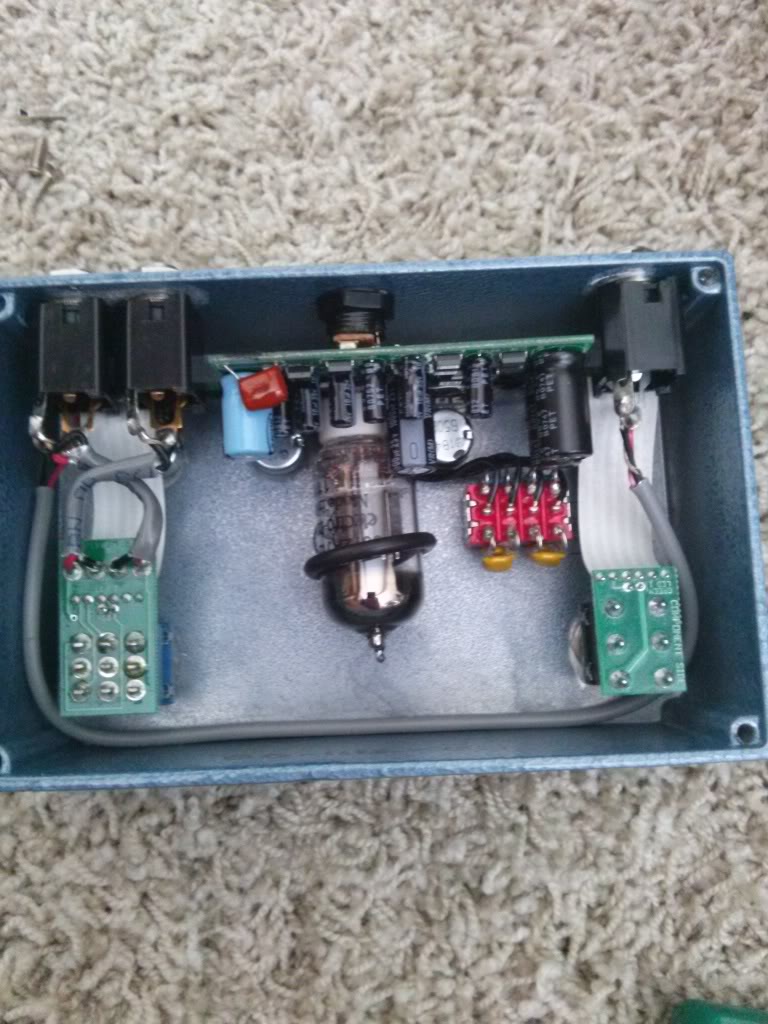

Swell b-peg I just got today. Amazing.



[iamdenialNJ]

I love how this thread is still going! Let's see more gut shots!!!



[sillyfabe]

I love how this thread is still going! Let's see more gut shots!!!

Will do Abe! Ill post some more in the next couple days



[gregmon79]

Here's the inside of an ODB3 I had replace a capacitor in. It's since been replaced and repaired and is in use on my board



[gregmon79]

Here's a couple more:



You can see the blown capacitor in this pic:



[insomniac2295]

Akai Headrush E2
Board 1:

Board 2:
