Show your pedal guts.
- Thread starter iamdenialNJ
- Start date
Guyatone ST-2 Compressor/Sustainer
Make Sounds Loudly Custom Tremolo
Make Sounds Loudly Custom Phaser
Fuzzrocious Terrordactyl

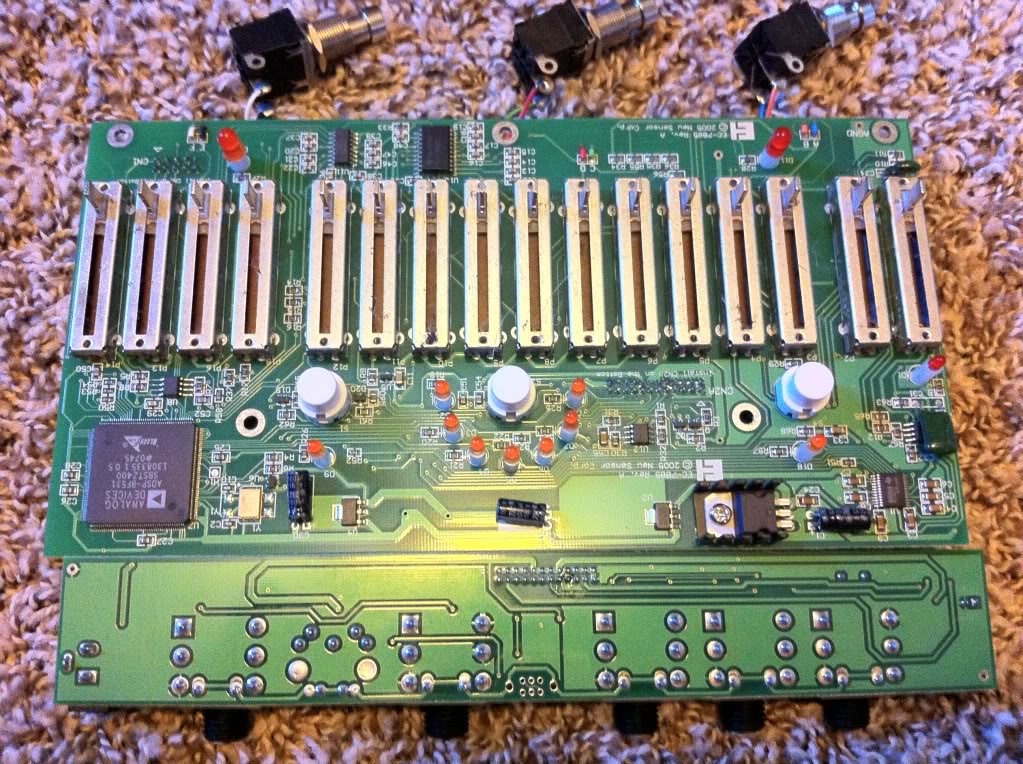

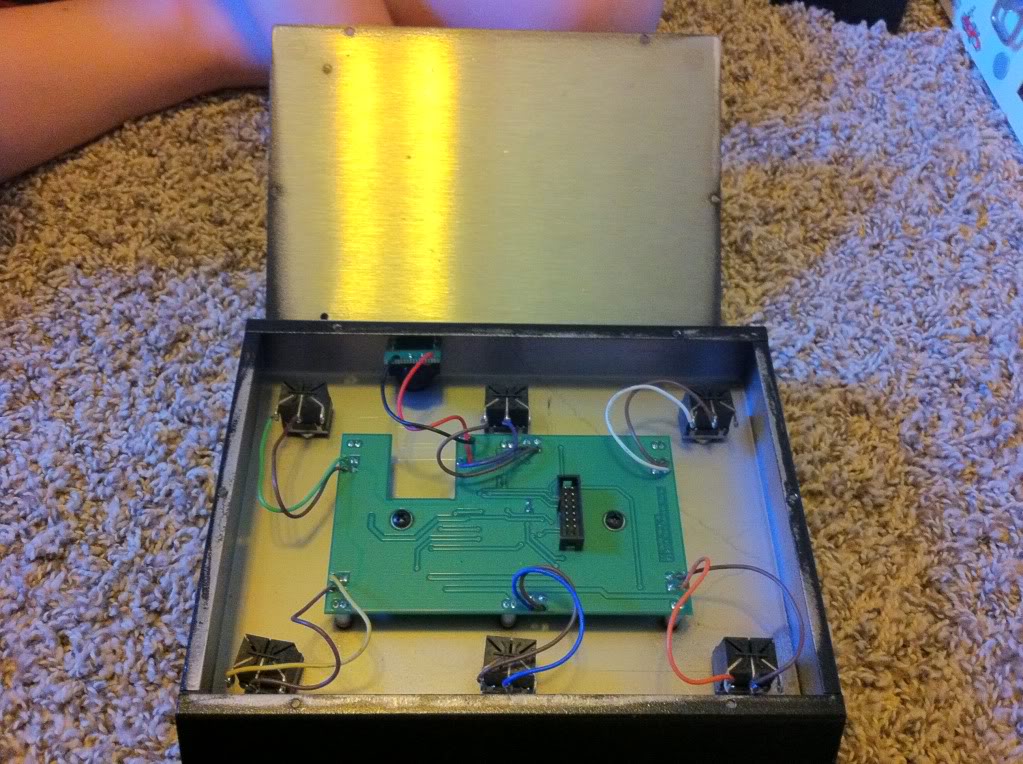

EHX H.O.G. Foot Controller
EHX H.O.G.
Make Sounds Loudly Custom Tremolo
Make Sounds Loudly Custom Phaser
Fuzzrocious Terrordactyl
EHX H.O.G. Foot Controller
EHX H.O.G.
rratajski
Commercial User
- Jul 1, 2008
- 6,121
- 2,671
- Disclosures
- Builder for FUZZROCIOUS PEDALS

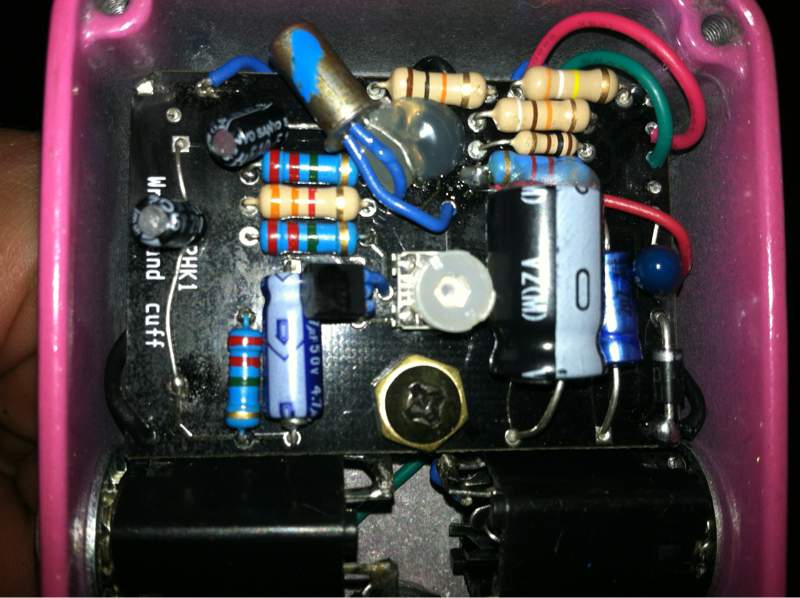

I hate looking at my first pedals and protos. Uuuuuuuuuuugh! They always look like a bomb wires went off inside.

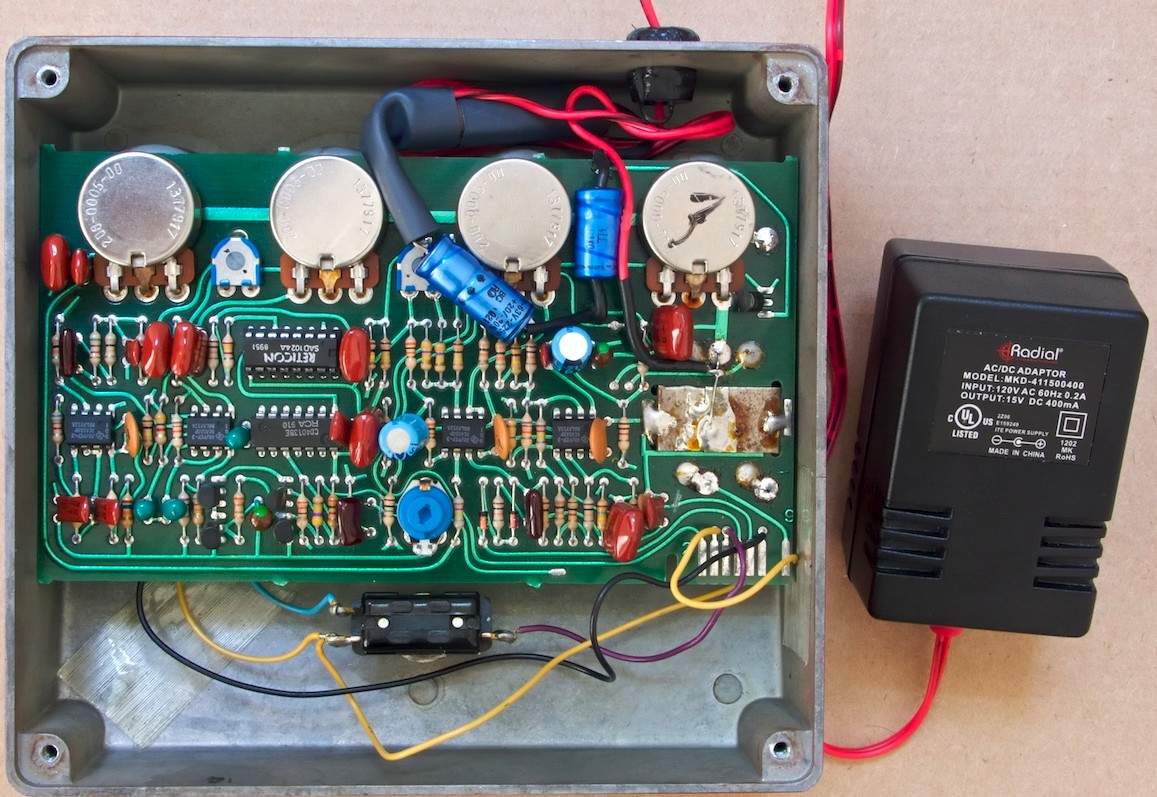

Tech 21 SansAmp Bass Driver D.I.

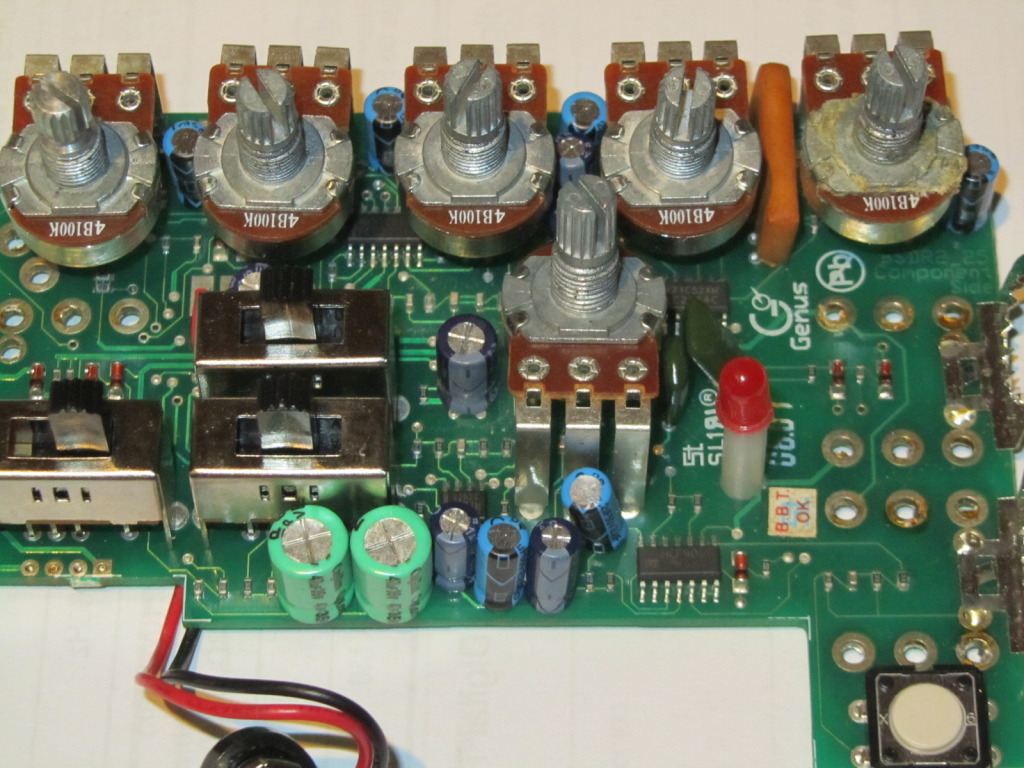

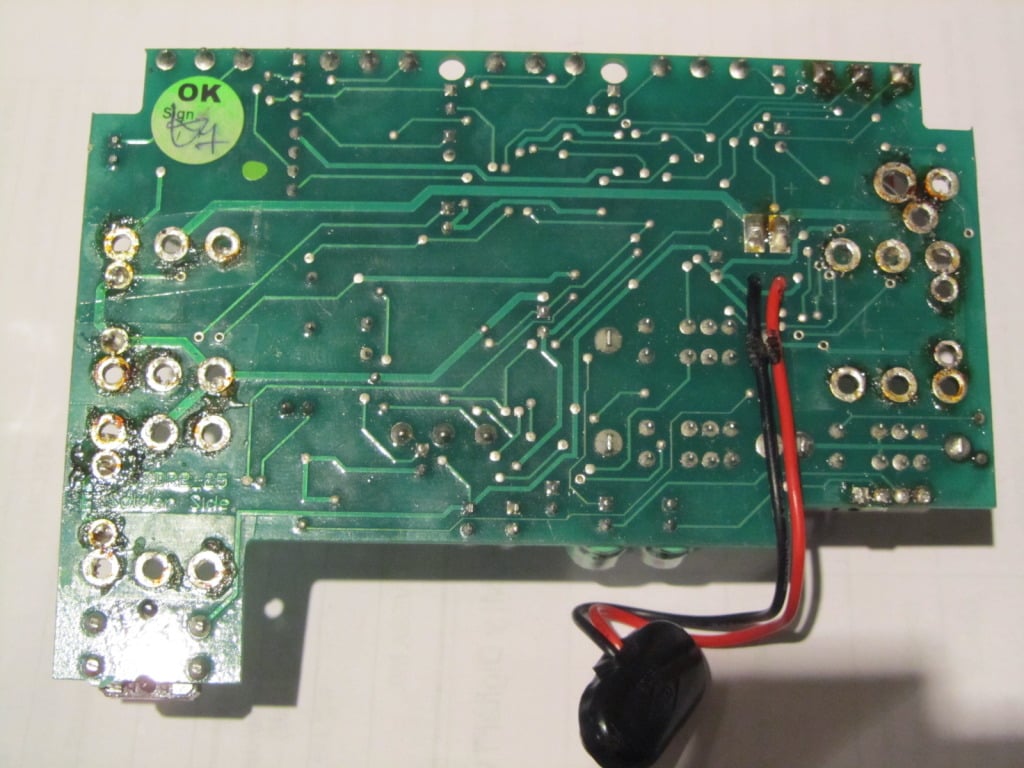

The most difficult pedal to disassemble yet. Had to take off 9 retaining nuts then make 31 desolder points. I disassembled this pedal to replace the damaged 'drive' pot in the corner. You can see some fluffy yellow crud on the pot casing caused by a liquid spilled on the pedal that soaked down the pot shaft and corroded the component.
TOP

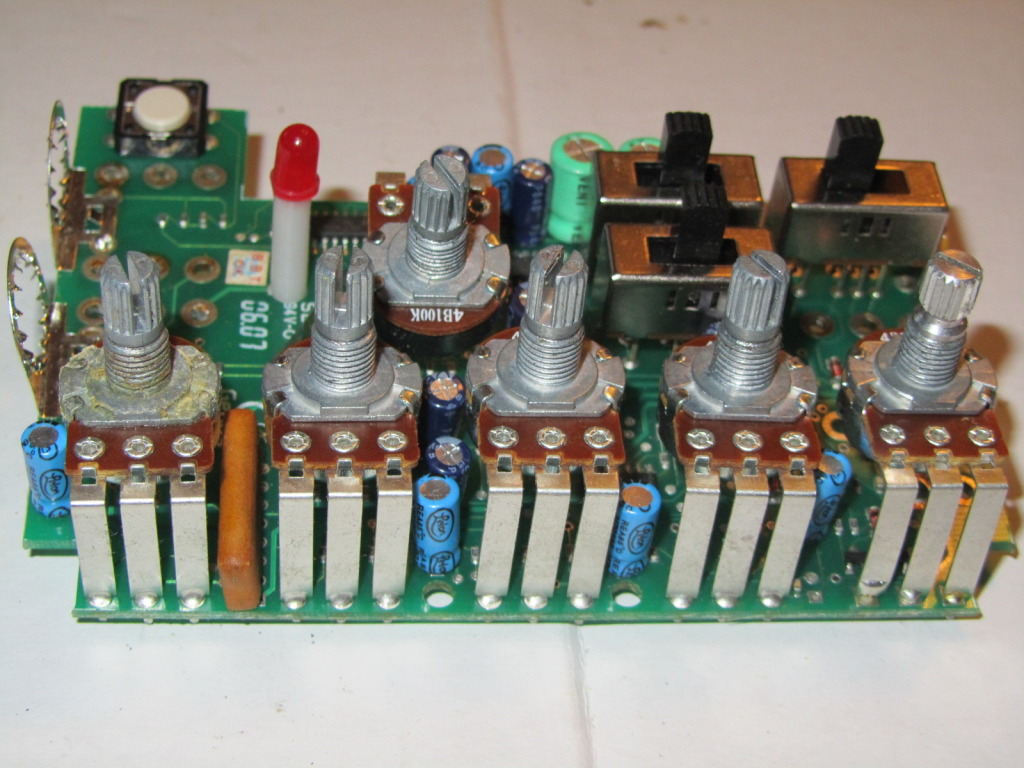

Points of interests: The white circle button in the corner is the bypass switch. The big orange brick that looks a lot like a capacitor contains the super secret sansamp circuitry (say that 5 times fast).
Also of note, all the toggle switches are actually 3 position switches but the casing cutouts block the third position.
The most difficult pedal to disassemble yet. Had to take off 9 retaining nuts then make 31 desolder points. I disassembled this pedal to replace the damaged 'drive' pot in the corner. You can see some fluffy yellow crud on the pot casing caused by a liquid spilled on the pedal that soaked down the pot shaft and corroded the component.
TOP
Points of interests: The white circle button in the corner is the bypass switch. The big orange brick that looks a lot like a capacitor contains the super secret sansamp circuitry (say that 5 times fast).
Also of note, all the toggle switches are actually 3 position switches but the casing cutouts block the third position.

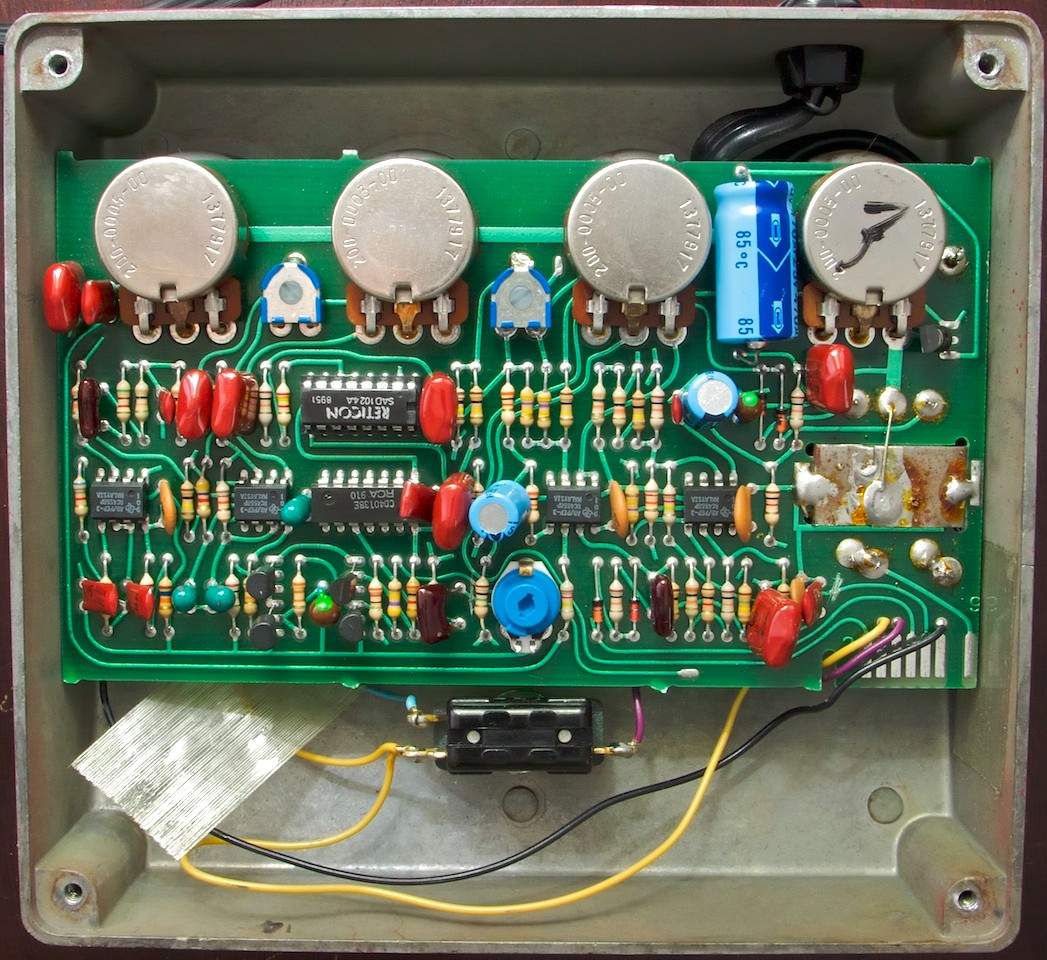

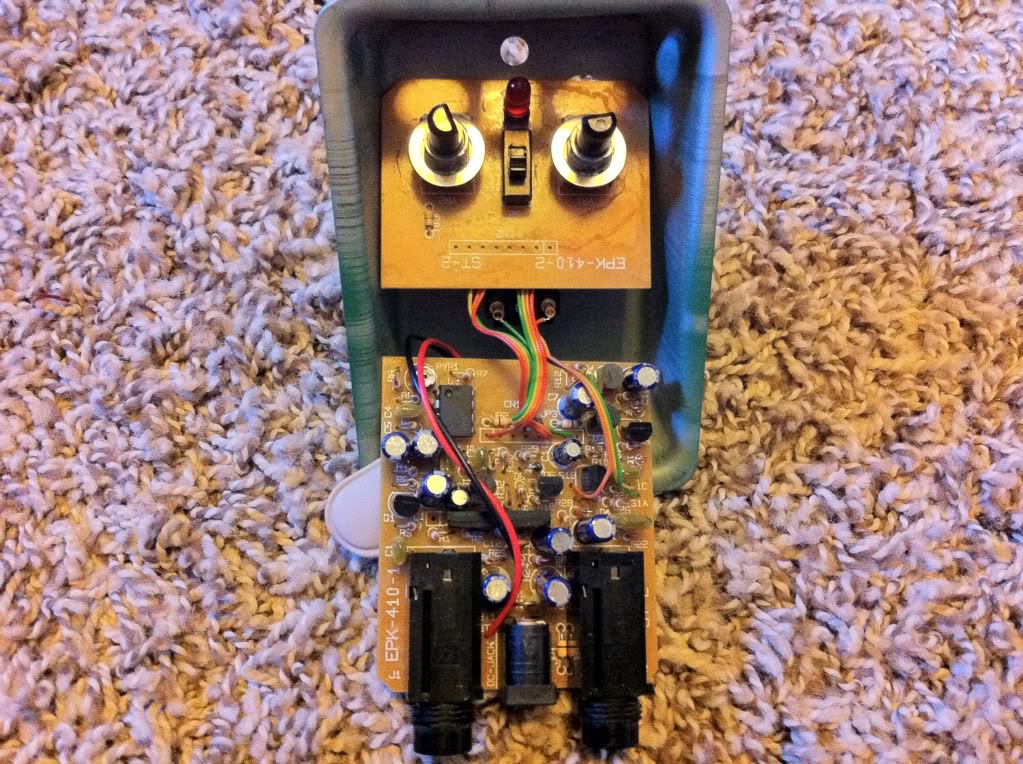

Guyatone ST-2 Compressor/Sustainer

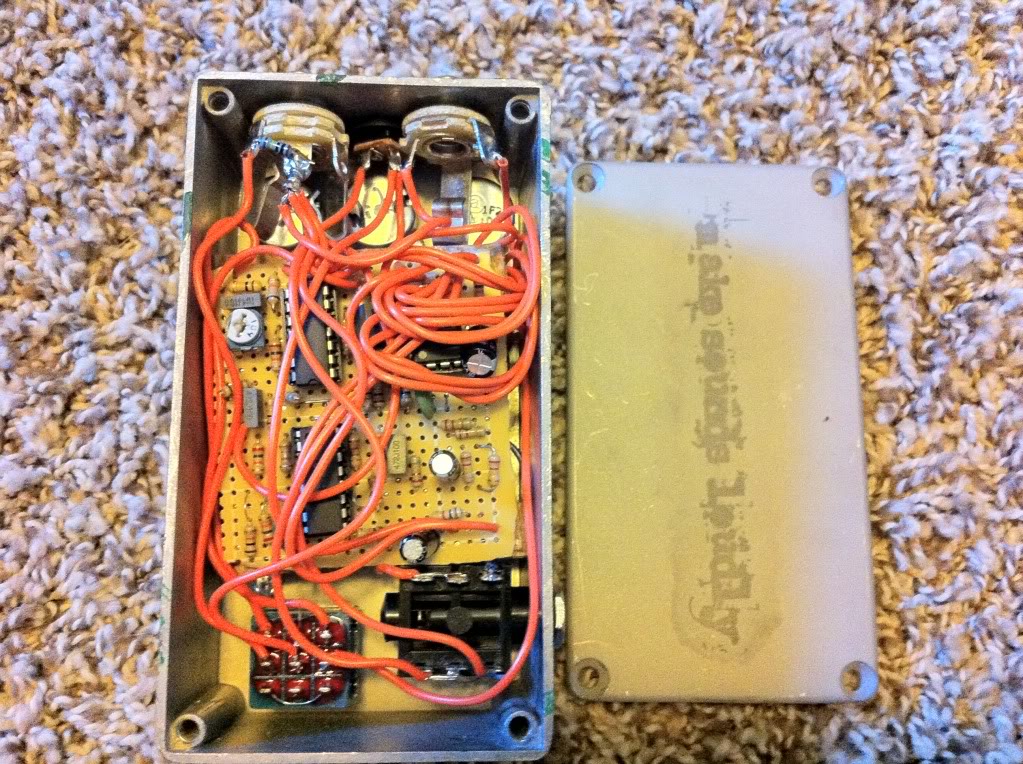

Make Sounds Loudly Custom Tremolo

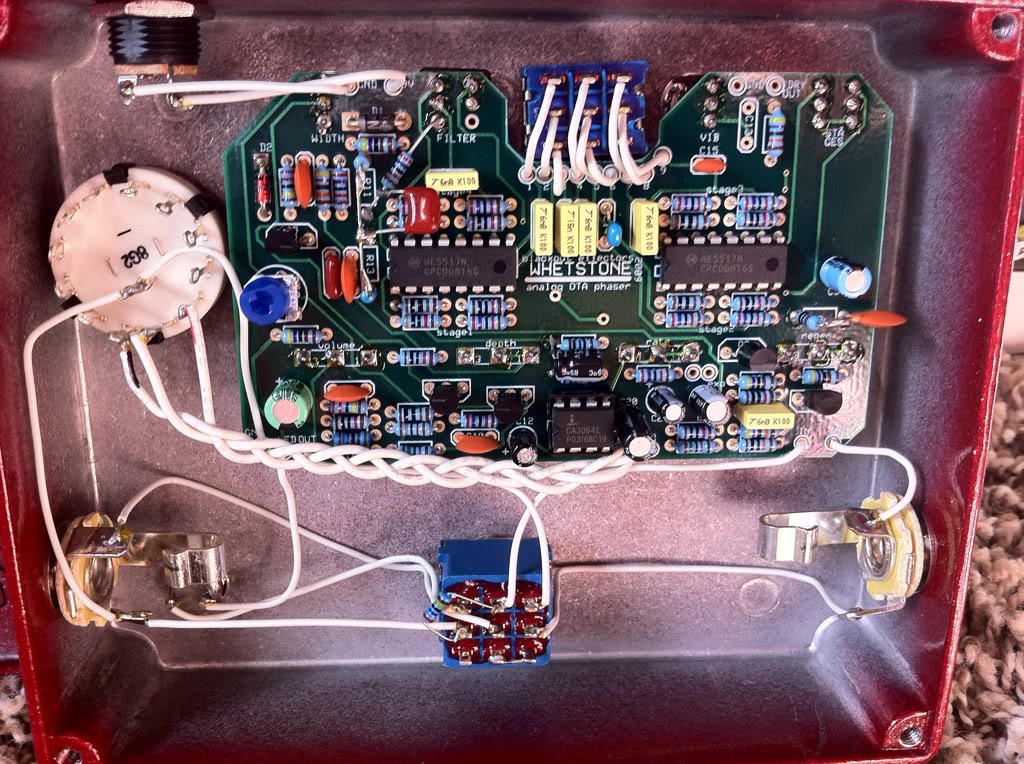

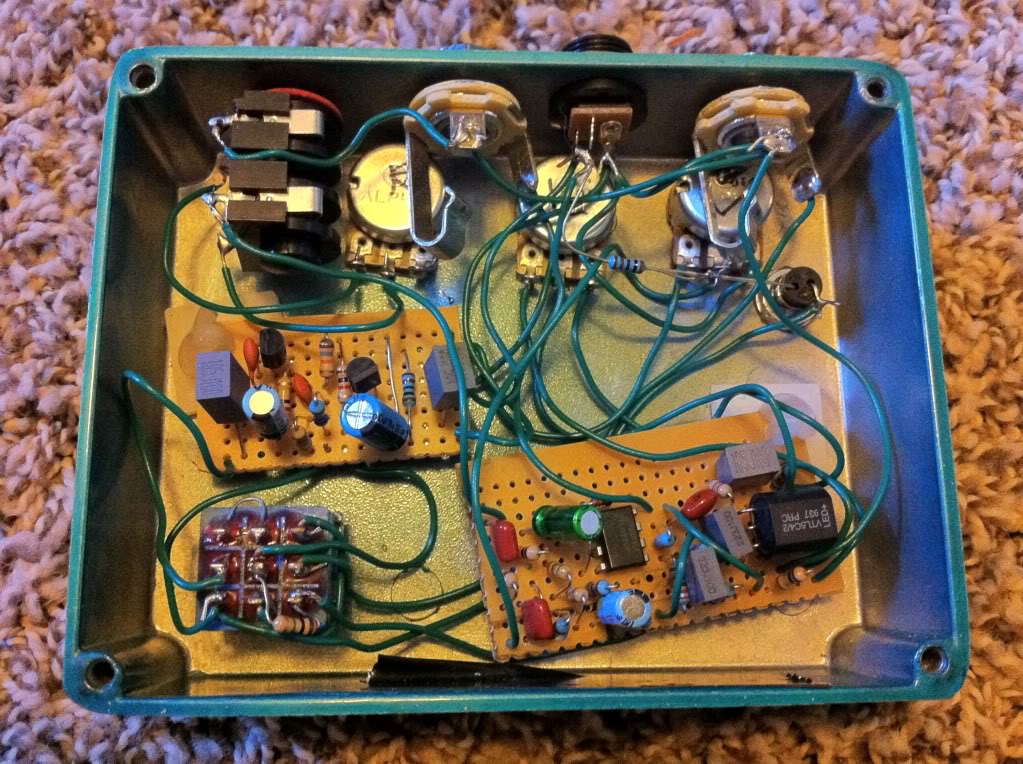

Make Sounds Loudly Custom Phaser

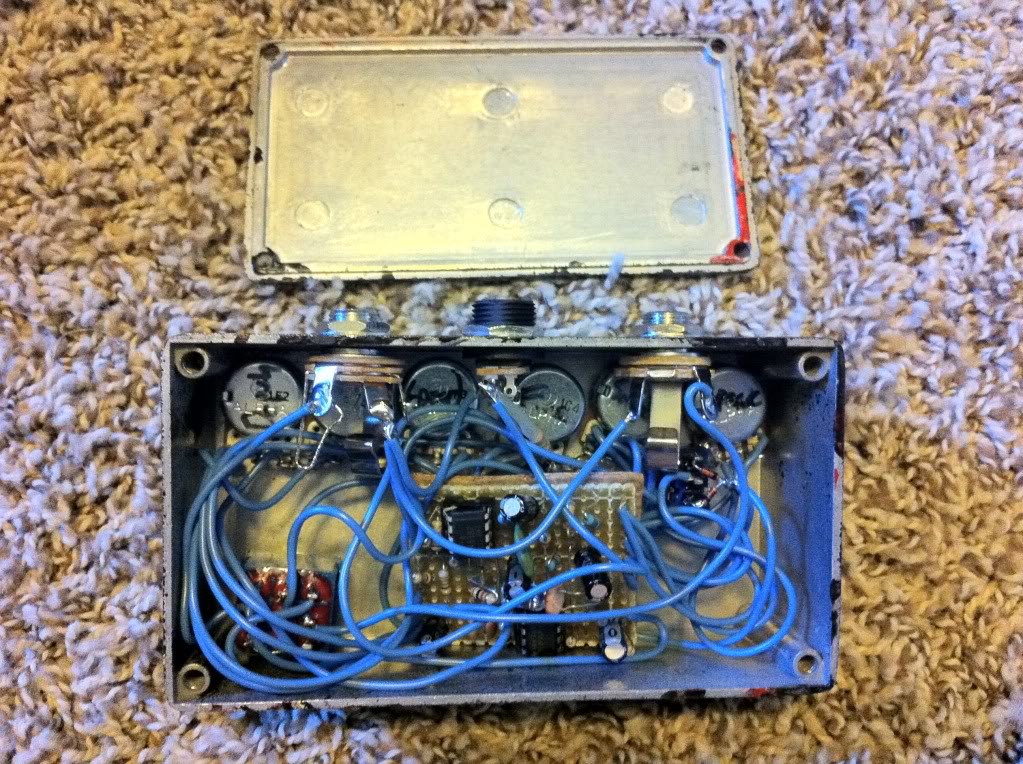

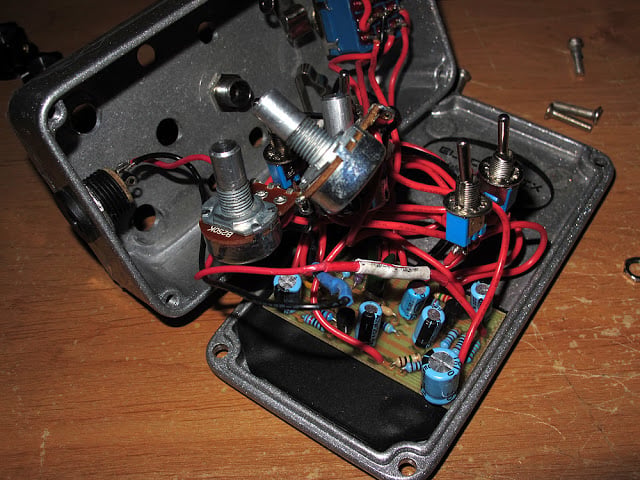

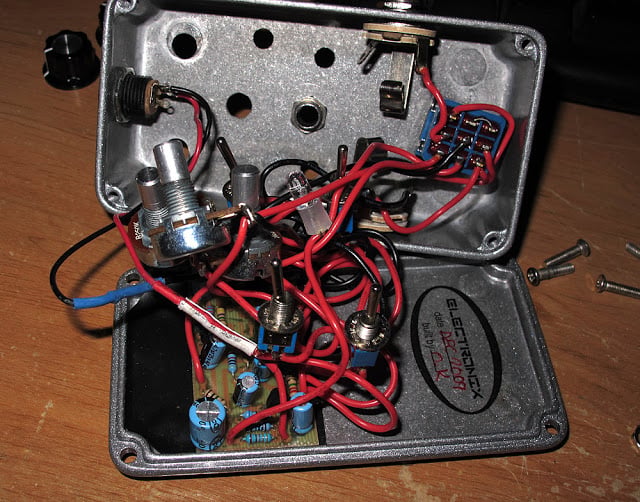

These make me cry a little inside. I'm sure they sound great, but holy crap that's a lot of wire!

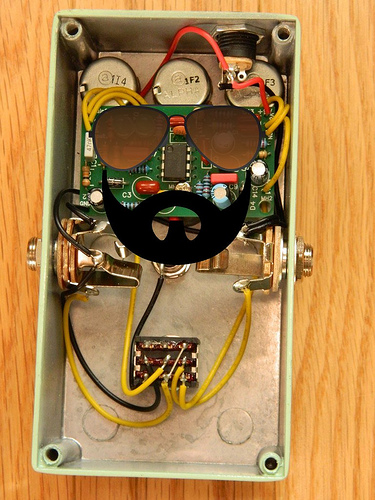

you might wanna shave that pedals beard. i recomend a gotee. looks more modern
Fuzzrocious Rat-Tail with momentary feedback mod: side pot controls it along with the controls.
