Speakon cable for bridged power amp

[agedhorse]

Is it possible to do something nasty? Like frying the amp or the cab if you don't move the right wire to the right connector?

It depends, yes if the speaker cabinet parallels 1+ with 2+ and 1- with 2- it could damage the amp. The industry standard discourages such connections, BUT there are some builders who feel the need to reinvent the wheel without understanding how the wheel works in the first place.



[fourstringburn]

Consider getting an bridge mono adapter like this.
View attachment 4154240

Bridged Mono Adapter NL4FX to NL4MX 12/2 6 inch

Wired 1+, 2+ at the amp end (Red) and 1+,1- at the speaker end (Blue).
-The red end goes to the bridged output of the amp.
-A regular speakON is plugged into the blue end.

That's an excellent suggestion there if you aren't comfortable making your own also because you don't want to mix up bridge wired connectors.

I did make my own and clearly marked them with a sharpie.



[MTN.bass72]

Wow! Interesting...I guess I got lucky, or either the Crest Prolite 2.0 I had several years ago, that I bridged into my F112, or 12/6 , was not designed this way... I had a Speakon on hand and just plugged everything up and everything worked as it should have... for many sessions..

@agedhorse ... is it possible that the Crest is wired/designed differently than the Crown , allowing for the experience I had with it?



[agedhorse]

Wow! Interesting...I guess I got lucky, or either the Crest Prolite 2.0 I had several years ago, that I bridged into my F112, or 12/6 , was not designed this way... I had a Speakon on hand and just plugged everything up and everything worked as it should have... for many sessions..

@agedhorse ... is it possible that the Crest is wired/designed differently than the Crown , allowing for the experience I had with it?

Yes, the ProLite is wired differently in that it has a dedicated bridge SpeakOn output that is wired 1+/1- to get around the special cable.



[Wasnex]

Yes, the ProLite is wired differently in that it has a dedicated bridge SpeakOn output that is wired 1+/1- to get around the special cable.

As some people say, RTFM: (Read the fabulous manual )



[BigBobbyBass]

Wow, didn't expect so much help! Thanks so much everyone, especially @agedhorse ! You've helped me multiple times over the past 5-6 years. Cheers all!



[BigBobbyBass]

It depends, yes if the speaker cabinet parallels 1+ with 2+ and 1- with 2- it could damage the amp. The industry standard discourages such connections, BUT there are some builders who feel the need to reinvent the wheel without understanding how the wheel works in the first place.

So, I ordered a brand new speakon cable and the proper 4 pole connector. The cable has two wires, one black, one white. How do I know which is +/-? It's not labeled in any way. Thanks in advance!



[Wasnex]

So, I ordered a brand new speakon cable and the proper 4 pole connector. The cable has two wires, one black, one white. How do I know which is +/-? It's not labeled in any way. Thanks in advance!

You have to open and inspect the connectors so see how the wires are connected.

Should be labeled, but the NL4 pinout is as follows.



[BigBobbyBass]

I just can't figure which is +/-



[Wasnex]

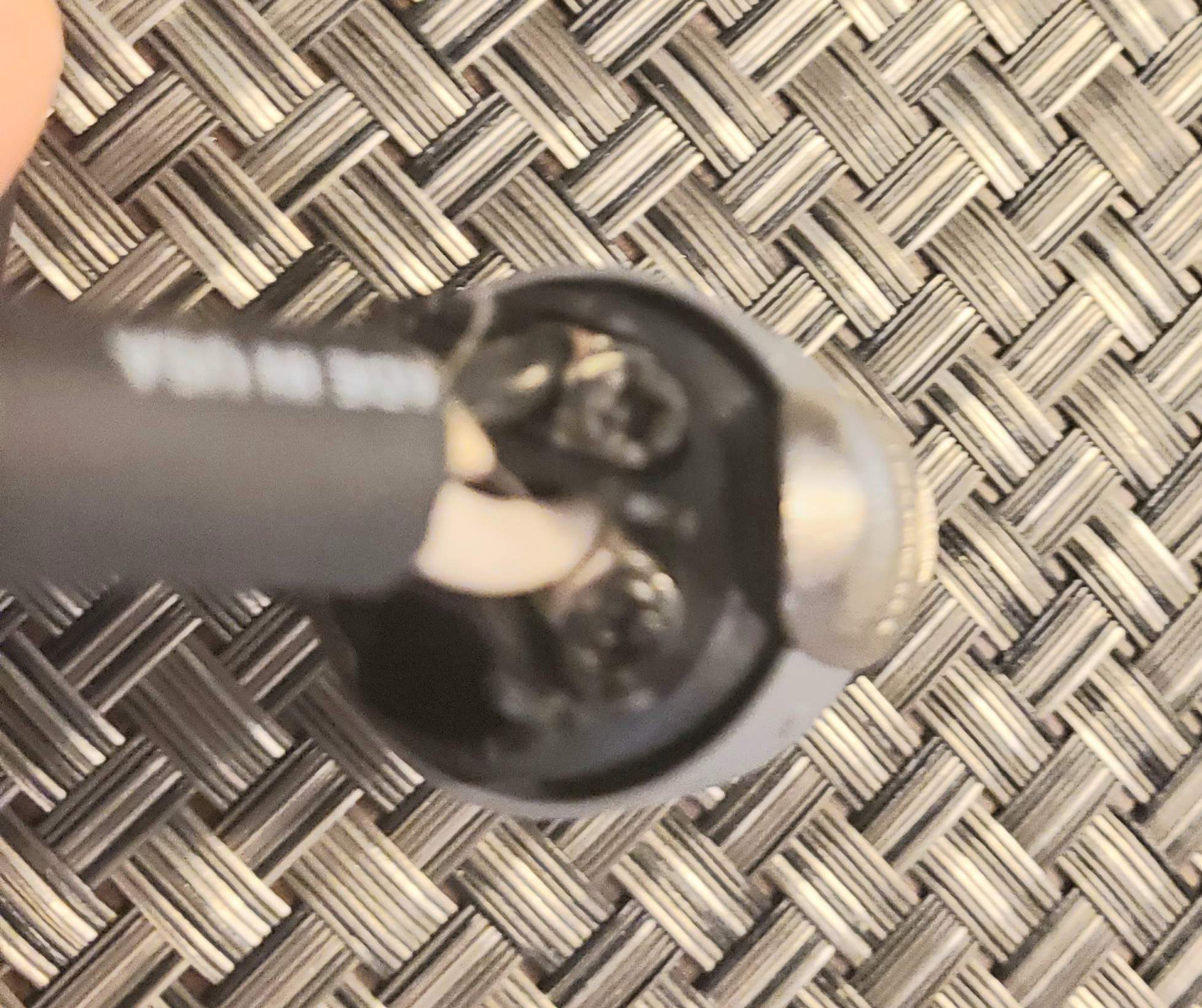

I just can't figure which is +/-View attachment 4204496

That's pretty blurry, but assuming the connections are on 1+ and 1-. Black is + and white is -



[BigBobbyBass]

That's pretty blurry, but as

suming the connections are on 1+ and 1-. Black is + and white is -

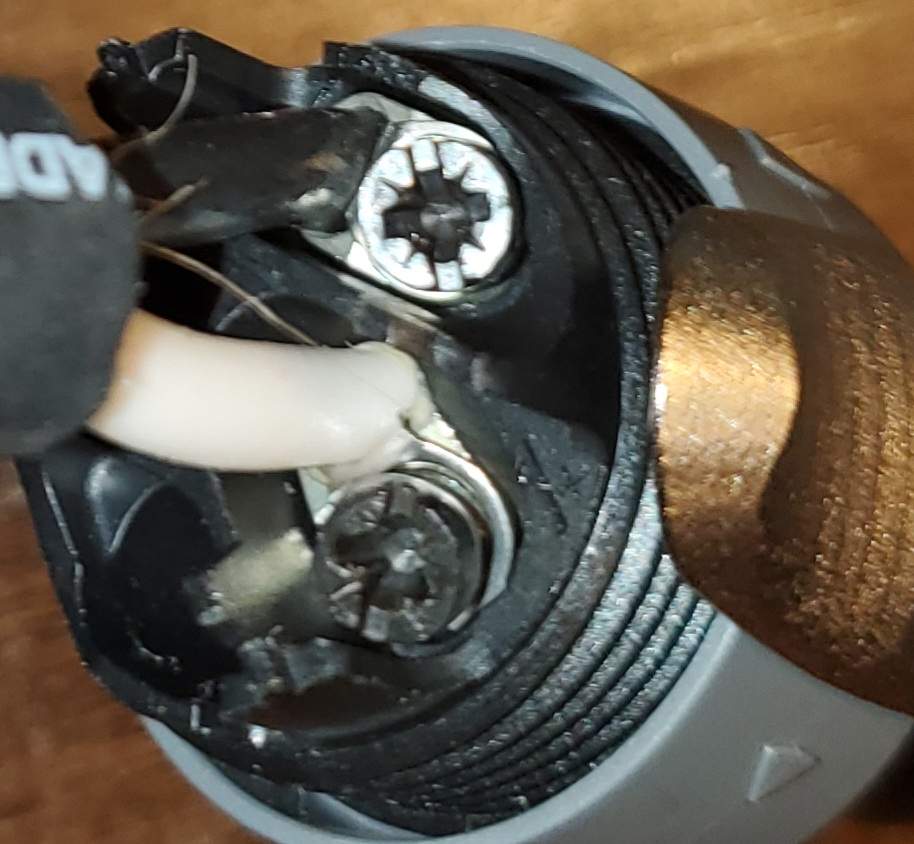

Better pic, I must be blind because I can't find any +/- markings



[BigBobbyBass]

Another view



[Wasnex]

Better pic, I must be blind because I can't find any +/- markings

My earlier assumption that these are both on 1 may be wrong. Perhaps 1- (black), 2+ (white)



[Redbrangus]

White is on 1+; black wire needs to move to the terminal opposite the white wire...2+.



[Wasnex]

black wire needs to move to the terminal opposite the white wire...2+.

Agreed, assuming this is the bridging plug.
