Special Edition Build Off - SG Bass VI

[2groggy]

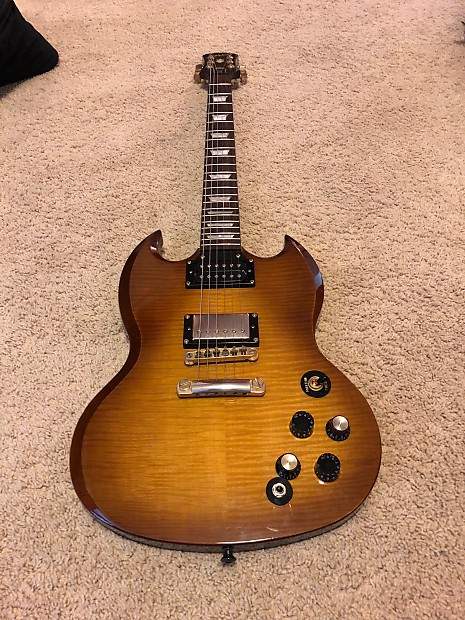

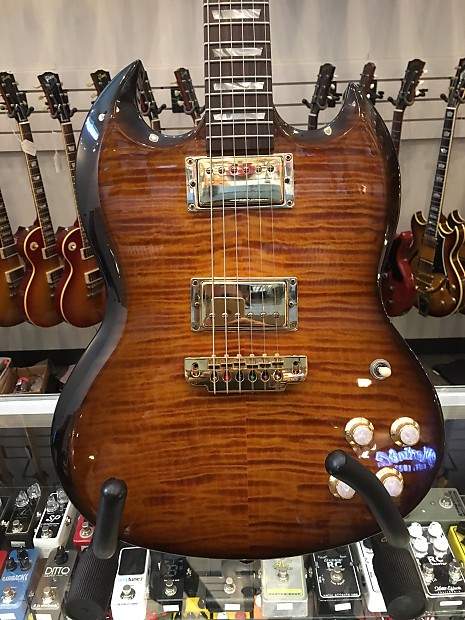

What about a burst?
View attachment 3789792 View attachment 3789793

Drat, back to the lab for more testing.



[dwizum]

I'm of the opinion that if you can't match something, then boldly contrast it. Close but not quite is just not right

Yeah I had first seen the samples on my tiny phone screen - looking at it now on the laptop, I agree. You don't want to be close. You want to be the same, or different.

And in that case, I like the burst idea!



[Scoops]

Natural please



[Beej]

Maybe try a tester of the raspberry with a bit of green mixed in. Being complementary colours, it should make a reddish-brownish hue.



[2groggy]

I just finished routing the coarse neck profile. I'll hand carve the rest.

Neck Profile Routed

• 2groggy
• Apr 18, 2020
• 2020 special edition build off



[TerribleTim68]

I just finished routing the coarse neck profile. I'll hand carve the rest.

Neck Profile Routed

• 2groggy
• Apr 18, 2020
• 2020 special edition build off

That must have been some router bit!



[2groggy]

That must have been some router bit!

I used the same process as for my winter build. The pictures below are from last December.

First, I get the thickness taper right. I mount the neck to stop blocks with different thicknesses. I put a collar an bit on the router table and take a few passes to get a rectangular profile neck.

Neck Thickness Taper Prep

• 2groggy
• Dec 29, 2019
• 2020 winter build

Neck Thickness Taper Done

• 2groggy
• Dec 29, 2019
• 2020 winter build

I made a pair of jig arms that can be clamped on to each end of the taper. The profile of the jig arm defines the profile of the curve. Again, I use a collar and a plain bit. The jig arms act as stop blocks too. You can only do half of the neck at a time. The curved parts of the jig run against the table. I take shallow passes at different angles.

I Hate Hand Shaping Necks

• 2groggy
• Dec 31, 2019
• 2020 winter build

Simple Neck Profile Jig

• 2groggy
• Dec 31, 2019
• 2020 winter build

But this is just what I do. Don't try this at home, kids. I'm a trained professional and you're not.



[TerribleTim68]

Wow, yeah, that looks crazy cool and slightly scary as all get out. Thanks for the quick rundown and pics of your guides. Makes total sense, but I'm not sure I'm trying that. Lol!



[Jon Clegg]

This will be the first time that I have had to angle the neck and have a couple of questions:

1. Is it better to cut the angle into the bottom of the neck pocket or to put a taper on the neck heel?
2. Does it matter whether I set the neck or bolt it on?

On the Special K, I cut the 8 deg angle into the pocket; didn't want to remove that much wood from the neck.



[Jon Clegg]

What about a burst?
View attachment 3789792 View attachment 3789793

Bursts look fantastic on SGs.



[2groggy]

Ooops, I haven't posted in a while.

The neck is done. Pics to follow.

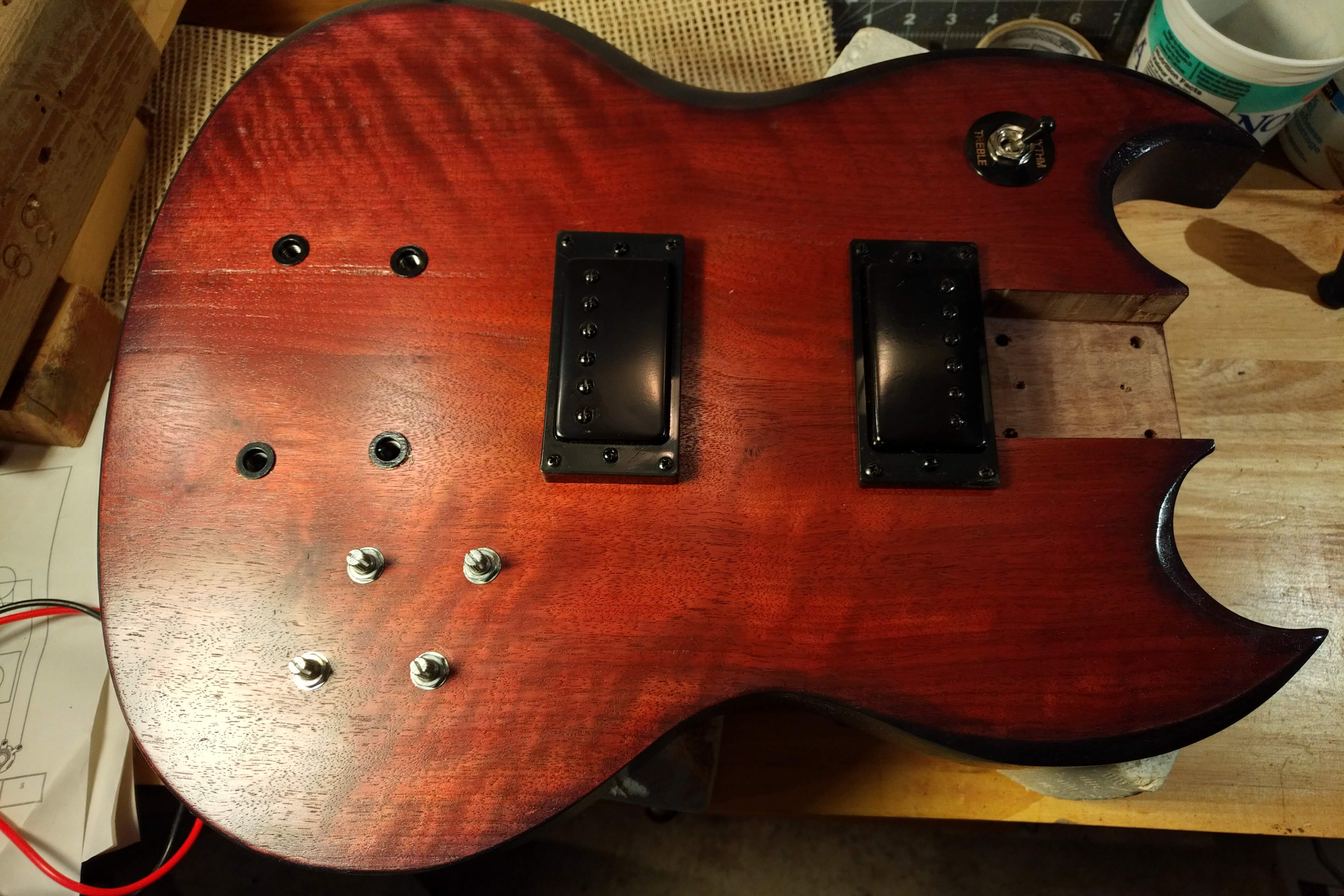

The body stained and fitted out with all of the electronics.

Body With Hardware

• 2groggy
• Apr 26, 2020
• 2020 special edition build off



[2groggy]

I've been playing it for a week, so I'd better post some pics.

SG Bass VI Finished Body

• 2groggy
• May 9, 2020
• 2020 special edition build off

SG Bass VI Finished Head

• 2groggy
• May 9, 2020
• 2020 special edition build off

I'm still tinkering with setup, so I won't call "done" just yet.



[dmarino]

Well, that turned out nice! Great looking VI!



[Huw Phillips]

Looks great
