string gauge ruler

Discussion in 'Hardware, Setup & Repair [BG]' started by Rycebag, Feb 6, 2017.

  1. Rycebag

    Rycebag

    Feb 22, 2008
  2. Turnaround

    Turnaround Commercial User

    May 6, 2004
    Toronto Canada
    Independent Instrument Technician
    Don't care for either. It's hard to see and parallax will lead you to false readings. IMO it's much better to use feeler gauges. I use them for everything from setting neck relief to string height to following the fretboard radius to setting pickup height. Mine range from 0.005" to 0.25" (0.13mm to 6.35mm)

    RSBBass likes this.
  3. I use one of the pocket engineers rule with the slide. It makes it very easy to set string height, I just slide the stop to the desired marking and use it as a gauge. A lot easier to see.

    RSBBass likes this.
  4. DiabolusInMusic

    DiabolusInMusic Functionless Art is Merely Tolerated Vandalism

    I use a 6" metal ruler I got from Canadian Tire. It was about $5. You should be able to find something similar at a tool shop. You just need to ensure the ruler starts measuring at the end of the ruler and not a couple cms in.

    Zooberwerx likes this.
  5. walterw

    walterw Supportive Fender Commercial User

    Feb 20, 2009
    alpha-music.com
    interesting! you gotta show us what the big feeler gauges (2mm +) look like!

    i've always been a "little metal ruler" guy myself but i can see the appeal of a nice "go/no go" feeler gauge to tell you when the string is the right height over a fret.

  6. Zooberwerx

    Zooberwerx Gold Supporting Member

    Dec 21, 2002
    Virginia Beach, VA
    I own the StewMac but usually rely on a General Ultra Rule pocket rule and dead-reckoning.

    Riis

  7. mech

    mech In Memoriam

    Jun 20, 2008
    Meridian, MS, USA

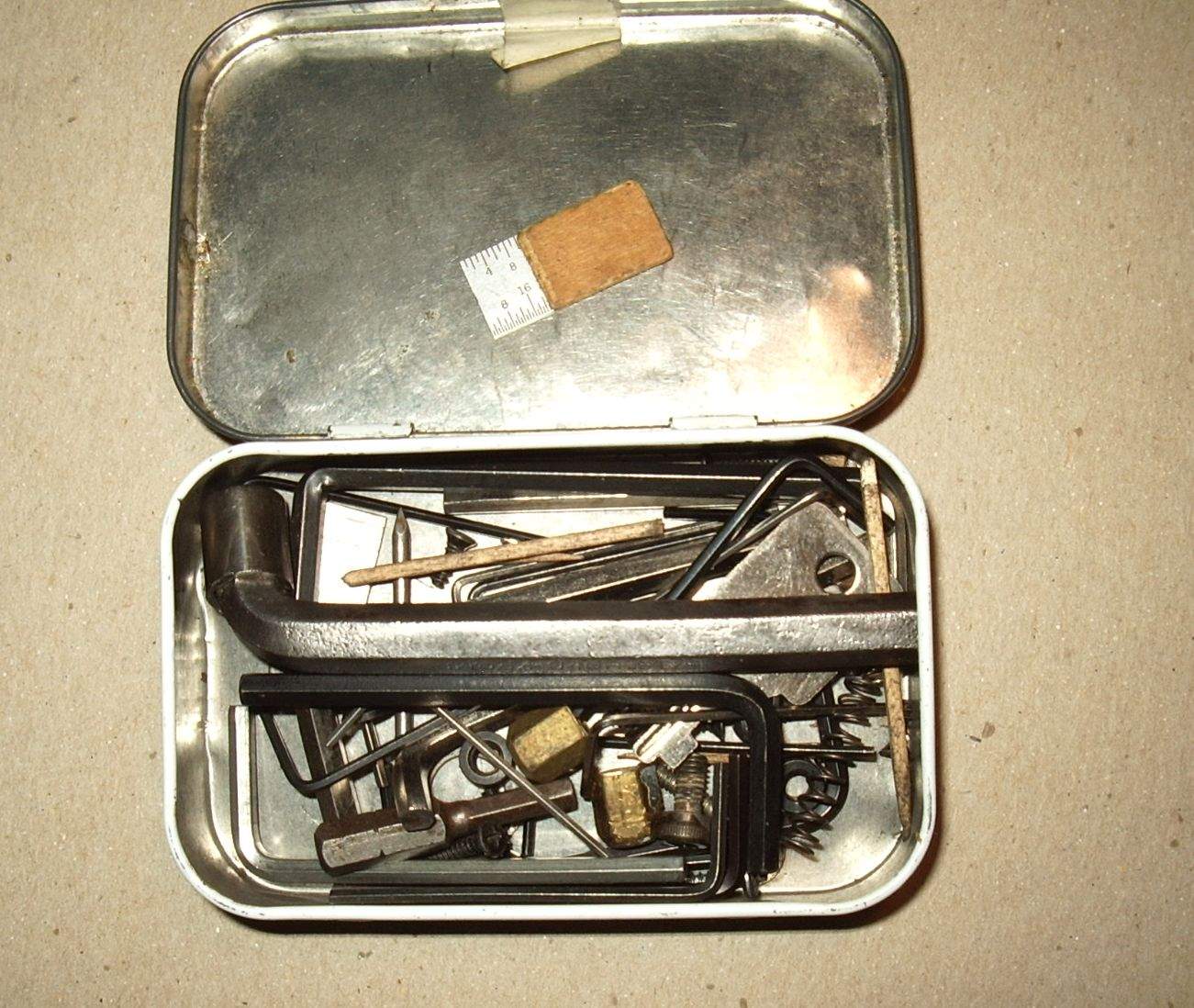

    I've used this broken off 1" piece of a Starrett Rule since 1978......and yes the masking tape wrap is vintage original. The 1978 vintage Altoids box goes in my gig bag tool kit. The piece of masking tape on the lip of the lid keeps it closed so there's no need for rubber bands, velcro or other nonsense. It's not vintage. The toothpicks are for the guitar players in my life that have the occasional strap button problem. I always tell them to glue a piece in when they get home but they don't seem to remember. :)


  8. Turnaround

    Turnaround Commercial User

    May 6, 2004
    Toronto Canada
    Independent Instrument Technician

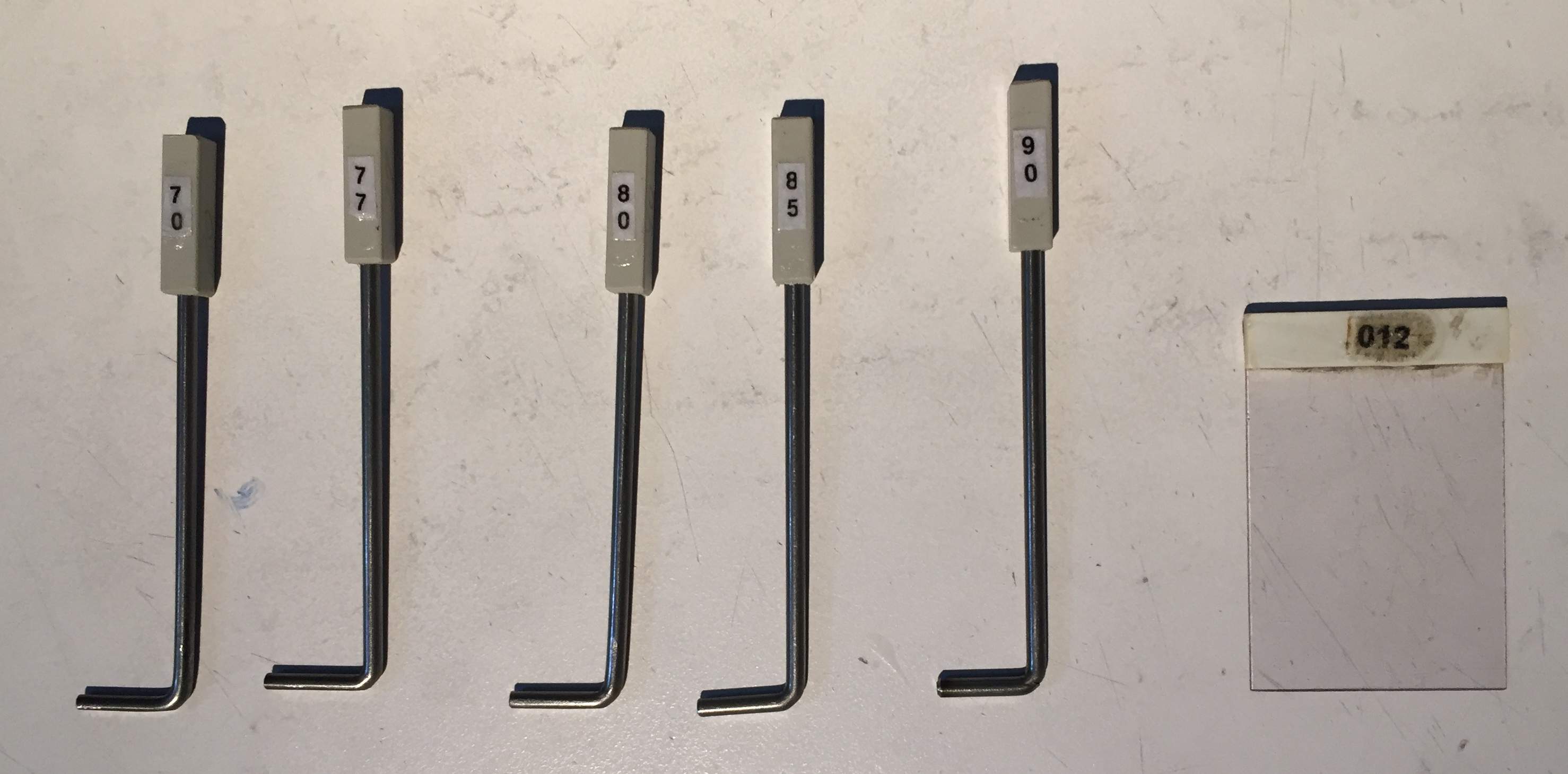

    I make most of my gauges. Some, like the five on
    the left are made from various sizes of rod, bent and ground to thickness. They are labelled with their thickness in thousandth - so these run from 70 to 90 thou. These just happened to be at hand from setting up my 5 string, but I have them running up to well over 1/8". For larger ones I grind down various hex keys.
    The one on the right is one of a bunch I made from scrap pieces of plastic. Every time I get something packaged in plastic, I cut out the flat areas and collect them in a box. When I get a bunch, I use a micrometer to measure their thickness, cut them into the size I want and label them. This one is 12 thou.


    Last edited: Feb 10, 2017
    mech and walterw like this.
