Sub-nano pedalboards

[Joe Louvar]

With the Malekkos the power input is on the side of the unit right hand at the pedal-switch end. Maybe not a dealbreaker but it makes for easier wiring and pedal spacing if they are on the top or at least at the top end i.m.o.

Thank for the info. I prefer top mounted power jacks best too, but my TC pedals are side powered (top end side), so its not necessarily a deal breaker either.

EDIT: on second thought - yeah, I really don't want side/switch end mounted power jacks. Thanks again for pointing that out.



[Bensmith]

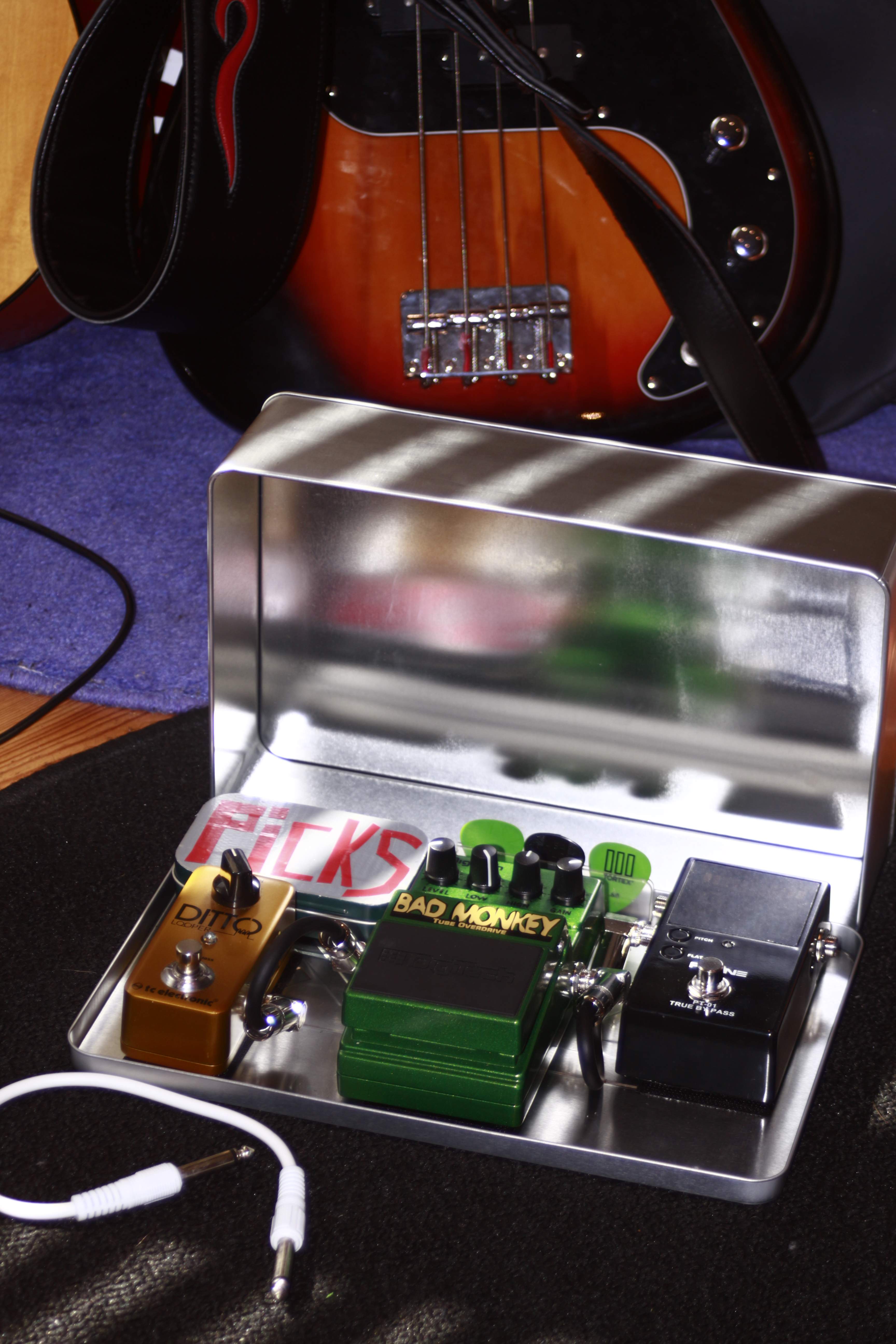

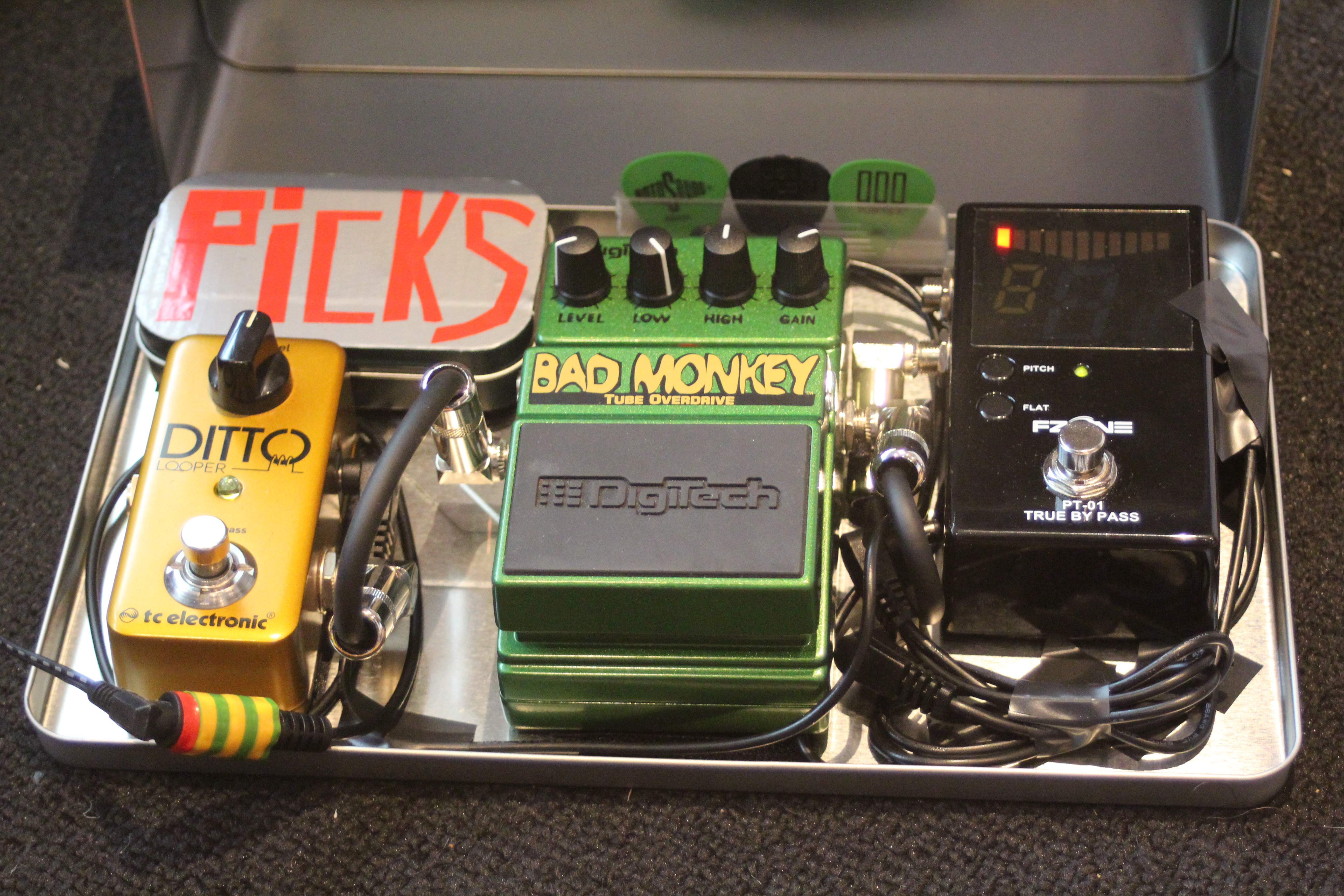

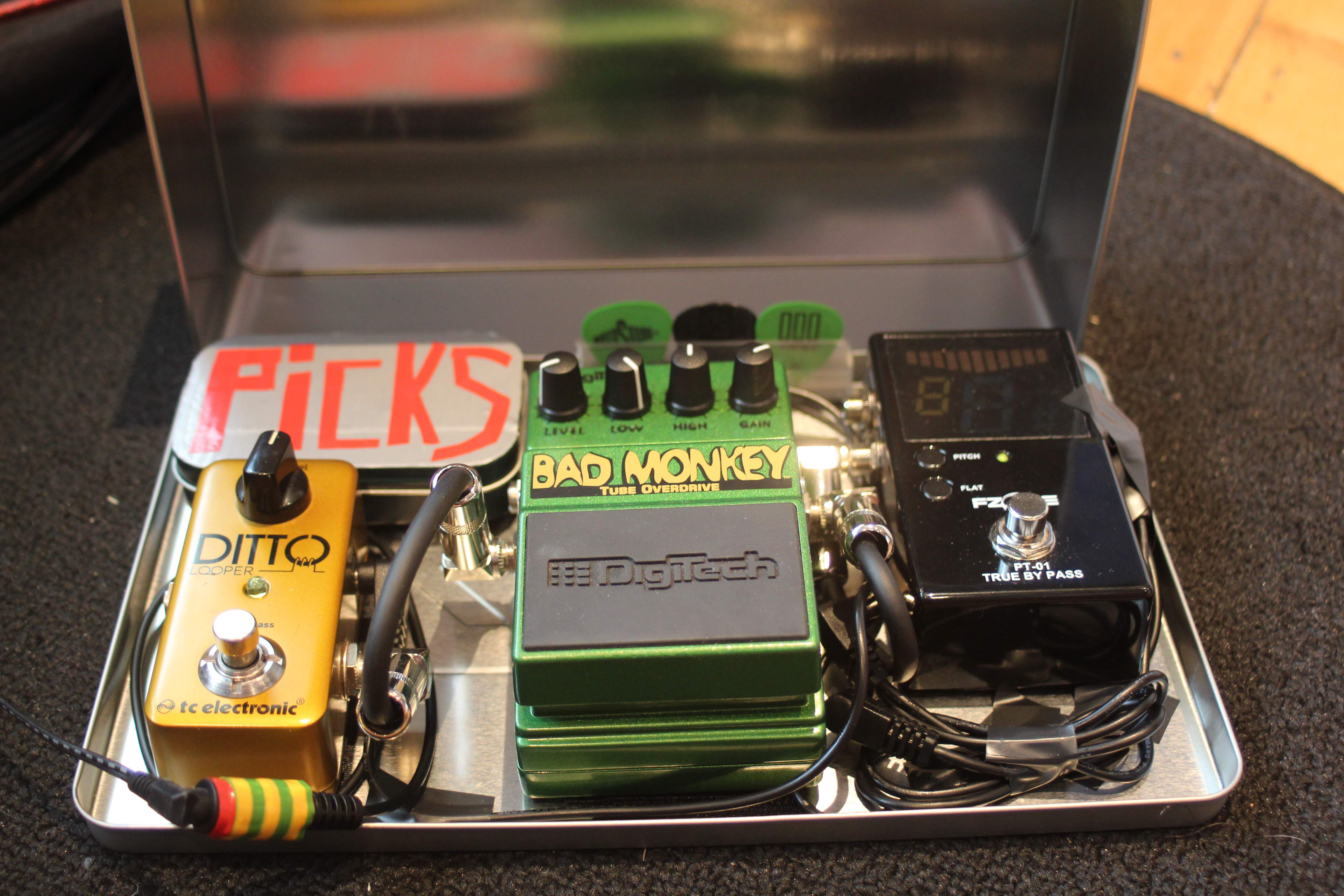

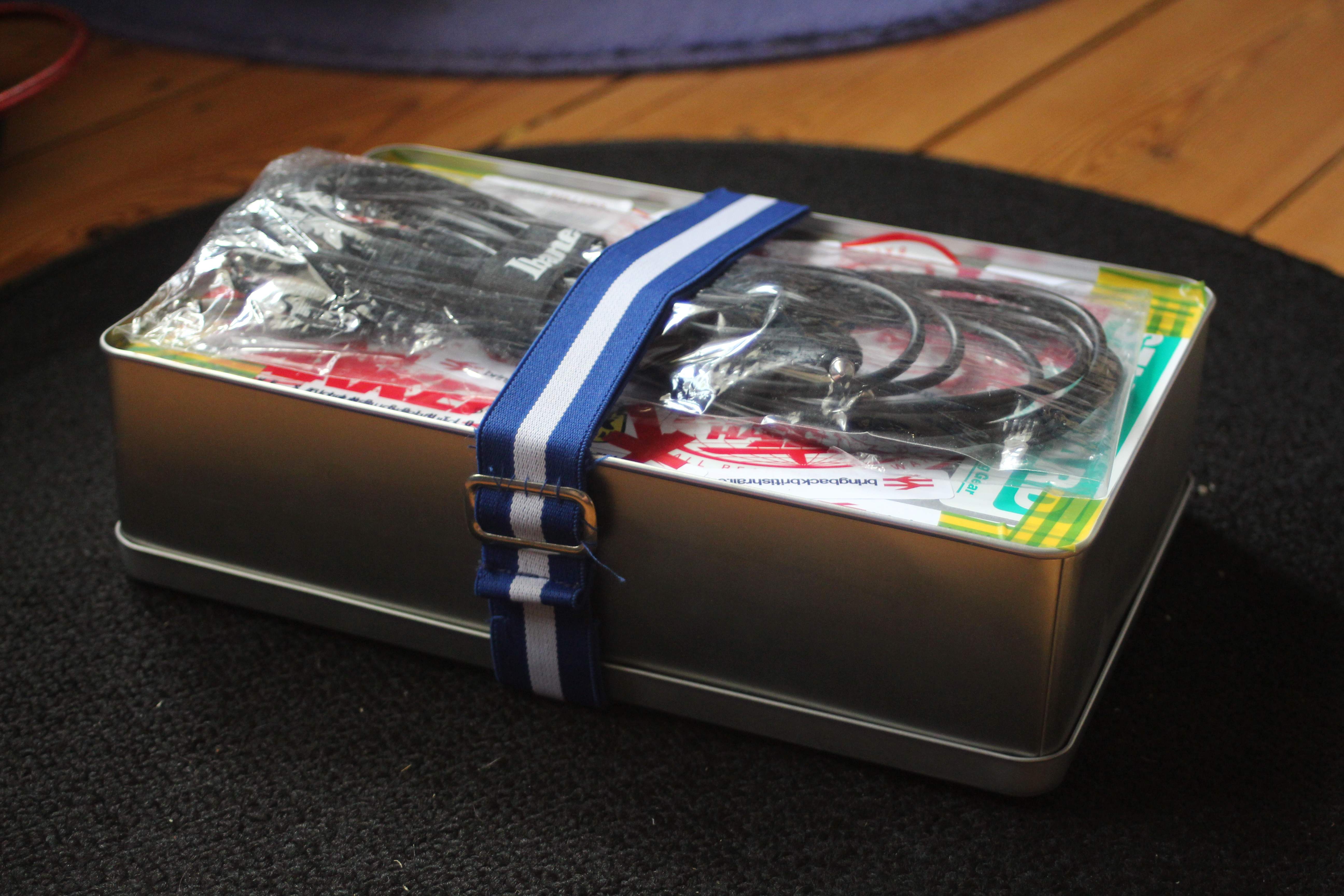

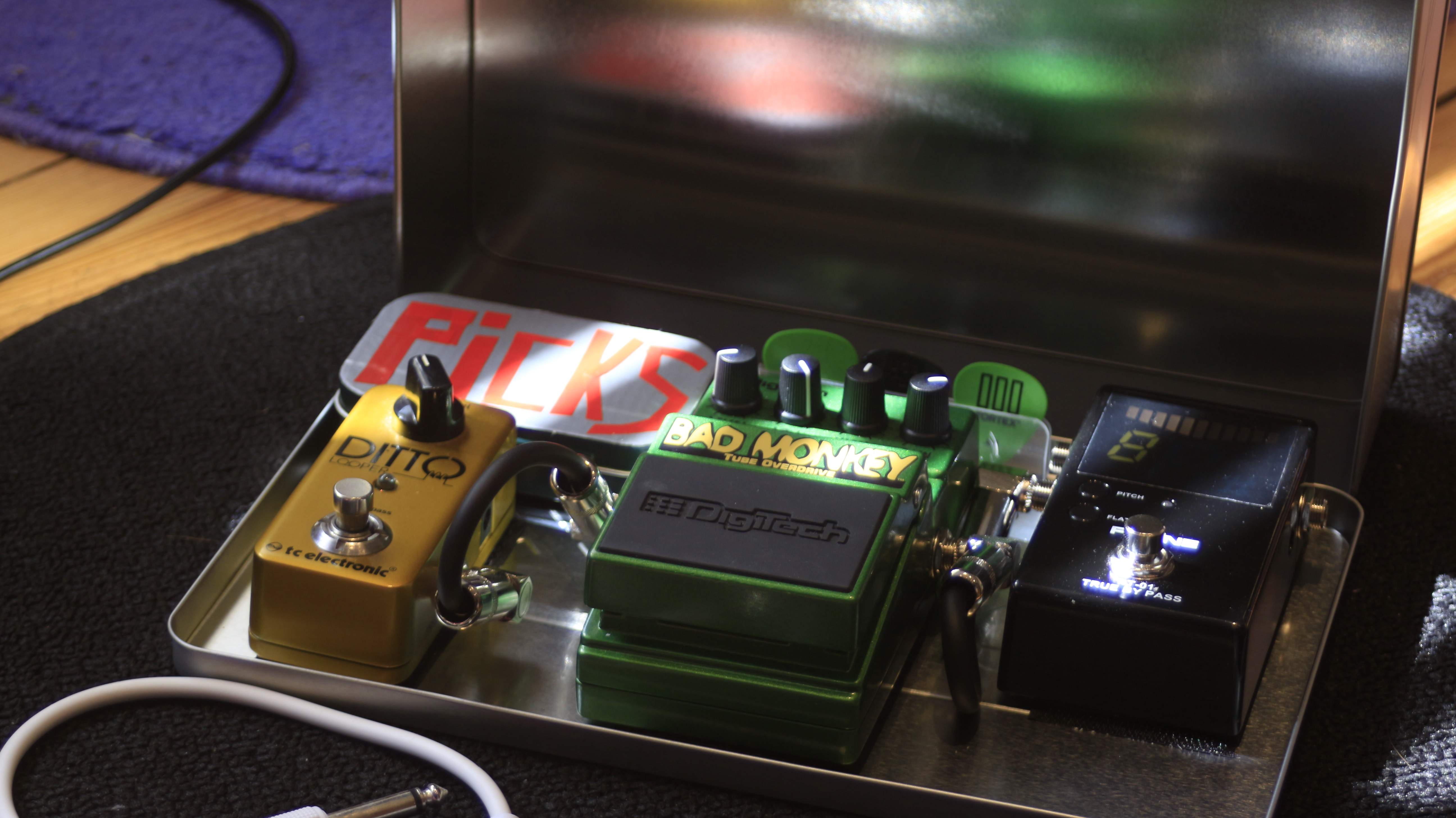

Just finished this; a bass pedal-board in a tin. (Only 28cm X 17cm X 7cm).
Pedals:

• FZONE PT-01 Tuner
• Digitech Bad Monkey
• Ditto Looper Gold

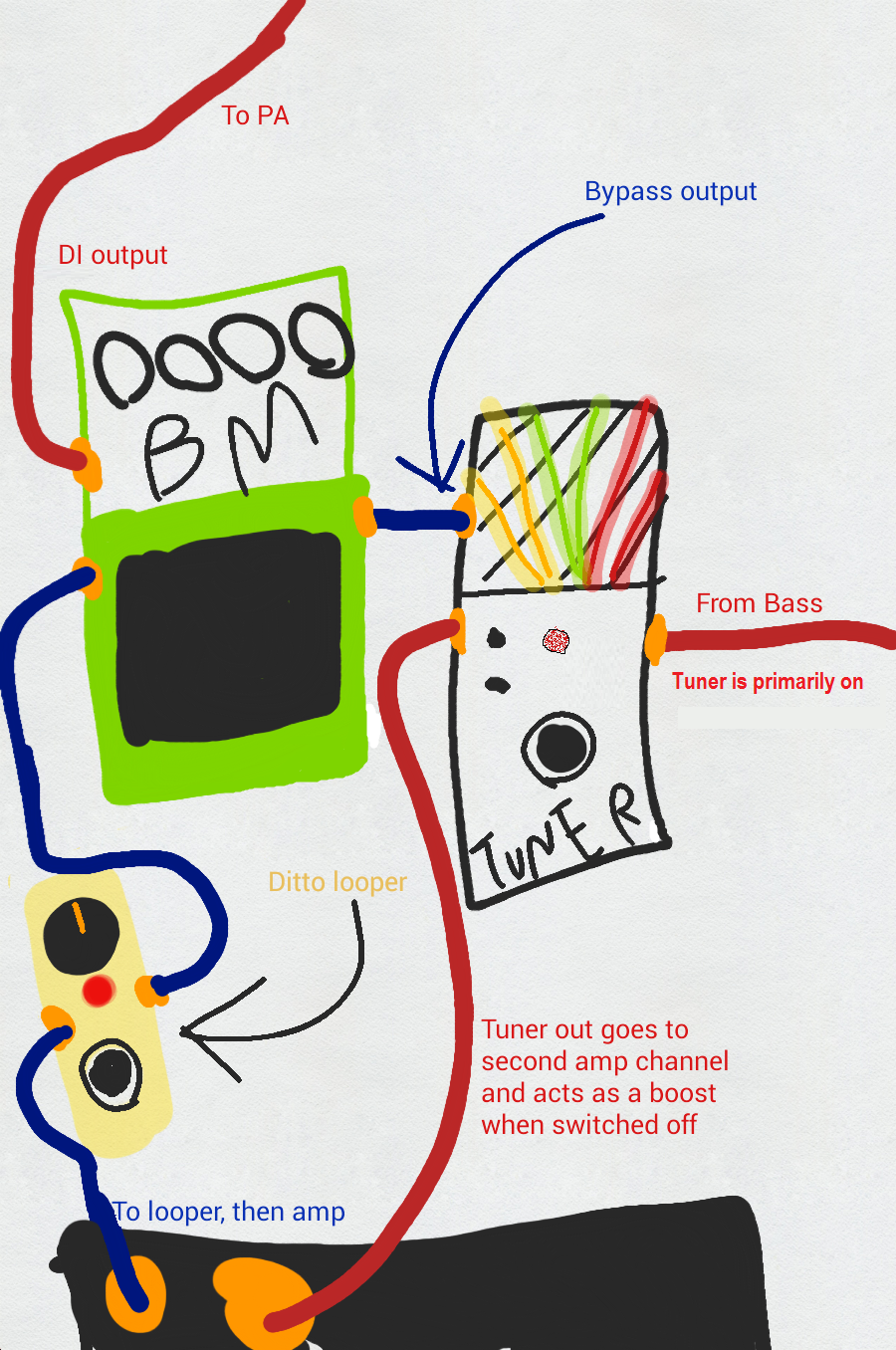

Here's a diagram to show the signal chain:



[nshuman]

Just finished this; a bass pedal-board in a tin. (Only 28cm X 17cm X 7cm).
Pedals:

• FZONE PT-01 Tuner
• Digitech Bad Monkey
• Ditto Looper Gold

View attachment 644973 View attachment 644974 View attachment 644975 View attachment 644976 View attachment 644977
Here's a diagram to show the signal chain:View attachment 644978

Don't get me wrong, your board is awesome. But, your diagram, your diagram is where the gold is.



[BartmanPDX]

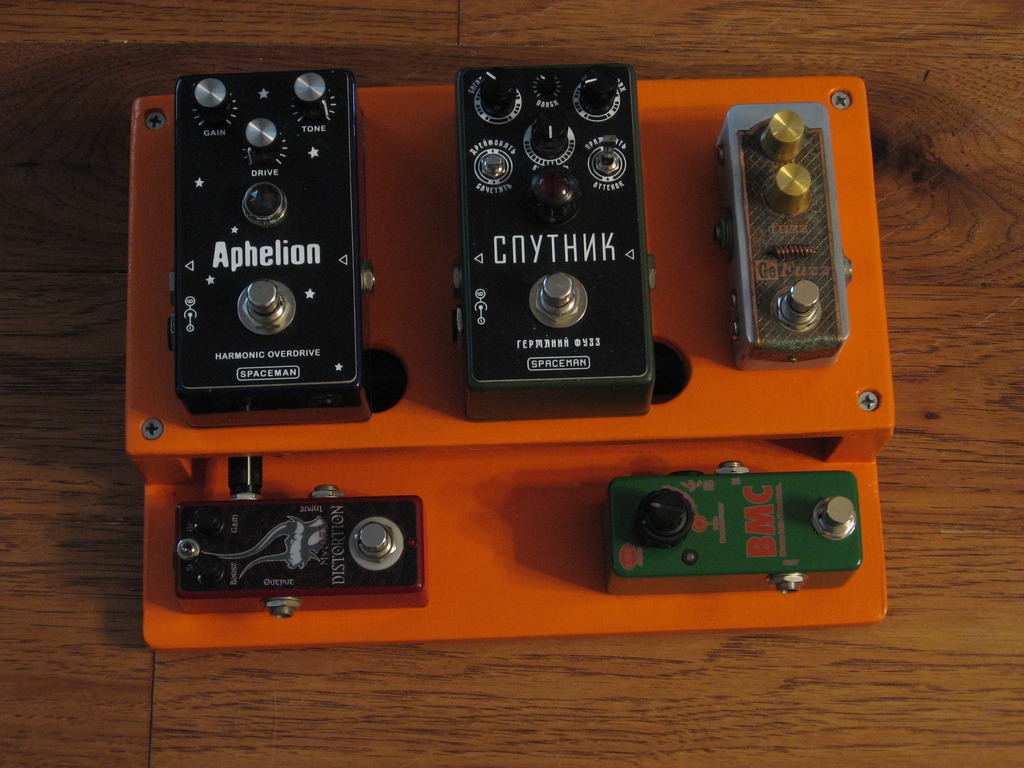

I built this add-on board that has a PP2 mounted underneath. It's 8" deep but only 11" wide:

Recessed the PP2 so the board wouldn't be too tall to fit in a Pelican case:



[SGT. BAKER]

I was the first peadlboard that I built. A simple plywood piece and after I sprayed in black.



[bassbrad]

This is the little board used for practice, some gigs especially the C&W gig.

Sweeper-Lo|Fat-B2.1u.



[AndyLES]

I built this add-on board that has a PP2 mounted underneath. It's 8" deep but only 11" wide:

Recessed the PP2 so the board wouldn't be too tall to fit in a Pelican case:

Love that Russian fuzz pedal...I can practice Cyrillic with that.



[BigBeatNut]

Found another:

[Invalid or Expired Link Removed]
This is the mosquito expressio blender for the second small board into the nano...

View attachment 828689



[Daniel Piper]

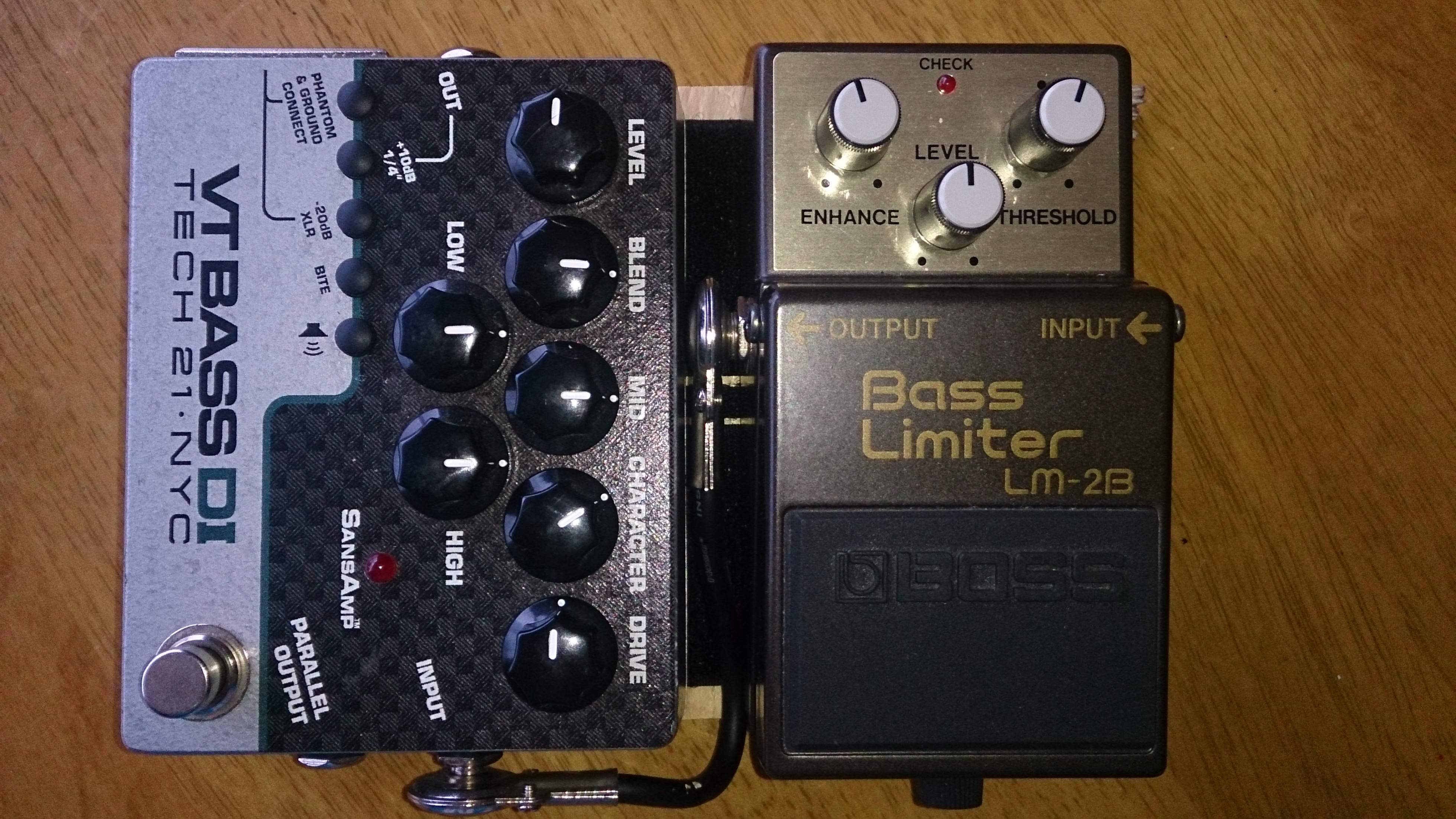

On a piece of ply from around the house. DI runs on phantom power, the comp on battery.



[DDXdesign]

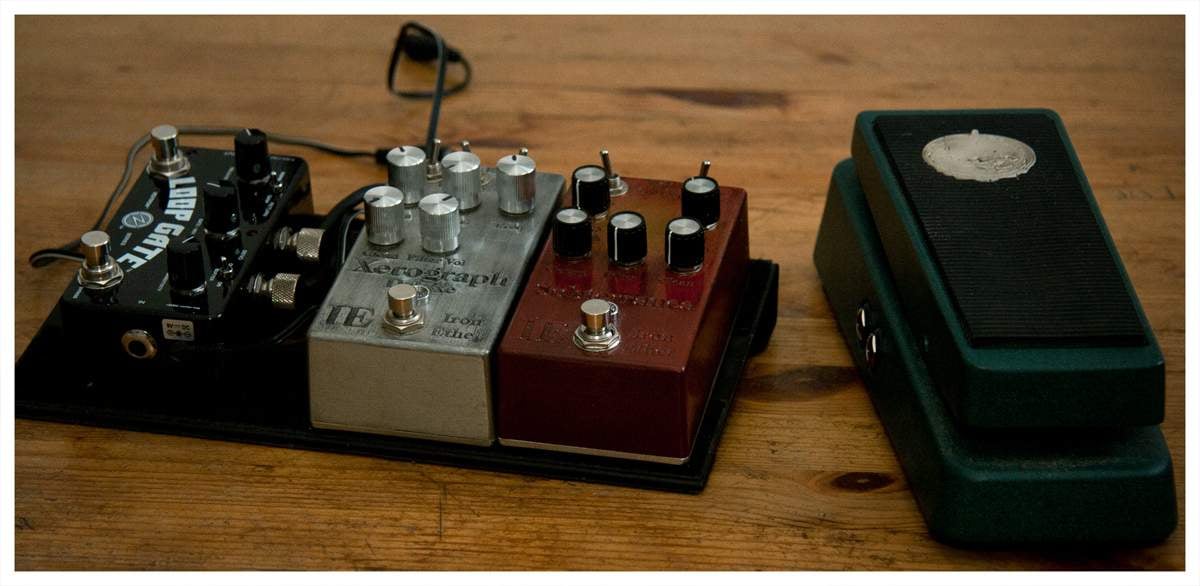

Work in progress, so it doesn't look like much yet... This piece of Poplar is 6 by 11-5/16; might need to go a little bit bigger because I'm thinking of going COG T65 for the octave spot, but with the Zoom pedal providing noise gate, compression, tuner and OD, this 3-pedal setup covers my needs pretty well. Powered by 1spot, cabled with EBS.



[cnltb]

I built this add-on board that has a PP2 mounted underneath. It's 8" deep but only 11" wide:

Recessed the PP2 so the board wouldn't be too tall to fit in a Pelican case:

Aphelion?



[BigBeatNut]

Bump.

Any more ?



[Walter Folly]

reviving the thread

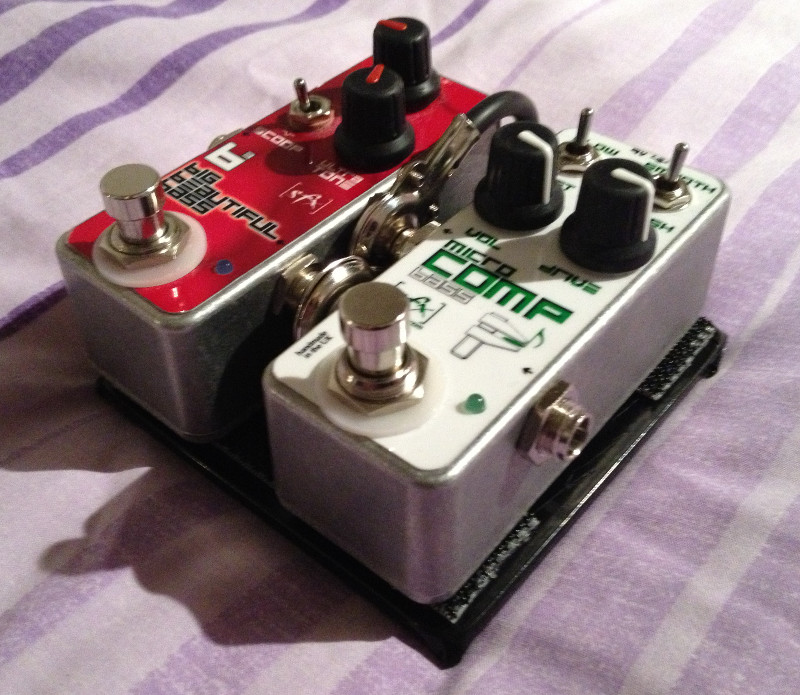

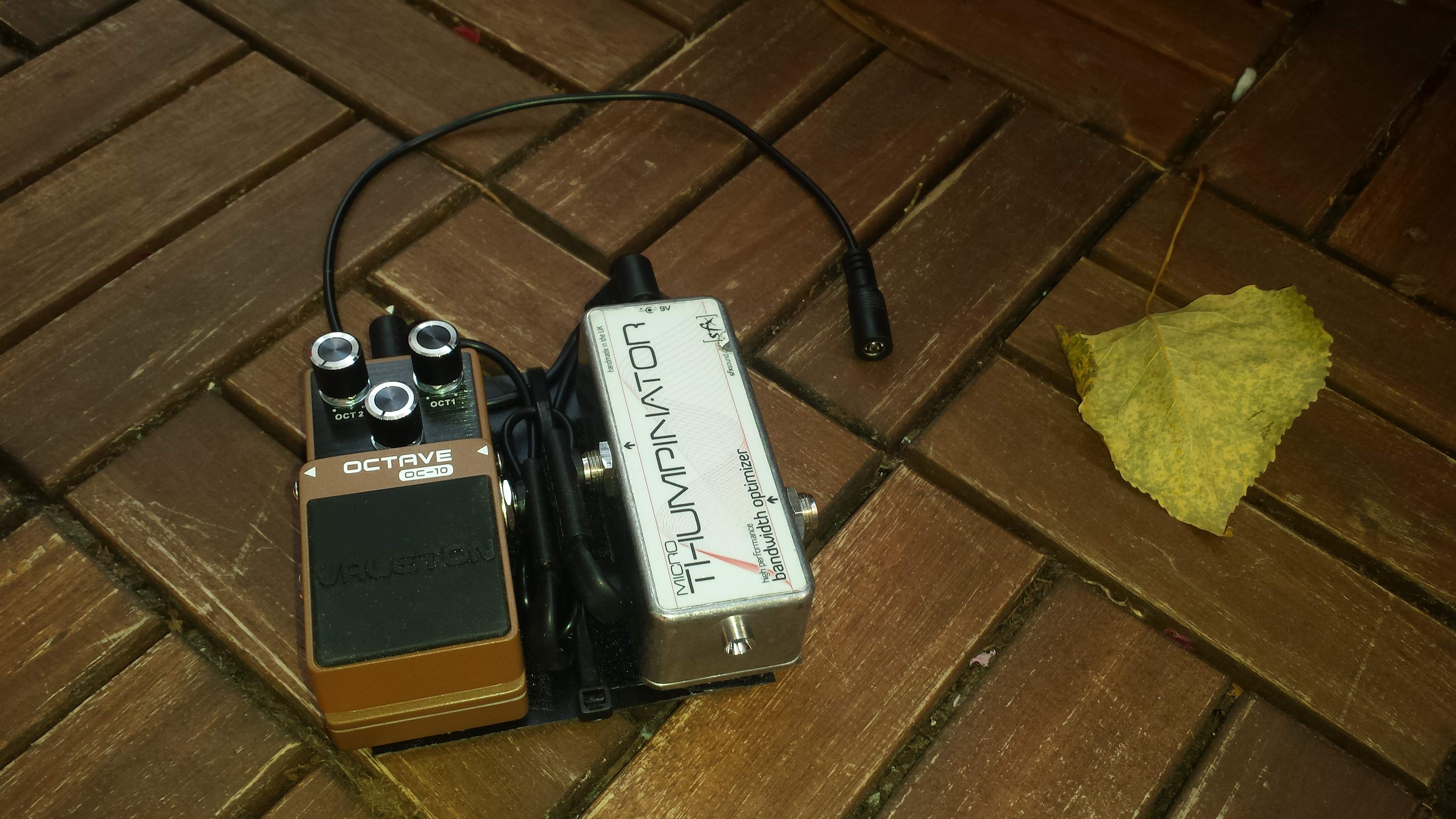

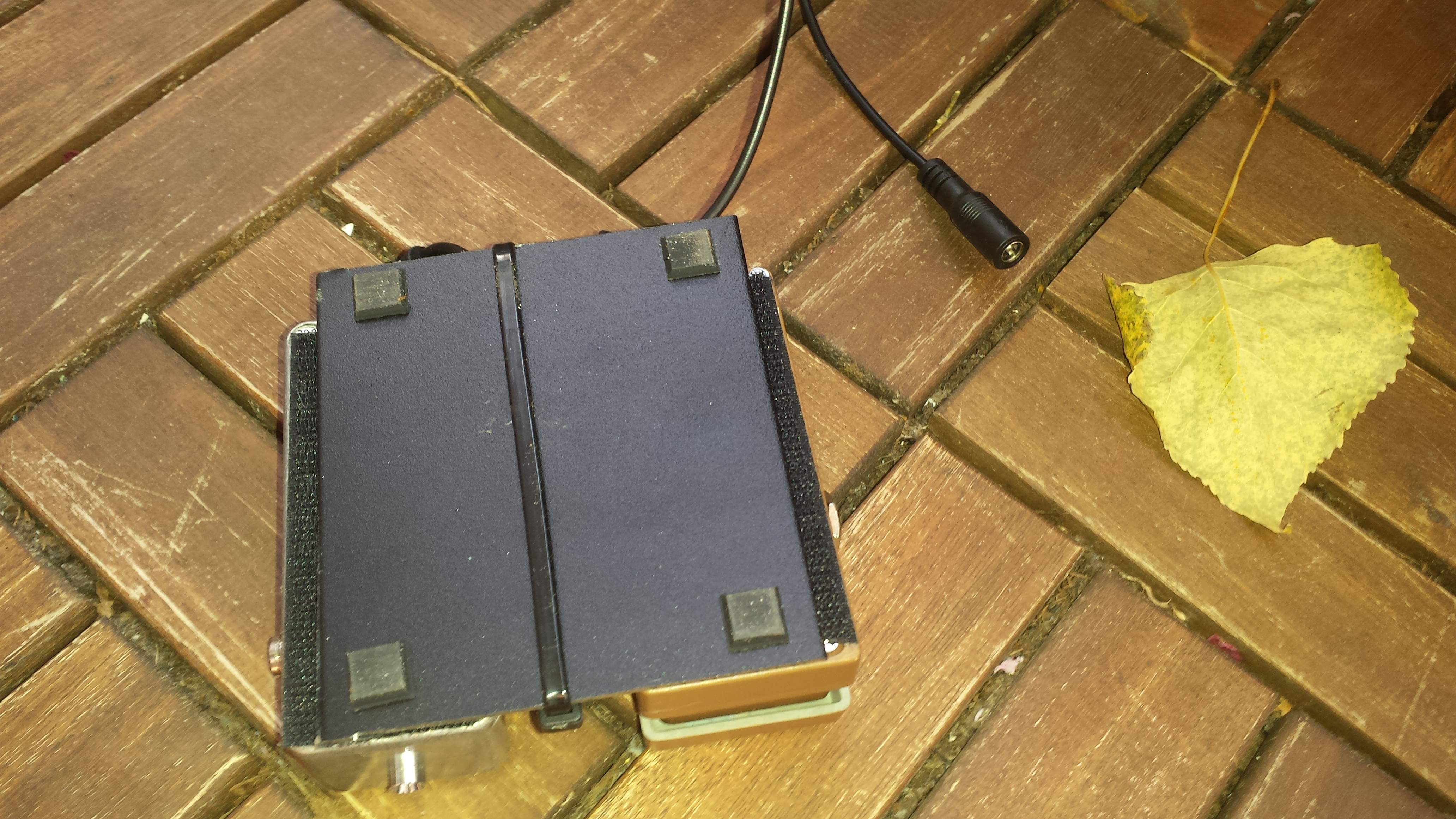

two micro pedals mounted on an old left over piece from a rack panel. swapping things in and out. mostly octaves, overdrives and compressors.



[tommyeadg]

I’ve just ordered a Pedaltrain PB2 pedal booster/riser to use as a tiny board for my Fairfield Barbershop and Accountant. I want to power it with a Pedaltrain Volto underneath. I think i had this idea by another user on here but i can’t seem to find the particular thread/post anymore. Anyone has experience with using a pedal booster as a stand alone board?



[Mushroo]

I’ve just ordered a Pedaltrain PB2 pedal booster/riser to use as a tiny board for my Fairfield Barbershop and Accountant. I want to power it with a Pedaltrain Volto underneath. I think i had this idea by another user on here but i can’t seem to find the particular thread/post anymore. Anyone has experience with using a pedal booster as a stand alone board?

Not enough clearance under a Pedaltrain Booster for a Volto, but you could probably find some rubber feet to make it work.



[Texican]



[tommyeadg]

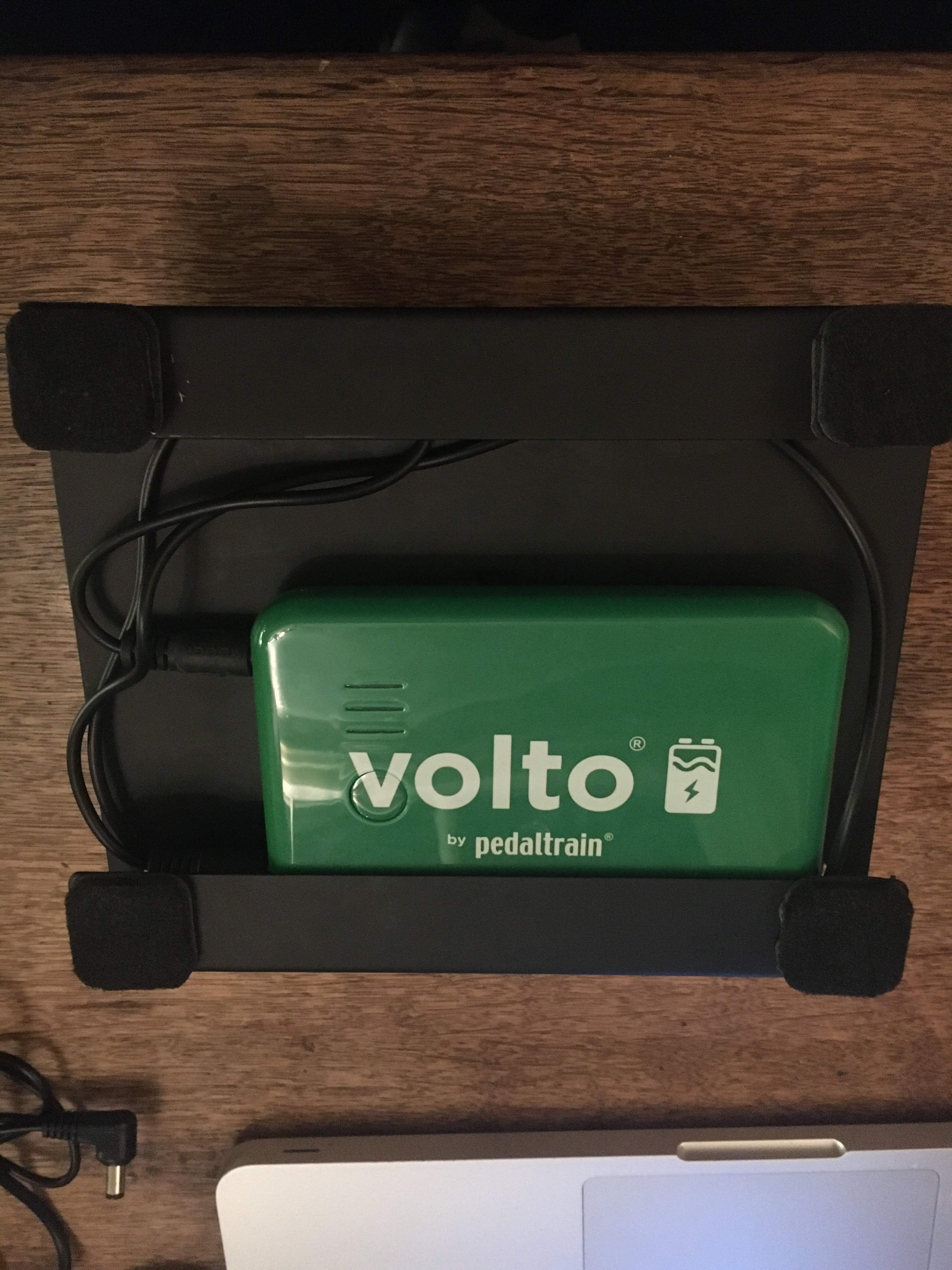

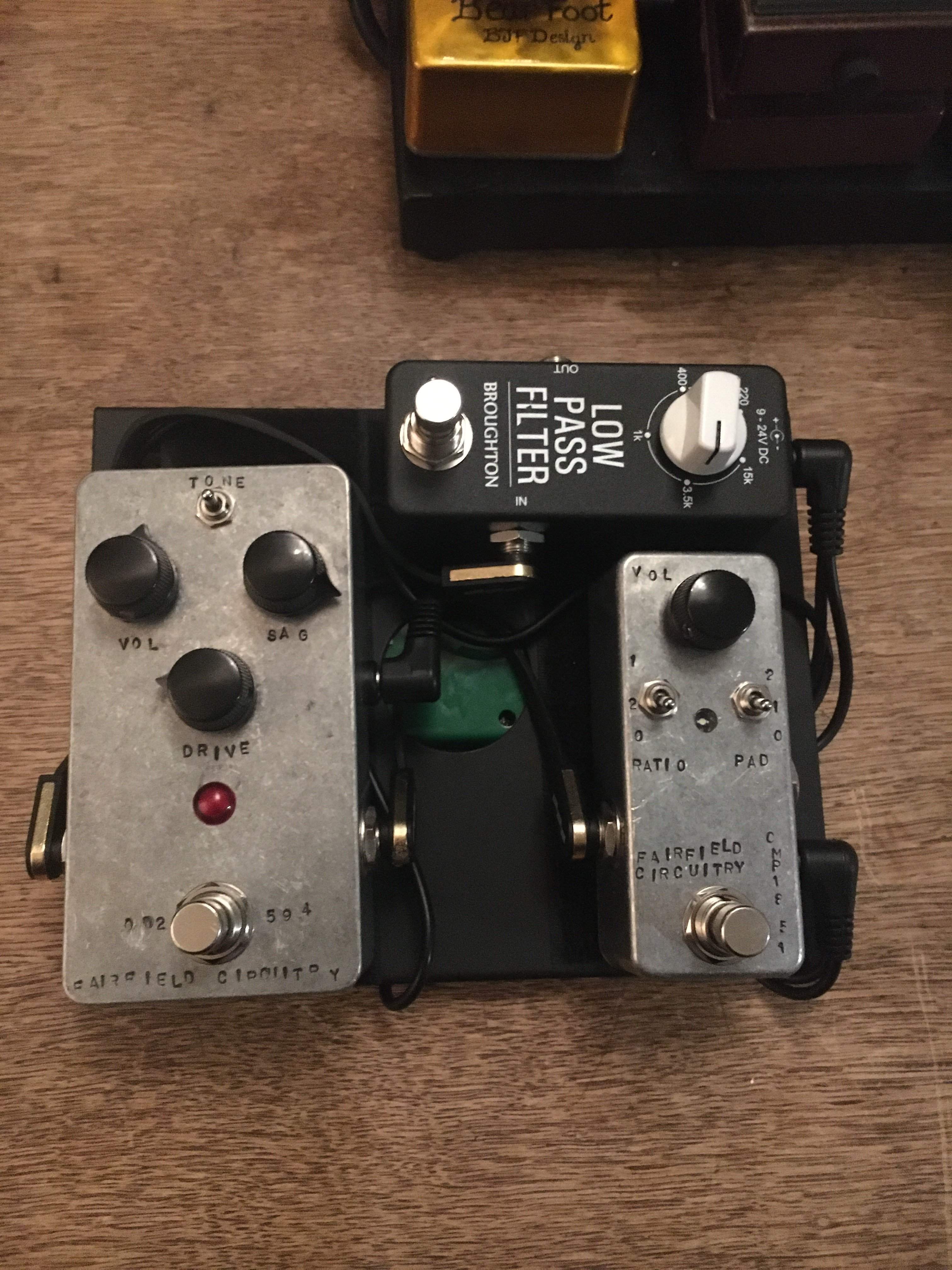

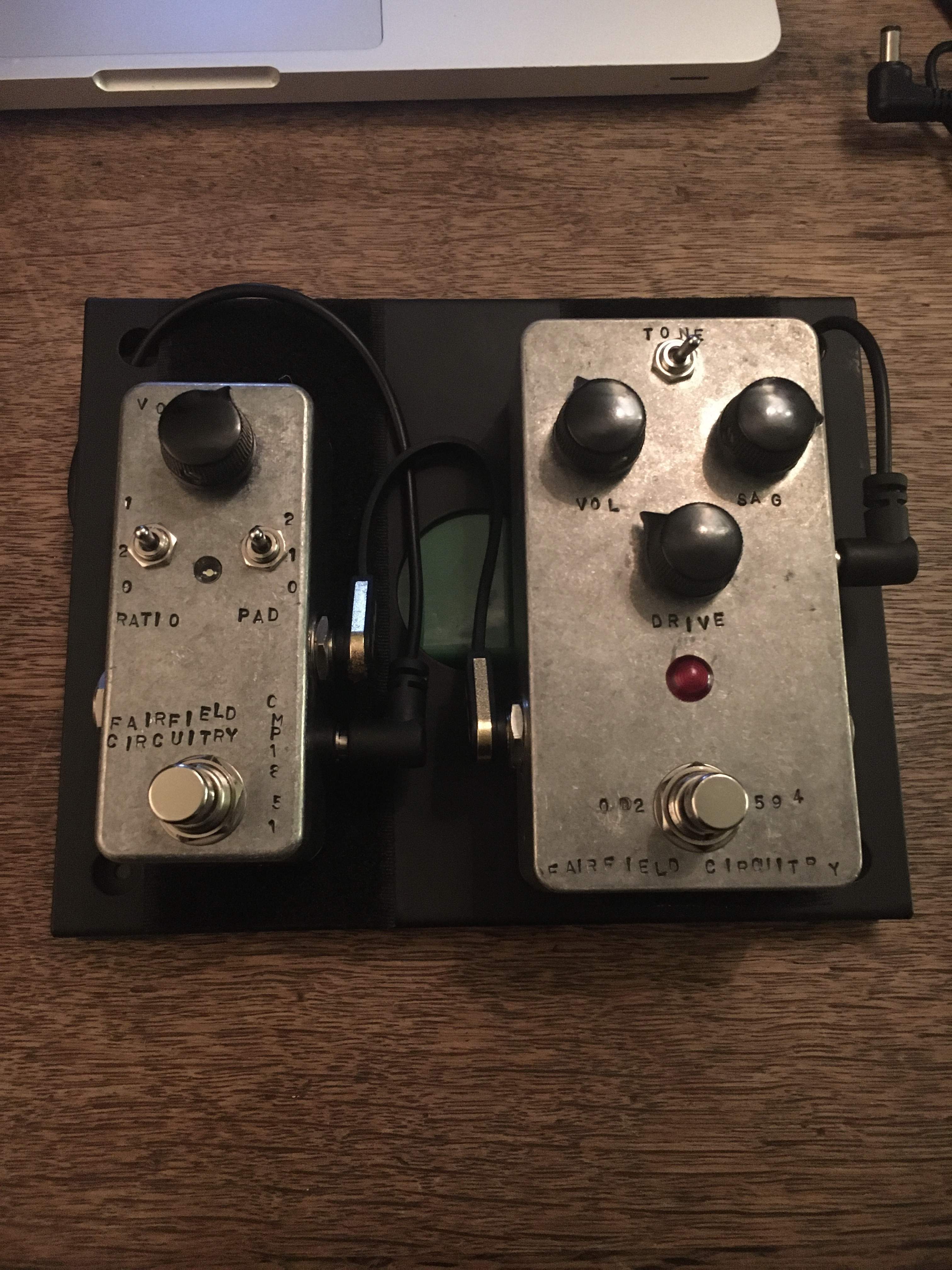

Allright this is what i’ve come up with. Probably gonna put some better feet under it at some point but for now i’m pretty happy with the result. Please tell me what you think!



[tommyeadg]

Little update



[IronLung1986]

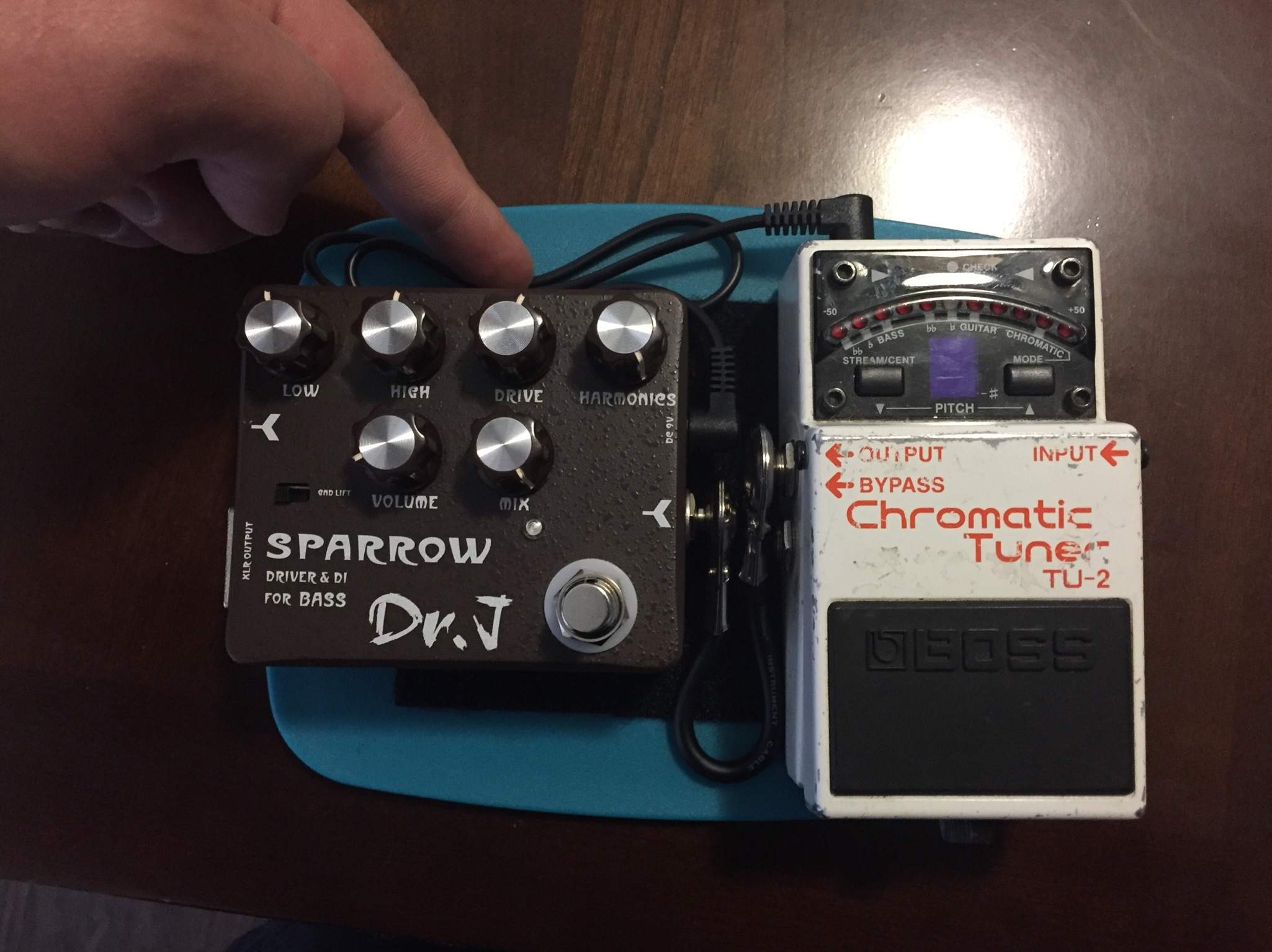

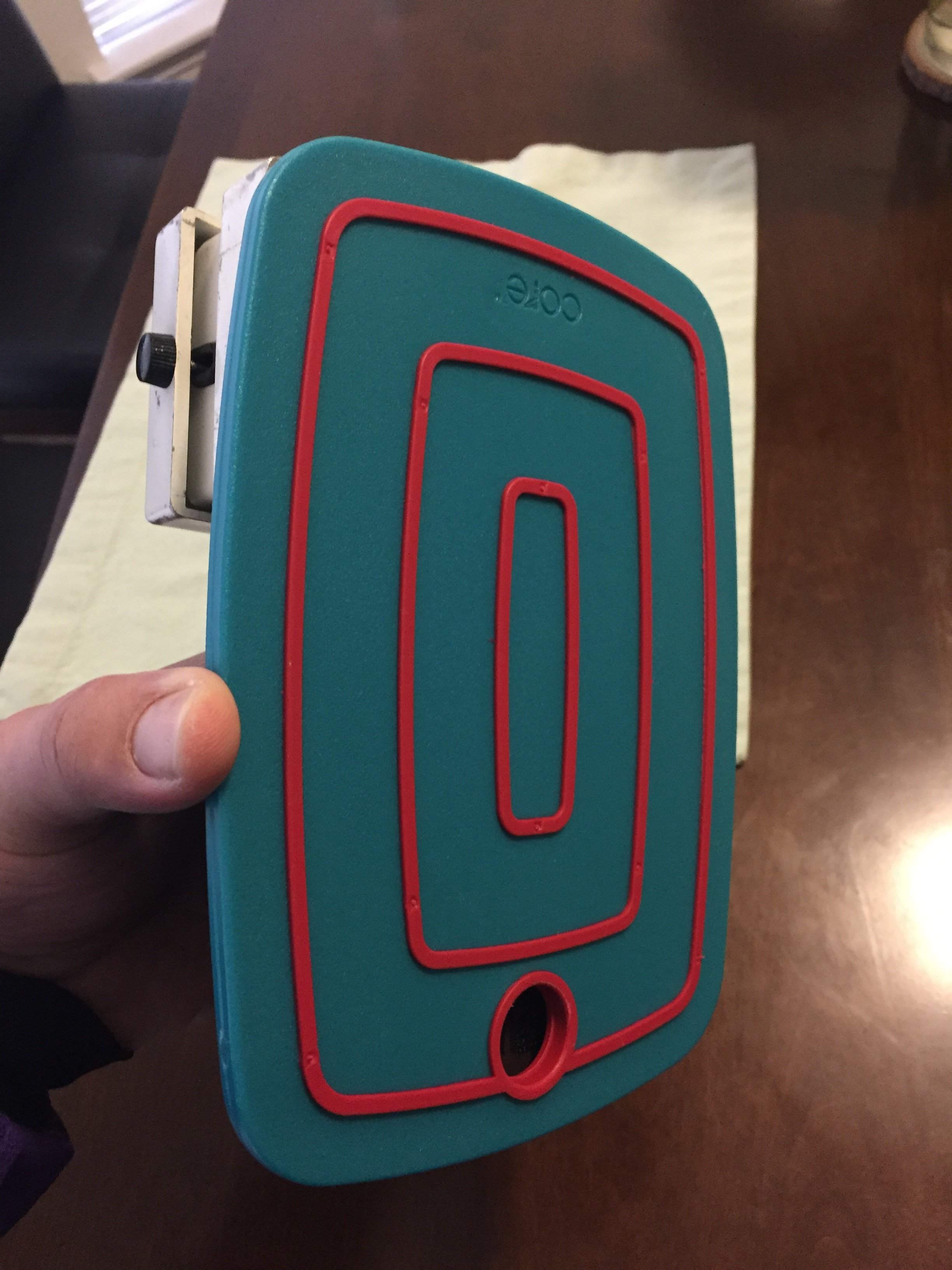

And mine:

View attachment 2170727

That's all I need for a jam.

Now that's a small pedalboard.
