Thanks to the poster who pointed out that the bass and treble parts of the contour jumpers can be used separately. I have a bass that sounds much better with just the 4Db bass boost without the treble boost. Thanks!
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
The John East preamp club
- Thread starter datsaxguy
- Start date
I'm trying to. My tech wired the grey to the power side..I just discovered this. Im just trying to find rhe appropriate place to ground the grey wires and it looks like i have may have that sorted due to the info you guys have given me. I will hunt for a central ground point to connect the grey wires.
I can't imagine it changing the sound, but if it helps with any noise at all it will be worth it. I get a wicked buzz if I accidentally touch the pole pieces. Otherwise it's pretty darn quiet for single coils.
You definitely want the grey wires to connect to the signal ground, not the battery negative!. It will stop any buzz when you touch the pole pieces.
Are there any good resources on bass wiring that can explain best practices for both active and passive basses?
I notice it I touch the pole pieces and strings, there is no buzz. Does this mean I can send rhe grey wires to the bridge ground or fo they need to be connected to the pickup wire neutral?
Sorry fir all the questions. I can't tell much of what goes where. There semes to be no central ground point i can see woth all these sperate modules and I have a rat nest in here.
Ok, your black and white pickup leads go the volume module. You can simply twist the two grey wires from the pickups together with another wire (to extend) that goes to the signal ground tag of the output jack. Solder and insulate the connections, and you should be good to go.
Make sure you solder the ground to the right lug of the output jack - it should be the tag for the sleeve of the 1/4inch TRS output jack. You can easily check using continuity mode of a multimeter and signal lead plugged into the jack
- Apr 18, 2008
- 16,021
- 1
- 31,749
- Disclosures
- I'm highly opinionated and extremely self-assured
That will certainly work.
But any good ground will do. Back of a pot, piggybacked off of a known ground point on the preamp boards, bridge ground, even solder to the copper shielding wire (as long as the shield has a good connection to ground).
All grounds are connected to the sleeve terminal of the jack (or should be; if they're not then they're not grounds). So you can connect to anything that is connected to the sleeve terminal.
Different pickup manufacturers follow different practices. Sometimes a coil ground (one end of a coil) will be permanently connected to a shield ground, like a classic Gibson P90 with its single braided wire. Other manufacturers separate the coil connections and the shielding connection(s), like Nordstrand. Obviously having separate connections allows for more flexibility in wiring the circuit, but it can also cause confusion if you don't understand what each wire does.
We are here to help!
You are helping. I just found out the nords big singles have an extra ground thanks to yall. I assume that it's to give the body of the pickup a common ground with everything else (I know all about ground loops and grounding issues in other fields).
This keeps the pickup body ground out of the pickups signal flow, I think. Not sure why else they'd do it this way.
- Apr 18, 2008
- 16,021
- 1
- 31,749
- Disclosures
- I'm highly opinionated and extremely self-assured
First, there are no ground loops inside our instruments. There is one and only one ground plane, and that's controlled by the sleeve of the jack.
The benefit of having the shield ground separate from the coil ground is the ability to reverse the coil wires in case of phase issues with other pickups, and/or the ability to employ a series/parallel circuit, without sacrificing shielding.
The benefit of having the shield ground separate from the coil ground is the ability to reverse the coil wires in case of phase issues with other pickups, and/or the ability to employ a series/parallel circuit, without sacrificing shielding.
John East
Commercial User
For the UNI-PRE:
+ White to HOT Input
+ Black & Grey to GND.
Black & White are from the coil, Grey is a separate Ground/Screen. This arrangement allows the coil to be isolated from ground, necessary with an Audere where the coil is effectively "floating", connected directly to the electronics. (If the black was grounded, it would prevent the Audere from working) So, the grey is a separate screening ground that can be grounded without issue.
I need a little help understanding how the uni affects the pickup resonace peak.
It's my understanding that pickups and even cables alter this resonate peak in passive instruments
The uni is buffered, so the cables aren't in play, but is there anything in the east pre that affects the pickups upper peak?
I've asked about tone caps , but never got any kind of answer anywhere.
I despise where my pups current peak is. It sounds pretty bad. I can brute force it with eq, but I'd rather move the peak is possible.
If my thinking is off, please do explain. I'd really like to know how the uni pres affect this, of they do at all.
It's my understanding that pickups and even cables alter this resonate peak in passive instruments
The uni is buffered, so the cables aren't in play, but is there anything in the east pre that affects the pickups upper peak?
I've asked about tone caps , but never got any kind of answer anywhere.
I despise where my pups current peak is. It sounds pretty bad. I can brute force it with eq, but I'd rather move the peak is possible.
If my thinking is off, please do explain. I'd really like to know how the uni pres affect this, of they do at all.
- Apr 18, 2008
- 16,021
- 1
- 31,749
- Disclosures
- I'm highly opinionated and extremely self-assured
I don't think they do. But if you want to change it, you can employ loading caps before the signal enters the Uni.
Hi East Preamp Enthusiasts,
I'm about to dive into the East preamp world with a regualr j setup, but qas wondering:
Could a J-tone preamp work with a Delano MM-J combination?
I'm looking at a SBC 4 HE/S MM at the bridge, and a JSBC 4 HE at the neck, in j-bass positions.
Delano has systems for this but I'm thinking of a mod to a j-bass and like to keep things simple, so a drop in would be perfect.
I'd have a separate switch for the mm coils.
I'm about to dive into the East preamp world with a regualr j setup, but qas wondering:
Could a J-tone preamp work with a Delano MM-J combination?
I'm looking at a SBC 4 HE/S MM at the bridge, and a JSBC 4 HE at the neck, in j-bass positions.
Delano has systems for this but I'm thinking of a mod to a j-bass and like to keep things simple, so a drop in would be perfect.
I'd have a separate switch for the mm coils.

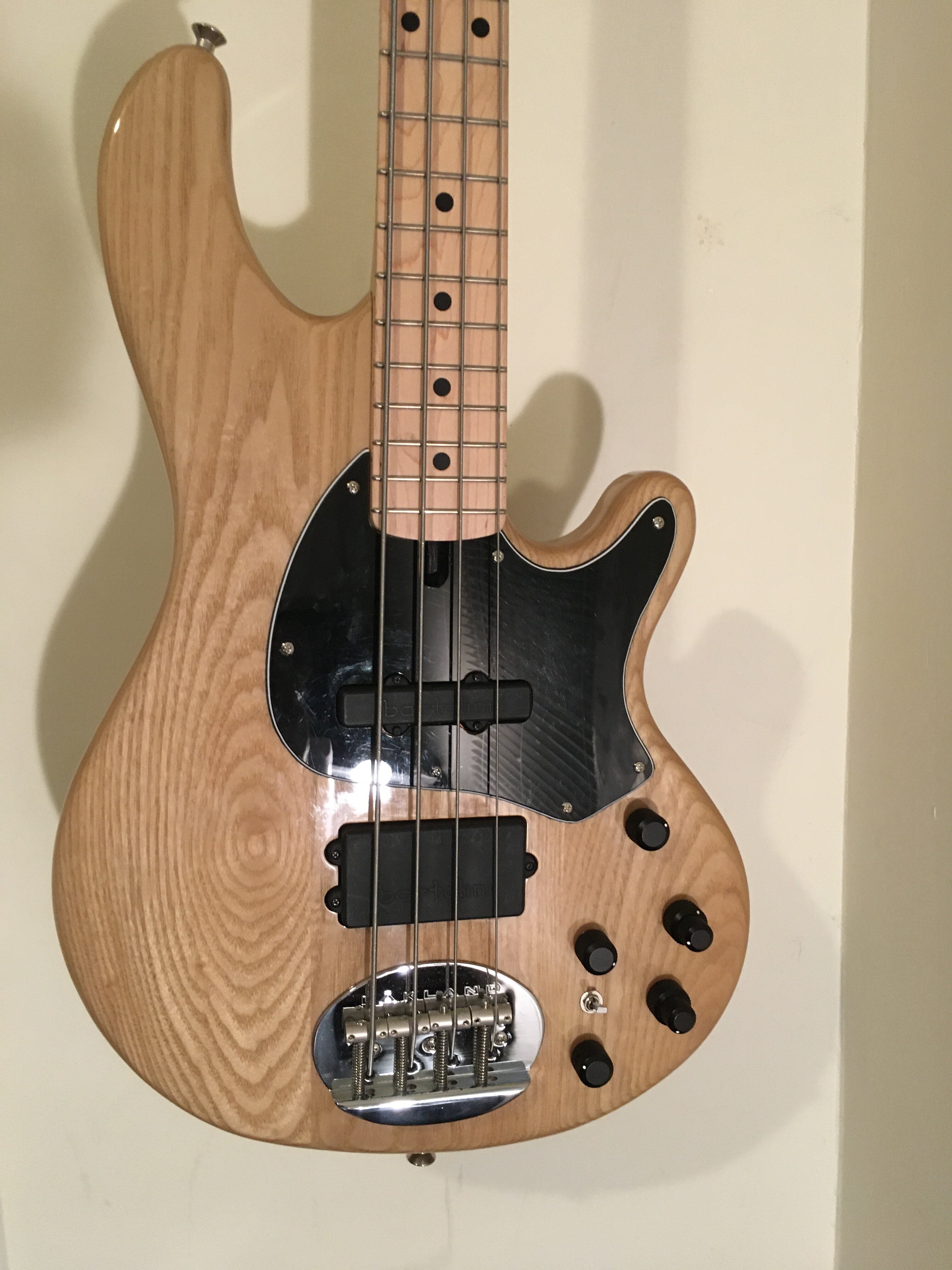

Oops, wrong pic. This is the one with the JE UniPre installed.
