URGENT - PLEASE HELP!!!! AMPEG SVT 6-PRO, I am officially a numpty

[mildmanofrock]

http://www.talkbass.com/forum/attachment.php?attachmentid=170325&stc=1&d=1276265639

(Pic above - sorry, don't know how to attach it)

I've got a gig tonight and thought it would be a good idea to buy some nice new tubes from the lovely people at Watford Valves. I whipped out the old valves from my Ampeg SVT-6 Pro and didn't note which valves went where. Yes, I'm an idiot, I know.

To cut a long story short, I need to put the original valves back in.

There are four 12AX7 valves and two 12AU7 valves.

I've hunted high and low for a schematic - called Panic Music, spoken to Watford Valves, and left a message with Loud Technologies and no ones entirely sure what goes where.

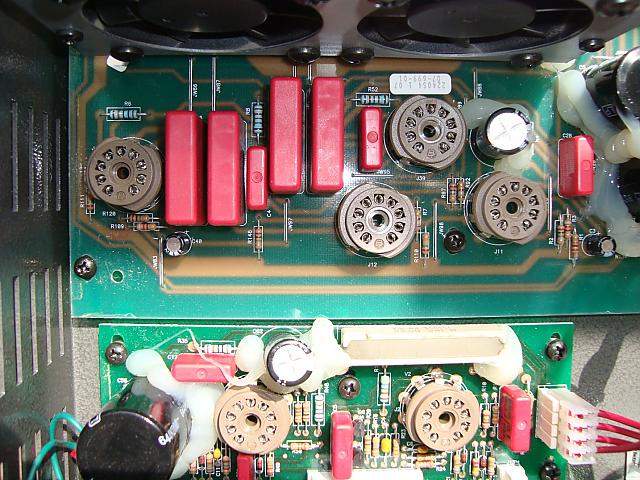

Can anyone help??? I've attached a picture of the empty valve slots!

Thank you folks!!

Steve



[Jerrold Tiers]

This is probably too late to help you, BUT....

The two sockets labeled J12 and J39 on power amp get 12AU7, all the rest get 12AX7.



[mildmanofrock]

Thank you sir! I found the right placements at the elevent hour. Although, when I played the gig, my sound kept breaking up and crackling - I've tried wither the old tubes again today and the problem's the same. Don't suppose you know what the problem might be? Cheers, Steve



[Floyd Eye]

The tubes.
