USA Marcus Miller V Output Jack Replacement

Discussion in 'Pickups & Electronics [BG]' started by Steven Tremayne, Nov 9, 2018.


  1. Greetings:

    I want to replace the feeble output jack with a Switchcraft Stereo Jack (if possible). This is the US model and it does not have the "Black Box" as discussed in the only other post on his issue.

    I need a wiring diagram to show the correct wiring for this modification.

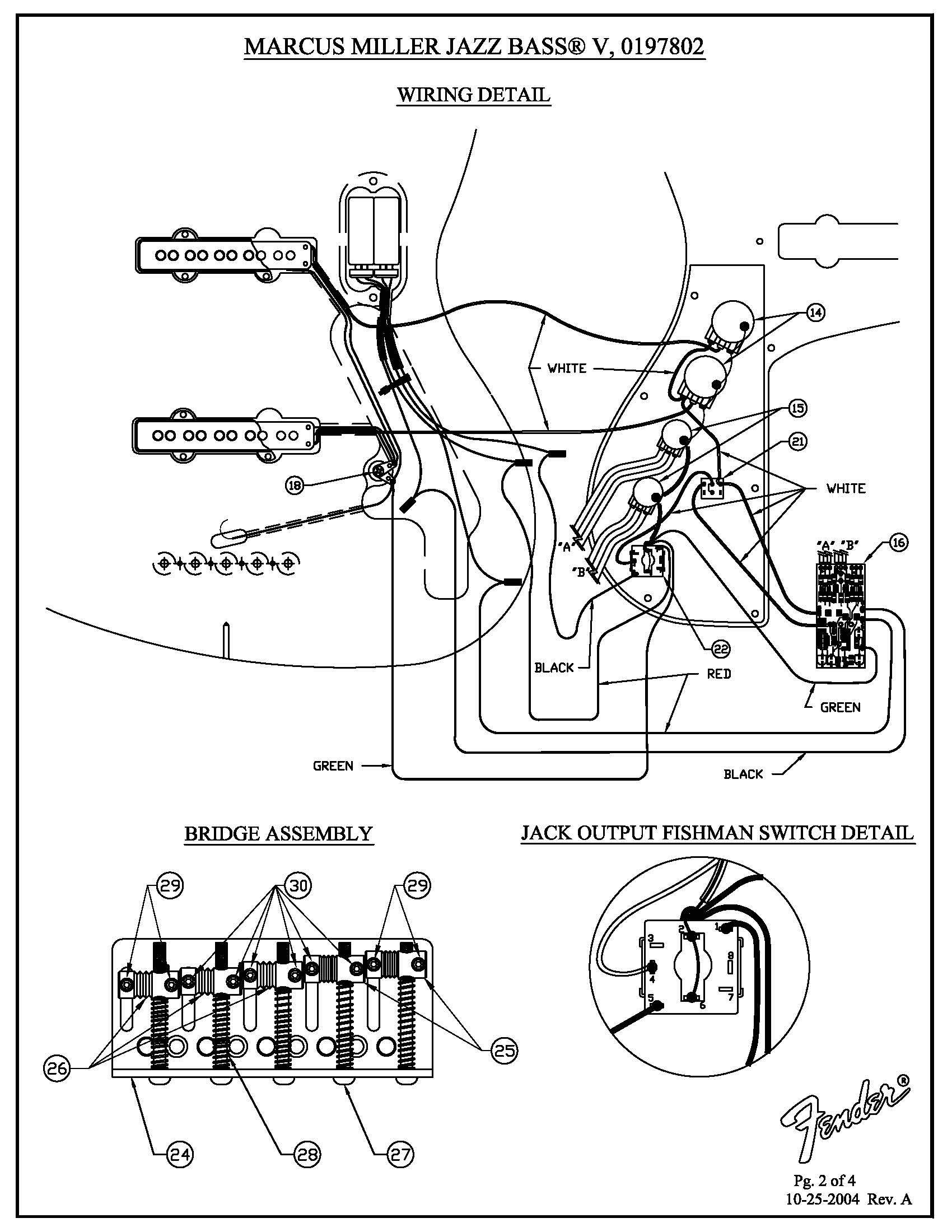

    I would appreciate any help on this. Original diagram is attached to this post.

    Thanks.


    Attached Files:
