A little update on this one -

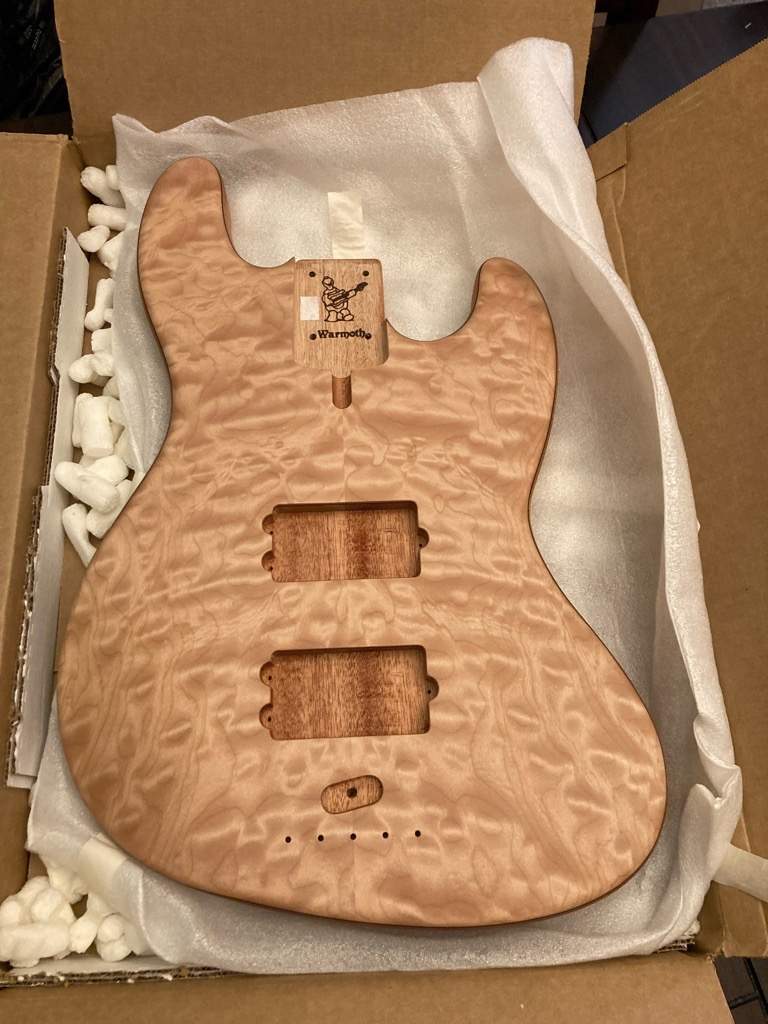

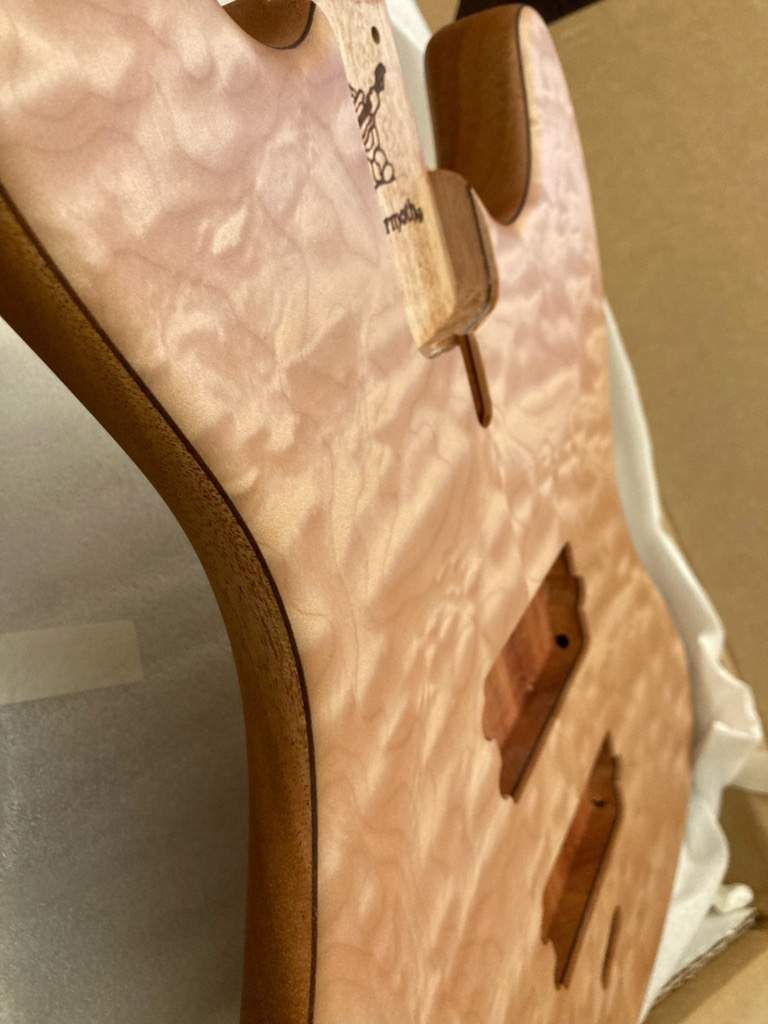

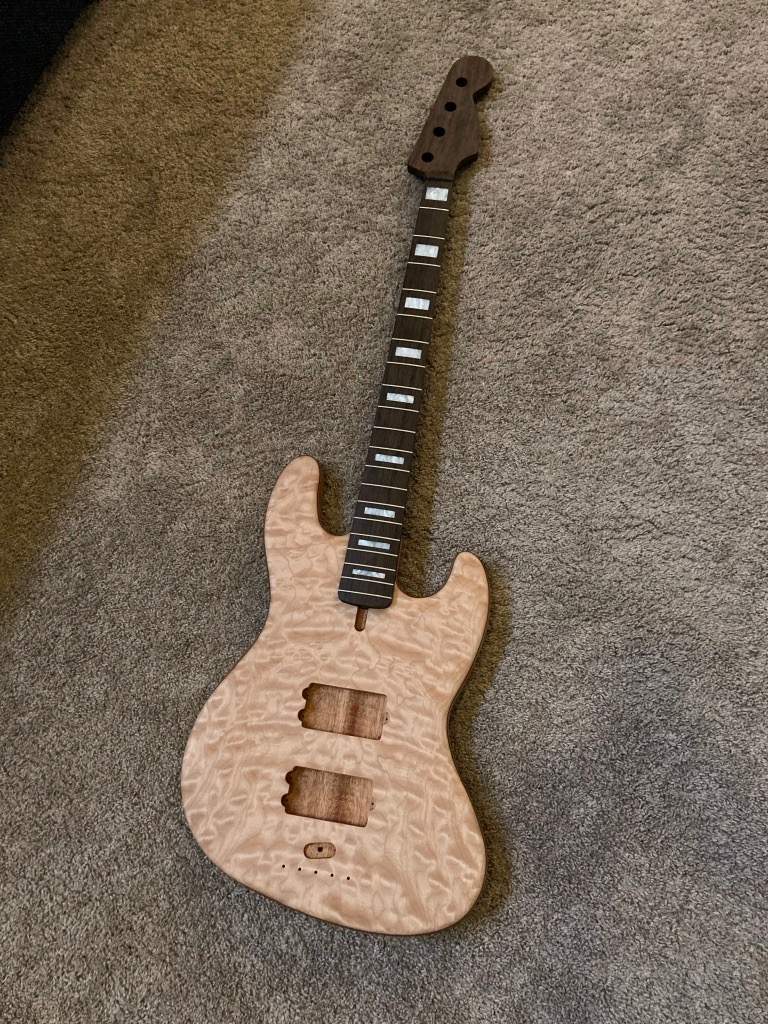

1. Decided to go with a unique choice quilted maple top. After seeing some (in my opinion) ugly representations lately of wood that recent customers have ordered sight unseen and were chosen by Warmoth, I just couldn't take that chance with this bass. It's extra $$, but this isn't a budget build.
2. After a whole bunch of research and a fantastic conversation with someone who has built a bass with Wal-esque pickups, I was able determine the pickup spacing needed for the Rautia multicoils I plan to use. Surprisingly, the humbuckers are placed very similar to a 70's jazz with a little more emphasis towards the bridge. Jake at Warmoth was a HUGE help being patient with me and getting approval to where I want the MM shaped pickup cavities to go. It was an extra $65 to move them where I want, but it's money well spent. I did not want to have them routed after the fact since the edge is fully exposed all around on an MM pickup and did not want to risk having it damaged. However, they will still need to be routed a few millimeters deeper by a luthier, but at the very least it places the bit into the bottom of the cavity and not on the surface.

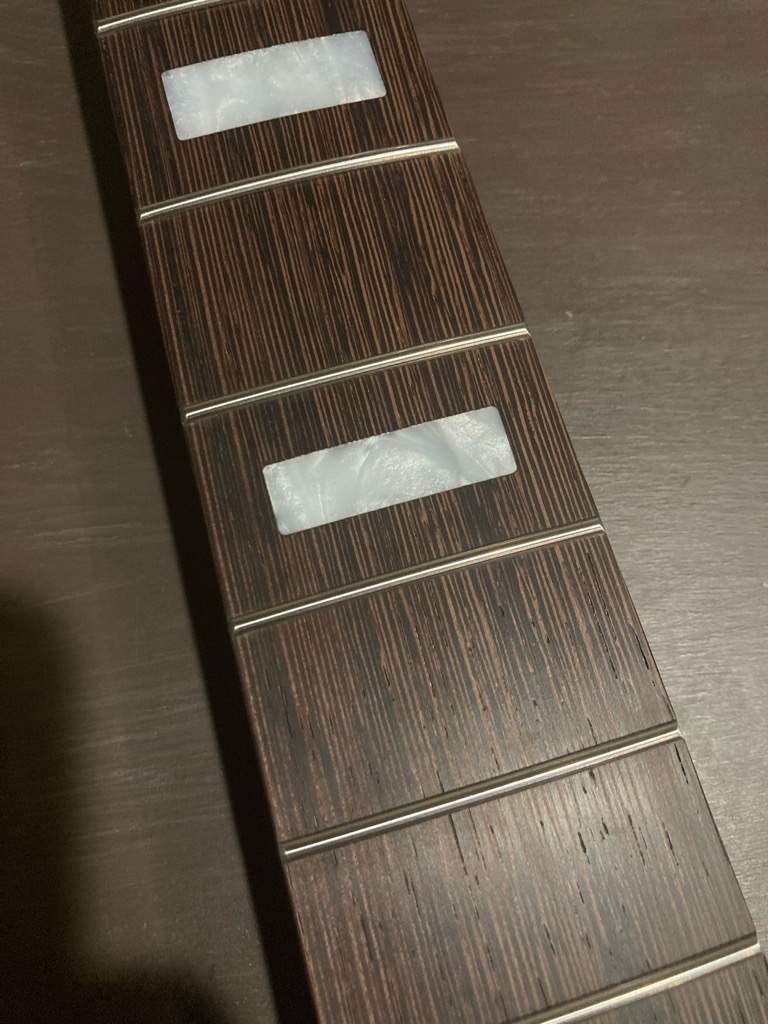

3. Since the neck is raw wenge and the hardware is satin/matte black, I decided to keep with the theme and I selected this build to have a clear satin poly finish with a dark wood accent line between the maple top and the mahogany body. I went back and forth with my renderings, looked at probably a hundred photos of other basses, and just couldn't come to terms with having another dark color and/or glossy finish prone to fingerprints and scratches. Many, many high end manufacturers use satin over quilted maple and it looks just as beautiful as if it had been gloss.
4. The knob and switch placement is totally speculative until I have everything in hand, but this is kind of what I'm going for. There's just no way to determine what will fit where even with some decent renderings of how big the control cavity is. I still have to get two 9v batteries in it since I opted to not have a double battery box routed in its usual spot to give space for the pickups to be moved down. I have/had other basses that managed to fit them both and I don't think it will be a problem.

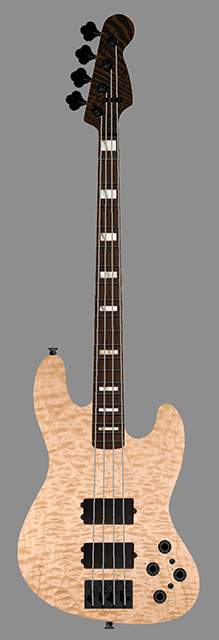

Using the picture they had on the website of the top I purchased, I think this is a pretty good rendering of what it will turn out to be. There's just no way to determine the actual scale size, but I placed the body shape as large as I could make it while centered on the book match line and this is what came out -
View attachment 4467524
