Mine was the Ibanez 2338B, from 1976 iirc, and it looked a lot like this-
What's that bass called?
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
What's that bass called?
Putting a Badass bridge on an Ibanez Ric copy, because Geddy had one on his Ric...
That poor bass was never the same.


Replacing the rosewood saddle bridge on a Danelectro longhorn for an adjustable one and replacing the stock strap buttons with shallers without relocating them. The worst part is after paying a guy to do that I sold the bass for the same price I bought it + the mods.

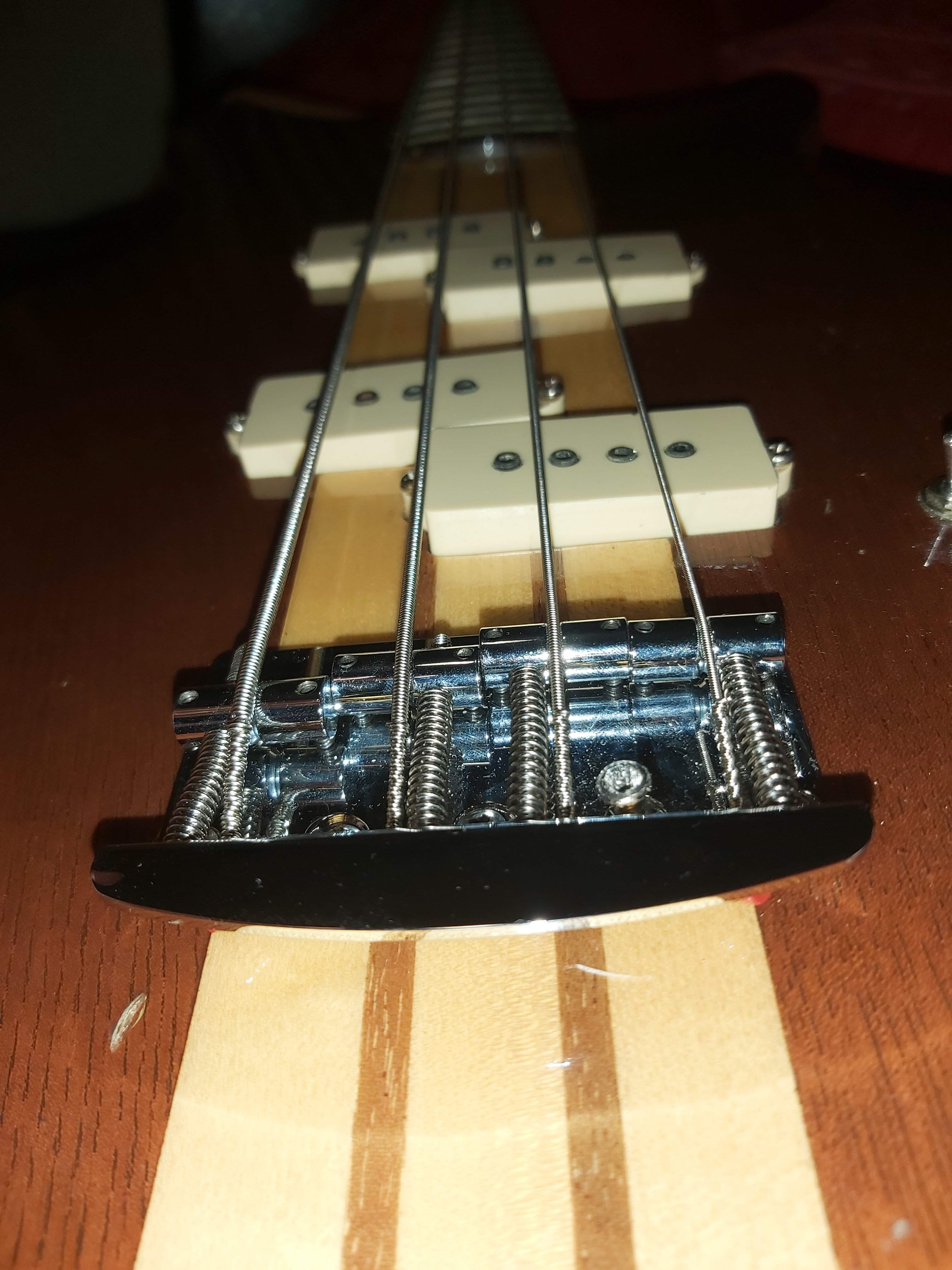

A REAL contender is something I did myself with a hammer drill and an electric screwdriver. I cant get the screw out.
View attachment 4093350
View attachment 4093351 View attachment 4093352

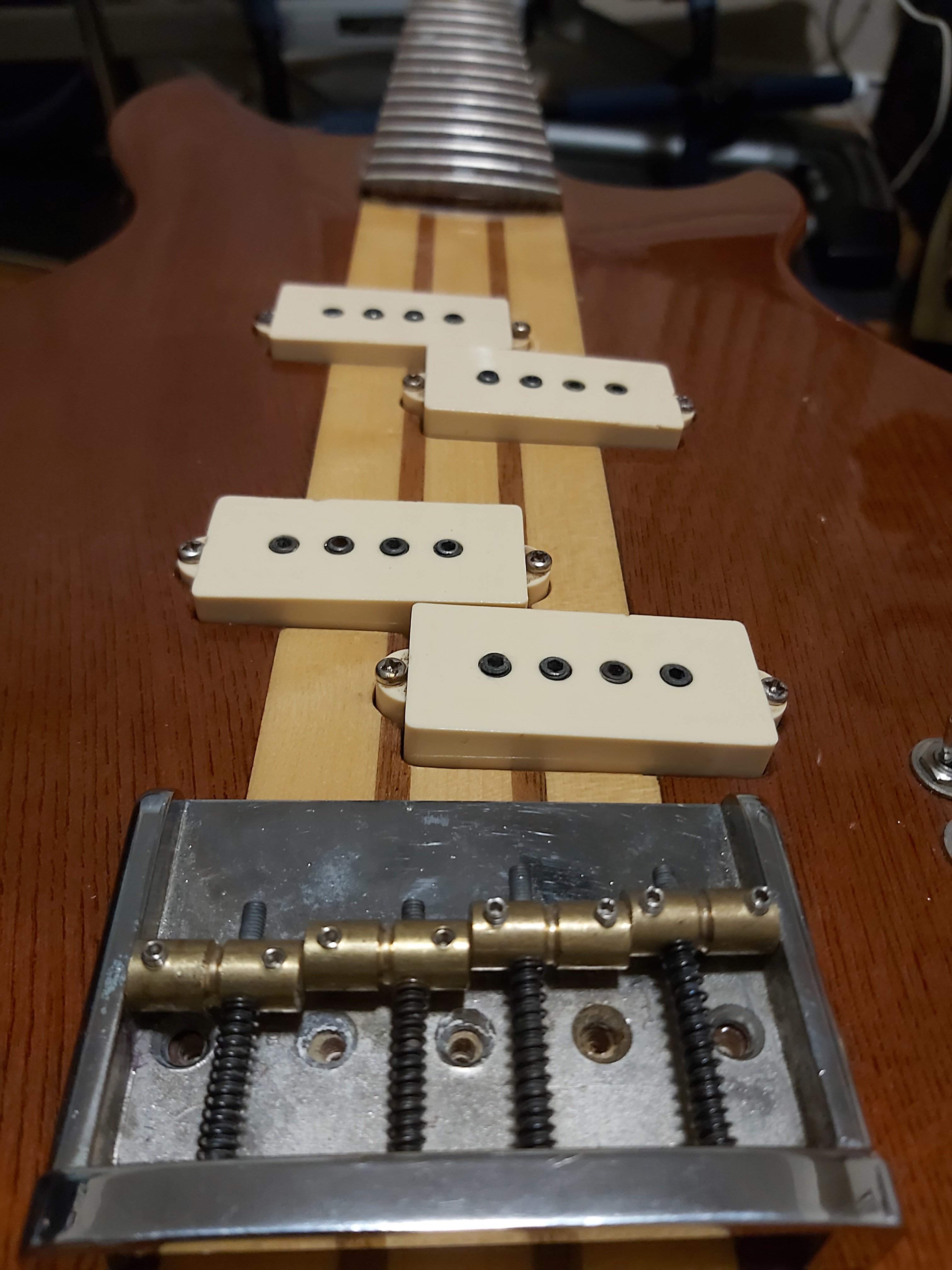

Here's the original bridge
View attachment 4093357

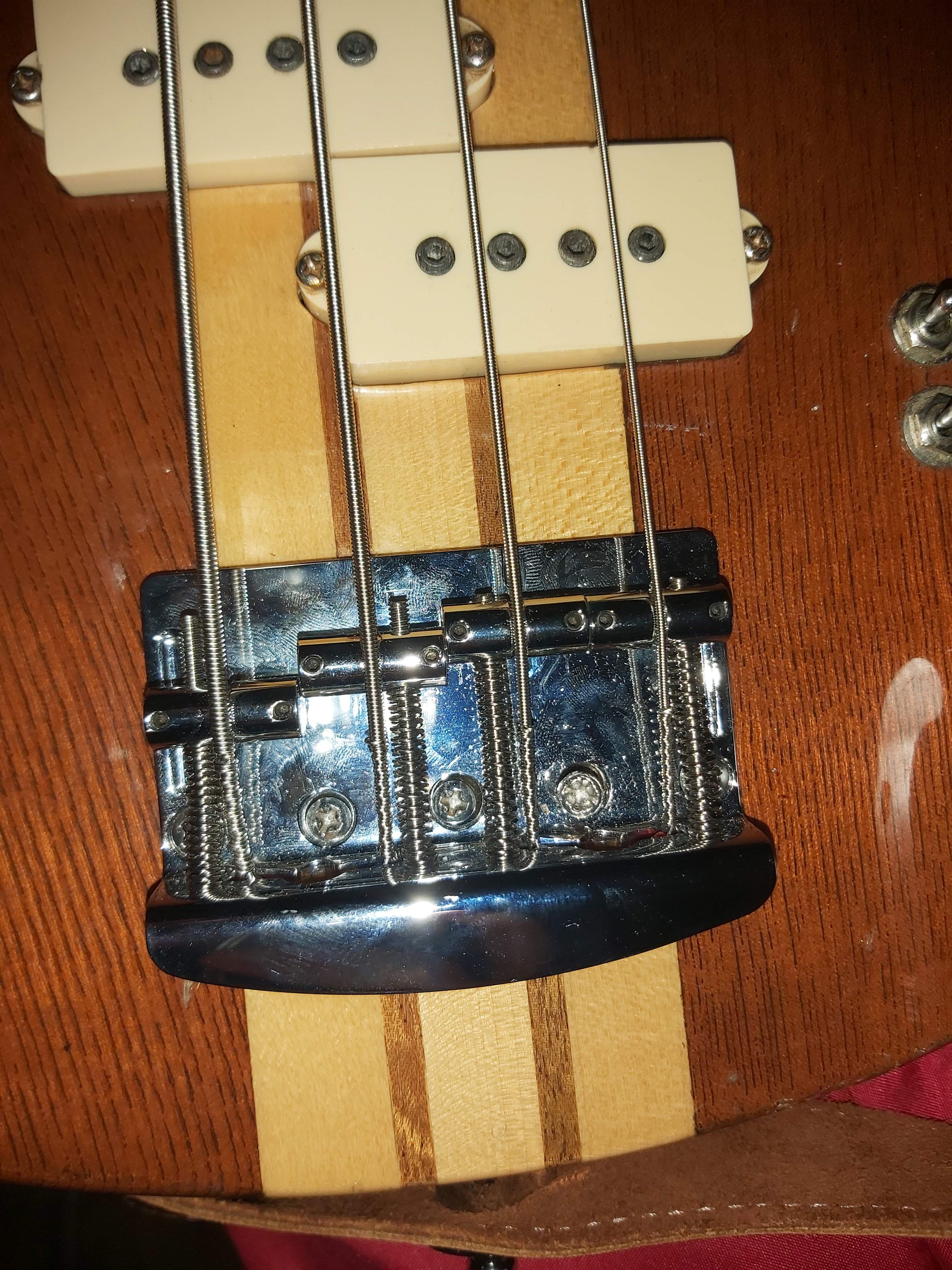

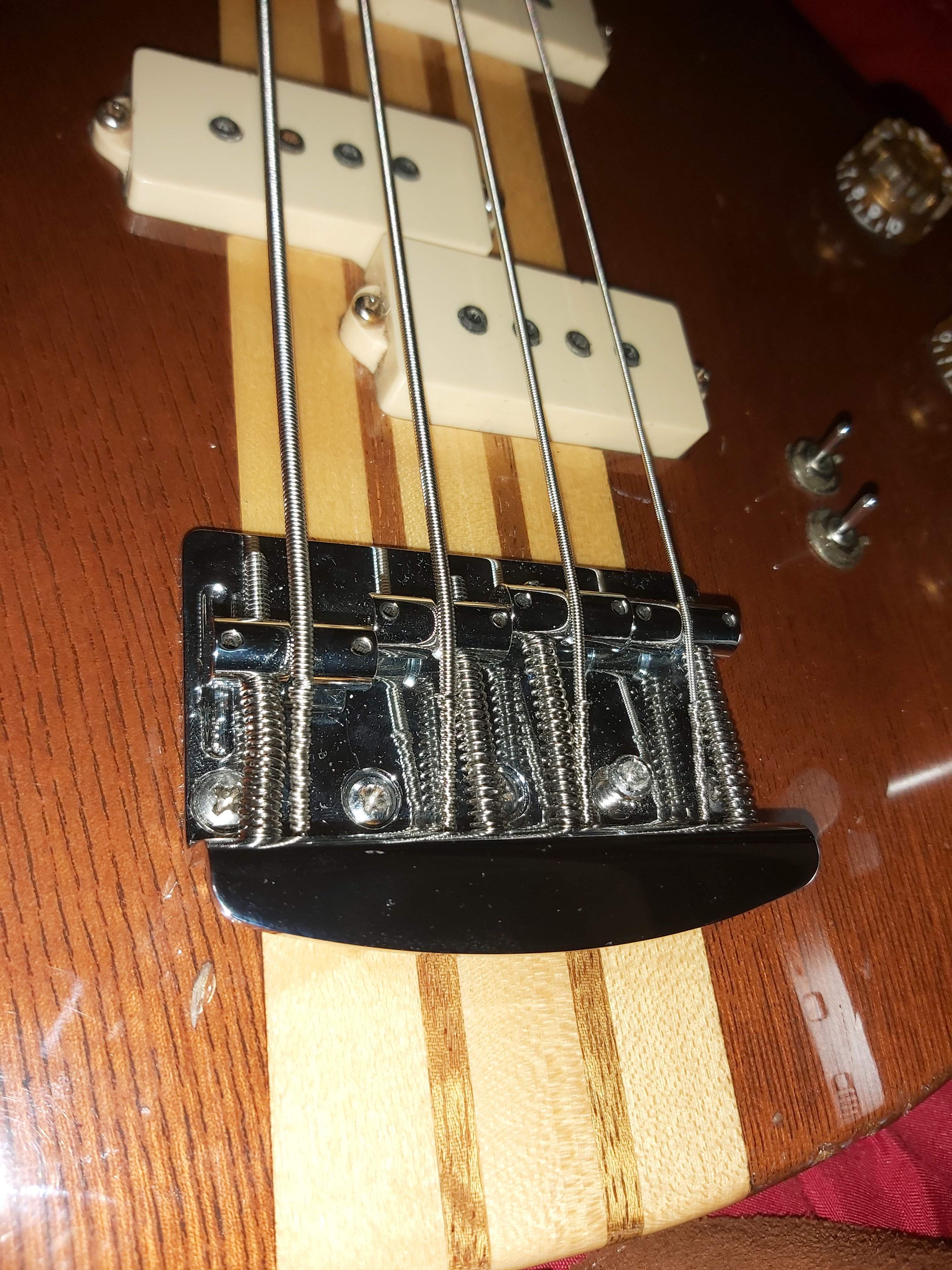

Essentially I tried replacing the original bridge on an old Goya bass with a hipshot, but it turns out the holes of the original were not the same measurements as a standard fender so I moved the hipshot back away from the nut, but my measurements were crummy so I drilled the new holes lopsided and not deep enough. So I ended up with a crooked bridge and hipshot screws that sounds go all the way in
Replacing the rosewood saddle bridge on a Danelectro longhorn for an adjustable one and replacing the stock strap buttons with shallers without relocating them. The worst part is after paying a guy to do that I sold the bass for the same price I bought it + the mods.
A REAL contender is something I did myself with a hammer drill and an electric screwdriver. I cant get the screw out
View attachment 4093350
View attachment 4093351 View attachment 4093352
Here's the original bridge located
View attachment 4093357

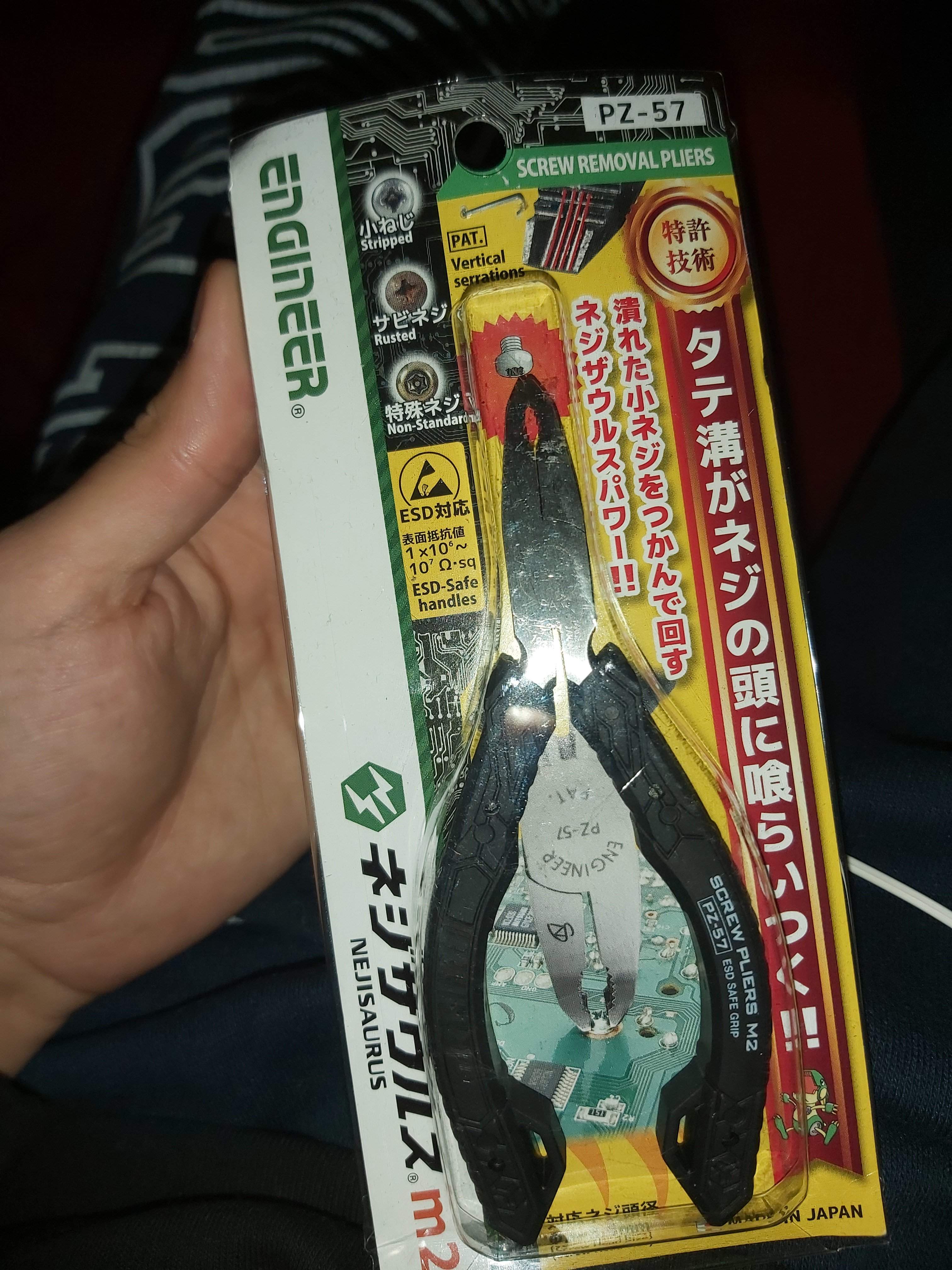

I've had this problem a few times due to the cheap metal used to make the screws.
To remove a stripped or broken screw CAREFULLY drill off the head. Once the head of the screw is out of the way and the bridge is removed there might be enough of the screw protruding to grab it with a pair of vice grips. If the screw is flush with the body then you'll have to be a little more intrusive. One way to remove a broken screw in wood is by fitting a sharpened tube to a drill. You use the tube to drill down and round the screw. Fill the resulting hole with a dowel of wood (in your case maple) and Titebond glue. Thankfully, the hole you need to fill will be under the bridge.
Also, I'd run a pilot hole through the maple insert to ensure you don't run into this issue again.
I found a video that better depicts the process I shared.
Hope this helps.![]()
