Which Aguilar cab to extend an SL 112?

Long story short; I have an Aguilar AG 700 + SL 112 setup. The cab has a mid-heavy response; so, I'm aiming at adding some bottom end and clear highs by throwing in an extra cab. Or replacing the SL 112 altogether if I must. I'm using 5 strings exclusively - a nice B response would be great.

The options in my area:
  • DB 210
  • DB 115
  • SL 112 (stacking two of those)
I'm all ears for opinions and suggestions!

You don’t necessarily - and probably won’t - get any significant extension by adding the DB 15 to your SL 112.

To understand why, let’s look at the frequency response specs, as supplied by Sweetwater’s website. Yes, I know there’s only so much stock you can put in factory numbers, but let’s go with it for the sake of this discussion.

The SL 112’s extension goes down to 37 Hz, while the DB 115 gets down to 32. So, you’ll have two cabinets operating between 3 kHz (the 115’s upper limit) and 37 Hz, with only one (the DB-115) operating between 37-33 Hz. Thus, the range between 37-33 Hz will quite naturally be audibly attenuated, since only one speaker is covering it.

Even if this doesn’t quite play out in “real life” as predicted on paper, the difference between extension to 37 Hz vs. 33 Hz is only about 1/6 octave. That’s the equivalent of one step in the music scale - i.e., from an E to a D, which is pretty insignificant.

Thus, if you want better extension, the answer is what @rodsnhawgs indicated: A cabinet designed and equipped to do it. But that often will require a larger, heavier cabinet - and possibly a more powerful amplifier to go with it. Or, a properly set up bi-amplified system with a dedicated subwoofer.

Alternately, if all you’re concerned with is the SL 112’s “mid-heavy” response, adding a parametric EQ pedal could tame that, making it sound better to your ears. However, that may end up with you needing to drive the speaker harder to make for lost SPL. In that case, a second SL 112 as @agedhorse recommended would be the ticket.

Regards,
Wayne A. Pflughaupt

Pedulla Club #45 Unique Arrangements of Hymns, P&W Standards, and Original Tunes
Administrator, Official Tobias Club #133
Administrator, Fretless Club #943
Big Cabs Club #23
My Basses
My Rig: Stage and FOH Friendly
Pedulla Club #45

Curious what Bass / Strings are you using?

Another SL-112.

^^^ 👍

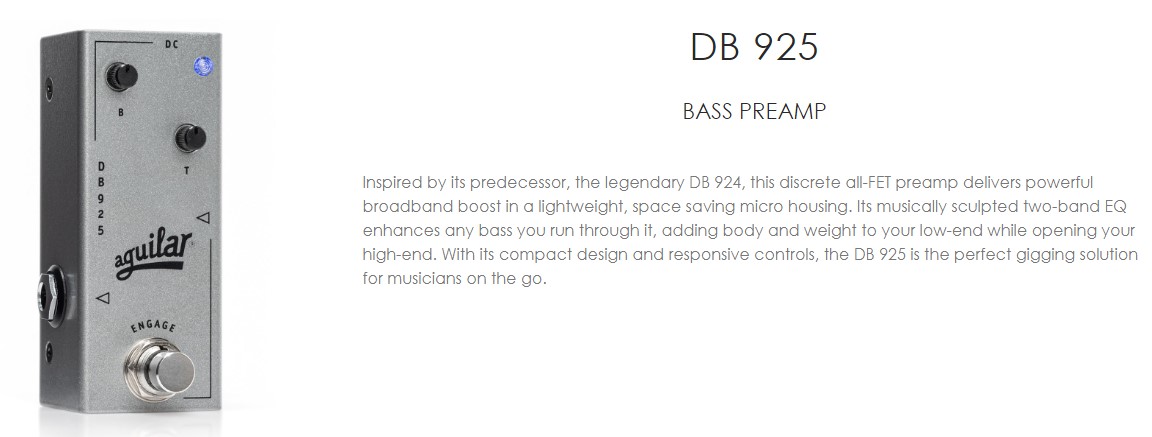

and / or one of these;
I have the AG, but I use the DB925 with my Tonehammer as well. It adds a whole other dimension... (with 1 or both SL112s)
I didn't think it would be my thing, but I find its frequencies voiced incredibly well, and the broadband bass and treble boost will "de-emphasize" the mids.


Last edited:
  • Like
Reactions: Kerem Koseoglu
If you generally like the tone of the SL112, but just need a bit fuller lows, get a second SL112. The best combination is usually going to be pairing identical cabs.

The second SL112 will be connected in parallel.

Results:
  • Combined Impedance is 8 x 1/2 = 4ohms
  • Combined Power Handling is 250 x 2 = 500W
  • Combined Sensitivity is 99.9 + 3 = 102.3dB
  • Max SPL goes up +6dB (assuming 500W of power is available)
  • The overall tone will be somewhat fuller
The extra sensitivity comes from mutual coupling. The closer the drivers are, the more effective coupling becomes. The reason is because coupling is dependent on the ratio between wavelength and driver spacing. Coupling approaches optimal as wavelength approaches 4 x the center to center spacing between drivers.

Why does adding a second cab make the lows fuller? One factor is the wavelength grows longer as the frequency goes down. Therefore coupling is more effective for low frequencies and less effective for higher frequencies.

The extra headroom also makes it feasible for you to use EQ to dial in fuller lows.

Long story short; I have an Aguilar AG 700 + SL 112 setup. The cab has a mid-heavy response; so, I'm aiming at adding some bottom end and clear highs by throwing in an extra cab. Or replacing the SL 112 altogether if I must. I'm using 5 strings exclusively - a nice B response would be great.

The options in my area:
  • DB 210
  • DB 115
  • SL 112 (stacking two of those)
I'm all ears for opinions and suggestions!

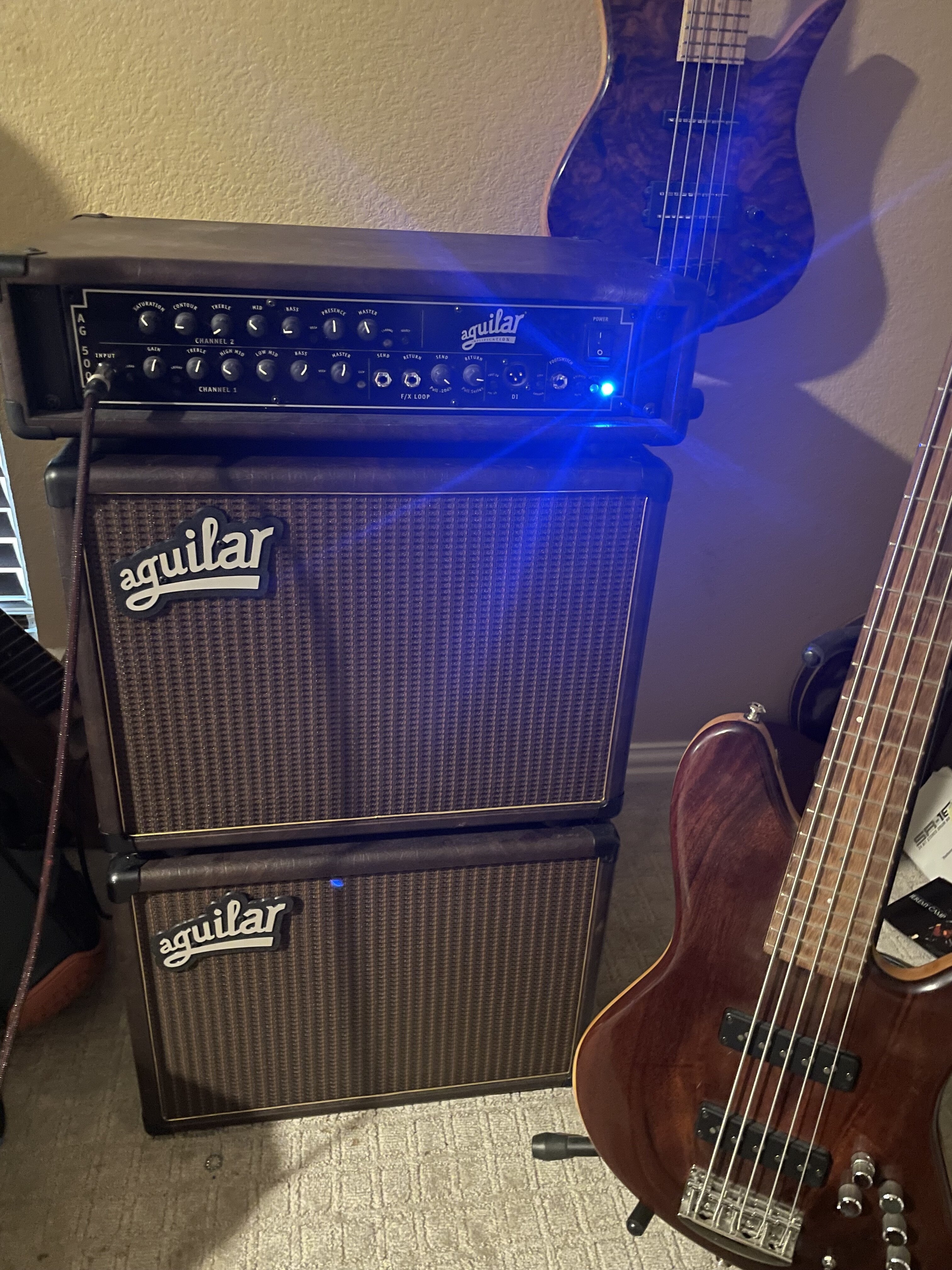

I ran into the same thing with my db112. I added a second db112, both with tweeters. It makes a world of difference.


Attachments

  • IMG_2407.jpeg
    4.3 MB · Views: 24
  • Like
Reactions: Kerem Koseoglu
To any future reader wondering what I did... Put my Aguilar stuff on sale, and got my hands on an Ampeg Venture V3 and VB-210 setup. Couldn't be happier. I was able to get a crystal tone with tight lows and clear highs on default mode - just what I was looking for. To my ears; B15 mode leans towards Aguilar Tone Hammer, while SVT mode is a category of its own - an optional but welcome versatility.

300 Watts (4 ohm) into an 8 ohm 2x10 cab doesn't sound like much, but it's more than enough for home practice and small gigs. It can be extended with a second 8 ohm cab if needed, but I doubt if I ever will. The total (light) weight is the cream on top.
