Winter build off 2019 – Red

#41
Scoops said:
Your comment is in alignment with what my design coordinator (wife) said. My desire was to go with the creme. When looking at my red Gibson ES330, she indicated that the white MOP blocks worked with the creme binding because there was a portion of the FB between the position market and the binding.

My intent is to butt the marker up to the binding.

I could get some creme colored crushed MOP
Click to expand...
I was just checking out your holly & ebony ric build and I think the same MOP blocks would look fine with a cream or off white binding. The body of that ric is kinda cream colored. The highest fret markers but-up against the body color and it looks good.

Last edited:
  • Like
Reactions: Scoops
#44

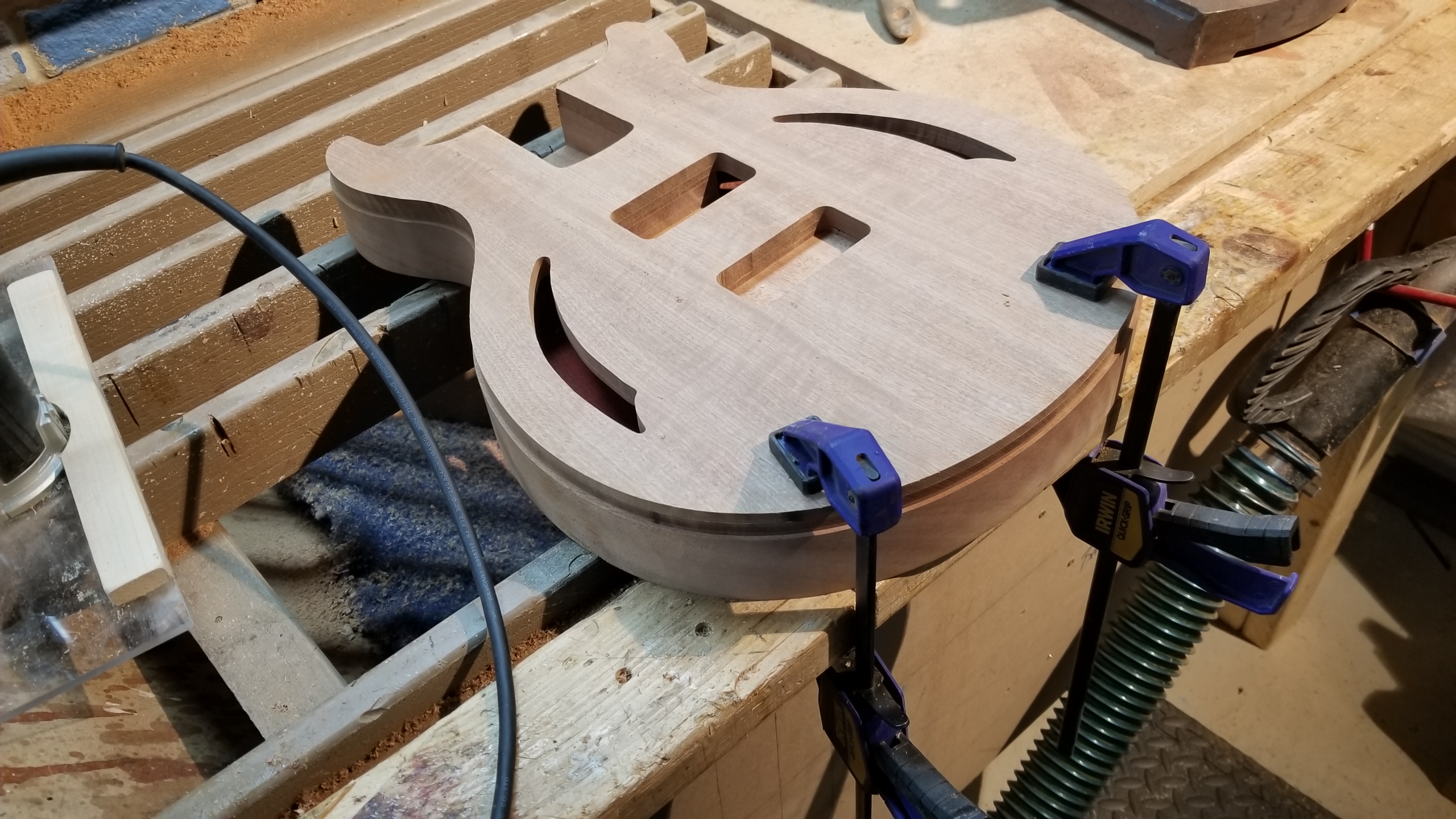

Sorry, forgot the obligatory clamp farm shot with gluing the top.

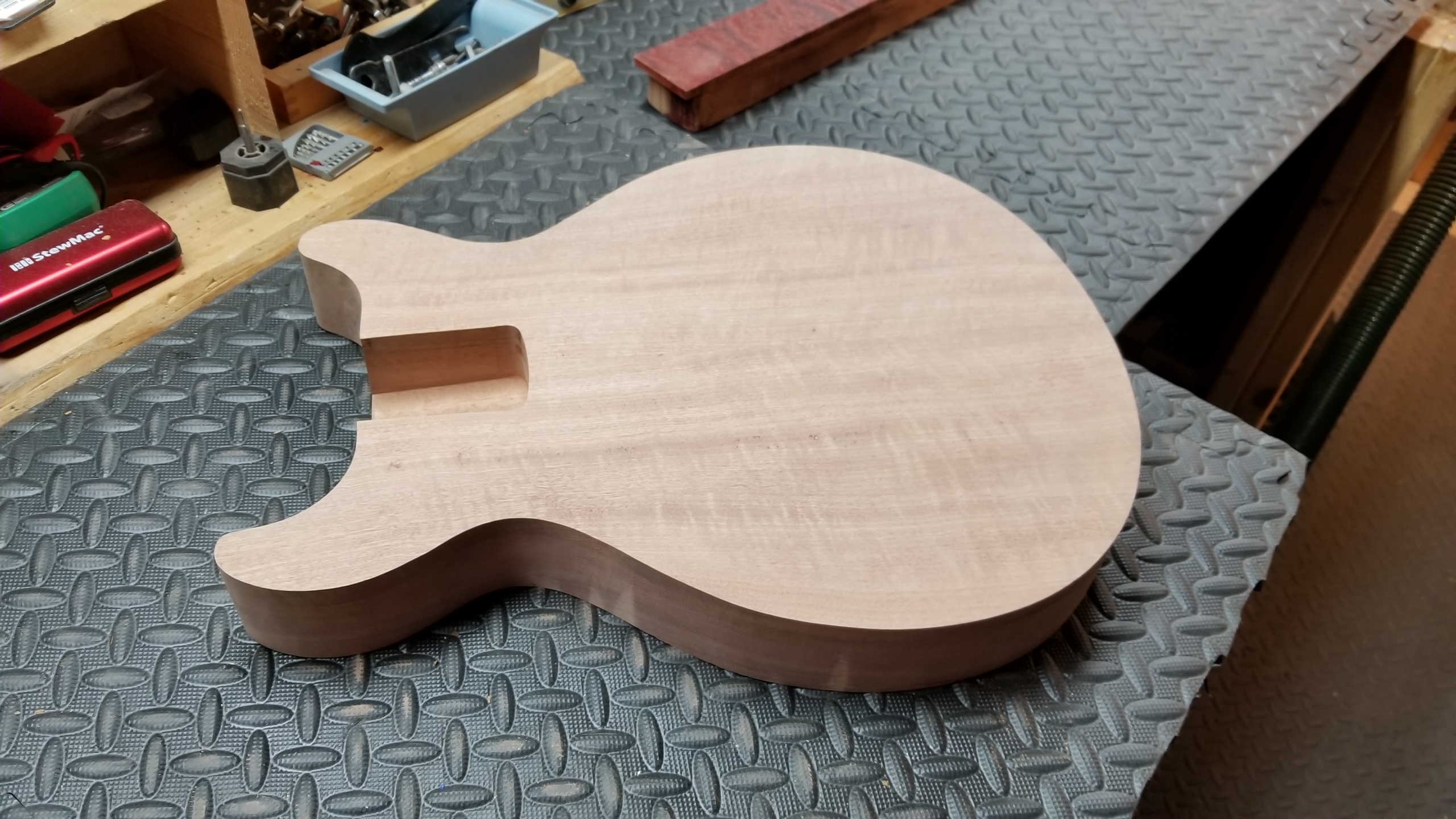

But here it is off the belt sander.


  • Like
Reactions: D-Smith, ReasonablyHappy, Haroldo and 5 others
#56

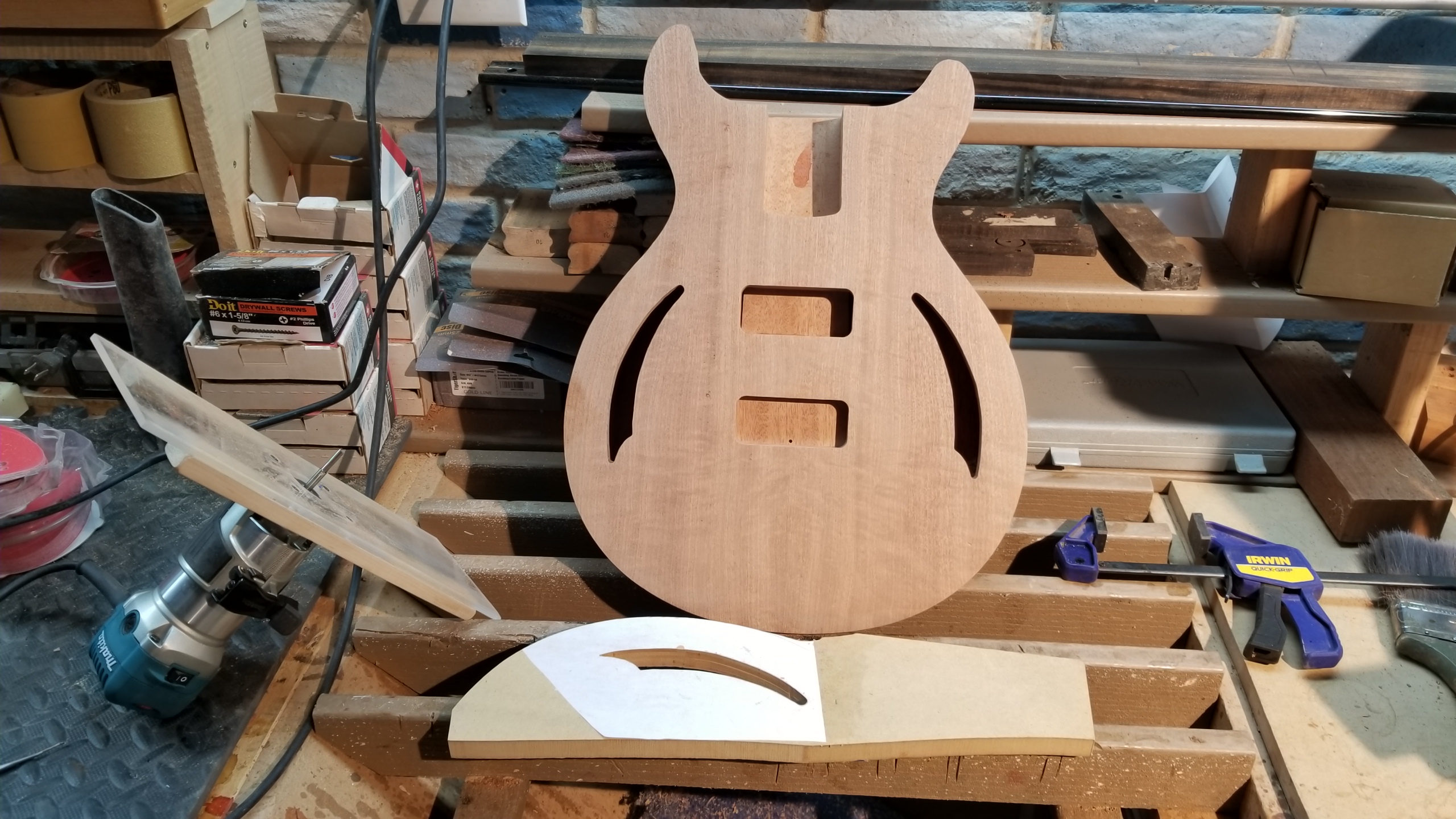

Clean, minimalist look; love it! Looks like you router-carved the top after the f-holes were cut. Some have advised on risk of tear-out near f-hole by the router. Looks like you navigated thru that successfully. Any techniques to share or pitfalls to avoid on this part of the build?

Looks like a real winner!

Thanks!

Scoops said:
Okee Dokee....

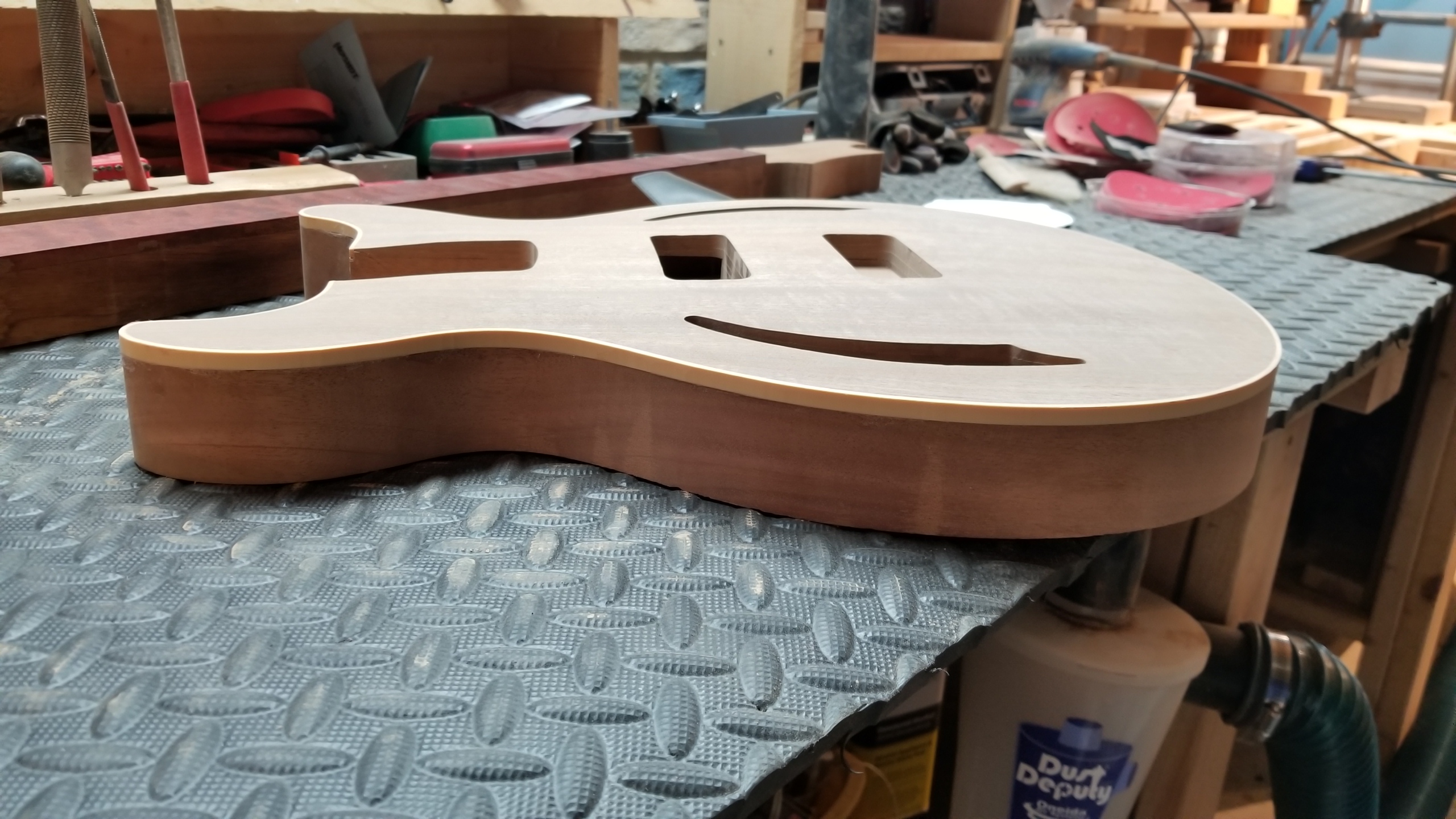

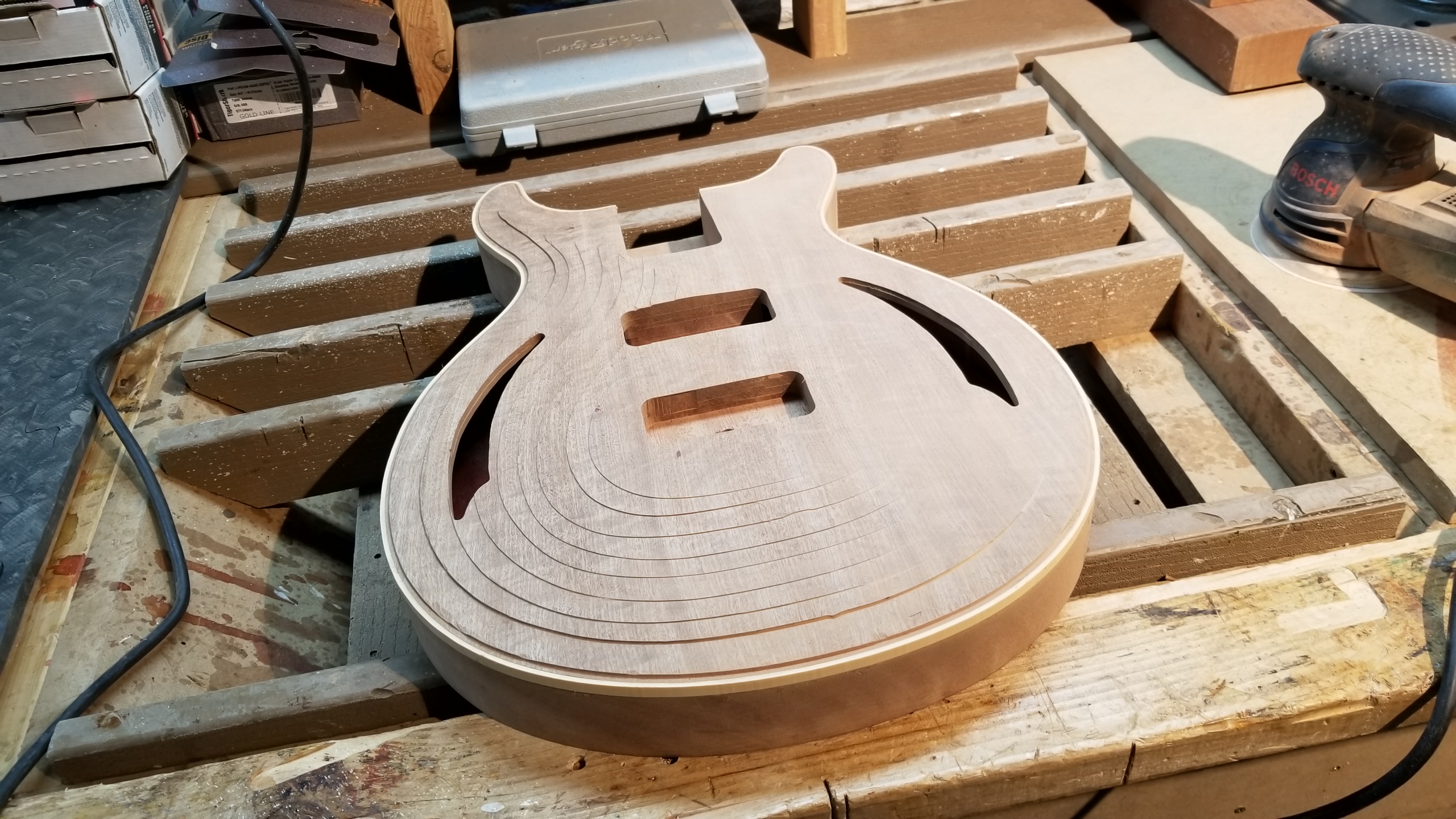

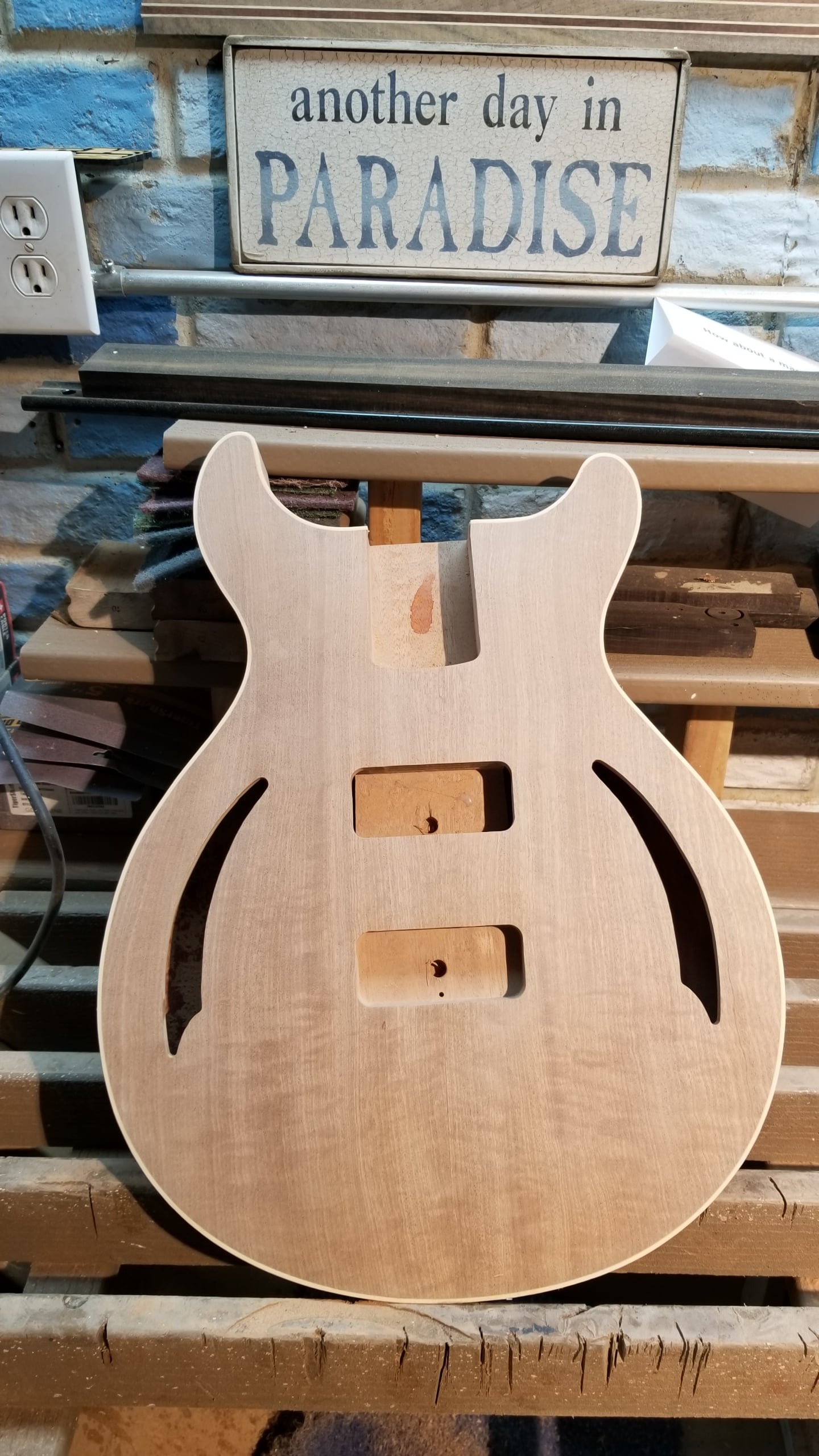

Put in the binding ledge, Glued in the binding (Sorry, no pic for that) carved the top wit some templates, and started to sand out the top.
Click to expand...

#57
83_Silberpfeil said:
Clean, minimalist look; love it! Looks like you router-carved the top after the f-holes were cut. Some have advised on risk of tear-out near f-hole by the router. Looks like you navigated thru that successfully. Any techniques to share or pitfalls to avoid on this part of the build?

Looks like a real winner!

Thanks!
Click to expand...

Thanks Silberpfeil
1) I didn't back carve the top plate. This top is rather on the thin side.
2) I did multiple shallow passes to avoid tear out

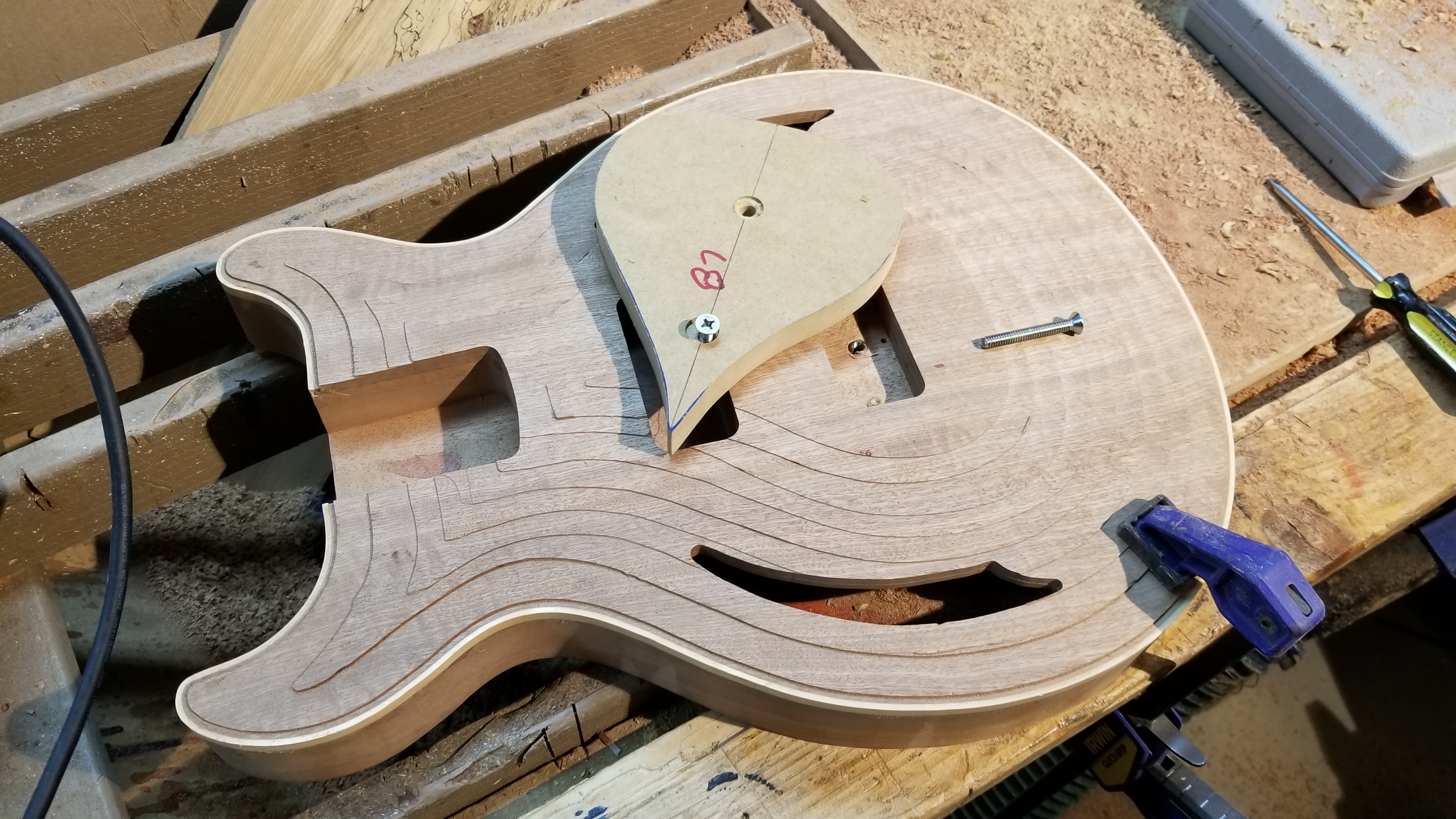

3) Techniques for sharing - On the last build I did using these templates, I used wood screws in the pup cavities to secure the templates. This time around I used some threaded inserts and 1/4-20 machine screws. This worked much better because it kept the template in place better.

  • Like
Reactions: Beej, postalflunkie and 83_Silberpfeil
#59
Thanks for the tips! Bookmarking this discussion for future reference, when I get to that stage of my build.

I think cream binding would look great on the cat-eyes.


Scoops said:
Thanks Silberpfeil
1) I didn't back carve the top plate. This top is rather on the thin side.
2) I did multiple shallow passes to avoid tear out
3) Techniques for sharing - On the last build I did using these templates, I used wood screws in the pup cavities to secure the templates. This time around I used some threaded inserts and 1/4-20 machine screws. This worked much better because it kept the template in place better.
Click to expand...

#60

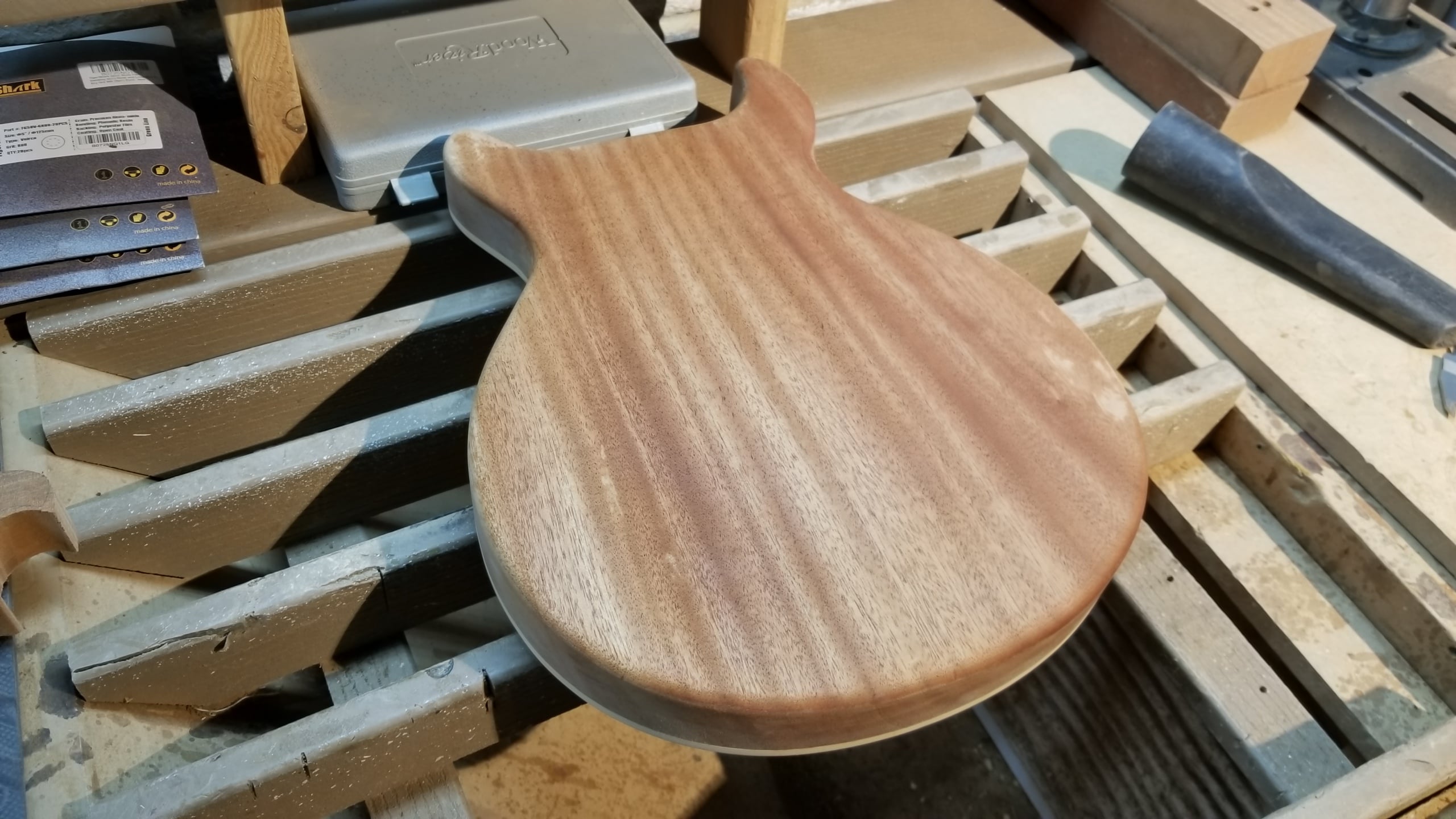

Got the round overs on the back done.

I was seriously considering changing the color from red to amber. But while I was doing the roundovers, I got some chipout in a small section. It didnt go real deep, but too deep to sand out. So I'll just leave it and let the schellac fill it in. It will hardly be noticeable if I keep the color red, so I no longer entertain the notion of amber.

Thanks for looking
