WINTER BUILD OFF 2020 AIR SPACE: "DAWN"

[washjayb]

6 String Chambered Headless Singlecut.

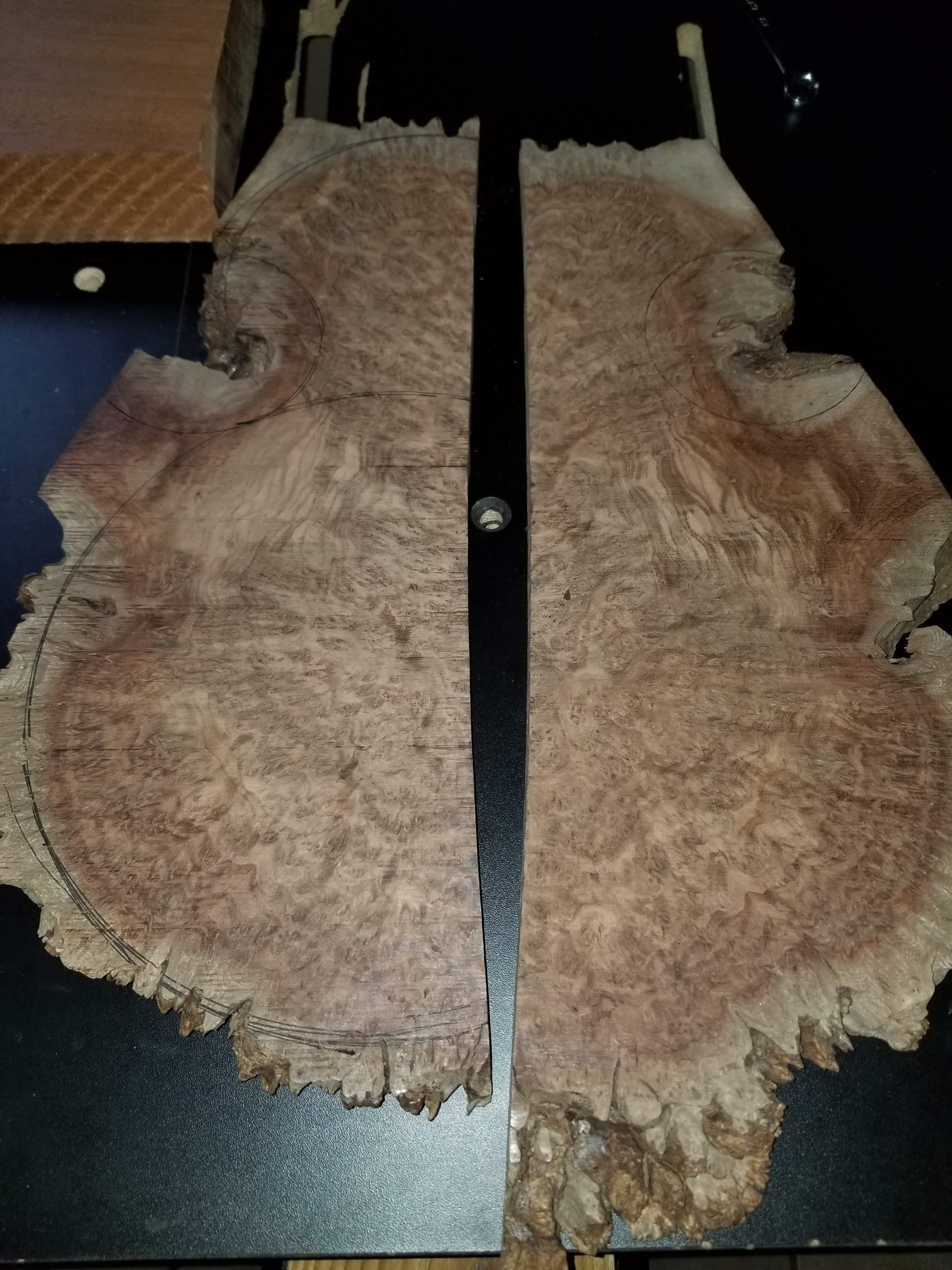

Chechen burl top. Body of mahogany and walnut with chakte viga trim.

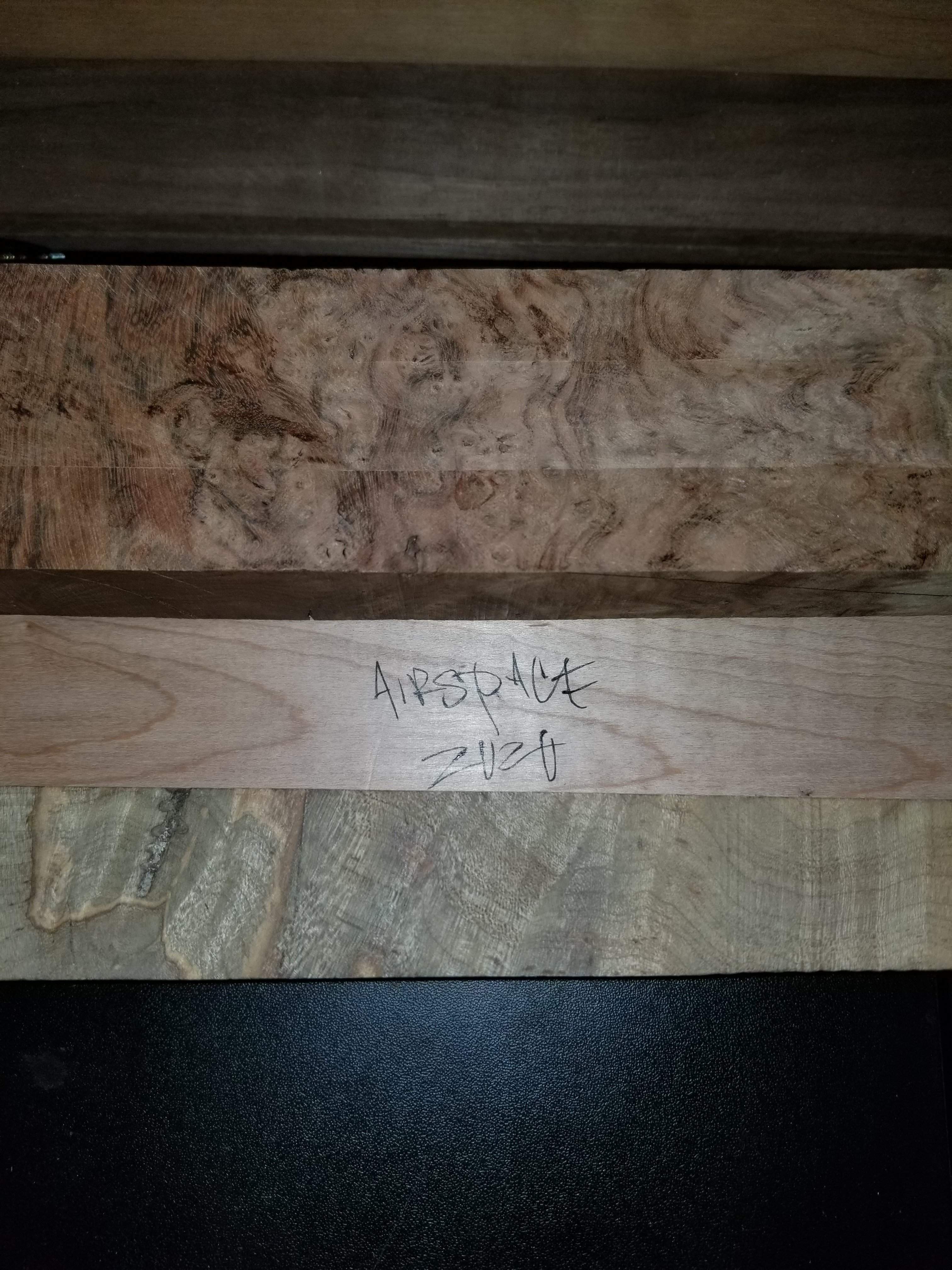

7 peice neck. Mahogany, walnut, cherry with anigre trim.

Maple finger board

Passive electronics w/ modified Rickenbacker 4003 wiring harness and Ulyate dual coil pickups (18mm spacing).

Pickups covers, knobs ect...

Floating bridge, headless tuner/ headpeice will be 3 peices constructed from walnut and brass.

Details:

This will be a multi scale instrument, B@ 36" - to C@ 33".
Fretboard:
FretFind2D

Neck through body construction, using a 48" blank to allow for integration of a headless unit fabricated for this build.

The headless unit planned will be very similar to prior art found throughout these forums. I will link specific examples once I begin construction.
Required reading: 5-String Fanned Hybrid Headless

Still trying to source a few items.

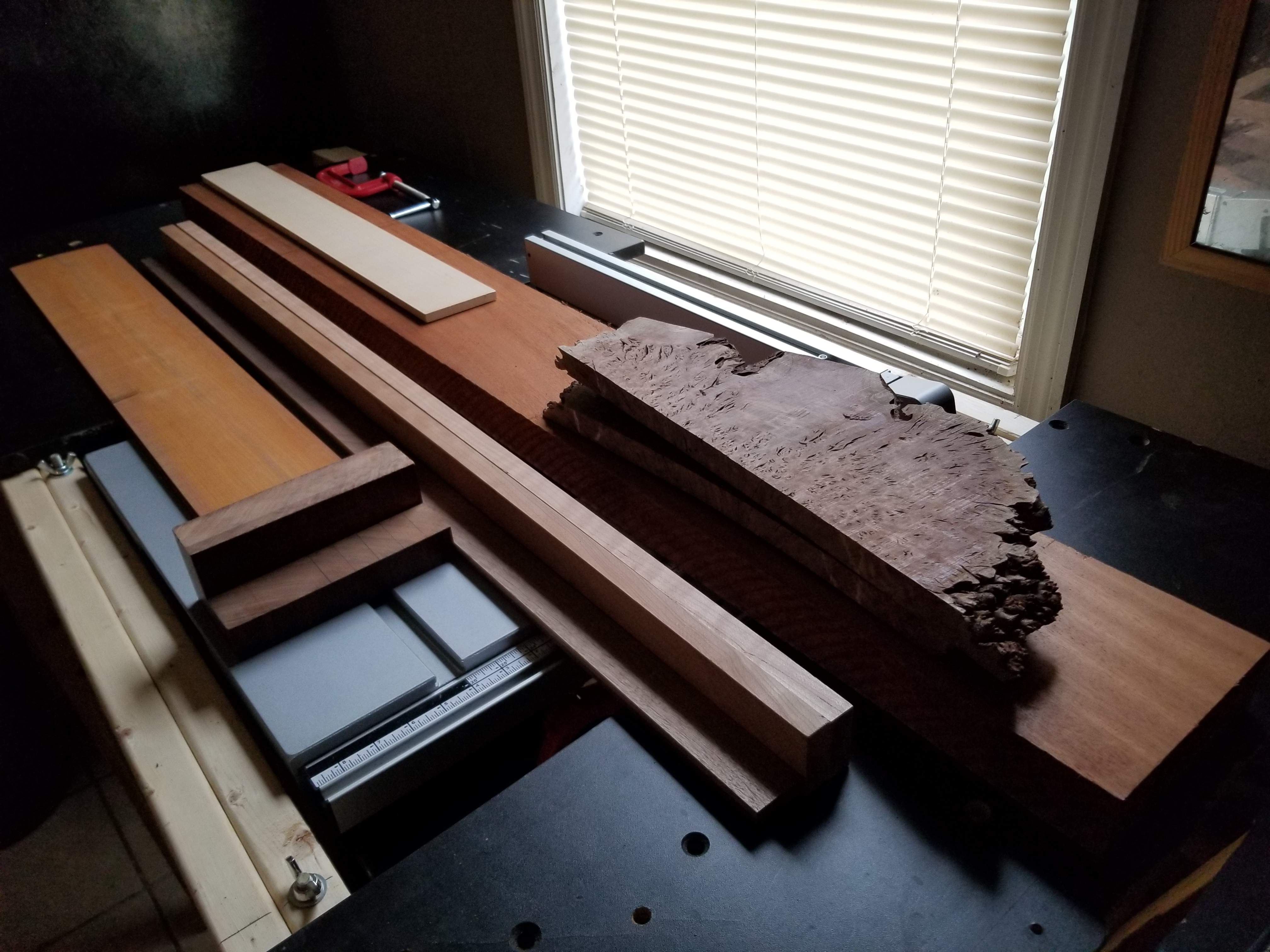

Still need to surface alot of my materials.



[Jon Clegg]

Sub'd



[IconBasser]

whooooaaaa can't wait to see what this turns into. Stunning wood selection!



[washjayb]

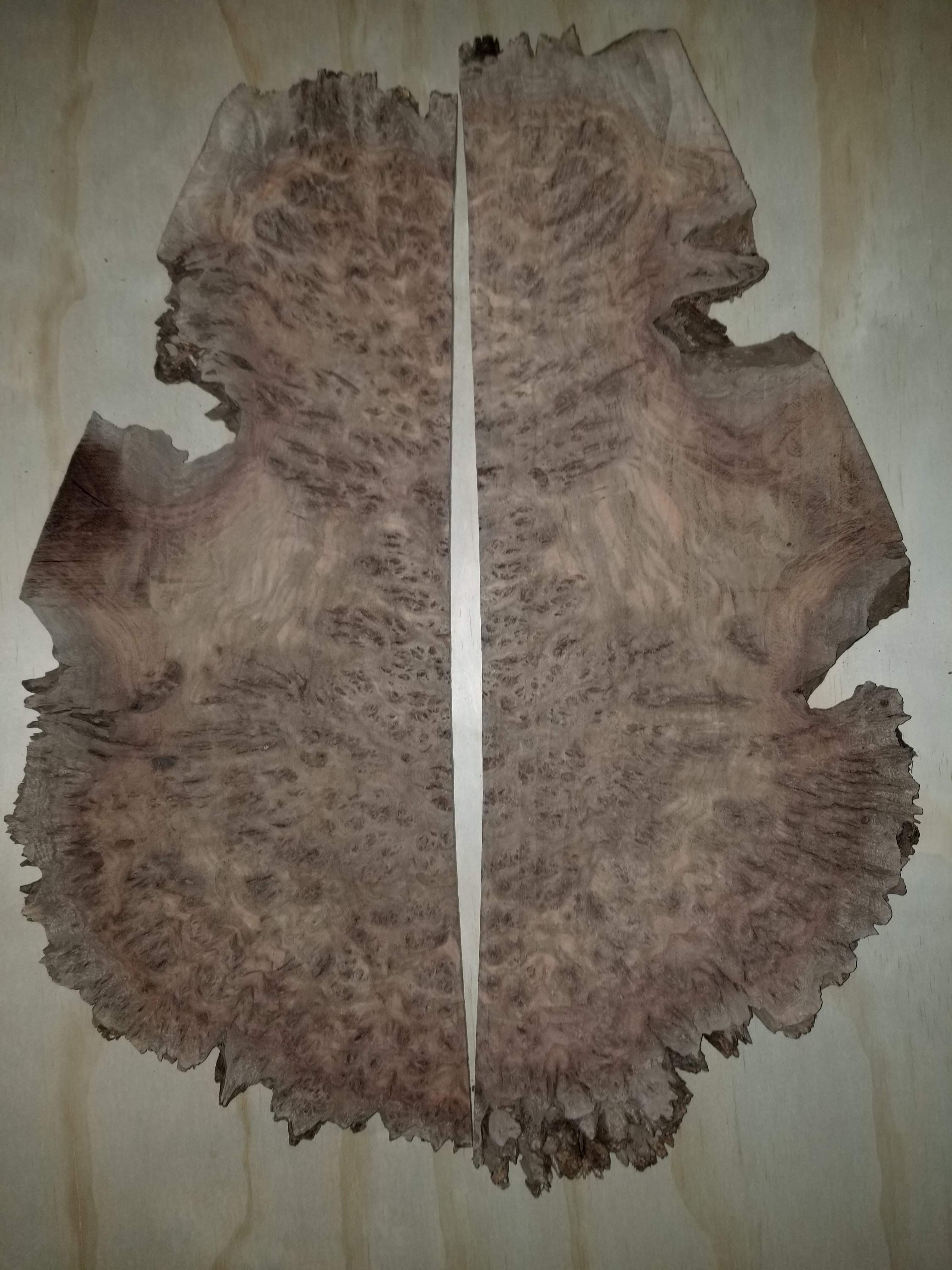

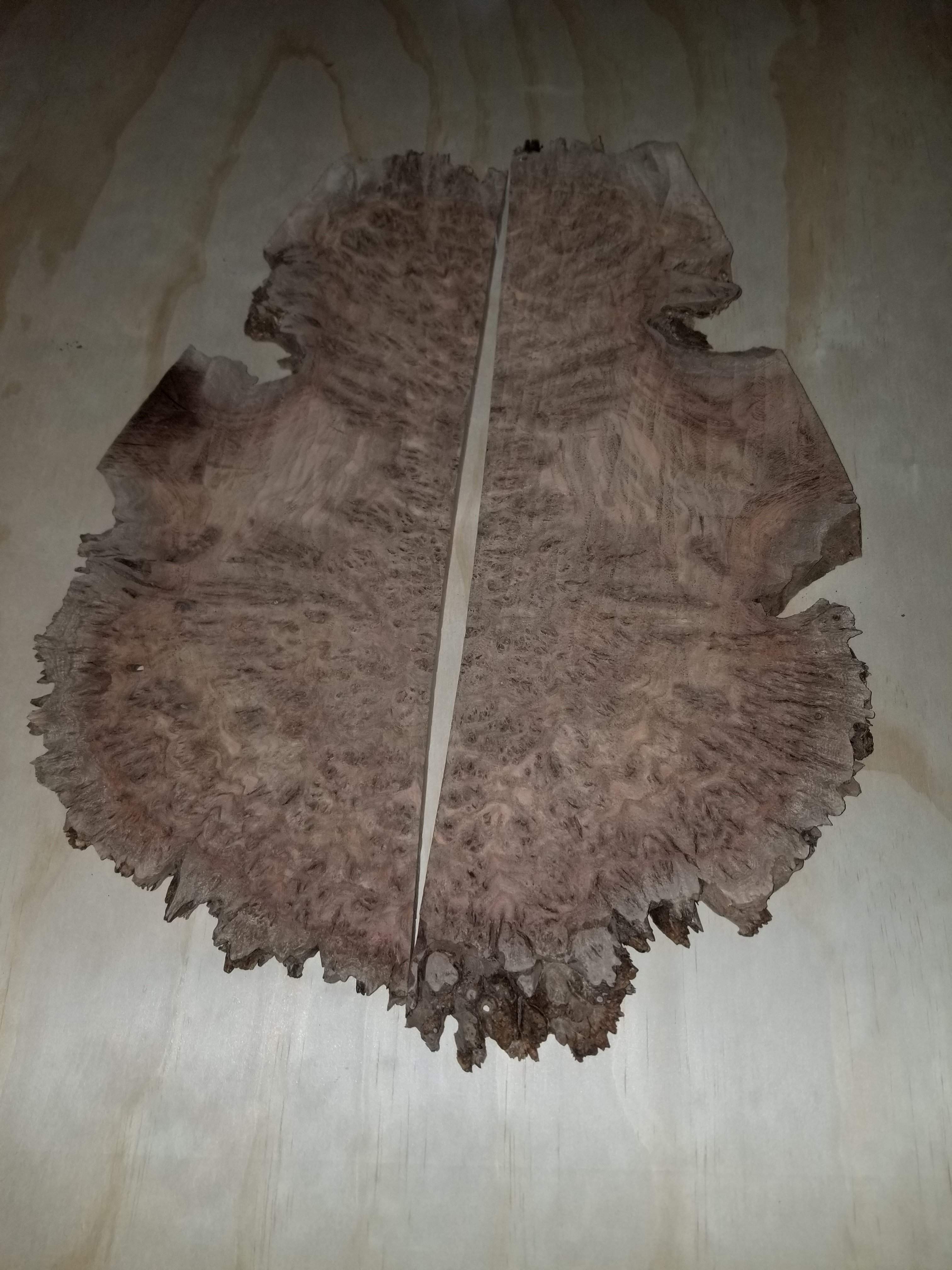

Finally made some progress. Got my top flattened for the most part. Still another pass or two on one side... Ran out of light. Will leave me at ~1/2".

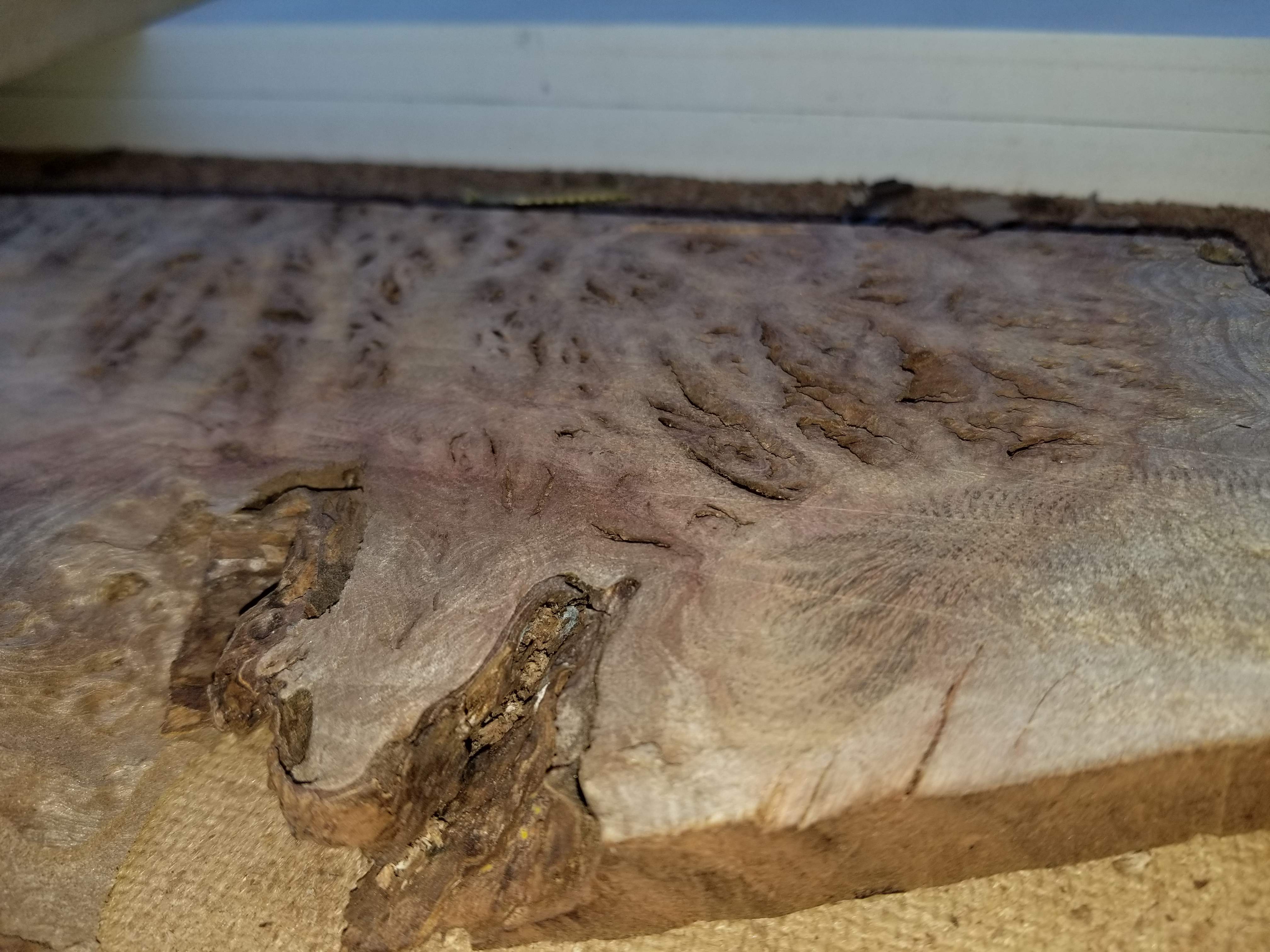

The burl is a lot gnarlier than it's exterior suggested... I think there will be some epoxy In my future.

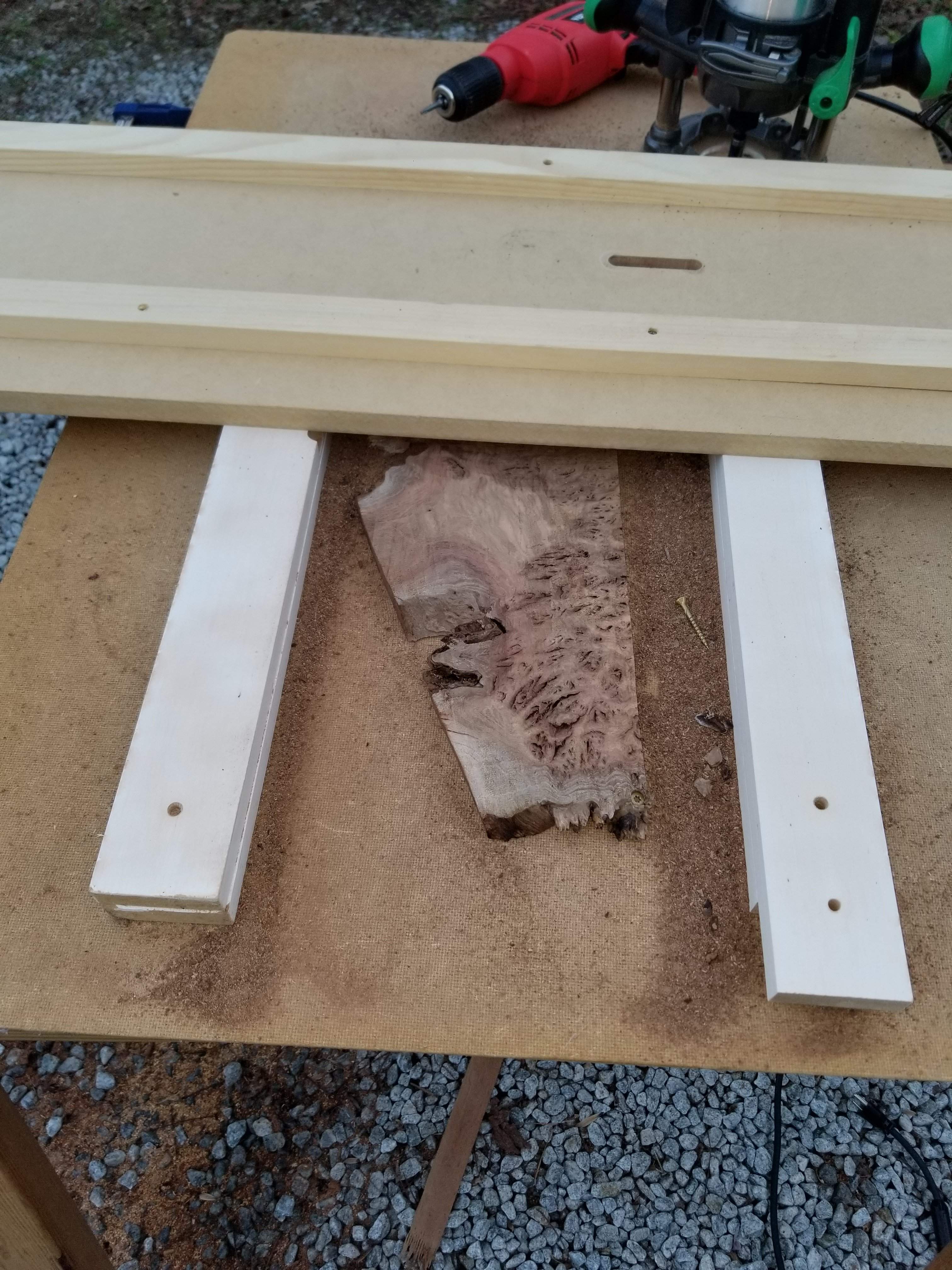

My rudimentary router sled worked great. I'll be developing something a little more permanent later in the build.

Got saw blades in today so hope to get the neck laminates ready for glue up tomorrow.



[washjayb]

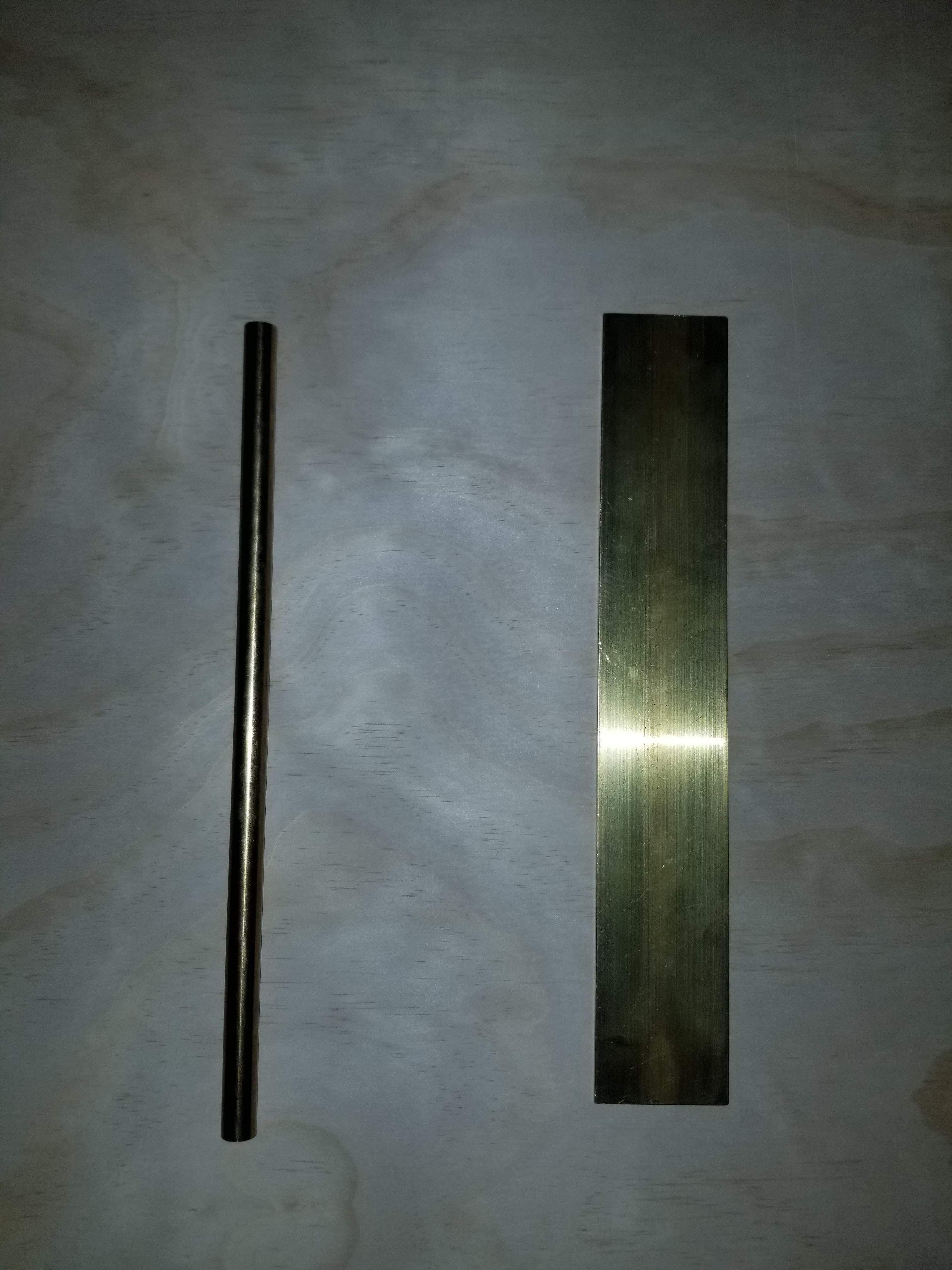

Any recommendations on cutting 1/2" brass rod?

I'm thinking a hacksaw is my best bet.



[washjayb]



[FretFree]

Subbing for 6xfretlessxheadless!



[dwizum]

Came here after seeing your comments in @Jisch's thread. That's a gnarly top! It would almost be a shame to fill it all in with epoxy. When there are such significant voids that runs the risk of it looking like a piece of plastic with some wood stuck in it. I like burl left open so you get the texture. But if you need the strength, you need the strength.

What about just bracing it internally so you can leave it unfilled?



[washjayb]

Might get your wish

Came here after seeing your comments in @Jisch's thread. That's a gnarly top! It would almost be a shame to fill it all in with epoxy. When there are such significant voids that runs the risk of it looking like a piece of plastic with some wood stuck in it. I like burl left open so you get the texture. But if you need the strength, you need the strength.

What about just bracing it internally so you can leave it unfilled?

Thats aIso a possibility. I'm thinking of just shaping the top and using the center as the entry point for chambering.
I love the look of raw wood. Just concerned about structural integrity.



[washjayb]

Raining here past few days and lots of distraction with the holidays. Didn't get to work on my neck as planned and leaving town again. Such is life.

I have made a few modifications to my plans over the past few days...

Found a repository of images of Daniel Fernandez basses. He and Carl Thompson are probably my biggest influences.

[This invalid link has been removed]

So inspiring! A few build picks included on some of the instruments for the curious.



[FretFree]

@washjayb: any updates?
