Winter Build off 2022 - ThunderJag

[Matt Liebenau]

Sorry about your friend. Very cool in making the pickup rings.



[Bent77]

Yeah, good lesson on don’t get in a hurry


I did procure the fancy tail light “dark tint” spray paint @Beej suggested to try. I’ll use the scrap stainless as my first victims before doing the rings and the pickups



[Bent77]

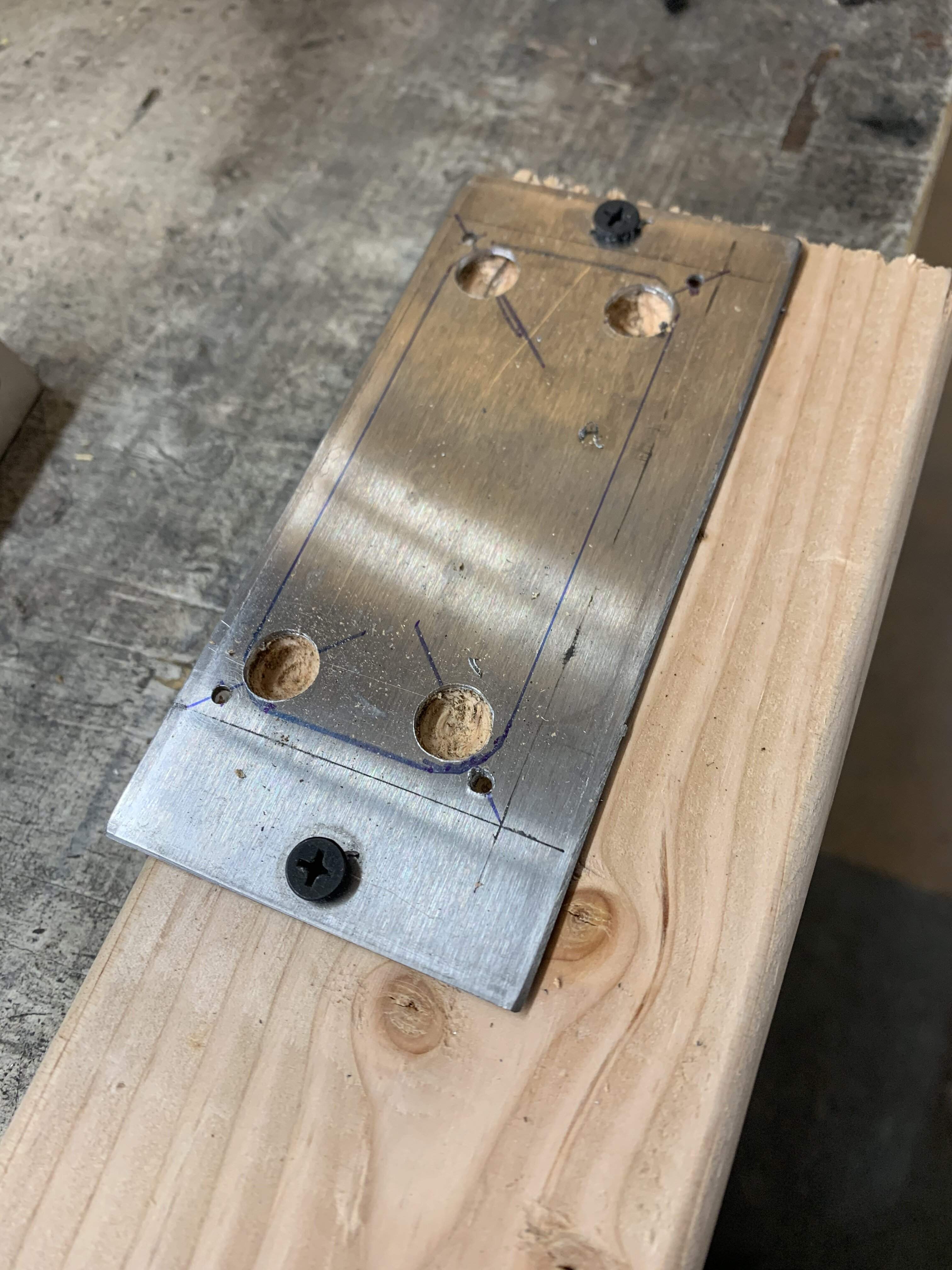

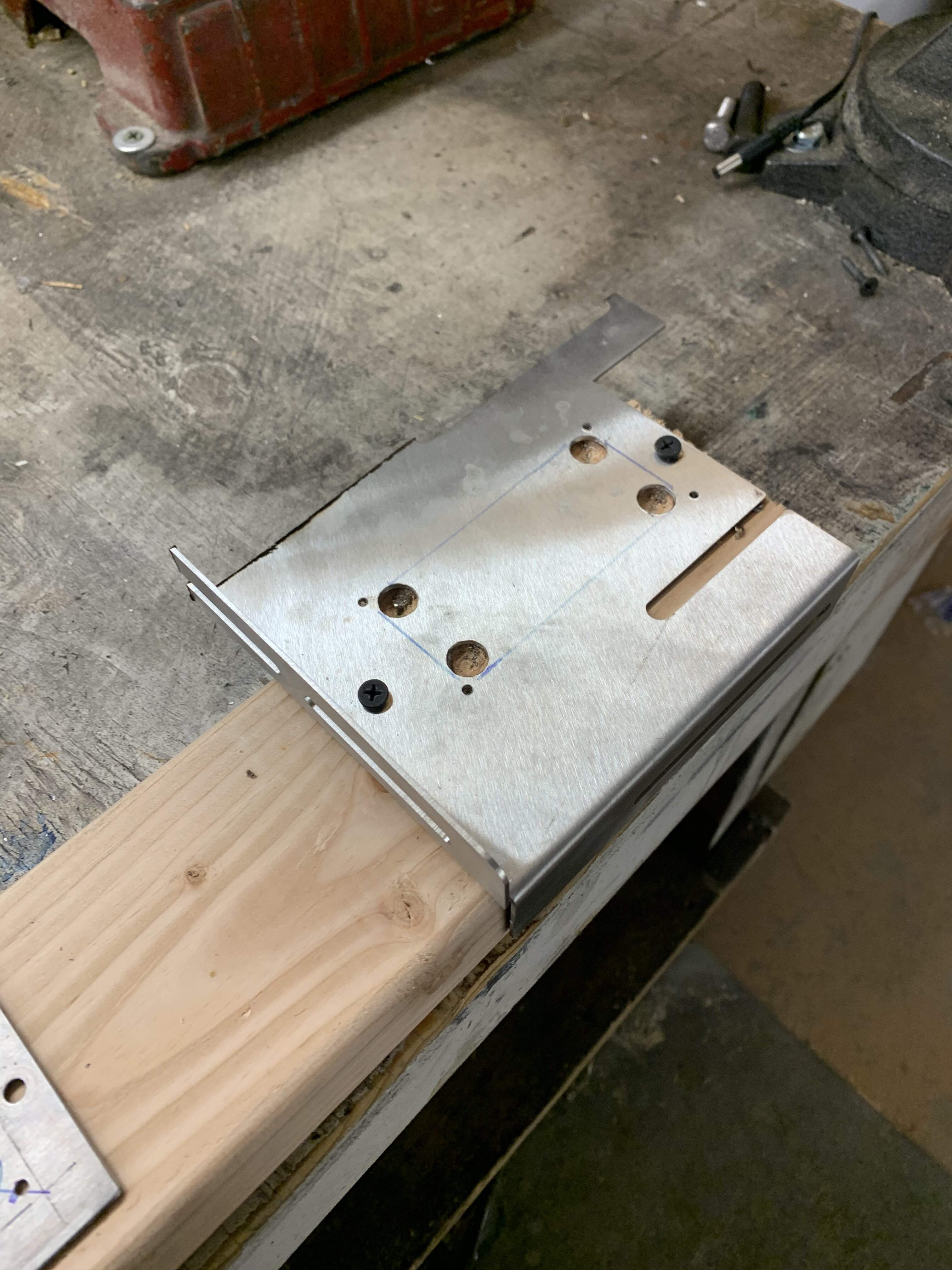

Up at the crack of dawn, making some progress. I need to wander into town and find screws for the corners of the trim before I cut it to final shape. Easier to drill with the extra meat to keep it rigid and clamped

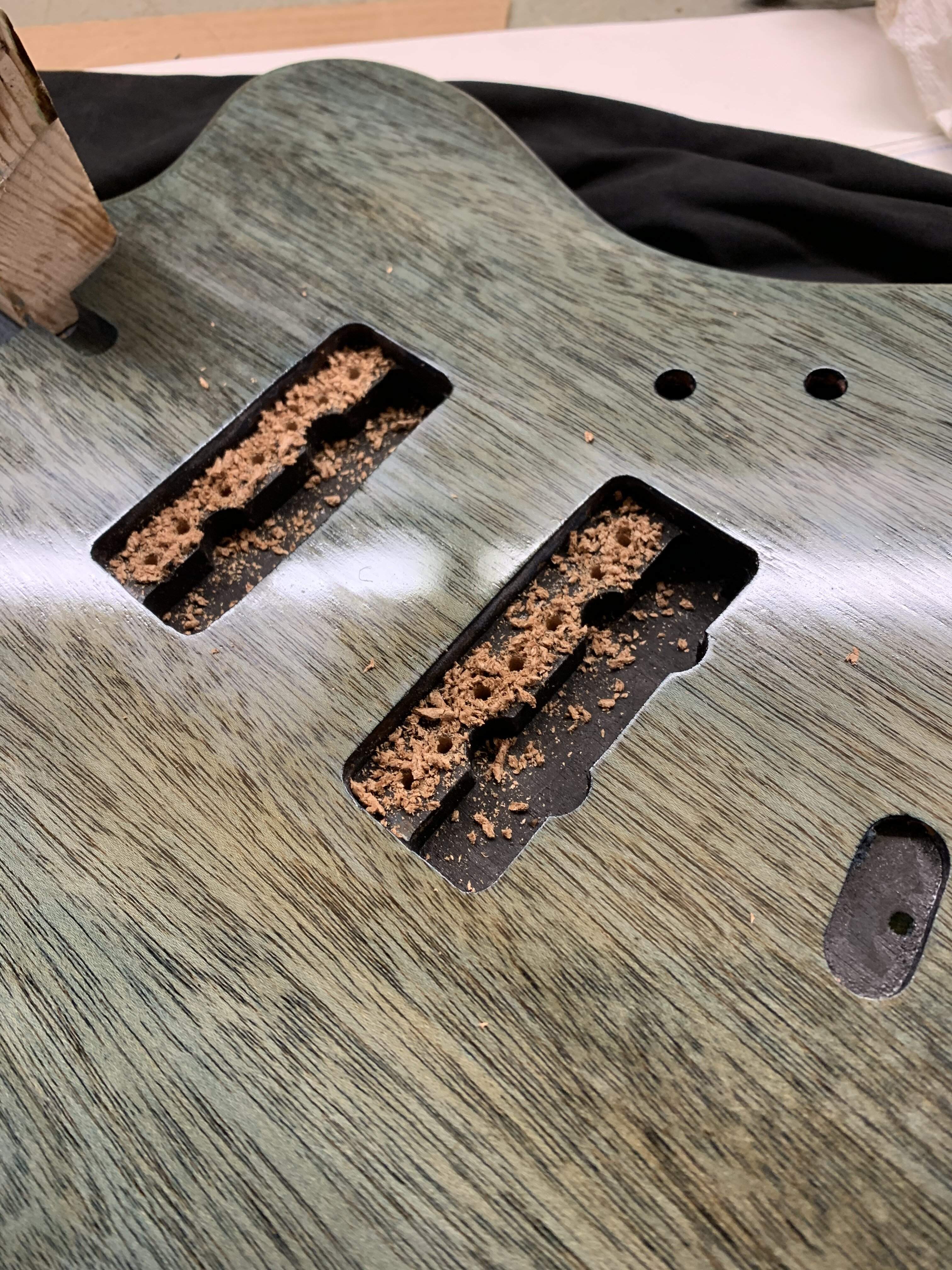

lacked some foresight, so opened up the pickup routes

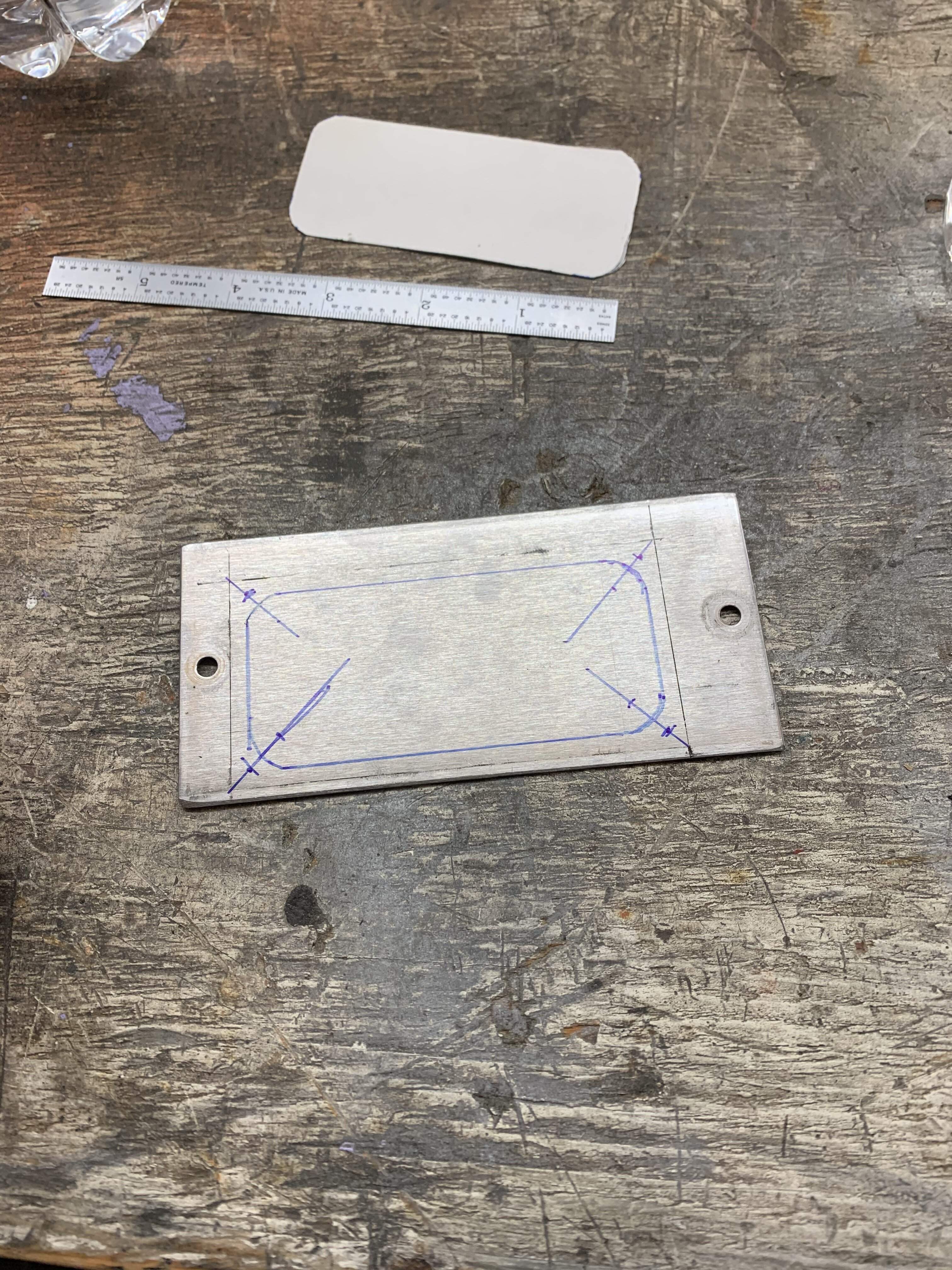

Goofy hack job layout

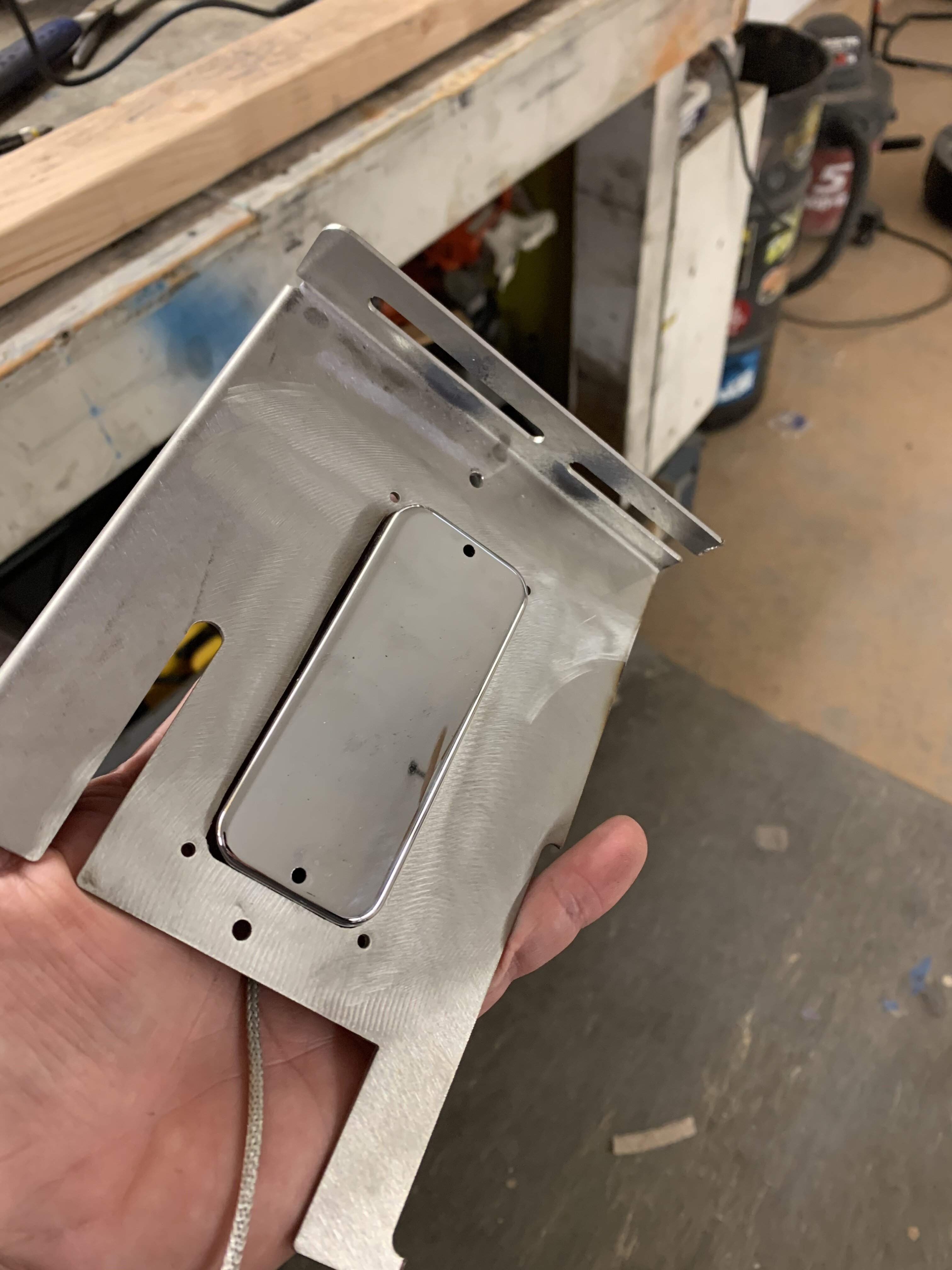

not awful



[Bent77]

Are you möcking me?

Well yes, for proof of concept. The paint is going to work, just makes a few extra and odd steps to have it work. The trim rings with their unpolished finish had to be painted different that the pickups. The chrome pickup was painted once, but I touched it before it was dry



[Bent77]

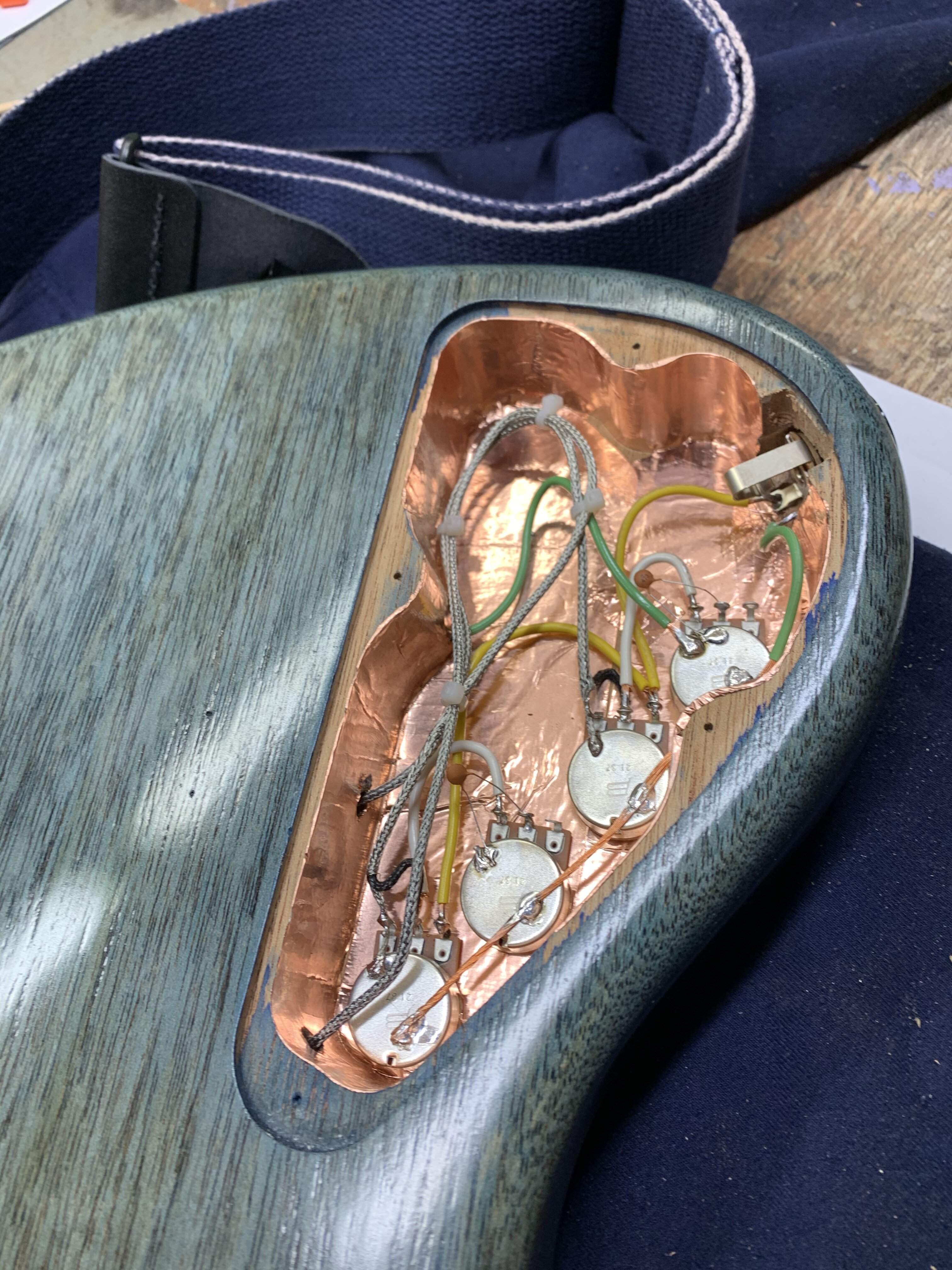

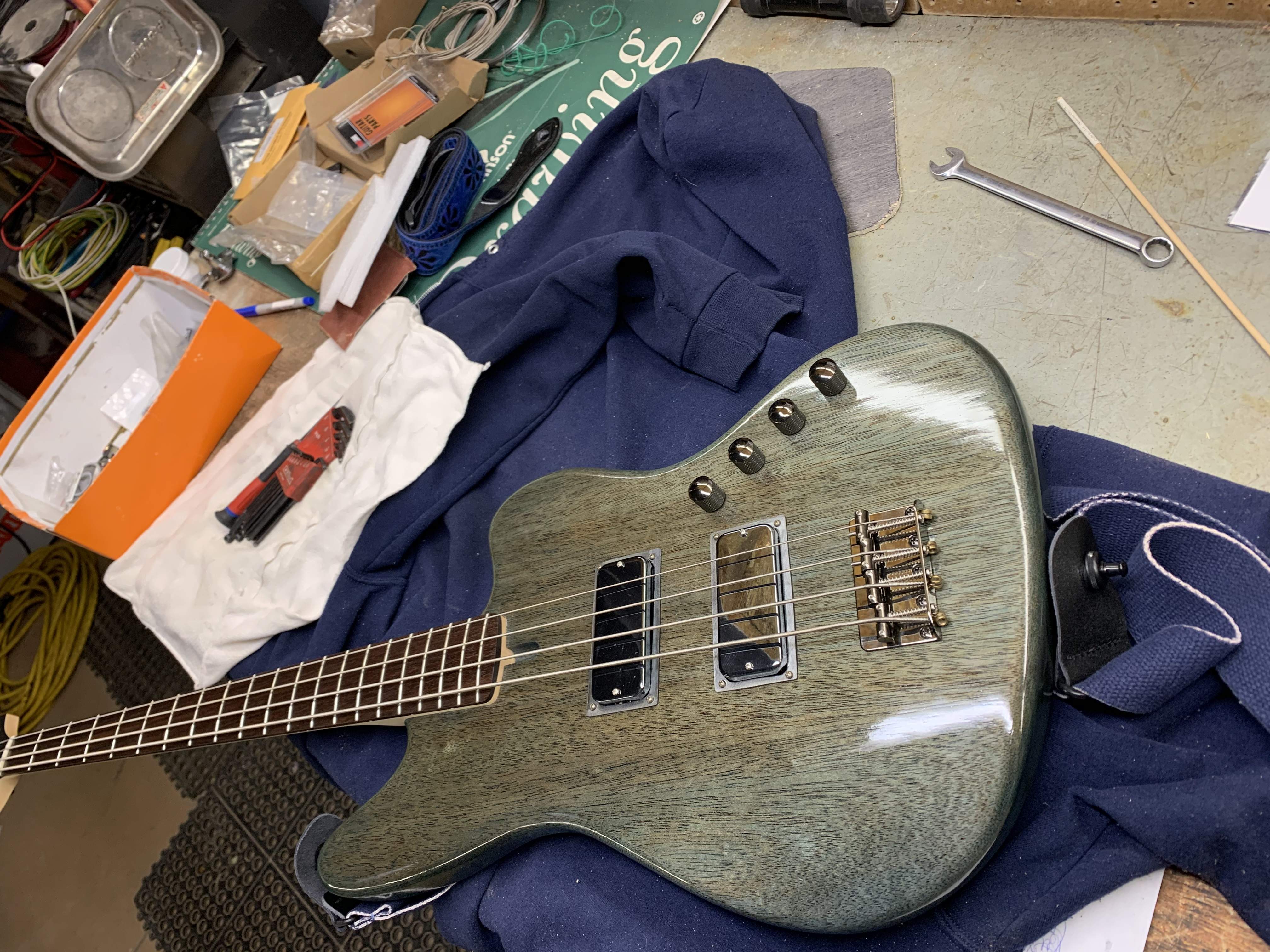

Finally getting somewhere. Need to solder.



[RichterScale]

That looks awesome



[Reedt2000]

Yeah it does!



[Bent77]

Thanks all, glad to finally make progress! I’ll get some better pictures with light



[Bent77]

Small details
The neck plate is sprayed with the magic tint spray, I may brush the screws.

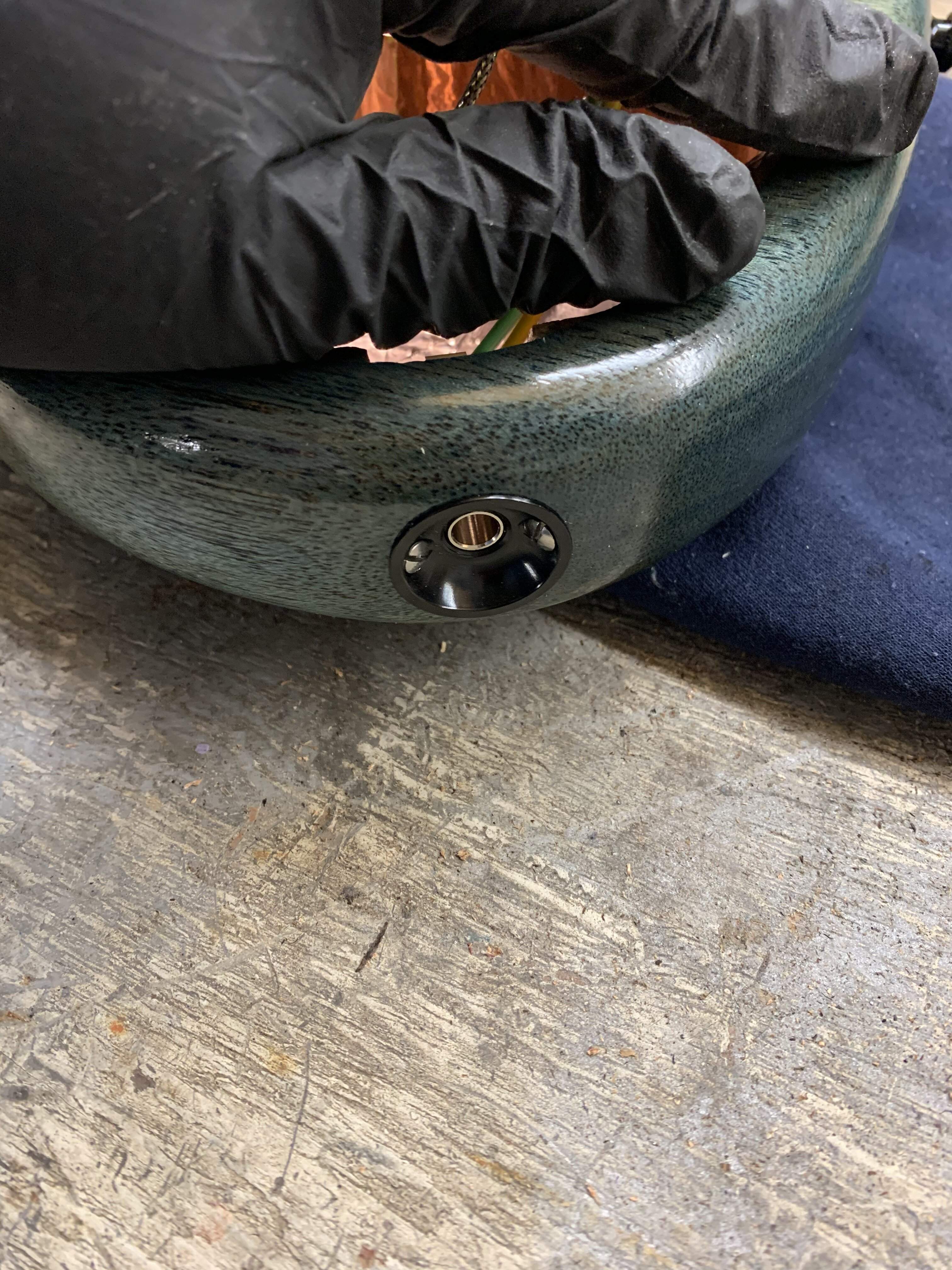

schaller strap lock
Tele style jack, in the closest color that matched



[Bent77]

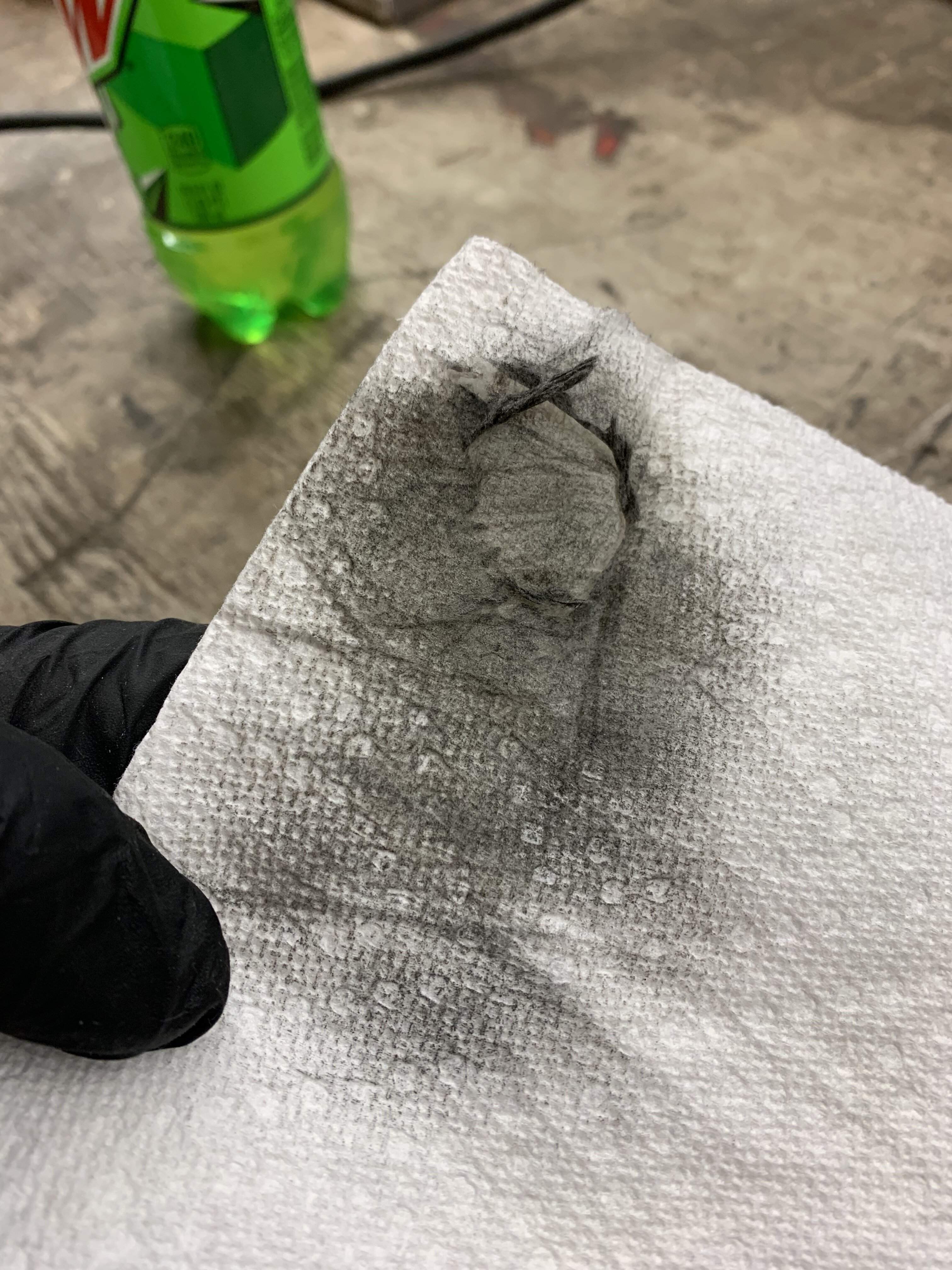

One of the things I like on my rosewood board necks is a Watco Danish oil finish. In this case, it was as much a cleaner as wood treatment



[Bent77]

Not as much on bass 1 that’s been holding to the re- part of the theme. (Hoping my pile of all rejected stuff comes along )

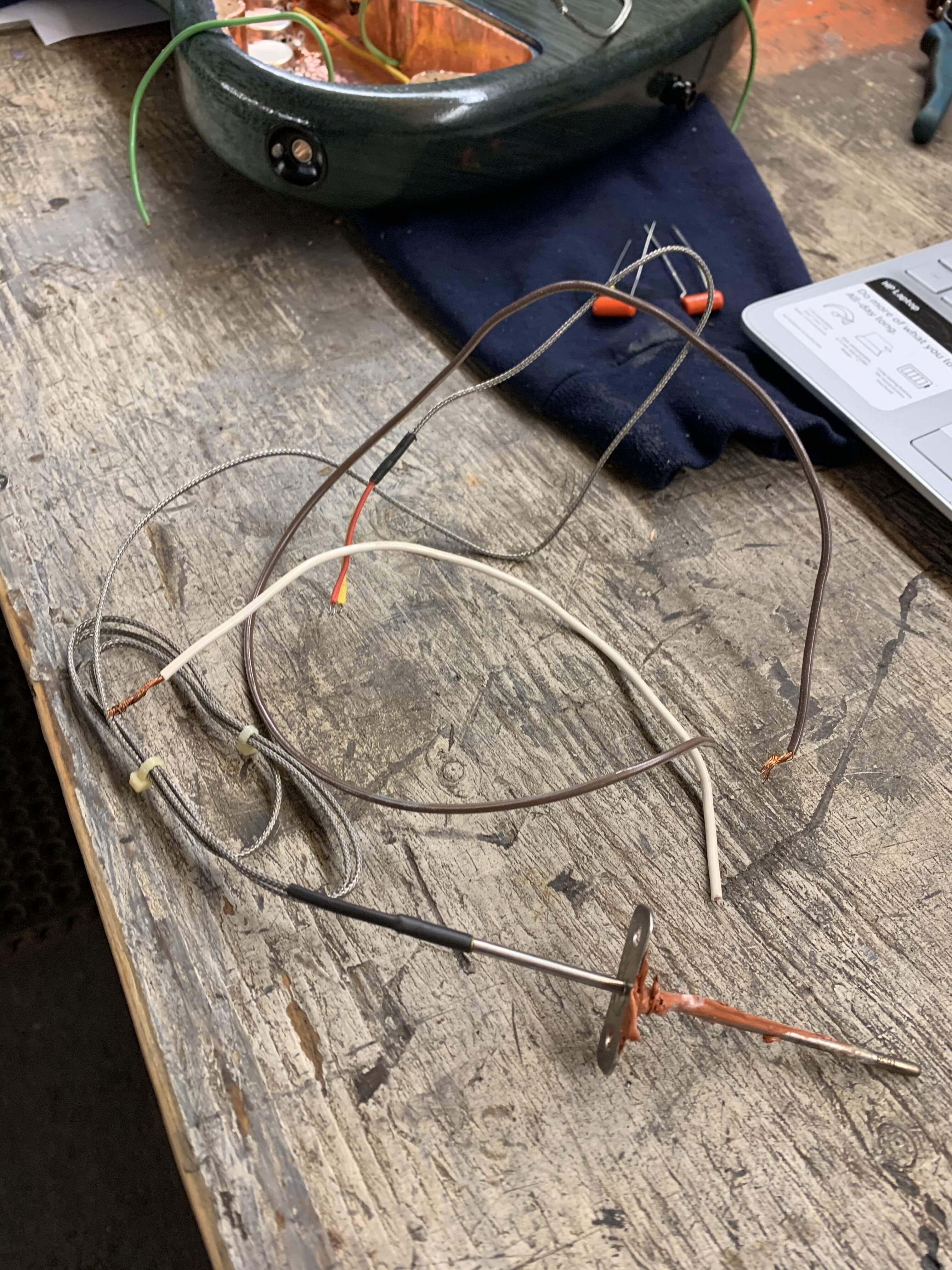

I typically don’t buy wire. One of the side effects of my occupation is a ton of industrial scrap. It’s wasteful to throw away, so I’m actually very diligent about saving everything that can ever be reused. Including this temp probe that shorted. I’ll snip and test with a meter before using



[RichterScale]

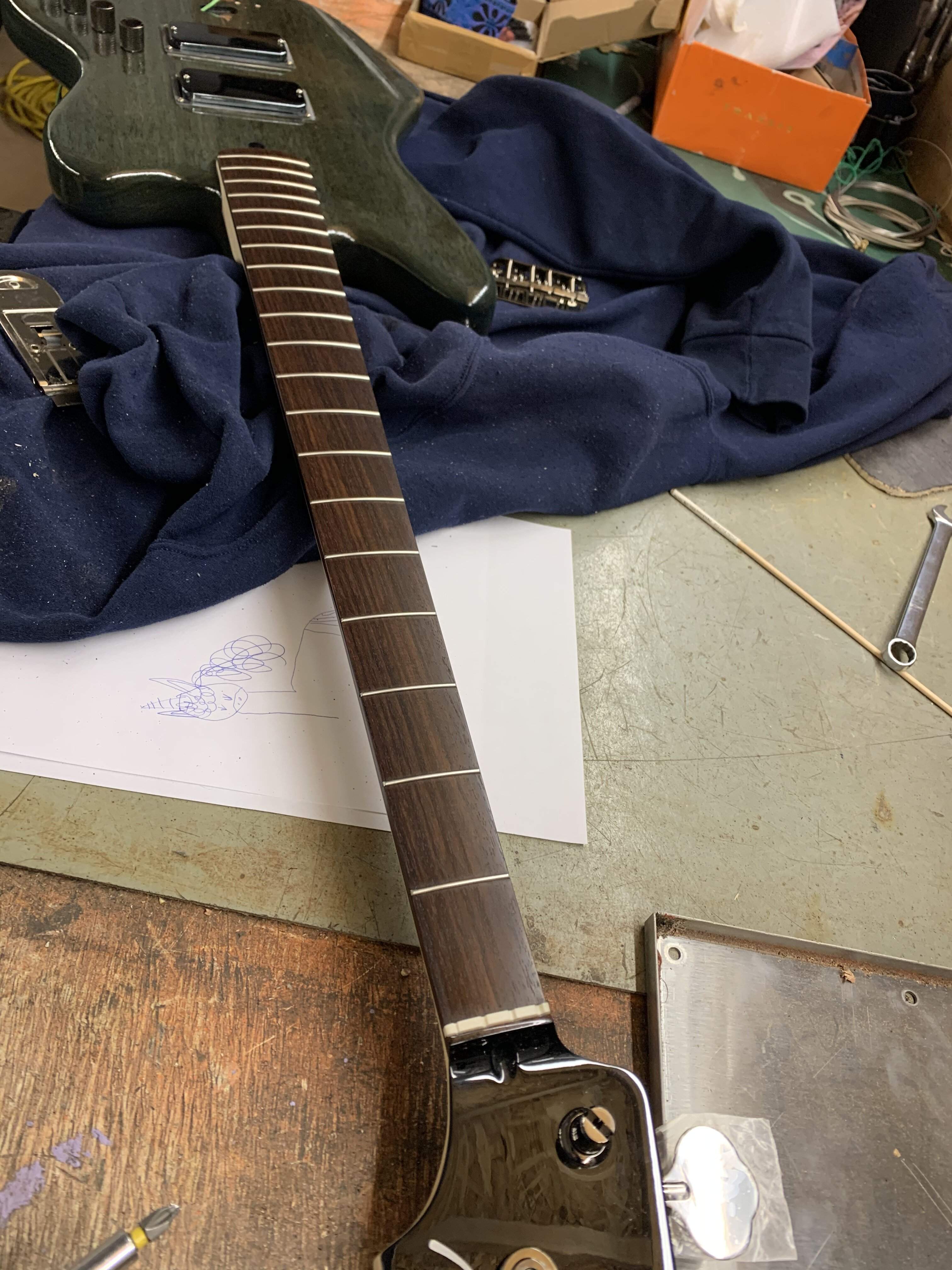

That's a gorgeous board



[Bent77]

I like the no marker look as much as the grain, got a good one there



[Bent77]

So my .022 caps ended up being 2.2m or something. Never had a tone knob completely kill the volume. Pretty cool
Flopped in some .047s that tested as .047s, and we will order some new .o22 or even .015s and try again. But it plays!



[Flying B]

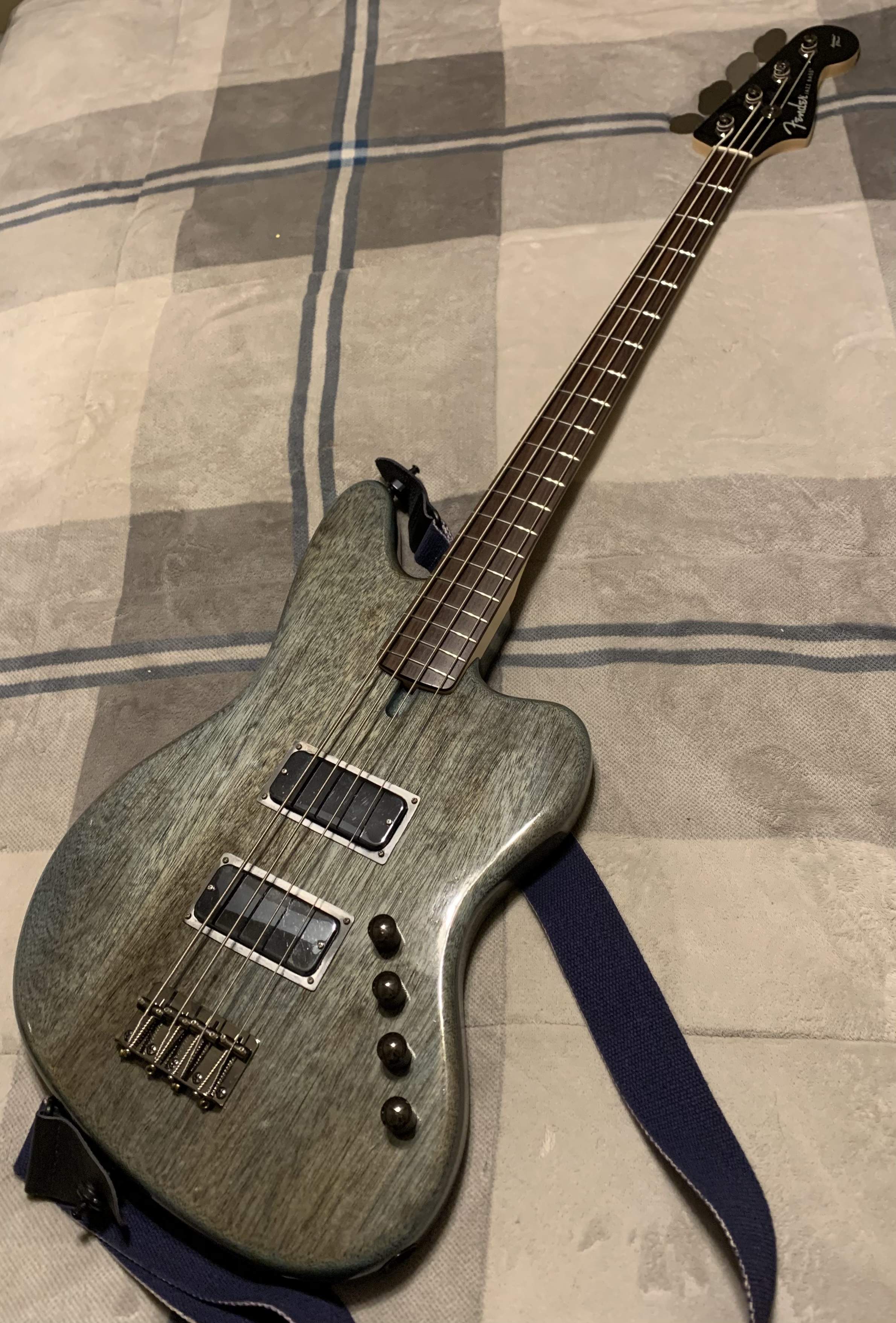

That looks bloody lovely!



[T_Bone_TL]

Summer build off... June 21 to September 22, but don't tell anyone yet, it's a secret.

A Penny for Your Thoughts - the copper accent bass build off - with no visible screws allowed. And it has to be a Stig Pederson bass replica, too.

Editing in alternate lead titles (or is that "whole build-offs?)

• No Visible Means of Attachment.
• The Worst Bass for Metal (totally screwless, not merely hidden screws)
• Stig Only Needed Two Strings (or alternate Stig-bass-buildoff title - But is it Art?)

I think that covers the discussion so far, but I may have missed a few...



[Bent77]

That looks bloody lovely!

Thank you!



[Bent77]

This bass is super easy to play. Might actually have the strings too low, 2mm off the 20th fret, but no buzz.

things to fix/change:
Bridge screws are sticking out about 5-6mm
I used shop strings, and the E is dead
Needs that .022 or .015 cap installed.

Otherwise pretty happy with it



[Bent77]



[Reedt2000]

That looks mean, I dig it!
