wiring help

[CavinTan]

hey guys i plan to use a bassmod preamp : Invalid Link Removed for my upcoming PJ bass project.is it possible to wire the mid and blend as a stack as well? i need help in how to wire this to a 3-way switch to get a P/PJ/J sound diagrams are appreciated!



[line6man]

A stacked mid/blend control would require a concentric, triple ganged pot. Those are quite rare. MEC could probably make you the custom pot, but it won't be cheap.



[CavinTan]

A stacked mid/blend control would require a concentric, triple ganged pot. Those are quite rare. MEC could probably make you the custom pot, but it won't be cheap.

the normal 500k concentric/stacked pots wont work? sorry im a noob at electronics =/



[line6man]

the normal 500k concentric/stacked pots wont work? sorry im a noob at electronics =/

Nope. A mid control needs one pot, and then a blend control needs two pots.



[CavinTan]

Nope. A mid control needs one pot, and then a blend control needs two pots.

oh okay thanks for sharing your knowledge..haha but the main question is here how do i wire the 3 way toggle to this preamp to get a P/PJ/J confi? =/



[line6man]

oh okay thanks for sharing your knowledge..haha but the main question is here how do i wire the 3 way toggle to this preamp to get a P/PJ/J confi? =/

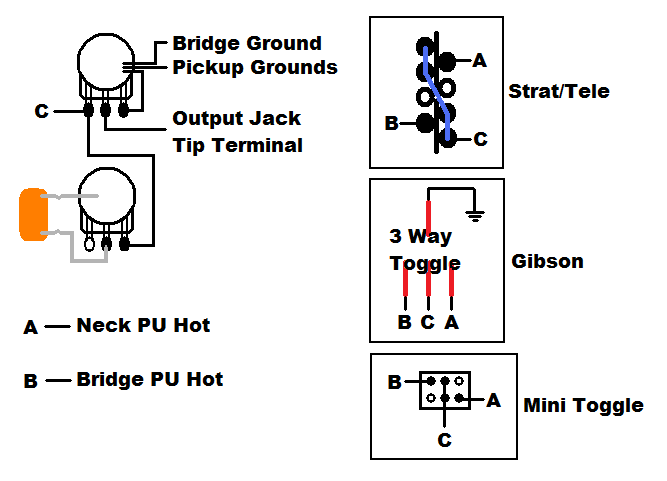

The "C" terminal is the output from the switch. Ignore the rest of the diagram.



[CavinTan]

The "C" terminal is the output from the switch. Ignore the rest of the diagram.

sorry,but im a real noob at electronics :x i don really understand..mind explaining on facebook?hmm i think the hots are soldered to the blends of the preamp
