XLR and DC power in one cable

[DonaldR]

I'm looking at 2-3 preamp pedals that I have a DI and need to be power by 9vDC. I don't have a pedal board and don't want an adapter in front of me plus a power extension running to power outlet.
Is there and XLR cable (for DI) with DC cable plugs on both ends where one end plugs into the preamp and the other end I plug the DC adapter?
Something like this but with DC instead of AC: Amazon.com: Hot Wires MP Combo Power and Audio Powered Speaker XLR Cable - 50 Foot: Musical Instruments
Or something like this but XLR instead of mid: Invalid Link Removed



[Rick Auricchio]

I haven't heard of anything like you're asking for.



[WayneP]

It wouldn’t be hard to strap a DC cable to a mic cable like the Hot Wires you linked. Also, you can get XLRs, both cable-end and chassis mount, with up to seven pins if you’re up to doing something custom.

Regards,
Wayne A. Pflughaupt


Administrator, Pedulla Club #45
Administrator, Tobias Club #133
Fretless Club #943
Big Cabs Club #23
My Basses
Pedulla Club #45



[RoadRanger]

I think some preamp pedals might work on phantom power?



[DonaldR]

The preamp pedals I'm looking for are, sadly, not working on phantom power nor 9v battery



[Jeff Bonny]

Loom the necessary cables together with electrical tape.



[DonaldR]

Thanks Jeff but I was looking for a cleaner solution



[twocargar]

How long does it need to be? I know some guys use XLR cables for MIDI, because only 3 out of 5 pins on a MIDI cable are used. Like the one you linked.

There would need to be some kind of box or interface to switch from one to the other, which it doesn't sound like you want though.



[Jeff Bonny]

Thanks Jeff but I was looking for a cleaner solution

I've been a lighting tech and rigger on arena tours and in film and I've dealt with these kinds issues for many years.

Thanks Jeff but I was looking for a cleaner solution

I know you were but the answer is it doesn't exist in any practical readily available way. The power jack on the pedals is probably standard 2.1mm so for $10 or less go buy male/female ends and the wire and build a 20" or however long you need jumper from the power supply to the pedal. Take electrical tape and tag it onto a mic line. Do a careful neat job with tape every 8" or so and it's going to look very clean and work extremely well. Carry spares and if either cable goes bad you can fix it easily. I've was a touring stage tech and lighting guy at the arena level for a few years and this is how it's done.

The only way you're going to get what you want in one line is to find some 5-wire cable that will carry both the audio and DC without audio interference and put on the appropriate jacks and plugs. Look though catalogs from companies like Belden and Canare. If you can find something I'd guess you'll be looking at a buck or so a foot plus ends plus labor for probably $60+ per cable....and for something this custom and system critical you'd better have at least one spare. It might be doable but it's way more trouble than it's worth.



[DonaldR]

25 foot will be perfect. I think I'll call Digiflex and ask if they can modify a quad XLR cable to add a dc male/female plug on each end.



[Rocksolid]

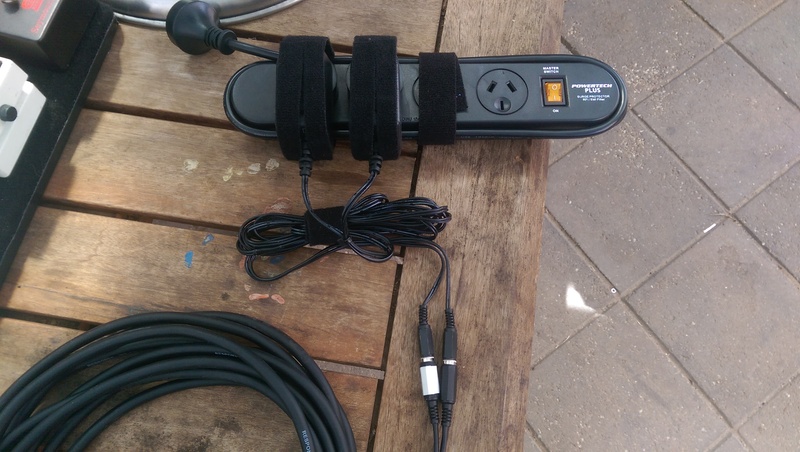

I purchased some quadcore cable to run 2 lots of 9VDC power out to a pedal board. I put male and female boss power adaptors on each end so I could keep the power supplies behind my amp and away from front of stage.
Not integrated with my leads (I did try it for a while and it wasn't as good as I'd hoped) but certainly neater than using power supplies and powerboards at the front of the stage.

Where I plug them in on my pedal board. I run the lead up thru the hole so it can't be pulled out:



[EastCoastThump]

If tape is too messy, how about rolling your own using heat-shrink tubing? (I'm guessing you've already tested for potential noise problems when you run your signal and power cables together, yes?) Or, if your goal is simply to ditch a separate run for juice, can you use batteries or something like a Volto to power your 9v pedals?

BTW, pedalboards can be your friend.

I'm looking at 2-3 preamp pedals that I have a DI and need to be power by 9vDC.
I don't have a pedal board and don't want an adapter in front of me plus a power extension running to power outlet.



[Jeff Bonny]

Just out of curiosity what are the preamp pedals you're considering?



[DonaldR]

I purchased some quadcore cable to run 2 lots of 9VDC power out to a pedal board. I put male and female boss power adaptors on each end so I could keep the power supplies behind my amp and away from front of stage.
Not integrated with my leads (I did try it for a while and it wasn't as good as I'd hoped) but certainly neater than using power supplies and powerboards at the front of the stage.

Where I plug them in on my pedal board. I run the lead up thru the hole so it can't be pulled out:

That's exactly what I want, but with one XLR and and DC line.
I will call Digiflex to custom make one for me.
Thanks



[DonaldR]

Just out of curiosity what are the preamp pedals you're considering?

Tech21 Bass Fly Rig and GK Plex.



[Silas Stingy]

I've used a Sanyo Eneloop power pack strapped to the side of a Preamp when I dont want to run power.



[DonaldR]

If tape is too messy, how about rolling your own using heat-shrink tubing? (I'm guessing you've already tested for potential noise problems when you run your signal and power cables together, yes?) Or, if your goal is simply to ditch a separate run for juice, can you use batteries or something like a Volto to power your 9v pedals?

I was thinking of a battery pack but it defeats MY point of having a small preamp (and only) pedal (I know, I know... ). I would have like if the were phantom power but not the case.
I tried tape and shrink tubes other projects but it was not what I was looking for. I have a power, midi and guitar cables in a nylon braided sleeve and it's better. That will probably what I will use if not going for custom cable. Digiflex will tell me if having both in one cable would work or not. If not I will go braided sleeve.

BTW, pedalboards can be your friend.

Not interested in a pedalboard as I have an Avid Eleven Rack with a midi foot controller. I want something I put in my gigbag for practice/jam.



[EastCoastThump]

I was thinking of a battery pack but it defeats MY point of having a small preamp (and only) pedal...Not interested in a pedalboard as I have an Avid Eleven Rack with a midi foot controller.

Fair enough. Your original post's mention of 2-3 pedals (+/including DI? the wording makes it hard to tell) seemed to scream out for a micro- or nano-board w/ power supply underneath. Make that rechargeable, and you have the option of omitting the power cable.

But, yeah, if you're trying to trim down to just a single pedal, that's a different game.



[EastCoastThump]

Where I plug them in on my pedal board. I run the lead up thru the hole so it can't be pulled out:

Is that an open-weave strain-relief in the pic above? I'm curious about how durable you find this arrangement.

Do you ever have trouble with the leads pulling out on the power supply end, or have you found locking connectors?



[Bassamatic]

There wouldn't be any noise problem running the power and audio in one cable - it's DC.
