$100 Bass Challenge - Marceline's Axe Bass

mapleglo

Warp Engineer
Supporting Member
Sep 7, 2013
13,347
47,611
phoenix, az
There's a $100 bass challenge thread that came up recently. All the rules have not been finalized, but I'm going to go ahead and start a thread for my build. At first, I wasn't really wanting to participate as I really don't want to put a lot of time and effort into a bass that wouldn't be very good. I just thought that too many corners would have to be cut to make a bass for $100.00. But then, my husband made reservations for the Phoenix Comicon, which is coming up at the end of May. We go every year.

For the past couple of years, I had thought it would be pretty cool to go to the Comicon as Marceline, the bass playing vampire from the animated series Adventure Time.



The series has gained a lot of popularity over the past several years, and she is a popular character there. However, of the 20 or 30 Marlines at the Phoenix Comicon, none of them use an actual (or is that axe -ual) bass. They're all props. I thought it would be cool to have a real bass as a prop. I also thought I could make a battery operated amp to play it through while walking the floor. But that's a subject for another thread.

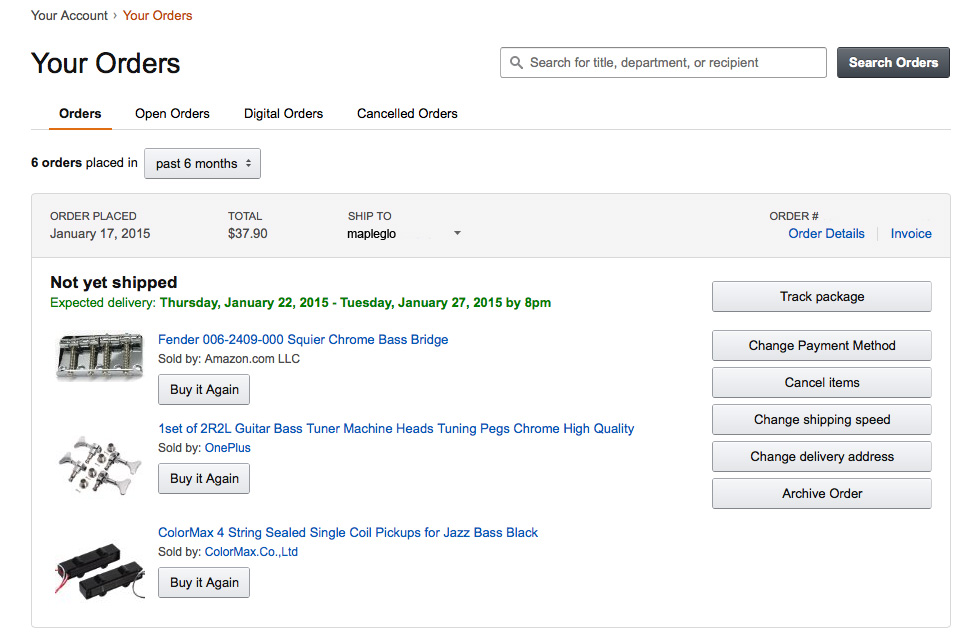

So I started doing a little research, and found I was able to buy a Fender/Squier bridge, Gotoh style tuners, and an inexpensive set of Jazz pickups for under $40.00 shipped. I placed the order.

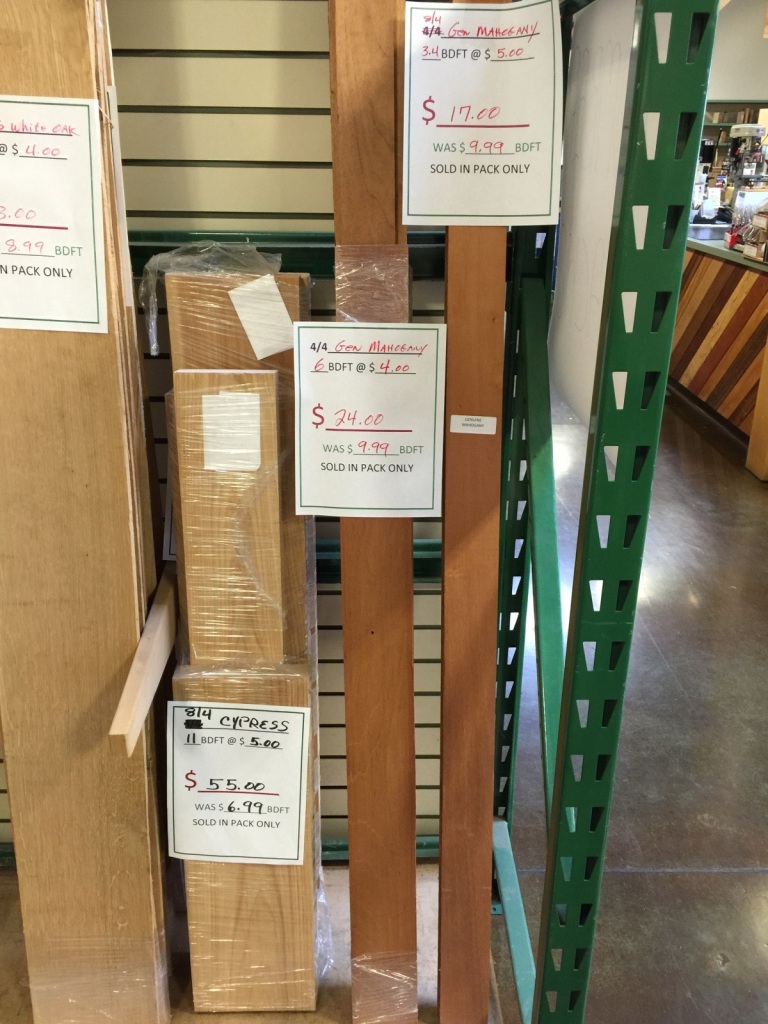

While we were out and about later that day, I saw we were just a few blocks from the wood store, so we stopped by and saw this:



6 board feet of genuine mahogany for $24.00. A little less with my 10% rosewood club membership (which basically covers the sales tax). That should be enough for the entire neck and body, with some left over.

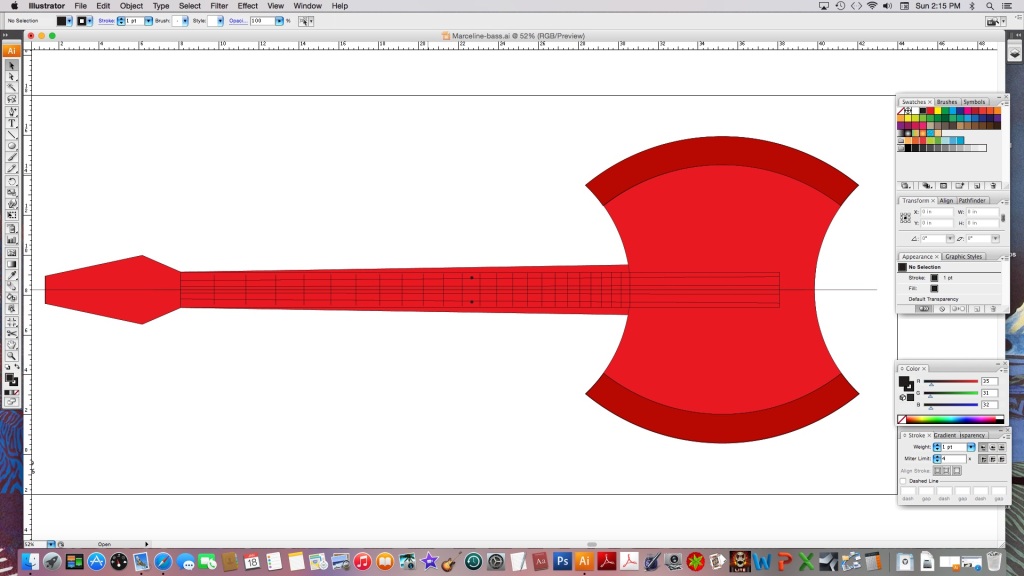

I spent a little time in Adobe Illustrator this morning putting together a design.



I can't really go any further until I receive the parts from Amazon, which seem to be scheduled for delivery early this week.

The specs are as follows:
4 strings
30" scale to help prevent severe neck dive, and for greater maneuverability on the Comicon floor
Fretless per the original design (and to help keep costs down)
Mahogany neck and body
Neck-through design
Jazz bass style pickups
Per the original design (and stuff in the parts draw) 2 knobs, maybe volume and blend?
Enamel red/maroon rattle can finish (Rustolium?)

I still have to order a truss rod ($16.00 at Best Bass Gear) and I'll need to figure out what to do about the lower strap lock. It seems to be some kind of spike.

We currently have a few home projects going on right now, including enclosing the car port (resulting in an enclosed, air conditioned shop area for me, yay!). So work may be slow for a few weeks, but I need to have this done by May if I want to use it this year at the Comicon. Whether or not the $100 bass challenge comes together, I'll be moving forward on this for my costume.

So anyway, current build cost:
Tuners, bridge, pickups = $37.90
wood = $24.00

I'll post progress and costs as I move forward.

Ha!
My sons watch that show, some very odd visuals going on! Looks like a fun project, if you are going to Comicon, you need to post photos of the whole ensemble. My sons went to the recent Boston comicon dressed as Solaire from Dark Souls and a Tuscan Raider. They had a blast, all low budget home made costumes, including a lot of duct tape.

  • Like
Reactions: josiah goldfish


I'll need to figure out what to do about the lower strap lock. It seems to be some kind of spike.


I gotch you!.. A Invalid Link Removed. screw on style. just replace the screw with a hanger bolt. If you can't find one that fits, (ace hardware would probably have more sizes than a big box, be it orange or blue) you could just cut the head off a wood screw and J.B. weld it into the spike. OR... I have a giant spike that came off an old lamp, (believe it or not a chandelier) I just couldn't toss it out with the rest of the broken thing. You can have it if you think it will work, but it's a on the big side and i think it's taped for a 1/4-20 thread. I'll check it out and send you a pic tomorrow. :bassist: :bassist::bassist:

Bass players unite :)

  • Like
Reactions: RyanJD
Wow, thanks for all the interest everyone :)

I gotch you!.. A Invalid Link Removed. screw on style. just replace the screw with a hanger bolt. If you can't find one that fits, (ace hardware would probably have more sizes than a big box, be it orange or blue) you could just cut the head off a wood screw and J.B. weld it into the spike. OR... I have a giant spike that came off an old lamp, (believe it or not a chandelier) I just couldn't toss it out with the rest of the broken thing. You can have it if you think it will work, but it's a on the big side and i think it's taped for a 1/4-20 thread. I'll check it out and send you a pic tomorrow. :bassist: :bassist::bassist:

Bass players unite :)

Thanks for the link, that looks real close. And of course, donations are welcome! I'll check Ace Hardware today if they're open - there's one right up the street.

OK, I just ordered a truss rod from Best Bass Gear, so total running costs:

Tuners, bridge, pickups = $37.90
wood = $24.00
truss rod = $16.00
total = $77.90

I also ordered the jazz pickup templates. I have no idea if they'll fit the cheap pickups I ordered, but I suppose that even if they don't, they'll get use at some point. Also, I was a little concerned about the length of the truss rod. The neck should come out to about 22 inches long - 30" scale with the equivalent of 24 frets. I started with 21 frets, but due to the body shape, that would have pushed the bridge off the rear end of the body, so lengthened it to 24 frets, which seemed to fit. So the truss rod is 24" long, but it does extend just over an inch above the nut for the hex adjuster. It will extend a little under an inch into the body, so I'll just have to remember that when I place the pickups.

I gotch you!.. A Invalid Link Removed. screw on style. just replace the screw with a hanger bolt. If you can't find one that fits, (ace hardware would probably have more sizes than a big box, be it orange or blue) you could just cut the head off a wood screw and J.B. weld it into the spike. OR... I have a giant spike that came off an old lamp, (believe it or not a chandelier) I just couldn't toss it out with the rest of the broken thing. You can have it if you think it will work, but it's a on the big side and i think it's taped for a 1/4-20 thread. I'll check it out and send you a pic tomorrow. :bassist: :bassist::bassist:

Bass players unite :)
Either this, or ordering from a punk rock type store such as crustpunks.com

I watch this show too. It's one of the better animated shows to come out in the last 10 years. I fully support a Marceline bass

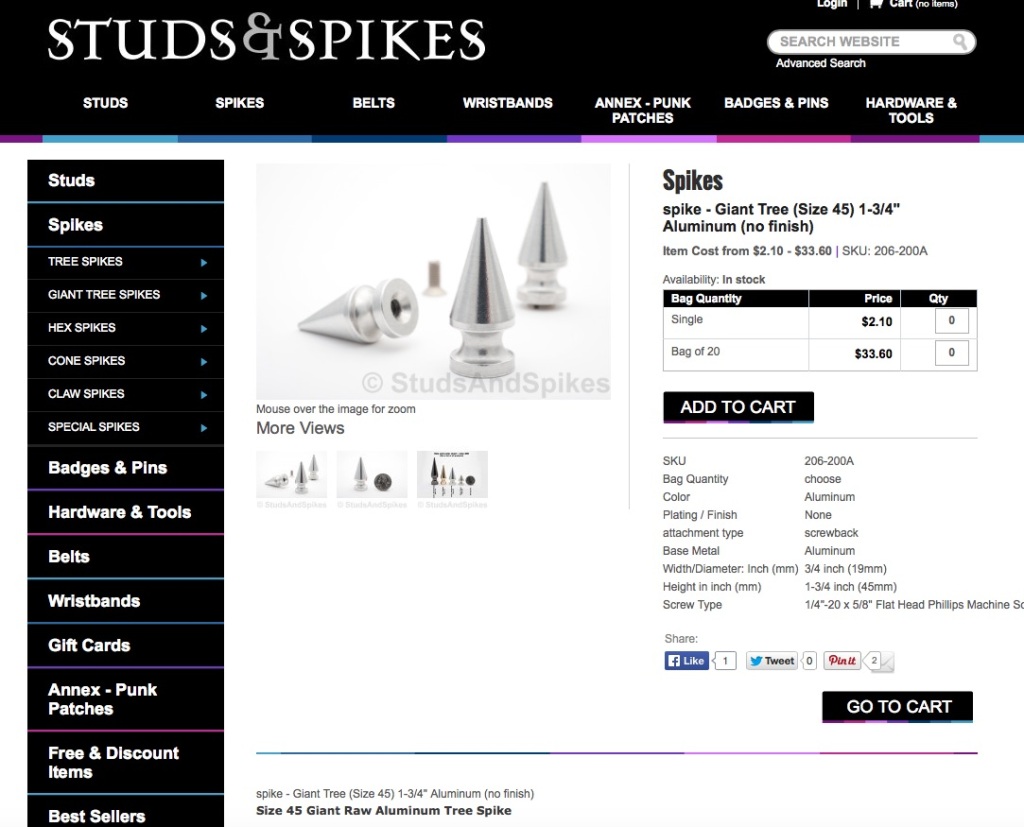

OK, just ordered a spike from Studs and Spikes.



Thanks for the link @MrArose13.

Running total cost:

Tuners, bridge, pickups = $37.90
wood = $24.00
truss rod = $16.00
spike strap lock = $2.10
Total = $80.00

That leaves $20.00 even for paint, pickup mounting screws, jack, jack plate, wire, and controls. Depending of the final rules, I can likely find most of those parts in my parts drawer.

There's a $100 bass challenge thread that came up recently. All the rules have not been finalized, but I'm going to go ahead and start a thread for my build. At first, I wasn't really wanting to participate as I really don't want to put a lot of time and effort into a bass that wouldn't be very good. I just thought that too many corners would have to be cut to make a bass for $100.00. But then, my husband made reservations for the Phoenix Comicon, which is coming up at the end of May. We go every year.

For the past couple of years, I had thought it would be pretty cool to go to the Comicon as Marceline, the bass playing vampire from the animated series Adventure Time.



The series has gained a lot of popularity over the past several years, and she is a popular character there. However, of the 20 or 30 Marlines at the Phoenix Comicon, none of them use an actual (or is that axe -ual) bass. They're all props. I thought it would be cool to have a real bass as a prop. I also thought I could make a battery operated amp to play it through while walking the floor. But that's a subject for another thread.

So I started doing a little research, and found I was able to buy a Fender/Squier bridge, Gotoh style tuners, and an inexpensive set of Jazz pickups for under $40.00 shipped. I placed the order.



While we were out and about later that day, I saw we were just a few blocks from the wood store, so we stopped by and saw this:



6 board feet of genuine mahogany for $24.00. A little less with my 10% rosewood club membership (which basically covers the sales tax). That should be enough for the entire neck and body, with some left over.

I spent a little time in Adobe Illustrator this morning putting together a design.



I can't really go any further until I receive the parts from Amazon, which seem to be scheduled for delivery early this week.

The specs are as follows:
4 strings
30" scale to help prevent severe neck dive, and for greater maneuverability on the Comicon floor
Fretless per the original design (and to help keep costs down)
Mahogany neck and body
Neck-through design
Jazz bass style pickups
Per the original design (and stuff in the parts draw) 2 knobs, maybe volume and blend?
Enamel red/maroon rattle can finish (Rustolium?)

I still have to order a truss rod ($16.00 at Best Bass Gear) and I'll need to figure out what to do about the lower strap lock. It seems to be some kind of spike.

We currently have a few home projects going on right now, including enclosing the car port (resulting in an enclosed, air conditioned shop area for me, yay!). So work may be slow for a few weeks, but I need to have this done by May if I want to use it this year at the Comicon. Whether or not the $100 bass challenge comes together, I'll be moving forward on this for my costume.

So anyway, current build cost:
Tuners, bridge, pickups = $37.90
wood = $24.00

I'll post progress and costs as I move forward.

Let's see...you play bass, you can make a bass, and you dress up and go to comicon. Yep, you're in the top 10 coolest people of all time. Hope this project goes well.
