2 passive P-style wiring diagram

[newtonbassist]

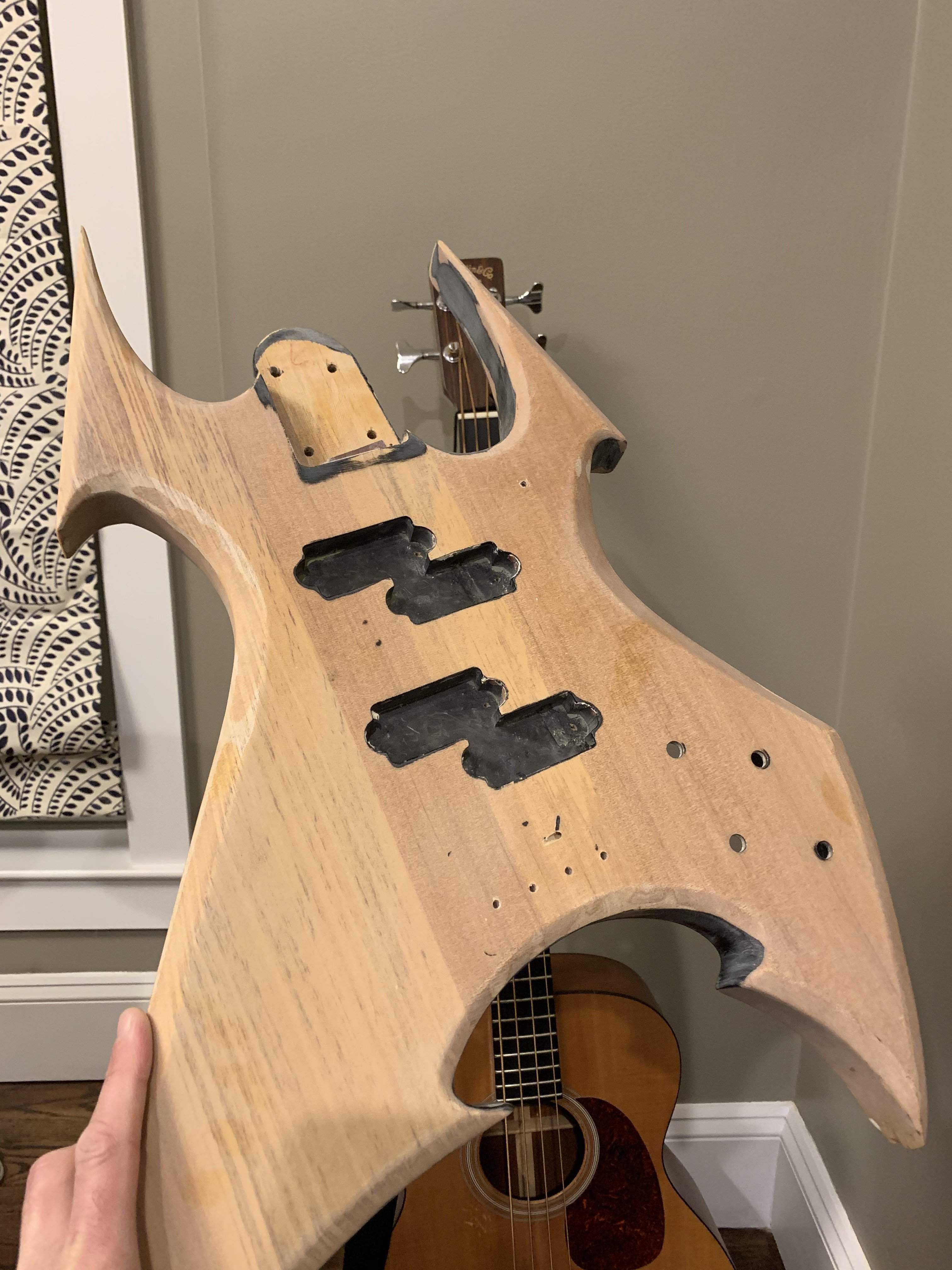

I have a bc rich nj beast and a set of Steve Harris and another set of Geezer Butler P pickups (both passive). Any one know where this newbie can find a wiring diagram for something like this?

TIA

\m/



[Killed_by_Death]

You don't really need a wiring diagram. Just put the new pickup leads right where the old ones came off.



[newtonbassist]

You don't really need a wiring diagram. Just put the new pickup leads right where the old ones came off.

hmmm. I gutted the whole thing over a year ago. I don't know where anything went anymore



[Matt Liebenau]

There are spaces for 4 potentiometers so you want 2 volume and 2 tone? Then use something like this:

Do you still have the original pots and capacitors? If not, try 500Kohm audio for volume and 250Kohm audio for one and .047uf capacitors. Really though, there’s not really a wrong answer with anything in the 250-500K ohm range if it sounds good to your ears.

Oh, and, image stolen from somewhere else here on talkbass but I don’t recall who so thanks to anonymous.



[jbrew73]

Look at a jazz bass or maybe even a les paul since you have 4 holes for pots.
