2020 Winter Build Off - 4000LS

Stupid question: does the Rowlux need to be adhered to the polycarbonate? Couldn't you just stack the rowlux under the polycarbonate and the screws would hold them aligned in place? I thought that's how @JIO has done similar things in the past... :)

If you are talking about pg's - I've layered a couple of things under a clear pg, one of which is a thin swirl-pearl plastic material. (not sure what it's called - is that what Rowlux is?) Not glued - just layered under the clear pg. Never tried it on small pieces like an inlay - it is a bit floppy but lays out nice once screwed down.

My latest build is going to incorporate it with the pg as well - Scarab Deluxe Bass

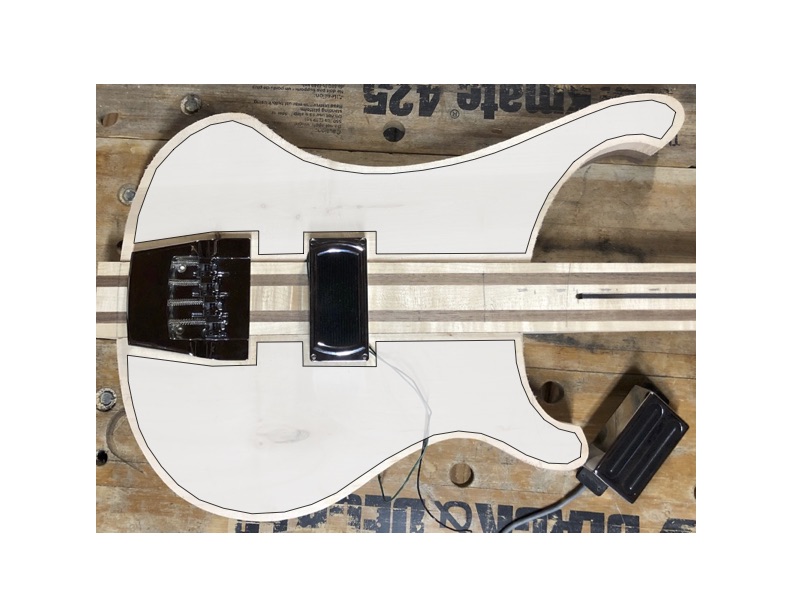

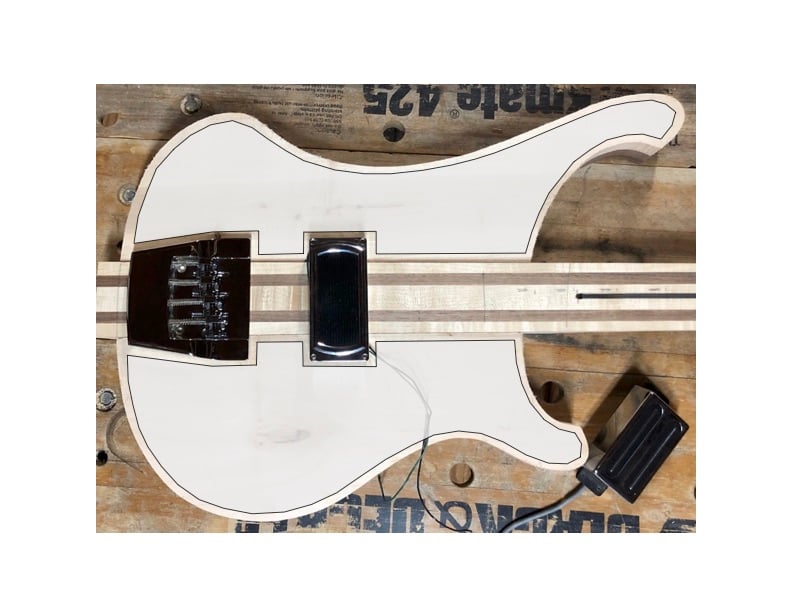

Thanks fellas. My build will see large sections of Rowlux suspended over empty chambers, unsupported from below, hence my desire for structural bonding to support it. But I’m literally in uncharted territory, having never ever attempted anything like this before!

As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
  • Like
Reactions: Rôckhewer
Ok, I have two different varieties of clear double-sided tape being delivered today. :thumbsup:

I’ve been experimenting a bit with fiber optics. I’m still not clear on just exactly how feasible it will be for me to light up some triangle inlays. I might do dots instead. Need to play around with it a bit more. :sour:

But I feel like I’m spending too much time pondering the myriad possible permutations this build could take. It’s time to make some decisions and move forward.

Today’s decision: bridge and pickup. Actually, I’m 90% sure I’m using my big chrome ChiSonic single coil. So that leaves bridge options.

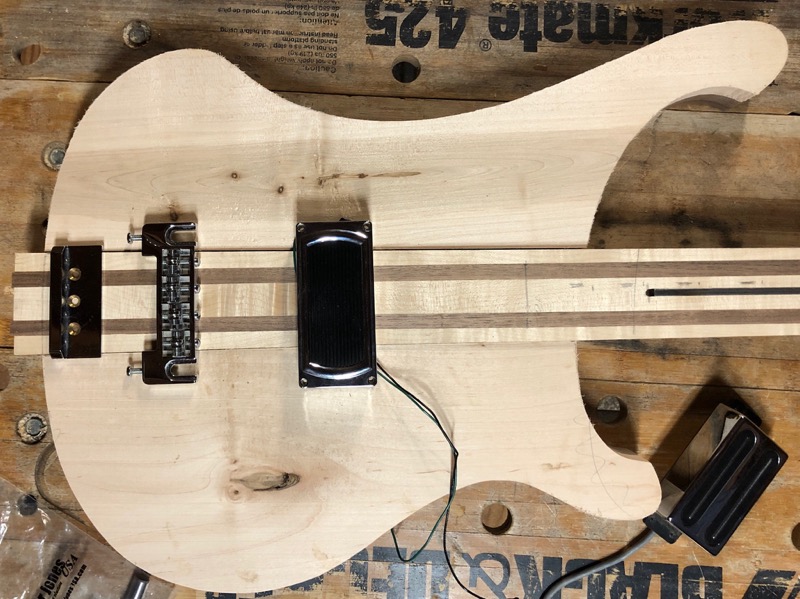

First option: Schaller tune-o-matic with tailpiece. This is their 460 model, designed as a replacement for the Gibson two-point bridge (presumably before Gibson introduced the three-point). As all things Schaller, it’s beautifully and solidly built, and has a clever tailpiece that can fit in a slot on the rear of the bridge, or be screwed down onto the bass body. But (being a Gibson replacement) its saddles are too high for the geometry of this build, and the radius is wrong too, and it just doesn’t look right.

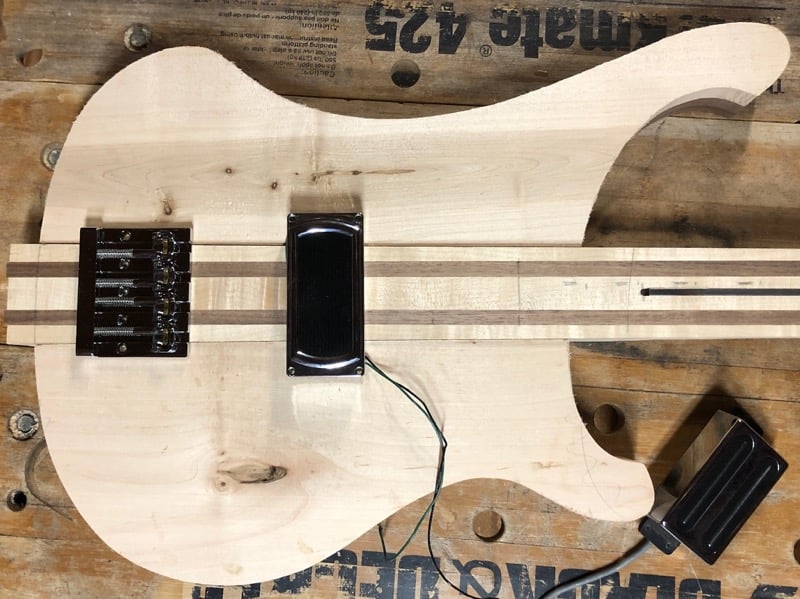

Next is the Hipshot Kickass. This is well known. It is big and shiny, works great, and leaves plenty of room for chambering.

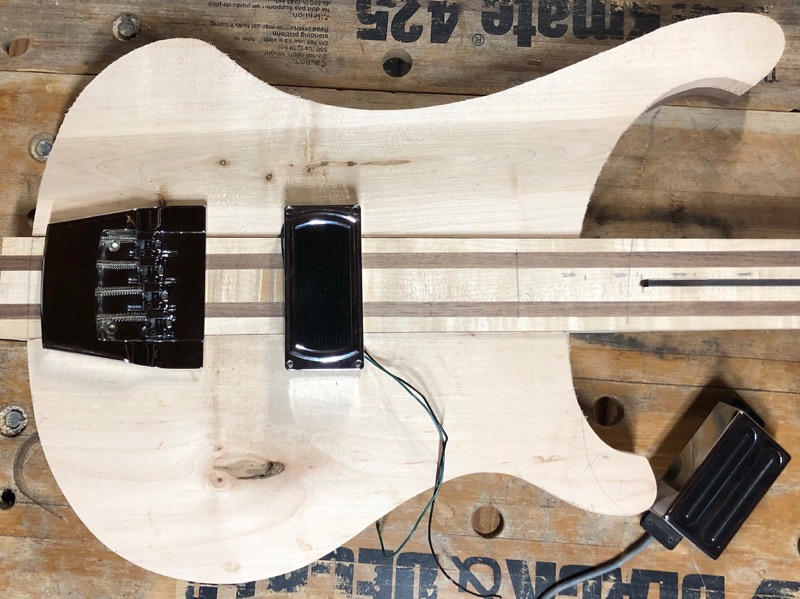

Finally there’s the Hipshot Ric replacement. This is also well known, and while it has a larger footprint, that footprint is iconic and familiar with the overall aesthetic. It would mean making the chambers (and the lexan panels) a slightly more complex shape.



(All of these are shiny chrome, despite the lighting in these pics...)

I had expected to use the Kickass, but I’m actually liking the look of the Ric replacement. Thoughts from the gallery?

Next is the Hipshot Kickass. This is well known. It is big and shiny, works great, and leaves plenty of room for chambering.

View attachment 3663862

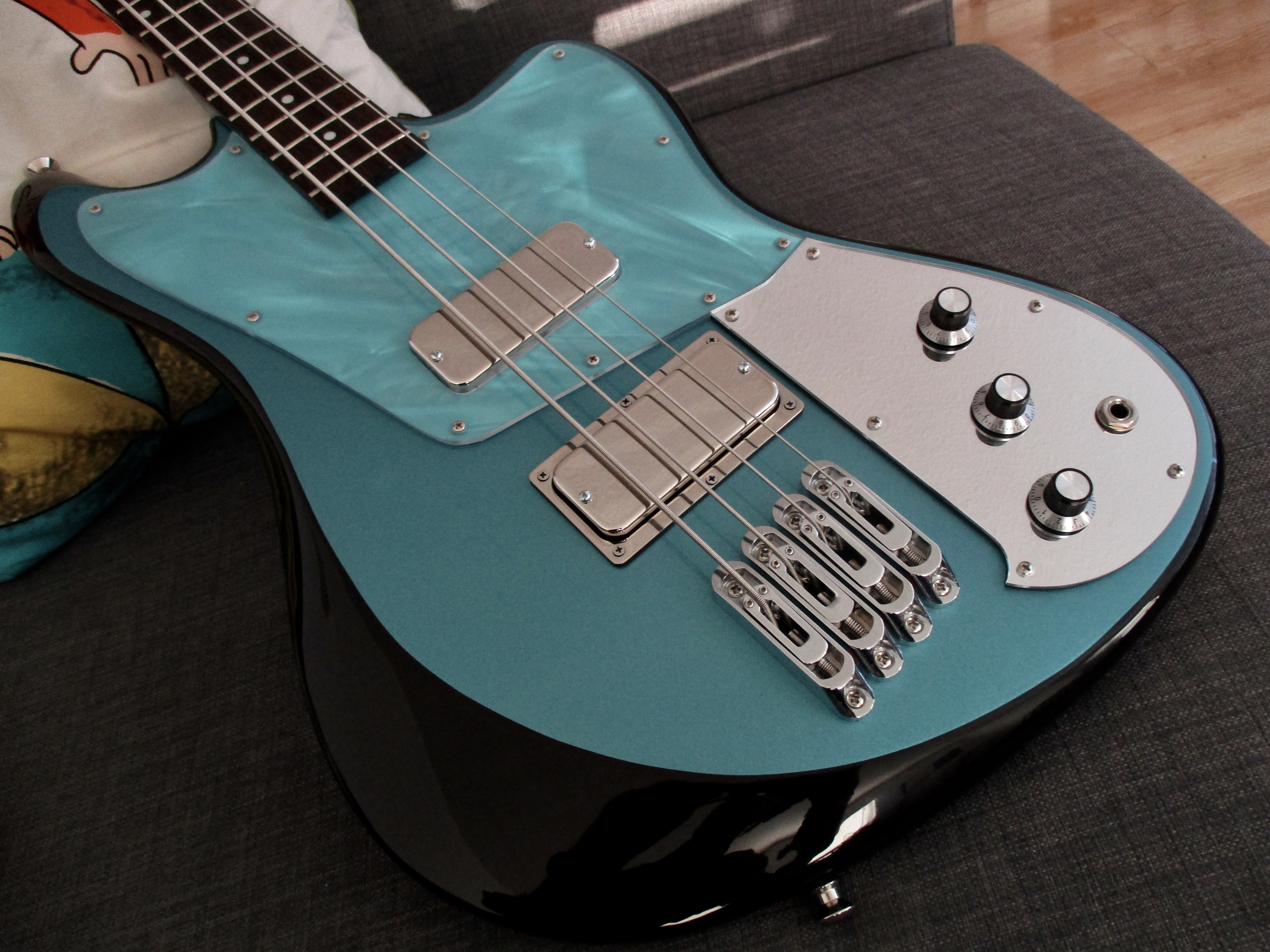

My choice - have used it on 4 builds so far. Another I like is the Schaller 3D adjustable saddle bridge. Both can be adjusted for a narrower neck, like a T-bird. (narrower than Fender)

  • Like
Reactions: ctmullins
I gotta go with the Hipshot Ric style, that shape is just too iconic. This is an exercise in pure bling, so go directly to Bling Town whenever possible. If the lit fret markers is a Bling Too Far, how about crushed MOP “sparkle” inlays? So happens I have enough left over from the HF2 for another 5 guitars, I’ll donate some for the cause if you want it.

That’s generous of you, my friend. :)

I may take you up on that. I need to go review your thread on details of how you filled them!

I used Envirotex Lite, but I wasn’t entirely happy with it. It never seemed to get as hard or water clear transparent as I hoped. Something that dries as hard as bar top epoxy, but is water clear, would be ideal, but I didn’t find it. I used pearlescent acrylic paint mixed with Envirotex for a base coat in the recesses, with “fine” MOP flakes adhered in it, then “coarse” flakes submerged in epoxy on top of that. I buffed and polished the snot out of it, but I think it just wasn’t hard enough to take a fully transparent shine, still looks a hair cloudy. I have a little tin of each grade MOP flakes, 95% of it still left.

  • Like
Reactions: ctmullins
