5 string J for Eric

D

DaanW

Oct 21, 2008
106
22
The Netherlands
#1
This is a VERY special build for me, so I hope hope you guys injoy my quick recap of this build.
Why this one is so special? You'll find out later.

Specs:
Body: Alder
Neck: Birdseye maple
Fretboard: Ziricote
Pickups: Sadowsky
Preamp: Sadowsky (vol/blend/tone+bypass (push pull)/bass/treble)
Hardware: Hipshot

I finished this allready so here are some pictures:

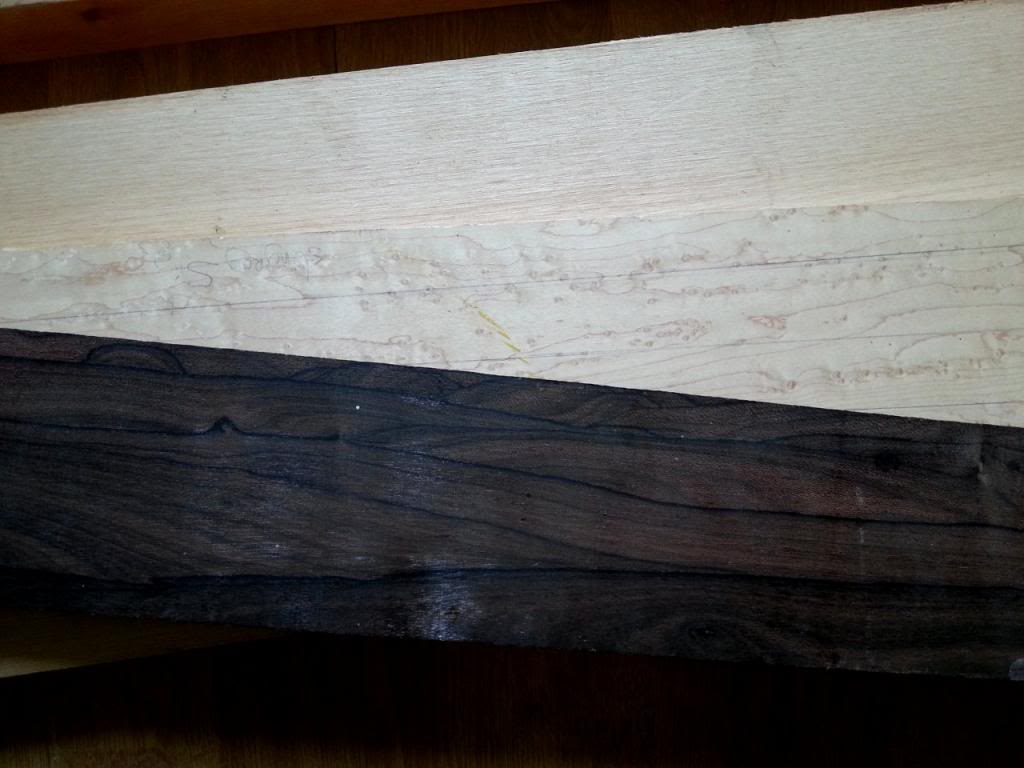

What I started with:

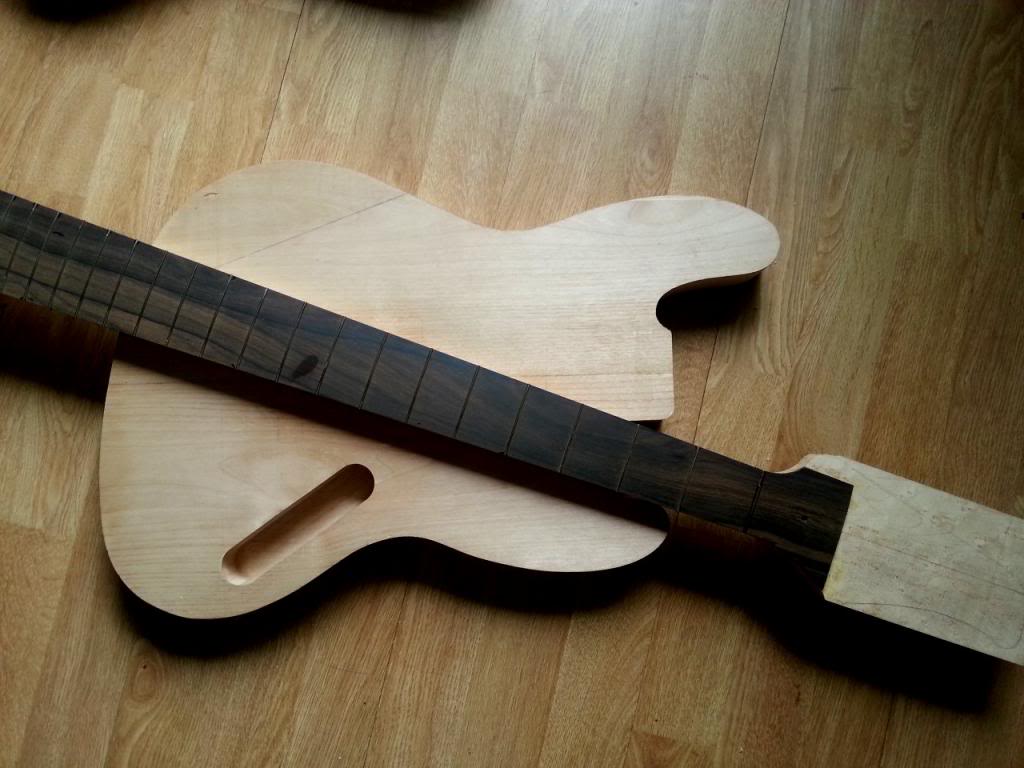

I really had to build this one quick, so after a few days I had:




#2
I thought I had some picture of the neck, when I was shaping it but it looks like I don't.

I had to wait for the pickups for like a week, but after that everything went very fast:

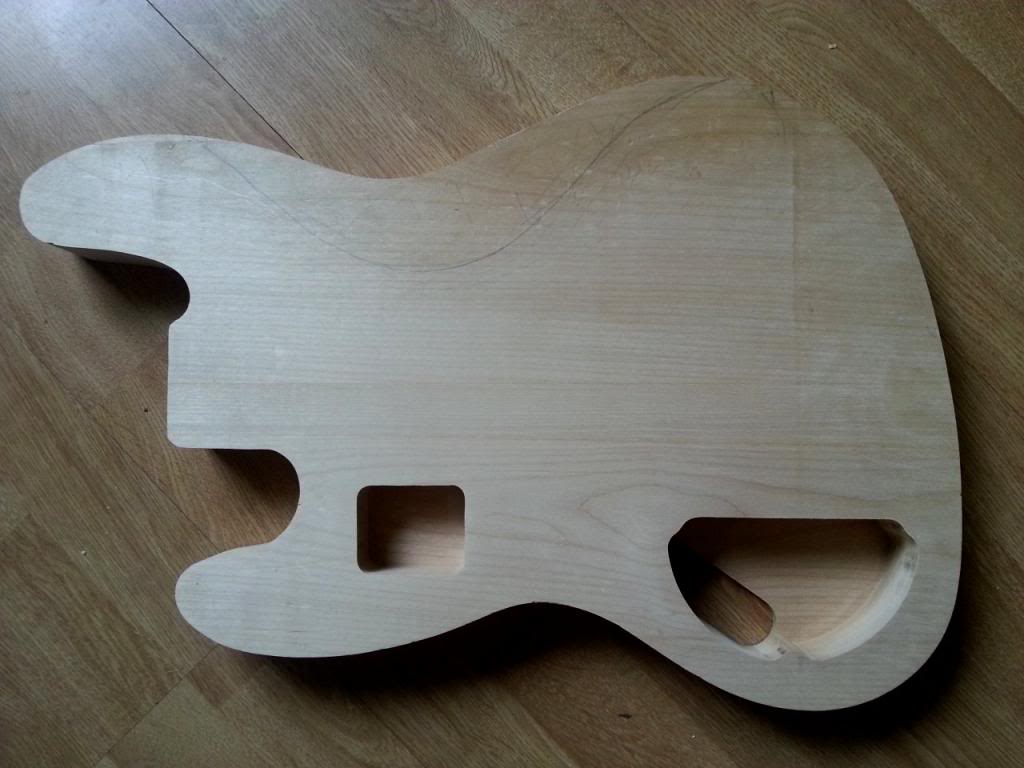

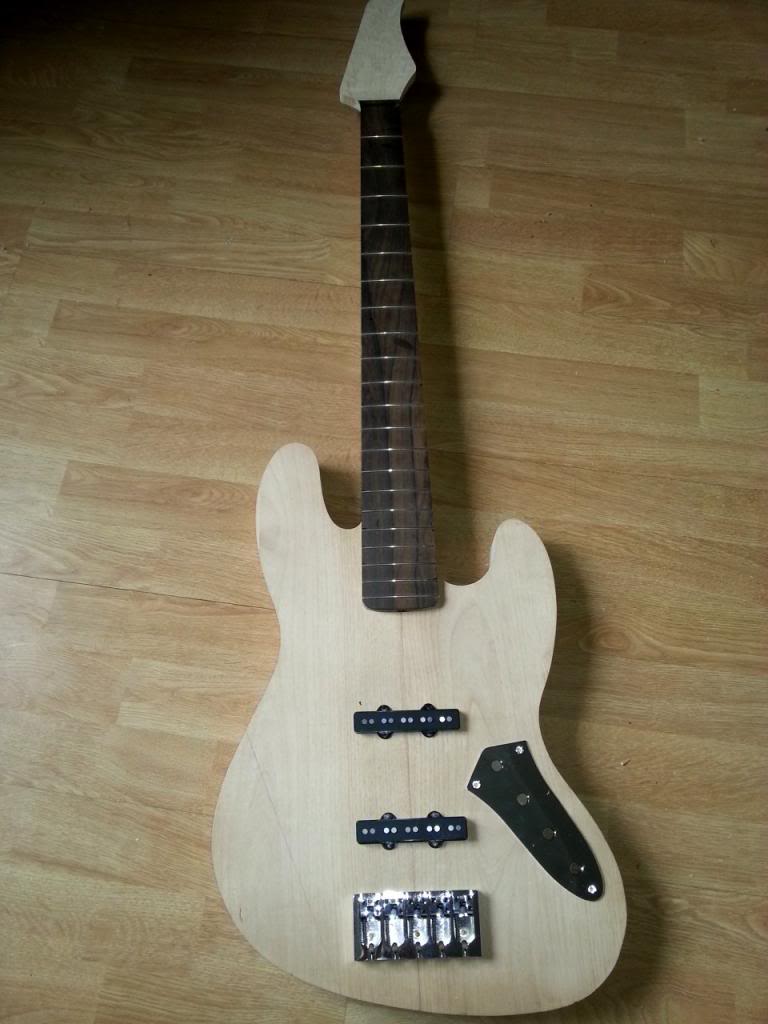

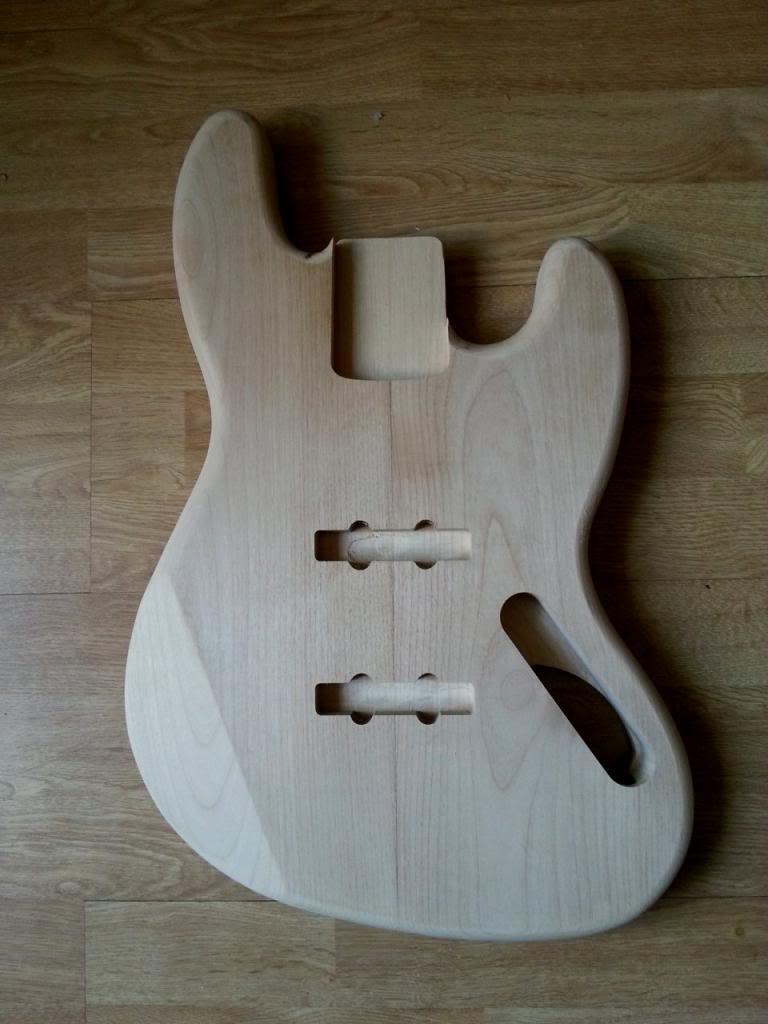

Pickup cavities and neckpocket routed, and placed the pickups and neck in for a fit: very nice fit!

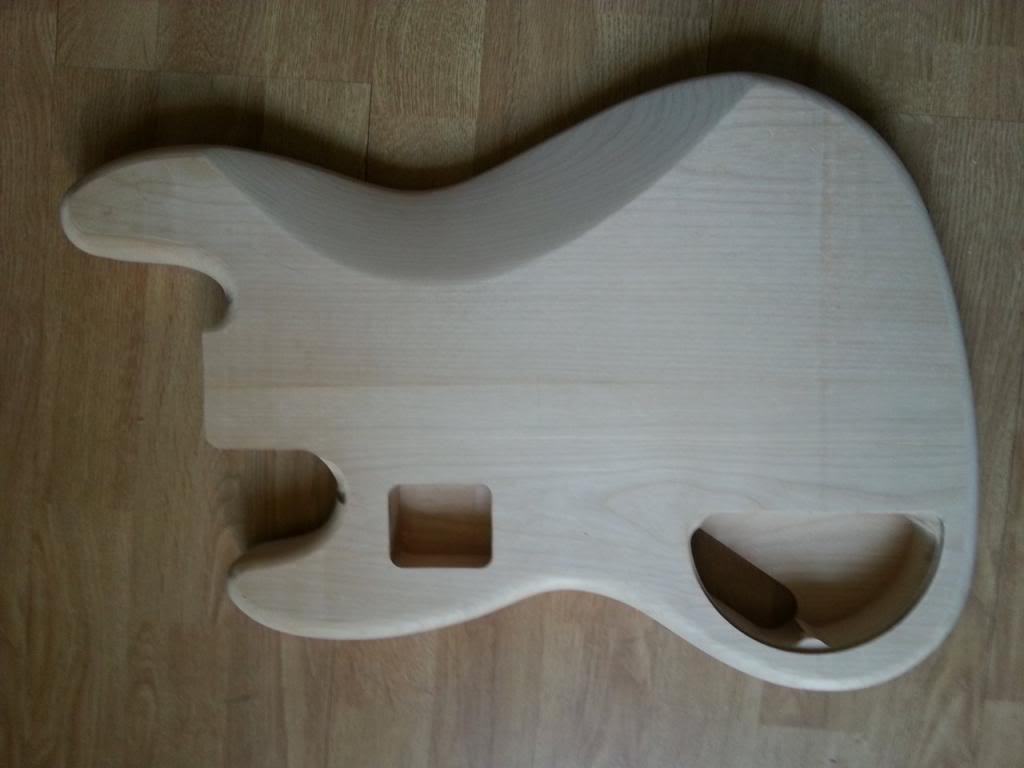

After that I rounded over the body with a 1/2 roundover bit and did the for forearm- and tummycut:




#4
In the meantime I made a pickguard and wired the preamp.
After a lot of wet sanding an buffing it looked like this:



I had to do some sanding on the sides of the neckpocket because because of the laquer it didn't fit anymore.

Final assembly:

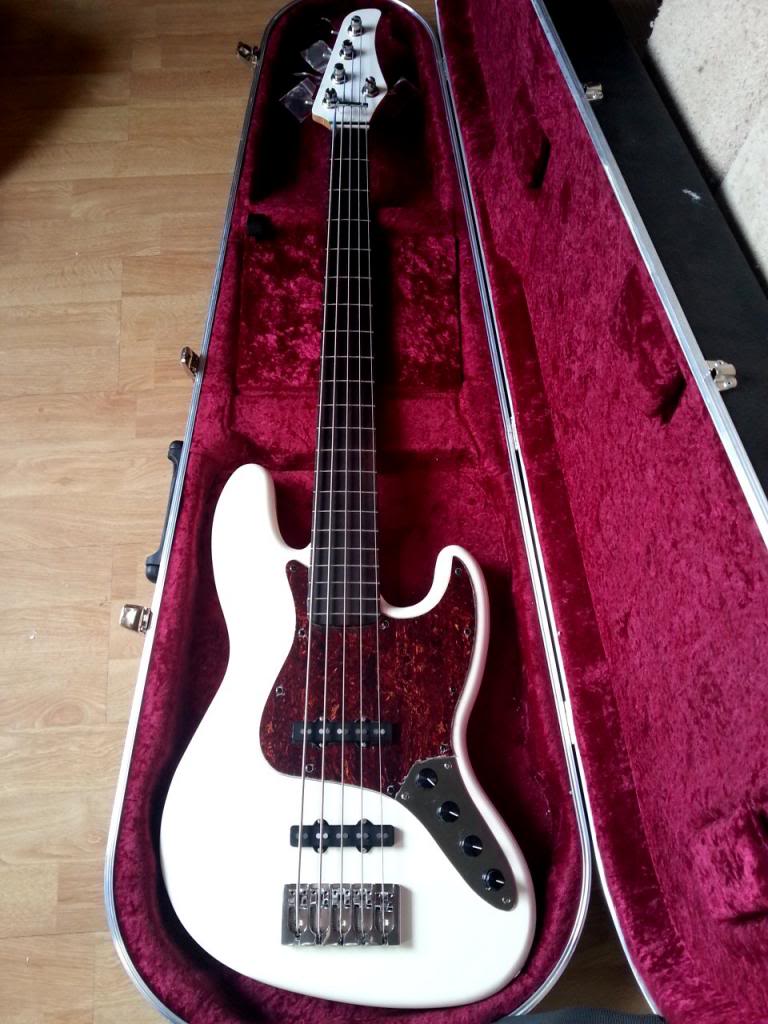

And done:

#14
As you may know Nuno Bettencourt plays in Rihannas band. When I brought the last bass, he said: And you didn't bring me a guitar? :)
So this time I built one for him too. Unfortunately I cant finish his guitar in time, because I ordered a pickup from Bill Lawrence (bill and becky) but Bill died last week, so I still haven't got the pickup. And because I fly to New Orleans on monday, Nuno's guitar isn't ready.

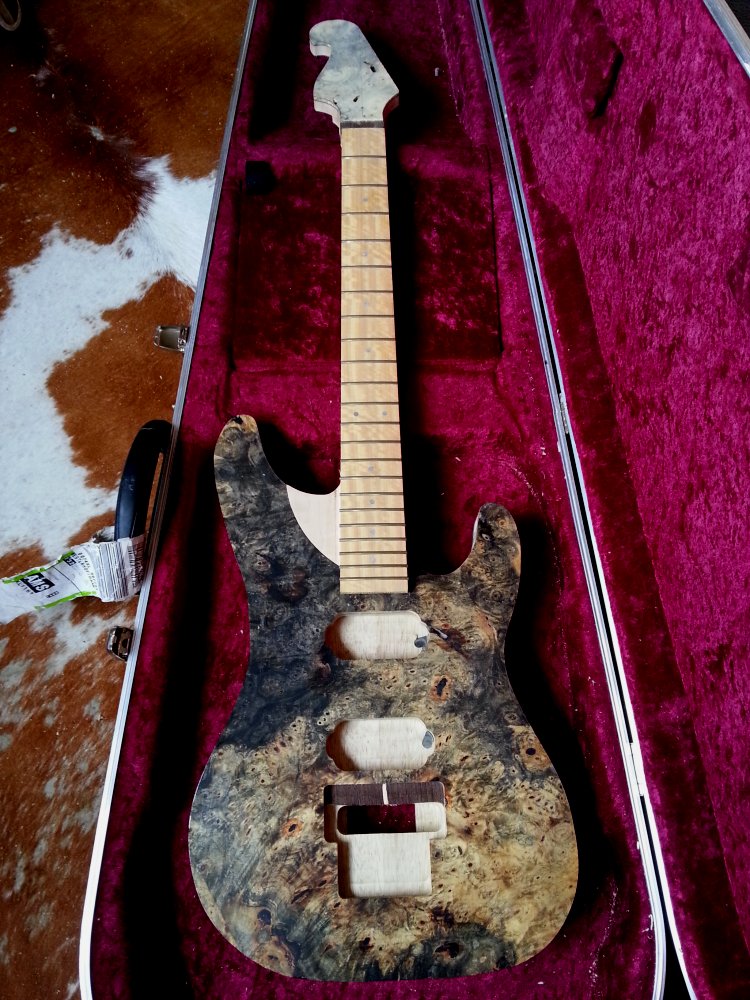

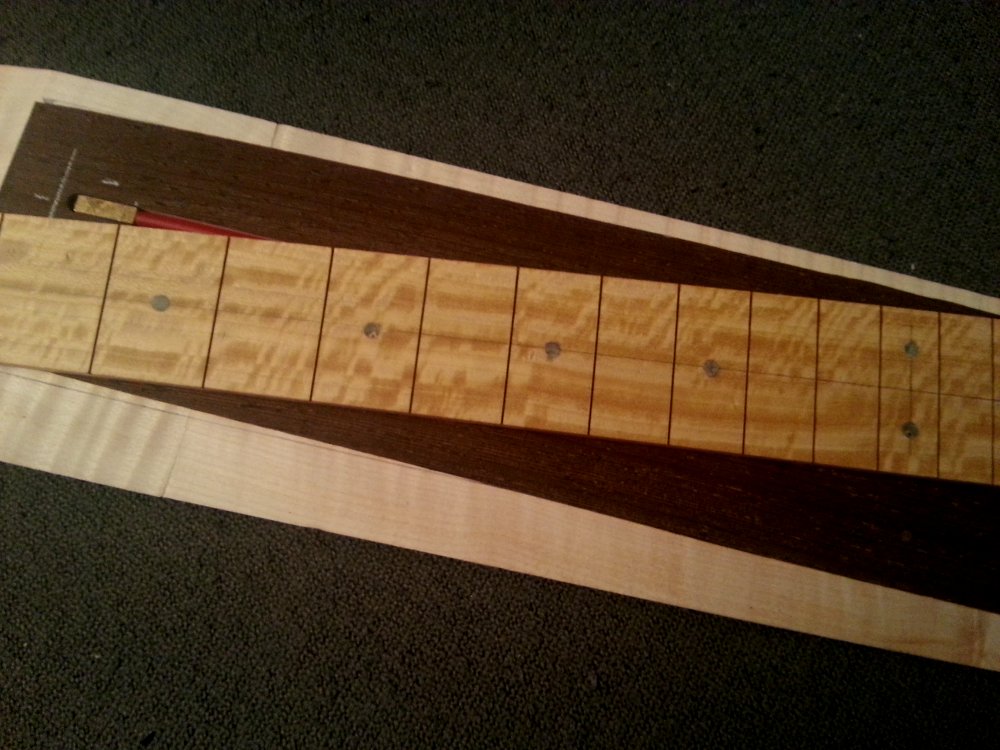

But here are some pictures:

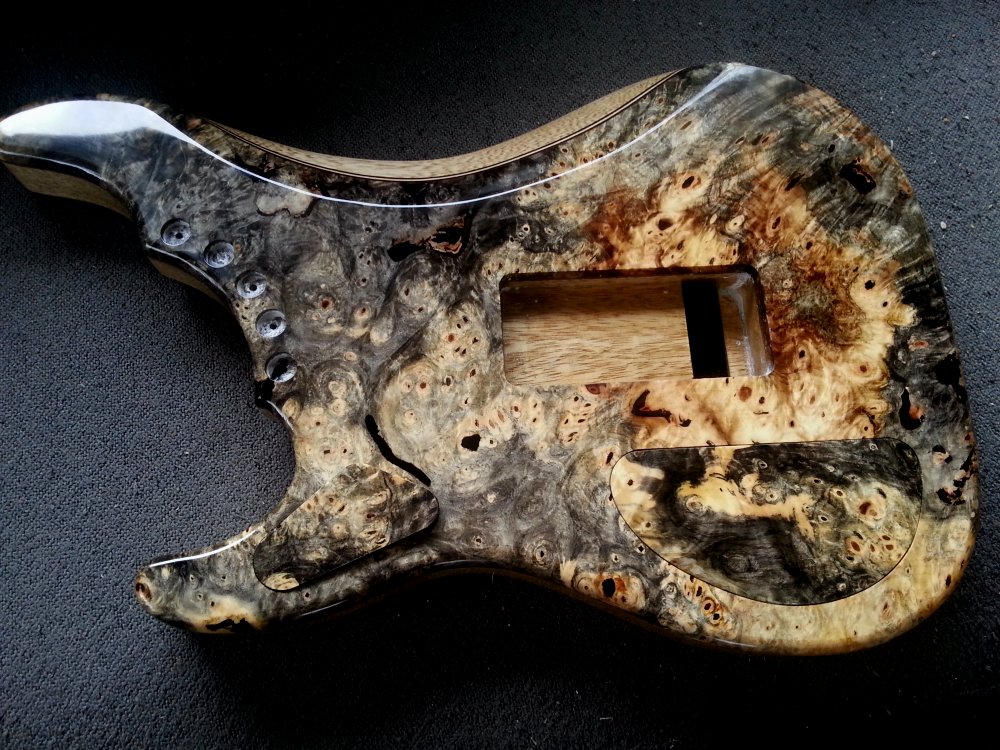

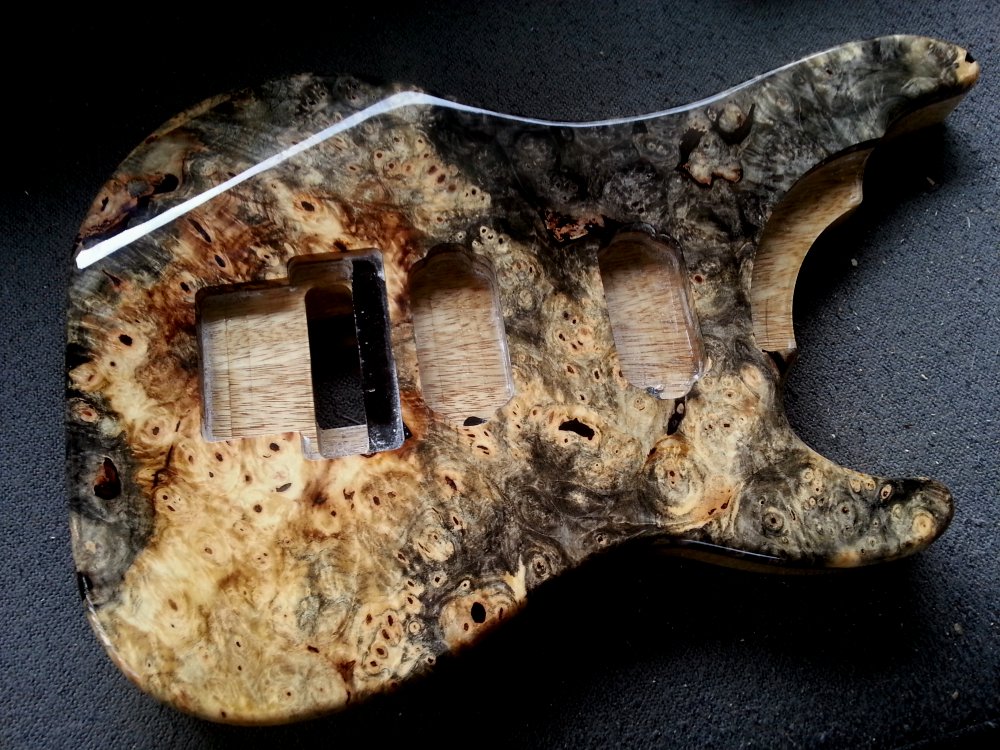

Limba core, wenge/maple/wenge feneers between core and top/back, 1 piece buckeye burl top and back.

#16
DaanW said:
As you may know Nuno Bettencourt plays in Rihannas band. When I brought the last bass, he said: And you didn't bring me a guitar? :)
So this time I built one for him too. Unfortunately I cant finish his guitar in time, because I ordered a pickup from Bill Lawrence (bill and becky) but Bill died last week, so I still haven't got the pickup. And because I fly to New Orleans on monday, Nuno's guitar isn't ready.
But here are some pictures:





Limba core, wenge/maple/wenge feneers between core and top/back, 1 piece buckeye burl top and back.
Click to expand...

Where do you get your wood? That burl is awesome!!!

#19
Hopkins said:
That guitar looks amazing. Please keep us updated on the progress, I am very interested to see how that neck pocket is going to work
Click to expand...

I made this picture before it was finished:



Perfect fit.

I forgot to post this picture:

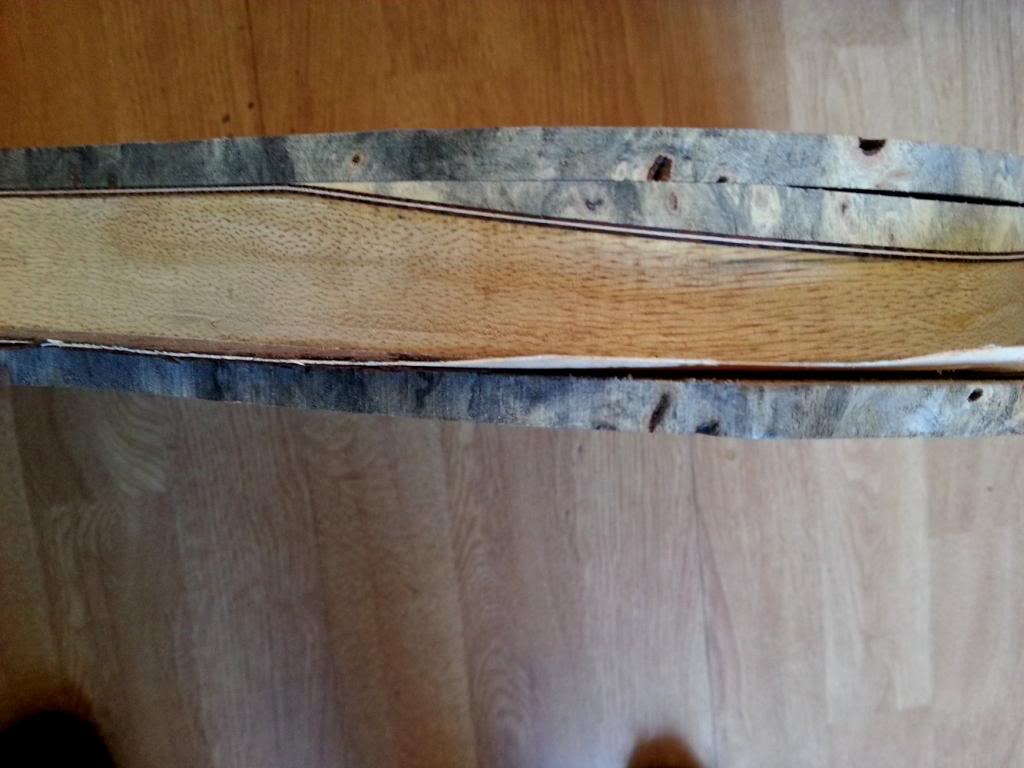

My plan was to bend the top over the forearmcut, but this burl was pretty brittle, so I made the forearm cut in the core and glued a little piece of burl on the cut. Than sanded it flat and glued the top on.
Only thing left after that is a little bandsanding action to get rid of that little overhanging part.
