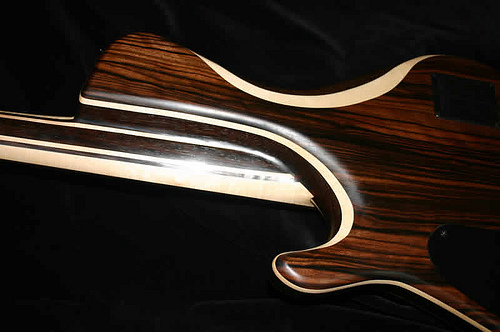

ACG Finished Work.

#22
Spec

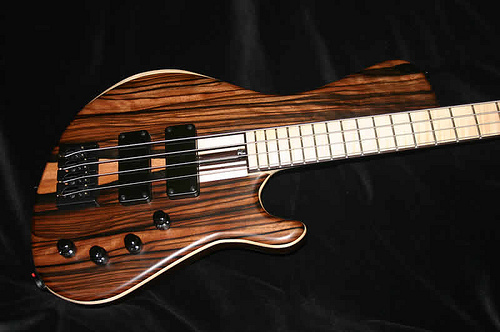

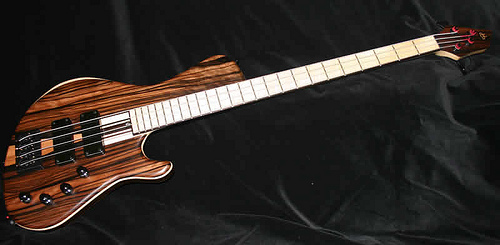

First of a new model.
4 string 34" scale

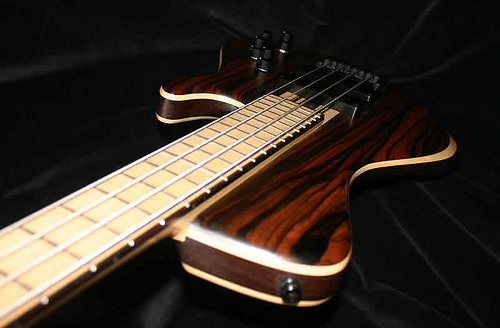

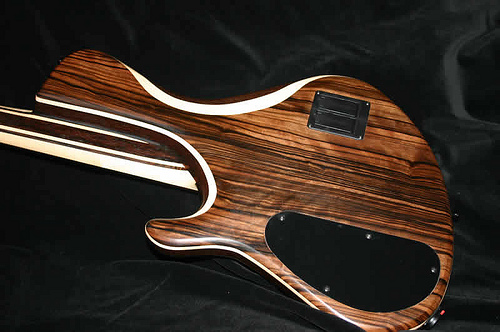

5 piece body stripy ebony/sycamore/wenge/sycamore/ stripy ebony
7 piece neck mac ebony/sycamore/wenge/sycamore

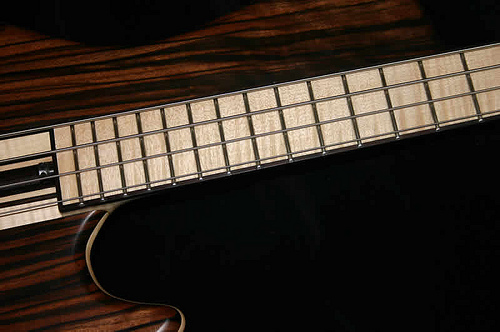

Acryilc impregnated flame sycamore board with mac ebony binding.
2 ACG RFB pickups and the ACG EQ01 pre-amp.
Oil finish.









#23
Stunning, Alan! It's cool to see that one finished, and I love contrast of the woods and the look of the bound fretboard. Is the pickup placement on that one a little different from your standard, though? It looks like the front pickup is a bit farther from the neck than usual.

Mike

#28
That's absolutely gorgeous, I want one please....4 string, shortscale, .17mm spacing and 6 lbs. Can that be done?


Skelf said:

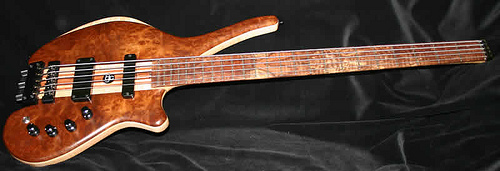

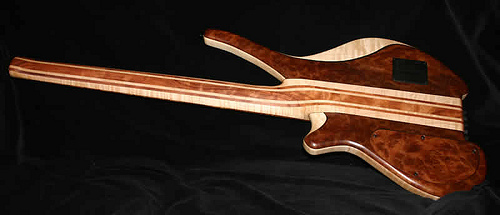

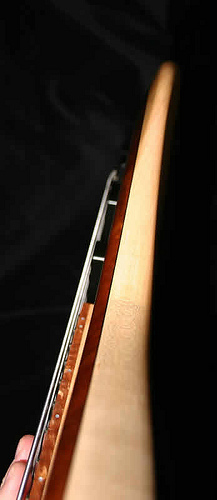

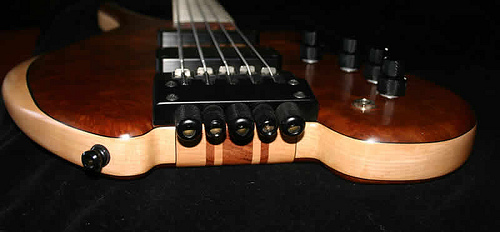

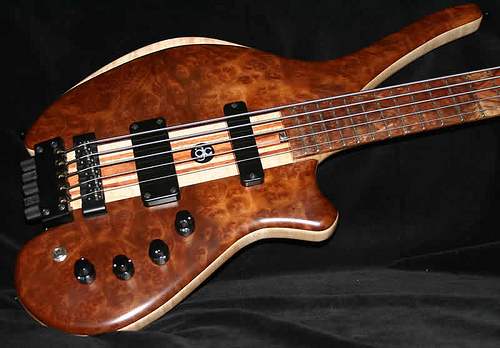

Just out the door today.
Very pleased with this bass. I have always liked headless basses so was very pleased to get the chance to build this one. Dave has been great to work with and it has been a real joint effort.

Spec

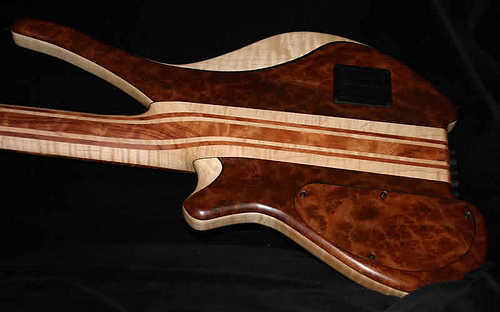

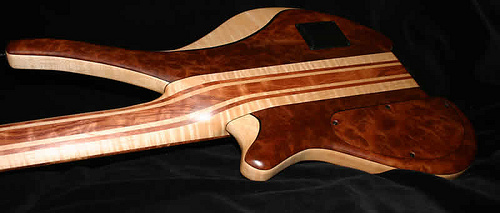

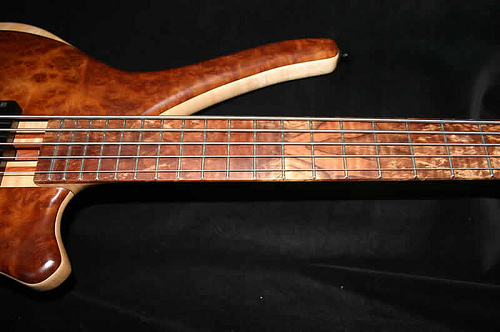

Camphor Burl top and back with a Flame Sycamore body. Bubinga/Flame maple neck with a bookmatched Acrylic Impregnated Spalted Maple finger board. The fingerboard and the Camphor both came from Larry at Gallery Hardwoods.

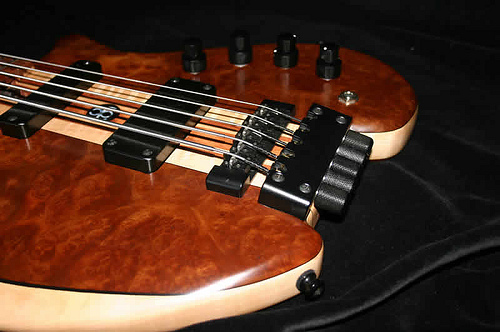

Custom 15 mm string spacing ETS bridge/tuners and ABM headpiece.
ACG SB pickups and the EQ01 pre-amp.
Oil finish.









Click to expand...

#29
Hi
4 string 17 mm spacing short scale would be no problem. The 6lb would be. The ABM hardware weight well over a lb on it's own. With woods like the bass above there would be no chance of hitting the 6lb mark. Wood choice would be crucial but even getting that right and using the same pickups hardware etc I think it would be doubtful if I could achieve a bass that light.

Alan

#30
OK, how about the same headless shape but different wood and hardware. Could it be done for 6 lbs.?

Skelf said:
Hi
4 string 17 mm spacing short scale would be no problem. The 6lb would be. The ABM hardware weight well over a lb on it's own. With woods like the bass above there would be no chance of hitting the 6lb mark. Wood choice would be crucial but even getting that right and using the same pickups hardware etc I think it would be doubtful if I could achieve a bass that light.

Alan
Click to expand...

#31
There is not much in the line of alternative headless hardware. The ETS stuff weights pretty much the same as the ABM stuff. So to be honest I would be very reluctant to commit to a weight as low as 6 lb. Bear in mind the above bass balances very well so even with a bass round the 9 lb mark you are not fighting the instrument at all so it feels very good on the strap.

#33
Well, I've had 3 whiplashes (yep - 3 rear enders and I was stopped at a red light for all of them). Even my 7.2 lb bass is too much for 3 to 4 hours a night. Must be light, don't have a choice on that matter. If you think it's hard finding gear wait till you need something that almost can't be done.

Skelf said:
There is not much in the line of alternative headless hardware. The ETS stuff weights pretty much the same as the ABM stuff. So to be honest I would be very reluctant to commit to a weight as low as 6 lb. Bear in mind the above bass balances very well so even with a bass round the 9 lb mark you are not fighting the instrument at all so it feels very good on the strap.
Click to expand...

#34
I thought there would be a good reason for the 6 lb bass. I have had the same thing happen but was fortunate not to have any long term damage. If I was sure I could bring the bass in at that weight I would be the first to tell you,but I am not sure I can hence the reluctance to commit to it. Let me go and have a look at the wood pile and the hard ware and see what can be done.

Alan

  • Like
Reactions: josiah goldfish
#36
Skelf said:
I thought there would be a good reason for the 6 lb bass. I have had the same thing happen but was fortunate not to have any long term damage. If I was sure I could bring the bass in at that weight I would be the first to tell you,but I am not sure I can hence the reluctance to commit to it. Let me go and have a look at the wood pile and the hard ware and see what can be done.

Alan
Click to expand...

Alan, I read this and just wondered whether Paulownia (or Dragonwood by its other name) might help here. Light coloured wood, with tone quite like poplar and approx half the weight of Swamp Ash. Both Conklin and Adler have made basses with it. Only a thought...:)
