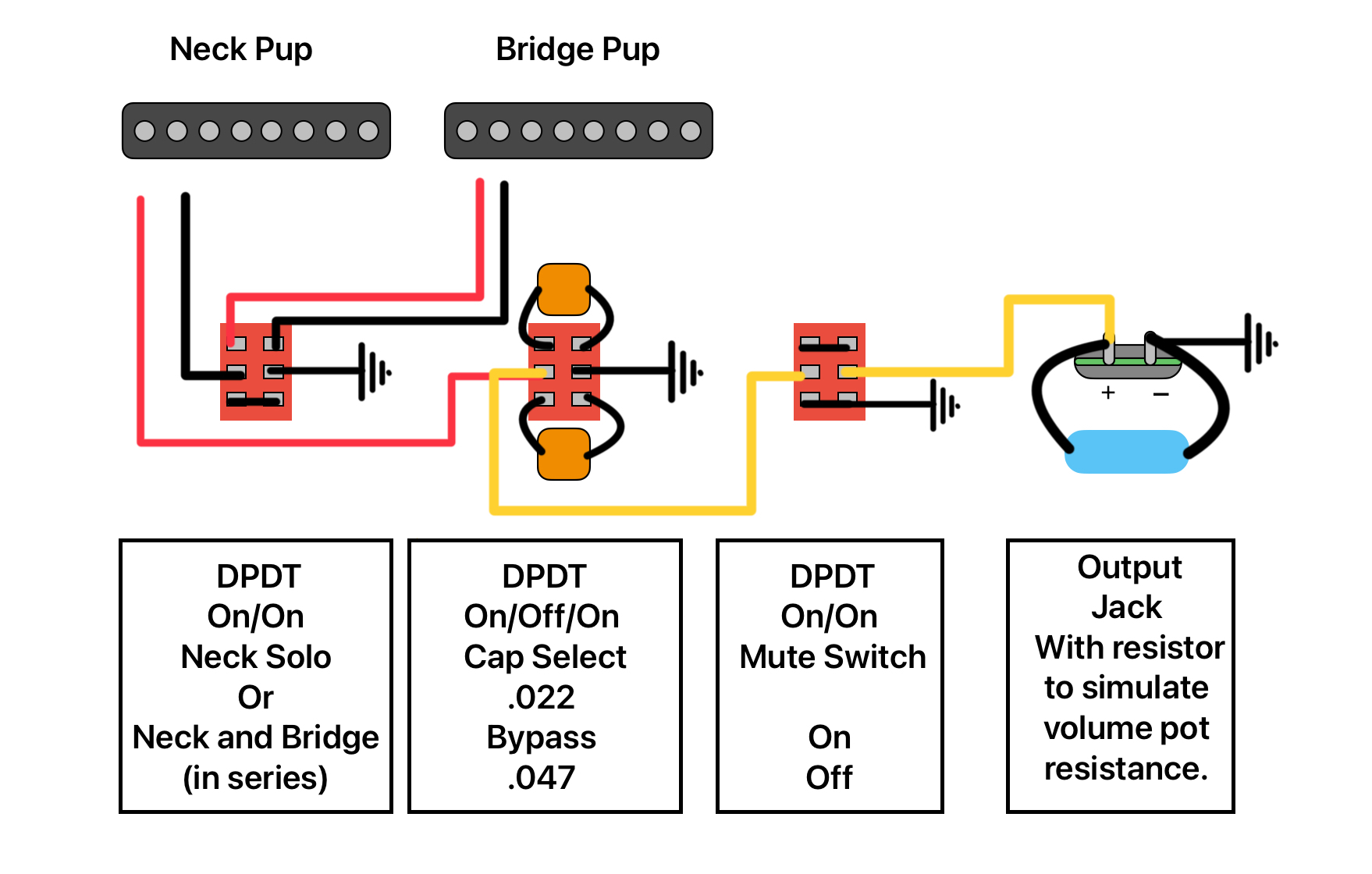

Alternative J Bass Wiring Concept.

Here is a simplified version of above diagram.

Way to switch it up! :laugh:

I would have to think about it, but can you add Mute to the neck/both switch if you used a on/whatever/on? Save a switch position.
Tried to ponder that for a while and I’m pretty sure that it would have to be an 3 pole to do that. I’m a little under the weather and that kind of pondering is beyond me right now.

On the tone switch--if I understand correctly, the .022 will have a different cut frequency. If that's not your goal, could use a .047 plus a resistor to simulate a partially turned tone knob. Bonus points if you use a trim pot to allow tweaking it.
Thought about the trim pot thing but it’s already tight spacing inside the cavity with 2 orange drops.
Plus there is a really neat resonance peak when no tone pot resistance is present with the caps. It sounds awful through a set of headphones but amazing through 10” speakers in a cab.

But maybe……

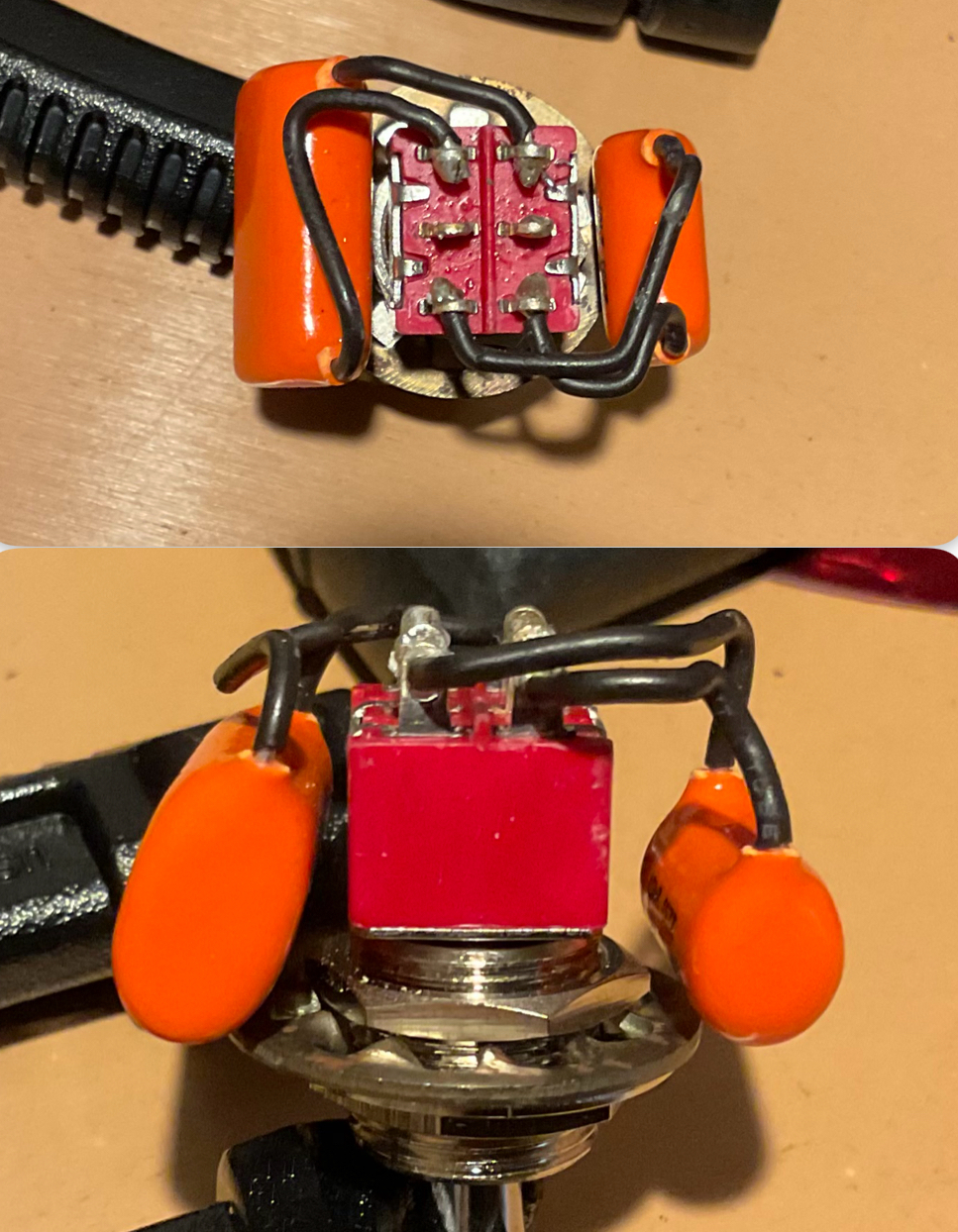

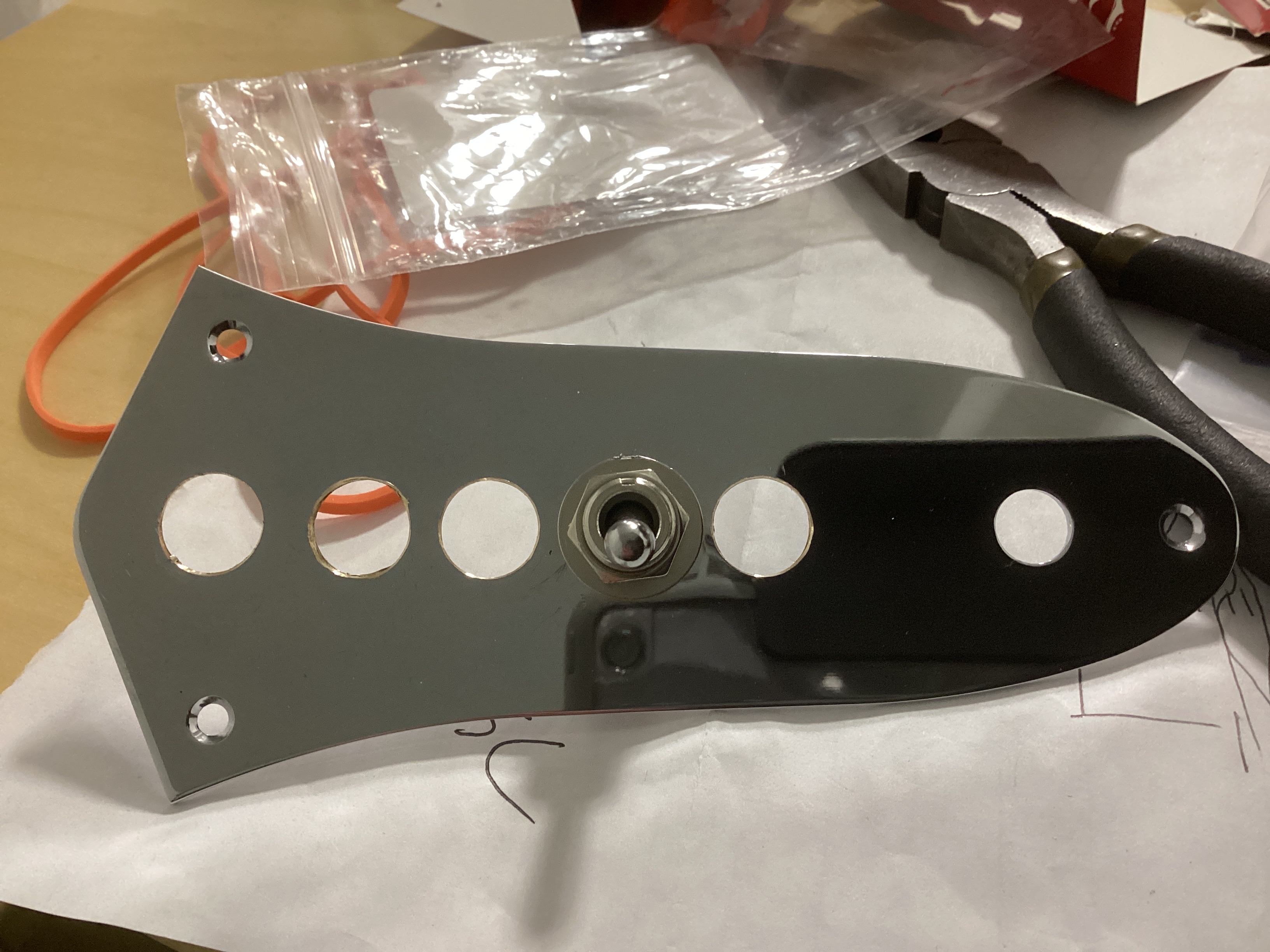

While I’m waiting on parts just wanted to share how I do the cap selector switch so it fits in the cavity well.
I use a DPDT on/off/on, even though a SPDT would do the job because it makes it easier to solder and modular.
