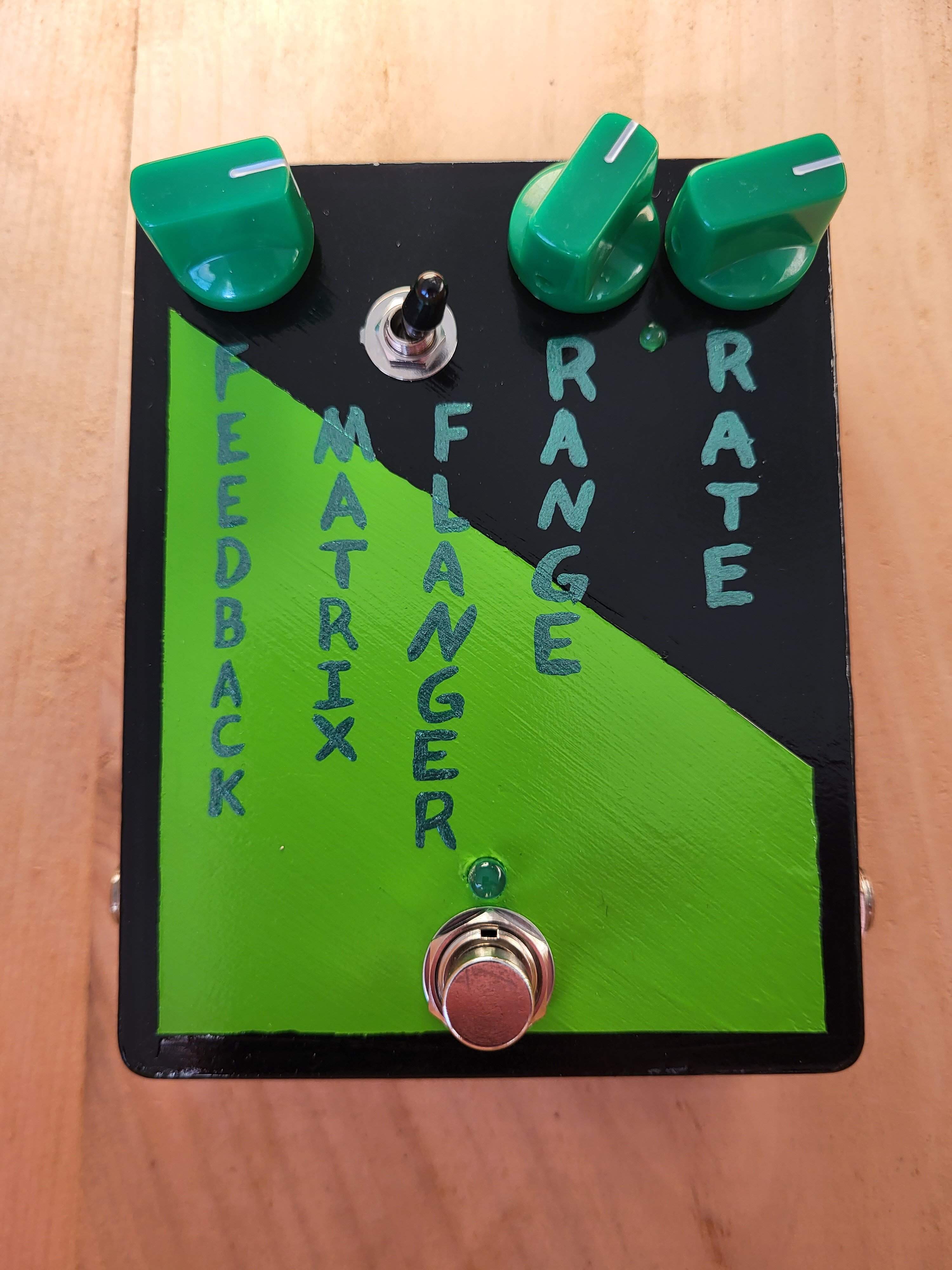

Madbean Current Lover Matrix Flanger
This is my 100th DIY Pedal !!!

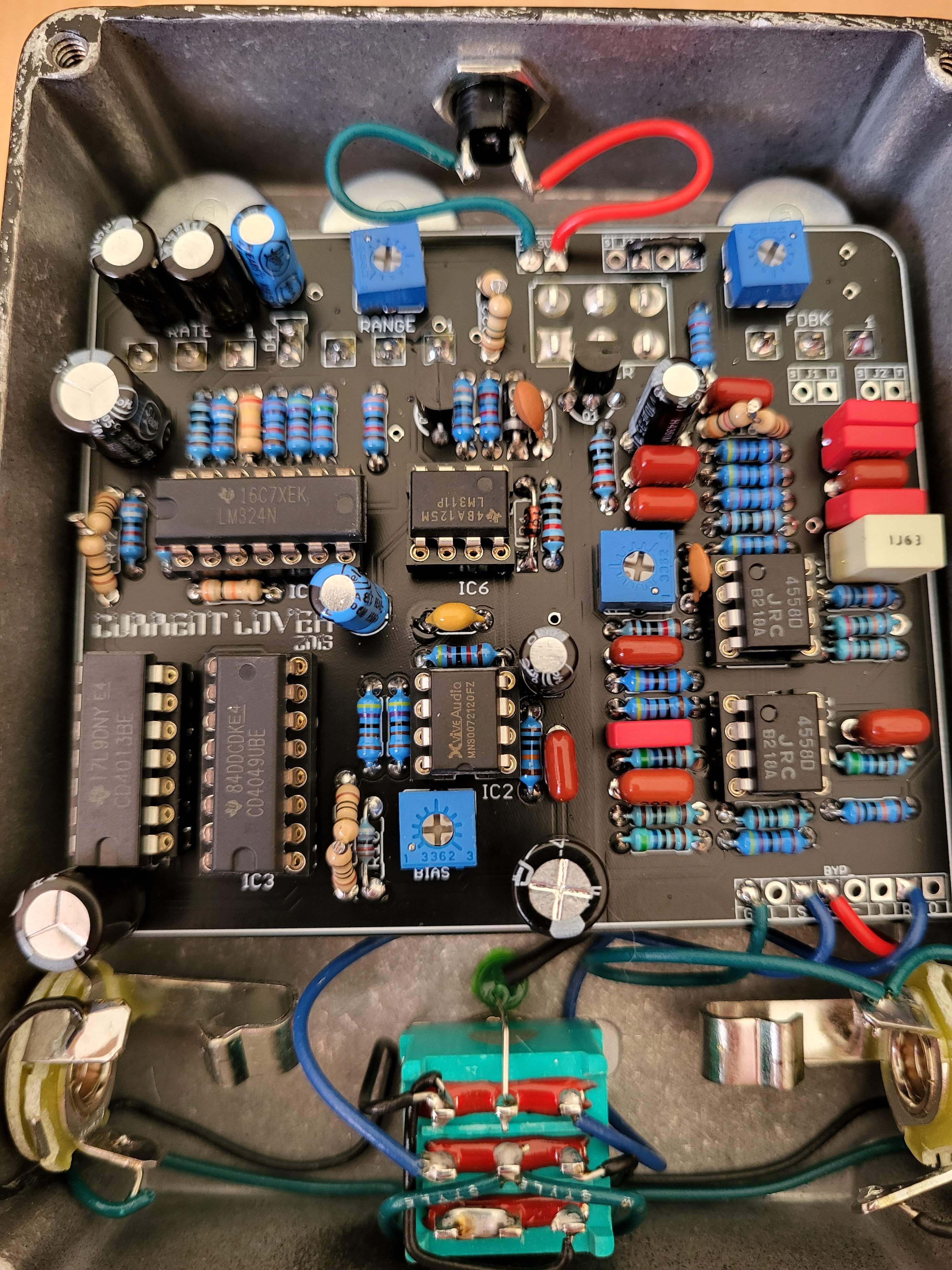

I really like this flanger. Was already a fan of the Electric Mistress and this lived up to expectations. This pedal was much easier to build and calibrate compared to the LectricFx Flintlock which also uses a MN3007 BBD and 1590BB sized.



[disssa]

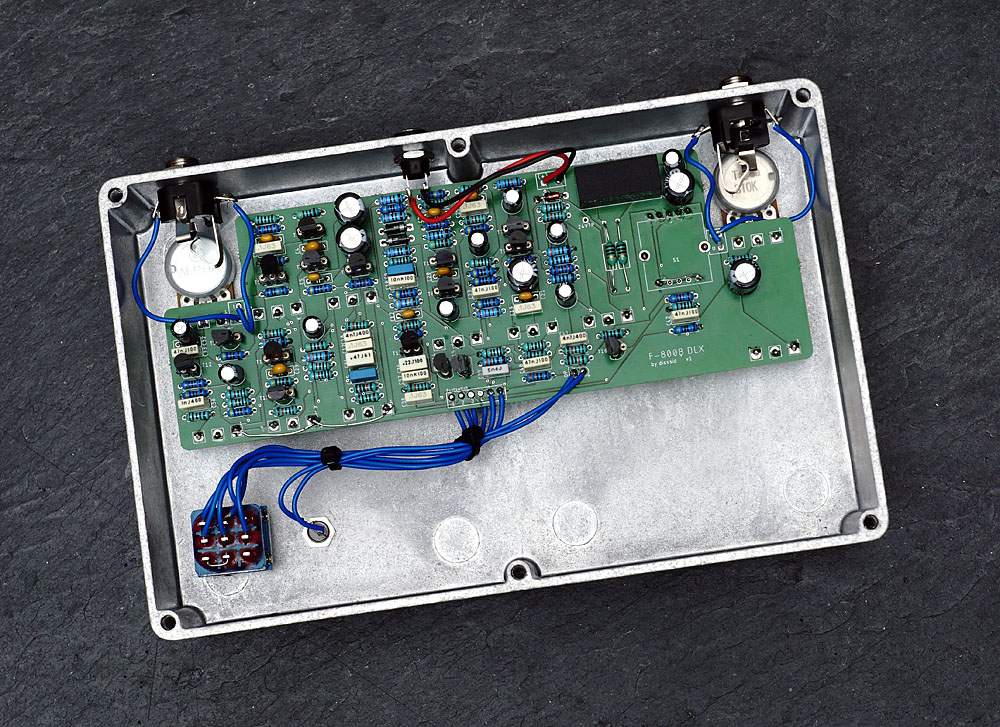

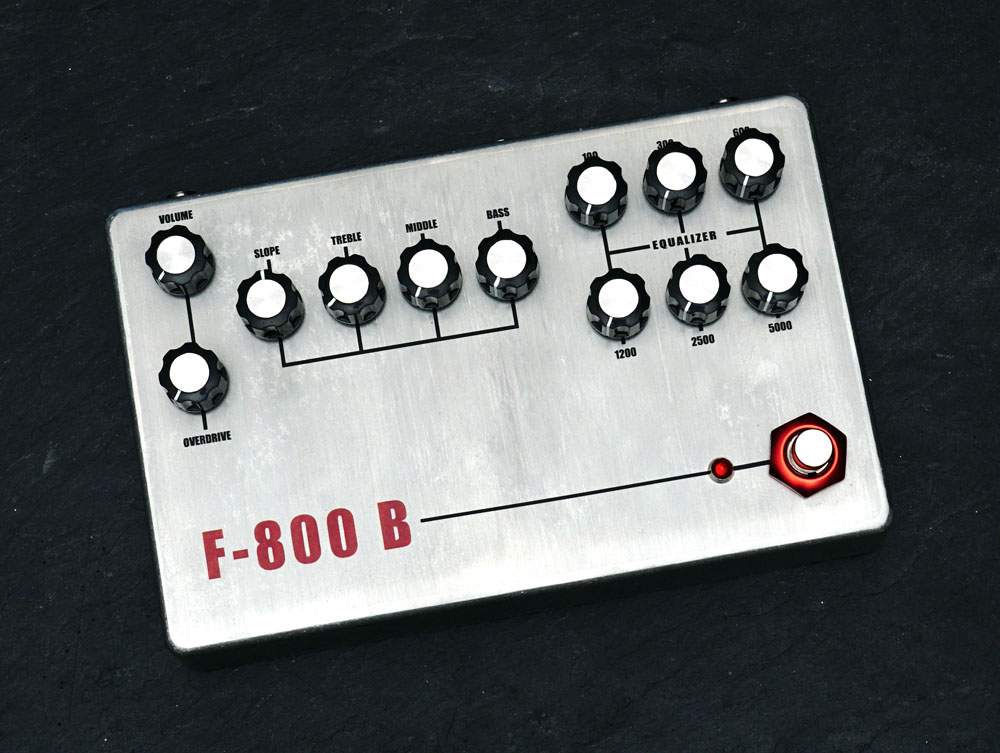

Peavey F-800 B Preamp:



[johnk_10]

Keeley Fuzz Bender clone:



[mdalamond]

quick clip of the 1304 germanium fuzz:

Sounds great John. Mild to Wild. Nice.



[mdalamond]

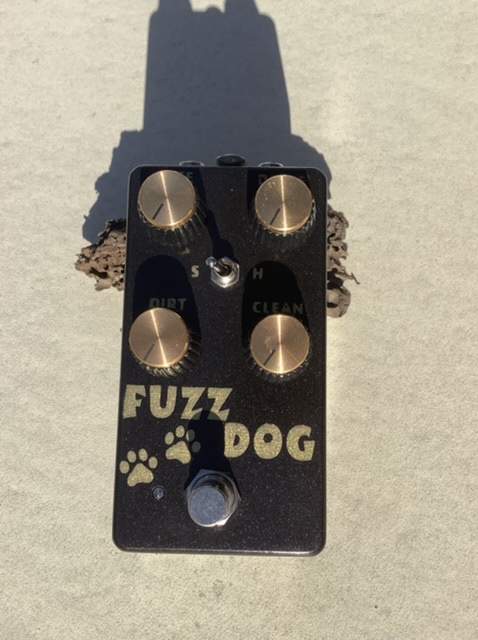

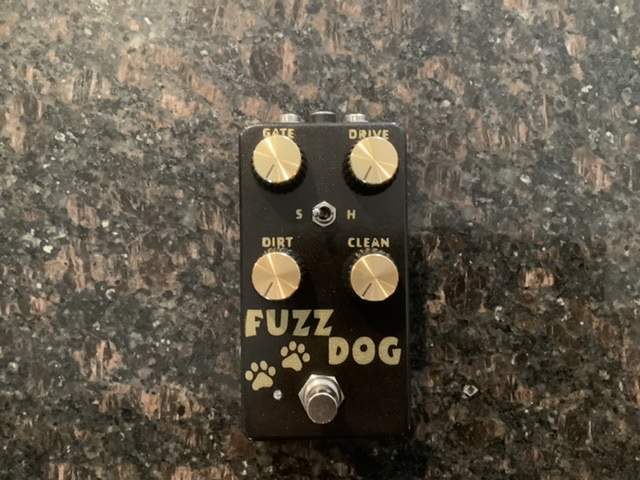

Fresh off the bench. I tried a different art approach on this one. Painted enclosure oil rubbed bronze. Once that cured I made a stencil for the graphics then clear coat. I wasn’t sure I was going to like it so I didn’t take my time with it like I should have. It was pretty much a practice run. Overall I’m pretty happy with the way it turned out. Sounds great too. I had my own pcbs made.

View attachment 4628724 View attachment 4628719

Should have mentioned, this is based on the Brown Dog.



[johnk_10]

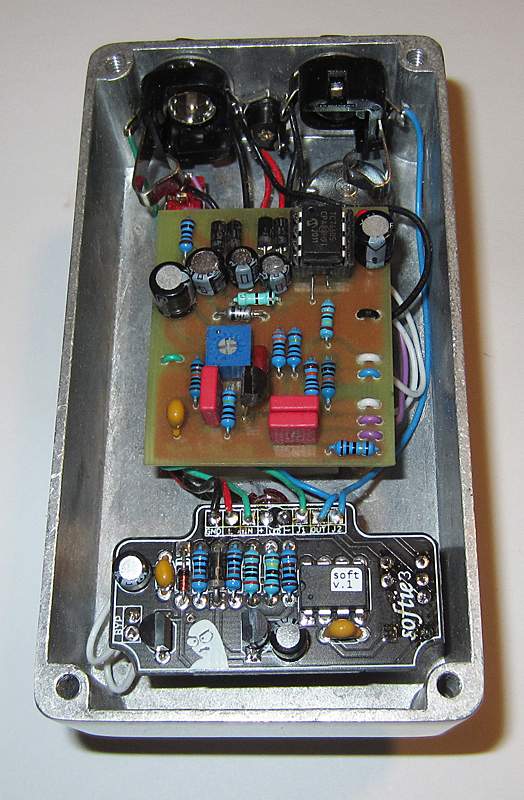

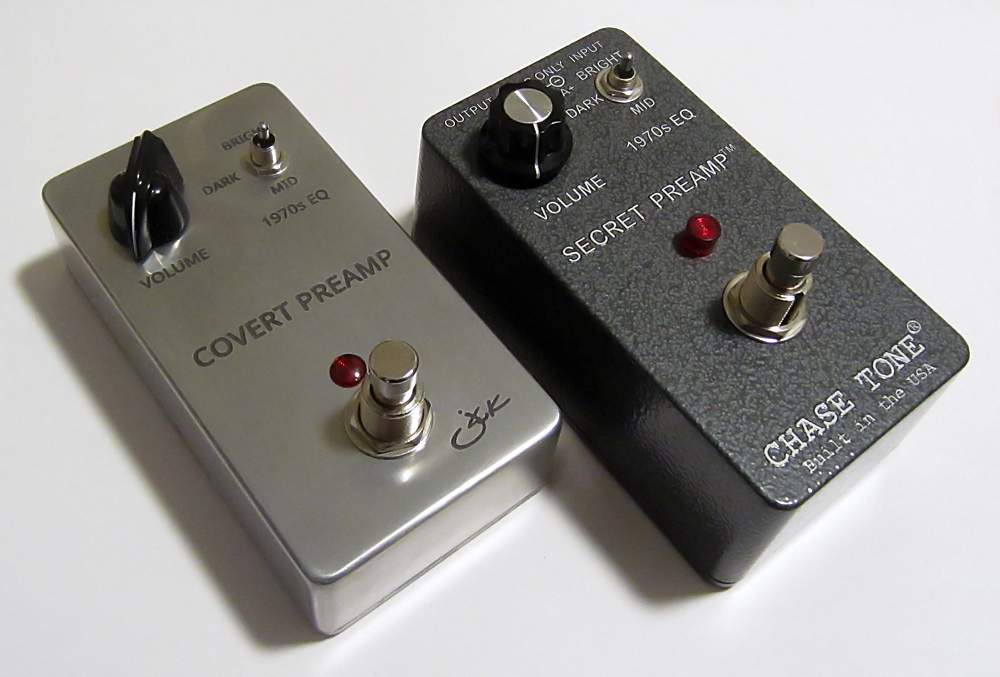

my latest, the "Covert Preamp" (Chase Tone Secret Preamp clone).since the secret preamp is one of my favorite pedals of all time (an always on pedal!), i just had to make one so i have TWO of them.



[Bolsyo]

Nice one @johnk_10! I have considered building one of these for guitar. I have already built an Aion Ares (Clinch EP-Pre) which is supposed to be very similar but with an added output buffer, have you tried it or compared them?
Ares Vintage Preamp
Vero layout:
Preamps - Aion Electronics - Ares (Echoplex Preamp) vero and documentation



[cosmicevan]

my latest, the "Covert Preamp" (Chase Tone Secret Preamp clone).since the secret preamp is one of my favorite pedals of all time (an always on pedal!), i just had to make one so i have TWO of them.

View attachment 4642397

View attachment 4642398

I really like the look of those wires going through the board. tasty.



[mdalamond]

my latest, the "Covert Preamp" (Chase Tone Secret Preamp clone).since the secret preamp is one of my favorite pedals of all time (an always on pedal!), i just had to make one so i have TWO of them.

View attachment 4642397

View attachment 4642398

The hammer look is sweet. They both look great but I’m a little partial to that one.



[johnk_10]

Nice one @johnk_10! I have considered building one of these for guitar. I have already built an Aion Ares (Clinch EP-Pre) which is supposed to be very similar but with an added output buffer, have you tried it or compared them?
Ares Vintage Preamp
Vero layout:
Preamps - Aion Electronics - Ares (Echoplex Preamp) vero and documentation

yes, i have a Clinch effects one (the most accurate Echoplex preamp) and an Xotic EP pre (not really and an EP preamp circuit) and i like all of them. the Chase Tone is one of the simplest designs (except for the 22 volt charge pump circuit) but it adds a certain something that the others don't. it fattens up my g string and is my favorite of the three. it also smooths out distortion, OD and fuzz pedals like no other. the Chase Tone might be my favorite pedal of all time. IMO, the Chase Tone is only $119 and is a real bargain.



[johnk_10]

BTW, i really like the look of Chase Tone's special edition of it:



[AudioTaper]

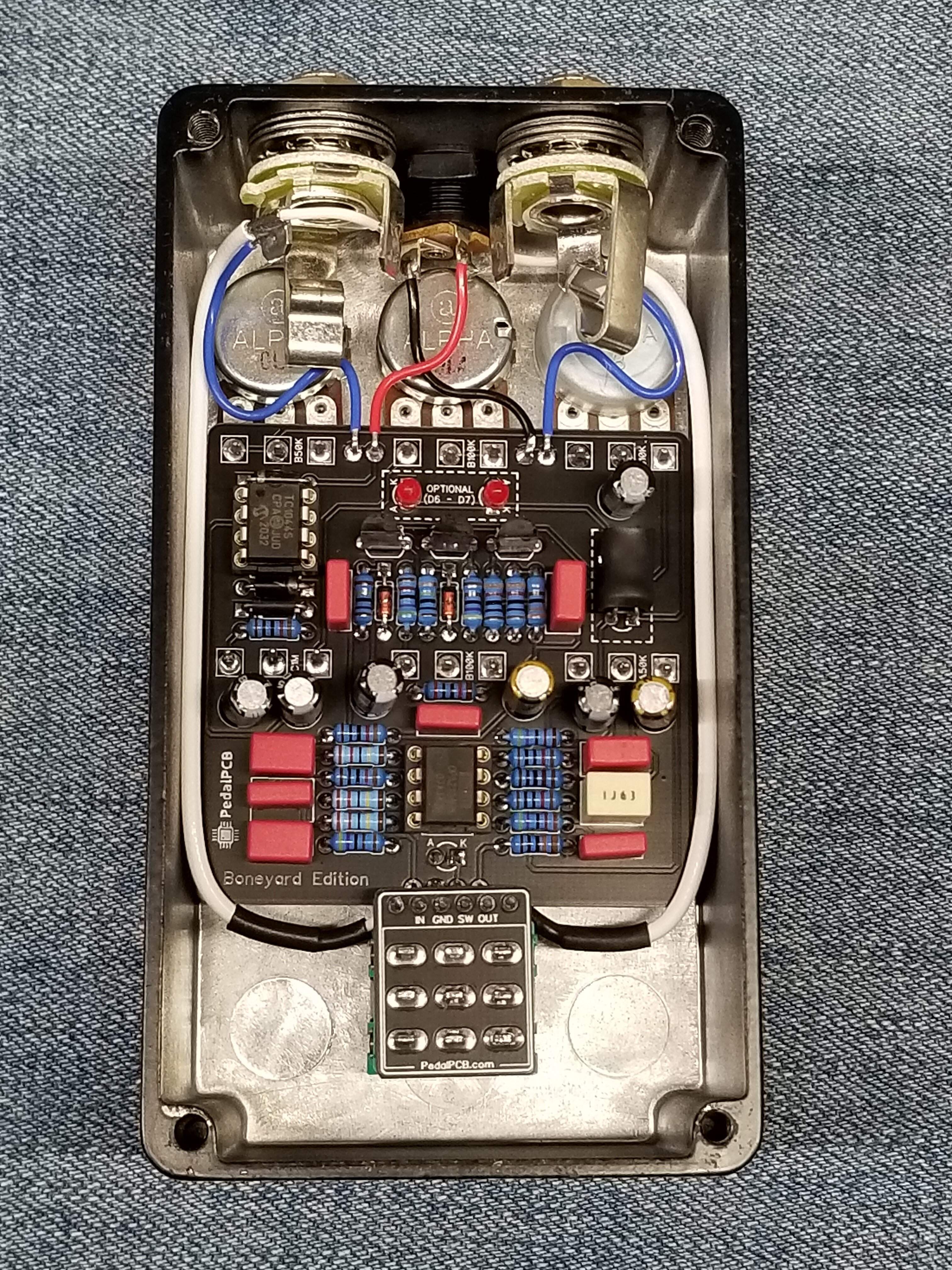

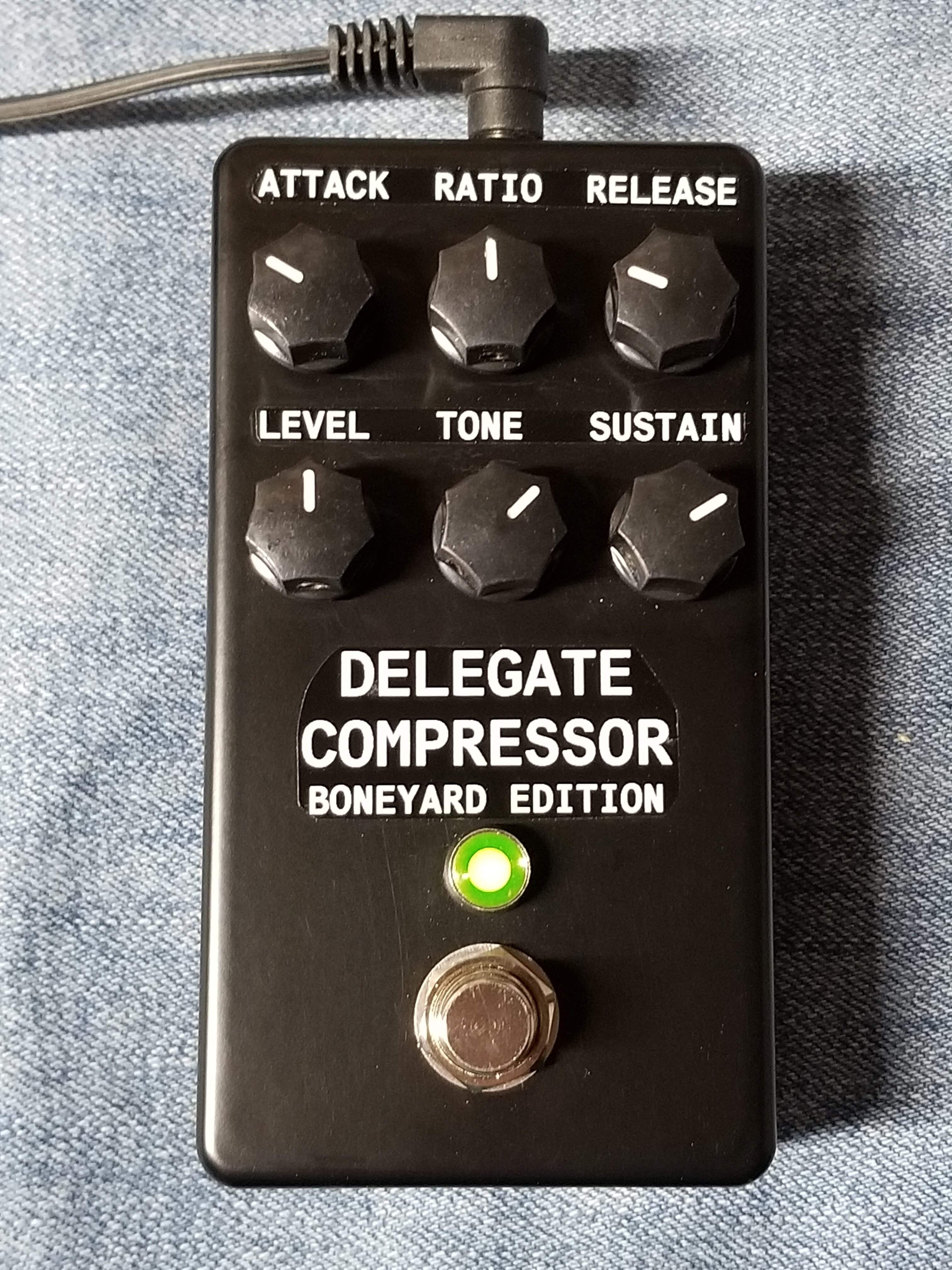

I finally wrapped this one up. PedalPCB's Delegate Compressor, Boneyard Edition.
It's not exactly what I was looking for on bass , but I'll keep it around to play with here and there.



[AudioTaper]

I just placed another order at PedalPCB.com

I think I might have an actual problem....



[JKos]

it fattens up my g string and is my favorite of the three. it also smooths out distortion, OD and fuzz pedals like no other.

Isn’t it interesting how pedals work differently for different folks?! I had a Chase Tone Secret Preamp and it didn’t do any of that for me. Which EQ setting do you use and where is your Volume knob?



[RJ]

I’m curious about EP style preamps. What are they doing? Is it just an eq of sorts? Would you be able to recreate what it’s doing with EQ?



[Fuzzonaut]

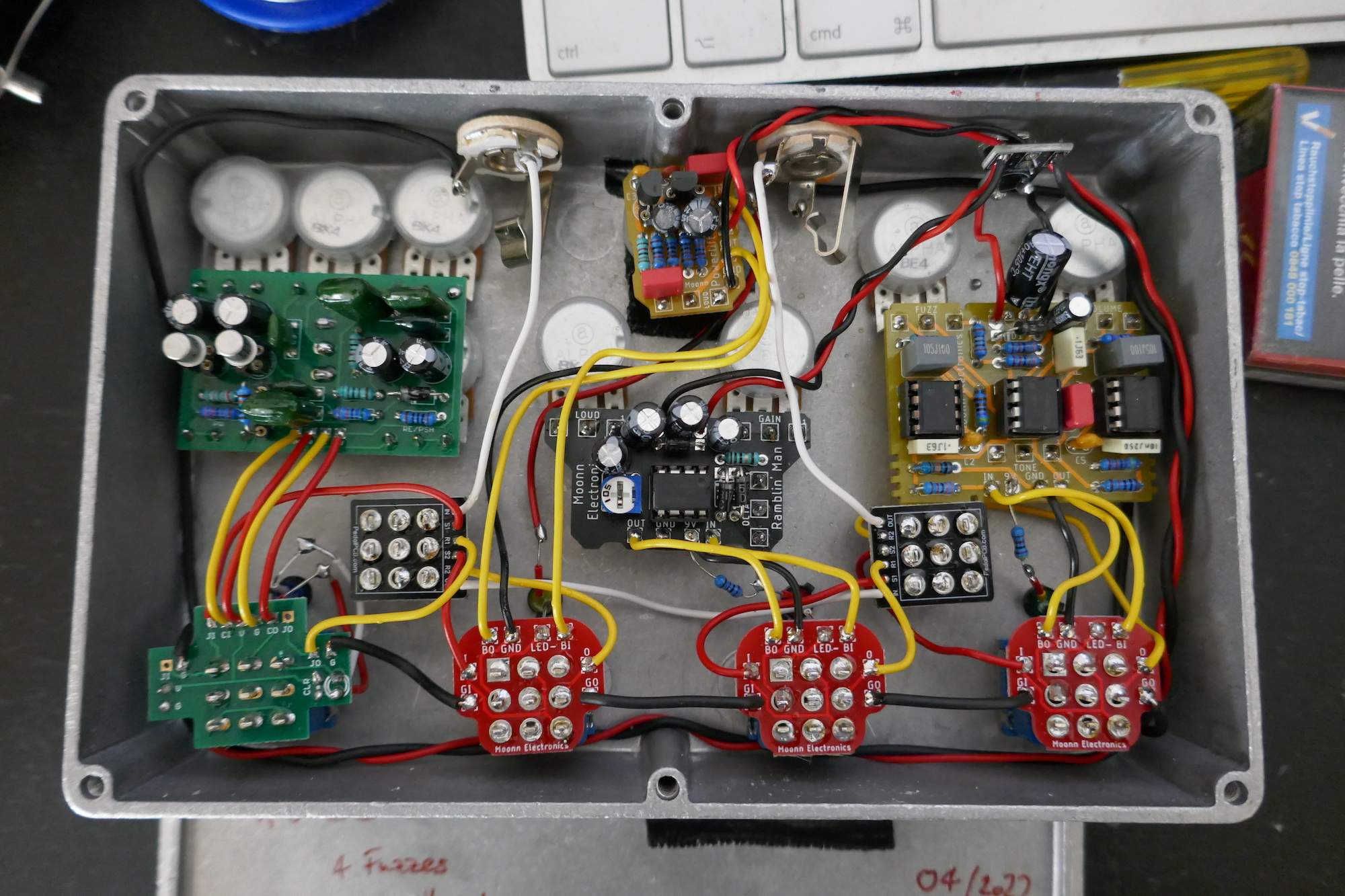

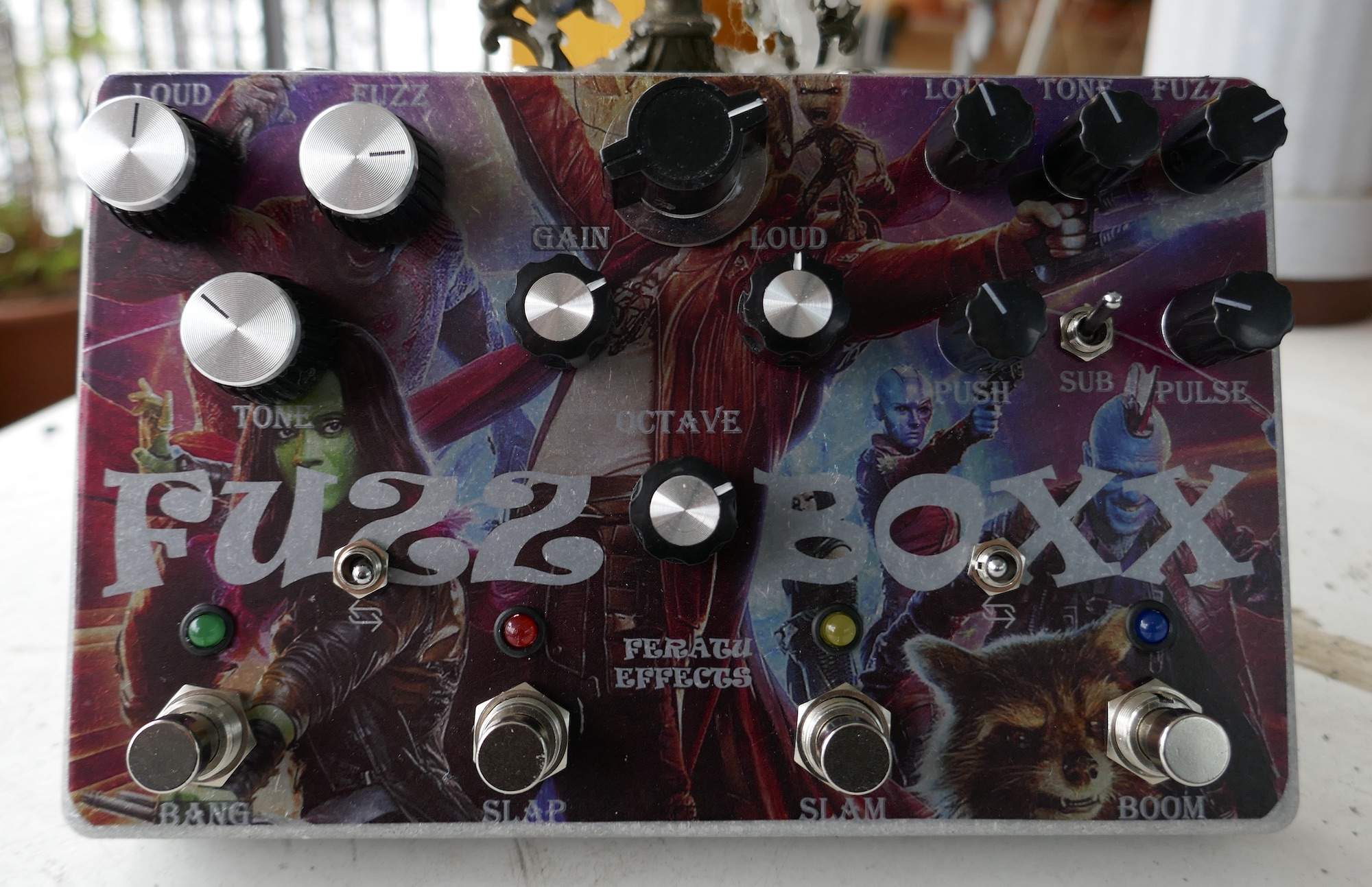

FUZZ BOXX

First half, so to speak, is a Mastotron (BOOM) and a Dark Meathead (SLAM), with an order switch.
Then there's an (LM386) octave fuzz (SLAP) and a Peach Fuzz (BANG), also with an order switch.



[johnk_10]

I’m curious about EP style preamps. What are they doing? Is it just an eq of sorts? Would you be able to recreate what it’s doing with EQ?

i haven't been able to recreate what the chase secret pre does with any type of eq, bet it parametric, graphic or both.



[johnk_10]

Isn’t it interesting how pedals work differently for different folks?! I had a Chase Tone Secret Preamp and it didn’t do any of that for me. Which EQ setting do you use and where is your Volume knob?

i use it on the dark setting and the volume at 9-10:00.



[AudioTaper]

FUZZ BOXX

First half, so to speak, is a Mastotron (BOOM) and a Dark Meathead (SLAM), with an order switch.
Then there's an (LM386) octave fuzz (SLAP) and a Peach Fuzz (BANG), also with an order switch.

View attachment 4643758 View attachment 4643759

Really cool, and I love the graphics! How did you get the graphics on?

Do you have a preferred order so far?



[JKos]

i use it on the dark setting and the volume at 9-10:00.

That might explain it. I found the dark setting too… dark. Lol. Although there is less EQ impact at lower volume positions. All good. One man’s tonal bliss is another man’s “Yeah, that doesn’t do anything for me.”
