Anyone here used EMG active pickups with an Audere classic preamp?

[fourstringbliss]

I've used Audere classic preamps with passive pickups and had great success. One of my basses has active EMG's, though. Audere advertises that the classic can be used with active pickups, but has anyone here actually done this? If so, how did it work out?



[Zooberwerx]

I've used Audere classic preamps with passive pickups and had great success. One of my basses has active EMG's, though. Audere advertises that the classic can be used with active pickups, but has anyone here actually done this? If so, how did it work out?

Can't help but I've mated them with Fernandes active pickups. Follow the instructions (derp!) and you'll be fine. I'll recommend either the 3 band w/ mid-freq switch or 4 band.

Riis



[jdthebassman]

I recently installed an audere classic pre in an Ibanez sr 1505, it has active EMGs that did not have the modular connectors. There are capacitors that are included that go from the hot lead to reduce distortion. The pre works great with the EMGs. Detailed instructions are included but if you need help Dave can walk you through it.



[fourstringbliss]

Can't help but I've mated them with Fernandes active pickups. Follow the instructions (derp!) and you'll be fine. I'll recommend either the 3 band w/ mid-freq switch or 4 band.

Riis

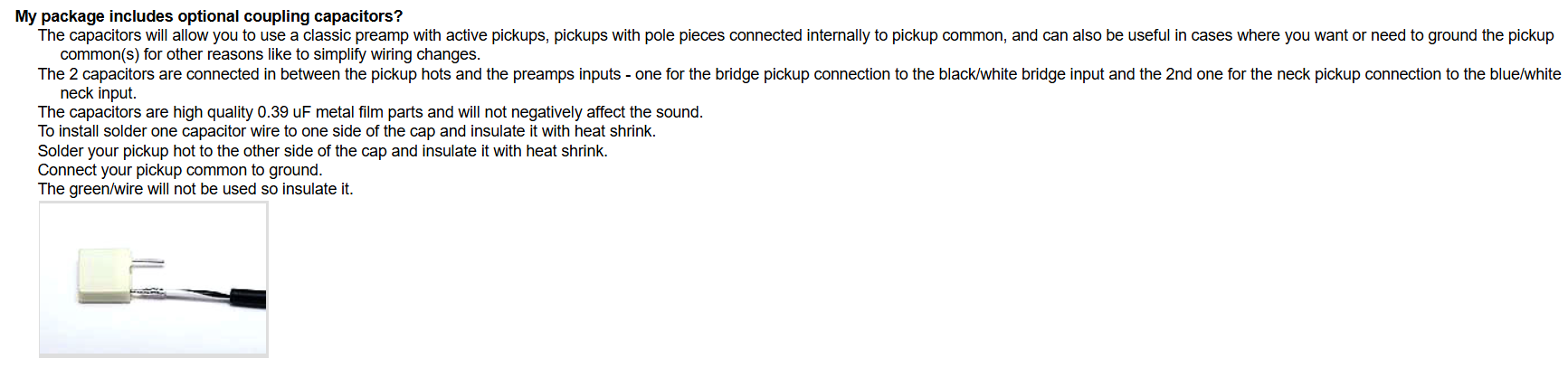

Thanks! This is what the Audere site says:

I recently installed an audere classic pre in an Ibanez sr 1505, it has active EMGs that did not have the modular connectors. There are capacitors that are included that go from the hot lead to reduce distortion. The pre works great with the EMGs. Detailed instructions are included but if you need help Dave can walk you through it.

Great! Here's a pic of the pickup cables that connect to the EMG's

It's my understanding that the hot wire (the white one, I assume) would connect to the capacitor and then the capacitor would connect to the preamp pickup wire (either the black/white or blue/white). The pickup ground (the black wire, I assume) would connect to cavity ground. Is all of that correct?

What happens to the red pickup power wire?

Thanks!



[fourstringbliss]

I recently installed an audere classic pre in an Ibanez sr 1505, it has active EMGs that did not have the modular connectors. There are capacitors that are included that go from the hot lead to reduce distortion. The pre works great with the EMGs. Detailed instructions are included but if you need help Dave can walk you through it.

I also don't know at this point whether the EMG 40DC's that are in my bass have the modular connectors either since I haven't removed them from the bass. I don't see any modular connectors in the control cavity where the Tonepump Jr. preamp is located.

I have Audere preamps in my other two basses, so I'm very aware of how they sound, where I have no experience with the EMG BQC.



[jdthebassman]

Thanks! This is what the Audere site says:

View attachment 7301720

Great! Here's a pic of the pickup cables that connect to the EMG's

View attachment 7302028

It's my understanding that the hot wire (the white one, I assume) would connect to the capacitor and then the capacitor would connect to the preamp pickup wire (either the black/white or blue/white). The pickup ground (the black wire, I assume) would connect to cavity ground. Is all of that correct?

What happens to the red pickup power wire?

Thanks!



[jdthebassman]

The red one is for the power to the pickup that will connect the red wire to the batterie make sure that you sheild the entire bass connect pick up cavitys to the rest of the bass and connect that to the ground on the out put jack. failure to do that will make a buzz noise. Follow the instructions to a tee and you will be fine. PS you will have to clip off those modular connectors good luck JD



[Zooberwerx]

Thanks! This is what the Audere site says:

View attachment 7301720

Great! Here's a pic of the pickup cables that connect to the EMG's

View attachment 7302028

It's my understanding that the hot wire (the white one, I assume) would connect to the capacitor and then the capacitor would connect to the preamp pickup wire (either the black/white or blue/white). The pickup ground (the black wire, I assume) would connect to cavity ground. Is all of that correct?

What happens to the red pickup power wire?

Thanks!

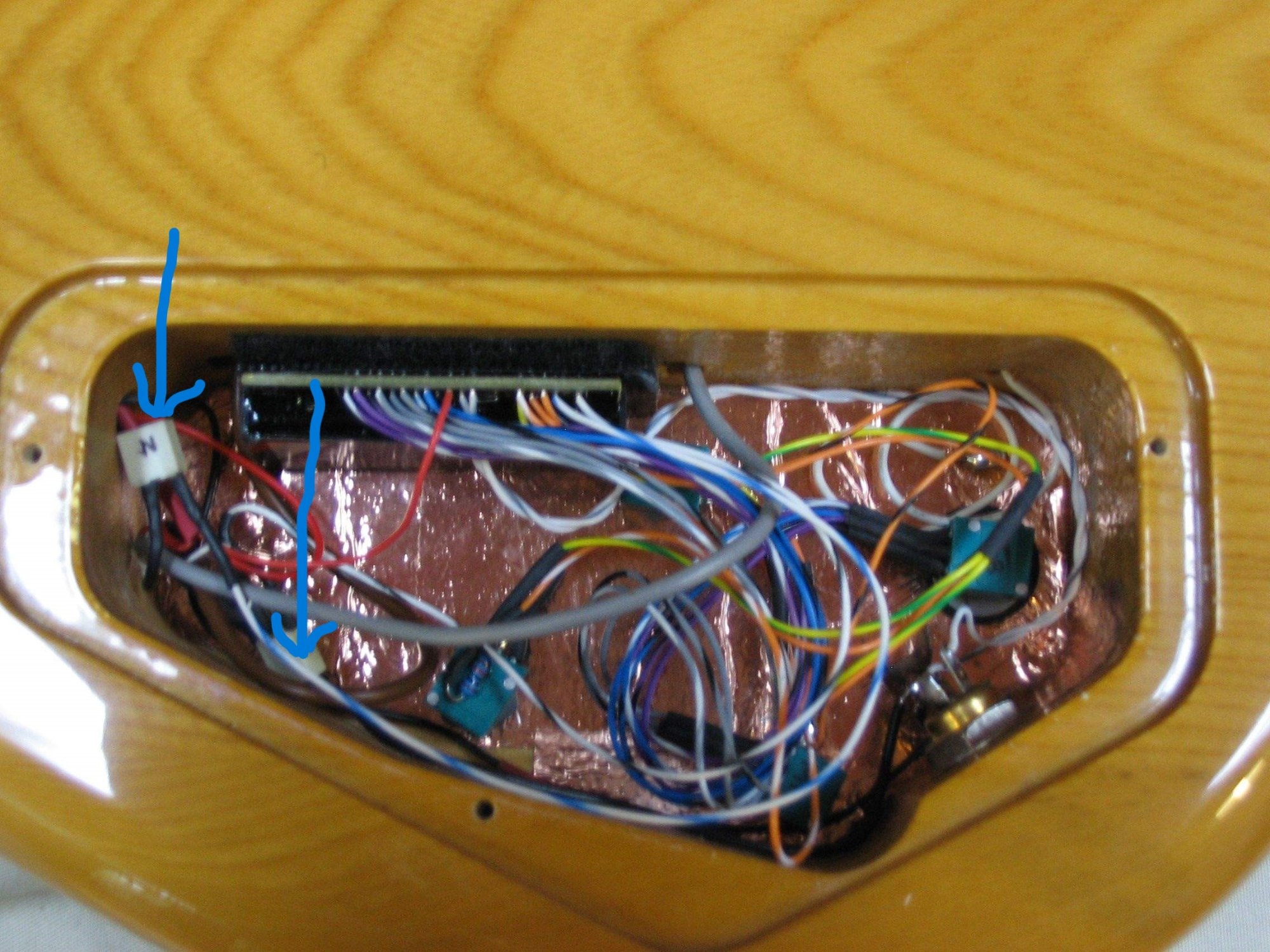

Here's mine with (2) capacitors installed:



[fourstringbliss]

The red one is for the power to the pickup that will connect the red wire to the batterie make sure that you sheild the entire bass connect pick up cavitys to the rest of the bass and connect that to the ground on the out put jack. failure to do that will make a buzz noise. Follow the instructions to a tee and you will be fine. PS you will have to clip off those modular connectors good luck JD

Will I need two batteries in the cavity - one for the preamp and the other for the pickups?

Or, how would I connect the battery wire from each pickup to the battery?

Thanks!



[jdthebassman]

Will I need two batteries in the cavity - one for the preamp and the other for the pickups?

Or, how would I connect the battery wire from each pickup to the battery?

Thanks!

I use one battery, connect both red wires to the red battery wire that supplys the power.



[fourstringbliss]

I use one battery, connect both red wires to the red battery wire that supplys the power.

So, three wires connected to the red battery wire - the one from the preamp and each one from the pickups?



[fourstringbliss]

So, three wires connected to the red battery wire - the one from the preamp and each one from the pickups?

I'll take your thumbs up as a yes to my question.



[Zooberwerx]

I'll take your thumbs up as a yes to my question.

Yep. Take a look at my previous pic (best to enlarge). Red "hot" originates from the battery box and spliced to (3) limbs: one for the preamp and one each for the pickups. The splice can be seen just below the "N" capacitor.

Riis



[fourstringbliss]

Yep. Take a look at my previous pic (best to enlarge). Red "hot" originates from the battery box and spliced to (3) limbs: one for the preamp and one each for the pickups. The splice can be seen just below the "N" capacitor.

Riis

Thanks so much! I've been debating between the EMG BQC and a full LHZ preamp treatment. The full LHZ would run me almost $300 and I think I'd rather have low and high mid controls than the variable mid control on the BQC.

You like the way the Audere sounds with the Yamaha pickups?



[fourstringbliss]

I use one battery, connect both red wires to the red battery wire that supplys the power.

You like the way the EMG's sound with the Audere preamp?



[Zooberwerx]

Thanks so much! I've been debating between the EMG BQC and a full LHZ preamp treatment. The full LHZ would run me almost $300 and I think I'd rather have low and high mid controls than the variable mid control on the BQC.

You like the way the Audere sounds with the Yamaha pickups?

Don't know anything about Yamaha pickups but I'd venture to say the Audere would function well with any pickup. High / low is my favorite....mid-freq switch comes in a close second.

Not a big fan of the variable / sweepable mids as my amps / peripherals cover that realm.

Riis



[tom-g]

Thanks! This is what the Audere site says:

View attachment 7301720

Great! Here's a pic of the pickup cables that connect to the EMG's

View attachment 7302028

It's my understanding that the hot wire (the white one, I assume) would connect to the capacitor and then the capacitor would connect to the preamp pickup wire (either the black/white or blue/white). The pickup ground (the black wire, I assume) would connect to cavity ground. Is all of that correct?

What happens to the red pickup power wire?

Thanks!

No black wire does not go to the cavity ground. Follow the instructions given by Audere. The grounding scheme is different.



[fourstringbliss]

No black wire does not go to the cavity ground. Follow the instructions given by Audere. The grounding scheme is different.

The instructions say to connect the pickup grounds to cavity or to the gray/white wire (which connects to cavity).



[tom-g]

The instructions say to connect the pickup grounds to cavity or to the gray/white wire (which connects to cavity).

Correct, I got that mixed up with passive pickups.



[sunbeast]

Sad news! Audere Audio closed!
