Bartolini TC-4 Active P/J Wire Diagram

Discussion in 'Pickups & Electronics [BG]' started by rockiezz, Aug 8, 2012.


  1. rockiezz

    rockiezz

    Feb 5, 2009
    Hudson, Ohio
    Hello all,

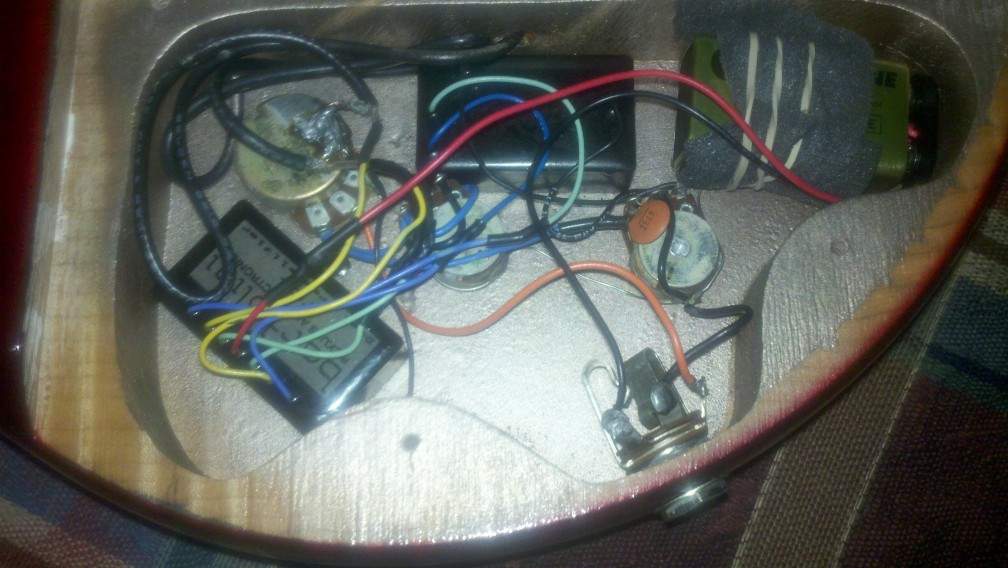

    I'm having a small issue with the bridge or J pickup in my Bartolini TC-4 active controls and I want to check the wire diagram. Problem is I can't find one to download on line. My J pickup is not loud enough and gets nowhere near the gain the P or neck pickup gets. Any help would be greatly appreciated. Here is a picture of my control cavity.


    Attached Files:

  2. rockiezz

    rockiezz

    Feb 5, 2009
    Hudson, Ohio
    So I had this looked at and after adjusting the height of the pickups all is well. Sweet!
