Best way to latch or connect amp stack together?

#22
IF you had the room in vehicle...I had a Road case made for my 2 cabs and head, then just popped open the covers and plugged in....expensive but if you play alot then a GREAT way to go.

#24
How tall is the total stack? I use a 2 wheel dolly with rubber tires (got it for $25 from Harbor Freight) to move my entire rig around. I have a similar rig as you, but a rack instead of a head. I'd be wary of incorporating a head like that into any move...if it takes a tumble, there's nothing to protect it.

I should add, if you're doing a 2 wheel dolly, it might be easier to remove the casters...just a thought.

  • Like
Reactions: kentiki and MobileHolmes
#25
buldog5151bass said:
Couple of thoughts:

1. As others have said, a cart would be easier, and can be used for other stuff as well.
2. The higher your stack of boxes is, the more likely it will tip when you hit a crack in the pavement.
3. Even worse, that heavy head on top is even MORE likely to make it tip.

Consider other options...
Click to expand...

This is such solid advice that I hope you will stop and pause, and think about it. If that thing tips, and that head takes the impact, you are in for some serious crying. And that's one NICE rig you have there.

#26
For moving cabs around, I think 4 wheel dollies are a terrible idea. Very cumbersome to move stuff in that configuration. The only thing 4 casters does well is allow you to roll your gear around on stage to make minor adjustments in placement. Move your cabs with a hand truck. A decent truck will allow you to go up and down stairs, and across parking lots and uneven surfaces safely. With the hand truck tilted toward you, and moved carefully, there is no need to strap your gear on. The angle will keep it secure as long as youre watchful and dont go crazy.

#27
These?

  • Like
Reactions: themarshall
#29
In my years (too many) of gigging, I'd have to agree with the cart suggestion. I have an Ultimate Support cart, but I've seen some really cool carts that GruvGear makes with lots of cool configurations and options. Now I have G.A.S. for the perfect gear cart...

#30
Downunderwonder said:
Simpler than ratchet straps but same general idea is luggage tie downs. The strap is a single unit with a sprung friction cam at one end. Pull tight. Leave attached to dolly, can't be left behind

Fwiw, you can stack up on a hand cart with the big rubber tyres, nothing goes up and down stairs as easily.
Click to expand...

stevecaronna said:
I strap my dolly along with a case to raise my speakers and my speakers all together with this and it works great. I don't have a picture handy right now to show how it works but I like it because it makes set up and tear down so easy.
Click to expand...

BassmanPaul said:

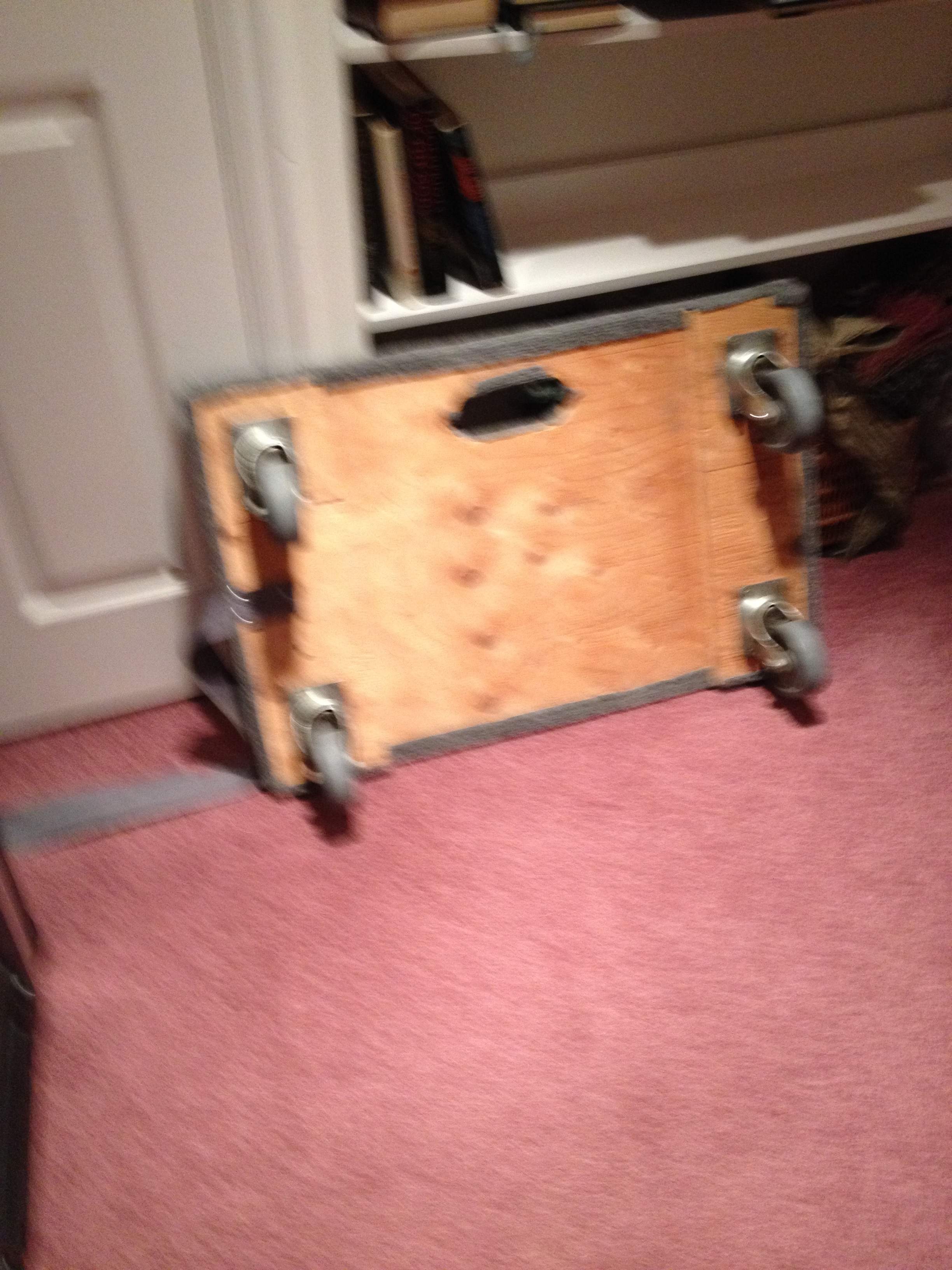

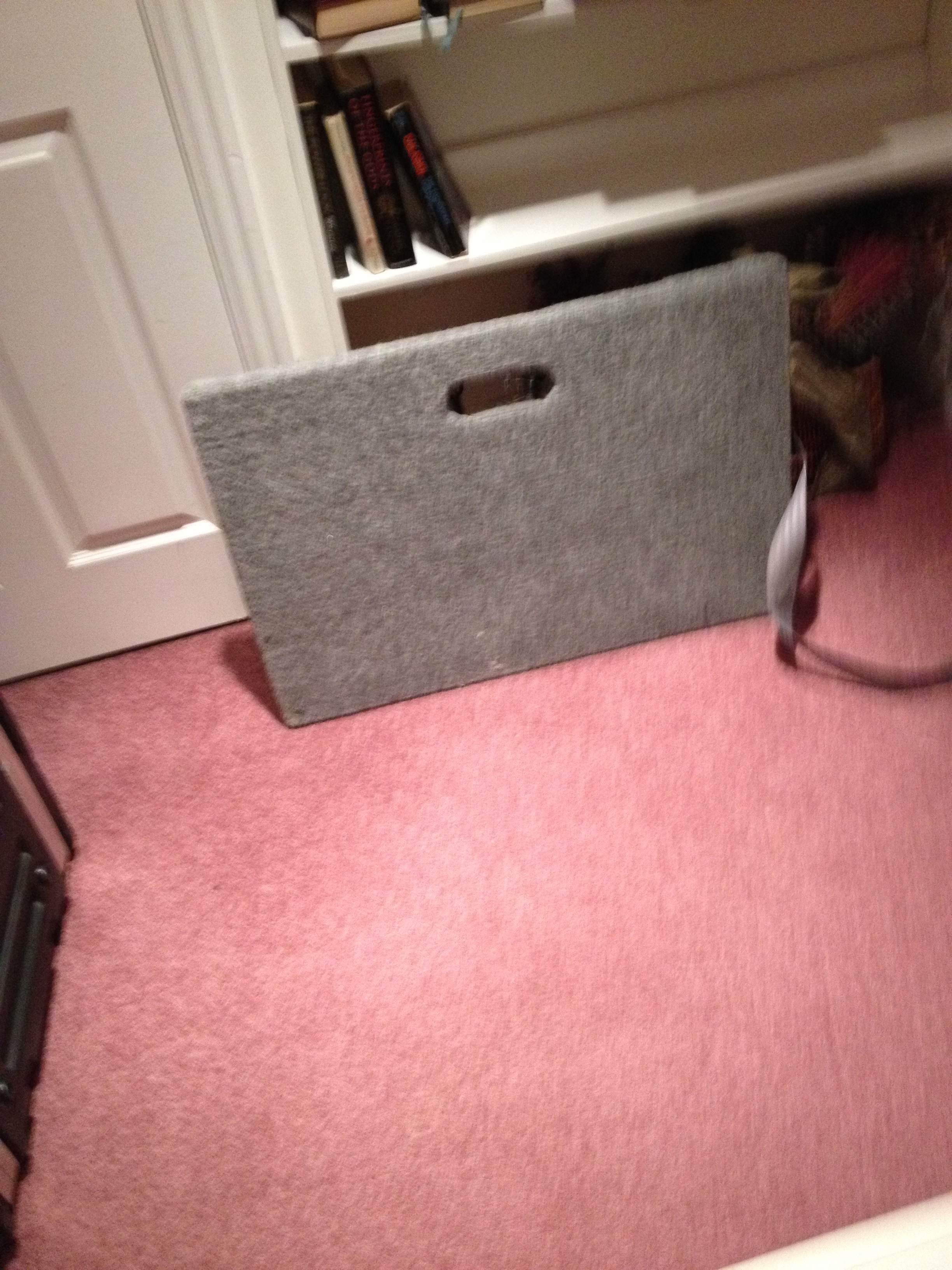

Build yourself a mover’s dolly from 3/4” plywood. Add Large casters with bolts to the dolly. Cover with carpet and add a pull strap from an auto wrecker’s yard. I have three of them I built and they are beyond useful. I’ve moved couches, freezers and other heavy furniture as well as my gear.

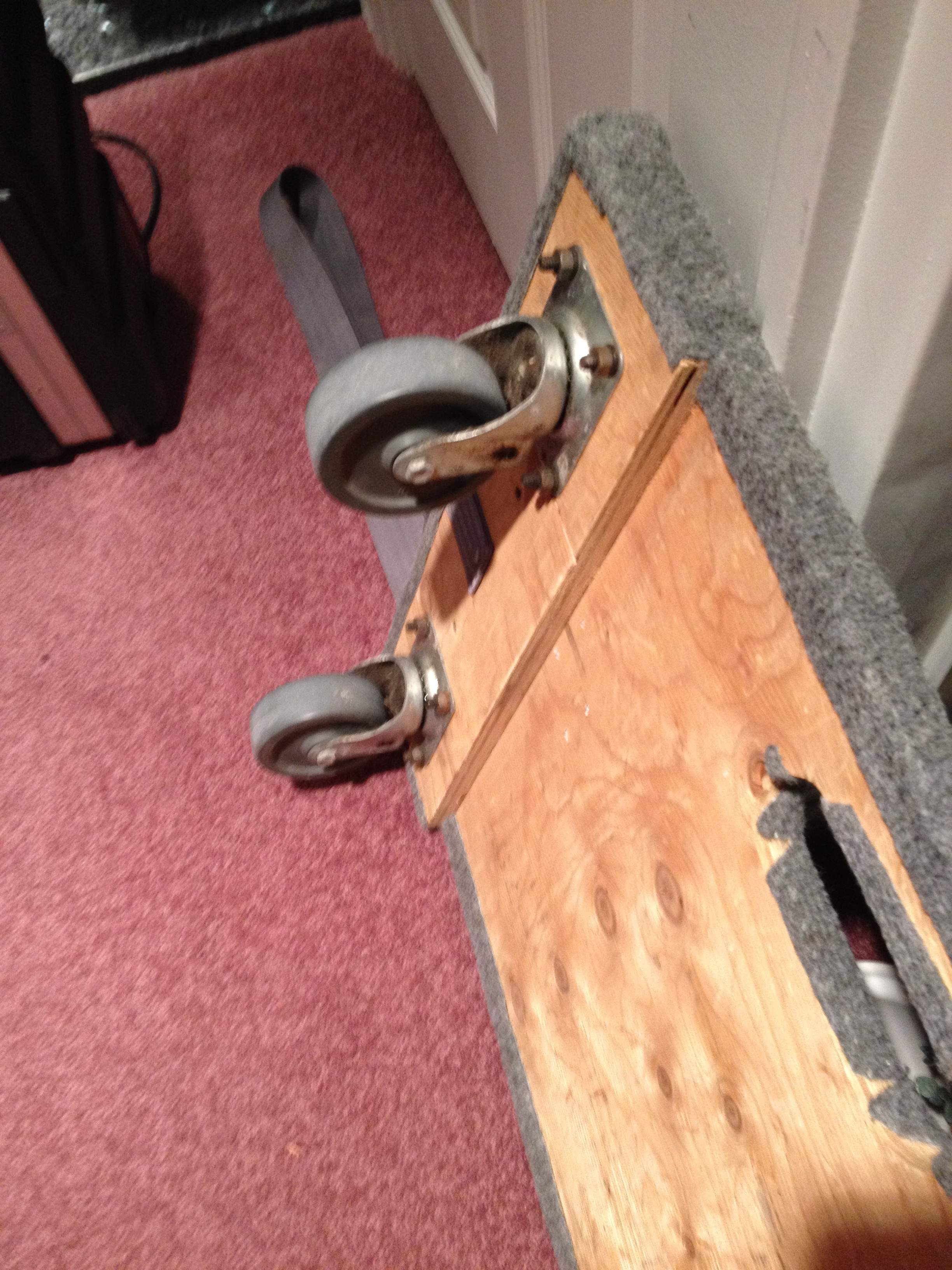

Photos show how I built mine. The slot makes it a breeze to move unloaded. Bolt the casters to each end strip and glue and screw into position. To anchor the strap more securely I used a small block to keep it in place in later versions.

View attachment 828651View attachment 828652 View attachment 828650
Click to expand...
pull strap is what he and I was talking about, I think.

How heavy is the Fender stack? Cabs are probably lighter than mine. Not sure that amp isn't class D dressed up as class heavy as hell?

#31
Above looks like some workable ideas for connecting the cabs.

How about the Fender amp piggyback hardware for connecting the Bassman 500 head? Since it's not nearly as heavy as an all tube head, that might be workable for moving the whole stack?

Just a thought. Never used it myself.

Here's a YT clip of the hardware system:


Last edited:
#33
Ratchet straps. They don't take that long to put on / take off, and you can cut some of the extra length off to minimize time.

I guess I need to ask, though, are you trying to take everything in one trip, and that's why you want to tie it all together? Only reason I ask is because if not, those Rumble cabs are only like 37#. I'd just take one in each hand, and grab the rest of my stuff on the second trip. No need for extra straps/cart/etc.

  • Like
Reactions: carl h.
#37
Wow so many great options!! I really like Bob Lo's system so I think I'm gonna do something similar. First thing is ditch the casters.

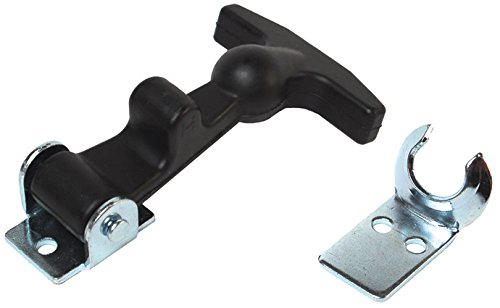

Then I'll install these :
black latch.jpg

Then buy this to cart it around:
Milwuakee hand truck.jpg

They had a bigger 800lb capacity one with pneumatic tires, but it seemed to bulky and heavy. Plus the tires would probably always be going flat on me.

Once it's done I'll try to post some pics!!

#39

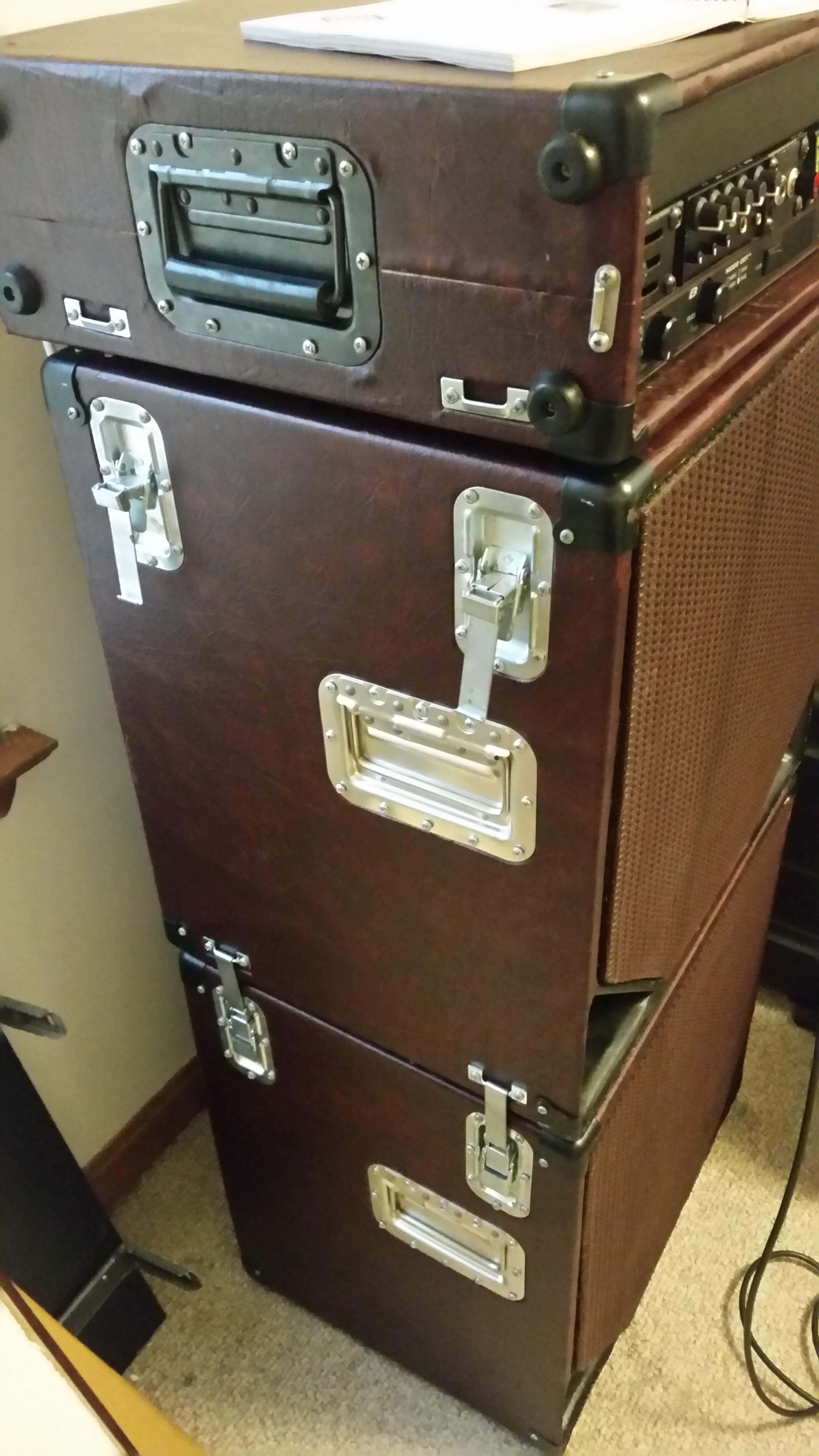

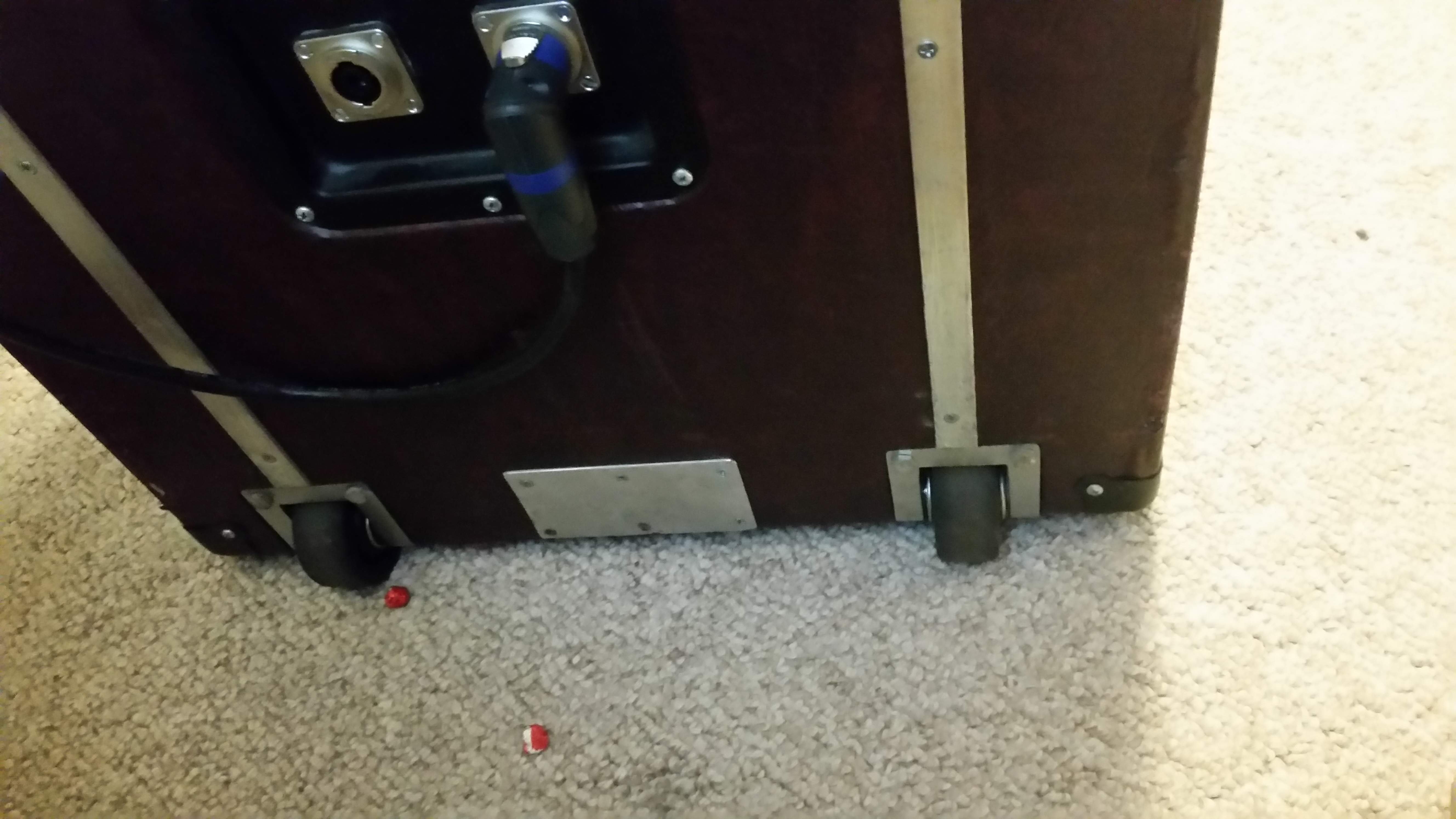

I've had those boxes for 3 years and countless shows .Loaded with 3015's,they are only 40 lbs. apiece.Those clamps hold without a problem. Up and down stairs,piece of cake.It rolls just like an SVT cab,only lighter.Check out TCH Hardware. And,to downunderwonder,,those latches attached with inserts. Bob Lo

#40
DWBass said:
There's a TB'r who built a modular rig like that. Everything latched together and I think he had the head built into the top cab. I can't think of his name. Very crafty guy.
Click to expand...
Found him. TB member Sundogue has built some nice rigs and I recall one that was really modular and it all latched together. Hit him up for some pics and ideas.
