Bill Lawrence EB60-PC wiring diagram

Discussion in 'Pickups & Electronics [BG]' started by B455PL4Y3R, Nov 2, 2017.


  1. Hi All.

    I'm always amazed at the amount of group knowledge on this forum, so.....does anybody have a wiring diagram for Bill Lawrence EB60 pick ups? I just bought some to stick in a cheapie SX bass that I bought and am struggling to figure the wiring out. I saw a thread from a few years ago that said to solder the red wire on the back of the tone pot. I would be really grateful for any suggestions.

  2. 96tbird

    96tbird PLEASE STAND BY

    Sounds like you have three wires on each half. Bill ALWAYS had grounded magnets, hence the third wire. Send them to ground. Look for the two with the same color. Those are the mag grounds. From there usually series them. first Half: white to pots, green or red to the second half green or red, the final usually black to ground.

  3. 96tbird

    96tbird PLEASE STAND BY

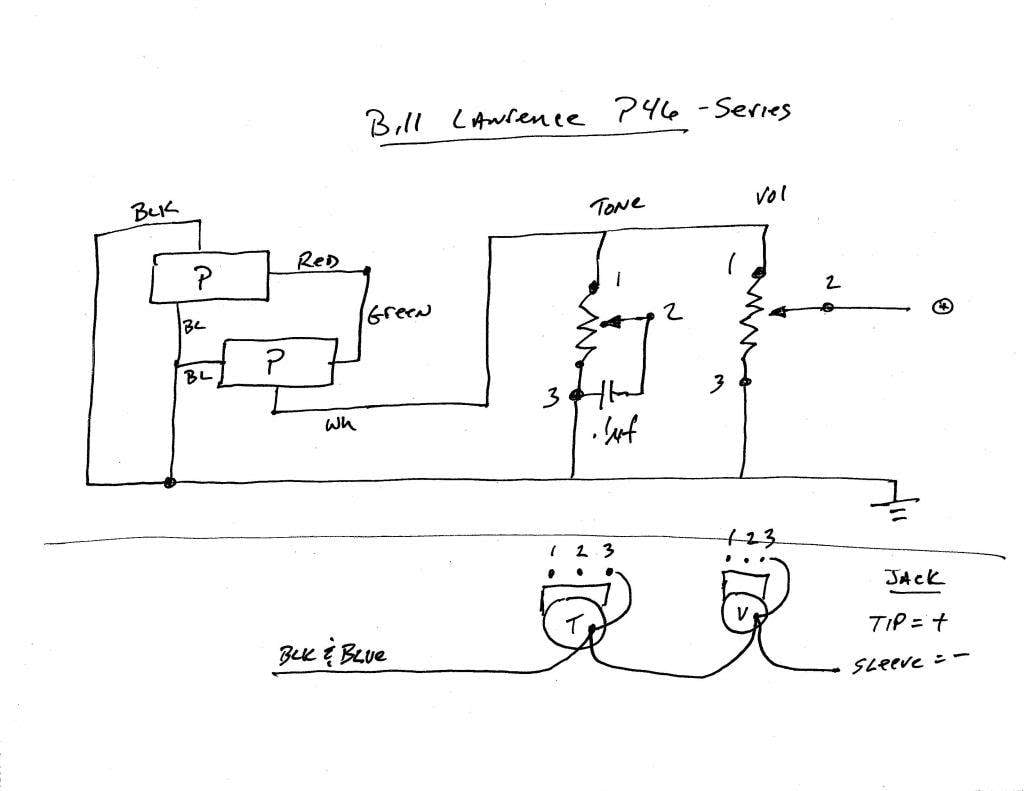

    D3864E70-F0EB-49B6-8071-E392AE05407D.jpeg Diagram in Bills hand

    gfen likes this.
  4. Thanks for that! I'll give it a try. mucho appreciado!
