Build Thread

#41
Starting the next concept: a LedBelli Noah Fretless 6 String, probably in a singlecut based off the following template.

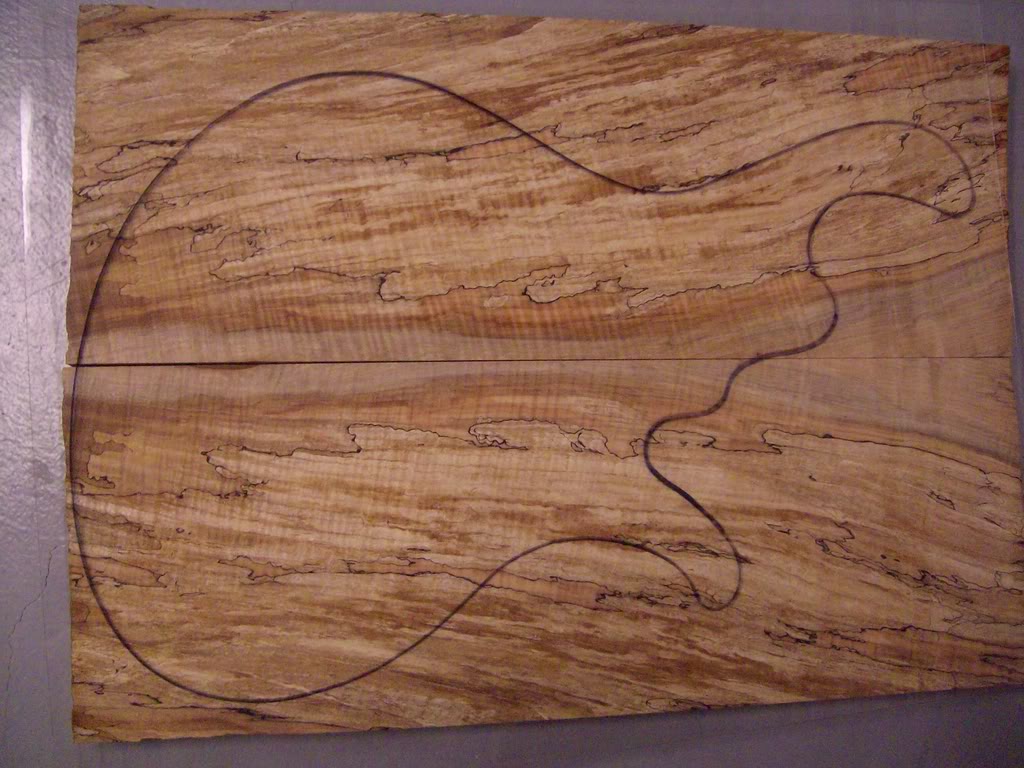

The top -- Spalted Figured Maple

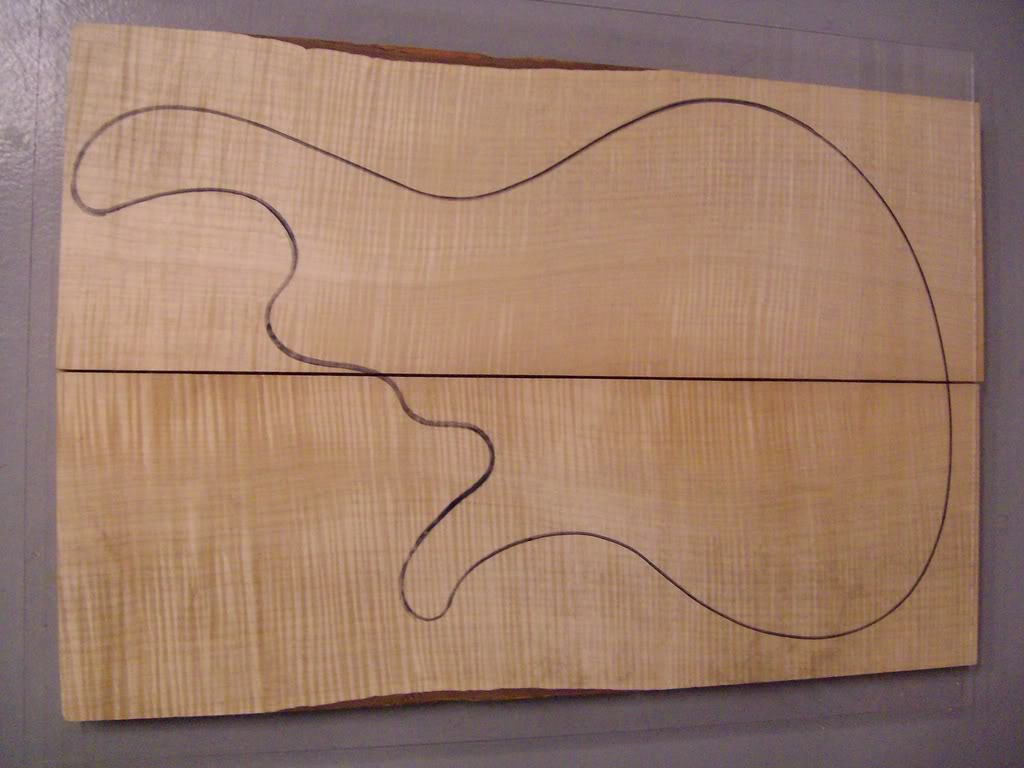

The back -- Figured Maple




I'm even thinking of doing a bridge-tuner arrangement. I despise headless designs, so this Noah would still have the trademark LedBelli headstock, but would be strung-through.


Oh yes -- and many thanks to one and all for your kind words on the work-in-progress so far.

Time will tell . . .

#50
whitcomb-basses said:
Very nice work.

How do you plan on getting to your truss rod? I don't see a rout-out for access. Just curious. I too would like to locate my truss rod adjustment on the bottom but with the hangover I have on a 24 fret, I can't see myself getting a wrench in there.
Click to expand...

I intend to route an access channel into the body. I'm still arguing with myself over exactly how I want to design that access point (i.e., with a cover or no, etc.).

Some builders (rarely) have left it as is, where then removing the neck was necessary to adjust the truss rod. NOT!

So, we'll see . . .

#51

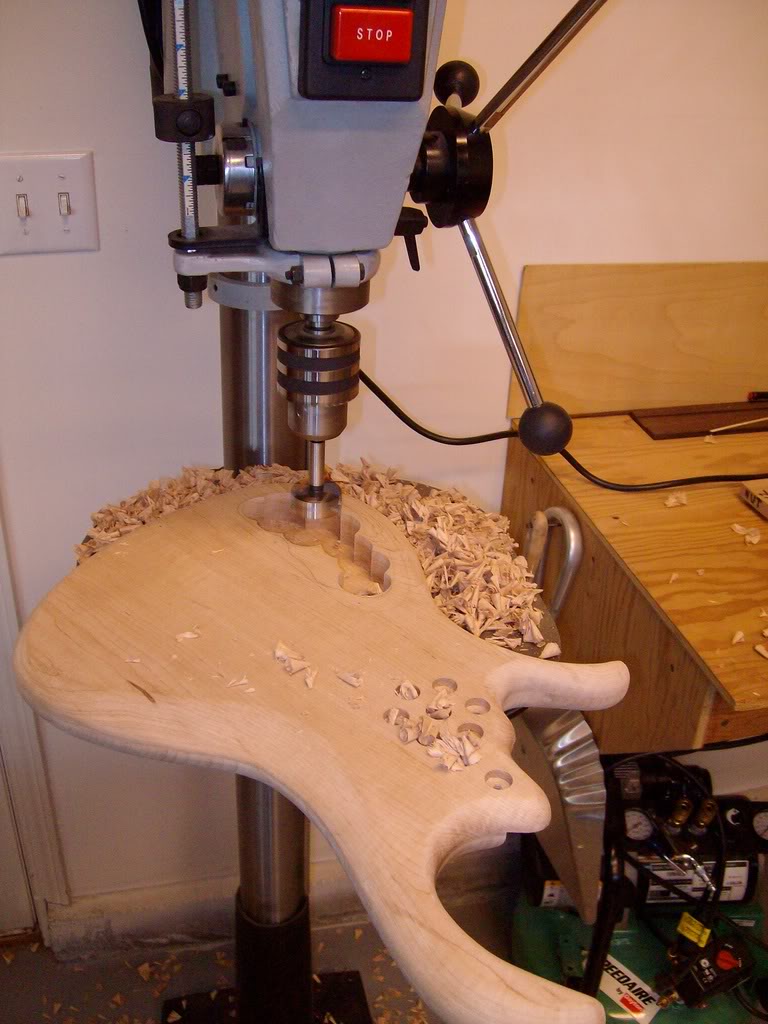

Hogging out the control cavity before routing:

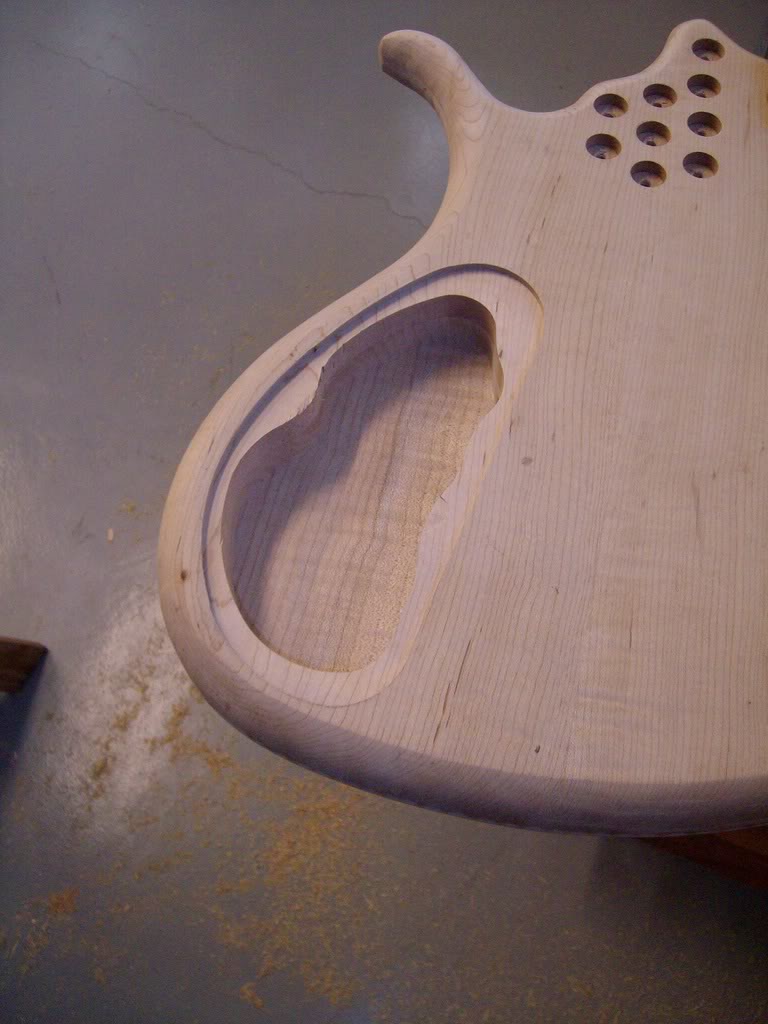

The control cavity after routing.



Next step is routing pup cavities when the templates arrive. This is a Noah Standard: Bartolini J' pups and preamp are spec'ed.

Everything from here forward I consider to be "finish" work: final sanding in prep for finishing; neck inlays, neck finishing, and fretting; then the body finish itself, hardware and setup.

#54

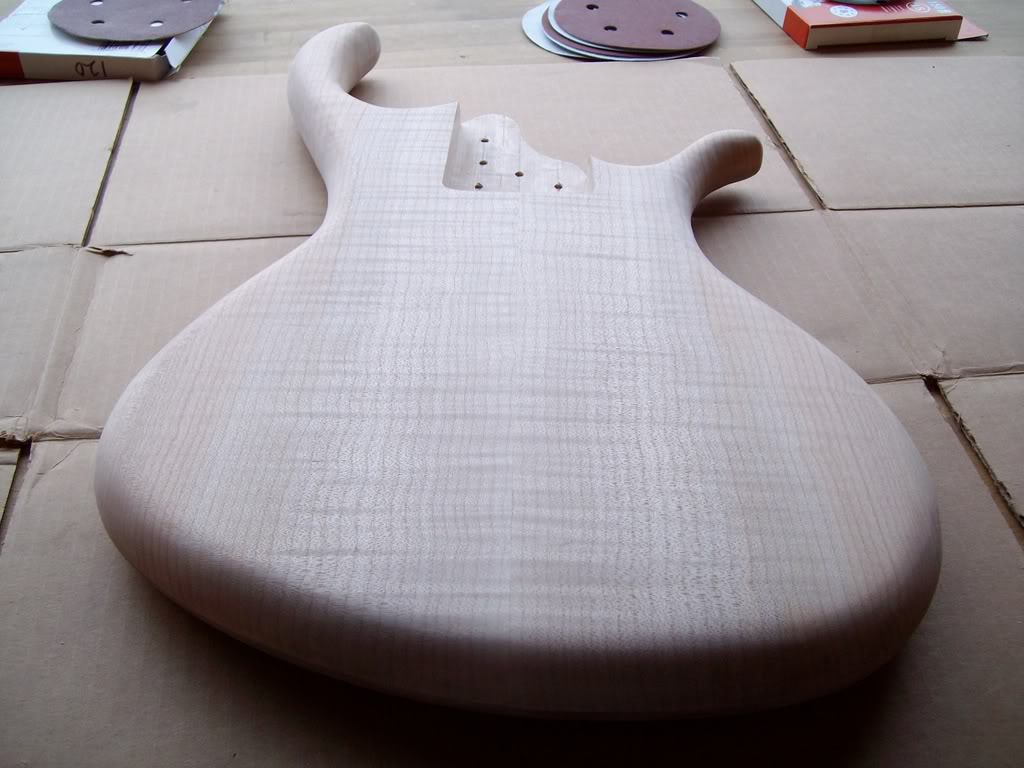

Final sanding begins. The neck is finish sanded to 220 and ready for application of Satin. Then will follow fretting and side-dots, nut and tuning machines.



The body is sanded to 150 and is ready for final pickup routing, then will seal and sand to 220.



Close-up of the grain in this piece, sanded to 150.


#57
great to see you posting again. sweet work. so you are going to finish the neck with satin, THEN fret it? thats the first time i have heard of anyone doing it that way. i like to taper the fingerboard, rough cut the neck taper, glue the fingerboard, make the neck flush, radius and fret, then round the neck. i notice that everyone has a slightly different order.
btw, is this getting a natural finish? i am eager to see one of your basses finished under the finish you were tellin me about earlier.
