Build Thread

#61
First off I'm glad to see that you have decided to share again...Thank you! I have been admiring your progress for a while now and have a question or two if you don't mind me asking...

First off I like your headstock shape, but I am a total klutz. Do you ever find yourself bumping into things because of the extra bit of length?

Second I'm about to start shaping a neck on my first build. My main concern is getting the shape I want. Could you describe how you use the profile gauge pictured in post #19 and the process you use.

Your basses are simply stunning in my opinion.

I look forward to seeing your progress.

Thanks so much,

Loren

#63
jordan_frerichs said:
great to see you posting again. sweet work. so you are going to finish the neck with satin, THEN fret it? thats the first time i have heard of anyone doing it that way. i like to taper the fingerboard, rough cut the neck taper, glue the fingerboard, make the neck flush, radius and fret, then round the neck. i notice that everyone has a slightly different order.
btw, is this getting a natural finish? i am eager to see one of your basses finished under the finish you were tellin me about earlier.
Click to expand...

Hi Jordan, . . . yes, I like to hold off on fretting until late in the game. For that matter, I like to hold off attaching the fingerboard until late in the game. No reason, . . . it's just how I do it.

My whole approach is so intuitive that I find it hard sometimes to express what it is I'm doing, when, how, and why. I just kinda go along and do what seems to be the next logical thing. Once in a while that approach gets screwed up, but mostly it's worked well for me.

That is what I would encourage anyone to do: go slow, go easy, and go with your intuition. But that's just how I do it.

As for the finish: the client and I are in a pissing match (pun intended) over exactly what sort/color of finish we want. We have a mind to "silverize" the finish in a way that would maintain its transparency while bringing out the intense vertical straight grain. Therein lies the problem . . . so for now I am experimenting with different ideas on test pieces. Stay tuned. And thanks for your enthusiasm.

#64
ljzimmer said:
First off I'm glad to see that you have decided to share again...Thank you! I have been admiring your progress for a while now and have a question or two if you don't mind me asking...

First off I like your headstock shape, but I am a total klutz. Do you ever find yourself bumping into things because of the extra bit of length?

Second I'm about to start shaping a neck on my first build. My main concern is getting the shape I want. Could you describe how you use the profile gauge pictured in post #19 and the process you use.

Your basses are simply stunning in my opinion.

I look forward to seeing your progress.

Thanks so much,

Loren
Click to expand...

Hi Loren, . . . thank you very much.

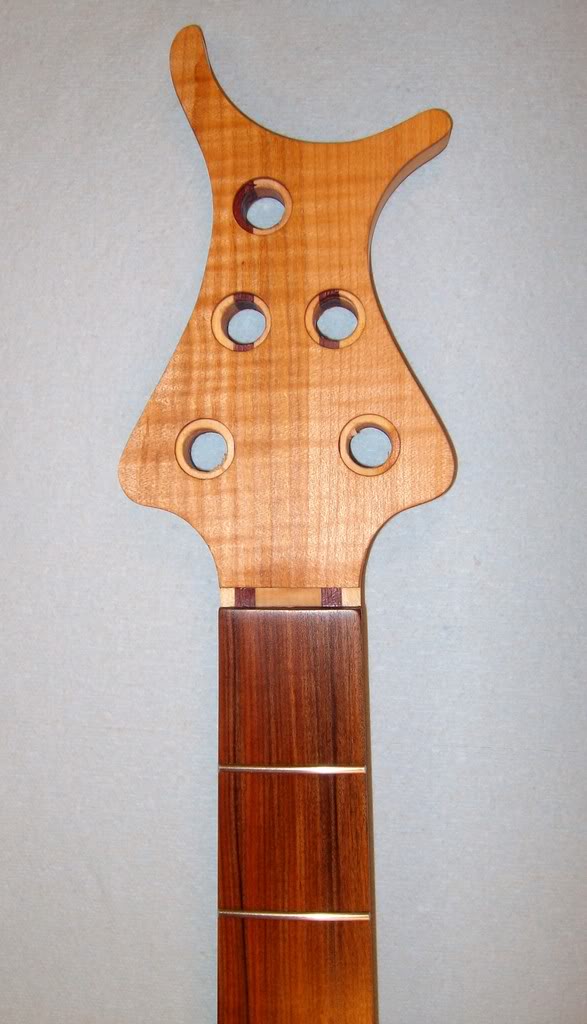

When I designed the headstock I intentionally wanted to go way off the beaten path. I knew that whatever I ended up with, it was going to be my "signature" (the headstock is a traditional area to be original) and I wanted it to be instantly recognizable among knowledgable musicians/builders. That headstock "is" my logo.

But you are right, I had some concerns about the "horns" being vulnerable to breakage or scuffing.

However, my headstock is somewhat deceiving: it is actually quite small when compared to many headstocks, such as F-Bass or Sukop, and so with minimal care I have never bumped it. It doesn't protrude as much as it would first seem to.

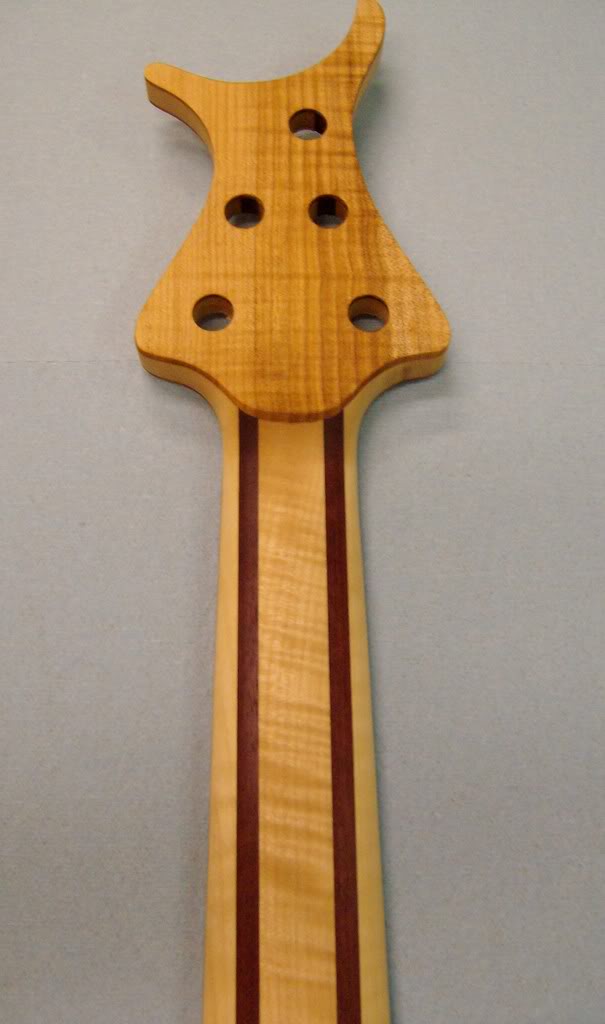

I am unconcerned with actually breaking the main horn off. I laminate my headstock with faceplates/backplates that match the body. This provides the extra strength needed.

For the sake of time/space, I'll PM you on the neck carving thing. Thanks again for your kind words.

#67
Everything is here to finish this bass except the preamp.

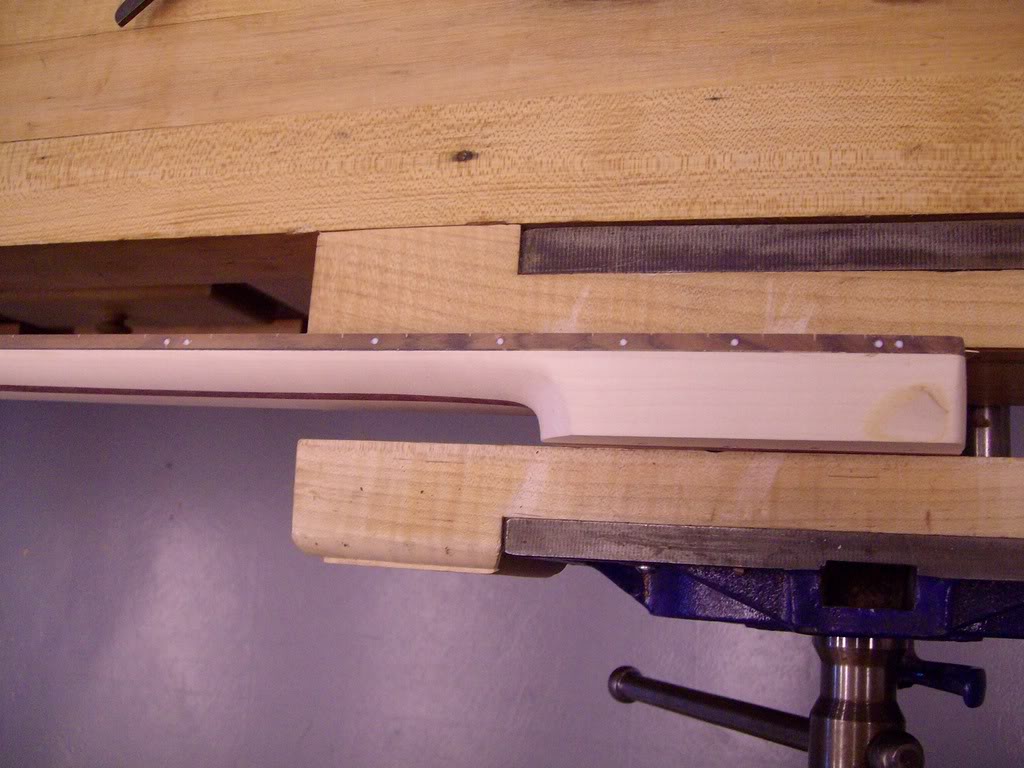

Side dots installed:

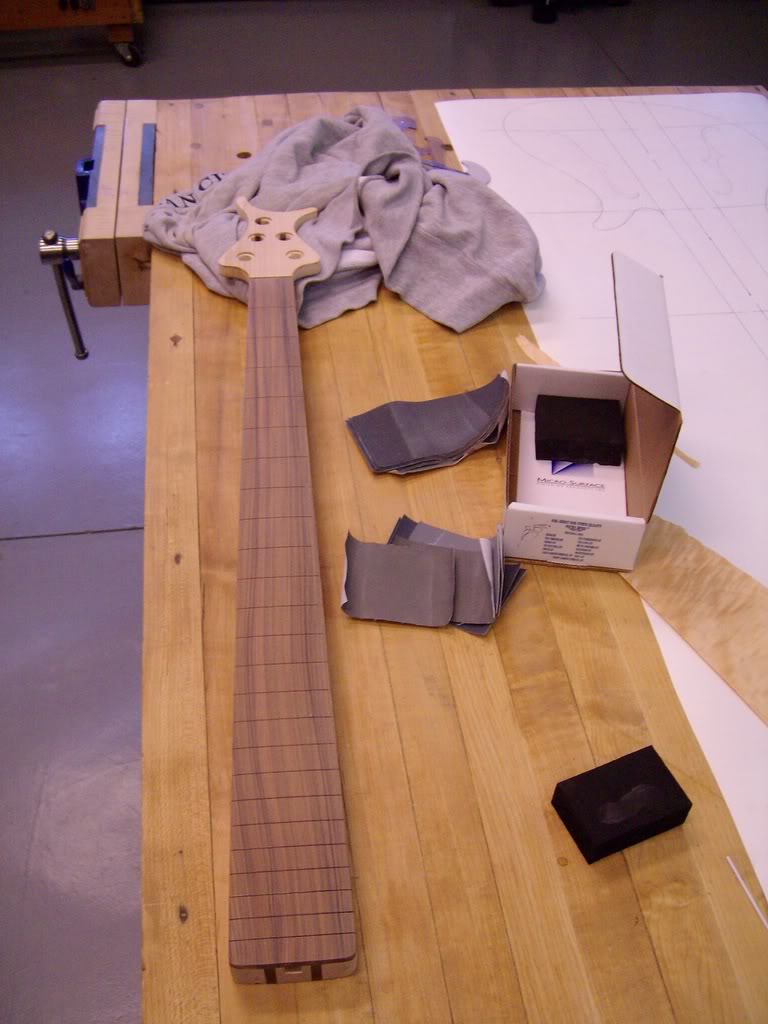

I will sand the fingerboard to 2400 Micro-Mesh, then mist lightly with Gerlitz Guitar Honey Fingerboard Treatment:

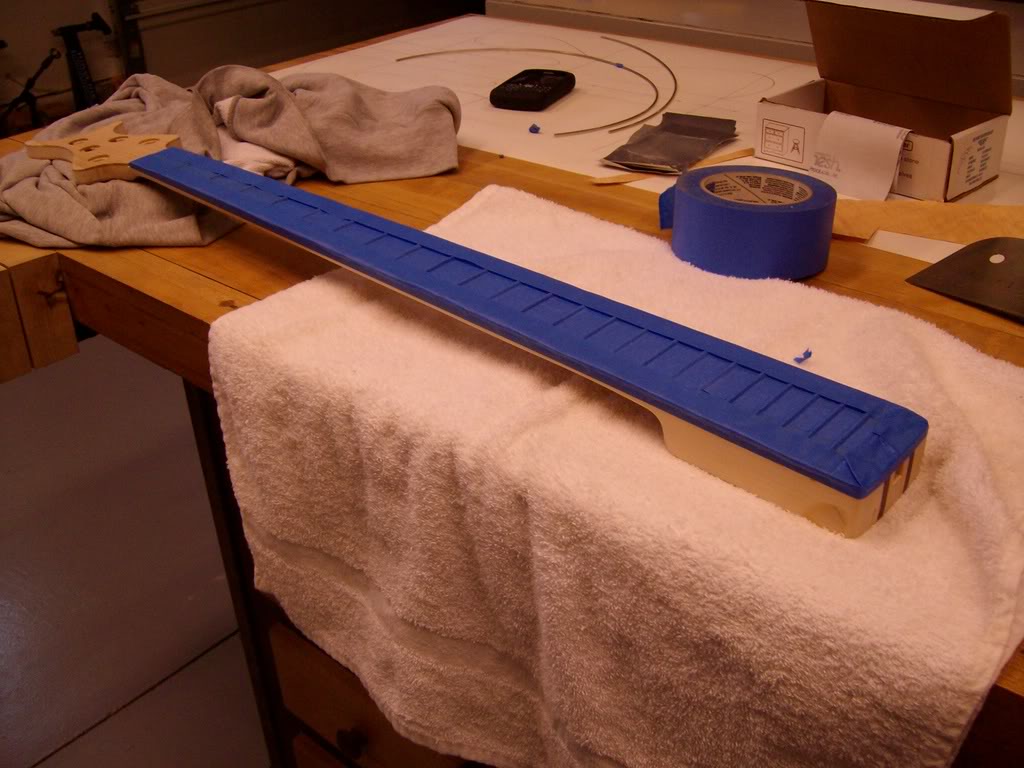

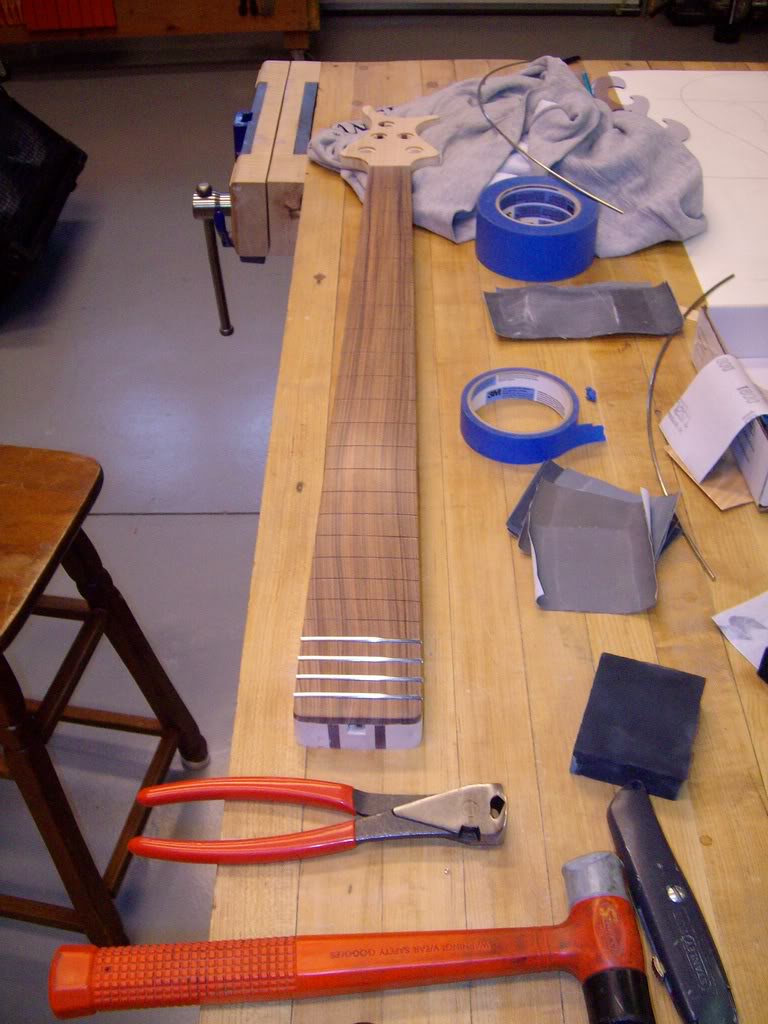

Then fretting:


#73

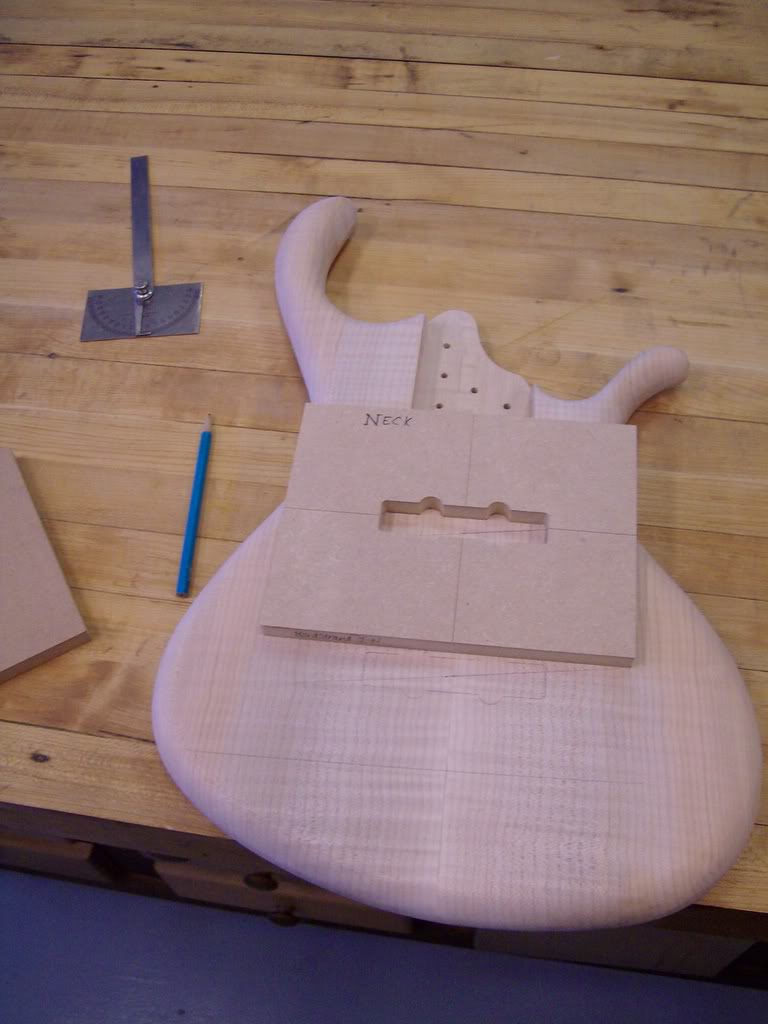

Preparing to route the pup cavities; Bartolini J L/S to be wired passive.

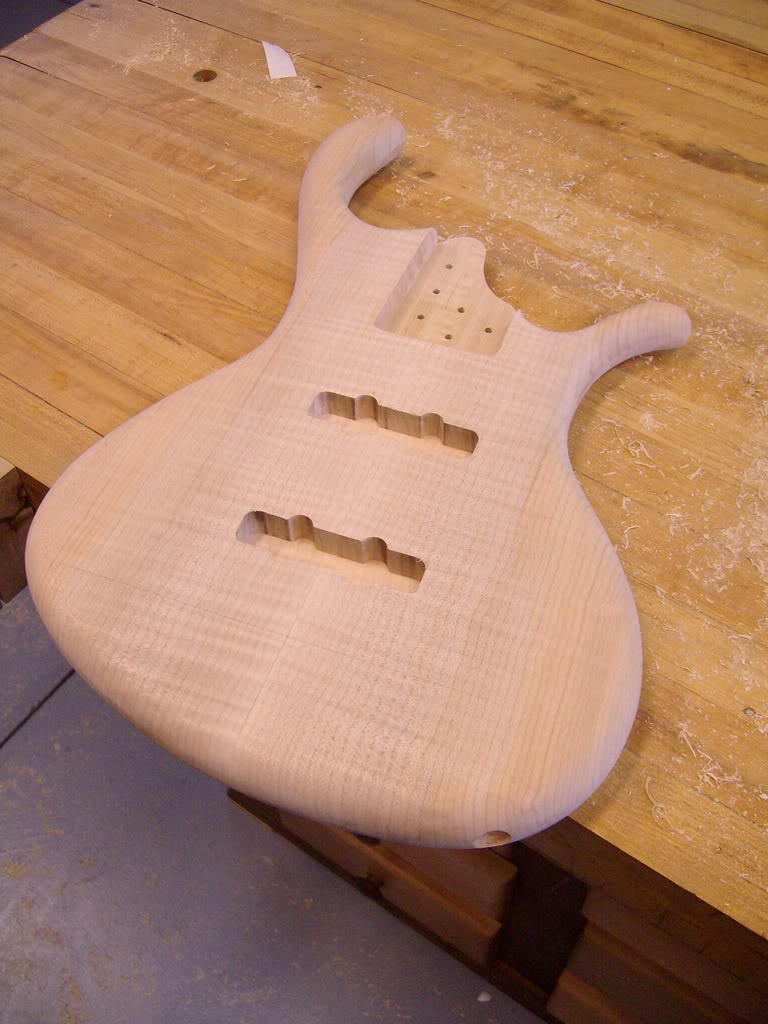

After routing; note also the recessed 1/4" jack penetration:



With the exception of the control penetrations, everything is done and ready for final sanding and finishing.

Please send bass decals for the shop microwave cabinet doors:
