Danelectro Coral Deluxe Bass project

JIO

Scott Lives
Gold Supporting Member
Commercial User
Jun 30, 2010
49,591
221,975
The Mission SF/CA
www.facebook.com
Disclosures
musician/artist/owner - Gildaxe
So once again I've plucked a less than perfect late 60's vintage US made bass from messed-around-with obscurity and will give it the old once-over to return it to its past glory. It's a Danelectro Coral Deluxe Bass, a full scale version of the short-scale Coral Wasp. For some of you you'll recall my Calabrone build (Italian for Wasp-thanks Ivan!) and if not, here's the thread - Coral Wasp inspired build - The Calabrone Until I saw this one I had no idea there was a 34" scale version of the Coral Wasp. It was only made for 3 years ('67-'69) according to my researching it, the same years Kay made the Custom Kraft "Bone Buzzer" hollow-body. ('67-'68) I have one and it's an awesome bass! Both companies introduced them as a premier line and then both went out of business. Dano re-emerged later with many re-issues and some new wacky shaped basses/guitars but Custom Kraft and Coral are history. For a more in-depth history of Danelectro - check out this link: [Invalid or Expired Link Removed]

Here's a pic of the bass with original HSC (bonus!) - it's making its way here and should arrive early next week. In the meantime - some examples I found on-line.



Similarities to the Coral Wasp include the swirl-pg, lipstick pu's, a similar body and hs shape and a thin sculpted body. So far from what I've found, it came in only a few stock colours including Black Pearl, 3TSB, Natural Sunburst and this one - Fire Red.

Raised Coral badge with faded DELUXE BASS printed in white on it.

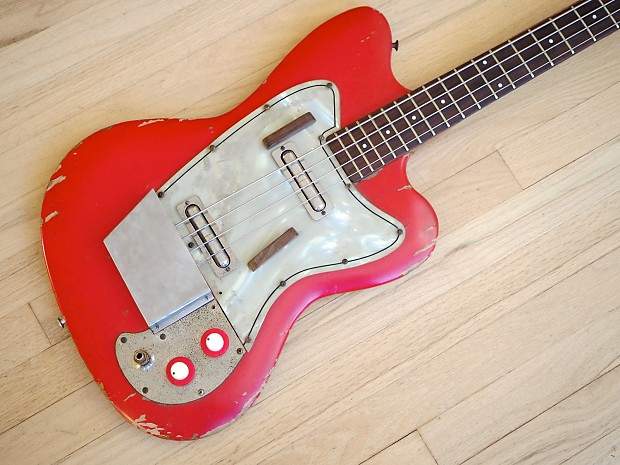

Some had matching lower control skirts - like these in red. Two finger rests for player preference.

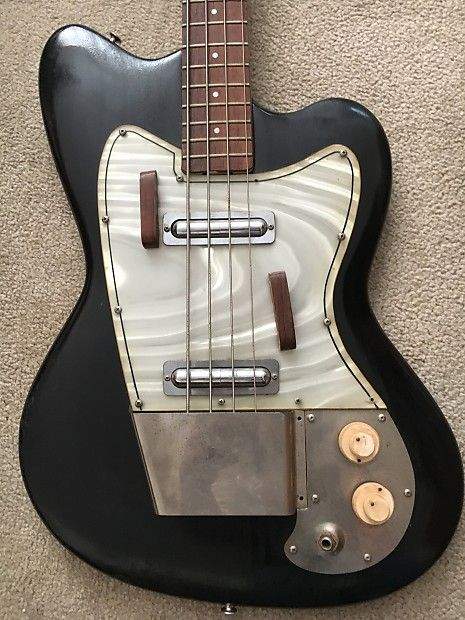

This is a DIY black refin - it was originally white (as the neck is) and may have been one of the special order colours.

This one has a raised Danelectro hs badge. Headstock was usually not painted.

Here's an example of "Natural Sunburst" on the Coral "Vincent Bell" Hornet guitar. If I were a guitarist - I'd play one of these beauties!

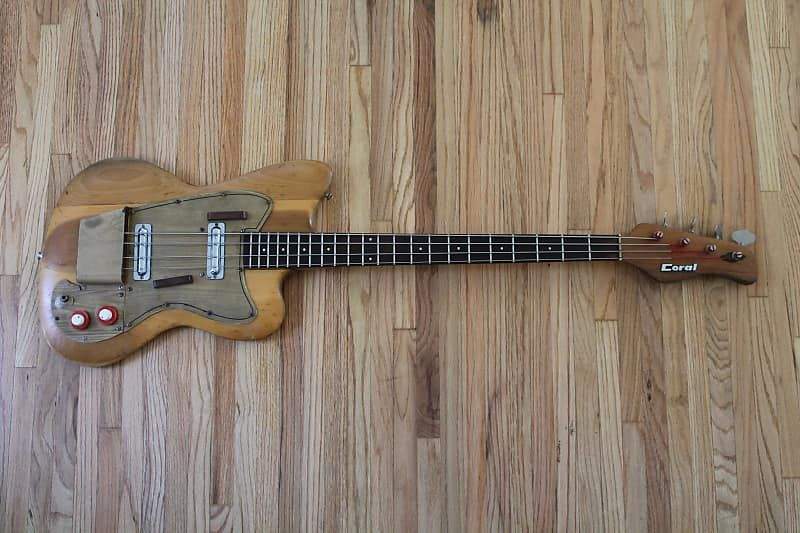

Like the one I got - this one was stripped and judging from the red knob-skirts it was probably Fire Red originally. It's also missing the 'swirl' which is a thin material under the translucent acrylic pg. Mine has black knob skirts.

And here's one in a champaign/copper colour with black lower knob-skirts. It's missing it's angular bridge cover as mine is. The Coral solidbodies were listed as available in "25 Custom Color" finishes on special order, of which this is probably one. It looks very much like the color used on early Longhorns and late 50's U-1 & 2 & Standard 3021 guitars.

Last edited:
More pics. (from the seller) Glossy poly (most likely) DIY coating - works for me as a good base to refinish on.

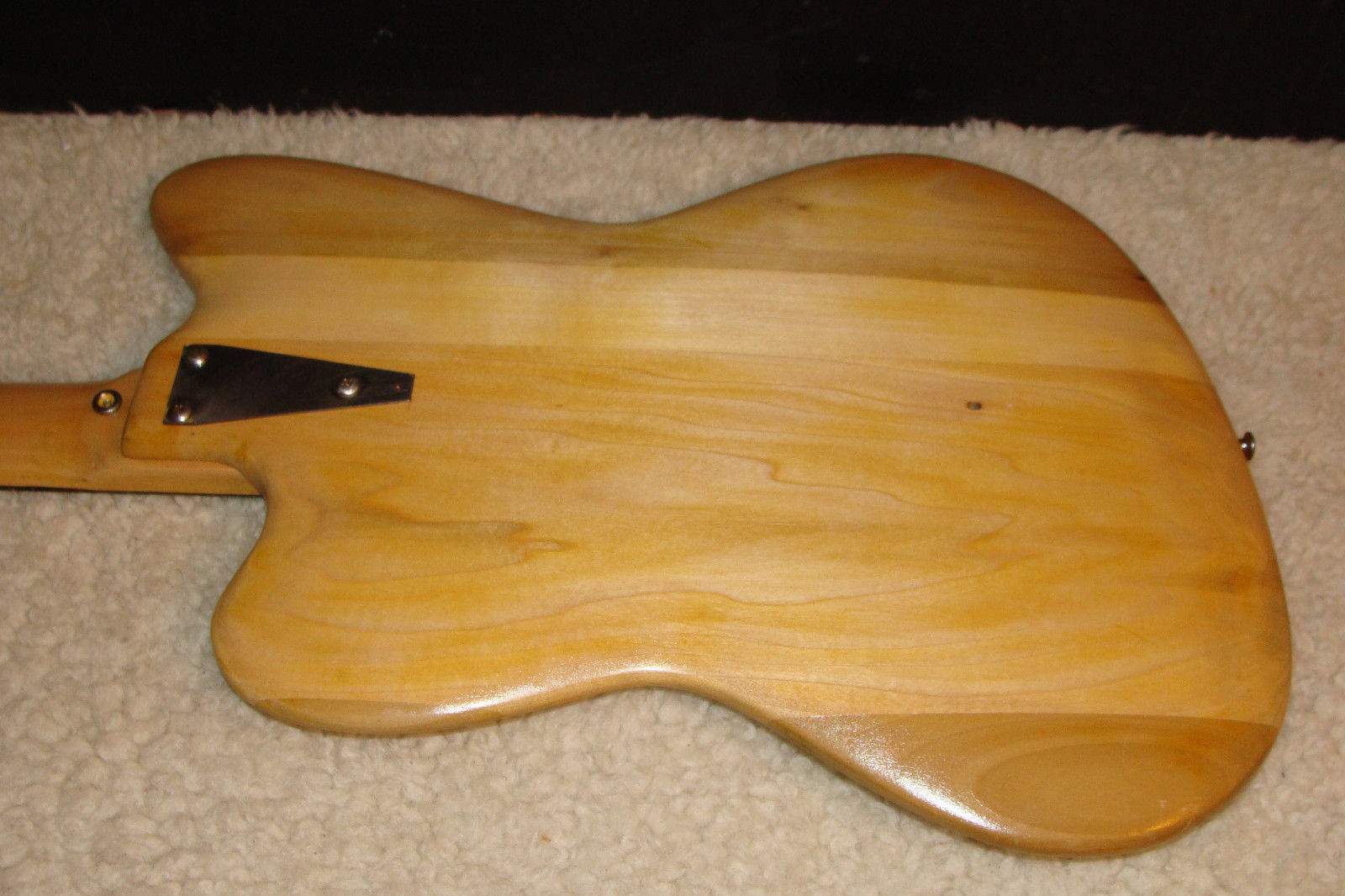

3 screw neck connection and what looks to be a repositioned strap-peg. Small hole is seen on many examples so it is there for a reason. I've seen one with a small ferrule. (?) Things to determine upon inspection.

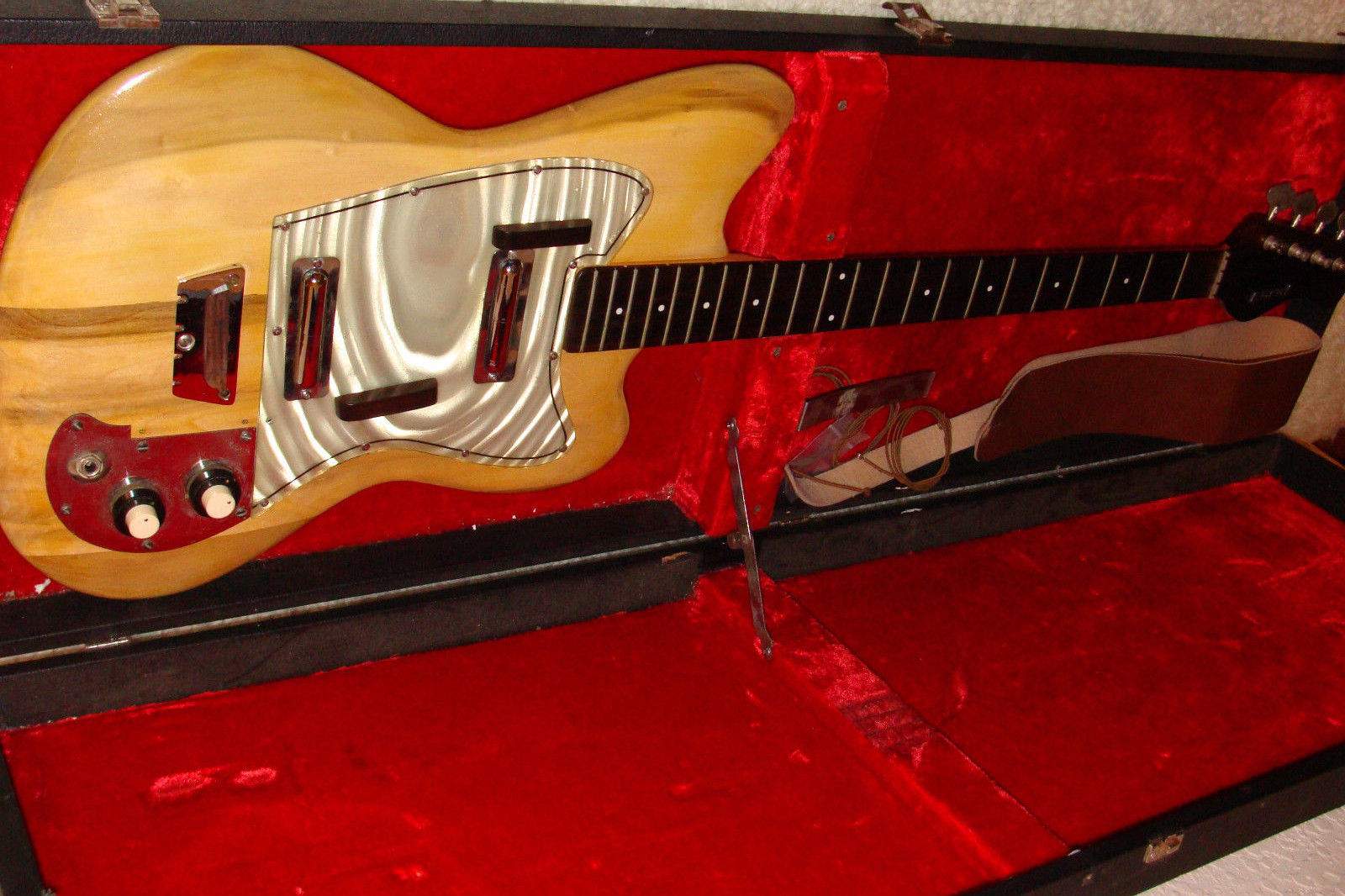

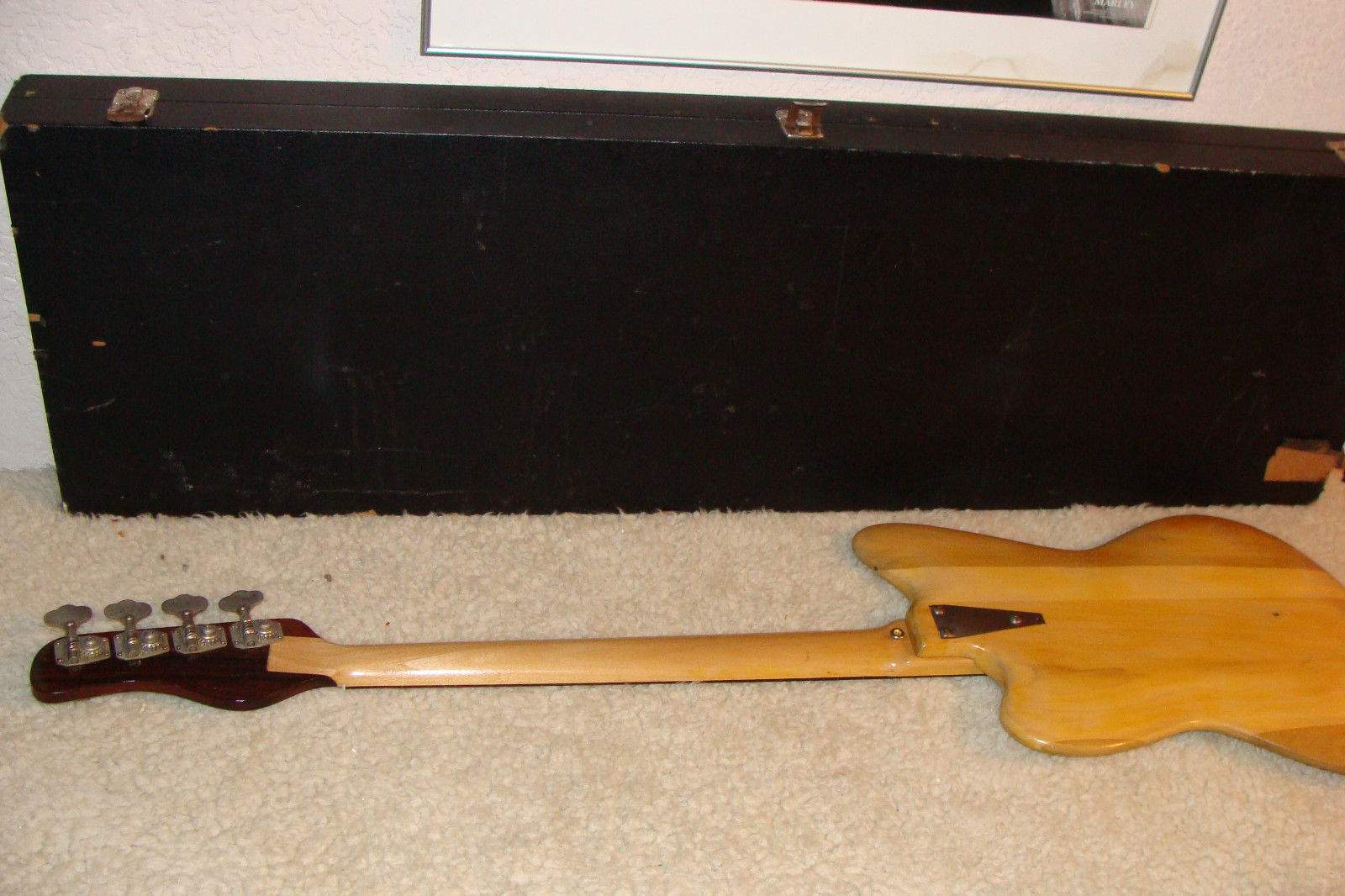

After making a HSC for my Bone-Buzzer, having the original part of the deal clinched it for me. Love how thin the body is! You can see where the strap peg was in this pic - dark dot at the seam.

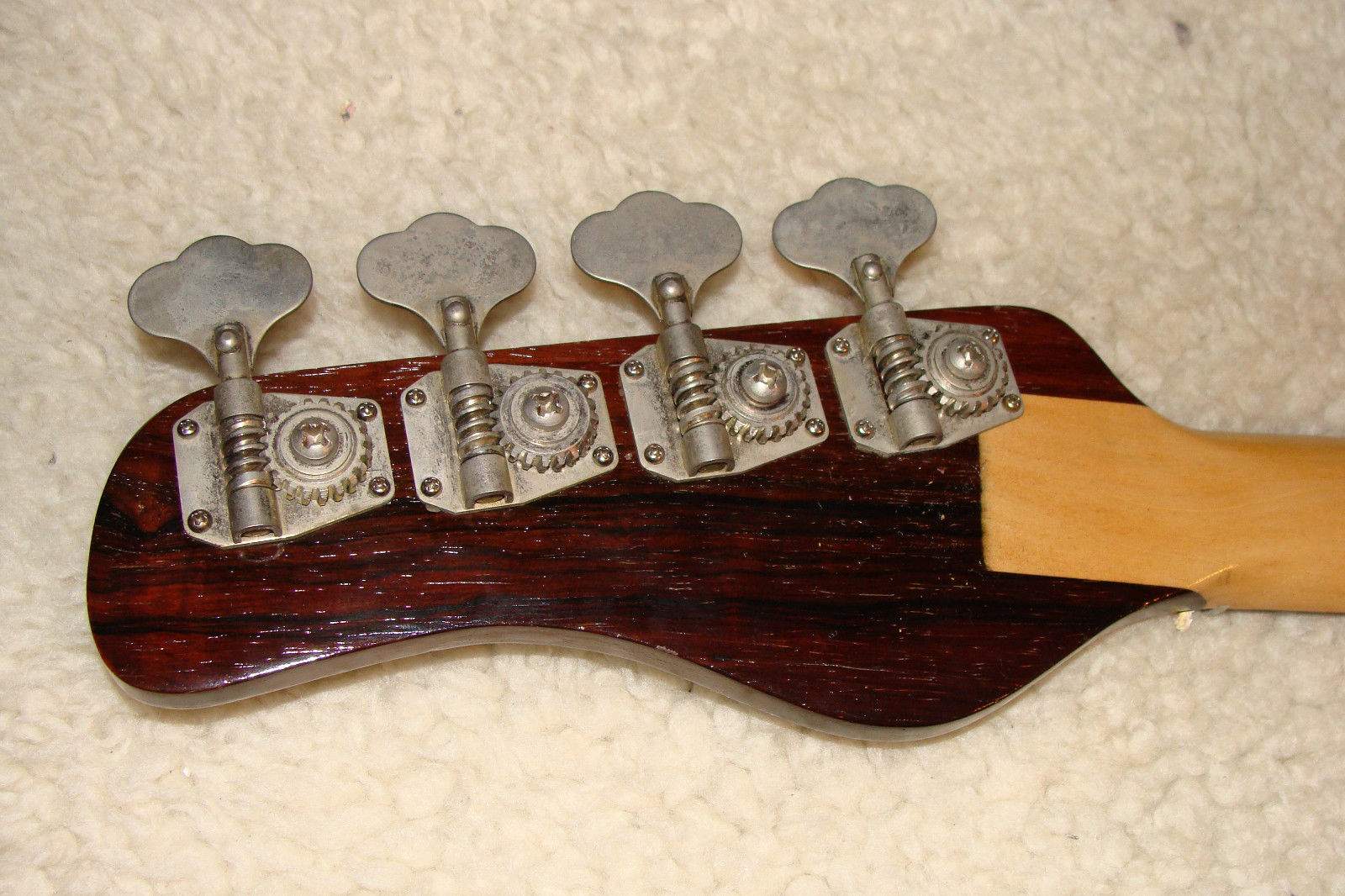

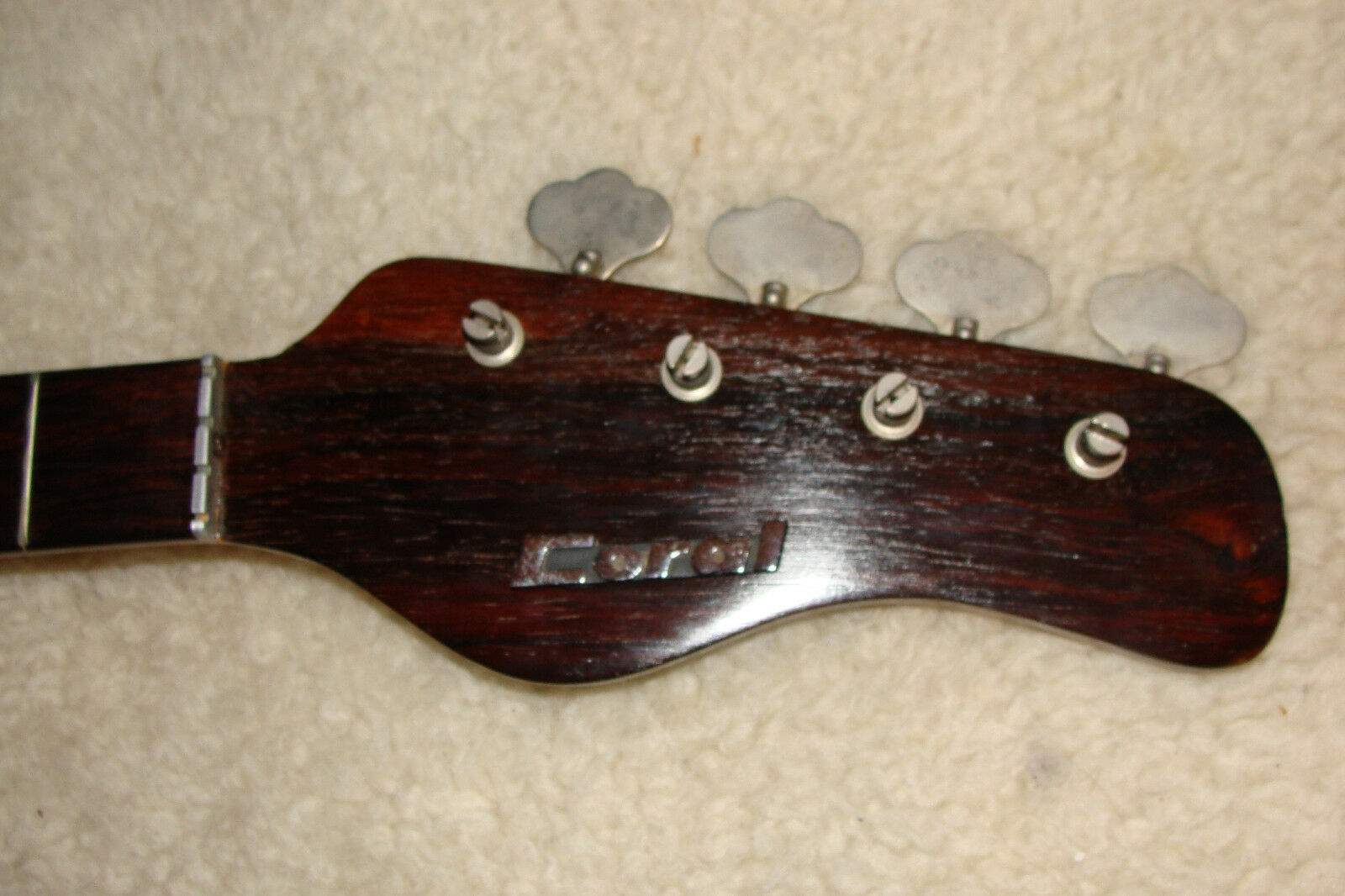

Very unusual hs/neck graft/connection - as seen on all examples. It looks to be rosewood, but I'll know once I can study it. Nice stubby tuners are much nicer than the ones that came on the ss Wasp which were guitar tuners. These are similar to Fender Mustang tuners...

... other than having narrow posts. Aluminum nut and raised metal Coral badge. Refin in glossy poly more than likely.

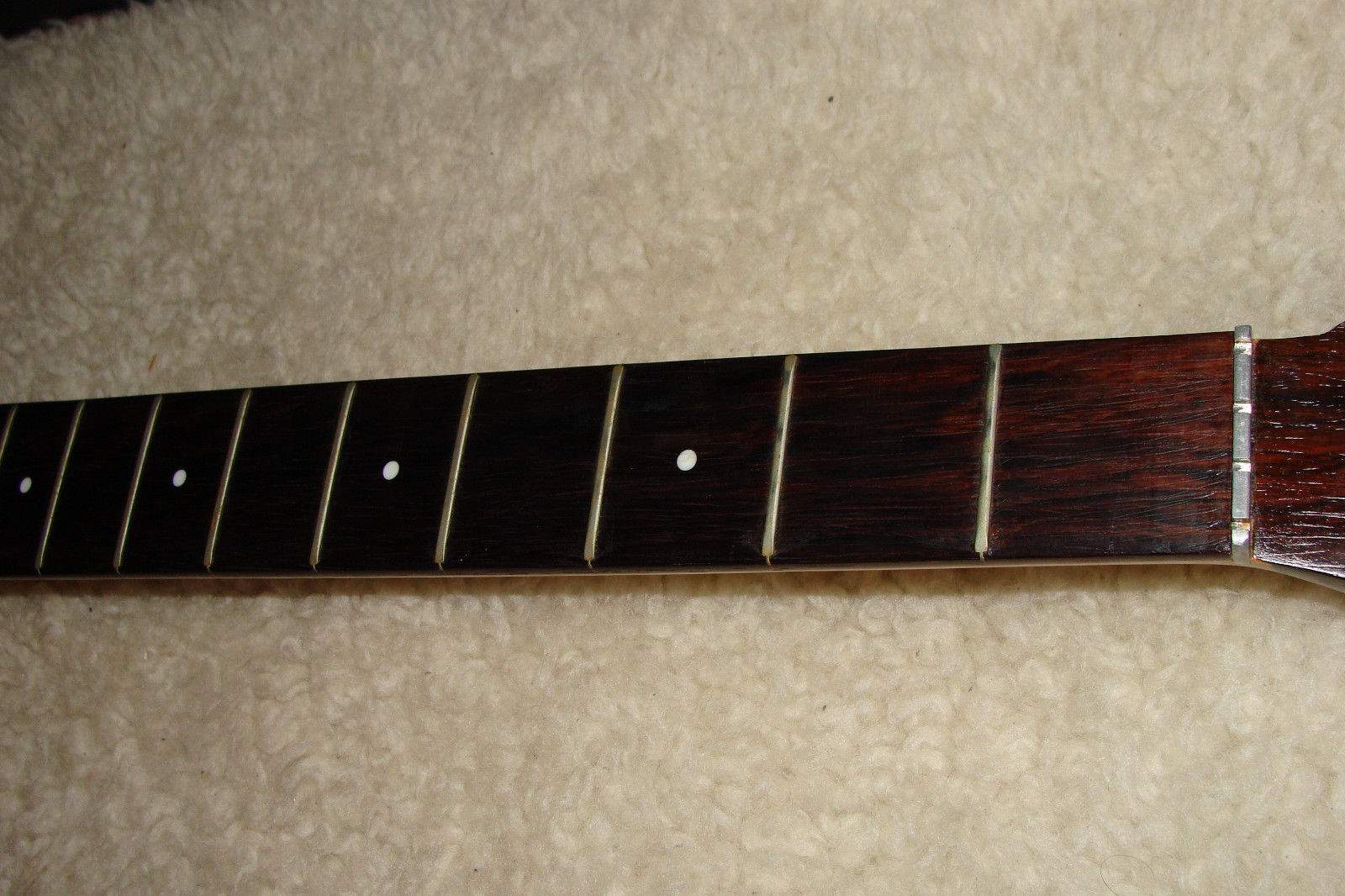

The rosewood board looks nice - rich and highly figured. Frets (hopefully) are in dress-able condition. Worn, but they don't look grooved.

Last edited:
Very nice! I really like the swirl pickguards. The Longhorn and these (long or short scale) are my favorite Danos. I have an old Dano bass neck and, especially for a budget instrument, the fretboard is a gorgeous piece of rosewood.

It appears the grafted on hs is solid rosewood, much like the fb. Other examples (like the red one above) show what appears to be a lighter brown wood, but maybe its just a washed-out lighter piece of RW.

Looks pretty pimp already, can't wait to see what it looks like once you work your magic.

Subbed

The neck looks good - I'll know more when it arrives. The other thing I need to do is fabricate a bridge cover for it. It looks pretty basic - folded metal with two screws on the control side only. I have some machine-shop connections I can look into.

  • Like
Reactions: AGH and GotRoot?
Continuing a theme, Piaggio, who makes Vespa scooters, also makes a sort of scooter/box truck thing and it's called the Ape (ah-pay), which means bee. Lots of ways to get stung in this thread.

Good one Bob! :D So does that mean The Killer Bees (SNL) were a bunch of striped apes? :laugh:

check out this colour! Sap green?

- and this is the copper colour I mentioned
and the ferruled hole (?)



...and another ferruled hole on a Wasp ss bass - it may be what holds the wood part of the bridge in place and allows it to move for intonation. I have seen pics posted on Reverb that show the lower body ferrule with a screw - and the one below the neck plate having a ferrule. (Reverb pics can't be grabbed) So I'll assume the upper one is a 'neck-tilt' port, and sill not sure about the lower ferrule/screw.

Last edited:
Love it. Have you decided on a color for it? Black would look pretty sweet with the pickguard. Probably lots of other Dano/Coral standard colors that would look pretty nice with that as well.

At first I was thinking Black Pearl - but with 25 Custom Colours to choose from...

  • Like
Reactions: AGH

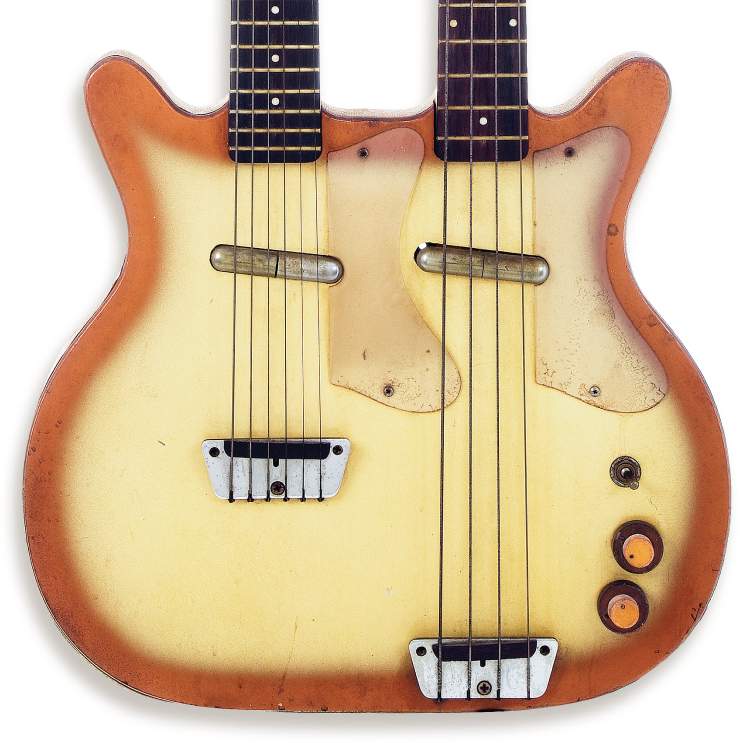

Here's another Danelectro site I found that has many big pics - a lot is overlapped from the first link I posted. It shows many different colours but some are hard to tell if they are RI colours or original colours. Invalid Link Removed It includes many links but not all are still active. Wish there was an official late 60's Dano list of those 25 custom colours, but that's just the historian in me. Let's assume they included all Dano colors from the past, including the many varieties of this finish; the 'halo around a base colour' finish-style.

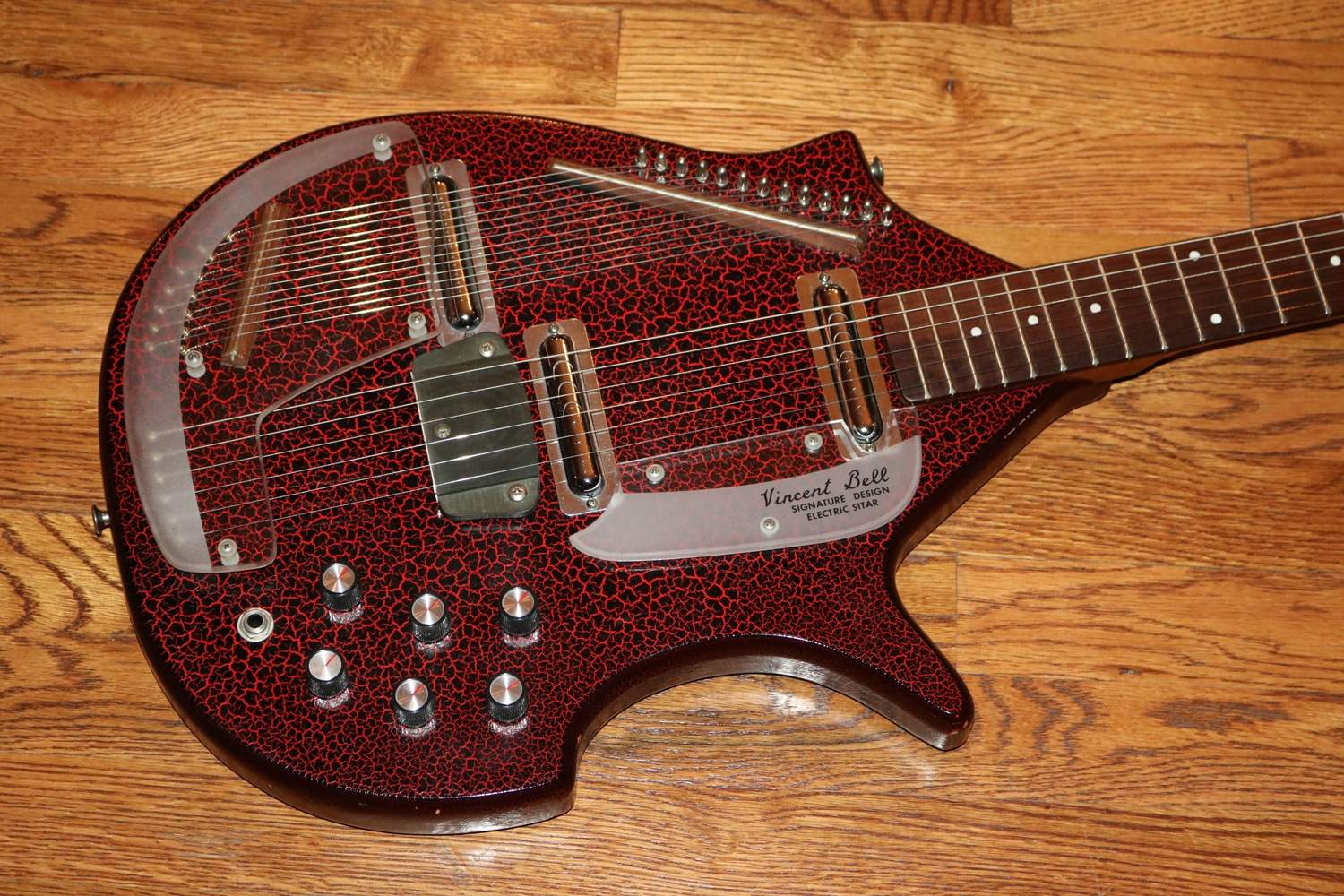

...possibly would have included the 'crinkle' finish used on the Coral Electric Sitar

That sap green? Turns out it was a 90's RI and not sure they would conform to that original 25 CC list - they look more contemporary to my eyes but who knows?

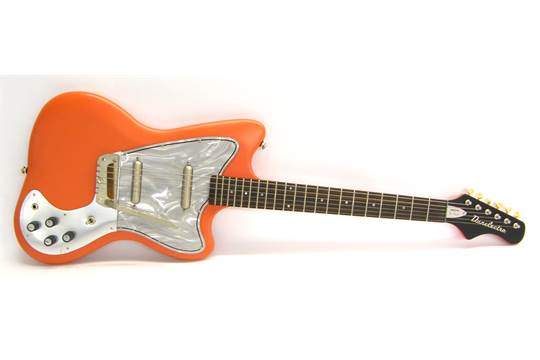

The creamsicle orange looks nice and would work well with the rich rosewood fb/hs


r

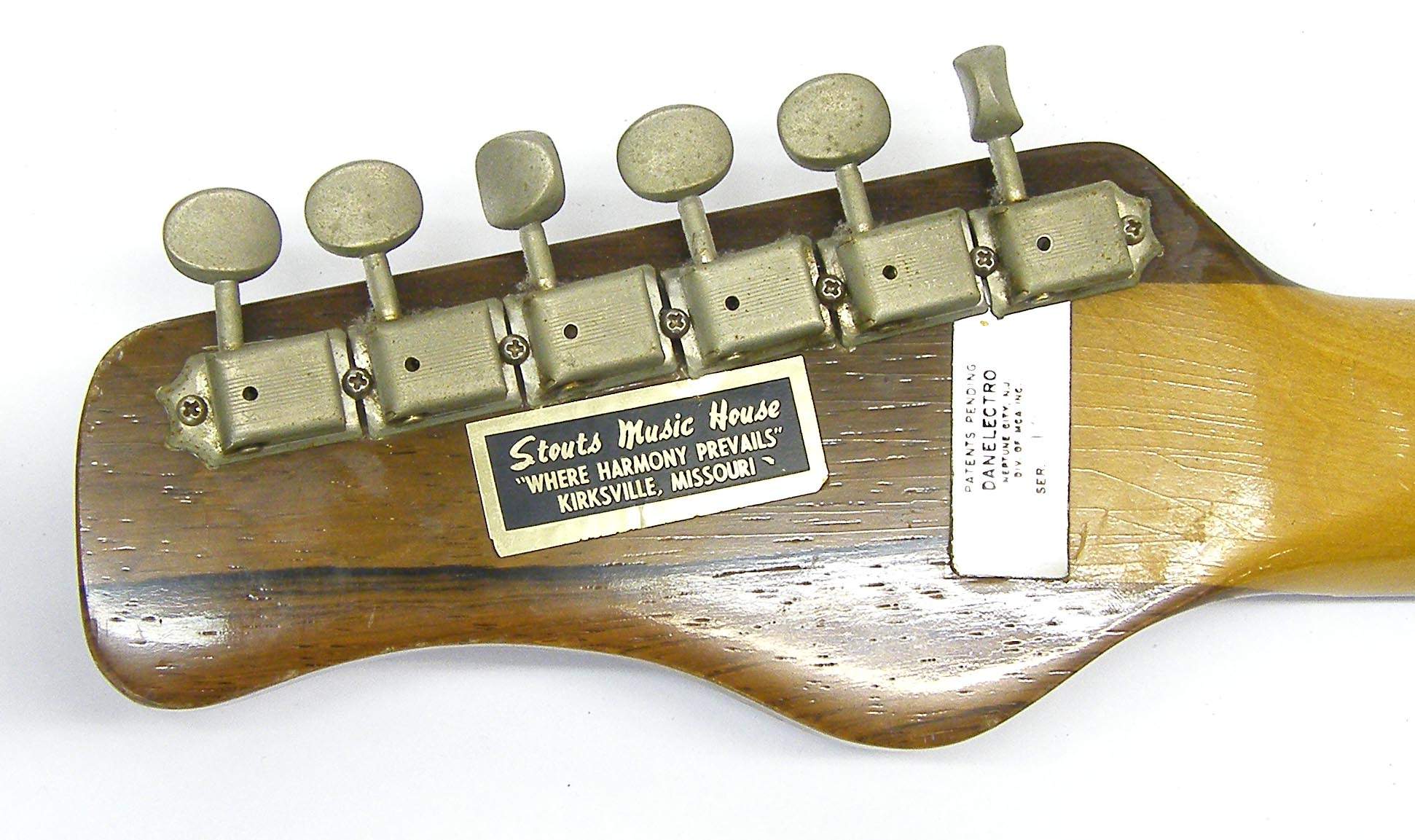

This Coral/Dano guitar hs shows a variant for the neck/hs graft - an inset Dano patent/serial # badge. Also an example of a more brown/amber'd hs wood. Rosewood? It looks like it could even be Koa. FTR - similar to Fender being purchased by CBS, Danelectro was bought by MCA and the name 'Coral' they used for the line was a record label name of theirs.


Last edited:
The headstock graft in the last picture looks like some black limba bass bodies I have. Especially that dark stripe running through it. Gibson was calling white limba korina and using that even earlier.

Yes, the late 50's Flying V's were made with Korina. The use of both (limba and maple) would be kind of like a Fender/Gibson mix. Will see what mine is when it arrives. As it was refinished someone may have stained the hs to match the fb, or possibly they used a couple of different woods for them. The plot thickens!
