Dingwall ng2 jack replacement

Discussion in 'Hardware, Setup & Repair [BG]' started by cheche32, Jun 1, 2019.

  1. cheche32

    cheche32

    Jun 25, 2013
    Mexico City
    Hi to all

    My dingwall ng2 has a false on the jack and I believe that is about to pass away. I've searched for a replacement part on the Dingwall site but the only available is the NEUTRIK jack:

    www.dingwallguitars.com/online-store/accessories/replacement-neutrik-jac

    But I believe that this will not fit since its different of the one my bass has from stock.

    Any recommendations?

  2. Got a picture of the existing jack? Outside the control cavity and inside, if possible.

  3. cheche32

    cheche32

    Jun 25, 2013
    Mexico City

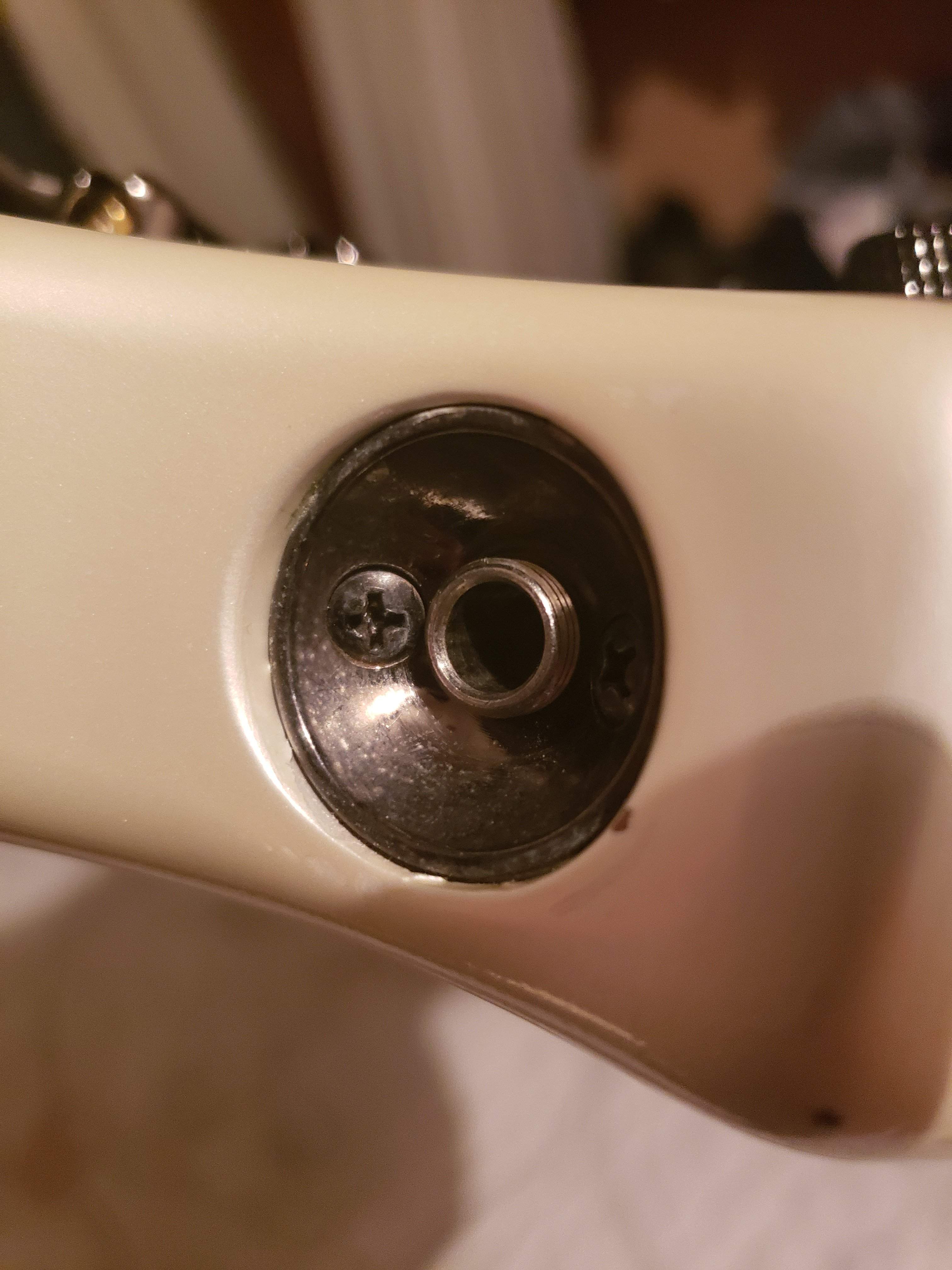

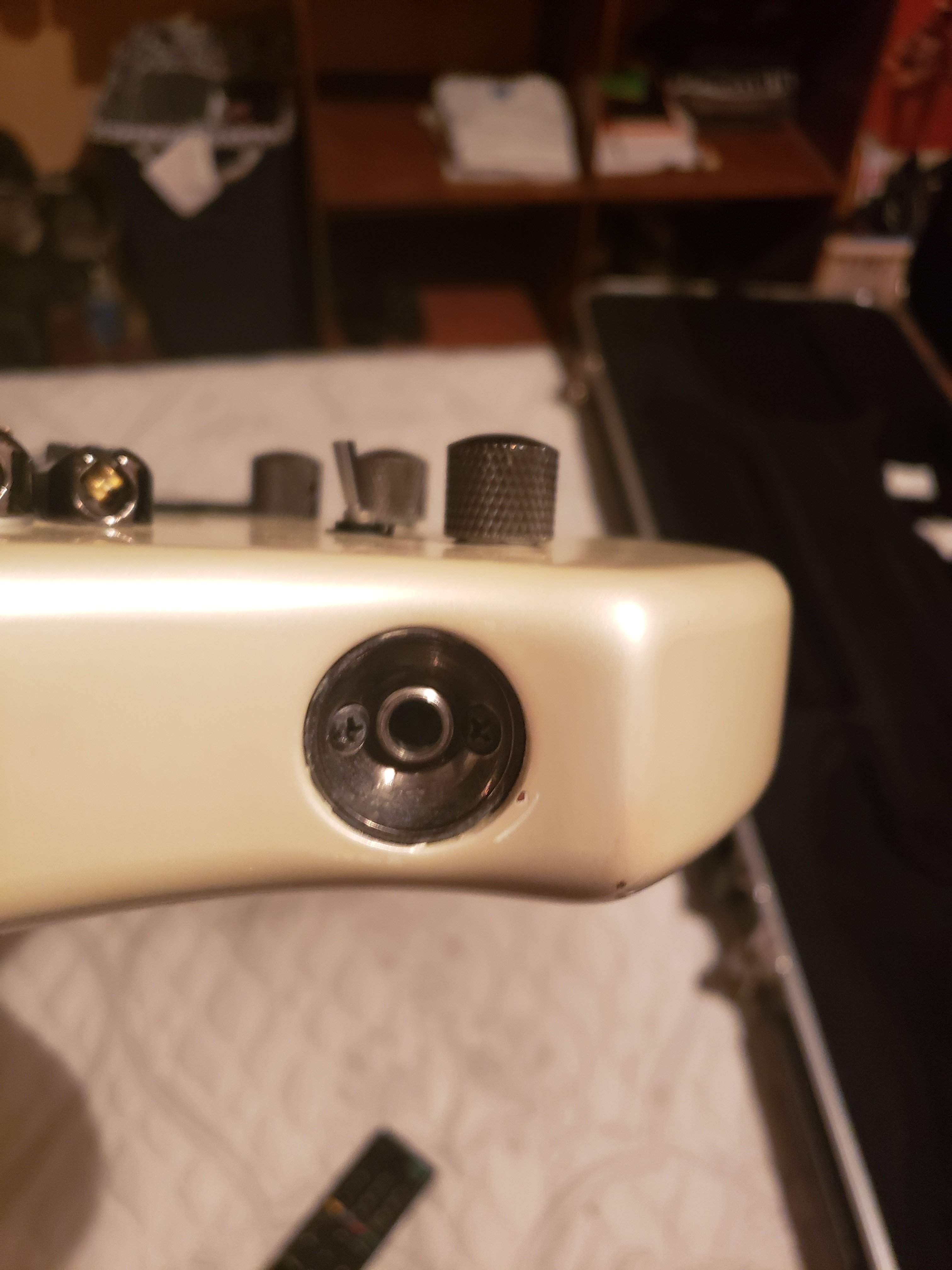

    I'm haven't been able to remove it, but here it is from the outside. Hope it helps

    20190602_230411.jpg 20190602_230416.jpg

    Matt Liebenau likes this.
  4. Any open frame jack should fit. I like Switchcraft whenever possible but there are other options. I’m guessing you have a preamp so you probably need a TRS or stereo jack. That’s why I was asking to see what’s inside the control cavity.

    Something like this is probably what is in there. Jack - Switchcraft, 1/4", Stereo 3-Conductor, double open circuit
