DIY Custom Bass Club

[bkim]

Most of my basses are DIY Frankensteined basses ... or at the very least modified basses ...

What is the neck pickup on this?



[Fender32]

Gutted the Stingray with the graphite neck didn't sound so good - that's possibly the most amazing looking bass I've seen yet!!

Do you lose much 'warmth' switching from wood to graphite like that?

Yes, absolutley all of it - and my EBMM 'Ray (with maple neck) didn't have anywhere near enough "warmth" to begin with, so the project was doomed to failure from the start . It did look killer though !

One day, I might have another go at building another 'Ray around this neck, but it'll have to have an alder (or other lightweight wood) body. Even a light ash body with thin lacquer might work, but the EB Rays have a thick gloss coat and I don't even know what wood they use (ash, basswood?), but it doesn't work for the kind of bass tone that I prefer.

Sorry!



[Mr M]

Used the fly guitar shape instead, which I prefer

Wow, that looks great. Congrats! Could you post more pictures of that bass?

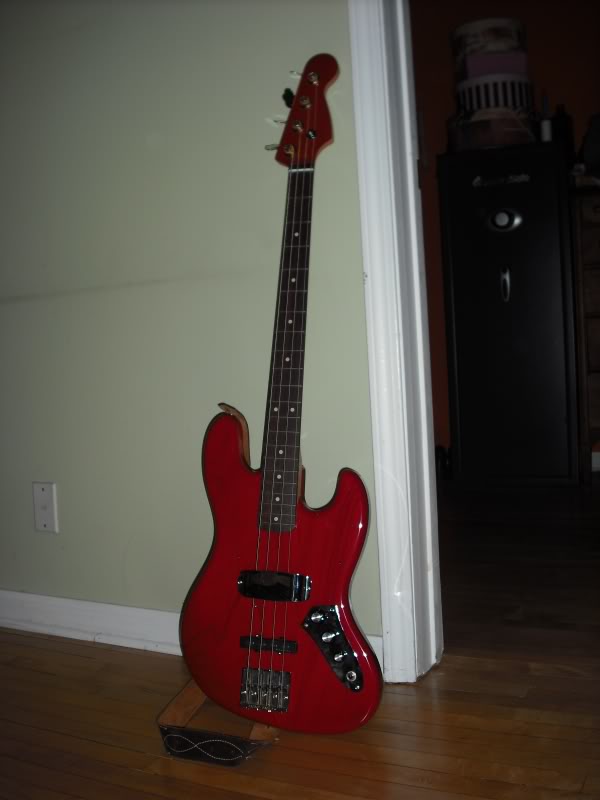

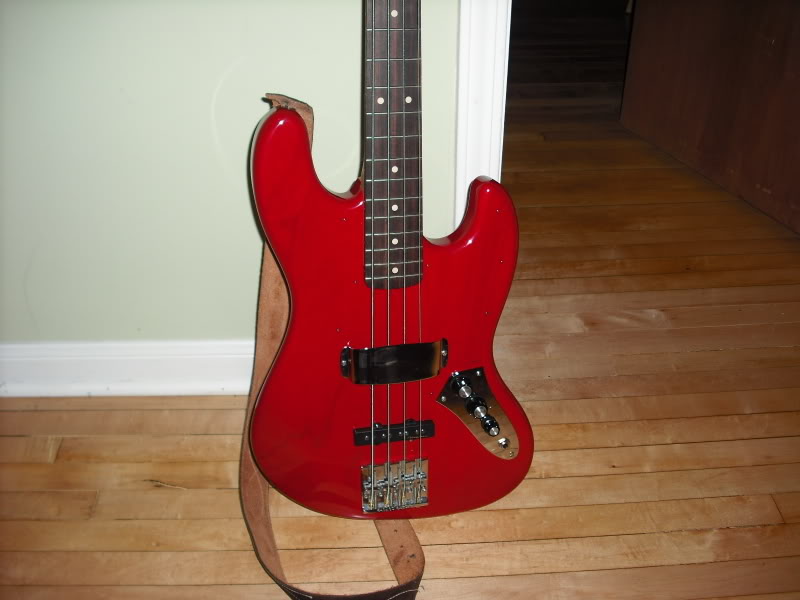

[Eilif]

-Allparts Swamp ash body
-Warmonth Maple/Rosewood P-bass neck
-Ultralight tuners
-Fender pickups: One noiseless, one MIM (the other noiseless just died)
-Auto shop paintjob for the trans-red and matching headstock
-Ric Knobs
-BadassII Bridge
-Push/pull pot for Series Paralell

It's a great playing/sounding bass. This is actually the second incarnation of this particular instrument. See more pics and the whole story here:
http://www.talkbass.com/forum/showthread.php?t=475402



[guylewis]

Neat, what bridge did you use?

Schaller 2000 series - very adjustable



[PilbaraBass]

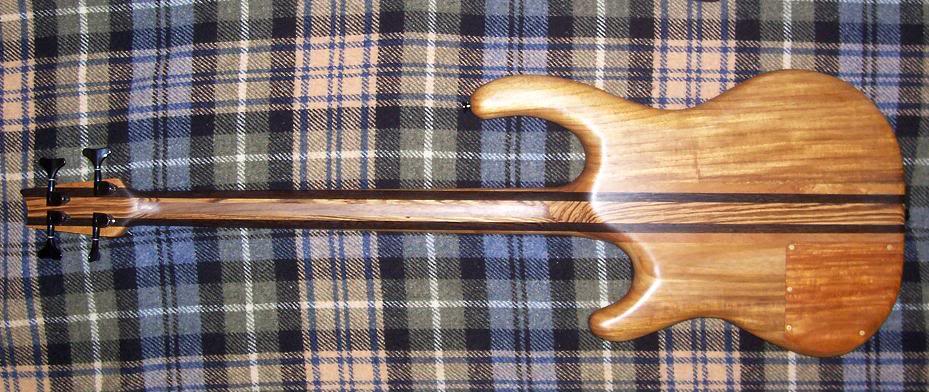

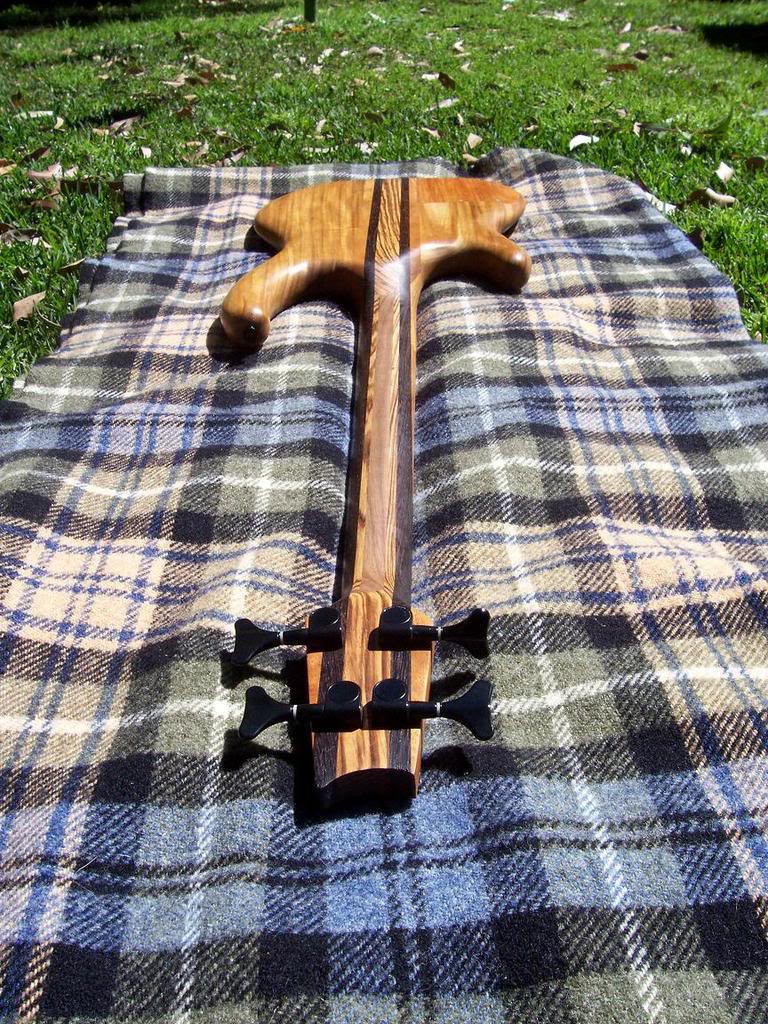

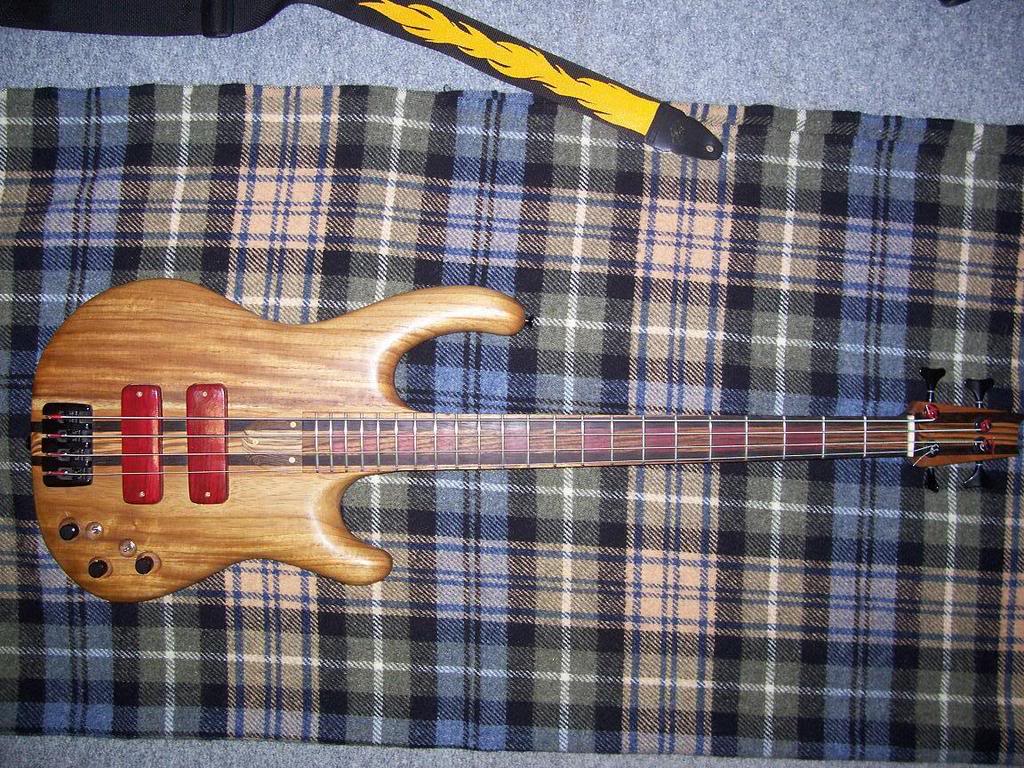

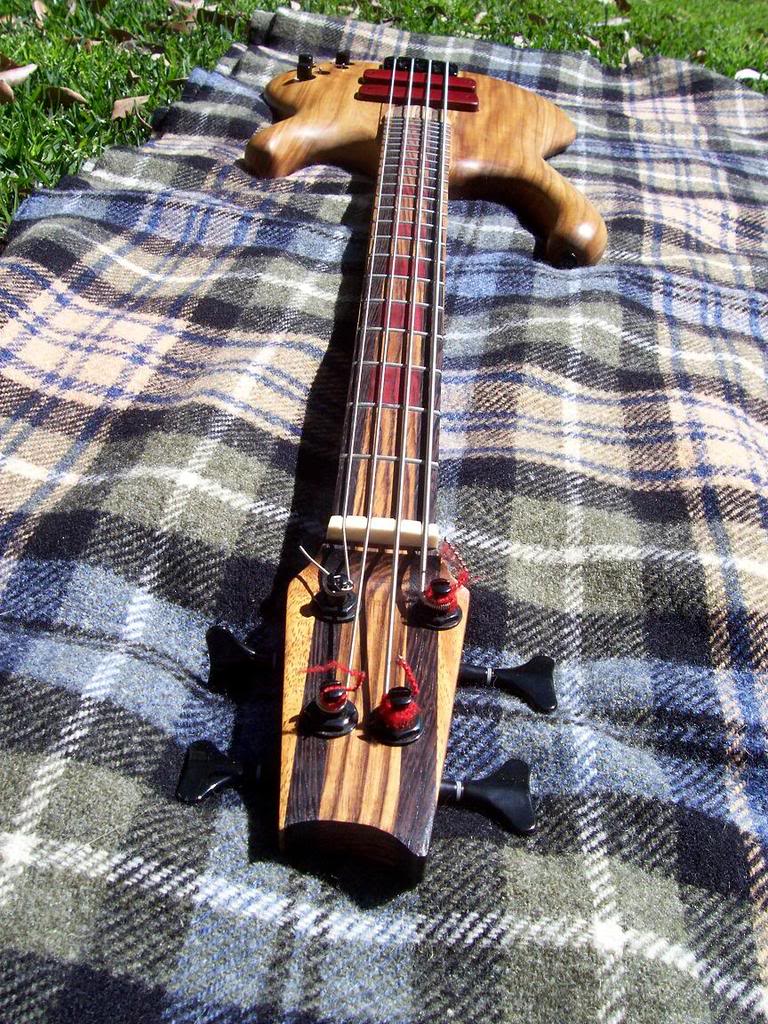

My newest DIY bass ...

you know what your problem is?

you make all these awesome basses and you don't send ANY my way



AWESOME!

I'd like to see a Jazz body 5-string with a MM pickup (IN the classic stingray position) with a series/single/parallel switch and a 3-band preamp.



[Hot Rats]

Here is my newest bass....I used an old 1988 Warmoth neck for this project. Very simple set up. All passive.V/V/T. A coil splitter is going to installed very soon though.



[Ric5]

What is the neck pickup on this?

The bridge pickup is a epiphone t-bird pickup. The neck pickup is a single coil pickup from a dean bass.



[synaesthesia]

I saw those strap extension pins on ebay a few years ago, can't find them anymore - do you have a source?



[black_labb]

nice to stumble on this thread. some great looking instruments.

heres my bass.



[Epocilyps]

So, I am thinking about creating a custom bass, even though I have a couple electric guitars( an epephone sg and a squire strat) the squire is crap, so I was going to build a bass from the strat. fixing the humbuckers, and reusing the neck. could this work does anyone think?



[bassnutj]

Here's just one of quite a few I've cobbled together.

Link Removed

That is gorgeous.
Can you give us the specs?



[mongo2]

That is gorgeous.
Can you give us the specs?

Thanks.

It'a a Warmoth Koa body with a fancy Koa top, a Warmoth neck of Bubinga with an Ebony fingerboard, Hipshot Ultralight tuners, Fender '62 RI bridge, EMG pickups and EQ.

It can be mounted on a NS EUB tripod stand so I can play it "upright" when I want.



[rs_worthington]

Ok, I'll join. This is mine, just finished it a week ago:

The specs:
Body: Explorer shaped Warmoth swamp ash clear-coated finish
Neck: V-shaped Warmoth (1-1/2" nut- J style) Bird's-eye maple with Bocote fretboard, medium-jumbo frets, Abalone dot inlays, Gotoh tuners
Bridge: Hipshot thru-body single-string bridges
Pickups: Lace alumnitone BassBars, passive
Pots: 250K V-V-T
All gold hardware

All Warmoth, except for the pickups, they're Lace Alumnitone BassBars.
I highly recommend them. www.lacemusic.com

Awesome tone, higher output than my USA Deluxe P-Bass and no distortion. Will never go back to active.



[kencasino]

GETTING CLOSE TO FINISHING THIS ONE!

Here is pic of the initial layout with components for last measurements and alignments. The body is ash which I distressed, and then veneered walnut burl over the top. Need to put final polish on it and install the ramp that I built out of red oak and walnut burl. my K logo will go on the ramp in fiddleback maple on the burl.



[kencasino]

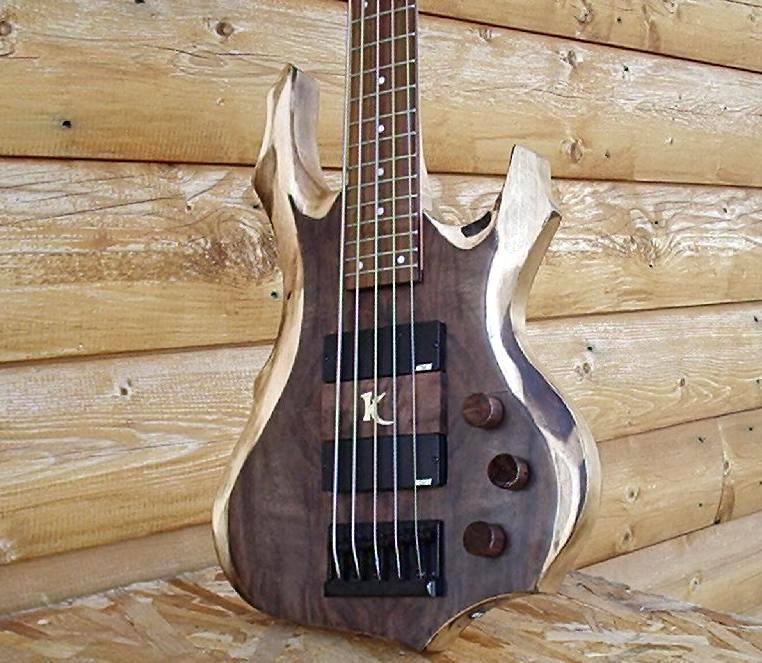

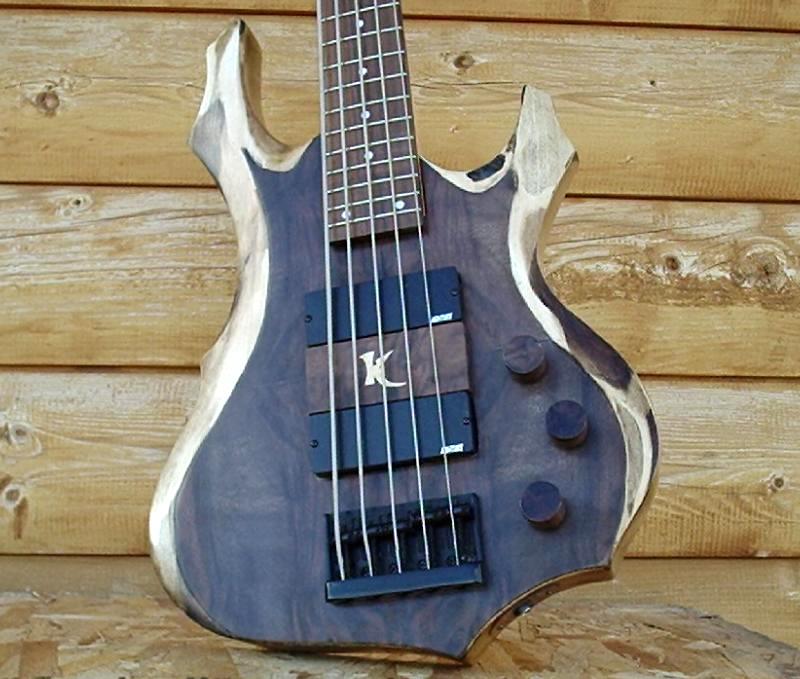

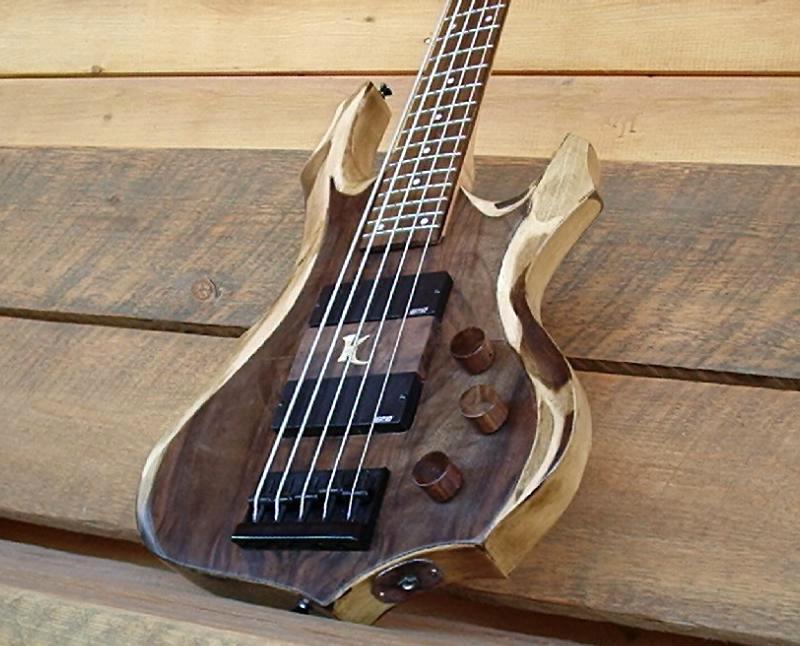

Well, Except for the nut which is on order, It is finally finished (two months) (a lot of sanding) (A couple of do-overs)



[kencasino]

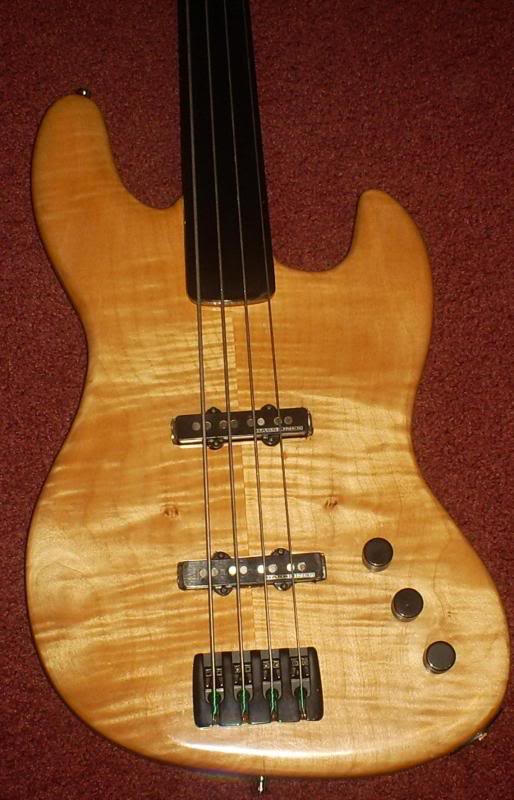

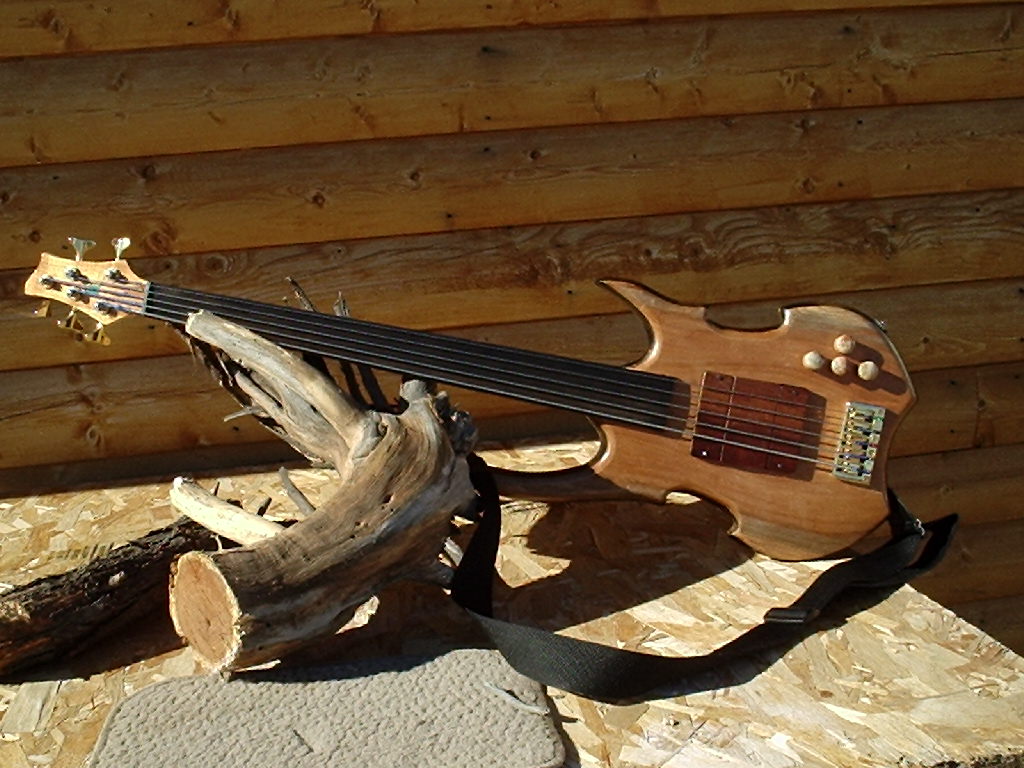

This is a bass I built using brazilian marupa body topped with guajuvira wood. The pickups are Fender Jazz. KNobs are made from Nevada agate. Sweetest sounding fretless that I have ever played, and also easy to play due to the side markers. more pics and description at [Invalid or Expired Link Removed]



[debassr]

Fender P-Special body, Allparts neck, Hipshot hardware, Fralin pups. It plays nice, but I find myself with the J-pup always off, so I'm probably going to pull it apart and rebuild it with a straight P body.
Invalid Link Removed

Now that's an awesome DIY rig!
If you rebuild it, drop a single Darkstar in the P pup spot and eliminate the J pup so I can buy it from you!



[rs_worthington]

Ok, I'll join. This is mine, just finished it a week ago:

The specs:
Body: Explorer shaped Warmoth swamp ash clear-coated finish
Neck: V-shaped Warmoth (1-1/2" nut- J style) Bird's-eye maple with Bocote fretboard, medium-jumbo frets, Abalone dot inlays, Gotoh tuners
Bridge: Hipshot thru-body single-string bridges
Pickups: Lace alumnitone BassBars, passive
Pots: 250K V-V-T
All gold hardware

All Warmoth, except for the pickups, they're Lace Alumnitone BassBars.
I highly recommend them. www.lacemusic.com

Awesome tone, higher output than my USA Deluxe P-Bass and no distortion. Will never go back to active.

UPDATE: Another Warmoth build, this time a T-bird body in apricot flake and a P-bass neck in all bird's-eye maple. Same hardware as above. I love it!



[RedsFan75]

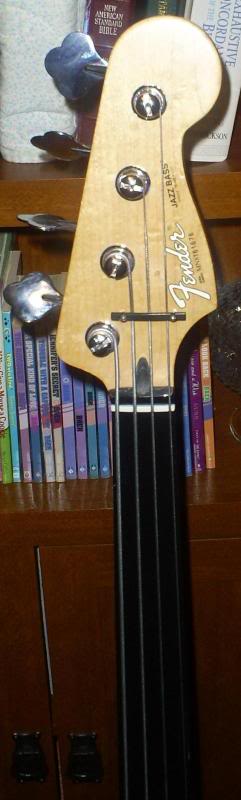

Here's mine, Mose Sparrow Body, Fender 'rescued' fretless neck, Seymour Duncan PU's.

Details on it all in the link in my sig.
