DIY Effect Makers (club?)

#281
I did find a good thread on the topic on ILF (sometimes TB doesn't notify me of replies).

I<3Fuzz - View topic - how i drill hole?

Thanks though homies,...purty sure I'mma head out and pick up a step bit and a spring loaded center punch. I can get stuff from Grainger since Huff has an account there (I'll shop around though). I need some precision screw drivers as well.

#282
warwick.hoy said:
Thanks though homies,...purty sure I'mma head out and pick up a step bit and a spring loaded center punch. I can get stuff from Grainger since Huff has an account there (I'll shop around though). I need some precision screw drivers as well.
Click to expand...

The Harbor Freight step bit and center punch are fine and probably the cheapest option. (Their screw drivers are pretty variable though, I wouldn't recommend buying a set online).

#283
UncleFluffy said:
The Harbor Freight step bit and center punch are fine and probably the cheapest option. (Their screw drivers are pretty variable though, I wouldn't recommend buying a set online).
Click to expand...

We have two HF stores here in Spookaloo,...so I went out and pick up the Step Bit and Center Punch. Then headed to Swear and Send-Back (Sears) and picked up a precision flathead. I normally don't like sets cause you wind up paying more and almost always get a few things you don't need or will never use (like with Kitchen Knives or Pots and Pans sets).

I also picked up a few deep sockets for my 1/4" ratchet. Seems like the most commonly used on the Jack/Pot/3pdt are 10mm, 13mm, 14mm. Needed the deeper sockets to accommodate shafts and switches. I was about to pick a metric combination wrench set (which I would actually use) but 3 sockets was cheaper. I forgot I already had a 10mil so I'mma take it back and try to find some measuring tools I need.

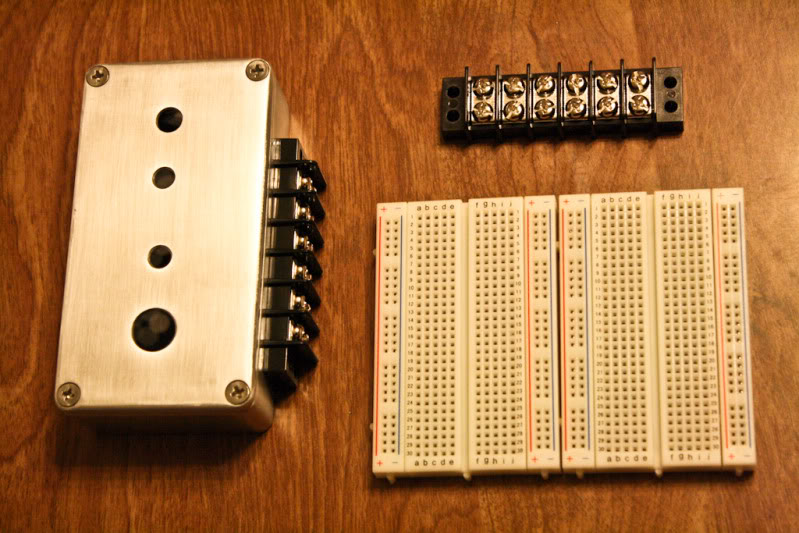

Anyway,...here is a mock up of my current project, which is a Beavis Board.



I feel like the holes are a little off center on the enclosure. I didn't drill pilot holes,...just center punched only. Also had to use insufficient measuring tools. Lesson learned. Still got a few more holes to drill so I can mount and wire the terminal strip.

Everything else will be mounted to a board (this is just my dinner table).

#284
warwick.hoy said:
I feel like the holes are a little off center on the enclosure. I didn't drill pilot holes,...just center punched only. Also had to use insufficient measuring tools. Lesson learned. Still got a few more holes to drill so I can mount and wire the terminal strip.
.
Click to expand...

It looks pretty good from here.

If you can't find the measuring tools you need locally, you might try Little Machine Shop. They're more for the small-scale machinist but some of their stuff may be useful to you.

#285
UncleFluffy said:
It looks pretty good from here.

If you can't find the measuring tools you need locally, you might try Little Machine Shop. They're more for the small-scale machinist but some of their stuff may be useful to you.
Click to expand...

Thanks for the tip. For some reason I wanted a small T-Square as opposed to a a combo square. I found one for cheap at an art supply store. I may go back out and pick up a small combo square as well (maybe the 45 degree will actually come in handy now that I think about it).

Aside from a Drill Press, a powder coating and a silk screen setup I think I'm set on tools. I even got a free shop space lined up so I can get off the dinning room table. :D

#286
warwick.hoy said:
Aside from a Drill Press, a powder coating and a silk screen setup I think I'm set on tools. I even got a free shop space lined up so I can get off the dinning room table. :D
Click to expand...

Drill press, check. Powder coat rig, check (and just cool). Silk screen? Nah, unless you're doing a lot of the same pedal I wouldn't worry about it.

#289

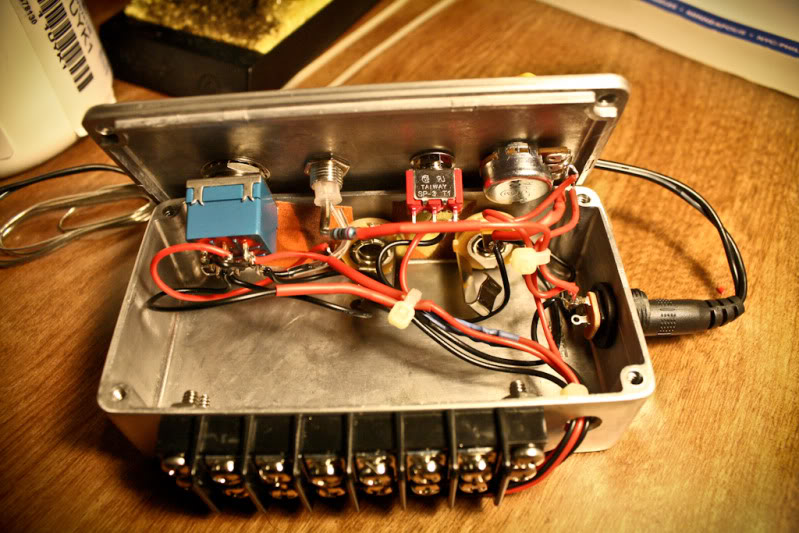

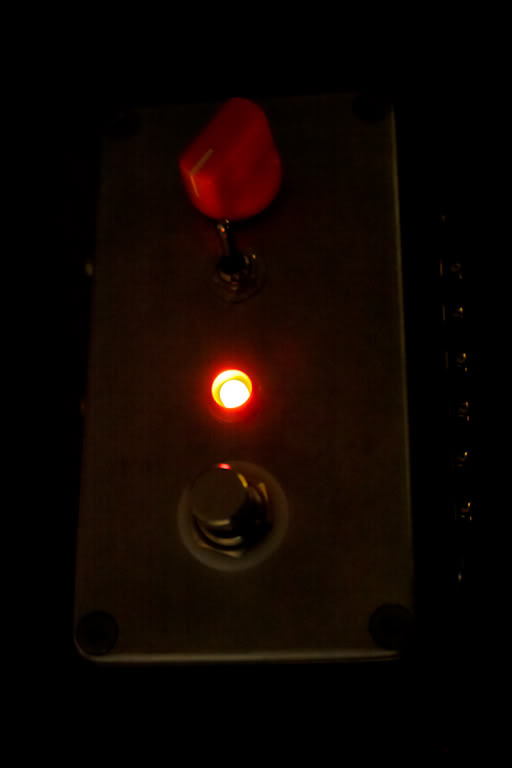

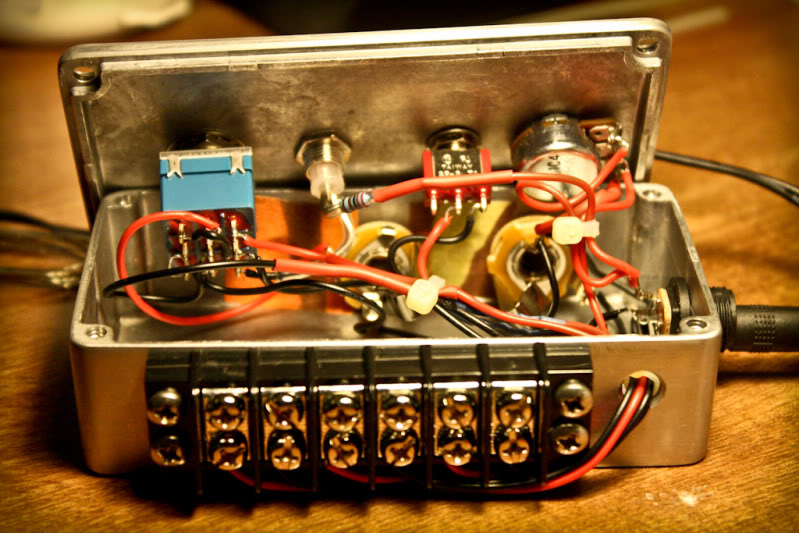

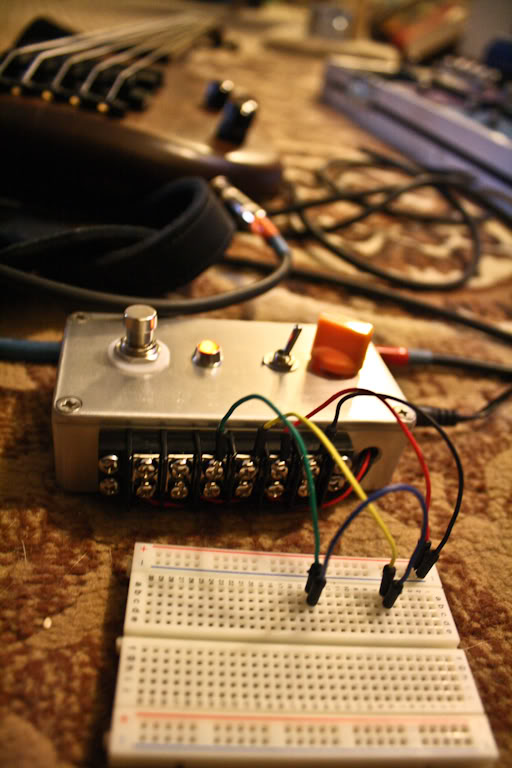

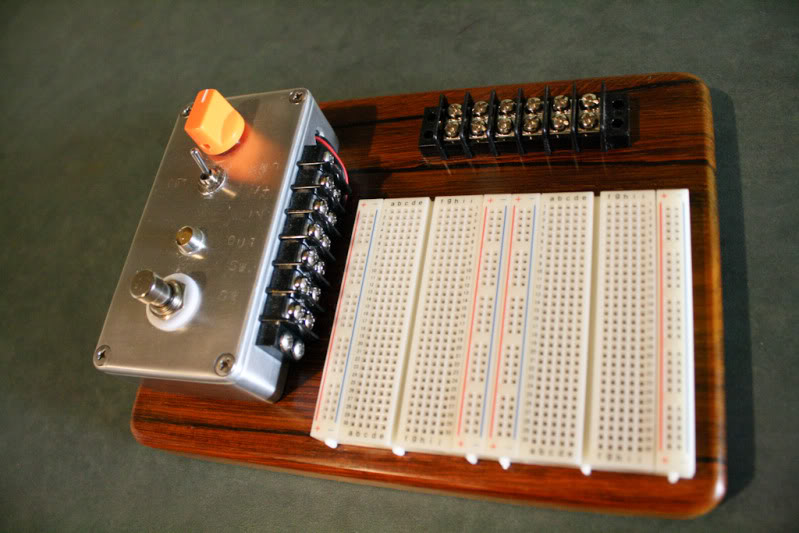

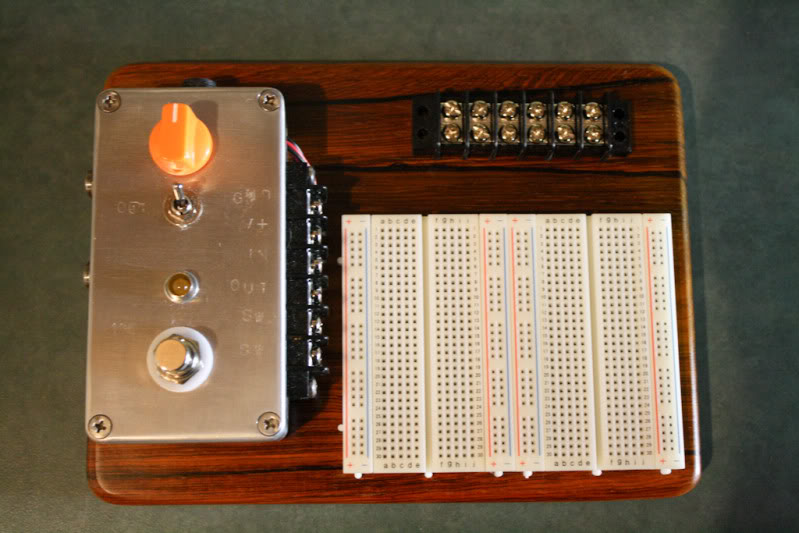

Blarp:



Almost there,...just gotta get everything mounted up.

Before I figured out how to power the board and get a signal through the engaged bypass I made a quickee mouth-breathing iPod with unrehearsed BSing.

YouTube - Beavis Board

I'm getting a signal to my amp with the breakout box engaged and disengaged,...Hooray for me!!! Just gotta order up some components and start tinkering!!!!

:hyper:
