Does this P/J V/T/V/T schematic work?

Discussion in 'Pickups & Electronics [BG]' started by ironflippy, Aug 11, 2007.

  1. ironflippy


    Sep 18, 2006

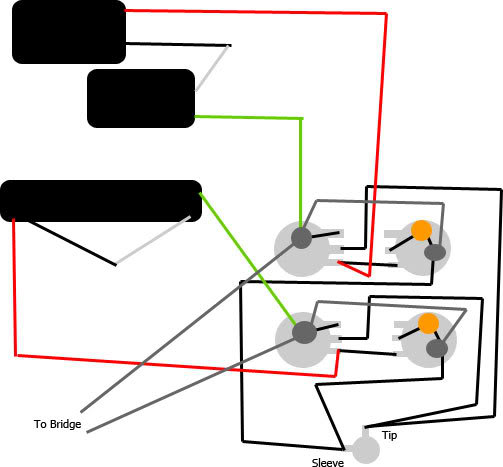

    I've settled on a V/T/V/T setup on my P/J. I couldn't find any diagrams with this setup so I tried figuring it out on my own. I'm using a Dimarzio Split P in the middle and a Dimarzio Ultra Jazz in the bridge. I have 500k concentric pots and .05mfd caps.


    Should I be using the same value caps on both pups? I suppose that's more of a matter of taste, but what's your input? I'm looking for a big, modern tone.

    Thanks in advance!
  2. ack

    ack Why Can't We All Get Along?

    Nov 19, 2006
    Somewhere near Raleigh
  3. ironflippy


    Sep 18, 2006
    Thanks a lot, that was very helpful!
