Epifani DIST cabs impedance switch

[sokolasty]

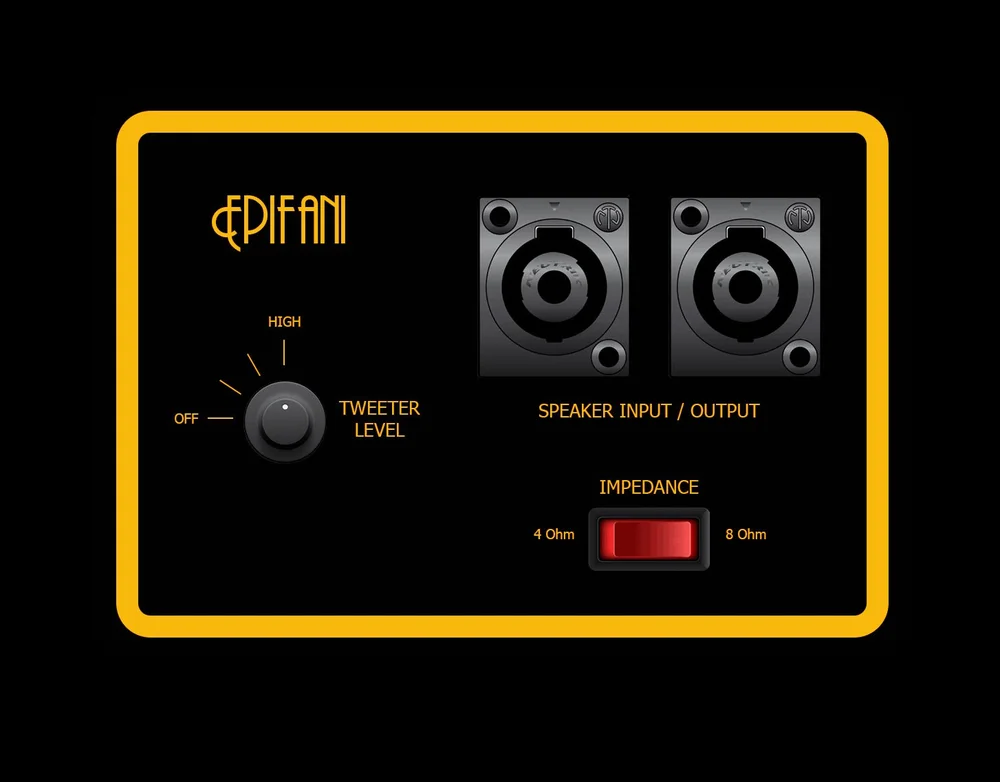

For curiosity sake: how does the impedance switching in Epi DIST series work?

[Invalid or Expired Link Removed]



[bottomzone]

[Invalid or Expired Link Removed]



[sokolasty]

I am to curious to take this as an answer



[ardgedee]

[Invalid or Expired Link Removed]

I don't think googling a product page the OP had already found on their own is answering OP's question.



[JimChjones]

For curiosity sake: how does the impedance switching in Epi DIST series work?

The link mentions dual voice coil drivers, so presumably switches between different impedance voice coils, I cynically think about sensitivity and wonder if you actually get any more volume running an s/s amp into the 4 ohm set instead of the 8 ohm ones. The epifani web page on;y gives a single sensitivity figure, but it would be interesting to know whether the sensitivity is in fact identical for the two configurations.



[sokolasty]

This was my guess too. I hope someone looked inside



[abarson]

The Hartke HyDrive HD112 also employs a dual voice coil that allows for 4 or 8 ohms selection.
If I recall correctly, the first generation Accugroove cabinets (not what's offered today) also had impedance selection, and it was generally flamed because the company had a clumsy explanation as to how it works.



[detracti]

You would either have to have two coils or have a single coil with a tap half-way, so for 4-ohm, you're just using half of the 8-ohm coil.



[agedhorse]

You would either have to have two coils or have a single coil with a tap half-way, so for 4-ohm, you're just using half of the 8-ohm coil.

which would significantly impact sensitivity on one position or the other.



[lug]

The only way to get this setup to work in the way customers would envision is to add some oil from a snake.
