Fat Freddy's Special K

#124
Unfortunately, technical discussions among engineers frequently end with quotations from Monty Python. We can't help it. Our obsessive mental concentration with details reveals contradictions, which devolves into silliness. Most engineers have a really good sense of humor. To each other. Non-engineers think they are silly.

  • Like
Reactions: Max Bogosity, SRAC76, RodRy and 12 others
#128
Fat Freddy said:
I said FARCE.....not argument....

Arguments are down the hall....:rolleyes:
Click to expand...
The room just before it gives everyone matching jackets. :thumbsup:




  • Like
Reactions: SRAC76, osv, Beej and 1 other person
#130

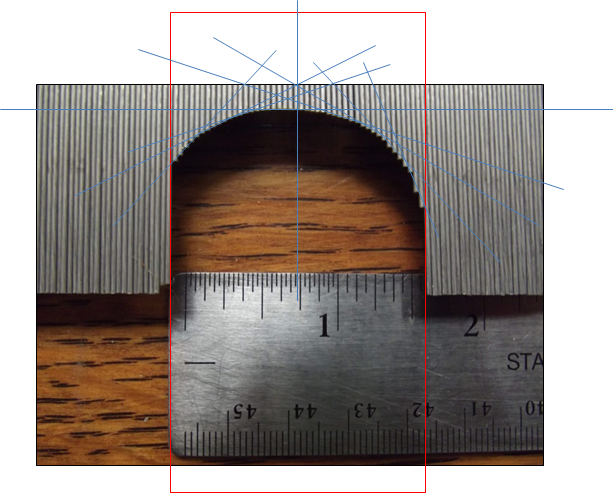

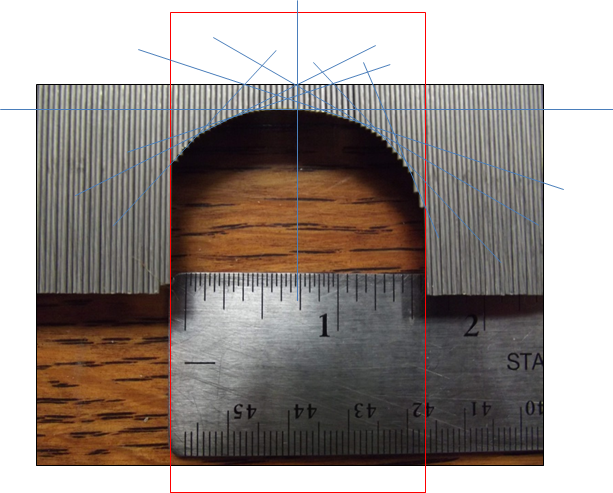

Getting ready to shape the neck. I had @Fat Freddy use a pin template to measure the profile of the Maruszczyk neck at the 1st and 12th frets (I had meant to do this when I was working on it but forgot) As you can see it's got an assymetrical profile which makes figuring out the facets interesting



I decided to put the 2.5 deg neck angle into the floor of the neck pocket rather than the neck so as to avoid problems with the Bruce Bars.

  • Like
Reactions: Reedt2000, /\/\3phist0, RodRy and 6 others
#131
Jon Clegg said:
Getting ready to shape the neck. I had @Fat Freddy use a pin template to measure the profile of the Maruszczyk neck at the 1st and 12th frets (I had meant to do this when I was working on it but forgot) As you can see it's got an assymetrical profile which makes figuring out the facets interesting

View attachment 3669091
View attachment 3669092
I decided to put the 2.5 deg neck angle into the floor of the neck pocket rather than the neck so as to avoid problems with the Bruce Bars.
Click to expand...
Yep!......Absolutely!.....Wot???......:cautious:

  • Like
Reactions: /\/\3phist0 and Beej
#132
Jon Clegg said:
Getting ready to shape the neck. I had @Fat Freddy use a pin template to measure the profile of the Maruszczyk neck at the 1st and 12th frets (I had meant to do this when I was working on it but forgot) As you can see it's got an assymetrical profile which makes figuring out the facets interesting

View attachment 3669091
View attachment 3669092
I decided to put the 2.5 deg neck angle into the floor of the neck pocket rather than the neck so as to avoid problems with the Bruce Bars.
Click to expand...
Watching an learning! Thanks for sharing

  • Like
Reactions: Beej and Fat Freddy
#133

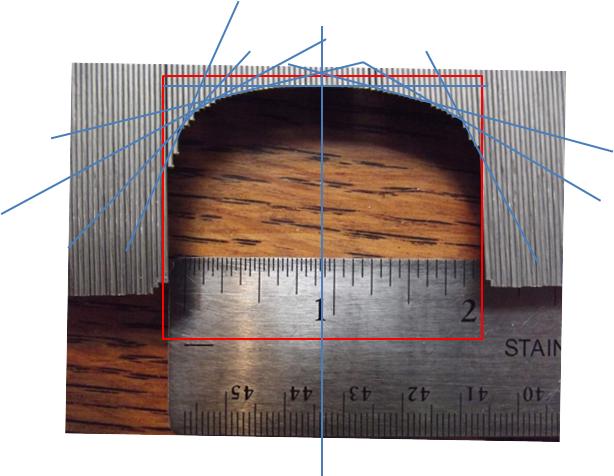

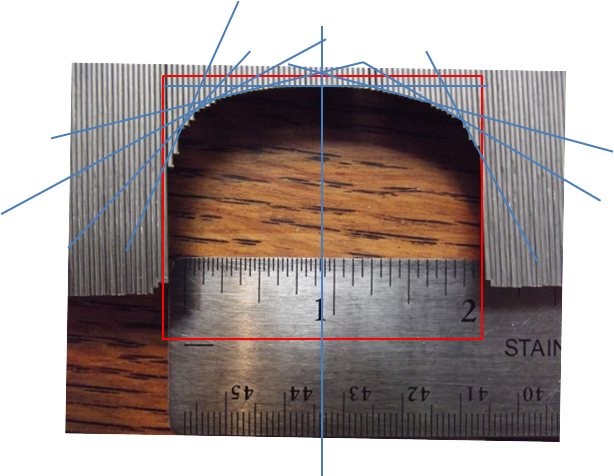

I typically draw up 7 facets to shape a neck and usually end up cutting 5. The last 2 usually start to feel like diminishing returns. the first set of 3 will look like this and will establish much of the shape of the neck:

I'll mark these points on the blank at the 1st and 12th frets and draw lines between the corresponding vertices on the neck to start establishing the shape.

  • Like
Reactions: Gilmourisgod, RodRy, Freekmagnet and 6 others
#134
Jon Clegg said:
I typically draw up 7 facets to shape a neck and usually end up cutting 5. The last 2 usually start to feel like diminishing returns. the first set of 3 will look like this and will establish much of the shape of the neck:
View attachment 3670633
I'll mark these points on the blank at the 1st and 12th frets and draw lines between the corresponding vertices on the neck to start establishing the shape.
Click to expand...
Ok....the fog lifts....
Thanks Jon...:thumbsup:
