New to the forum! I bought an American Elite Precision loaded body from Stratosphere and got a great Warmoth neck for it. I think this was an early version of the active/passive switching where the switch is located between the tone pots - not at the bottom. Also, it has no tone control when in passive mode, so, it's kind of "limp mode" for if your batteries go dead. I would like to have tone control in passive mode so the question is: Can it be rewired? Do I need a different preamp? Any other suggestions? Thx!
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Fender American Elite Precision Tone Pot Options
- Thread starter Economides
- Start date
You can add a passive tone control yourself. You'll need to drill for another pot, or swap one of the current pots to a stacked pot. But there's definitely no reason to replace the preamp or do anything else drastic.
You'll use the same basic circuit - a pot in series with a cap between hot and ground. The same exact thing you'd use as a tone control on a passive bass. There are a couple places you can add it in order to get different functionality.
If you want it to be in the circuit all the time (regardless of if you're in active or passive mode) and you want the pot to load the pickups (which will warm up the tone all the time - regardless of if you're in passive or active mode, and regardless of the tone control's position), you can tap in to the output from the blend control. Use typical passive bass values, i.e. a 250k or 500k pot and rougly .047uF cap.
If you want it to be in the circuit all the time but not load the pots, put it directly on the output wire to the jack. Use typical active pickup component values, i.e. 25k or 50k pot and .1uF cap.
If you want it to load the pickups and only be part of the circuit in passive mode, find the terminals on the active/passive switch and look for a pair that are bridged together - that'll be the terminals that are selected in passive mode. Connect the pot to the jumper between those terminals. Use typical passive values, i.e. 250k or 500k pot and .047uF cap.
This is one of my favorite mods on basses with active EQ preamps. If I want the bass to have a passive-like tone, even when in active mode, I use the first option. If I want the bass to "sound active" I use the second option. I generally don't use the third option much. Sometimes I'll use a tiny trim pot, and use it to set a baseline tone, then tuck it inside the cavity as a set-and-forget way to trim the tone of the bass.
You'll use the same basic circuit - a pot in series with a cap between hot and ground. The same exact thing you'd use as a tone control on a passive bass. There are a couple places you can add it in order to get different functionality.
If you want it to be in the circuit all the time (regardless of if you're in active or passive mode) and you want the pot to load the pickups (which will warm up the tone all the time - regardless of if you're in passive or active mode, and regardless of the tone control's position), you can tap in to the output from the blend control. Use typical passive bass values, i.e. a 250k or 500k pot and rougly .047uF cap.
If you want it to be in the circuit all the time but not load the pots, put it directly on the output wire to the jack. Use typical active pickup component values, i.e. 25k or 50k pot and .1uF cap.
If you want it to load the pickups and only be part of the circuit in passive mode, find the terminals on the active/passive switch and look for a pair that are bridged together - that'll be the terminals that are selected in passive mode. Connect the pot to the jumper between those terminals. Use typical passive values, i.e. 250k or 500k pot and .047uF cap.
This is one of my favorite mods on basses with active EQ preamps. If I want the bass to have a passive-like tone, even when in active mode, I use the first option. If I want the bass to "sound active" I use the second option. I generally don't use the third option much. Sometimes I'll use a tiny trim pot, and use it to set a baseline tone, then tuck it inside the cavity as a set-and-forget way to trim the tone of the bass.
@dwizum: Wow! Fantastic answer. I appreciate your time and knowledge! I do like the first option best so I'll get another stacked tone pot and try it out. I didn't mention that my "early version Elite" came with only one stacked pot, where the later versions had two, and I always wondered how much difference there was between the versions, and how to upgrade. Looks like you told me! I might need some help with the wiring - I can solder, but I'm not too good at understanding what everything does. Schematics give me a headache.
If by the bottom location, you mean the last pot that's out past the jack, that looks like the easiest to swap.

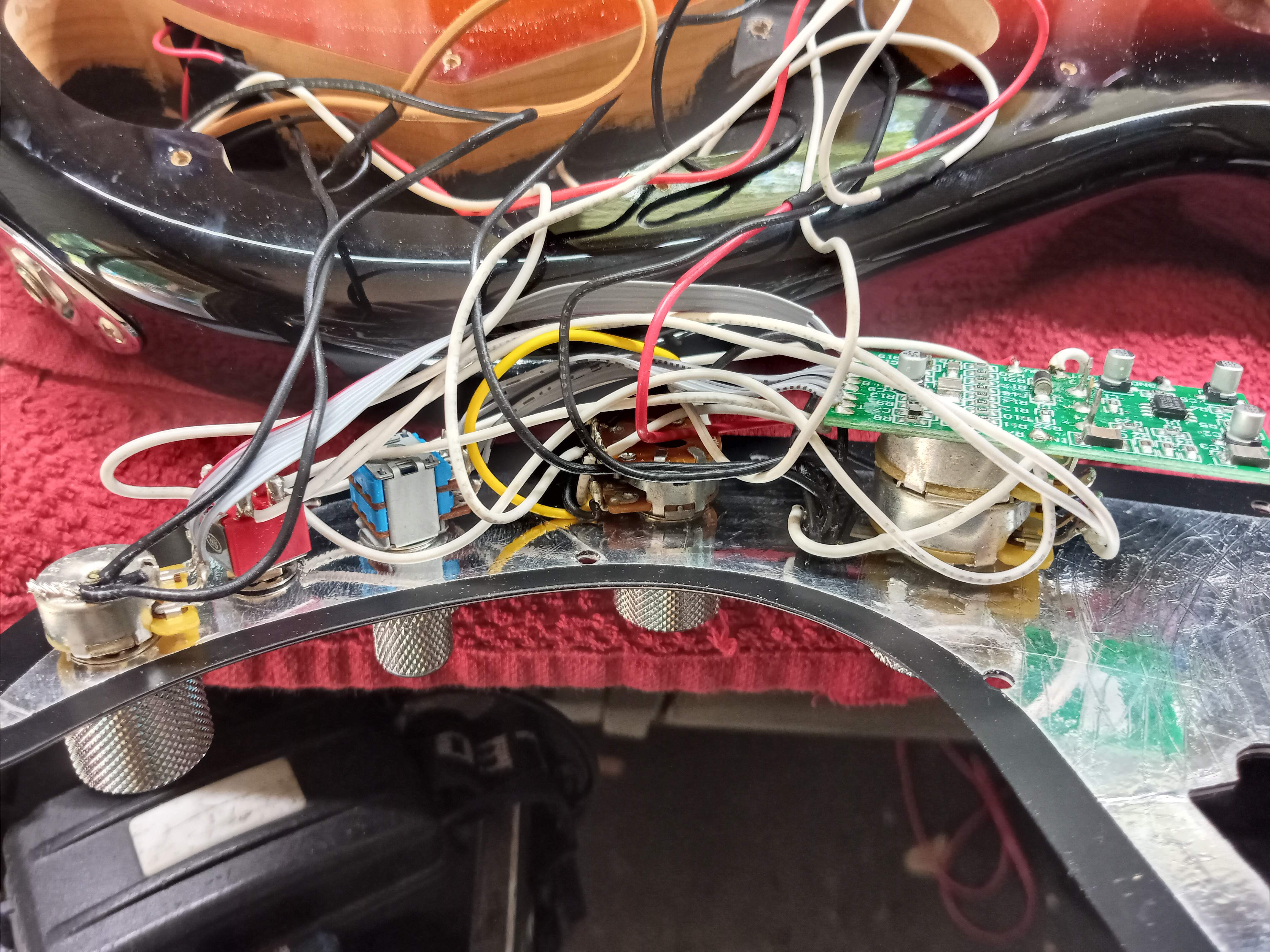

The blend pot could be the first or second pot from the other direction, hard to tell in those photos. It looks like both of those are 2 gang pots. Whichever of those is the blend pot will likely be wired criss-cross like a normal passive blend pot:
The output may be from the bottom left or the top right, but there will be a short jumper between them either way. That's where you want to tap in for your tone control. Run a wire from either of those terminals to your new pot, as a signal lead, and then wire the tone pot as usual (i.e. signal wire to the middle lug, cap from one end lug to ground).
The blend pot could be the first or second pot from the other direction, hard to tell in those photos. It looks like both of those are 2 gang pots. Whichever of those is the blend pot will likely be wired criss-cross like a normal passive blend pot:
The output may be from the bottom left or the top right, but there will be a short jumper between them either way. That's where you want to tap in for your tone control. Run a wire from either of those terminals to your new pot, as a signal lead, and then wire the tone pot as usual (i.e. signal wire to the middle lug, cap from one end lug to ground).
