Gibson this time

[Tim Rinkerman]

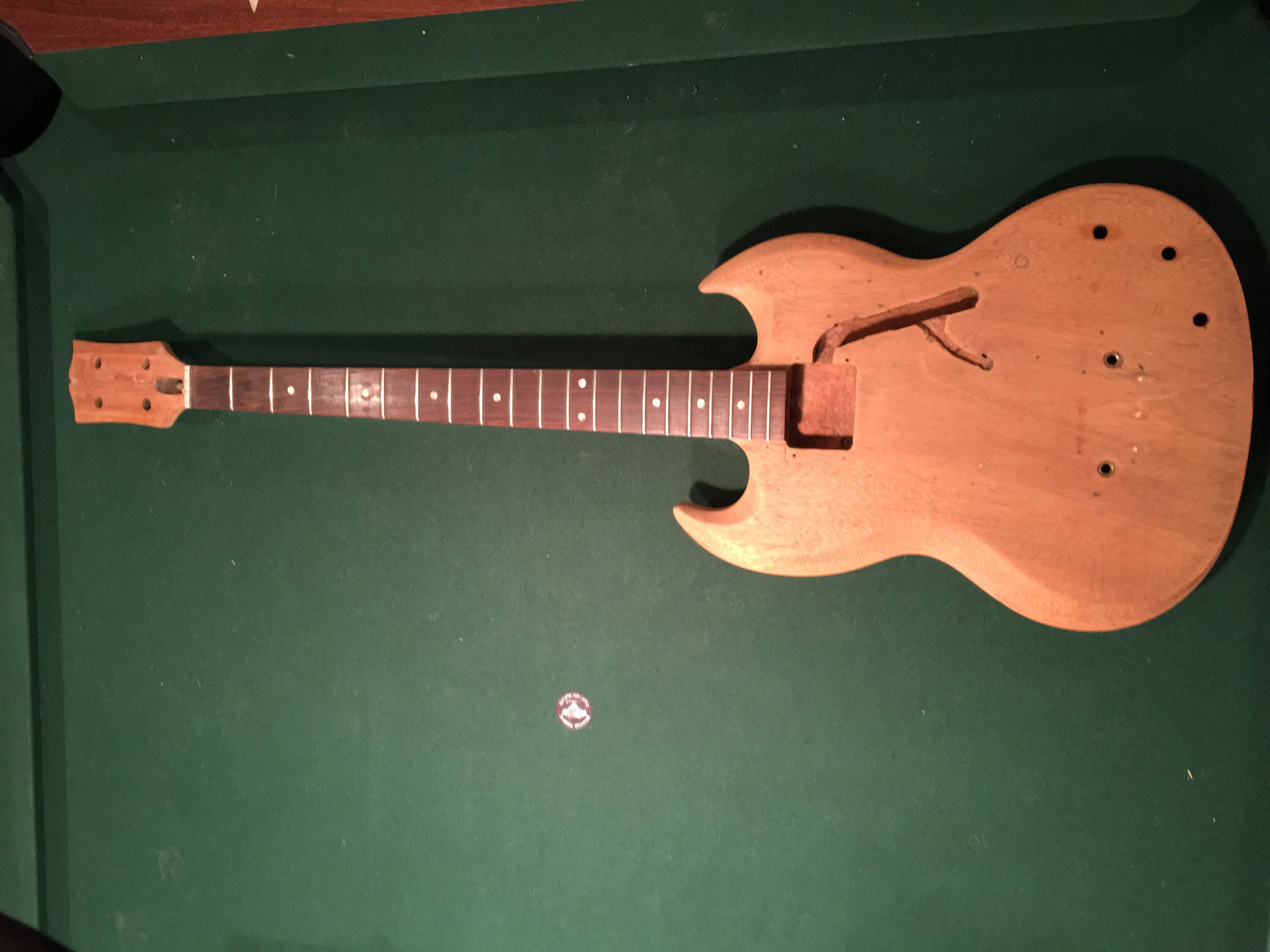

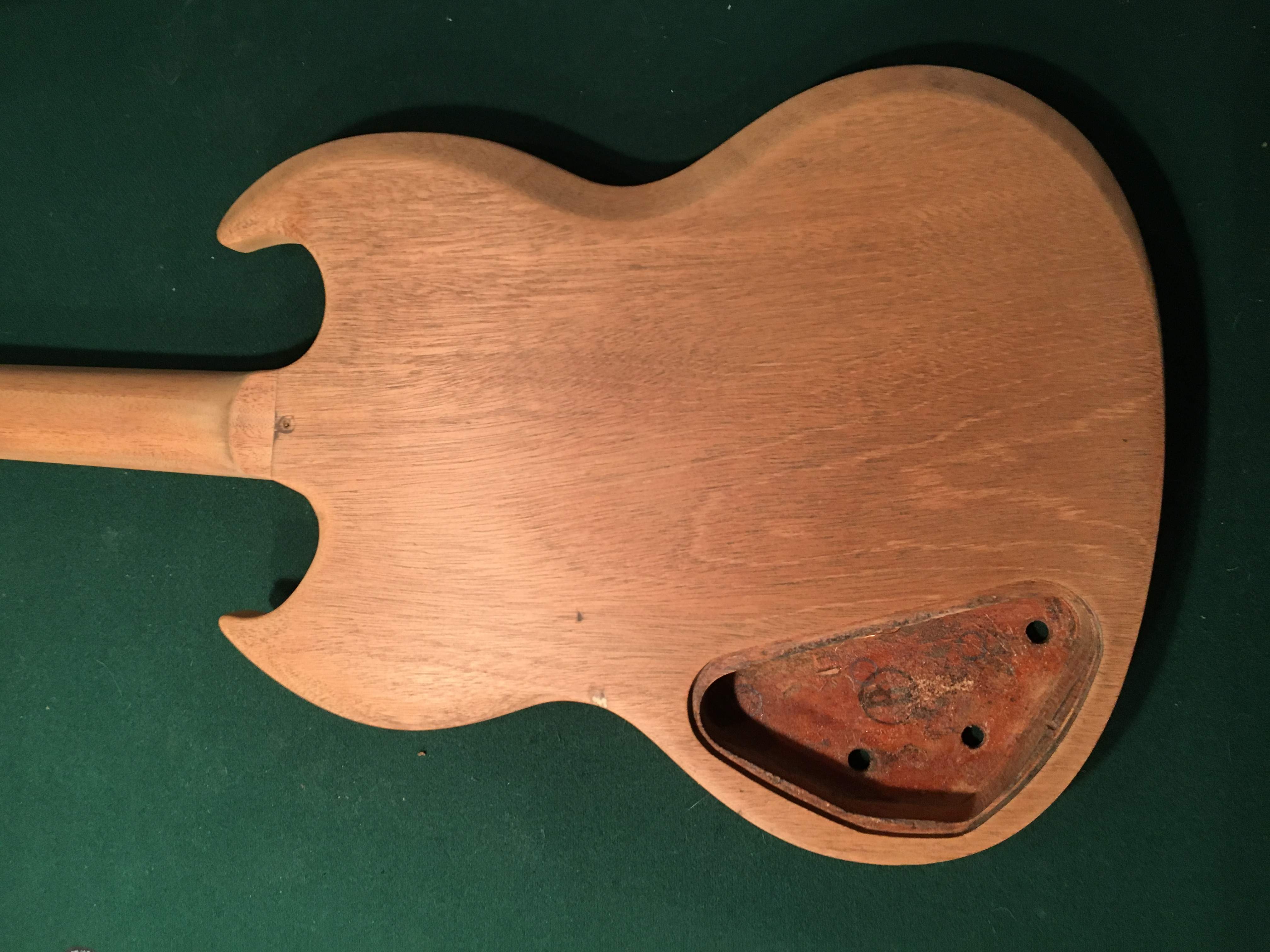

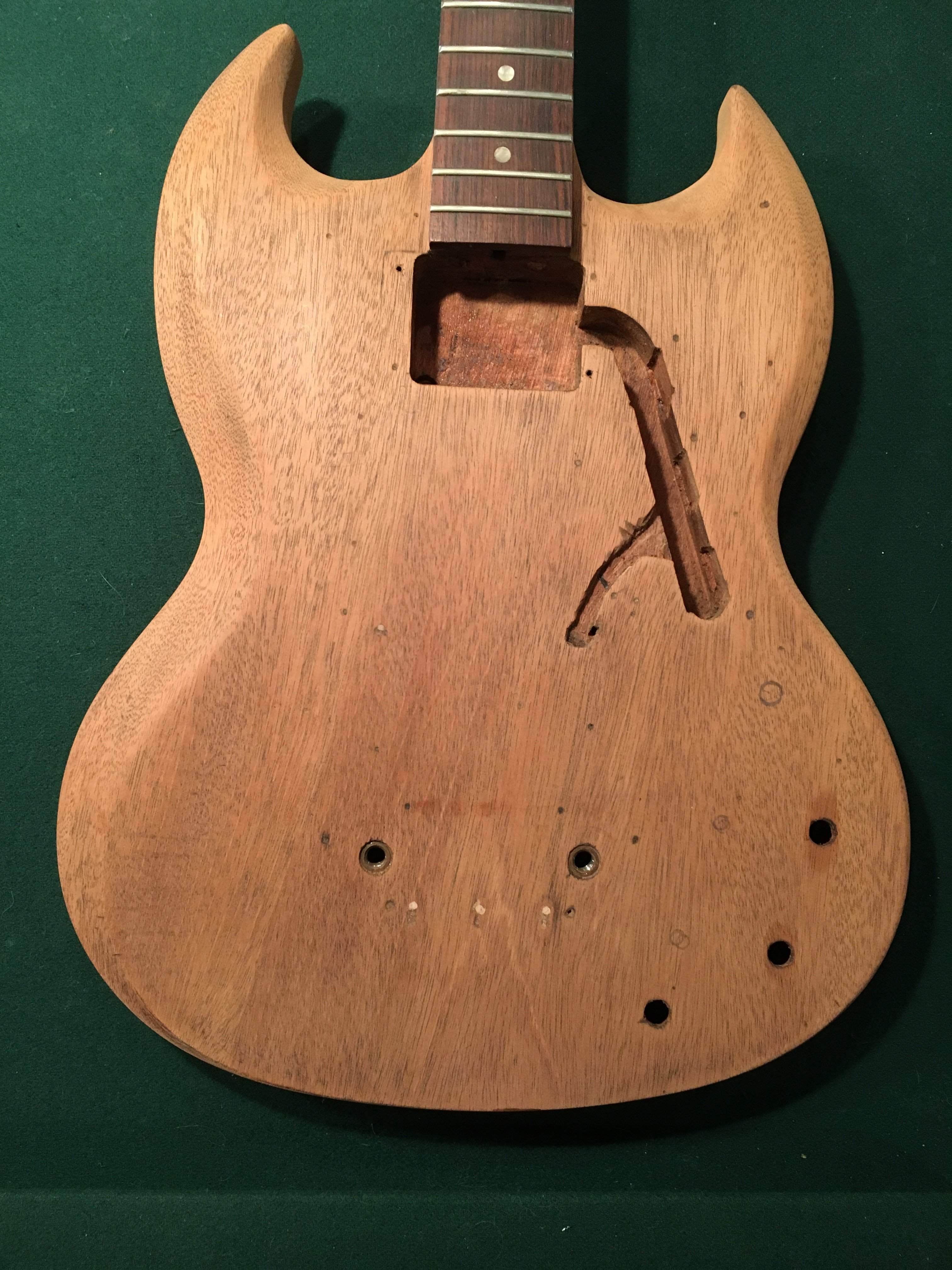

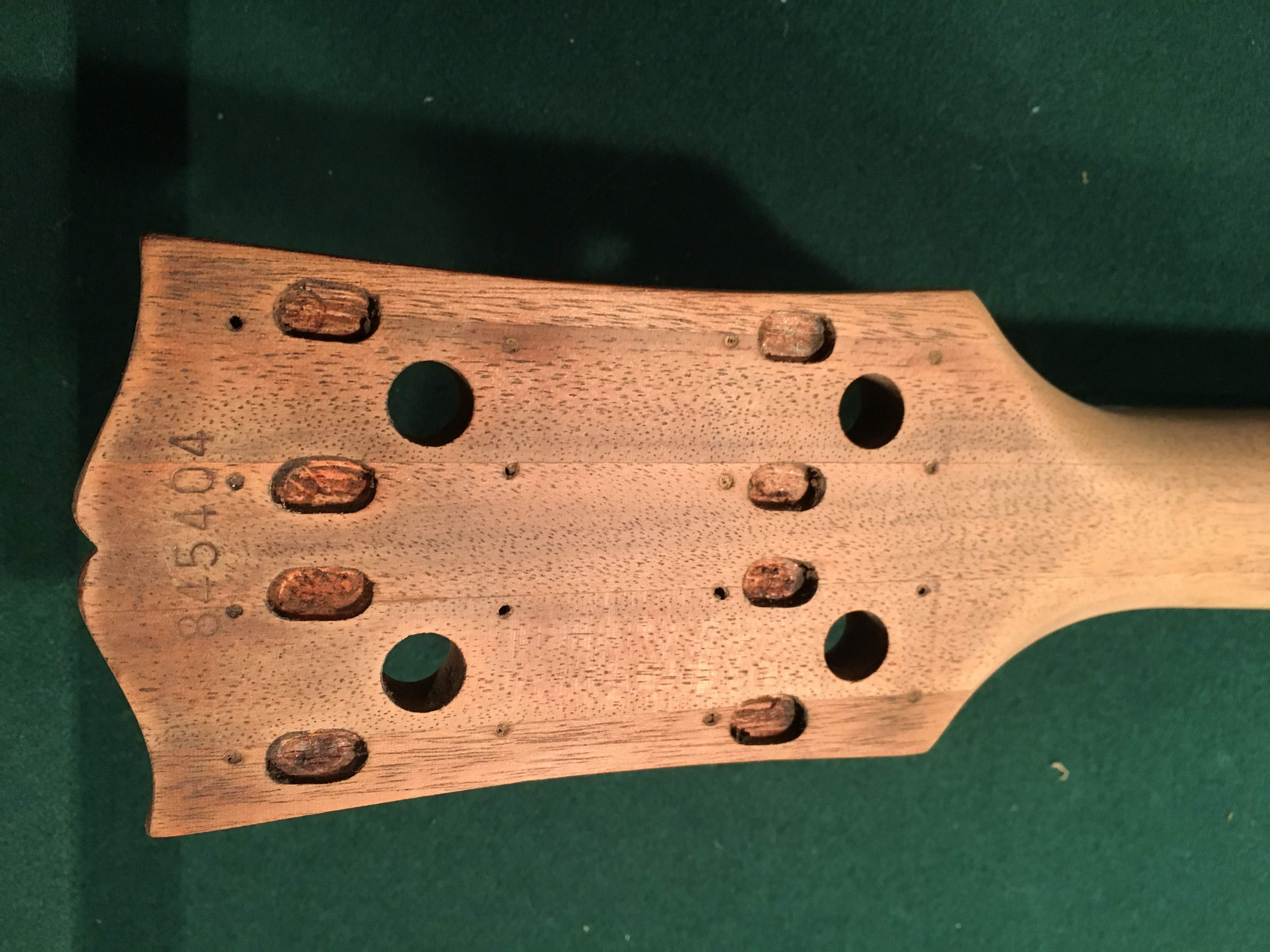

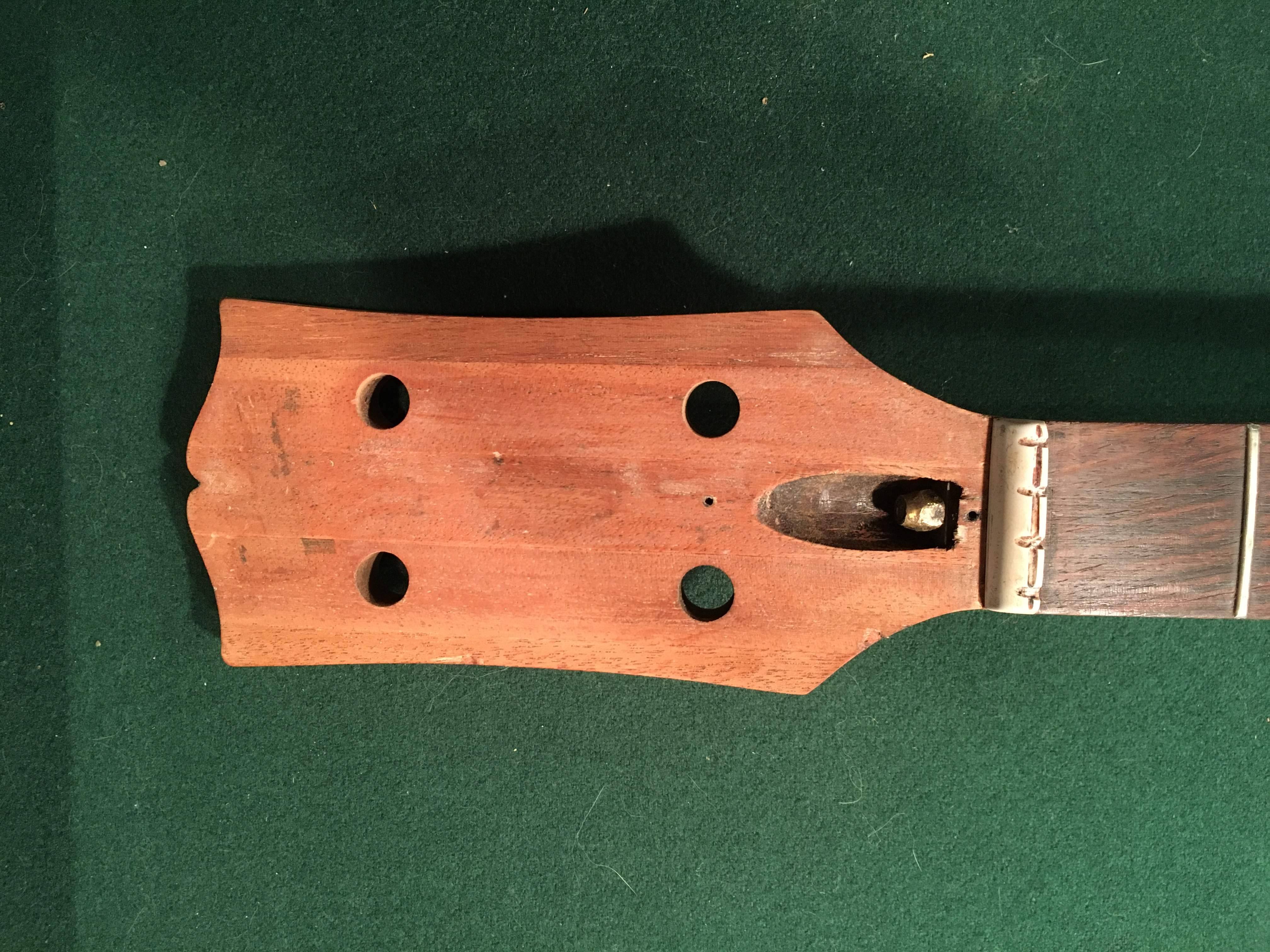

Hi gang...I'm doing another "resto-mod" for a friend of mine. A late 60's EBO, that will be reincarnated as an EB-3...it was in a poorly refinished state...



[Tim Rinkerman]

Got some parts...



[Tim Rinkerman]

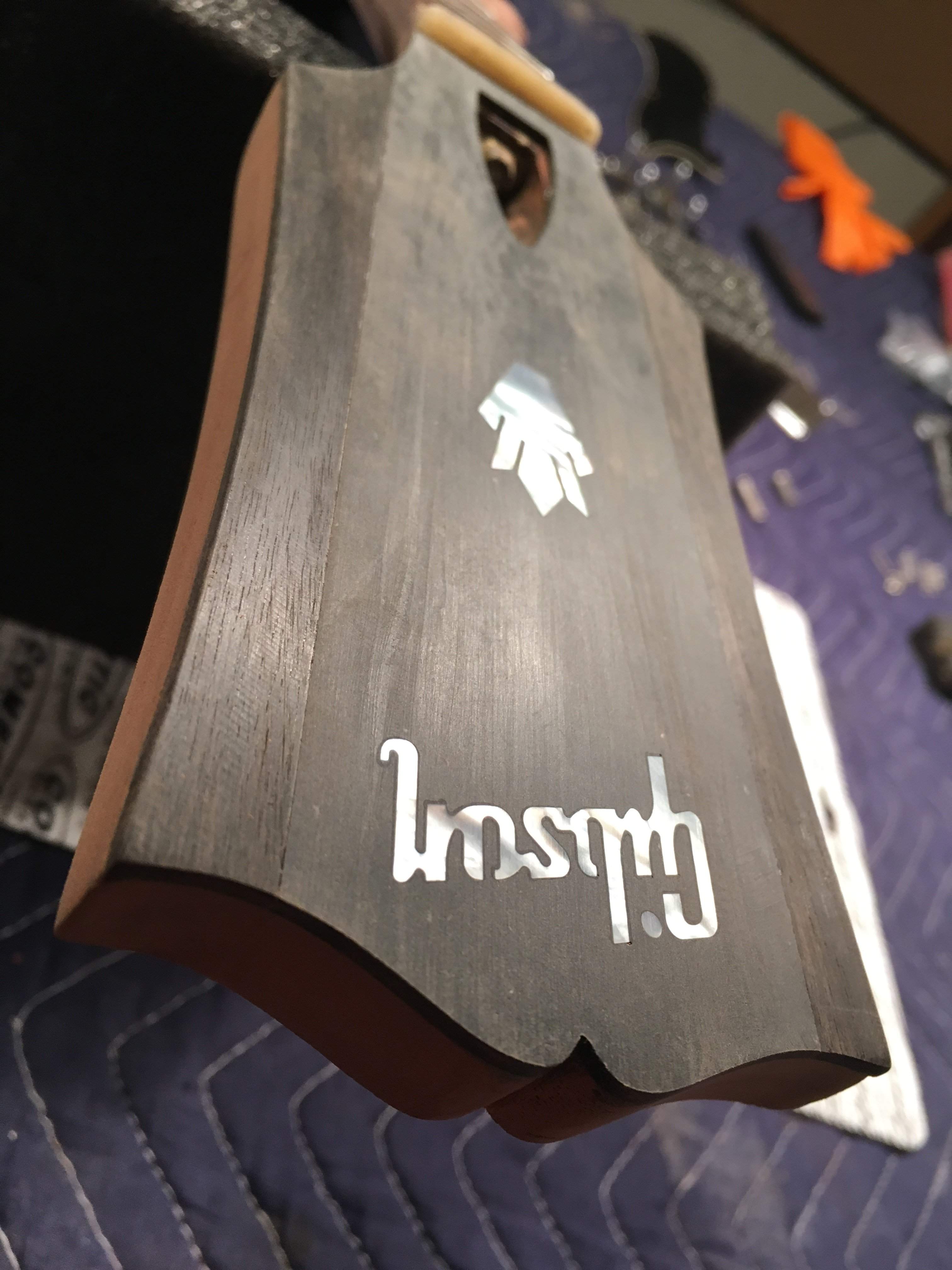

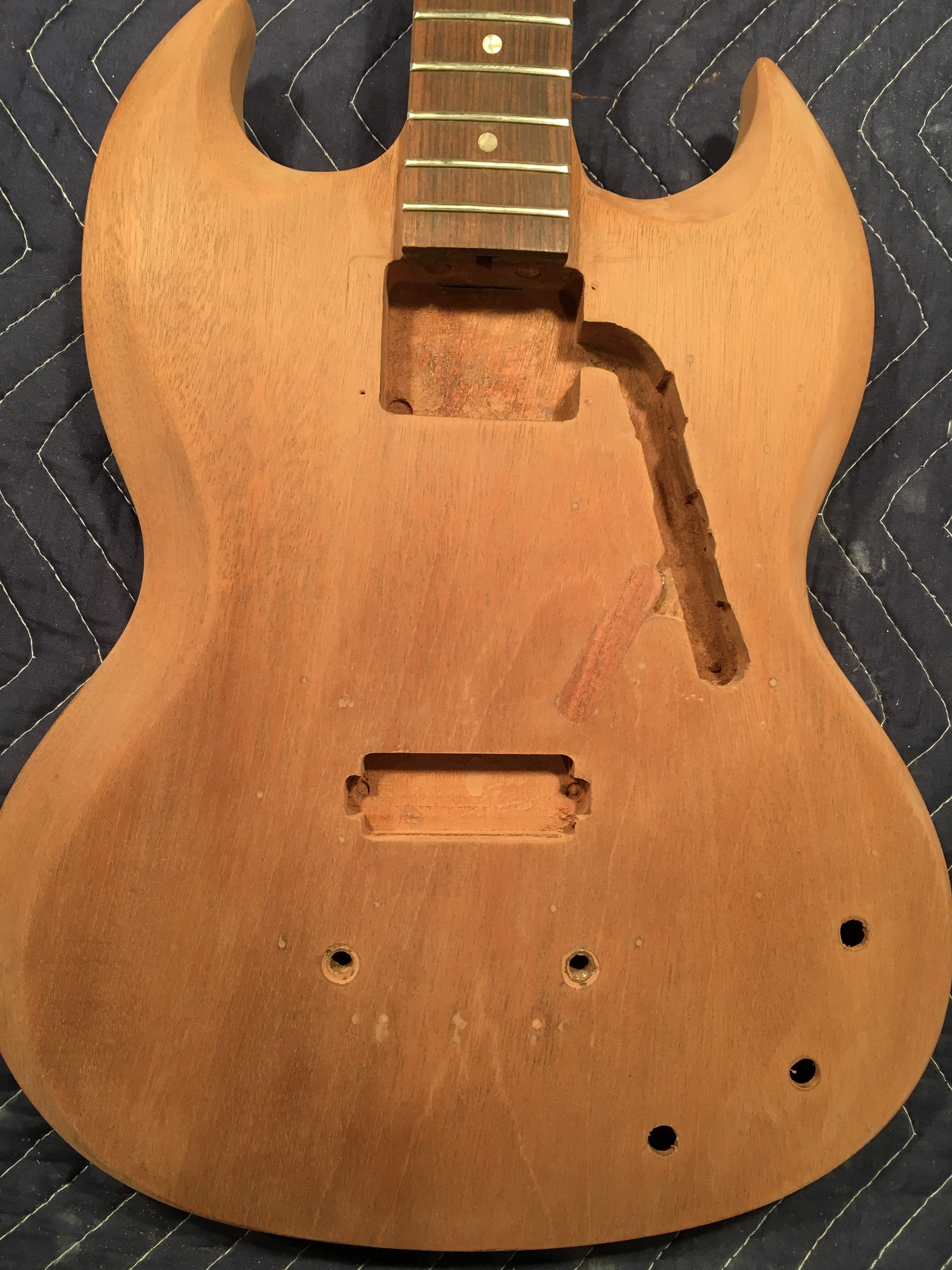

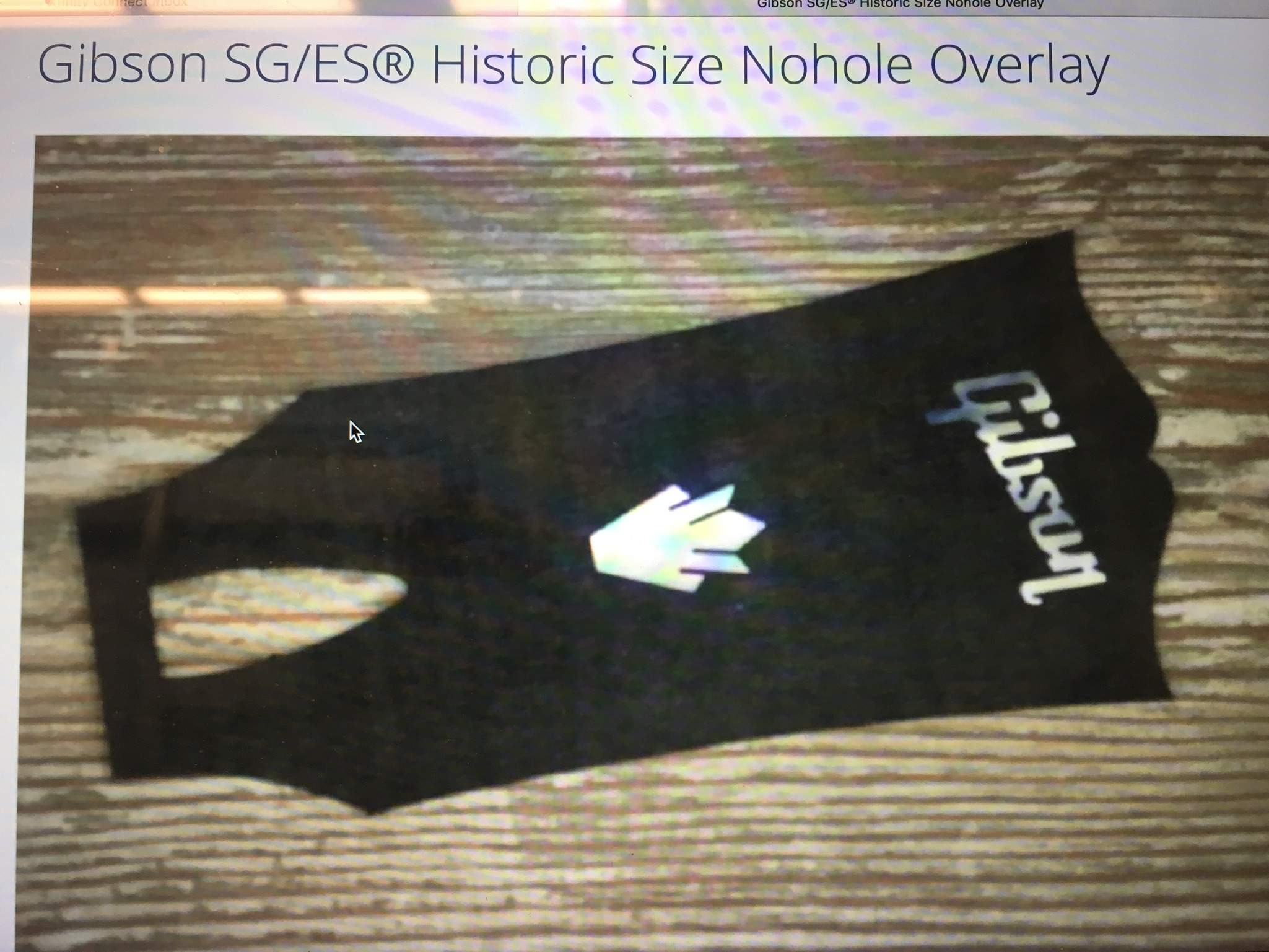

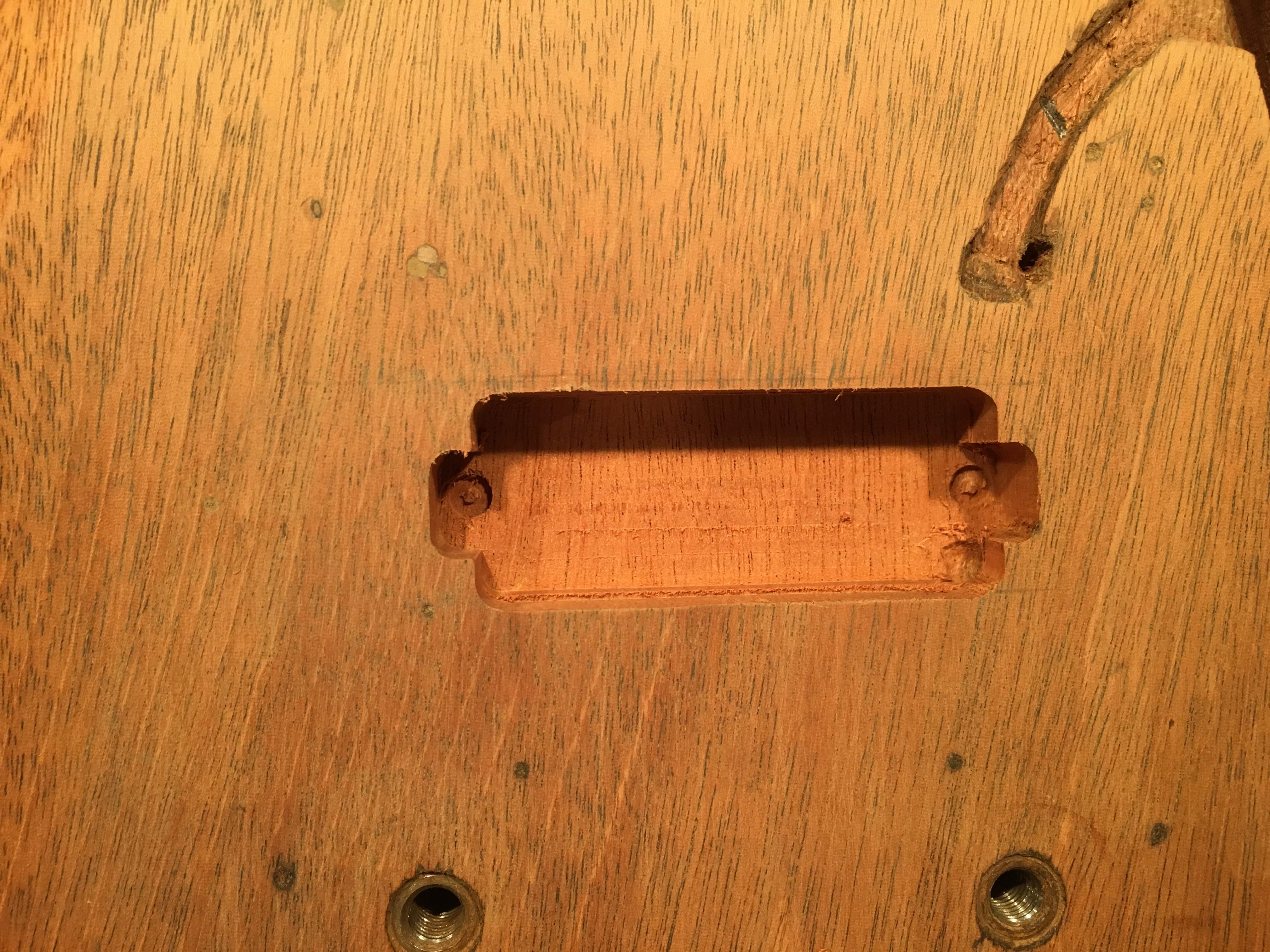

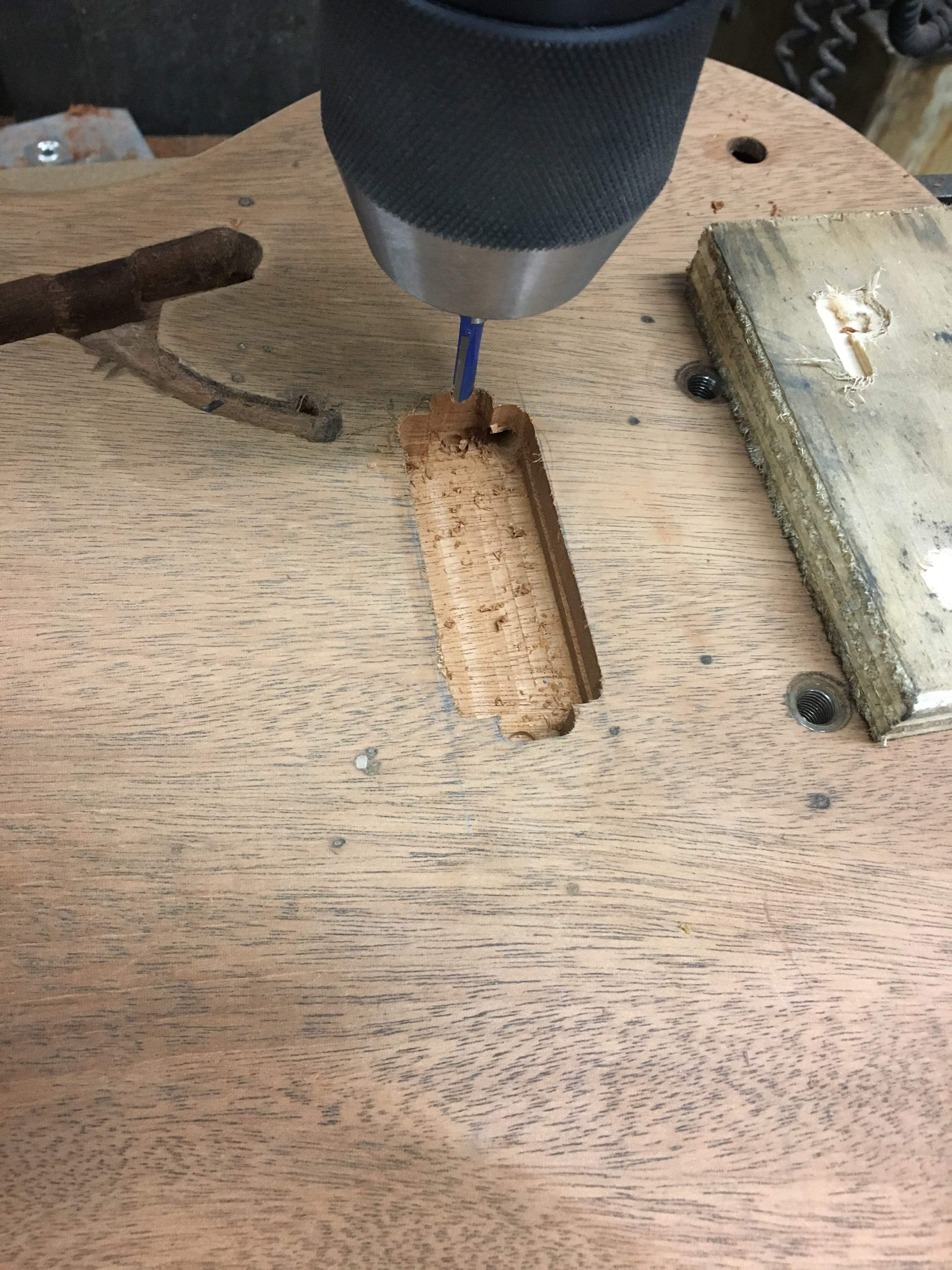

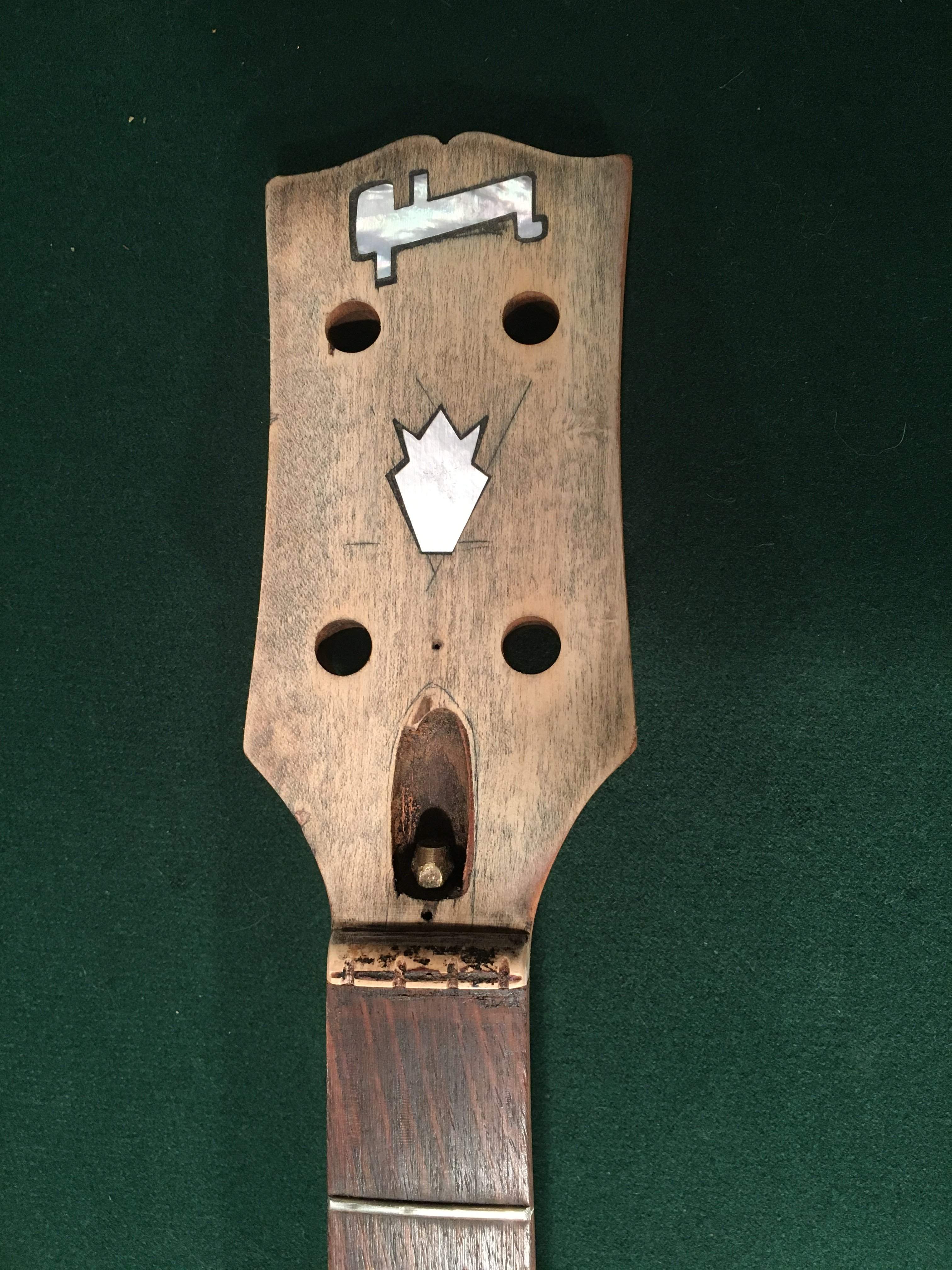

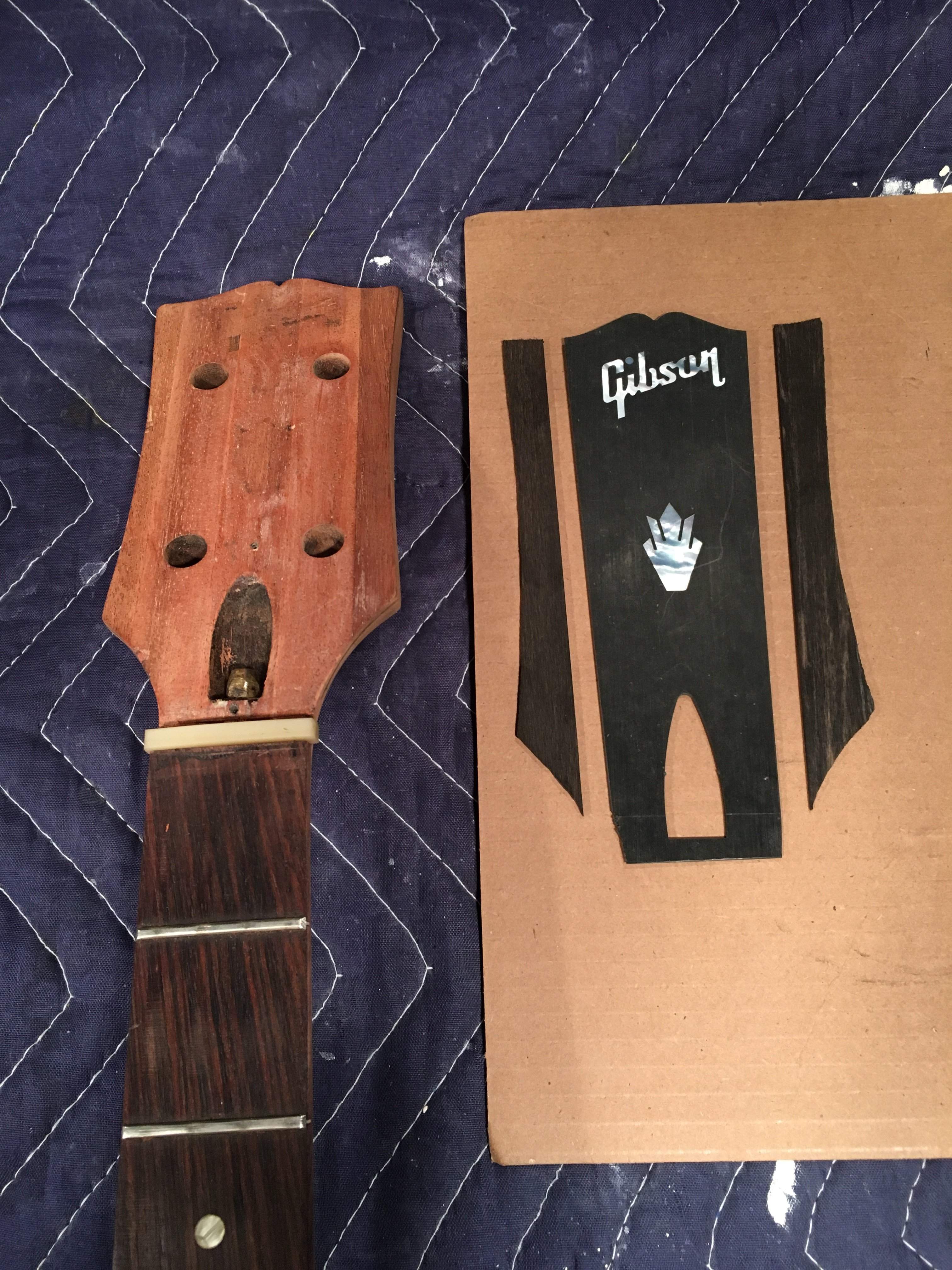

Pickup route complete...I couldn't get an EBO overlay, but I could get an SG one that was basically the proper size, but too narrow near the bottom of the headstock...so I squared it off and added ebony extensions to cover it completely.



[saabfender]

This is going very well. That's really nice mahogany body.



[Tim Rinkerman]

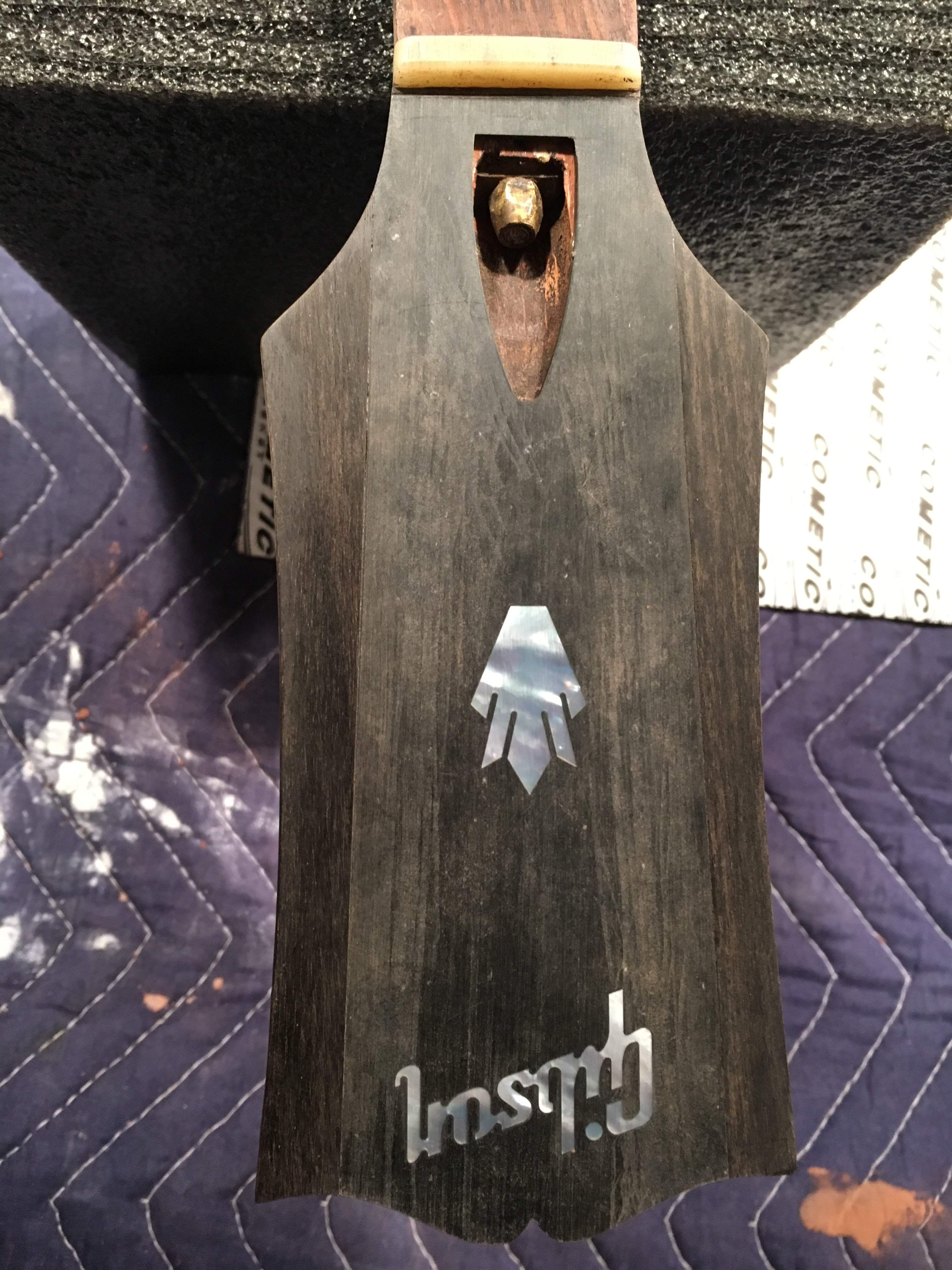

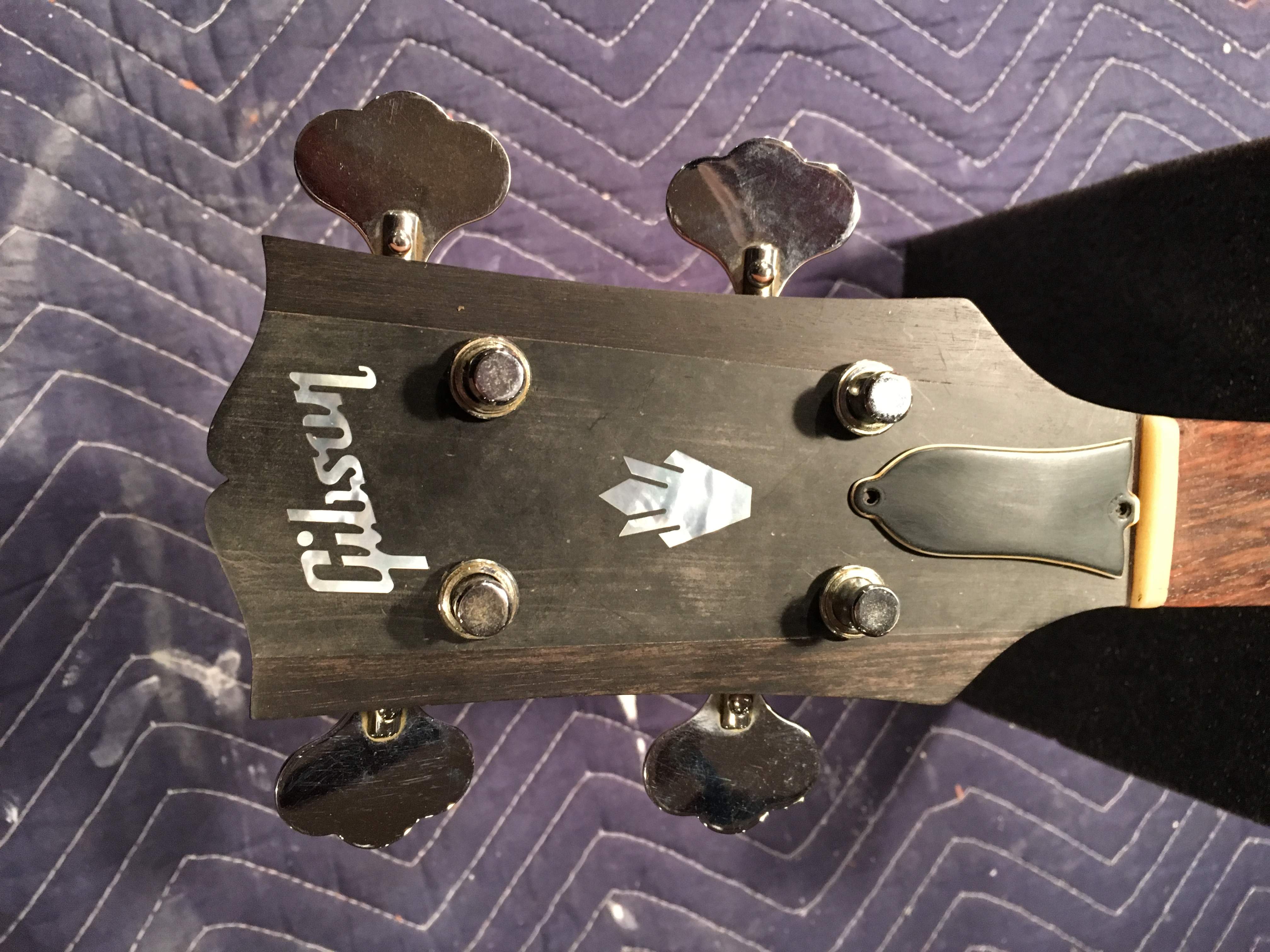

Moving right along..gouge in body patched with mahogany strip, headstock overlay in place and roughly trimmed, new nut fitted.



[Barbaric.Eric]

Great work so far, can't wait to see more!



[herndonbassist]

Looks awesome, this will be fun to watch!



[Engle]

Sweet! Where did you get the headstock overlay?



[Beej]

@Engle Not sure where Tim got his, but I've got them from here: [Invalid or Expired Link Removed]

No affiliation.



[Tim Rinkerman]

I got the overlay from a place called .. Invalid Link Removed . And from the looks of it, the Croxguitars site looks almost identical...??? Anyway, it's a high quality piece...the overlay is some kind of fiber, not wood. The inlays are perfect.



[Tim Rinkerman]

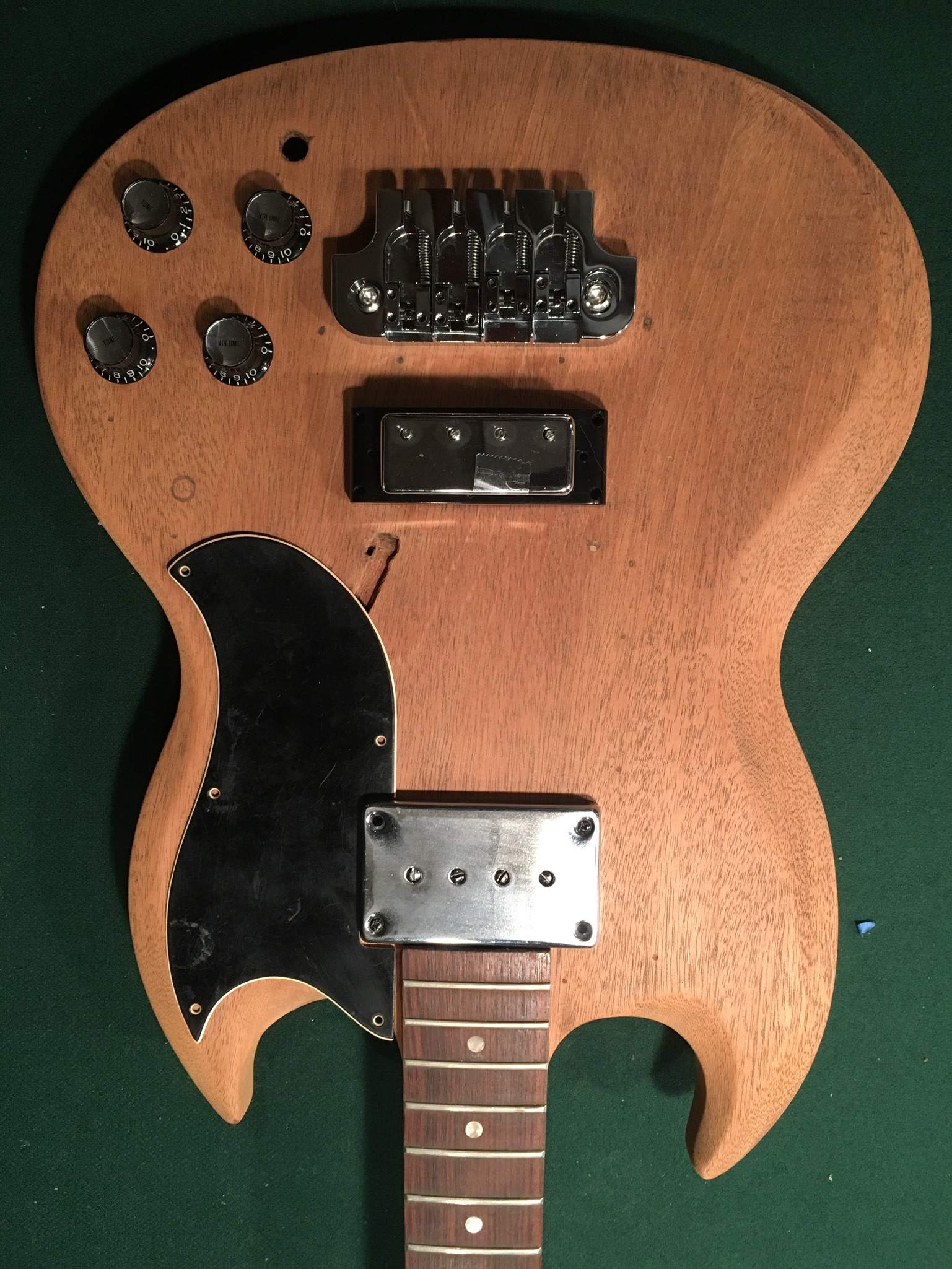

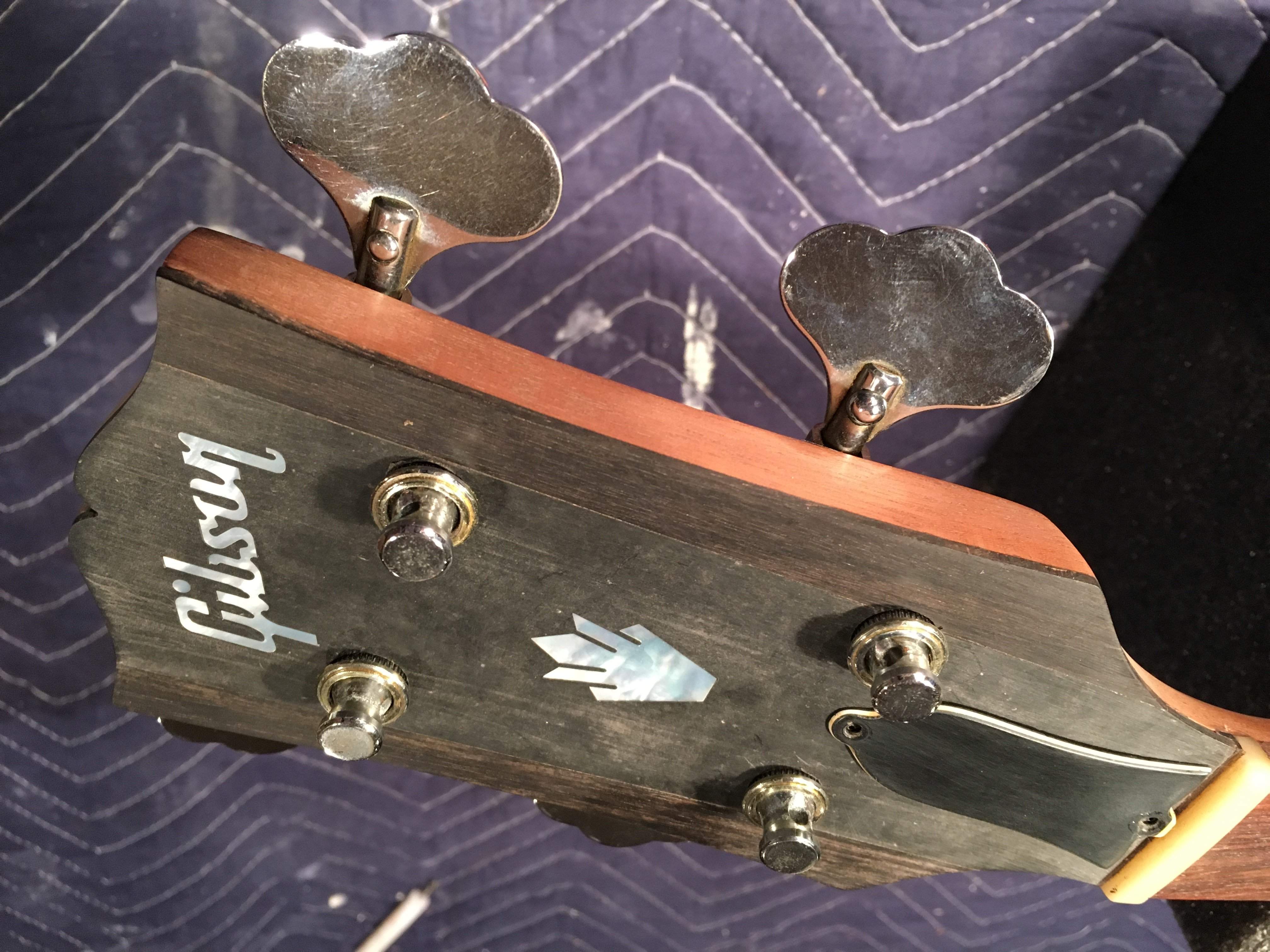

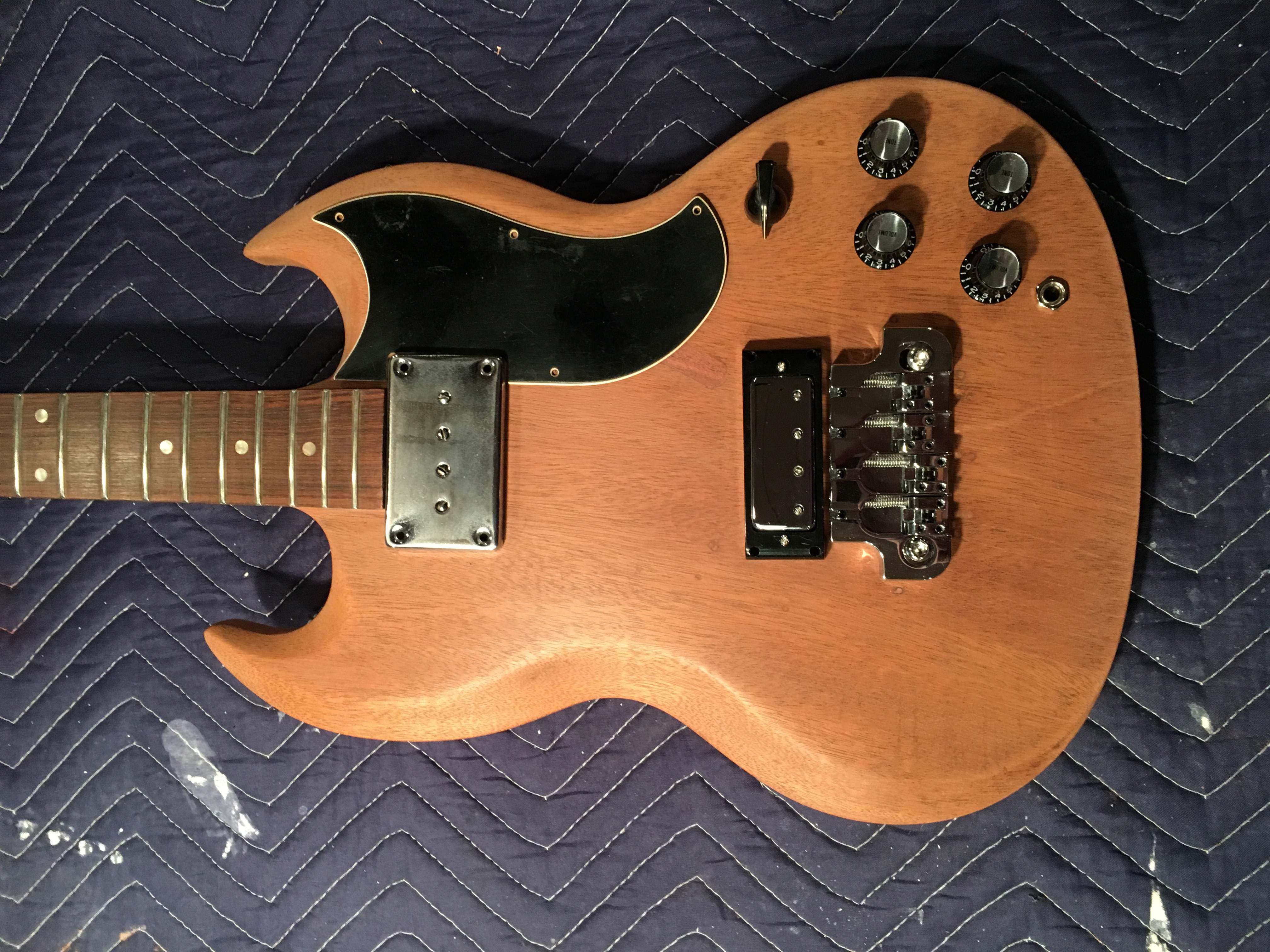

A final dry fit up to make sure everything fits happily together before the final finishing starts..



[Tim Rinkerman]

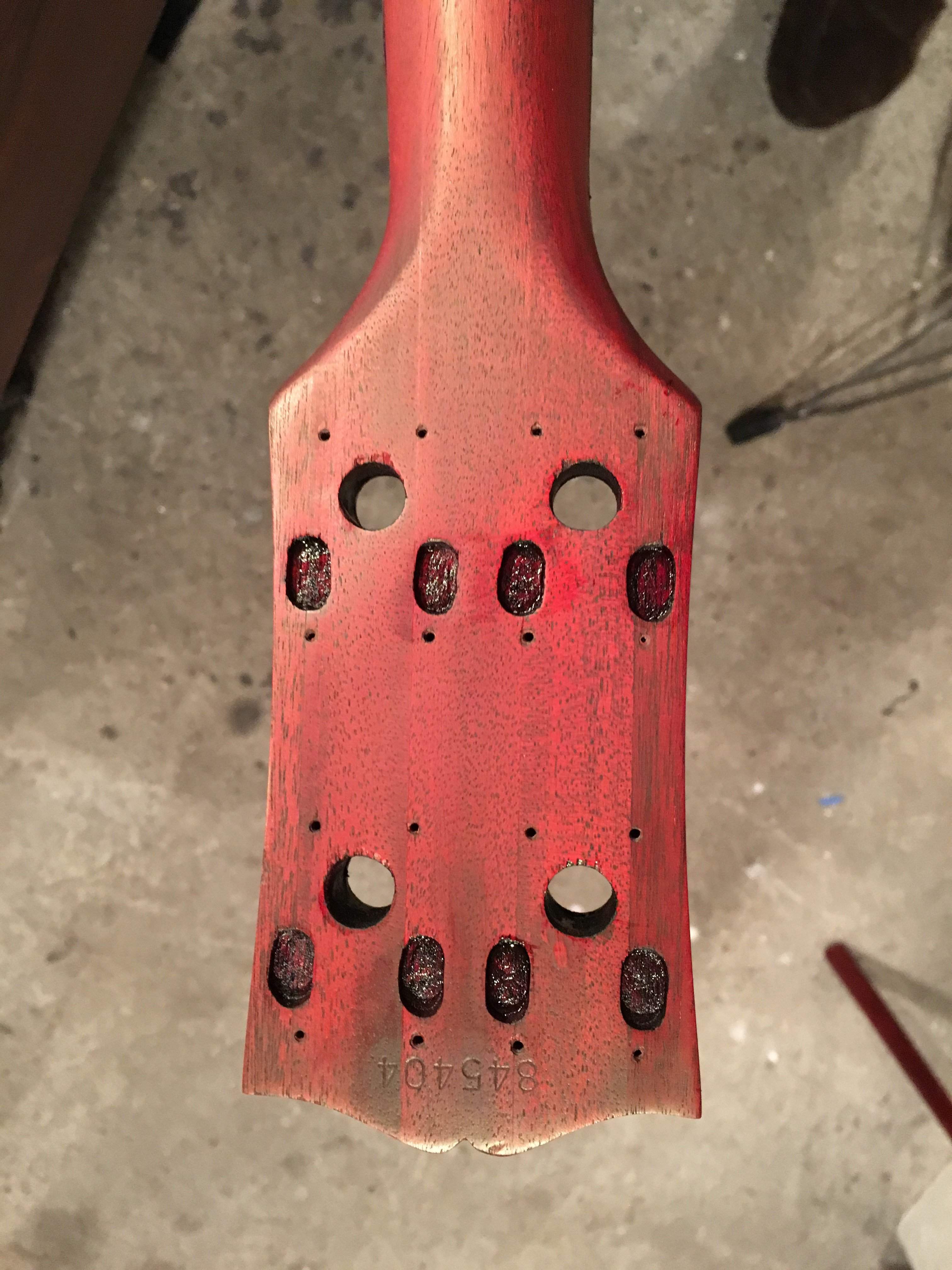

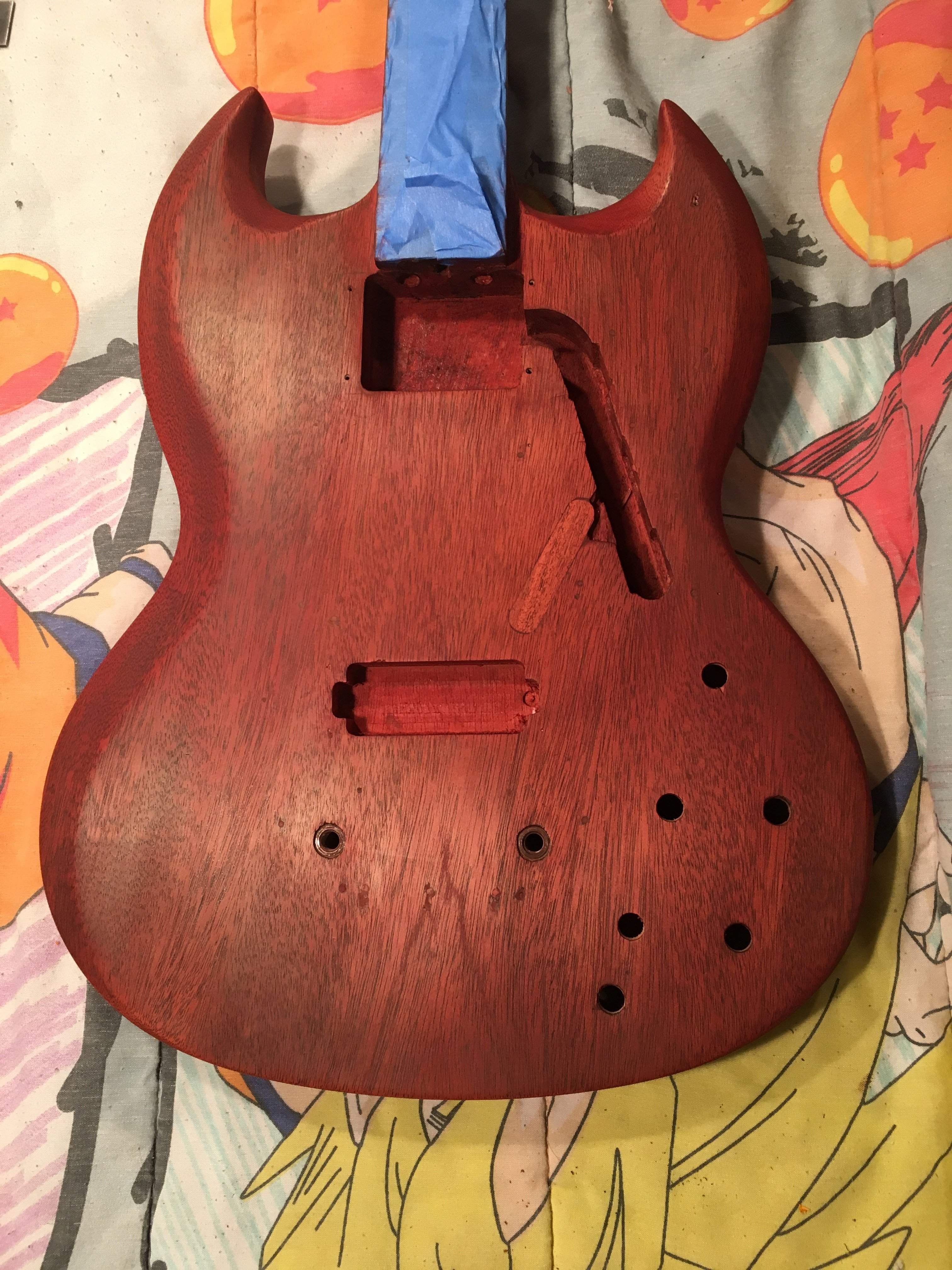

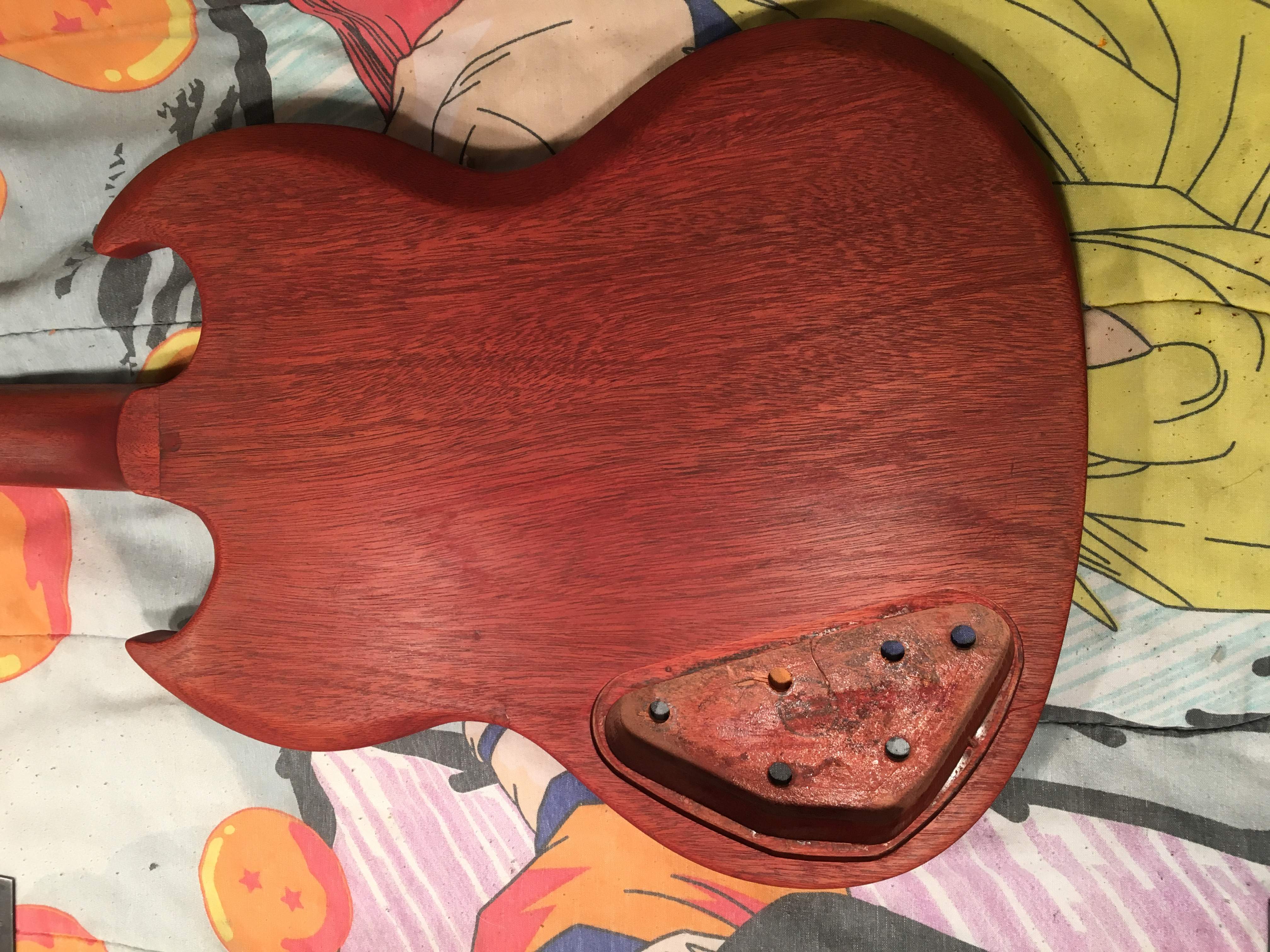

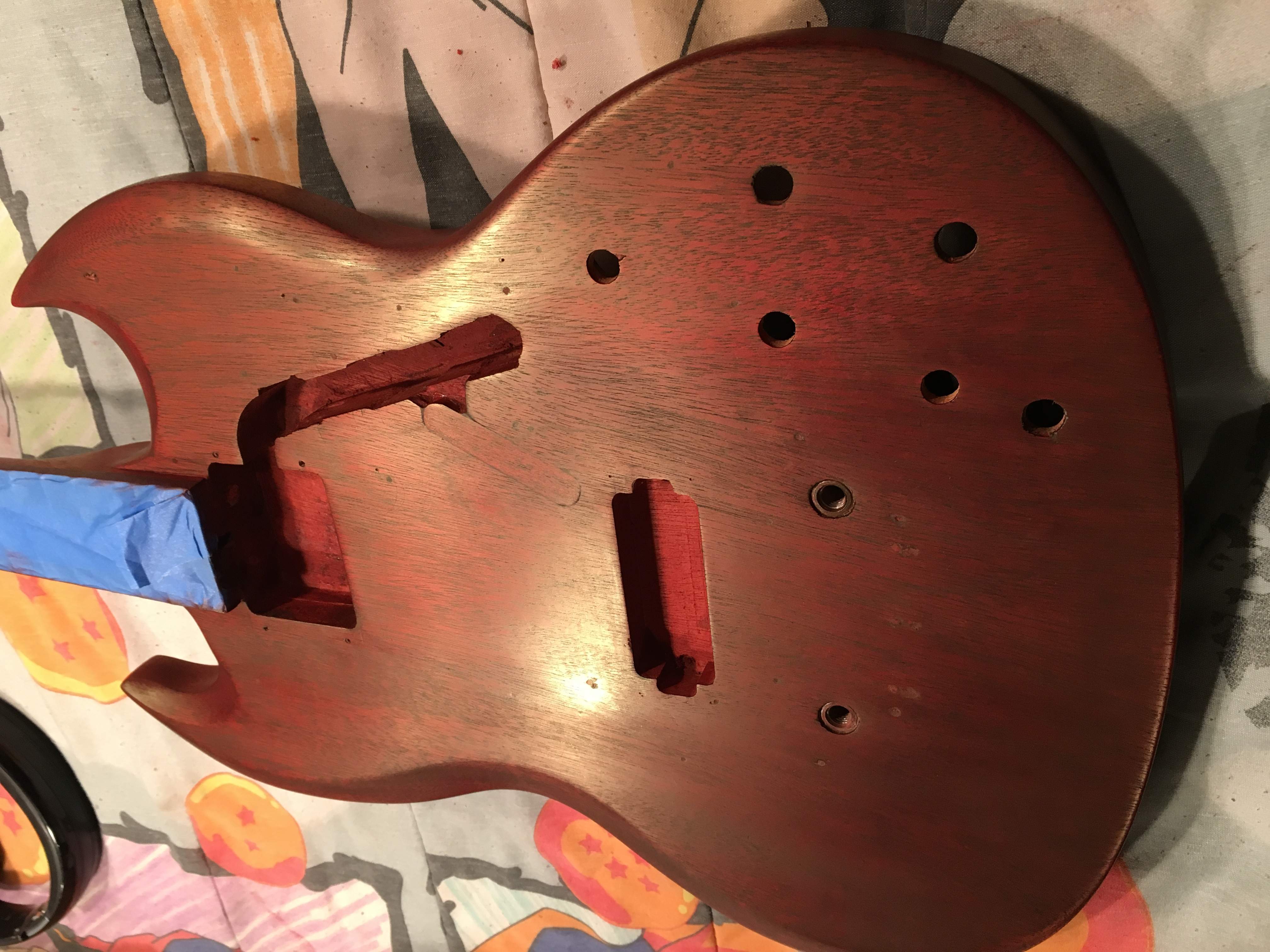

Getting some color rubbed in....



[AboutSweetSue]

What do you use to rub the color in?



[Tim Rinkerman]

Colortone liquid stains mixed with isopropyl alcohol...dunk small pad of terrycloth in it, and wipe on and rub in. I used a mix of red mahogany, cherry, and vintage amber. To fine tune the light and dark spots, I squirted a few drops of red mahogany right onto a pad with alcohol already on it to darken the lighter areas. The litte repair patch is going to get a bit more attention before the nitro goes on. A wipe with vintage amber and cherry are in the mix as well. I'll add a few drops of color to the lacquer as needed to keep the color on track.



[Tim Rinkerman]

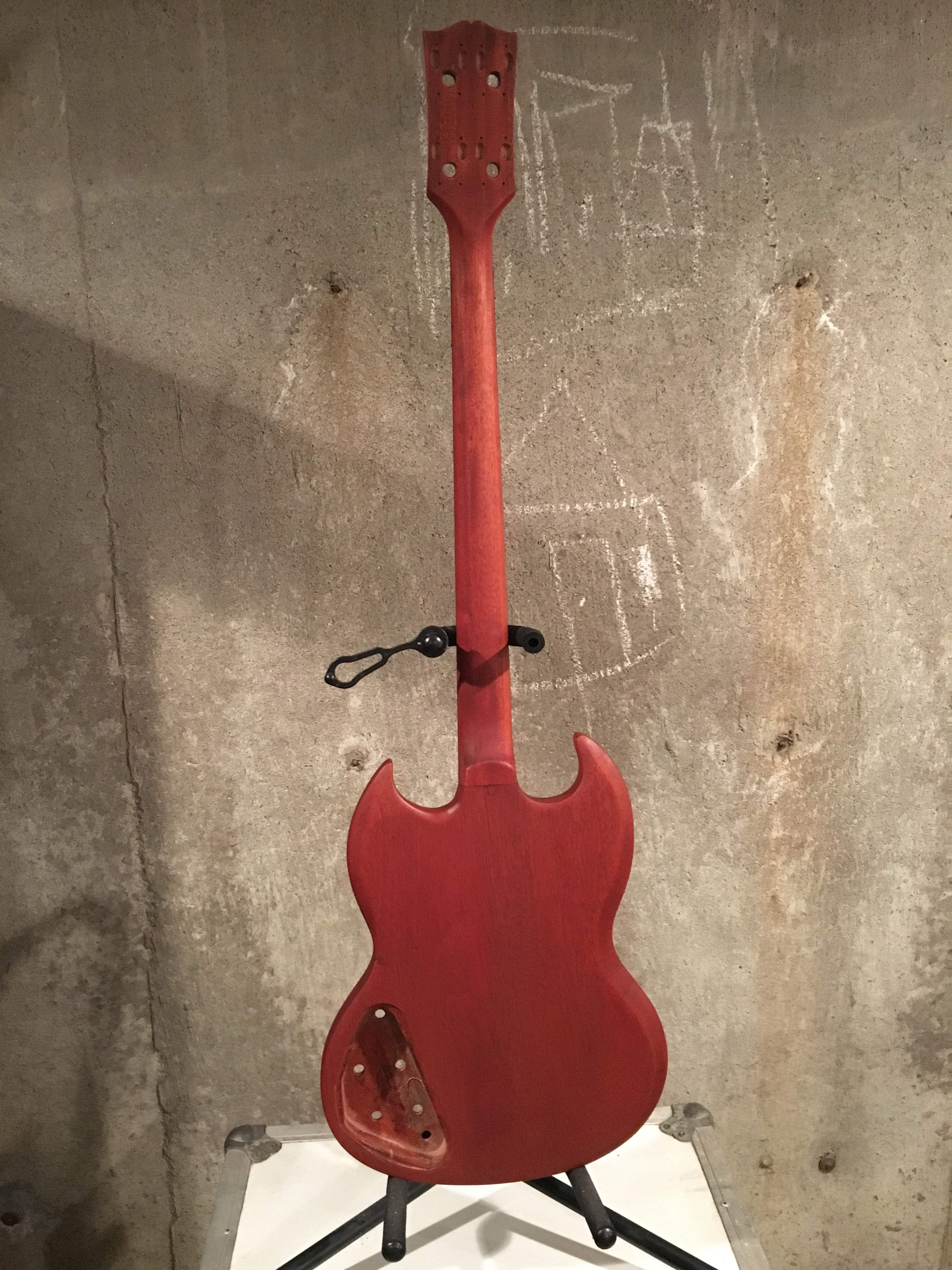

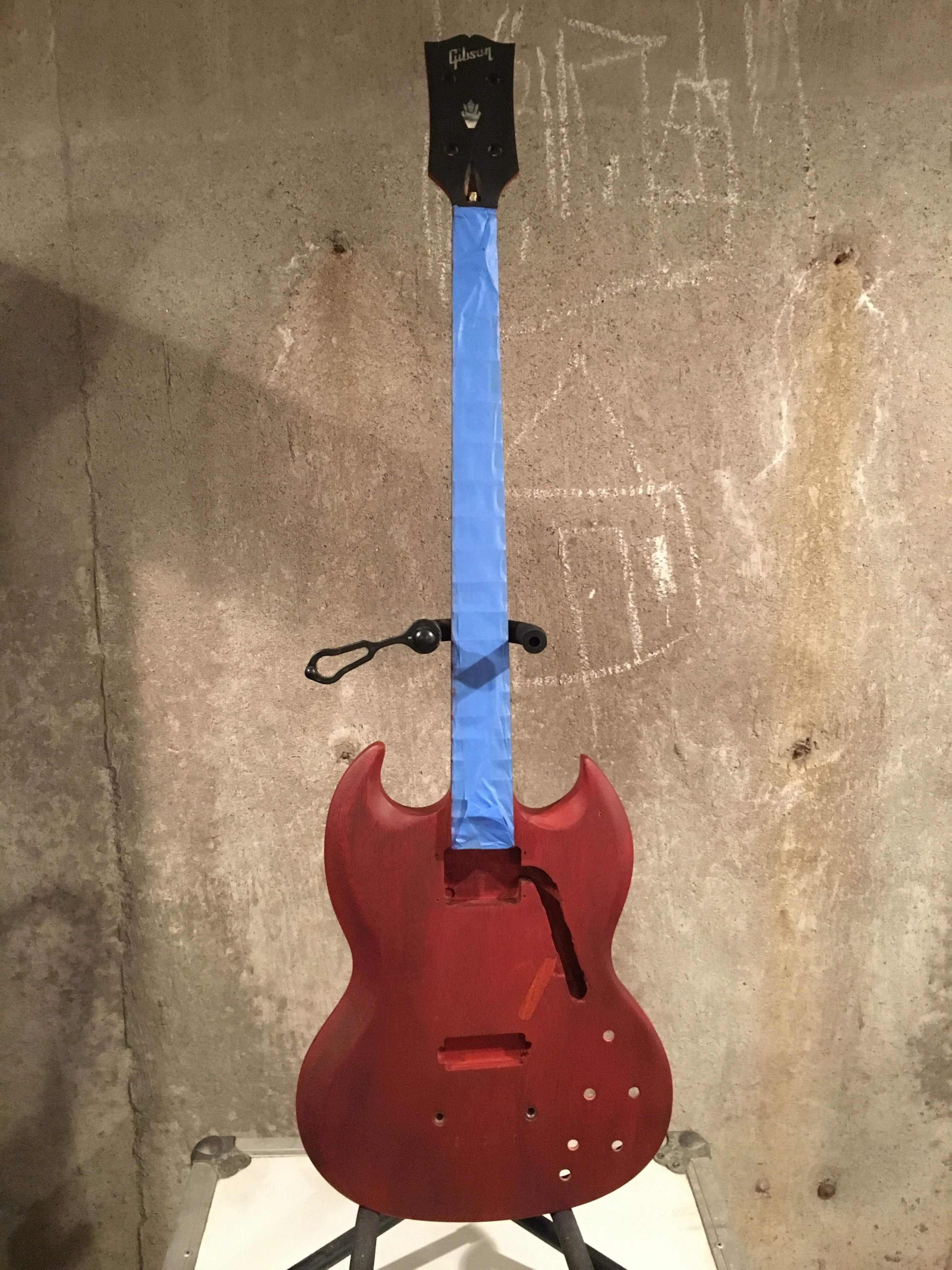

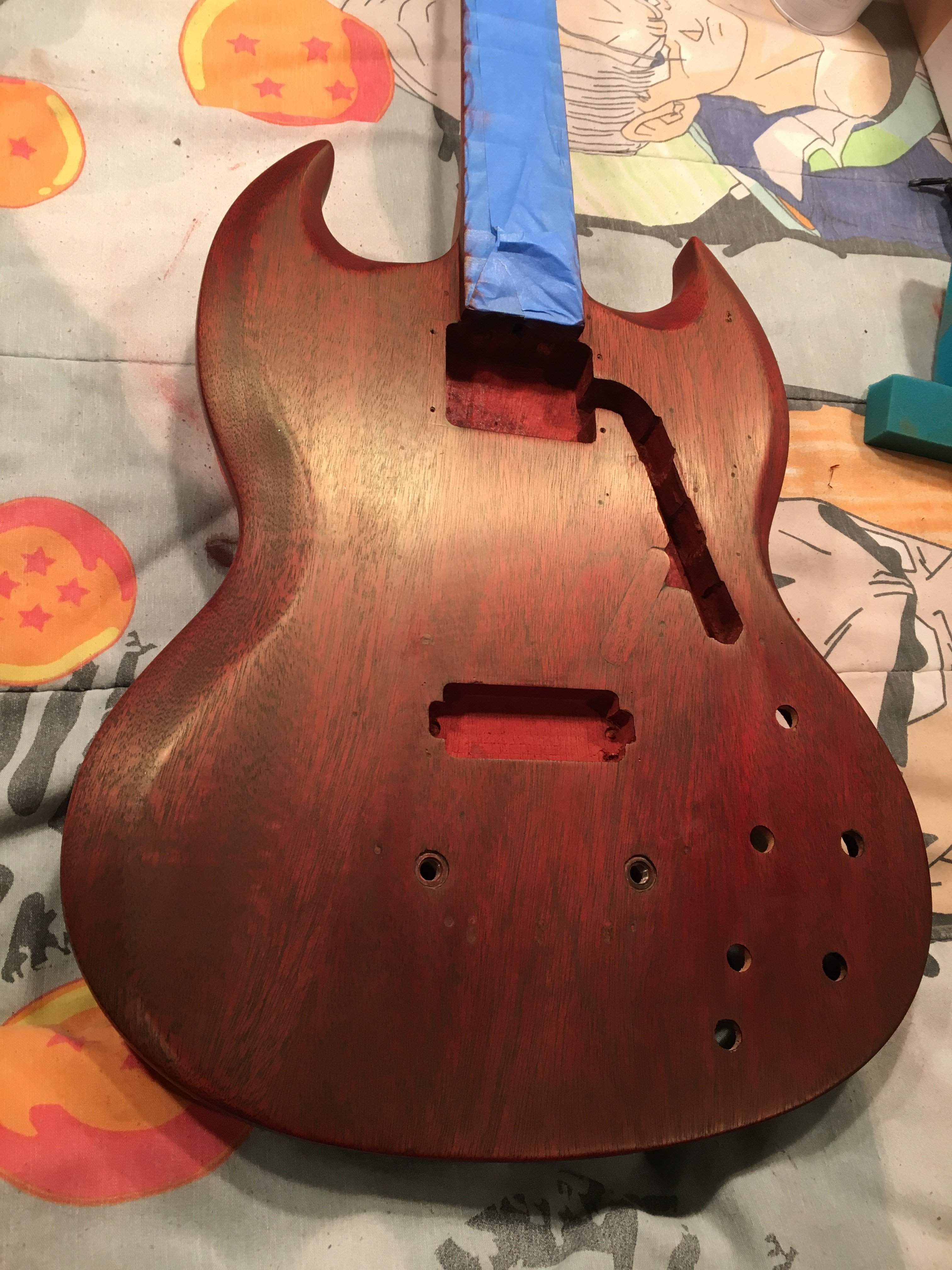

Getting closer to the color I'm looking for..this is still only stain.



[Tim Rinkerman]

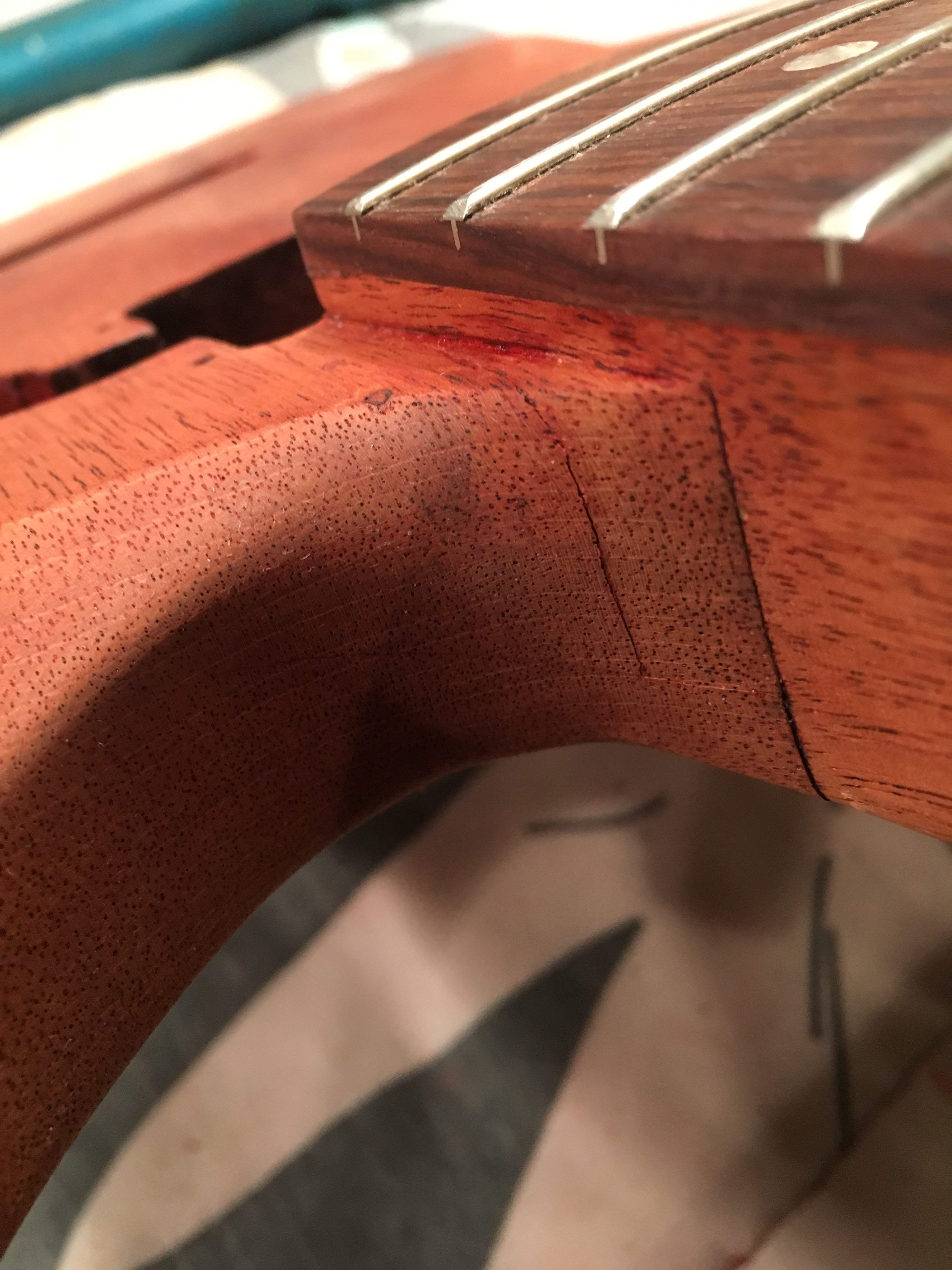

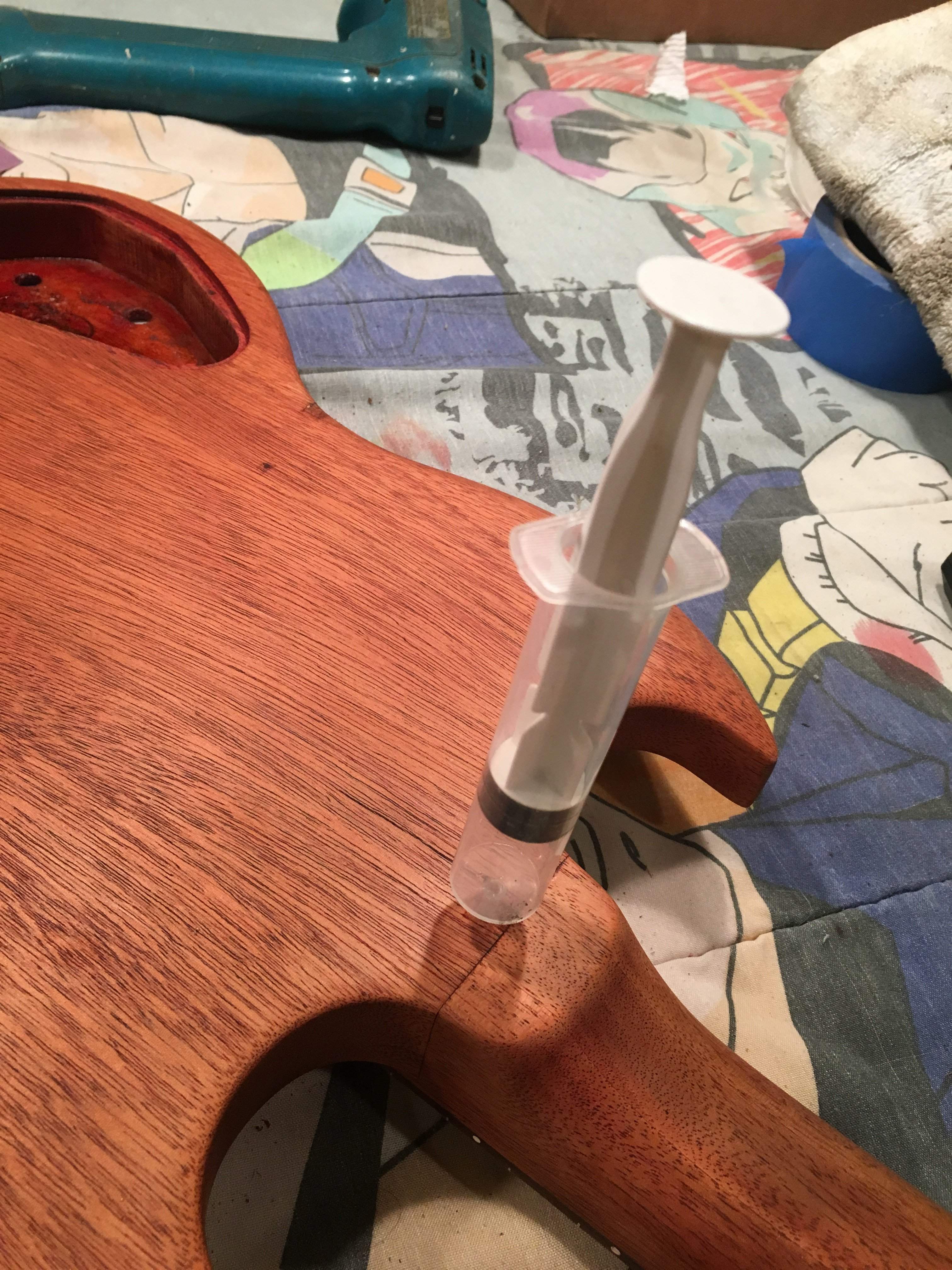

Sidetracked a bit. I kept seeing a line show up next to the neck, turns out the neck joint was separating...probaby dropped or tweaked at some point in its life. I didn't want to disconnect the neck completely, so to find out if I could force glue into it, I enlarged the strap button screw hole slightly, and tried to force lacquer thinner through it. Turns out I could, it seeped out the crack and neck joint, so I blow dried it with compressed air, and forced gap filling CA glue through the hole. Clamped it and kept it warm for 2 days, and now it is more solid than when it got here. Cherry color coats are done, now for the clear....



[Tim Rinkerman]

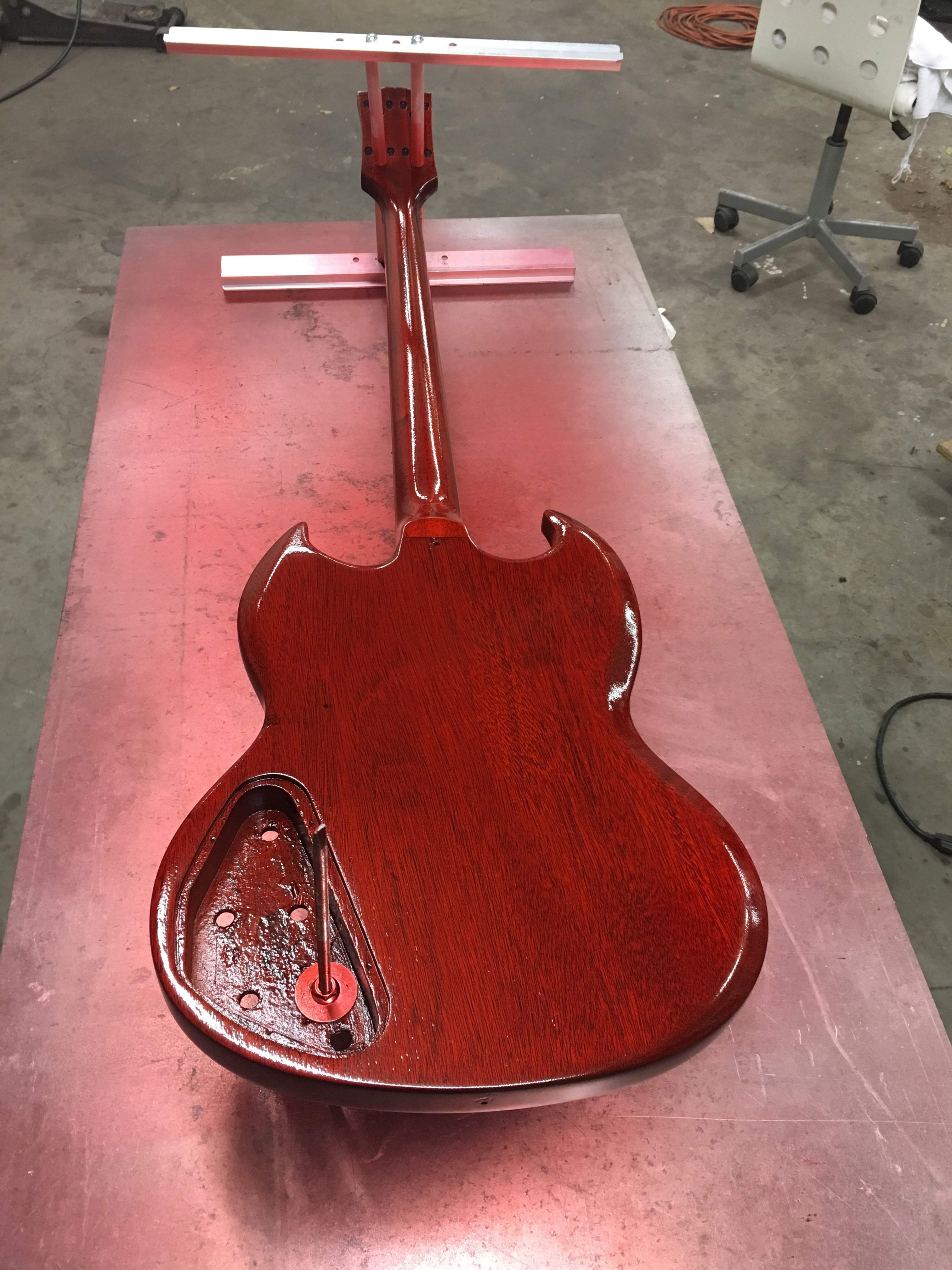

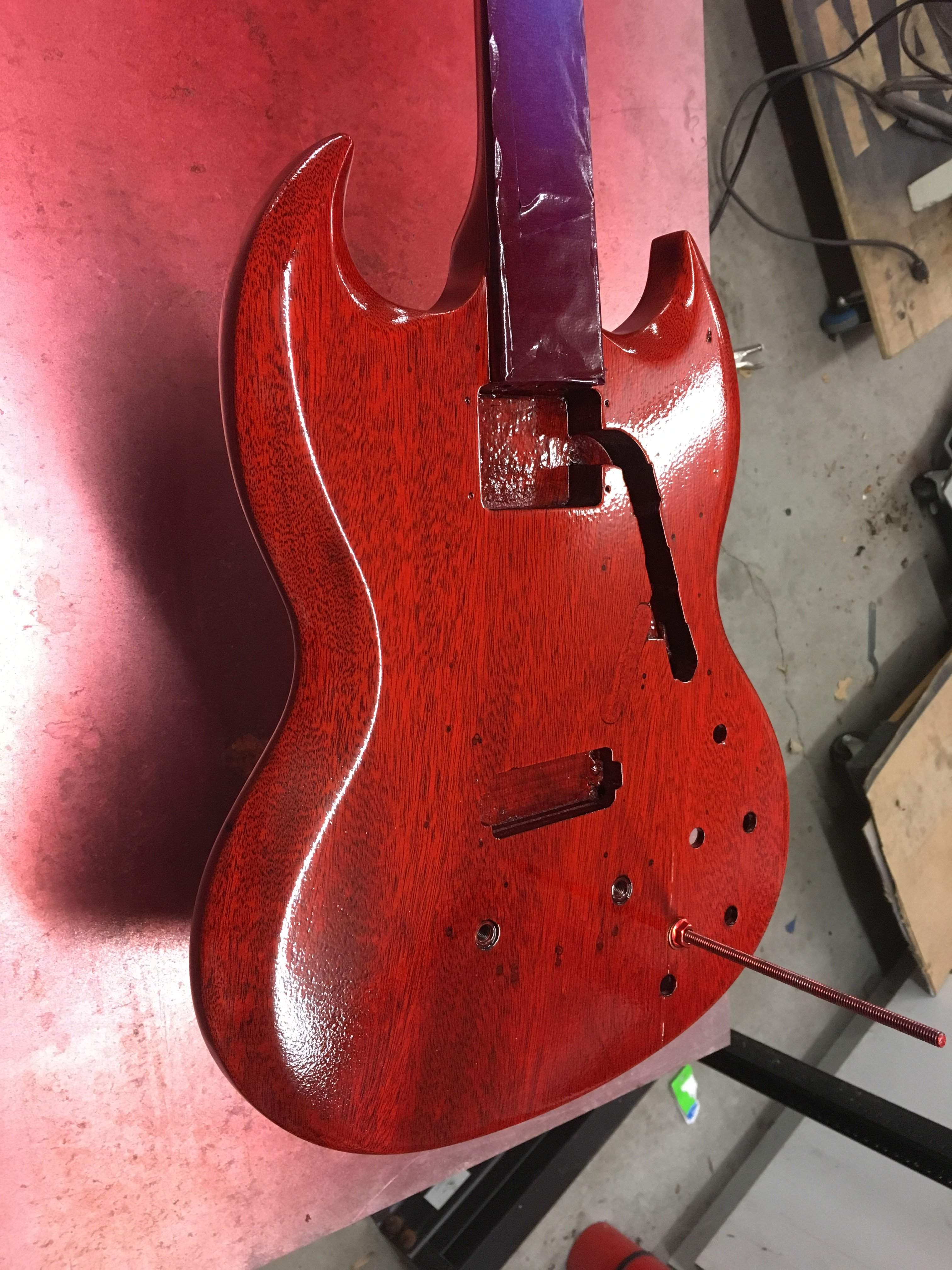

10 coats of clear tinted with vintage amber...now we wait...and wait...and wait....



[Barbaric.Eric]

Wow, incredible job on this resto!



[AboutSweetSue]

That looks awesome!



[Tim Rinkerman]

Just a couple more details and a good setting up and she's good to go!
