GK rails in a pedal?

[johnk_10]

here's the TrueRTA test of it with the 100p cap for C4.

GREEN=bypassed VIOLET= Hi cut switch OFF(cemter position) YELLOW = 10n position BLUE= 33n position

so I guess that it's not bright after all.

I wouldn't mind a little less low end rolloff though.



[boomertech]

here's the TrueRTA test of it with the 100p cap for C4.

GREEN=bypassed VIOLET= Hi cut switch OFF(cemter position) YELLOW = 10n position BLUE= 33n position

so I guess that it's not bright after all.

I wouldn't mind a little less low end rolloff though.

For the low end, change C3 back to 1uF like we started with a loooong time ago.

-Frank



[johnk_10]

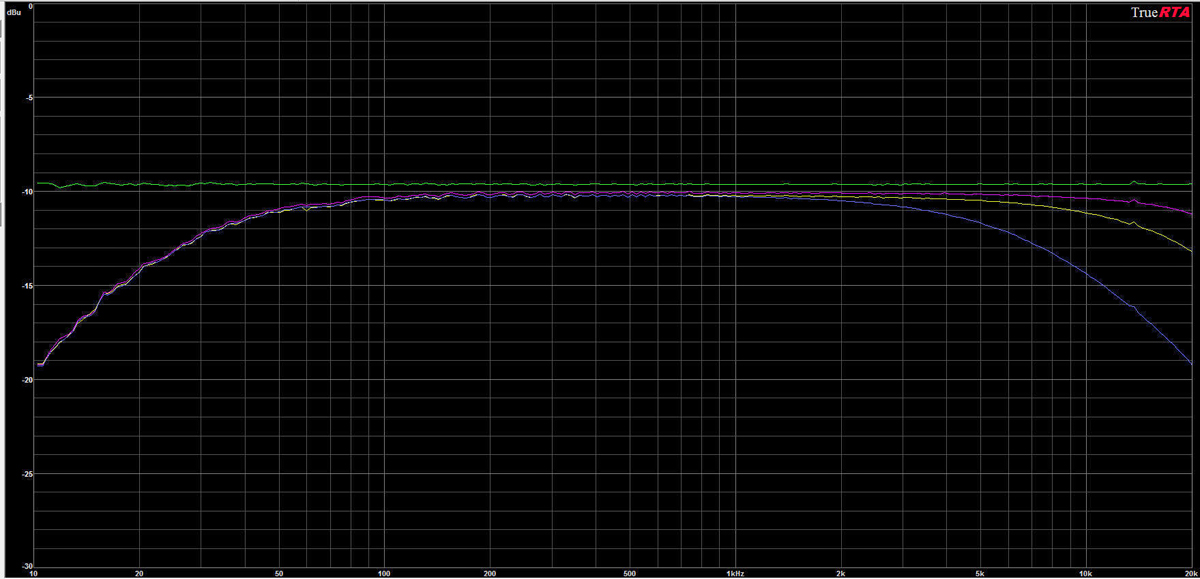

here is is with the 27p (it has less top end rolloff in the hi cut bypass position)



[johnk_10]

For the low end, change C3 back to 1uF like we started with a loooong time ago.

-Frank

yeah, I was thinking exactly the same thing. i'm changing that one now.



[boomertech]

yeah, I was thinking exactly the same thing. i'm changing that one now.

BTW, The 800RB uses 0.22uF for that coupling capacitor.

-Frank



[johnk_10]

yeah, that helped. here's the graph comparing a 100n (VIOLET) to 1 1u (BLUE):



[johnk_10]

I had a 220n in there at first but like it better with the 1u.



[boomertech]

yeah, that helped. here's the graph comparing a 100n (VIOLET) to 1 1u (BLUE):

Nice! only a 2dB drop at 20Hz.

-Frank



[johnk_10]

yep.
my favorite values are with the original 27p, a 1u for C3, a 33n for C16, and a 68n for C15. at least that's the way that i'm keeping mine. even with the 68n it's still has more than enough top end.



[johnk_10]

I think that we can stick a fork in it (i.e. it's DONE!)



[DirtyDuke]

Success!!!!!



[johnk_10]

right on!

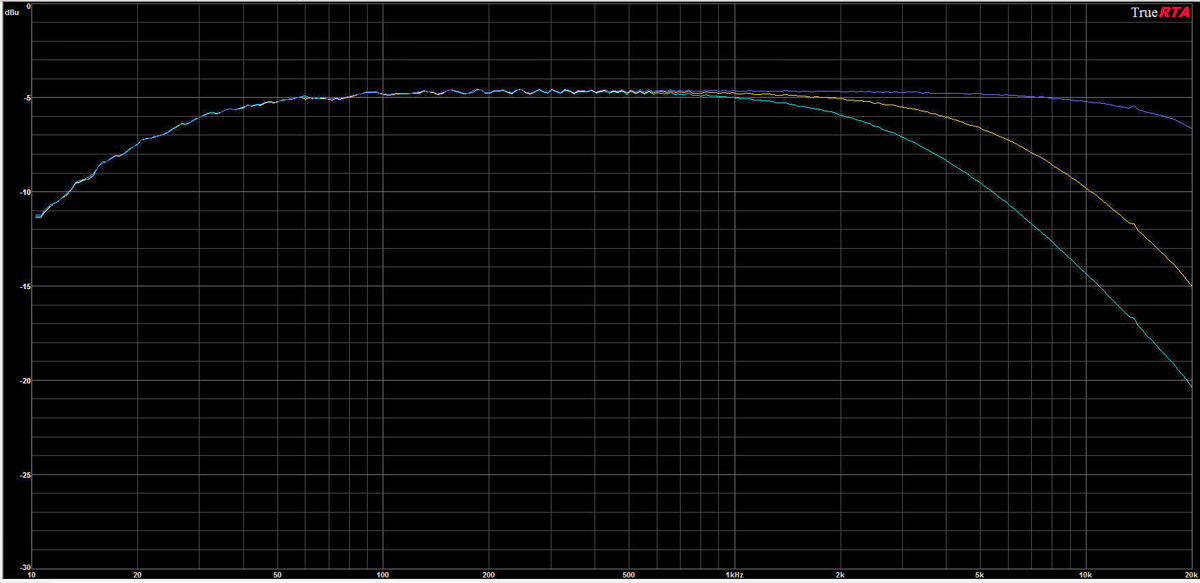

BTW, here's the hi cut switch RTA freq test with a 33n and a 68n of the switch. it looks pretty drastic on the graph but it's actually very subtle in all three positions when used thru an amp & cab:



[nshuman]

Now, we sit back and wait for the sound cloud clips and the post on someone's "items for sale" page...



[DirtyDuke]

Or someone's what's coming post..... just saying, lol.... I want one so bad.... my wallet is crying



[BIG97BEN]

Oh heck yeah. I really want one of these. It's been really fun watching the collaboration here. Thanks guys. I really hope I get the chance to put one on my board.



[boomertech]

I think that we can stick a fork in it (i.e. it's DONE!)

Great!!!!!

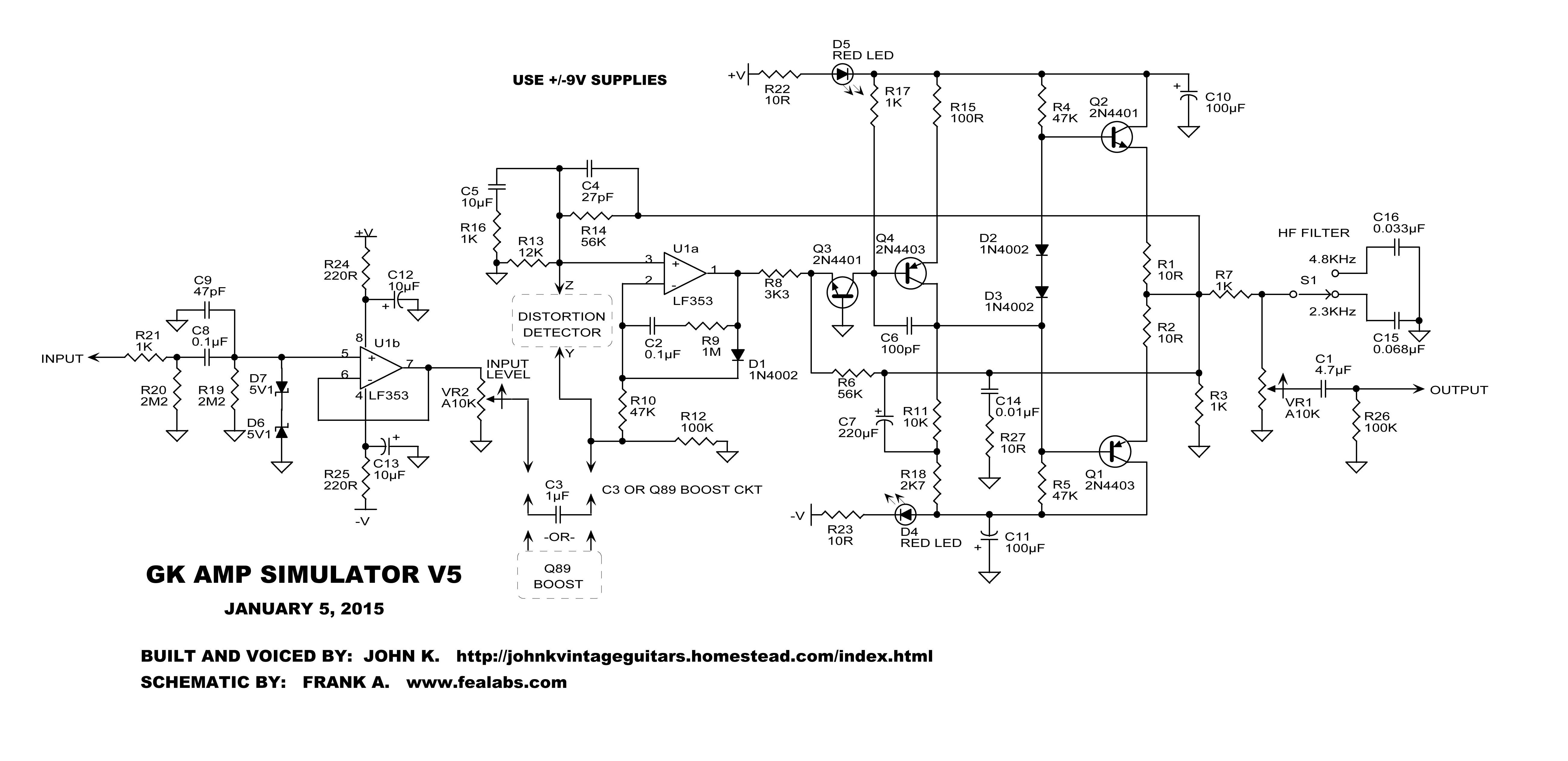

I will update the V5 with your changes and post soon.

Next, GK Q89 boost??

-Frank



[boomertech]

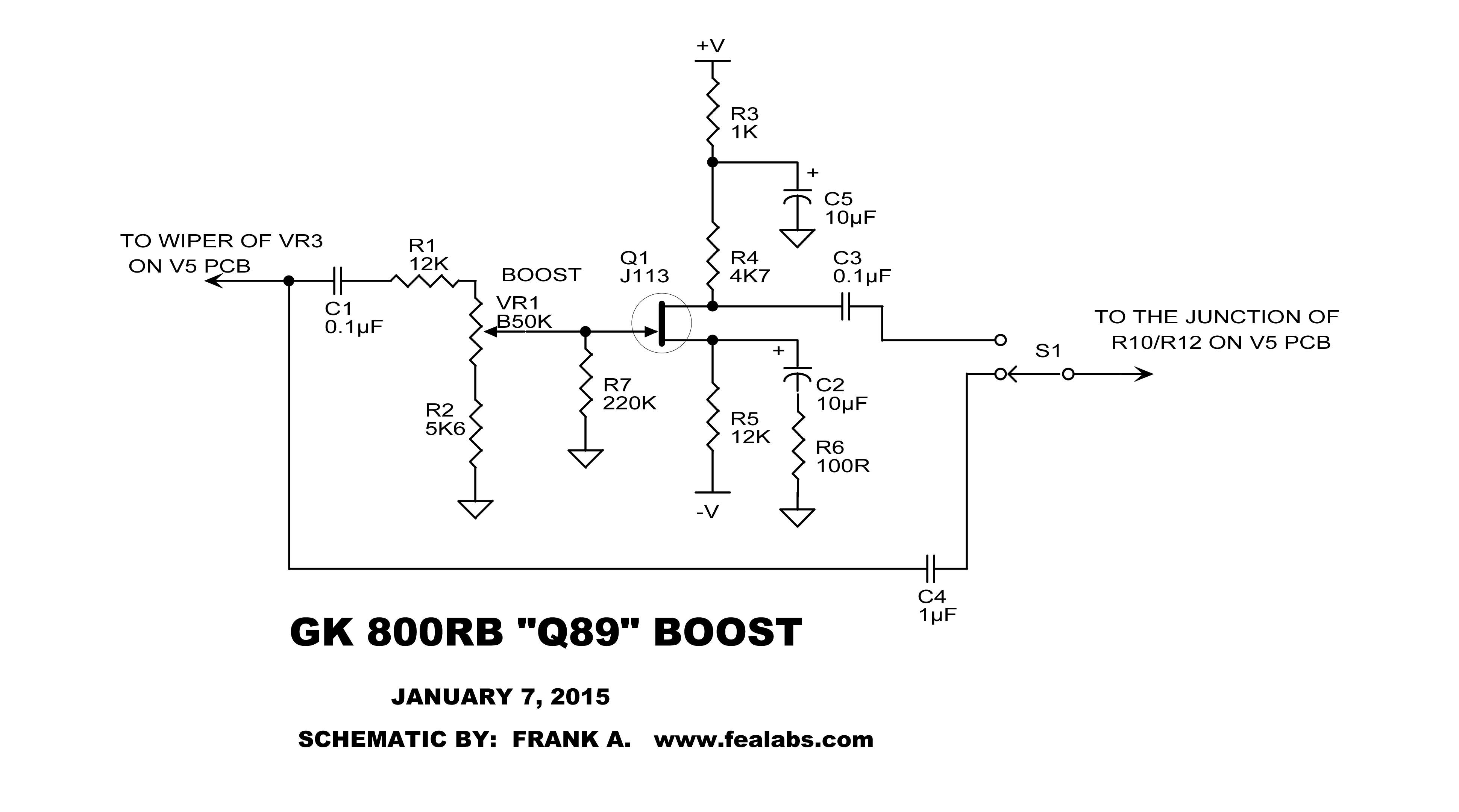

Here it is:

-Frank



[ryansalmond]

It will be interesting to hear if the rails sound is contained in the circuit that's been made so far, in the Q89 boost circuit, or something else

Very exciting!



[johnk_10]

i'll build up the boost circuit by tomorrow and see how that sounds with it.
soundclips of the one without it coming soon.



[boomertech]

Updated the boost with the 1uF bypass cap:

-Frank
