Going to stereo output while keeping mono capability, any ideas?

Discussion in 'Pickups & Electronics [BG]' started by Clark W, May 25, 2019.


  1. Clark W

    Clark W Just Say No To Tort! Supporting Member

    Aug 26, 2018
    Alright I have a bass with a set of EMG GZR P pups.

    I want to run each pup to it's own set of controls - volume & tone

    But I want to add a toggle switch so that I can make the neck or front pickup go from either it's own controls and output jack (stereo) or to the same controls and output jack used for the back pickup (mono)

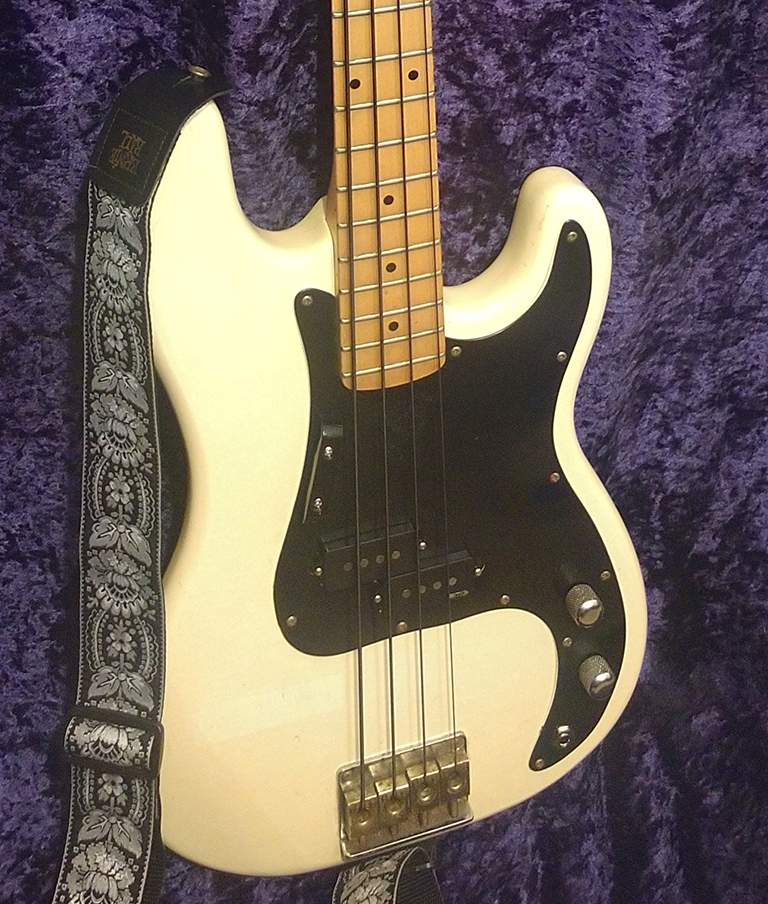

    Here is the current set up (mono) both pickups to the same volume / tone / output

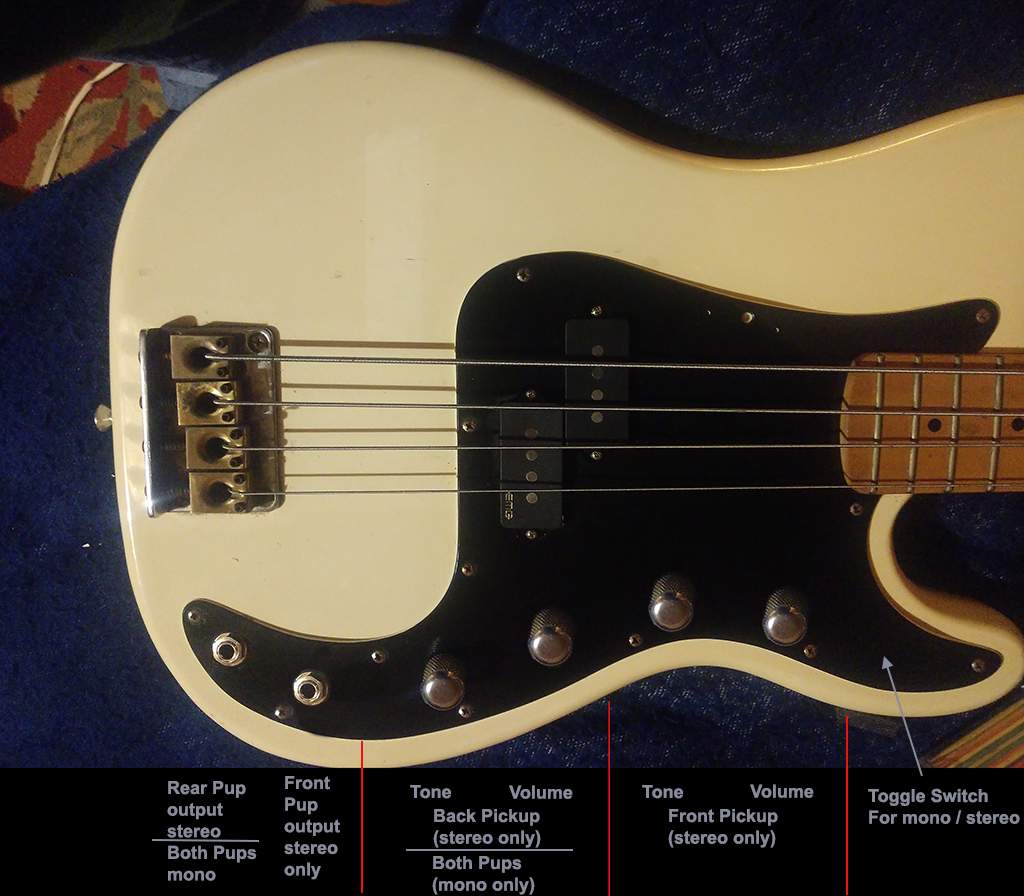

    And here is what I want to do to it to make it dual output (stereo) and single output (mono), capable.

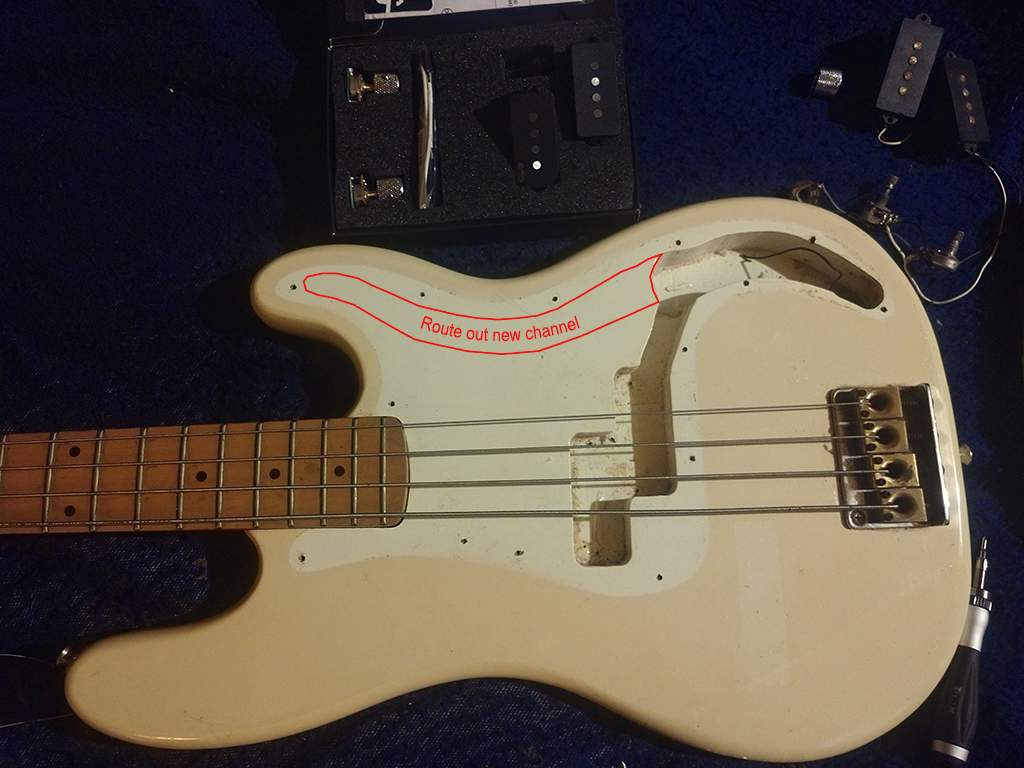

    Extra routing in the body that will be needed

    The EMG GZR P pups are as basic as it gets when it comes to wiring, so it really shouldn't be an issue to wire each one to it's on set of controls and output. And I would order another wiring harness from EMG to use to to make the second wiring harness from.

    The trick for me in my mind will be the the toggle switch allowing the front pickup to be wired by itself or in conjunction with the back pickup, and the grounding.

    Exactly what kind of switch would I need?
    Grounding?
    and of course wiring....

    Or should I use the toggle switch to change only the output of the front pickup from it's own output to sharing the back pickup's output. That would leave each pup with it's own volume and tone control active regardless if I was running the outputs mono or stereo. I actually like that idea better.

    Any ideas or suggestions out there?
    And for the purists out there, don't worry, that's not a Fender bass.

    Last edited: May 25, 2019
  2. Honkey tonk

    Honkey tonk Turn it up Supporting Member

    Feb 10, 2019
    Lower 48
    That kinda looks like it would be somewhat of a big-Ol'hairdo to wire .
    Also consider that stock humbucking "P" pick-ups are spun in two directions so one pickup
    Would be pushing the speaker out the other would be pulling the speaker in .
    Might want to consider using pick-ups spun the same and with the same magnetic Polarities .

    Last edited: May 25, 2019
  3. Clark W

    Clark W Just Say No To Tort! Supporting Member

    Aug 26, 2018
    So with the pickups as they are now, spun in two directions, how does that work going out one output to one amp as far as pulling / pushing?

    And...

    Because of this pushing / pulling I take it that the pickups on a Ric with stereo output or a Yamaha Billy Sheehan Attitude Limited 3, has the pickups all wound in the same direction?
    The Yamaha has their own custom woofer and DiMarzio Will Power (split P) pickups in the same bass.

    Yes I'm picking your brain on this....
    Thanks!

  4. Killed_by_Death

    Killed_by_Death Snaggletooth Inactive

    One half of a split-coil pickup is reverse-wound, reverse-polarity from the other. When wired correctly it will not be out of phase, but if you lower the volume of one half of it you will defeat the hum-canceling benefit of having a split-coil pickup.
    Here's a RIC schematic to peruse:

    http://www.rickenbacker.com/pdfs/19557.pdf

    Clark W likes this.
  5. Honkey tonk

    Honkey tonk Turn it up Supporting Member

    Feb 10, 2019
    Lower 48
    Not really sure how the Ric and Billy Sheehan basses are wired .
    But if your running two signals with two amps of the same . you would want the
    Phase to be the same .

    Last edited: May 25, 2019
    Clark W likes this.
  6. Honkey tonk

    Honkey tonk Turn it up Supporting Member

    Feb 10, 2019
    Lower 48
    I might be able to make some pickups, not sure when. Kinda need the practice and kinda want to try
    A new material combination so not sure how they would sound.

    Clark W likes this.
  7. craigie

    craigie

    Nov 11, 2015
    calgary
    Wow,
    How to over complicate the most simple and useful design.

    A P pickup is a split pickup, not two front and back pickups. They are wired together to hum cancel. If you separate them out stereo you will lose that and what you will gain is the ability to mess up the signal between the EA and DG strings.

    Only do what you’re planning if you actually have two pickups and something to gain. Also, your scheme looks very ugly and isn’t functional: too easy to brush those forward knobs. A stereo arrangement would be better with one stereo jack. No need for a switch: the jack is switchable for a stereo or mono cable. Stacked volume/tone would save some space and get you down to two shafts. I’m sure KBD could help with a wiring scheme.

    jamro217, -Asdfgh- and Axstar like this.
  8. Clark W

    Clark W Just Say No To Tort! Supporting Member

    Aug 26, 2018
    Thanks for the schematic...

    So the Ric is really wired mono for pup selector, volume and tone controls, all to one output(mono), with the second output tied in right before the end of the chain(mono output). Therefore everything that is going to the mono output is also going to the stereo output. Or the same signal can go to one output or both. Pretty simple, and could be done relatively easy, just wire in a second output jack, and leave everything else alone, and no extra controls needed for that method.

    The Yamaha Sheehan model is more complicated with stereo mode splitting the pickups between the outputs and they use a high cut switch for the front pup as well. Kind of scared to see the schematic for that.

    From Yamaha's website - While stereo output jacks provide separate outputs for the front and middle pickups, mono output is also available. A high cut switch in the front pickup tone control boosts bass output from the front pickup.

  9. Clark W

    Clark W Just Say No To Tort! Supporting Member

    Aug 26, 2018
    As far as complicating things, tell that to Yamaha and Billy Sheehan :D

    As far as ugly and not very functional? I don't think it's ugly at all. But hey, that's my take on it. And I don't see how the location would be easy to brush the forward knobs. I'm not strumming across the strings like it's a guitar. I use my fingers, mostly over, and sometimes slightly forward of the pups on this bass. And the rare times I do use a pick I'm back closer to the bridge.

    But...

    You do bring up a very good point about the pickups and E&A vs the D&G strings.

    You also bring up a very good point about the stereo jack. Split the signal at the jack, and then use a single trs to dual ts cable to get the signals to two different amps. I really like the idea of keeping it down to one output jack.

    So leave the bass as is, change the output to a stereo one, use the trs to ts cable to get two signals from the bass, and you would have what I basically have done experimenting with a Source Audio pedal that has two outputs. One source into the pedal and two going out to seperate amps. Just do it at the output jack of the bass instead. There's no splitting the pups, no need for anymore controls or switches.

    Very simple, very cheap, very easy to do, but effective, and it wouldn't make the bass "ugly" :smug:.

    craigie likes this.
  10. Axstar

    Axstar Inactive

    Jul 8, 2016
    Scotland.
    It can be done. I've made a stereo P bass out of a copy years ago. You get a persistent background hum from plugging into two amps simultaneously, and each pickup half senses a wee bit of the strings of the other half as well.

    Going into 'solution looking for a problem' territory.

  11. Nashrakh

    Nashrakh

    Aug 16, 2008
    Hamburg, Germany
    What I'm wondering is this: Why stereo split the P pickup? Why not add a bridge pickup and wire the neck and the bridge pickup to stereo? That's something I'm planning for my next build. But maybe I'm not seeing what you're trying to do here.

    Clark W likes this.
  12. two fingers

    two fingers Opinionated blowhard. But not mad about it. Gold Supporting Member

    Feb 7, 2005
    Eastern NC USA
    This is an awful idea IF you are planning on using two halves of a traditional P bass pickup. Awful.

    If you want that kind of control, get something designed for it.

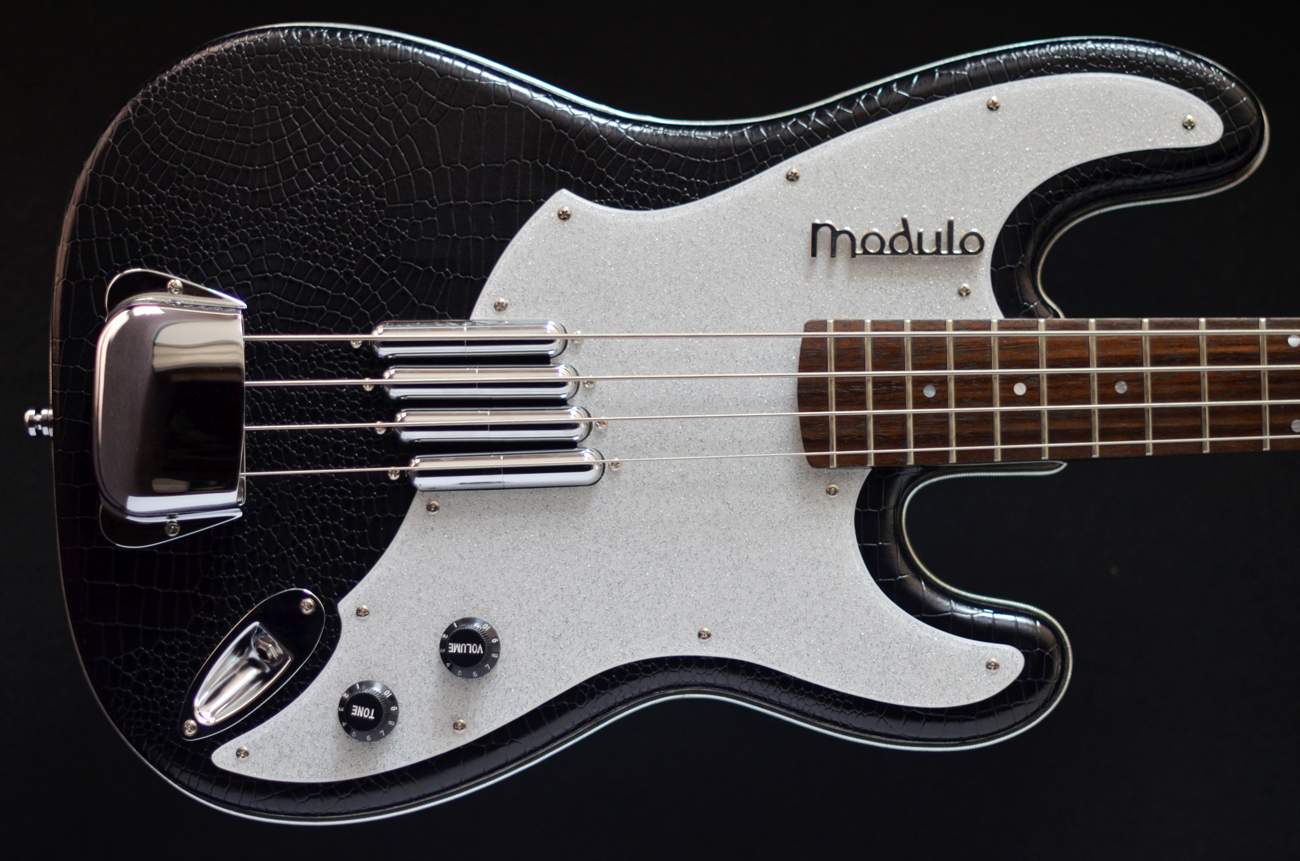

    Ubertar Hexaphonic Guitar Pickups - One and Two String Pickups for guitar and bass

    Or go this route with an actual different pickup for each string and wire the EA and DG pickups together.

    BUT, keep in mind that magnetic fields aren't THAT directional. You'll get bleed from on string to the next anyway. It's not as though the magnets on your pickups are "pointed" straight up at the strings. I personally never understood the whole adjustable pole pieces thing. I have noticed tremendous differences adjusting the height of whole pickups. I have maxed out the adjustable poles on my DiMarzio pickup and never noticed a difference in sound from string to string.

    By trying to use a standard P pickup to pull it off, you're trying to jam a square peg into a round hole.

  13. Stereo split-strings wiring has been around for many years. IIRC, I think I first saw it in Adrian Legg's book published back in the early 80's.

    As others have said, each will hum on their own, but I say go for it. If you've got two amps, this could be pretty fun to mess around with. Especially with pog pedals etc around these days.

    Here's how to wire it....

    Personally, I'd use stacked pots, and a stereo jack, so that the bass looks pretty standard, and functions normally with a regular mono lead, using the top knobs. It also means you don't have to route under the 'guard.

    Clark W likes this.
  14. Along these lines of a split-signal. I have a fretless Epiphone Zenith that has a magnetic pickup at the base of the fretboard (NanoMag) and a piezo at the bridge (NanoFlex). They are wired to dual output jacks (somewhat visible in the pic).

    One output jack is mono - for both pickups. The other is stereo - for the NanoFLex. Plugging into the stereo jack (NanoFLex) converts the mono jack to stereo (NanoMag only). TBH - I've never actually plugged into both jacks - just seems unnecessarily complicated.

    Controlwise - there are stacked bass and treble knobs, a common volume knob and a blend knob. Oddly, I tend to keep the blend knob 100% NanoFlex/piezo.

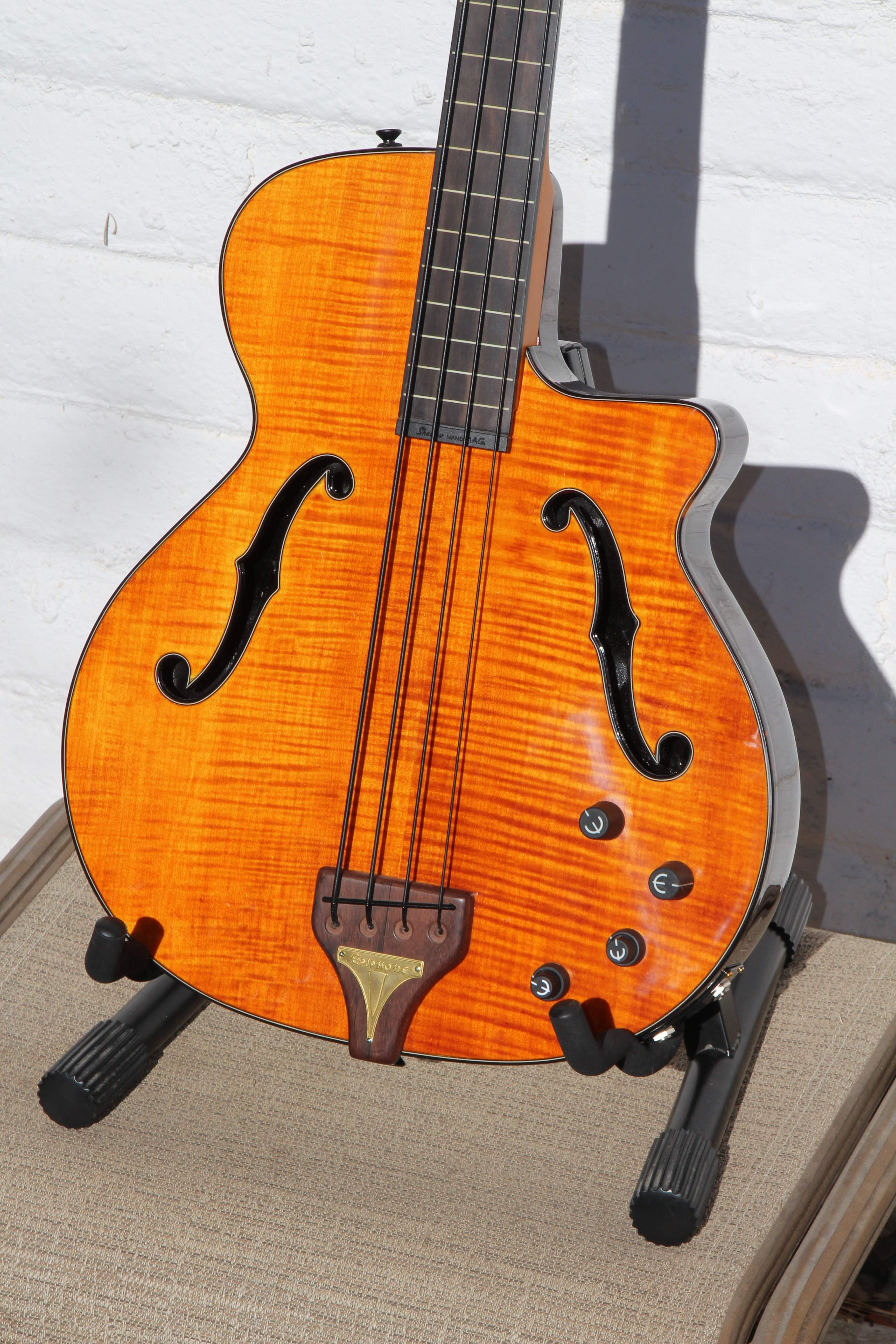

    It is a beautiful bass with a wonderful sound. Here's a pic:




    Attached Files:

    Clark W and Matt Liebenau like this.
  15. Honkey tonk

    Honkey tonk Turn it up Supporting Member

    Feb 10, 2019
    Lower 48
    Might help to paint the sides of the bobbin with nickel paint to redirect the magnetic field ?
    If your phase of both pick-ups are the same I dont see an issue with strings bleeding through .

  16. sikamikanico

    sikamikanico

    Mar 17, 2004
    Wiring aside, what exactly are you trying to achieve? Do you have specific use(s) in mind, or just experimenting?

    If you want to process highs and lows separately, you want two pickups (not two halves of a split p), spaced on the bass to give you two sounds. Like PJ, or a P with a neck pickup (Sheehan style). I personally found the PJ route didn’t work well in stereo, but never tried the Sheehan arrangement. I found that duplicating the P signal later in the chain (with a Boss LS2 or similar pedal) worked better for what I wanted. Mind you, I don’t think you can passively “duplicate” the signal from one pickup (in this case, standard P) by wiring it to a stereo output.

    But if you indeed want to split the sound from E and A strings from the sound on D and G strings, you can do that passively, like you described. However, I’m not sure I see this being a useful mod? I guess it would allow you, for example, to play a clean bass line on EA side, and a dirty/processed melodic line on the DG side. Or play octaves with different processing on either side, maybe simulate a disco synth line :)

    So depending on what you want to achieve, your scheme might work or not work.

    Last edited: May 26, 2019
    Clark W likes this.
  17. monkeyland

    monkeyland

    Jul 1, 2008
    Ft Myers, Florida
    Endorsing artist: Curt Mangan Strings, JH Audio
    Yep. That bass has only one pickup.

    lz4005 and ctmullins like this.
  18. nilorius

    nilorius Inactive

    Oct 27, 2016
    Riga - Latvia
    P-type pickup is only one pickup, it just looks like two, so you can't.

    ctmullins likes this.
  19. ctmullins

    ctmullins fueled by beer and coconut Gold Supporting Member

    Apr 18, 2008
    MS Gulf Coast
    I'm highly opinionated and extremely self-assured
    I think this is the crux of the confusion.

    Terminology is important. What do we mean when we say "pickup"? To me a pickup is a "device which converts mechanical string energy into electrical energy, and spans all strings". By that definition a P-bass has one pickup.

    If you're looking to add a second P pickup elsewhere on the bass, and you want one of them to go to one amp and another to go to another amp, that's fairly straightforward, and can be done easily using a switched jack - the switched jack lets you have automatic mono/stereo switching when using one or two cables. This Switchcraft jack would work: Switchcraft : Product Summary

    If, as others have interpreted, you want to send the E and A strings to one amp while sending the D and G strings to another amp, well, that's also possible, but of dubious benefit. In that case you'll want to wire the two halves of the single pickup independently, still using a switched jack.

    Last edited: May 26, 2019
    jamro217 and Killed_by_Death like this.
  20. Killed_by_Death

    Killed_by_Death Snaggletooth Inactive

    A split-coil pickup is actually two halves of a pickup combined to make one.
    Since it has two coils, it is split-able. Heck, it's in the name, split-coil.

    jamro217, Clark W and Honkey tonk like this.
