Headless hardware brainstorming thread

The kubicki and modern NS styles are pretty doable in a diy fashion. The patents are expired on both iirc and they show pretty nicely how to make them.
That depends on which patents. In the US, patents can be anywhere from 14-20 years depending on type of patent. A patent will expire early if renewal fees aren't paid, and time extensions are possible in certain circumstances that add up to three years. So basically any patents from before 1999 can be considered expired, any patents between 1999-2002 are probably expired, anything between 2002-2008 might be in effect, and anything patented after 2008 should be assumed in effect. You can check the USPTO site to be sure, but since you're in Finland you have to check whether any filed patents are effective in your area.

Not that this particularly matters if you're building something for yourself. In the US, patents can't prevent individuals from copying protected IP for private use, but again since you're not in the US it depends on your country's laws and which intellectual property treaties your country has signed.

And I swear, I've only learned and retained as much as I know about patents because of the controversy over GIF images being patent-encumbered, which was intensely relevant to my profession a couple decades ago (since if we didn't do things right UNISYS could plausibly bill our clients for superfluous thousands of dollars each due to their websites having animated GIFs that had not been produced with appropriately licensed software).

  • Like
Reactions: RyoCanCan
That depends on which patents. In the US, patents can be anywhere from 14-20 years depending on type of patent. A patent will expire early if renewal fees aren't paid, and time extensions are possible in certain circumstances that add up to three years. So basically any patents from before 1999 can be considered expired, any patents between 1999-2002 are probably expired, anything between 2002-2008 might be in effect, and anything patented after 2008 should be assumed in effect. You can check the USPTO site to be sure, but since you're in Finland you have to check whether any filed patents are effective in your area.

Not that this particularly matters if you're building something for yourself. In the US, patents can't prevent individuals from copying protected IP for private use, but again since you're not in the US it depends on your country's laws and which intellectual property treaties your country has signed.

And I swear, I've only learned and retained as much as I know about patents because of the controversy over GIF images being patent-encumbered, which was intensely relevant to my profession a couple decades ago (since if we didn't do things right UNISYS could plausibly bill our clients for superfluous thousands of dollars each due to their websites having animated GIFs that had not been produced with appropriately licensed software).
I was checking google patents on them, gotta check again.

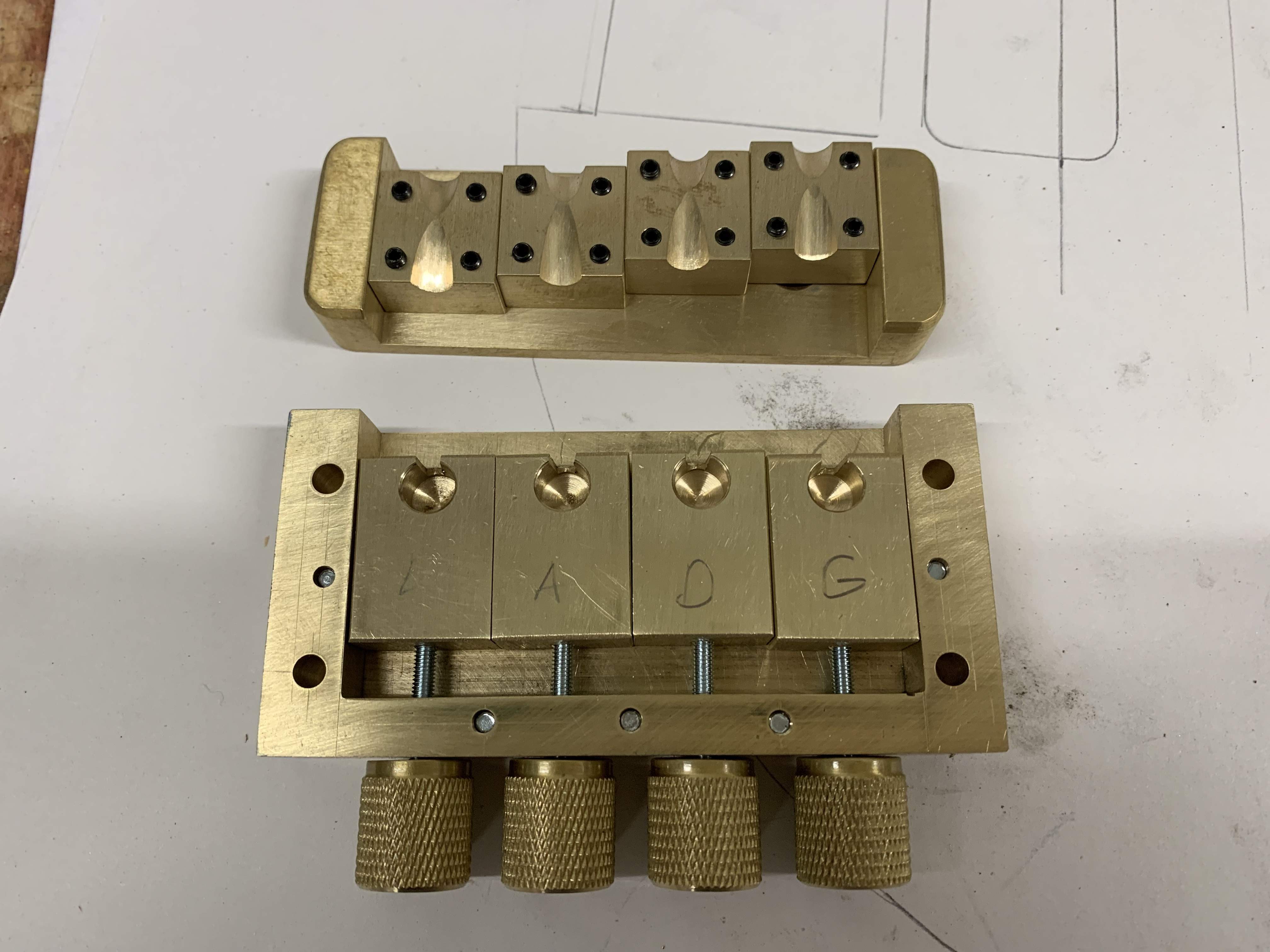

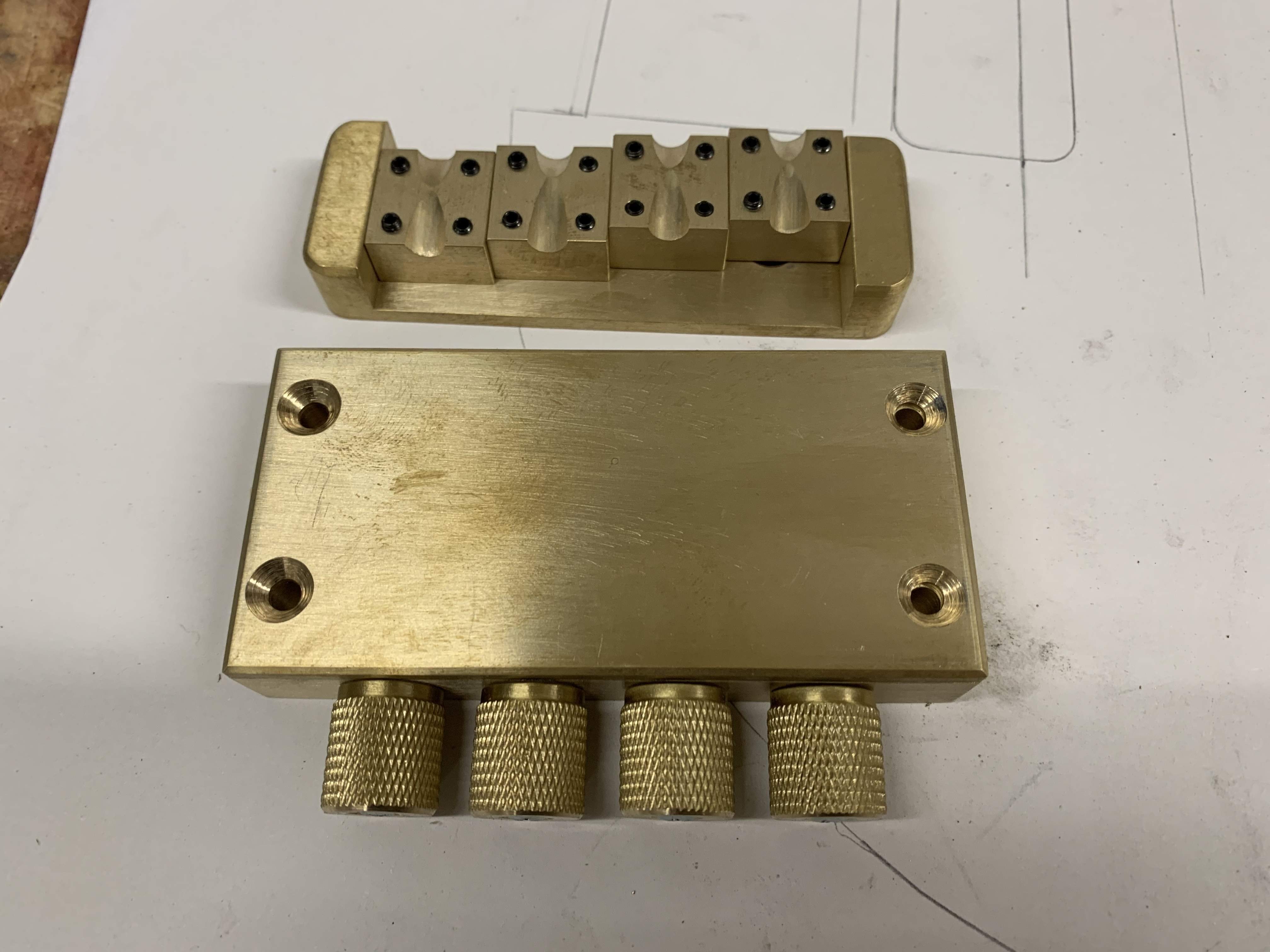

Knobs arrived and were cut to length and threaded for M3 screws. I need to order M3x40 stainless machine screws and washers. I see no need for more complicated headless tuning system. This kind of system is cheap and easy to make with pretty basic tools and most important, works without any hassle.

View attachment 4837375 View attachment 4837376

Knobs arrived and were cut to length and threaded for M3 screws. I need to order M3x40 stainless machine screws and washers. I see no need for more complicated headless tuning system. This kind of system is cheap and easy to make with pretty basic tools and most important, works without any hassle.
Nice and simple. Just needs a brushed finish and it'll look awesome :thumbsup:

I’m planning to brush it with red Mirka abrasive pad and spray a thin coat of clear over it. I may route some MPU logo with cnc on the top plate of the tuner before finishing or cut a template out of vinyl and spray the logo before clearcoating.
Can you lock the saddles into place? Trying to look at the pic but can't see anything that'd lock them.

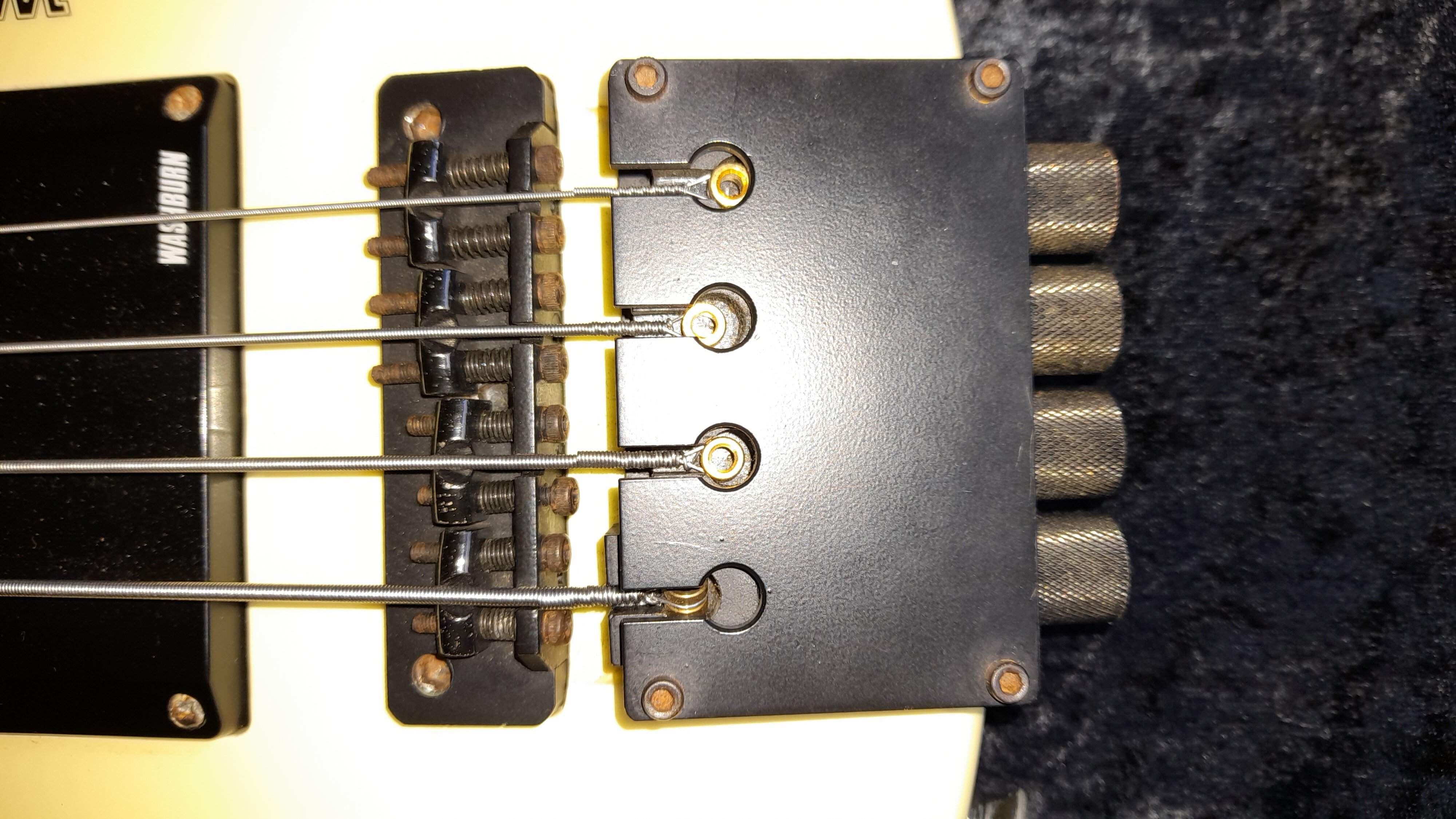

Two adjuster screws per saddle? Interesting. It looks like you might need to adjust the ball end on your E string. :D

Funnily enough the picture made me adjust the bridge screw which was slightly loose. I can see what you mean about the E string but don't think it can slip out of the block. The poor thing is a bit of a case queen and I need to spend some time getting rid of the rust off a few screws and play the thing!
