Help! 70s fender logo question

JaySpade

JaySpade

Jul 11, 2010
501
7
42
Nashville TN
#1

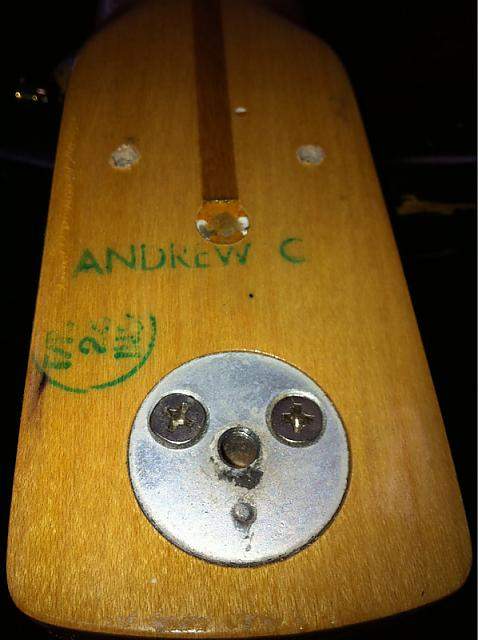

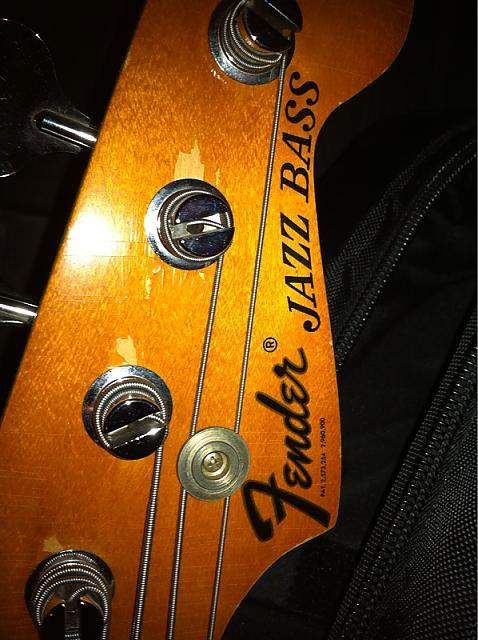

I've got a 76 jazz that I'm trying to sell and have a buyer with a logo question. Some 76's have pat pending followed by 4 sets of numbers. I've also seen some that have serial numbers on the headstock that go s6xxxxxx. Mine has serial on neck plate and pat pending followed by 2 numbers. Anyone seen this before.


Attachments

  • image-3094539092.jpg
    52.5 KB · Views: 3,539
#2
They must have been transitioning from the "tv logo" (big serif font like yours) to the late 70's-80's narrower sans-serif font. (I gather '76 is when they started transitioning...)

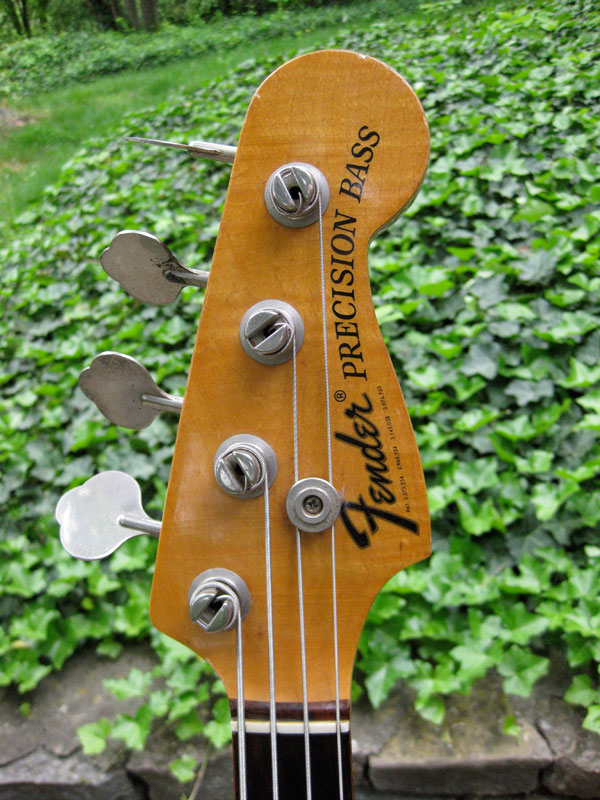

My '71 P with "tv logo"


My '79 Jazz


Yours has the serial on the neckplate (like you said..., and neckstamp for dating...) Later ones had serial on the headstock only.

This is the page I use for Fender dating info, and they cite 1976 as the year they made the switch:

http://www.provide.net/~cfh/fender.html

Serial Number on Peghead Decal.
U.S. made Fenders, starting in mid-1976 has the serial number on the peghead. Note the following number could be off as much as two years. Generally speaking, a "S" prefix equals the 1970's, "E" prefix equals the 1980's, and "N" prefix equals the 1990's. Note "E" and "N" prefix models are sometimes also Japanese-made (see below).
7600000 ("76" in bold) = 1976-1977
800000s = 1979-1981
1000000 to 8000000 = 1976-1981 (7 digits)

S1 to S5 + 5 Digits = 1979-1982
S6 + 5 digits = 1976
S7 + 5 digits = 1977-1978
S8 + 5 digits = 1977-1978
S9 + 5 digits = 1978-1981
E0 + 5 digits = 1979-1981
E1 + 5 digits = 1980-1981

E1 + 5 digits = 1982
E2 + 5 digits = 1982-1983
E3 + 5 digits = 1982-1984
E4 + 5 digits = 1984-1985, 1987-1988
E8 + 5 digits = 1988-1989
E9 + 5 digits = 1988-1990
Click to expand...

There have been minor discrepancies with the info on this page (regarding some body woods, finishes, etc...) but it's a good place to start.

I'd nominate TB user JohnK_10 as the "go to guy" for these kinds of questions. He had his hands all-up-in Fender basses back in those days, so he knows many first-hand answers to these kinds of questions.

#5

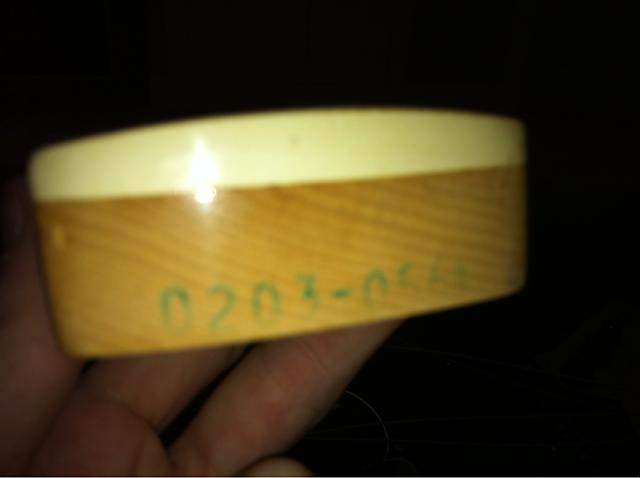

Looks good, what are the numbers stamped on the neck, I can see 0203, hard to figure out the rest. Anyway, here is a decoder from the above mentioned site:
Link Removed

1972 to 1980 Neck Stamps Explained.
This information was provided by Greg Gagliano. The 1972-1980 eight digit code is similar to the previous 1969-1971 system. Example, Music Master (s/n 595121) with code 49002153. The first 6 digits are paired off and the last two digits are taken singly. So that gives us 49 00 215 3 where:

* 49 = model code (Musicmaster, Mustang, Bronco)
* 00 = neck code (rosewood fingerboard)
* 21 = week code (week 21)
* 5 = year code (1975)
* 3 = day of the week code (Wednesday)

Model Codes Used from 1972 to 1980.
Model codes (first pair of digits):
o 01 = Precision Bass
o 02 = Jazz Bass
o 04 = Mustang Bass
o 08 = Telecaster Deluxe
o 09 = Stratocaster
o 13 = Telecaster, Telecaster Custom, Telecaster Thinline
o 49 = Musicmaster, Mustang, Bronco

Neck Codes Used from 1972 to 1980.
Neck codes (second pair of digits):
o 00 = rosewood fingerboard
o 01 = rosewood fingerboard
o 03 = fretted maple neck OR skunk stripe neck with rosewood board
o 10 = fretless maple neck

Now try and decode a Precision Bass (s/n 647149) with code 01031051. You should get:

* 01 = Precision Bass
* 03 = fretted maple neck
* 10 = Week 10
* 5 = 1975
* 1 = Monday

Here's a Telecaster (s/n S725092) with rosewood fingerboard and code 1303167?.

* 13 = Telecaster
* 03 = rosewood fingerboard on skunk stripe neck
* 16 = Week 16
* 7 = 1977
* ? = day unknown as digit was illegible
