Help! Installing Tone Monster Pre-amp in a Squier Active Jazz Deluxe V

Discussion in 'Pickups & Electronics [BG]' started by Smurf_Byte, Jun 13, 2020.

  1. Jun 13, 2020 #1
    Smurf_Byte

    Smurf_Byte

    Aug 21, 2011
    Connecticut

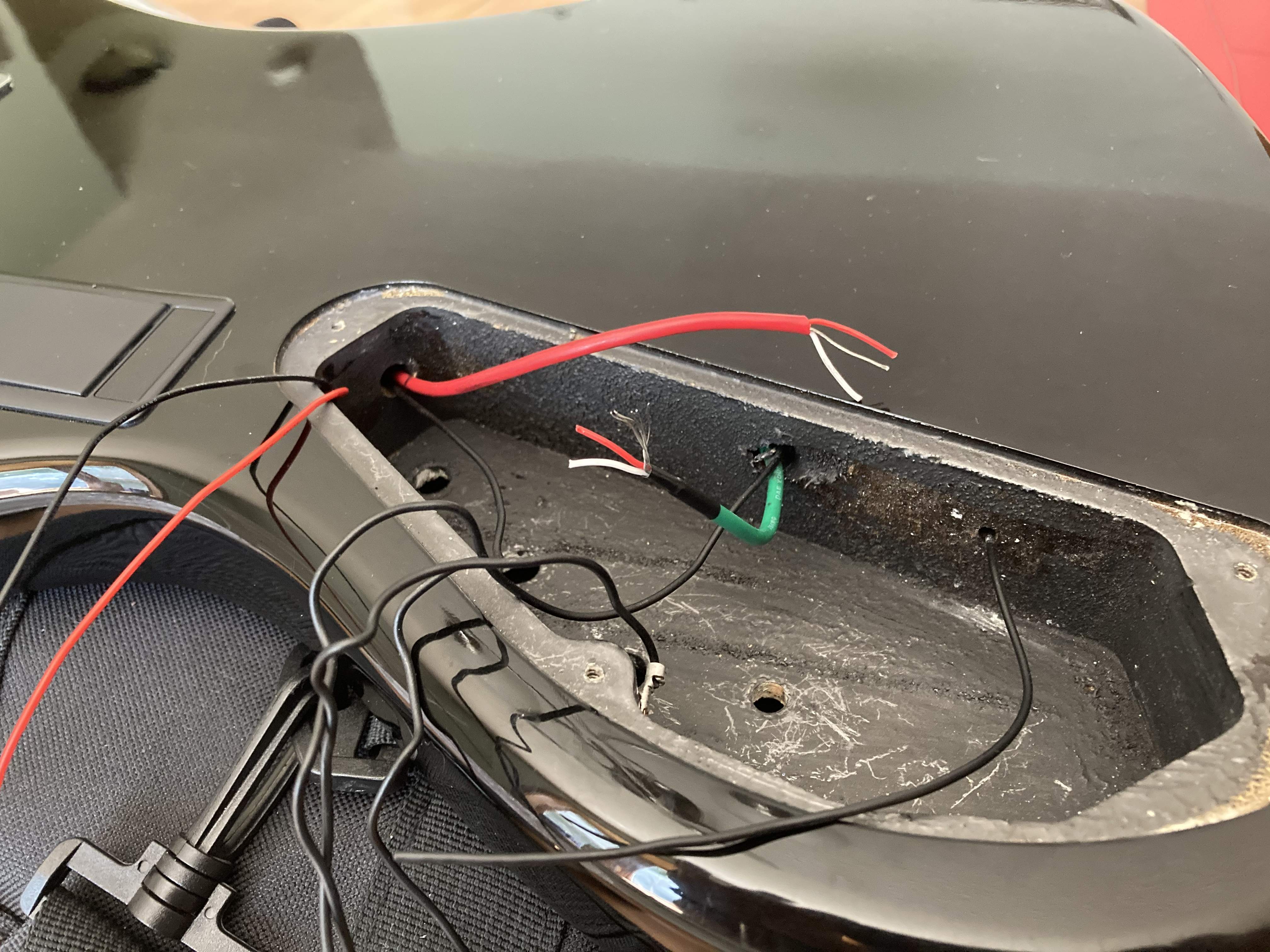

    So, the instructions seem pretty simple, but I’ve got some extra wires here. Each pickup has three small wires, plus a larger ground wire coming off of it. Directions only mention 2 pickup wires going to the balance pot. Is the third wire an extra ground? Looked like the were going to the same spot on the original pre-amp. Is the white wire hot/signal? Also this bass has a lot of ground wires in it. Each pickup, bridge, and cavity wall. Should I try to get these all to the volume pot like the instructions say to do with the bridge ground? 98895091-4C2C-45D5-9270-6224F1B7D288.jpeg A66F1A39-1563-4CDA-B57F-AB0FF0C809F4.jpeg


    Attached Files:

  2. Jun 13, 2020 #2
    kodiakblair

    kodiakblair

    Jun 14, 2007
    Falkirk,Scotland
    I'm only seeing 2 wires and a bare ground in the photo.

    I'd have white as hot for the neck pickup and pair red/bare as ground. For the Bridge pickup try red as hot and pair white/bare for ground. If you feel there isn't enough room for 4 grounds going to the middle contact of the PCB terminal block, join them and run a single wire to the terminal block.

    This just leaves your bridge ground to solder back of a pot,put your cavity ground there too.

  3. Jun 14, 2020 #3
    Smurf_Byte

    Smurf_Byte

    Aug 21, 2011
    Connecticut
    You're right, I was referring to the bare ground as a third wire. Hoping to wrap this up today...

  4. Jun 14, 2020 #4
    kodiakblair

    kodiakblair

    Jun 14, 2007
    Falkirk,Scotland
    Please report back with how you got on :thumbsup:
