Help- Pickup Misalignment

I

ianpaul

Sep 27, 2009
17
0
30
Aultbea,Ross-Shire,Scotland UK
#1

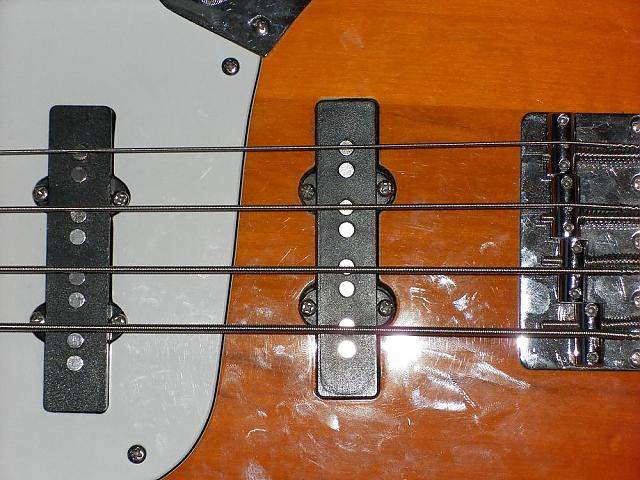

I've had a cheap Jazz bass copy for almost two years. When it arrived, i notice the strings did not pass above the pole pieces in the correct place, especially the E string. I never did anything about it, partly because it was so cheap and partly because it sounded all right.

Recently,though the E string has been sounding very hollow. It lacks bass but if I EQ it, it just gets all muffled. It's worst when just using the neck pickup or with both- bridge on it's own is alright, but not great.

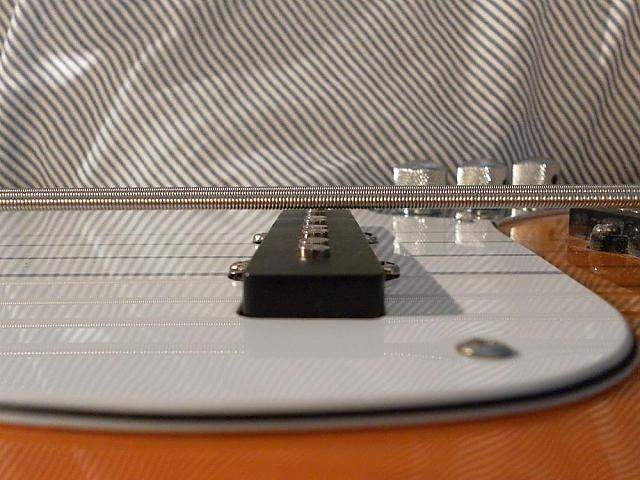

Also, could it be a pickup height problem?


Any ideas on how to solve the problem?
Thanks guys :)


Attachments

  • SAM_0134.jpg
    47.3 KB · Views: 78
  • SAM_0148.jpg
    31.2 KB · Views: 107
#2
In general try to raise the pickup(s) so that they get as close to the strings as possible without the string ever contacting the poles. The closer they get the greater the output i.e. the more you have to work with. Also, your string(s) may be worn out. Are your fingers getting gray when you play? They don't last forever.

#4
ianpaul said:
I've had a cheap Jazz bass copy for almost two years. When it arrived, i notice the strings did not pass above the pole pieces in the correct place, especially the E string. I never did anything about it, partly because it was so cheap and partly because it sounded all right.

Recently,though the E string has been sounding very hollow. It lacks bass but if I EQ it, it just gets all muffled. It's worst when just using the neck pickup or with both- bridge on it's own is alright, but not great.
Also, could it be a pickup height problem?


Any ideas on how to solve the problem?
Thanks guys :)
Click to expand...

Wow, usually it's somebody who is torqued because the alignment is 1/16"-1/8" off, but this really is awful! It doesn't look like that pickup is hearing the E string at all.

How does it look at the bridge pickup?

#5

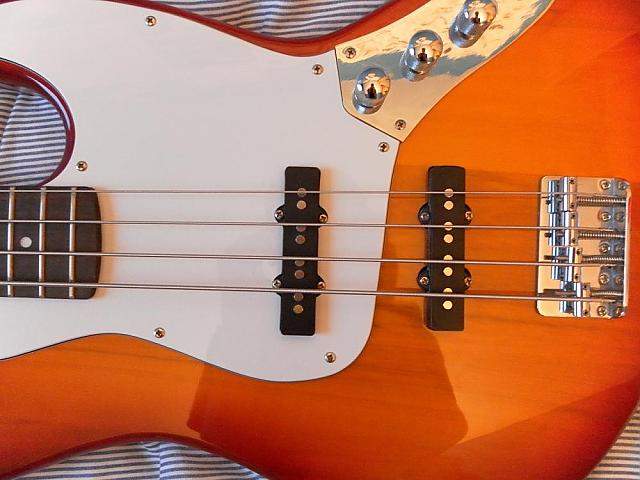

wow yeah, that's not even close. how about a shot of the bass body face-on showing both pickups, the end of the neck, and the bridge?

you might need to rout the pickguard just a little and re-position, or just get pickups with a continuous bar magnet, rendering spacing concerns moot. ("selects" are bottom of the barrel, i'd avoid wasting the money.)

in the mean time, raising them up will make the imbalance worse, so i'd avoid that.

#11
Pilgrim said:
Yup. The neck is tilted and you can see the G-string is almost at the edge of the neck. Just loosen the screws, force the neck back into a proper alignment, tighten the screws. Your problem will most likely go away.
Click to expand...

Hm...I'd swear that the neck pickup is actually wider than the bridge pickup. Swinging the neck over will help, but this is pretty wacky...

#16
ha! that is totally a bridge pickup stuck in the neck position!

what kind of bass is this? even the cheapest squiers aren't that badly assembled.

you do need to loosen, pull over, then re-tighten your neck to get the outer strings to line up with the edges, but that pickup will never be remotely right. it's the wrong size and not centered.
