Help with Ibanez SR300 wiring

[Dan_reeves]

Hi everyone. Hoping for some wiring help. This SR300 was donated to our church. The wiring was gutted when we got it. Looks to be in pretty good shape otherwise. I have a Belcat preamp on the way that I believe to be appropriate to this bass. I am pretty handy with the soldering iron, but my experience is with passive P basses.

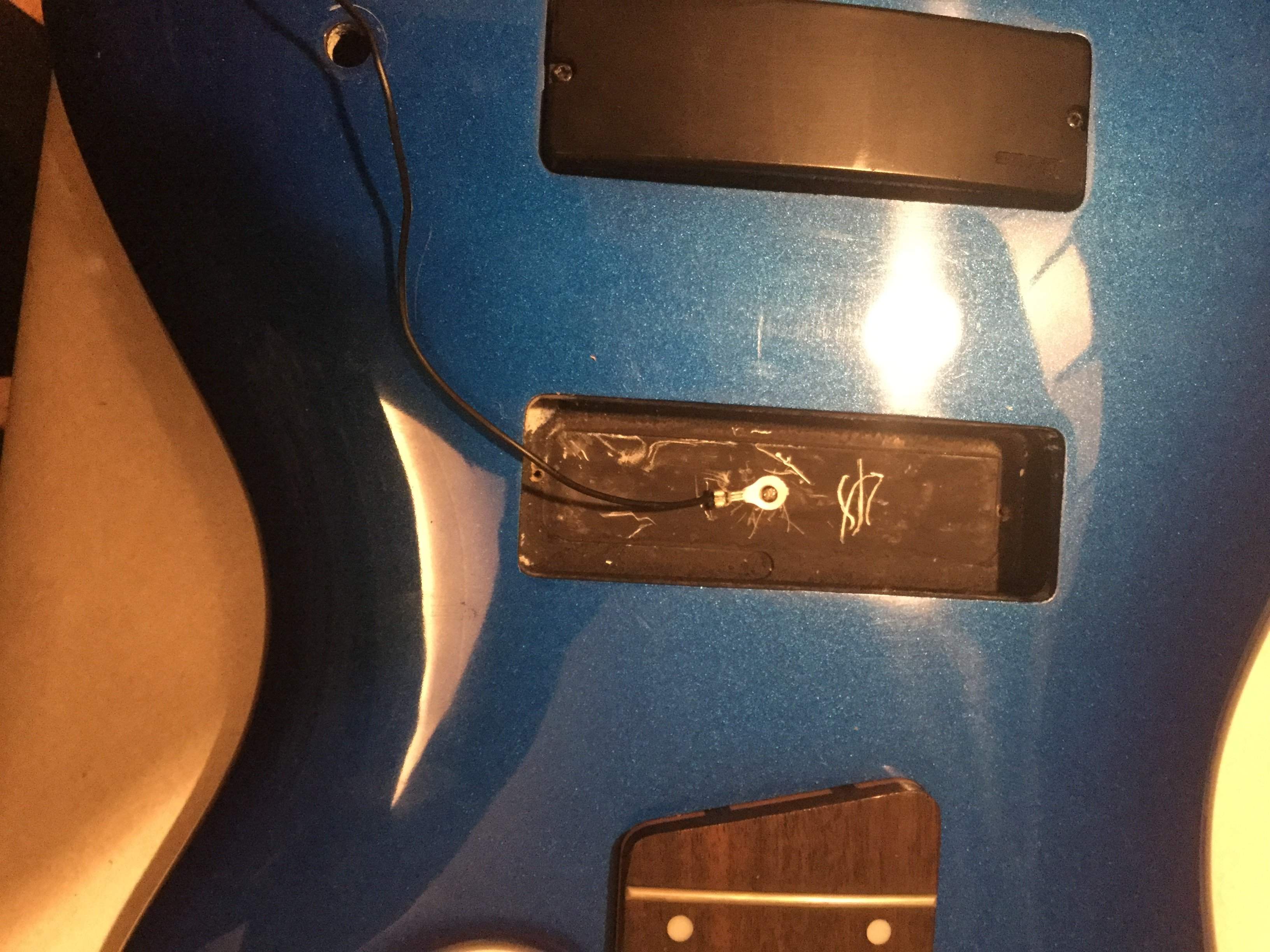

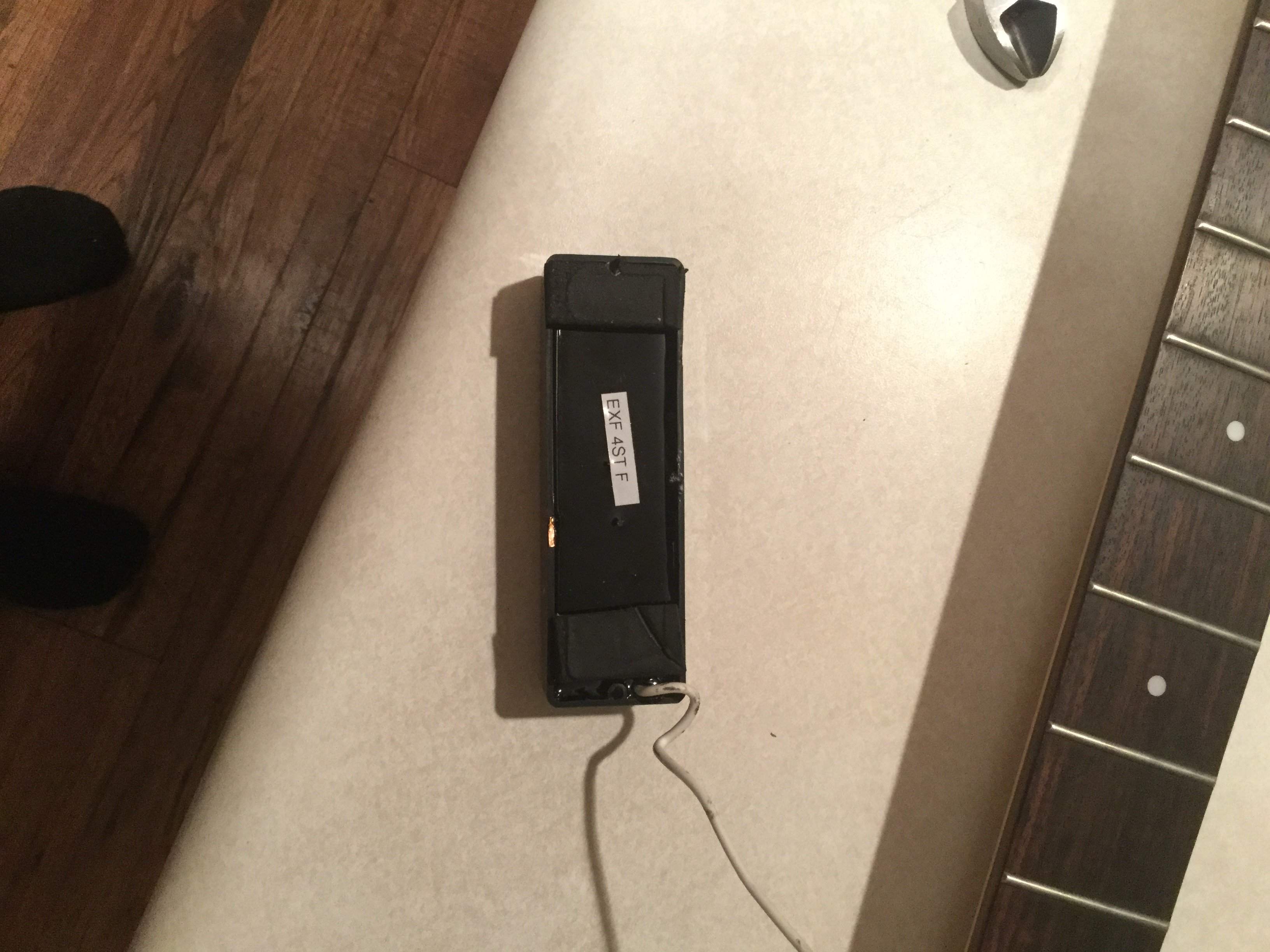

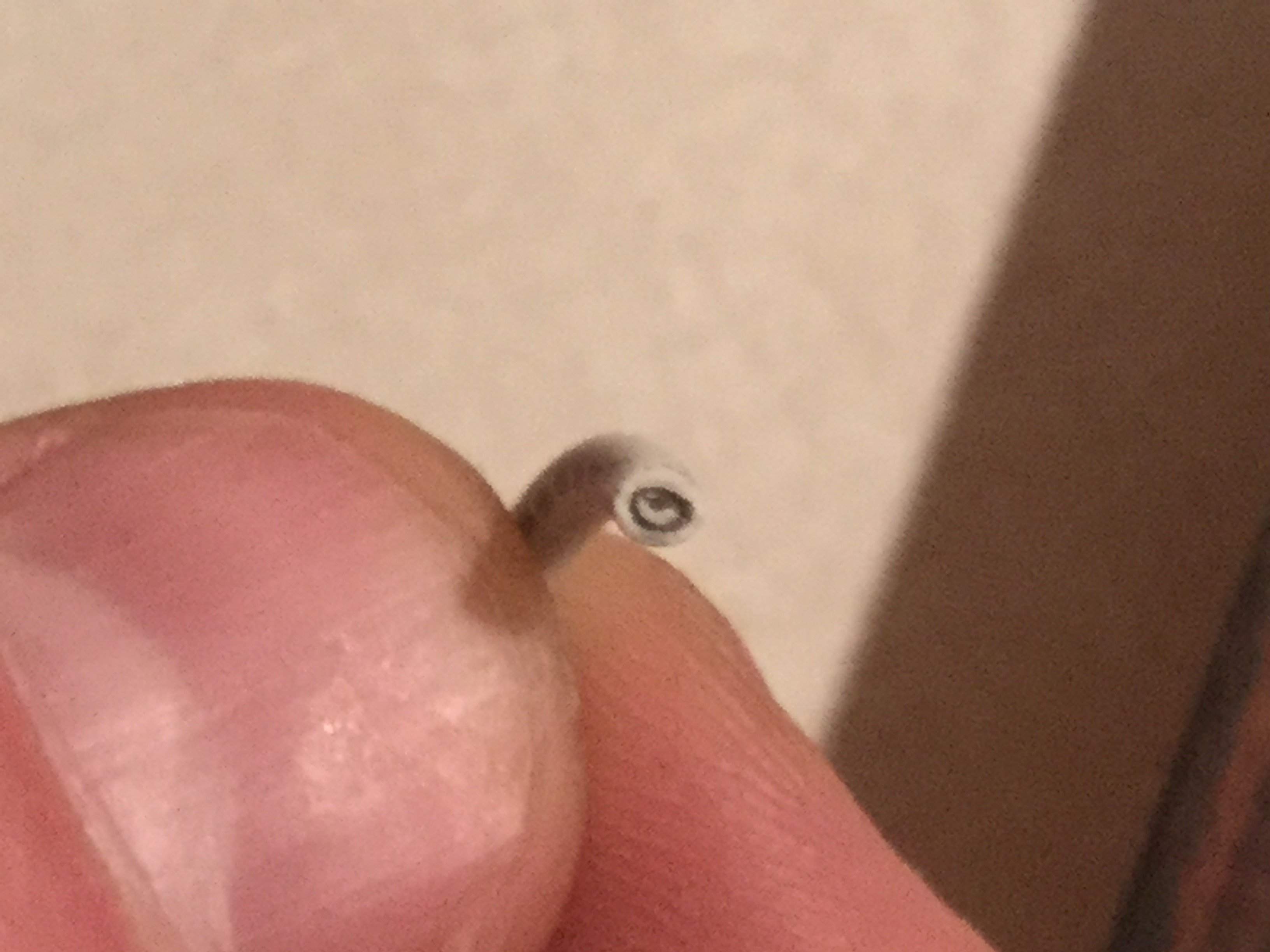

The humbuckers have a wiring that I have never seen before. It looks like a hot wire inside of some other wiring? I have a picture to describe what I mean. Also, there is what looks like a ground wire underneath the pickups. Can someone help me with what I should solder and where? It would be much appreciated!!! Here are some pictures I took. Thank you!



[202dy]

Center wire is hot. Surrounding wire is shielding. Connect the shielding to ground.



[Dan_reeves]

Does the shielding and the black ground wire under each pickup get wired to the same spot? Thanks!



[202dy]

Shield to back of potentiometer. Ground wire from shielding paint can go to the same spot. Just like a P bass.



[JustForSport]

Does the shielding and the black ground wire under each pickup get wired to the same spot? Thanks!

Black wire may go to preamp if req'd.



[ex-tension]

Preamp is not a must. You can wire it like a passive jazz bass right away.



[Dan_reeves]

Preamp is not a must. You can wire it like a passive jazz bass right away.

I thought about doing this also. May yet do it. I had read that these stock pickups were low output, so I figure a preamp made sense. Especially since there originally was a preamp in there to begin with. The preamp I bought was was really cheap ($14) so if it is junk I will try the passive route. Thanks all!
