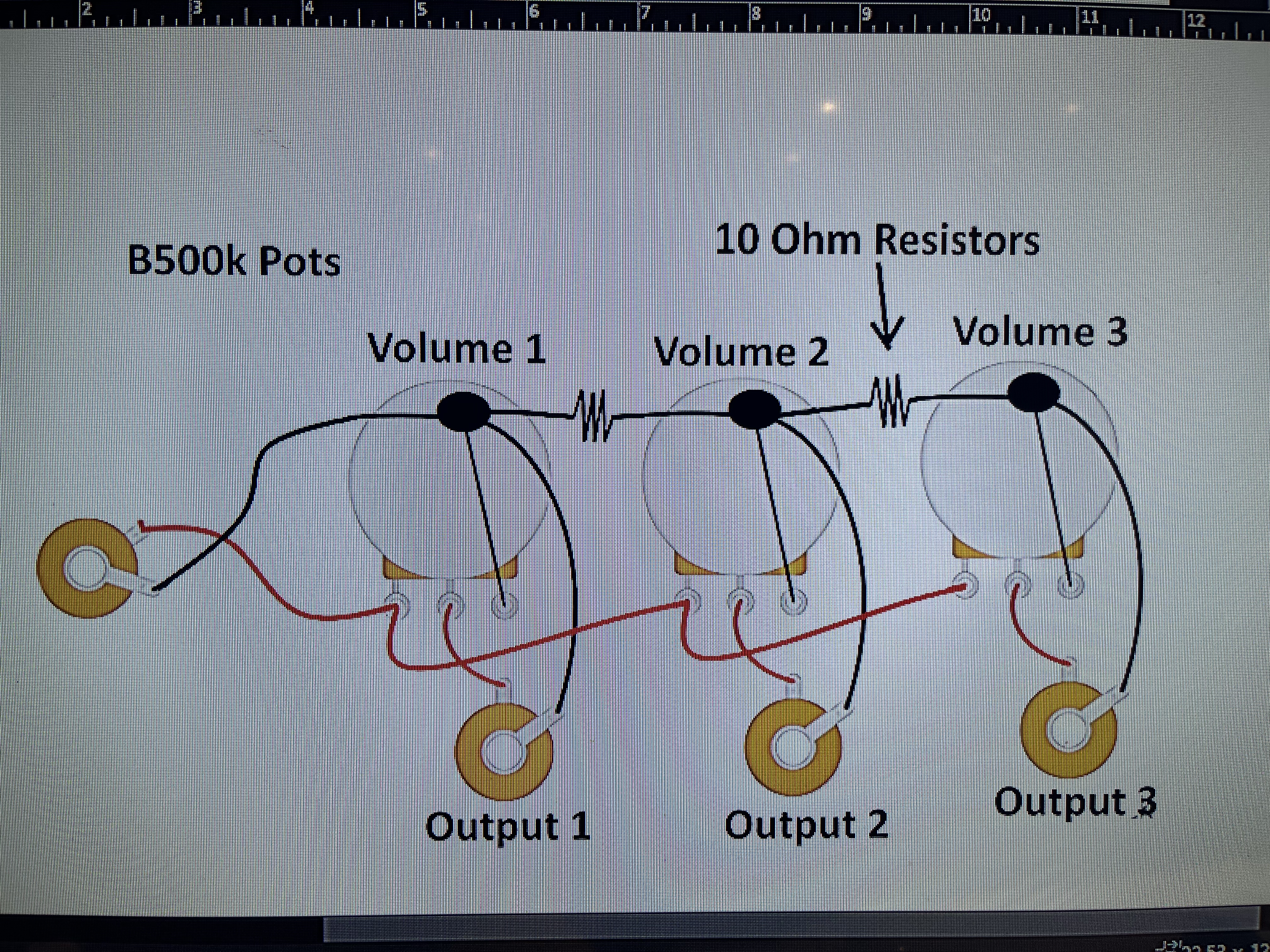

Not sure if this is the right place to post this but I’m building a little pedal to work as a A/B with volume controls. I just wanted to ask if the diagram I have drawn up would work or if anyone has inexpensive recommendations lol.
basicly will this work?
The 10 ohm resistors are to break the ground loop almost like a ground lift in a pedal.
I use two amps and I’ve been tired of having to plug and unplug everything when I want to play and I have OCD so I don’t like having cords laying on the ground.
